Richauto Cnc Remote Control System DSP Motion Controller For 3 Axis 4 AxisRouter Machine Wood Cutting

Product Overview

Description

Richauto Cnc Remote Control System DSP Motion Controller For 3 Axis 4 AxisRouter Machine Wood Cutting





Product Features:

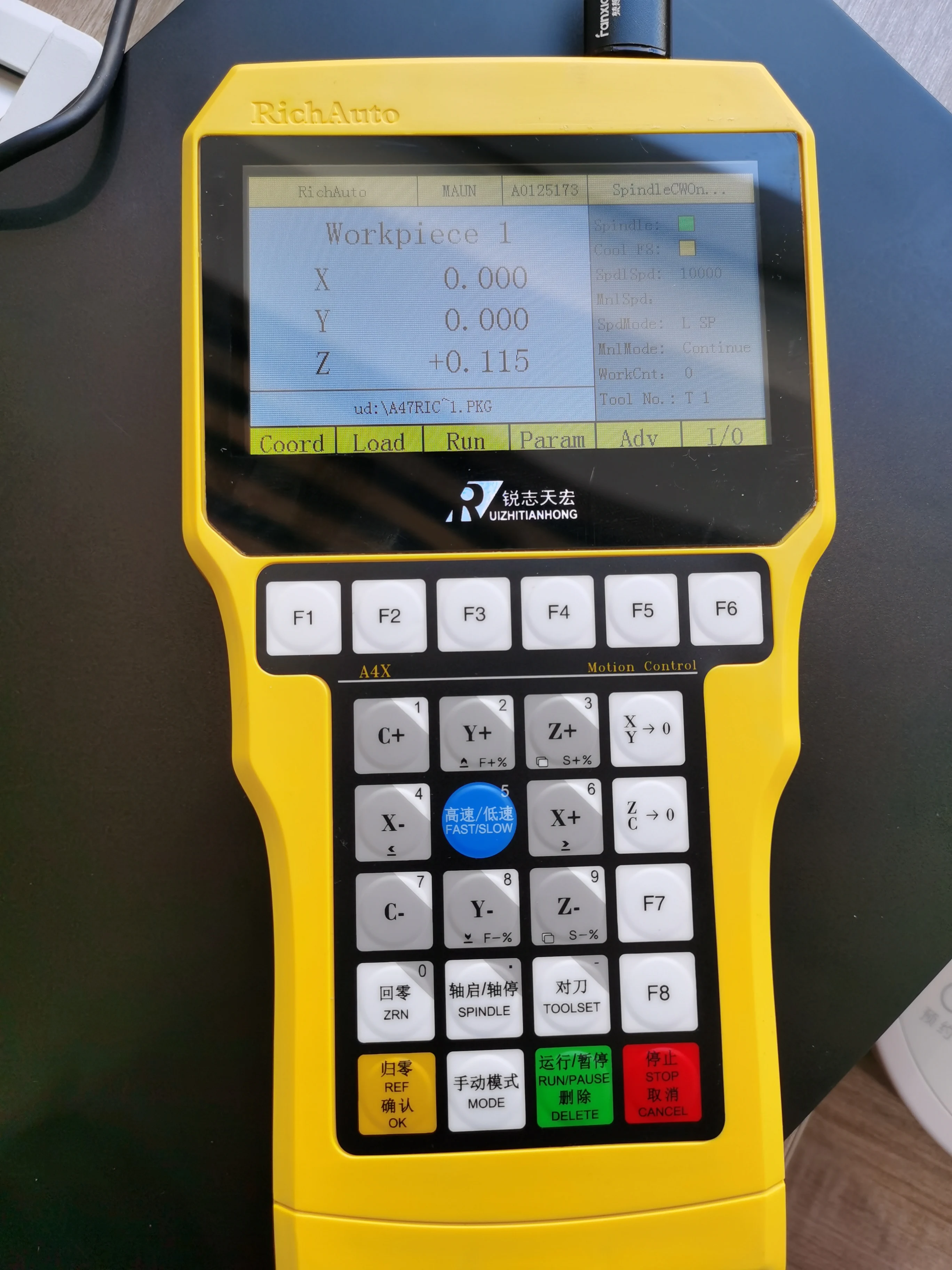

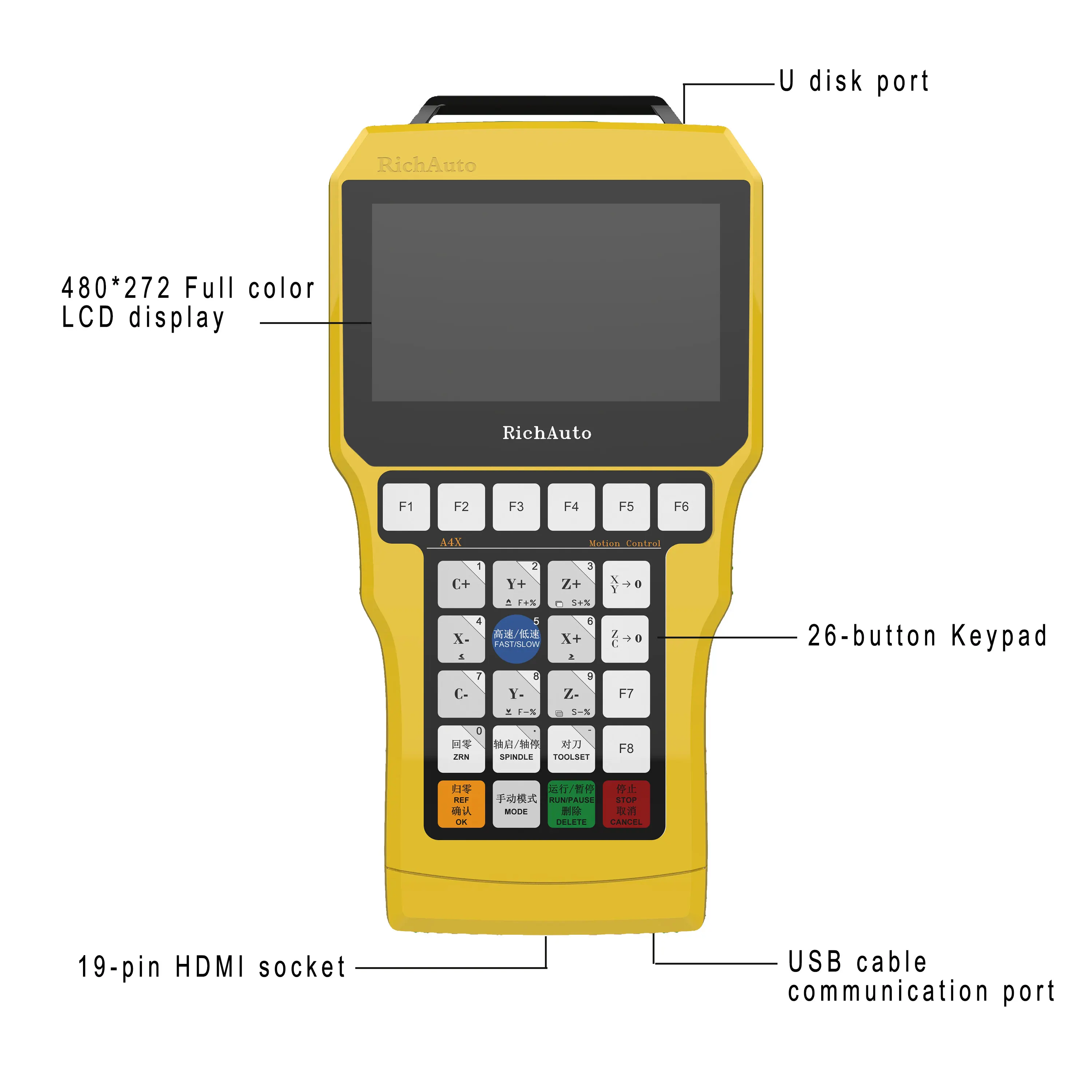

1. 480x272 inch color screen, allowing the computer to transfer files;

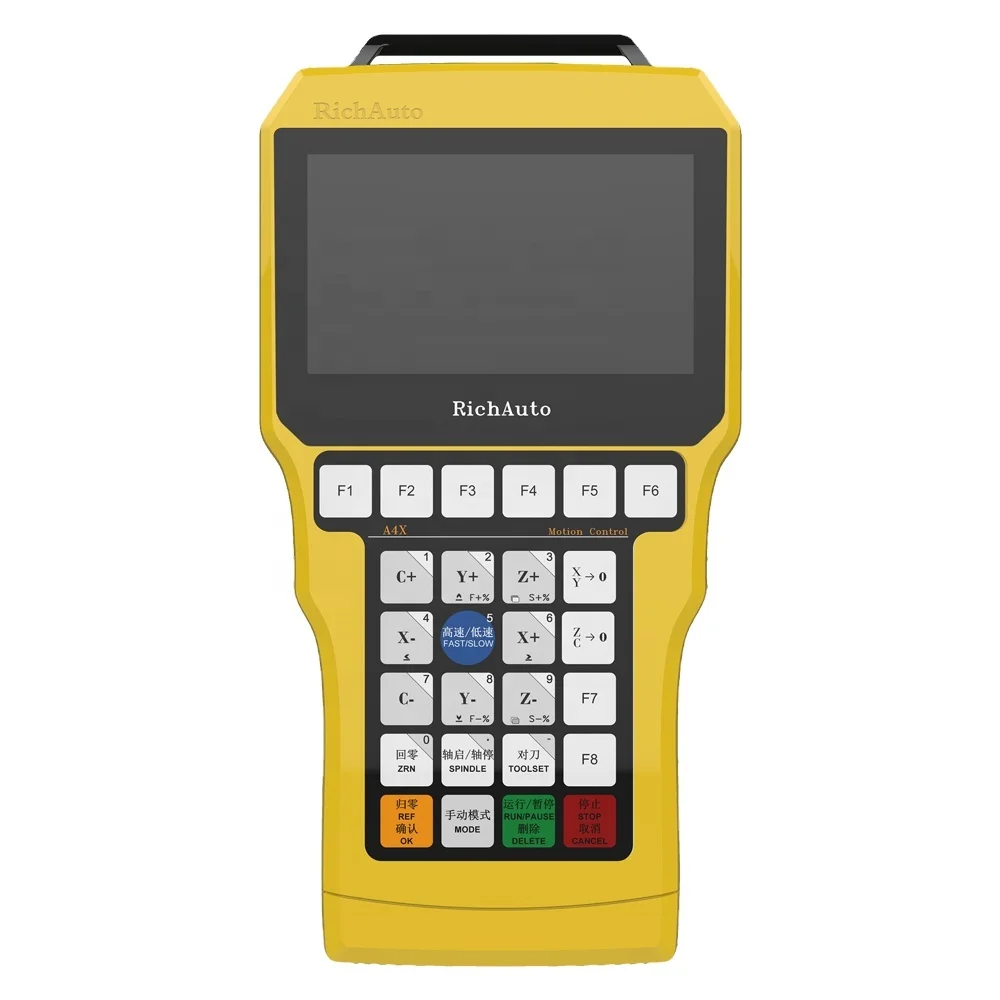

2. Handheld structure can be held with one hand, easy to operate, and the motherboard is on the handle;

3. Selectable analog control and gear control modes;

4. With power-loss protection function: support breakpoint continuous carving, power failure and re-carving;

5. Support saving 9 coordinate systems and corresponding processing origin positions, and switch between coordinate systems;

6. Support the standard G code, PLT format instructions; support domestic and international mainstream CAM software, such as: Vcarve Aspire, Powermill, Fusion 360, Type3, Artcam, UG, Pro/E, MasterCAM, Cimatron, Wentai and other software. File format: .nc .txt .mmg .u00 .tap .dxf .plt
