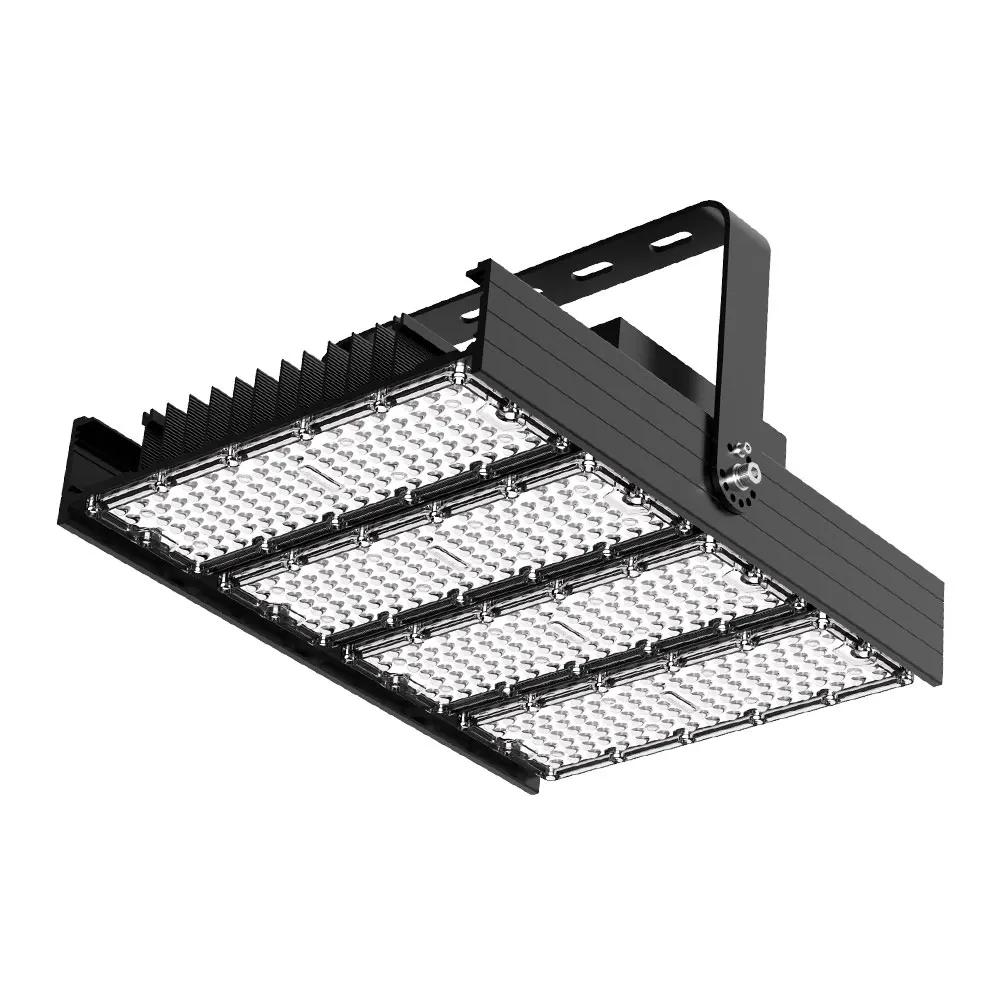

Low transportation cost LED flood light module pir floodlight 50w 100w 200w 300w 400w 500w watt LED flood lights

Product Overview

Description

mmShenzhen LEPOWER is a professional manufacturer which own a ISO9001 16000m² factory.

More than 100,000 pcs LEPOWER's LED industrial light installed worldwide every year!!!

We accept the OEM&ODM service. Welcome to contact to us now.



High purity extruded aluminum housing.
Made of non-corrosion heat sink with electrophoresis process technology.
High performance design with multi-chip package 3030/3535/5050 LED
source and exclusive Lens increase performance,low light failure and dead lights.

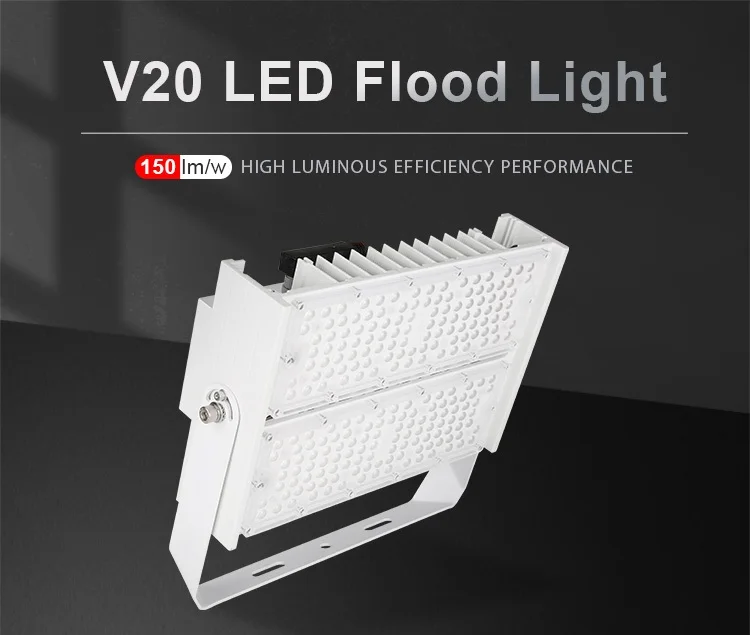

The features of 100w-500w led flood light series.

Part Number	LY-V2001	LY-V2002	LY-V2003	LY-V2004	LY-V2005
Wattage	100w	200W	300W	400W	500W
Lumen Output	14500lm	29000lm	43500lm	58000lm	72500lm
Luminous Efficacy	140-150lm/W
Input Voltage	90-305V AC/200-240V AC   50-60Hz

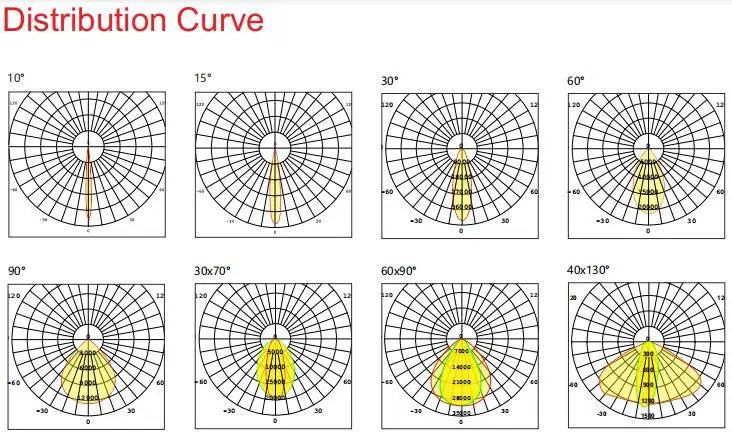

Beam Angle	10°,15°,30°,60°,90°,30X70°,60x90°,40X130°
CCT	2800~6500K
CRI	≥70 or ≥80
IP & IK Rating	IP66&IK10
Surge protection	10KV/20KV available
Power factor	>0.95
Power efficiency	92%
THD	<15%
Working temperature	-40℃~50℃  20%~90% RH
Storage temperature	-40℃~85℃ 10%~90% RH
Housing material	AL6063-T5
Housing color	Black/White
Options	PWM /DALI/1-10V/Timming
Lifespan	>50,000Hrs
Lamp size(mm)	320x100x180.5	320x210x180.5	320x320x180.5	320x430x180.5	320x540x180.5

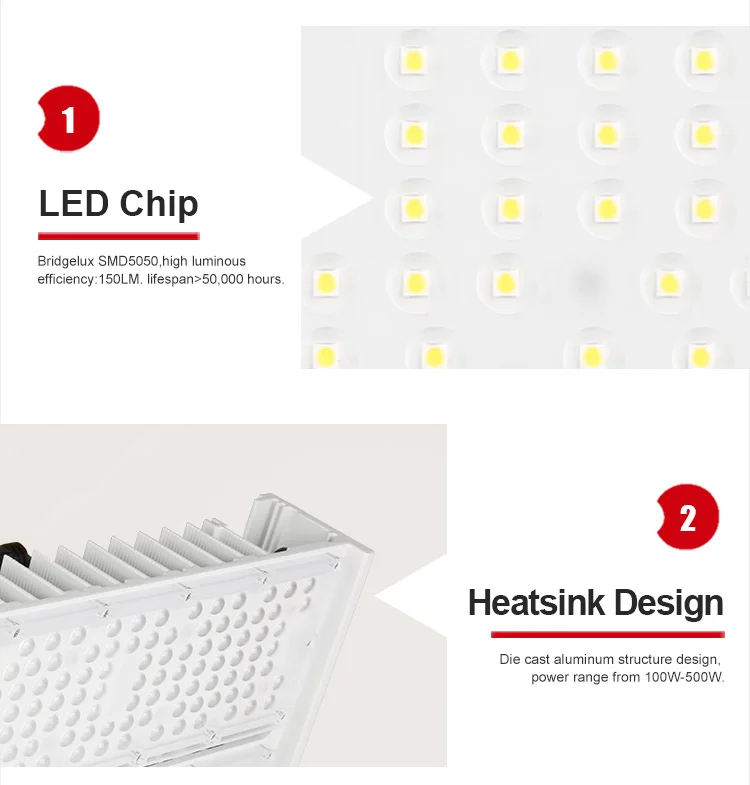

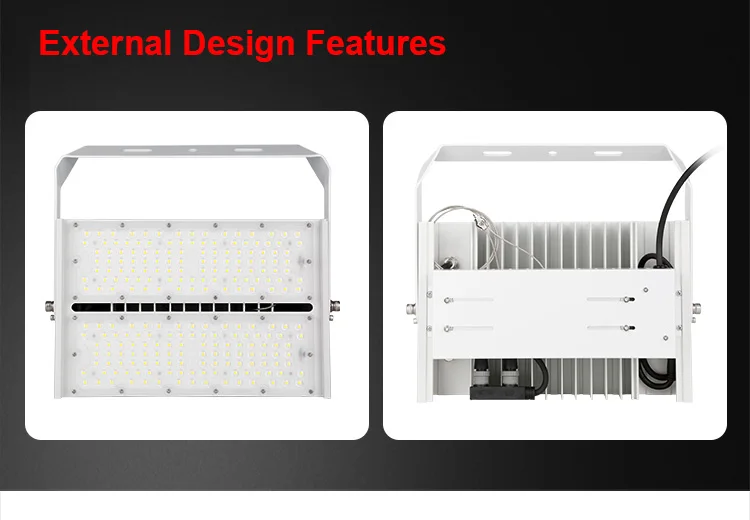

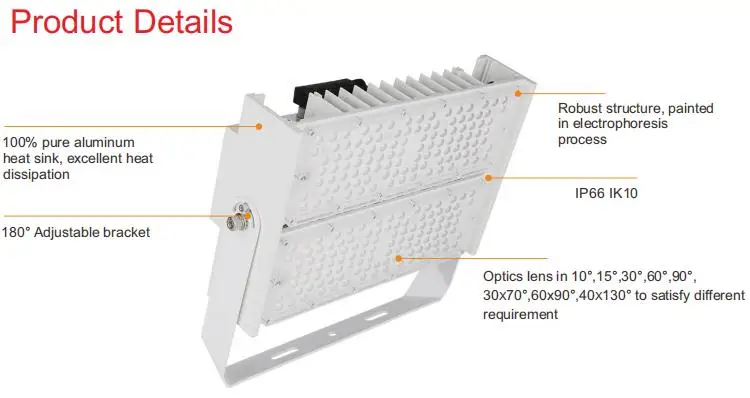

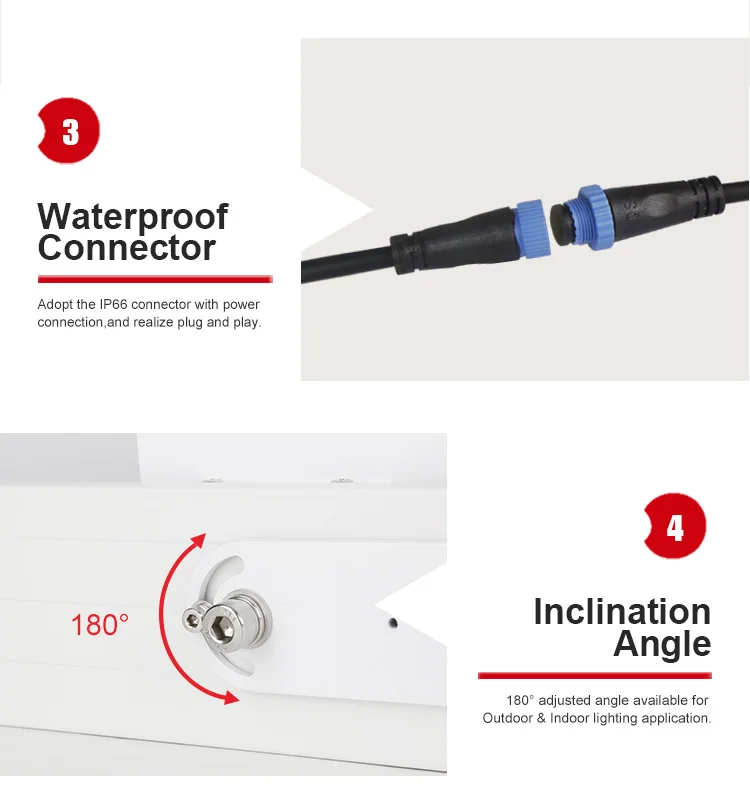

The details pictures of 100W-500w led flood light.

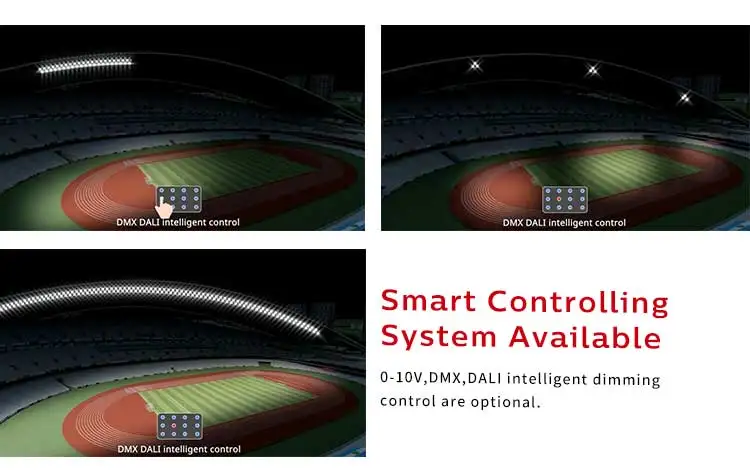

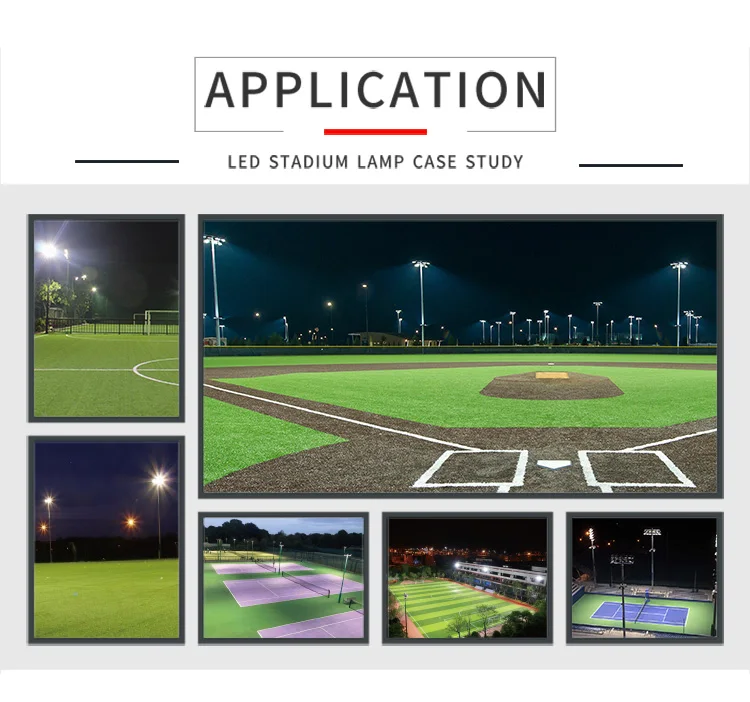

The applicationof 500w led flood light.

Suitable for stadium,tennis court,soccer field,basketball field,playground,air port,city plaza,sea port etc.wide range lighting.



The pictures of our factory's building,office,certificate and production line.







Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 7-9 days for 50pcs; 15 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.



Warranty terms

1. 3/5 years warranty.

2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents

3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.

4.  ULCB/SAA/CE/RoHS/TUV



FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have football stadium projects need to do the lighting design,can you help us?

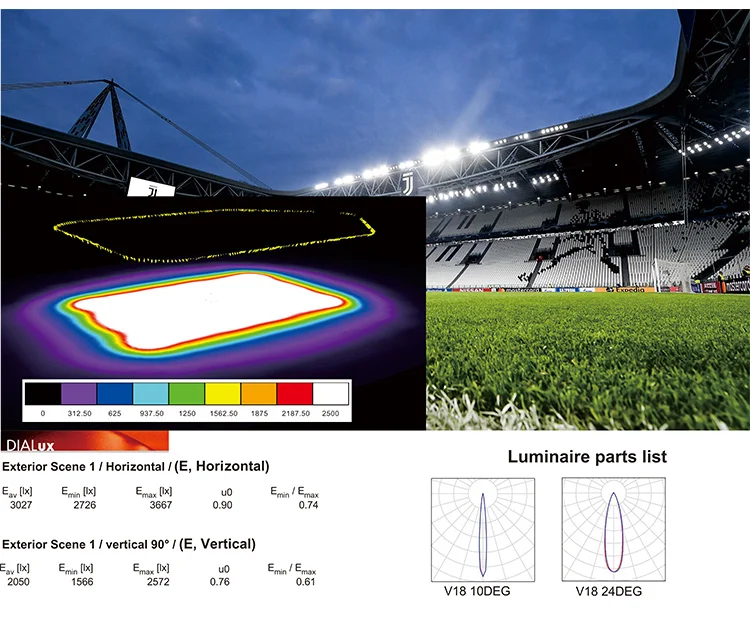

Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide  you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.

Q4.I have a stadium/sport field ,what's your suggestion?
A: please give me the below information:
1. the size of the sport area.
2. the installation height for light.
3. the requirement of the illumination.



Contact us and get full quotation list.

We will take you a new better professional lighting.
