ZHZBW three phase contact voltage stabilizer power supply voltage stabilizer 150kva static avr automatic voltage regulator
- Category: >>>
- Supplier: Guangdong Kepin Electric Co. Ltd.
Share on (1600916876539):
Product Overview
Description
40KVA 415v thyristor voltage regulator/stabilizer with thyristor
Features & Benefits
Our voltage stabilizers have special advantages and very different from others.
(1) All new raw materials.
(2) Full (100%) capacity. 80% or less capacity is NOT recommended.
(3) State-of-the-art technology makes true energy saving.
(4) Ultra quiet operation. 100% static electronic regulation, non contact, no moving parts.
(5) Clear, comprehensive documentation and labeling.
(6) Simple installation, safe protection, reliable operation, low maintenance.
(7) TOW YEARS warranty!
(1) All new raw materials.
(2) Full (100%) capacity. 80% or less capacity is NOT recommended.
(3) State-of-the-art technology makes true energy saving.
(4) Ultra quiet operation. 100% static electronic regulation, non contact, no moving parts.
(5) Clear, comprehensive documentation and labeling.
(6) Simple installation, safe protection, reliable operation, low maintenance.
(7) TOW YEARS warranty!
Technical Parameters
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.
OEM and ODM is welcome, we have professional and experienced engineer team for you.
1 | Type no. | ZHZBW three-phase contact voltage stabilizer power supply voltage stabilizer | ||
2 | Nominal capacity | 40KVA | ||
3 | Ac input | switch | 3P100A | |
5 | Number of phase | Three-phase 3p+N+G(Ground wire) | ||
The input voltage | 440V±20% | |||
frequency | 50/60HZ | |||
6 | Number of phase | Three-phase 3P+N+G (Ground wire) | ||
7 | The ac | The rated voltage | 230V±2% | |
frequency | 50/60HZ | |||
8 | Rated output current | 100A | ||
9 | Voltage regulation accuracy | 2%V | ||
10 | Apply the load | Applicable to resistive, capacitive, inductive and nonlinear loads | ||
11 | The efficiency of | More than 80% | ||
12 | Way to work | Can work continuously for a long time | ||
13 | Resistant to high voltage | 2500 v/Min without breakdown | ||
14 | Insulation class | Class B | ||
15 | Structure type | Non-contact zero crossing switch, isolation transformer stack voltage regulation, isolation transformer compensation | ||
16 | The cooling way | Natural air cooling | ||
17 | Voltage regulation way | 128-bit high-speed AD acquisition, MCU digital processing operation, electronic silicon controlled module fast compensation. | ||
18 | The electric strength | 2500VAC/min | ||
19 | The noise | ≤ 60dB (excluding forced air cooling system) | ||
20 | The bypass function | Automatic bypass | ||
21 | Protection Function | Overvoltage/undervoltage, overload/short circuit, phase loss protection | ||
22 | Temperature rise | ≤75℃ | ||
23 | Display function | LCD display | ||
24 | Appearance size mm | Long 770 wide 510 high 1100 | ||
25 | The environment | The temperature | -10～35℃ | |
Relative humidity | 15～85%（25℃） | |||
The altitude | ＜1500M | |||
26 | Warranty period | Machine warranty 12 months | ||
27 | After-sales service | 24-hour service | ||
28 | Special Requirements | Please advise before quotation | ||
Thyristor Voltage Regulator/Stabilizer with Thyristor Size
Product model | power | electric current | Product size（cm） | ||
ZHZBW-50 | 50kva | 76A | 46*78*97 | ||
ZHZBW-80 | 80kva | 121A | 46*78*97 | ||
ZHZBW-100 | 100kva | 152A | 46*78*97 | ||
ZHZBW-120 | 120kva | 182A | 52*78*107 | ||
ZHZBW-150 | 150kva | 228A | 52*78*107 | ||
ZHZBW-200 | 200kva | 304A | 52*78*107 | ||
ZHZBW-250 | 250kva | 380A | 96*60*145 | ||
ZHZBW-300 | 300kva | 456A | 96*60*145 | ||
ZHZBW-350 | 350kva | 532A | 96*60*145 | ||
ZHZBW-400 | 400kva | 608A | 96*60*145 | ||
ZHZBW-450 | 450kva | 684A | 96*60*145 | ||
ZHZBW-500 | 500kva | 760A | 96*60*145 | ||

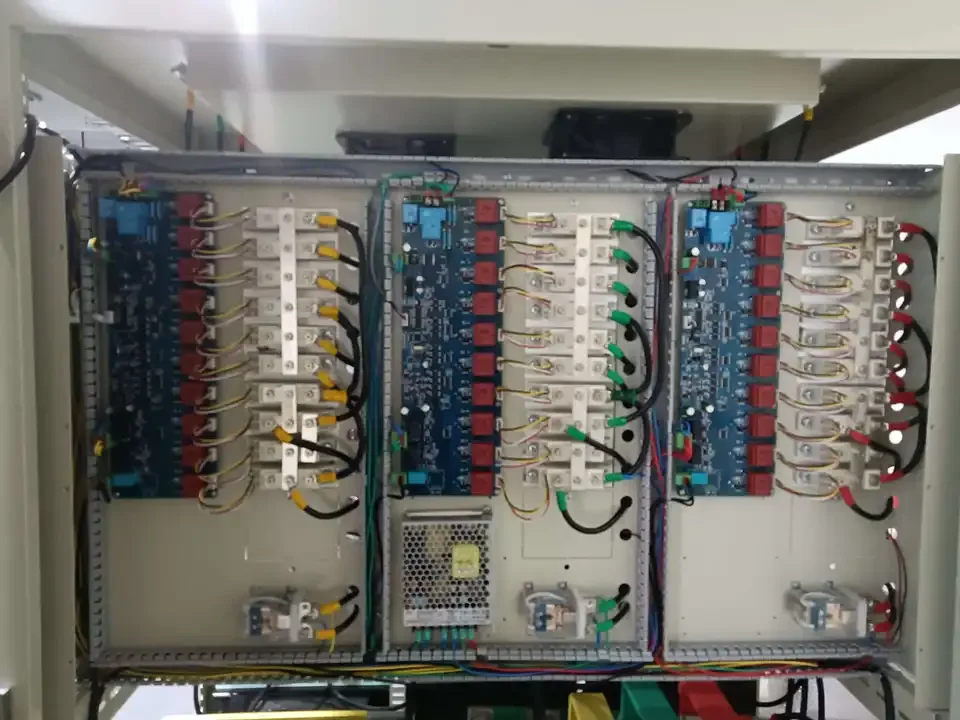

Core Component
Our voltage regulators are setting new standards for quality – in design, manufacturing and testing.

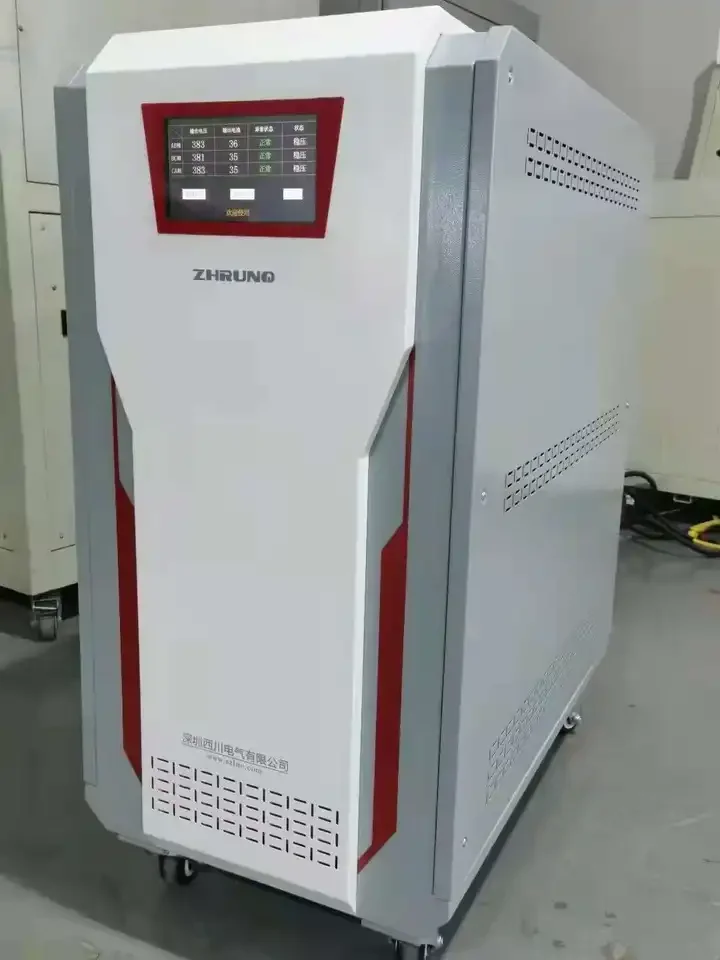

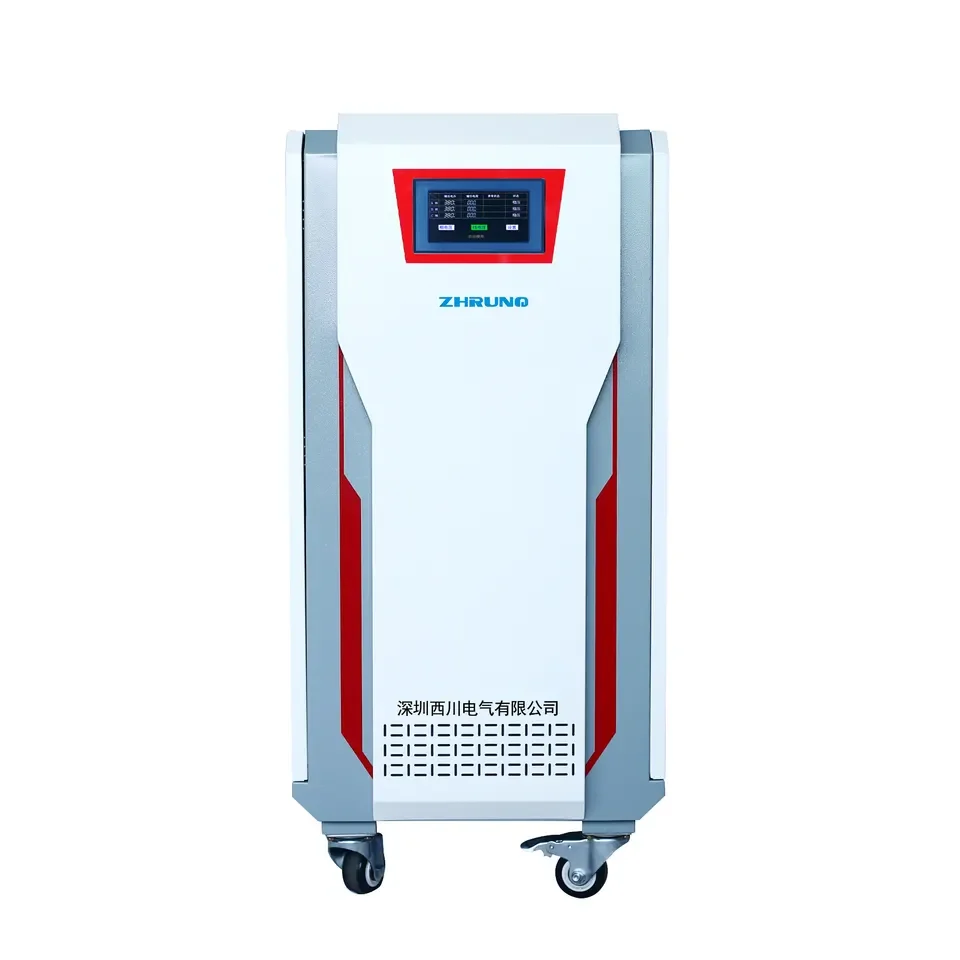

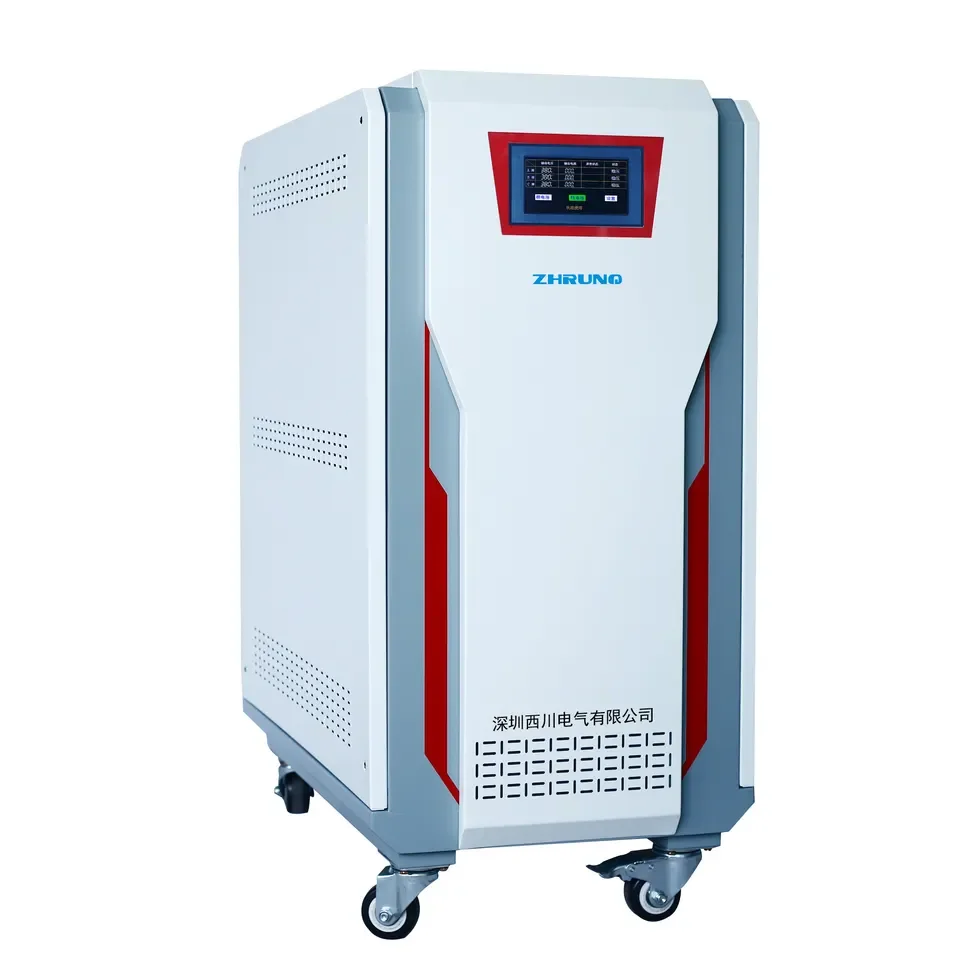

Finished AVR
Compact design, save your installation space.

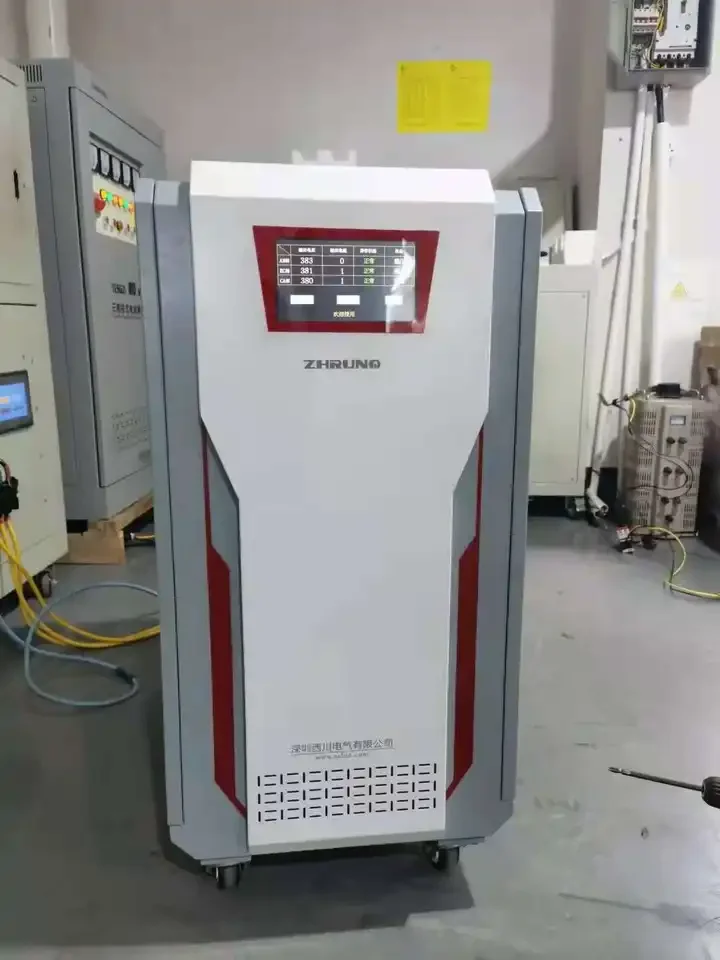

Pre-shipping Test
Before leaving the ZHRUNG factory, every automatic voltage stabilizer/regulator must pass a series of rigorous tests, performed with advanced equipment, on a range of measurements.
(1) Appearance – visual check.
(2) Input voltage regulation range, output voltage and output accuracy.
(3) Insulation resistance and withstand voltage strength .
(4) Protection Function: Over/under voltage, manual bypass, limit switch.
Below are part of our testing instrument.
Before leaving the ZHRUNG factory, every automatic voltage stabilizer/regulator must pass a series of rigorous tests, performed with advanced equipment, on a range of measurements.
(1) Appearance – visual check.
(2) Input voltage regulation range, output voltage and output accuracy.
(3) Insulation resistance and withstand voltage strength .
(4) Protection Function: Over/under voltage, manual bypass, limit switch.
Below are part of our testing instrument.
Product description
Product packaging
