Product Overview
Description
Model Number： | P2.5 | P2.5 | P 3 | P 3.076 | P 4 | P 4 | P 5 | ||||||
Pixel Spacing: | ≤2.5mm | ≤2.5mm | ≤3mm | ≤3.076mm | ≤4 mm | ≤4mm | ≤5mm | ||||||
Module Size: | 320x160mm | 160x160mm | 192x192mm | 320x160mm | 320x160mm | 256x128mm | 320x160mm | ||||||
Encapsulation Mode: | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | ||||||
Physical Density: | ≥160000 points/m2 | ≥160000 points/m2 | ≥111111 points/m2 | ≥105688 points/m2 | ≥62500 points/m2 | ≥62500 points/m2 | ≥40000 points/m2 | ||||||
Scanning Mode: | 1/16 scan | 1/16 scan | 1/16 scan | 1/13 scan | 1/10 scan | 1/8 scan | 1/8 scan | ||||||
Module Brightness: | ≥4000CD/m2 | ≥4000CD/m2 | ≥4500CD/m2 | ≥4500CD/m2 | ≥4500CD/m2 | ≥5000CD/m2 | ≥5000CD/m2 | ||||||
Module Resolution: | 128x64/points | 64x64/points | 64x64/points | 104x52/points | 80x40/points | 64x32/points | 64x32/points | ||||||
Refresh Rate: | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ||||||
Service Life: | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ||||||
Viewing Distance: | ≥3m-80m | ≥3m-80m | ≥4m-80m | ≥4m-80m | ≥5m-80m | ≥5m-80m | ≥5m-80m | ||||||
Average Power: | ≤350W/m2 | ≤380W/m2 | ≤380W/m2 | ≤350W/m2 | ≤350W/m2 | ≤380W/m2 | ≤350W/m2 | ||||||
Maximum Power: | ≤1000W/m2 | ≤1200W/m2 | ≤1200W/m2 | ≤1000W/m2 | ≤1000W/m2 | ≤120W/m2 | ≤1000W/m2 | ||||||
Continuous working time | ≥7×24hours，supports continuous and uninterrupted display | ||||||||||||
Mean trouble-free operating time | ≥10000 hours | ||||||||||||
Discrete runaway point | ≤0.0001，it's 0 when it leaves the factory | ||||||||||||
Continuous runaway point | 0 | ||||||||||||
Blind spot rate | ≤0.0001，it's 0 when it leaves the factory | ||||||||||||
Waterproofing class | IP65 | ||||||||||||
Visual Angle: | Horizontal≥160° Vertical≥160° | ||||||||||||
Operating temperature: | 25℃-50℃ | ||||||||||||
Working humidity: | 30-55% | ||||||||||||
Model Number： | P 6 | P 8 | P 8 | P 10 | |||
Pixel Spacing: | ≤6mm | ≤8mm | ≤8mm | ≤10mm | |||
Module Size: | 192x192mm | 320x160mm | 256x128mm | 320x160mm | |||
Encapsulation Mode: | SMD2727 | SMD3535 | SMD3535 | SMD3535 | |||
Physical Density: | ≥27777 points/m2 | ≥15625 points/m2 | ≥15625 points/m2 | ≥10000 points/m2 | |||
Scanning Mode: | 1/8 scan | 1/5 scan | 1/4 scan | 1/2 scan /4/1 scan | |||
Module Brightness: | ≥5000 CD/m2 | ≥5000 CD/m2 | ≥5000 CD/m2 | ≥5000 CD/m2 | |||
Module Resolution: | 32x32/points | 40x20/points | 32x16/points | 32x16/points | |||
Refresh Rate: | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | |||
Service Life: | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | |||
Viewing Distance: | ≥7m-80m | ≥9m-80m | ≥9m-80m | ≥12m-90m | |||
Average Power: | ≤380W/m2 | ≤350W/m2 | ≤380W/m2 | ≤350W/m2 | |||
Maximum Power: | ≤1200W/m2 | ≤1000W/m2 | ≤1200W/m2 | ≤1000W/m2 | |||
Continuous working time | ≥7×24hours，supports continuous and uninterrupted display | ||||||
Mean trouble-free operating time | ≥10000 hours | ||||||
Discrete runaway point | ≤0.0001，it's 0 when it leaves the factory | ||||||
Continuous runaway point | 0 | ||||||
Blind spot rate | ≤0.0001，it's 0 when it leaves the factory | ||||||
Waterproofing class | IP65 | ||||||
Visual Angle: | Horizontal≥160° Vertical≥160° | ||||||
Operating temperature: | 25℃-50℃ | ||||||
Working humidity: | 30-55% | ||||||
Key attributes
Products Description
Details Images
Recommend Products
Recommended by seller
Why Choose Us
Industry-specific attributes | ||
Industry-specific attributes | Brand Name | |
Brand Name | Hlt | |
Other attributes | ||
Place of Origin | Guangdong, China | |
Use | advertising publish | |
Specification | Video Wall | |
Color | fullcolor | |
Supplier Type | Original manufacturer | |
Media Available | datasheet, Photo, Other | |
Model Number | P8 | |

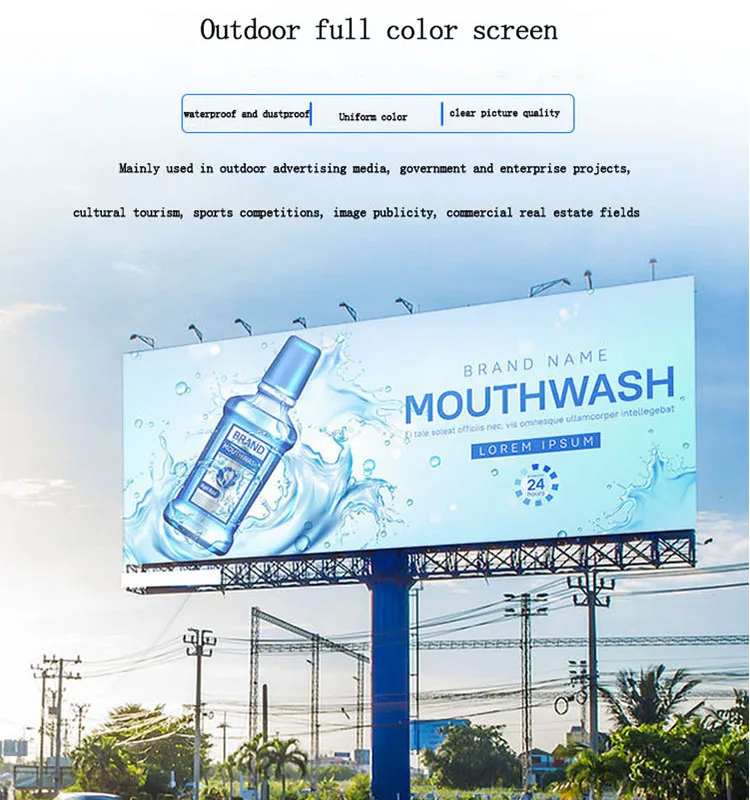

Usage | OUTDOOR | |
Display Function | Video,Phonto | |
Pixels | 8 | |
Screen Dimension | 320*160mm/256*128mm | |
Product name | Led Video Display Panel | |
Certificate | CE ROHS FCC | |
Brightness | 5000CD/m2 | |
Color | Fullcolor | |
Viewing angle | 160°/160° | |
Input Voltage | 110 / 240 | |
Packaging and delivery | ||
Packaging and delivery | air box (wooden case) | |
Port | shenzhen | |
Supply Ability | ||
Supply Ability | 2000Square Meter/Square Meters per Month | |
Video Description | ||
01Company Profile
HlT
Shenzhen helitong technology co.,ltd. Is a comprehensive high-tech enterprise engaged in the r&d, production, sales and service of LED display screen and LED soft screen. The company is located in shenzhen baoan district, owns standard workshop and facilities well-equipped modern fully automatic assembly line.
02certificate
03Packing&Transport&Payment
04Visit&Buyer Feedback
FAQ
Ql. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit,and 50% before delivery. We' ll show you the photos of the products and packages before you pay the balance.
03. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Cenerally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: How do you make our business long-term and good relationship?
A:l. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit,and 50% before delivery. We' ll show you the photos of the products and packages before you pay the balance.
03. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Cenerally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: How do you make our business long-term and good relationship?
A:l. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come.
Contact us
If you are interested in our products
We will build your satisfactory products according to your needs, cause of we are manufacturers and provide customized services.Trust us.,We're professional
Product Paramenters
Model Number： | P2.5 | P2.5 | P 3 | P 3.076 | P 4 | P 4 | P 5 | ||||||
Pixel Spacing: | ≤2.5mm | ≤2.5mm | ≤3mm | ≤3.076mm | ≤4 mm | ≤4mm | ≤5mm | ||||||
Module Size: | 320x160mm | 160x160mm | 192x192mm | 320x160mm | 320x160mm | 256x128mm | 320x160mm | ||||||
Encapsulation Mode: | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | ||||||
Physical Density: | ≥160000 points/m2 | ≥160000 points/m2 | ≥111111 points/m2 | ≥105688 points/m2 | ≥62500 points/m2 | ≥62500 points/m2 | ≥40000 points/m2 | ||||||
Scanning Mode: | 1/16 scan | 1/16 scan | 1/16 scan | 1/13 scan | 1/10 scan | 1/8 scan | 1/8 scan | ||||||
Module Brightness: | ≥4000CD/m2 | ≥4000CD/m2 | ≥4500CD/m2 | ≥4500CD/m2 | ≥4500CD/m2 | ≥5000CD/m2 | ≥5000CD/m2 | ||||||
Module Resolution: | 128x64/points | 64x64/points | 64x64/points | 104x52/points | 80x40/points | 64x32/points | 64x32/points | ||||||
Refresh Rate: | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ||||||
Service Life: | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ||||||
Viewing Distance: | ≥3m-80m | ≥3m-80m | ≥4m-80m | ≥4m-80m | ≥5m-80m | ≥5m-80m | ≥5m-80m | ||||||
Average Power: | ≤350W/m2 | ≤380W/m2 | ≤380W/m2 | ≤350W/m2 | ≤350W/m2 | ≤380W/m2 | ≤350W/m2 | ||||||
Maximum Power: | ≤1000W/m2 | ≤1200W/m2 | ≤1200W/m2 | ≤1000W/m2 | ≤1000W/m2 | ≤120W/m2 | ≤1000W/m2 | ||||||
Continuous working time | ≥7×24hours，supports continuous and uninterrupted display | ||||||||||||
Mean trouble-free operating time | ≥10000 hours | ||||||||||||
Discrete runaway point | ≤0.0001，it's 0 when it leaves the factory | ||||||||||||
Continuous runaway point | 0 | ||||||||||||
Blind spot rate | ≤0.0001，it's 0 when it leaves the factory | ||||||||||||
Waterproofing class | IP65 | ||||||||||||
Visual Angle: | Horizontal≥160° Vertical≥160° | ||||||||||||
Operating temperature: | 25℃-50℃ | ||||||||||||
Working humidity: | 30-55% | ||||||||||||
Model Number： | P 6 | P 8 | P 8 | P 10 | |||
Pixel Spacing: | ≤6mm | ≤8mm | ≤8mm | ≤10mm | |||
Module Size: | 192x192mm | 320x160mm | 256x128mm | 320x160mm | |||
Encapsulation Mode: | SMD2727 | SMD3535 | SMD3535 | SMD3535 | |||
Physical Density: | ≥27777 points/m2 | ≥15625 points/m2 | ≥15625 points/m2 | ≥10000 points/m2 | |||
Scanning Mode: | 1/8 scan | 1/5 scan | 1/4 scan | 1/2 scan /4/1 scan | |||
Module Brightness: | ≥5000 CD/m2 | ≥5000 CD/m2 | ≥5000 CD/m2 | ≥5000 CD/m2 | |||
Module Resolution: | 32x32/points | 40x20/points | 32x16/points | 32x16/points | |||
Refresh Rate: | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | ≥1920HZ 3840HZ | |||
Service Life: | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | |||
Viewing Distance: | ≥7m-80m | ≥9m-80m | ≥9m-80m | ≥12m-90m | |||
Average Power: | ≤380W/m2 | ≤350W/m2 | ≤380W/m2 | ≤350W/m2 | |||
Maximum Power: | ≤1200W/m2 | ≤1000W/m2 | ≤1200W/m2 | ≤1000W/m2 | |||
Continuous working time | ≥7×24hours，supports continuous and uninterrupted display | ||||||
Mean trouble-free operating time | ≥10000 hours | ||||||
Discrete runaway point | ≤0.0001，it's 0 when it leaves the factory | ||||||
Continuous runaway point | 0 | ||||||
Blind spot rate | ≤0.0001，it's 0 when it leaves the factory | ||||||
Waterproofing class | IP65 | ||||||
Visual Angle: | Horizontal≥160° Vertical≥160° | ||||||
Operating temperature: | 25℃-50℃ | ||||||
Working humidity: | 30-55% | ||||||
