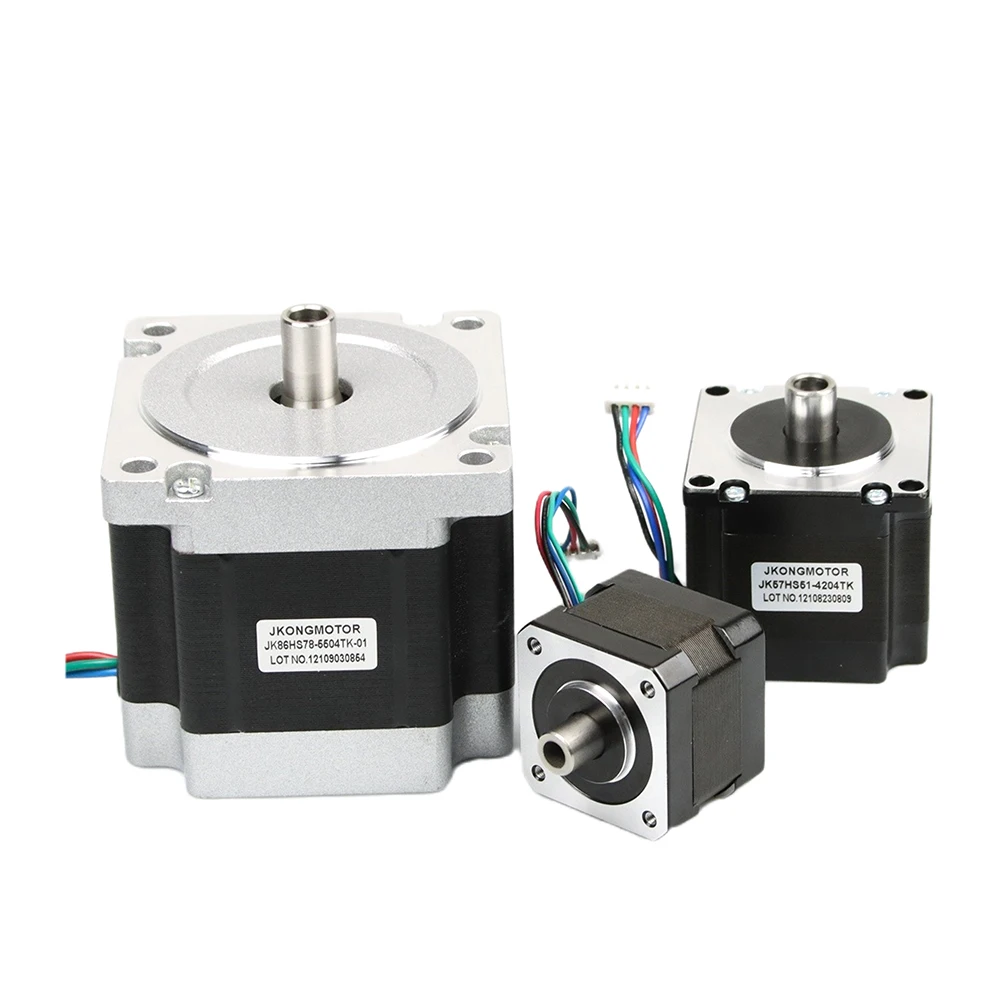

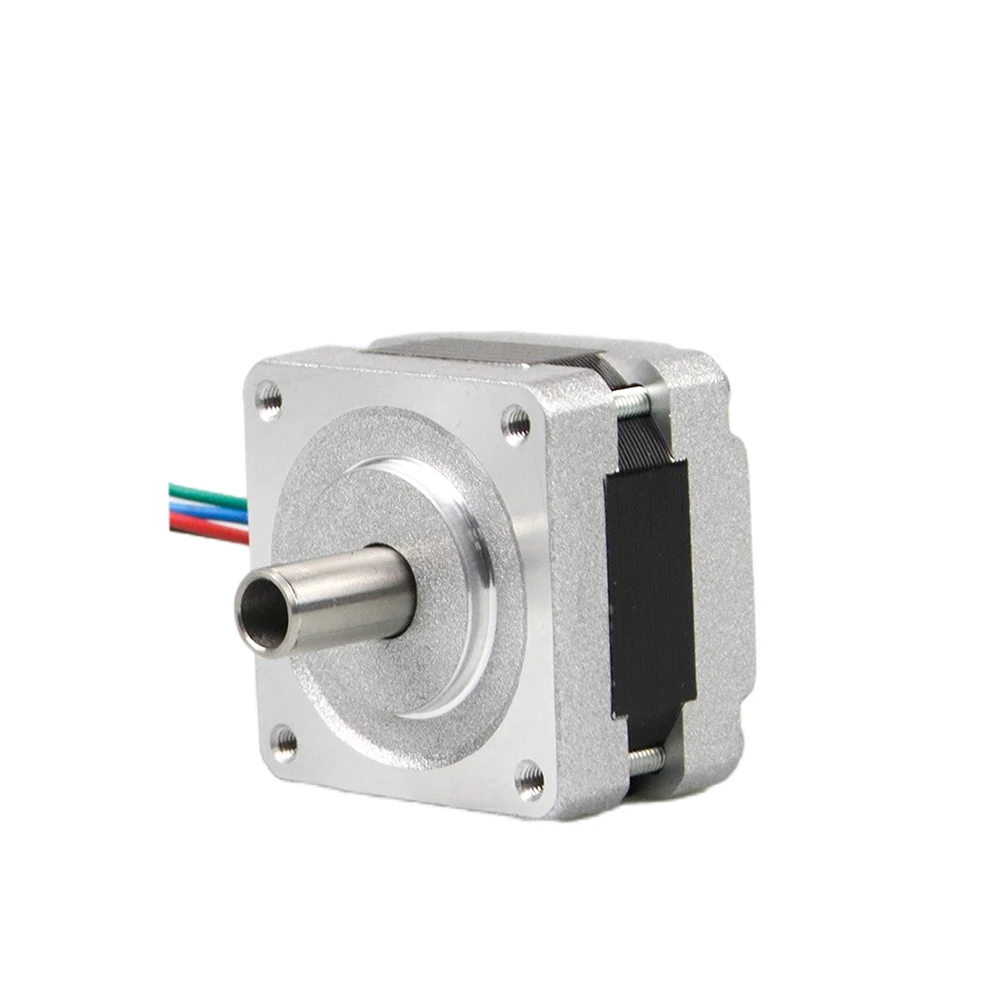

Jkongmotor 1.8degree 2phase stepping motor Double Shaft Dual Shaft Hollow Shaft Stepper Motor Nema 8 11 17 23 34 Stepper Motor
- Category: >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (1600916893394):
Product Overview
Description
Product Paramenters
Step angle:1.8°
Temperature rise:below 80 ℃
Ambient temperature:-20 ℃ ~ + 50 ℃
Insulation resistance:minimum 100MΩ, 500VDC
Dielectric strength:500VAC for 1 minute
Dielectric strength:500VAC for 1 minute
Shaft radial clearance 0.02 max (450 g load)
Shaft axial clearance:0.08Max. (450 g load)
Maximum radial force:28N (20mm from flange)
Maximum radial force:28N (20mm from flange)
Maximum axial force:10N
size:Approximately 42x42x40mm

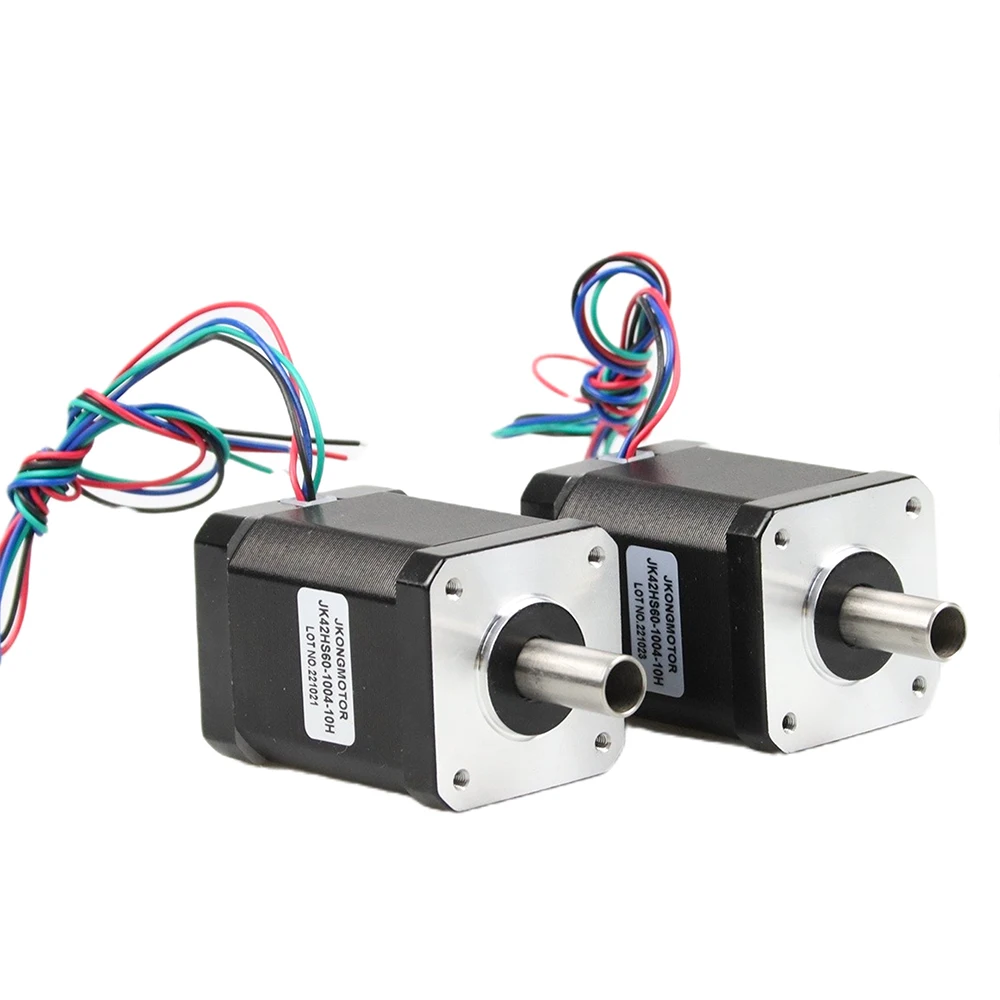

Model Name: JK42HS60-1004-10H
Holding Torque: 700mN.m;
Current / Phase: 1.0A
Step Angle(degrees):1.8 Degree
Model Number:NEMA17
Phase: 2 phase
Type:Hybrid
Inductance: 15.5mH
Inductance: 15.5mH
Resistance: 6.5Ω
Motor length: 60mm
Diameter of axle:5mm

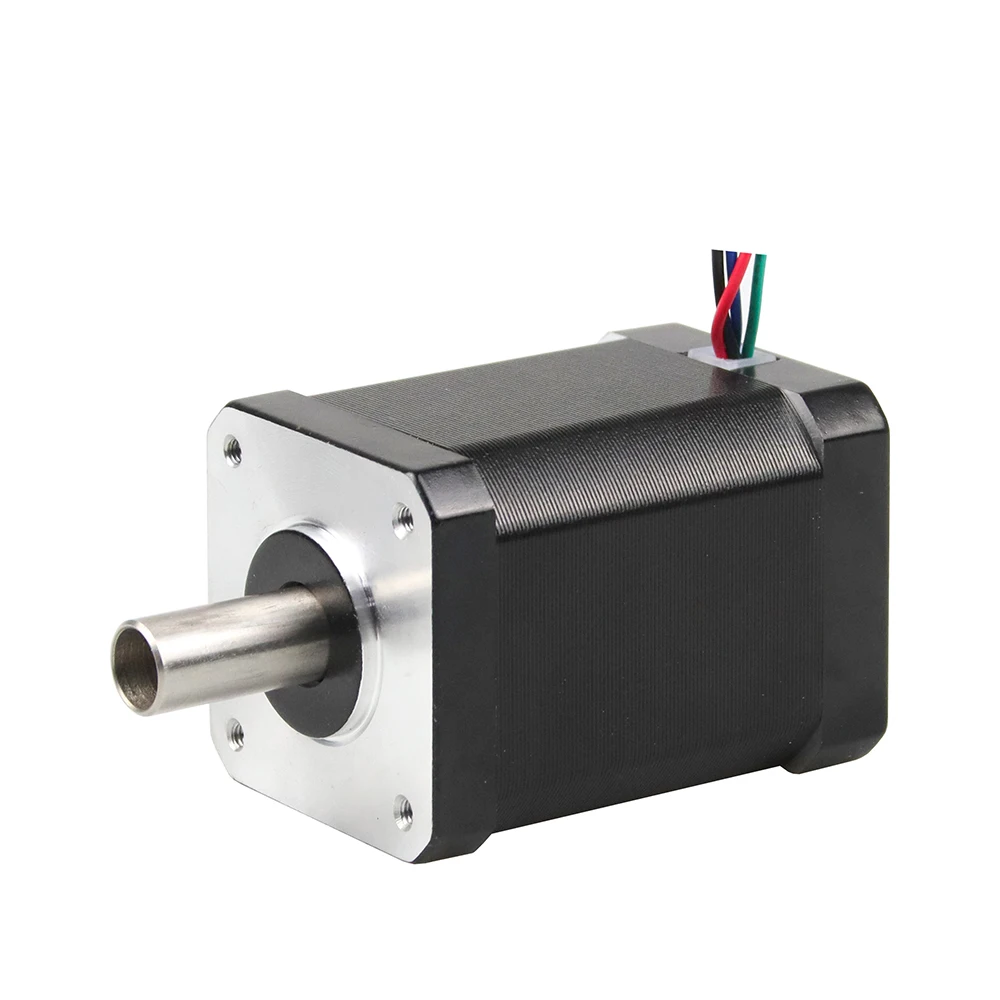

Type: Nema 17 Hollow Shaft Stepper Motor
Step Angle | Motor Length | Current/Phase | Resistance/Phase | Inductance/Phase | Holding Torque | Number of leads | Detent Torque | Rotor Inertia | ||||||||||
(°) | (mm) | (A) | (Ω） | (mH) | (kg.cm) | (No.) | (g.cm) | g.cm2 | ||||||||||
JK42HS25-0404 | 1.8 | 25 | 0.4 | 24 | 36 | 1.8 | 4 | 75 | 20 | |||||||||
JK42HS28-0504 | 1.8 | 28 | 0.5 | 20 | 21 | 1.5 | 4 | 85 | 24 | |||||||||
JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | |||||||||
JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | |||||||||
JK42HS34-0956 | 1.8 | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 120 | 34 | |||||||||
JK42HS40-0406 | 1.8 | 40 | 0.4 | 30 | 30 | 2.6 | 6 | 150 | 54 | |||||||||
JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | |||||||||
JK42HS40-1206 | 1.8 | 40 | 1.2 | 3 | 2.7 | 2.9 | 6 | 150 | 54 | |||||||||
JK42HS48-0406 | 1.8 | 48 | 0.4 | 30 | 25 | 3.1 | 6 | 260 | 68 | |||||||||
JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | |||||||||
JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | |||||||||
JK42HS60-0406 | 1.8 | 60 | 0.4 | 30 | 39 | 6.5 | 6 | 280 | 102 | |||||||||
JK42HS60-1704 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 280 | 102 | |||||||||
JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 5.6 | 6 | 280 | 102 | |||||||||
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||||||||||
Step Angle | Motor Length | Current/Phase | Resistance/Phase | Inductance/Phase | Holding Torque | Number of leads | Detent Torque | Rotor Inertia | ||||||||||
(°) | (mm) | (A) | (Ω） | (mH) | (kg.cm) | (No.) | (g.cm) | g.cm2 | ||||||||||
JK42HM34-1334 | 0.9 | 34 | 1.33 | 2.1 | 4.2 | 2.2 | 4 | 200 | 35 | |||||||||
JK42HM34-0316 | 0.9 | 34 | 0.31 | 38.5 | 33 | 1.58 | 6 | 200 | 35 | |||||||||
JK42HM34-0956 | 0.9 | 34 | 0.95 | 4.2 | 4 | 1.58 | 5 | 200 | 35 | |||||||||
JK42HM40-1684 | 0.9 | 40 | 1.68 | 1.65 | 3.2 | 3.3 | 4 | 220 | 54 | |||||||||
JK42HM40-0406 | 0.9 | 40 | 0.4 | 30 | 30 | 2.59 | 6 | 220 | 54 | |||||||||
JK42HM40-1206 | 0.9 | 40 | 1.2 | 3.3 | 3.4 | 2.59 | 6 | 220 | 54 | |||||||||
JK42HM48-1684 | 0.9 | 48 | 1.68 | 1.65 | 4.1 | 4.4 | 4 | 250 | 68 | |||||||||
JK42HM48-1206 | 0.9 | 48 | 1.2 | 3.3 | 4 | 3.17 | 6 | 250 | 68 | |||||||||
JK42HM48-0406 | 0.9 | 48 | 0.4 | 30 | 38 | 3.17 | 6 | 250 | 68 | |||||||||
JK42HM60-1684 | 0.9 | 60 | 1.68 | 1.65 | 5 | 5.5 | 4 | 270 | 106 | |||||||||
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||||||||||
Step Angle | Motor Length | Current/Phase | Resistance/Phase | Inductance/Phase | Holding Torque | Number of leads | Detent Torque | Rotor Inertia | ||||||||||
(°) | (mm) | (A) | (Ω） | (mH) | (N.m) | (No.) | (g.cm) | g.cm2 | ||||||||||
JK42HS34-1334BED-01 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 0.26 | 4 | 120 | 34 | |||||||||
JK42HS40-1704BED-02 | 1.8 | 40 | 1.7 | 1.5 | 2.3 | 0.42 | 4 | 150 | 54 | |||||||||
JK42HS48-1684BED-02 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 0.5 | 4 | 260 | 68 | |||||||||
JK42HS60-1704BF-ED-01 | 1.8 | 60 | 1.7 | 3 | 6.2 | 0.73 | 4 | 280 | 102 | |||||||||
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||||||||||
Details Images

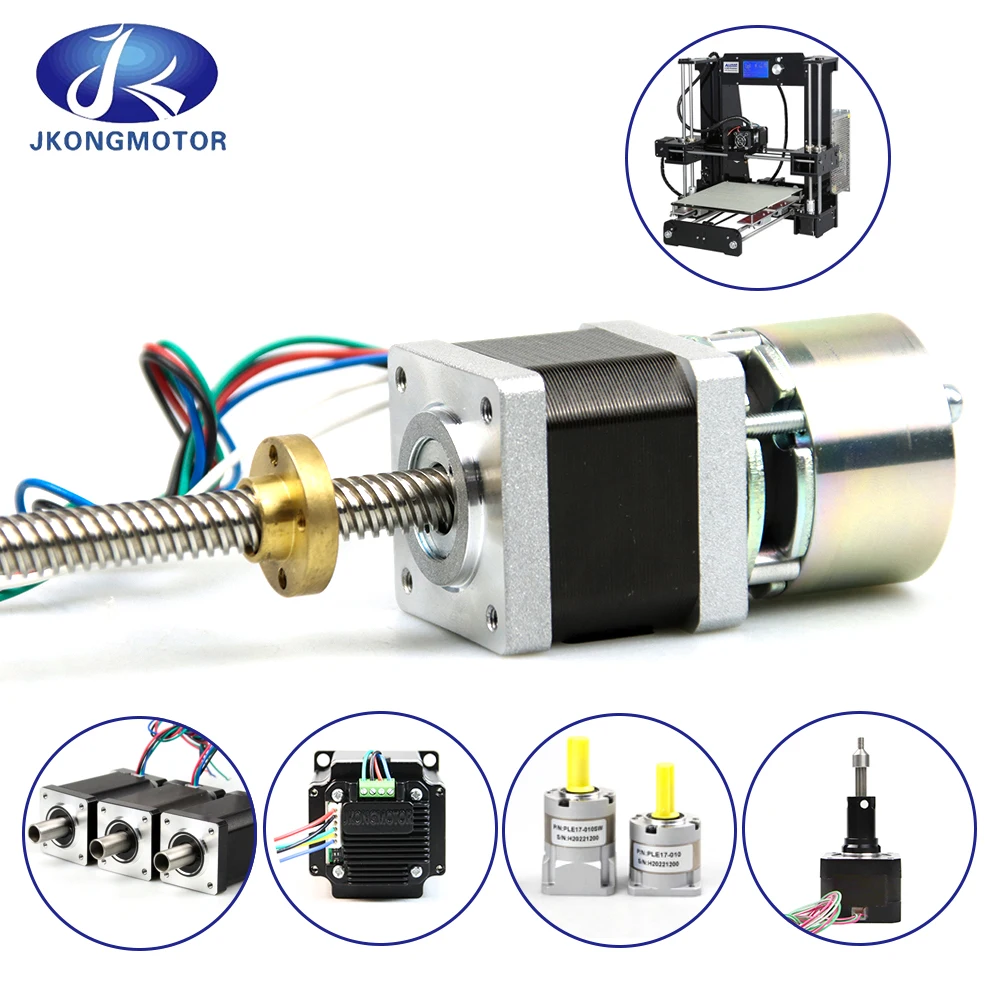

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
