35 Ton Mobile Truck Crane ZTC350E552 With High Quality and Low Price
- Category: >>>
- Supplier: Maxizm Construction Machinery (Qingdao) Co. Ltd.Maxizm Ltd.
Share on (1600916918828):
Product Overview
Description
Specification
Strong chassis power:
1. The 4-axle 39-ton chassis bearing platform meets the standards of Class G vehicles.
2. Rubber suspension + V-shaped thrust rod technology, the vehicle has better lateral stability and driving smoothness.
3. Flexible shaft power-assisted shifting, better operation comfort.
Smart and efficient:
1. The maximum hoisting speed is 135m/min, the maximum turning speed is 2.5r/min, and the action efficiency is high.
2. The use of a full range of vehicle information platform to achieve three-dimensional monitoring of operating equipment,
real-time control at your fingertips.
1. The 4-axle 39-ton chassis bearing platform meets the standards of Class G vehicles.
2. Rubber suspension + V-shaped thrust rod technology, the vehicle has better lateral stability and driving smoothness.
3. Flexible shaft power-assisted shifting, better operation comfort.
Smart and efficient:
1. The maximum hoisting speed is 135m/min, the maximum turning speed is 2.5r/min, and the action efficiency is high.
2. The use of a full range of vehicle information platform to achieve three-dimensional monitoring of operating equipment,
real-time control at your fingertips.
Item | Unit | Value | Remarks | ||
Working performance | Max. rated lifting capacity | kg | 35000 | ||
Max. load moment of basic boom | kN.m | 1132 | |||
Max. load moment of main boom(fully extended) | kN.m | 617.5 | |||
Max. load moment of basic boom | m | 11.1 | |||
Max. lifting height of main boom | m | 44 | These parameters do not include deflection of main boom and jib | ||
Max. lifting height of jib | m | 60 | |||
Working speeds | Max. hoist rope speed(Main winch) | m/min | 120 | At the 4th layer | |
Max. hoist rope speed(Auxiliary winch) | m/min | 100 | At the 4nd layer | ||
Boom demrricking up time | s | 40 | |||
Boom demrricking up time | s | 80 | |||
Slewing speed | r/min | 0 – 2.2 | |||
Driving | Max. driving speed | km/h | 78 | ||
parameters | Max. gradeability | % | 37 | ||
Min turning diameter | m | ≤22 | |||
Min. ground clearance | mm | 220 | |||
Oil consumption per hundred kilometers | L | 35 | |||
Mass | Deadweight in driving condition | kg | 32000 | ||
Complete vehicle kerb mass | kg | 31870 | |||

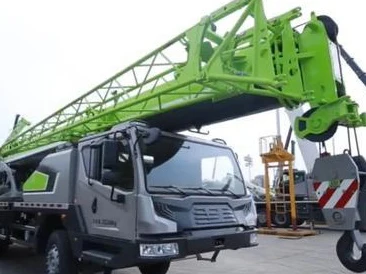

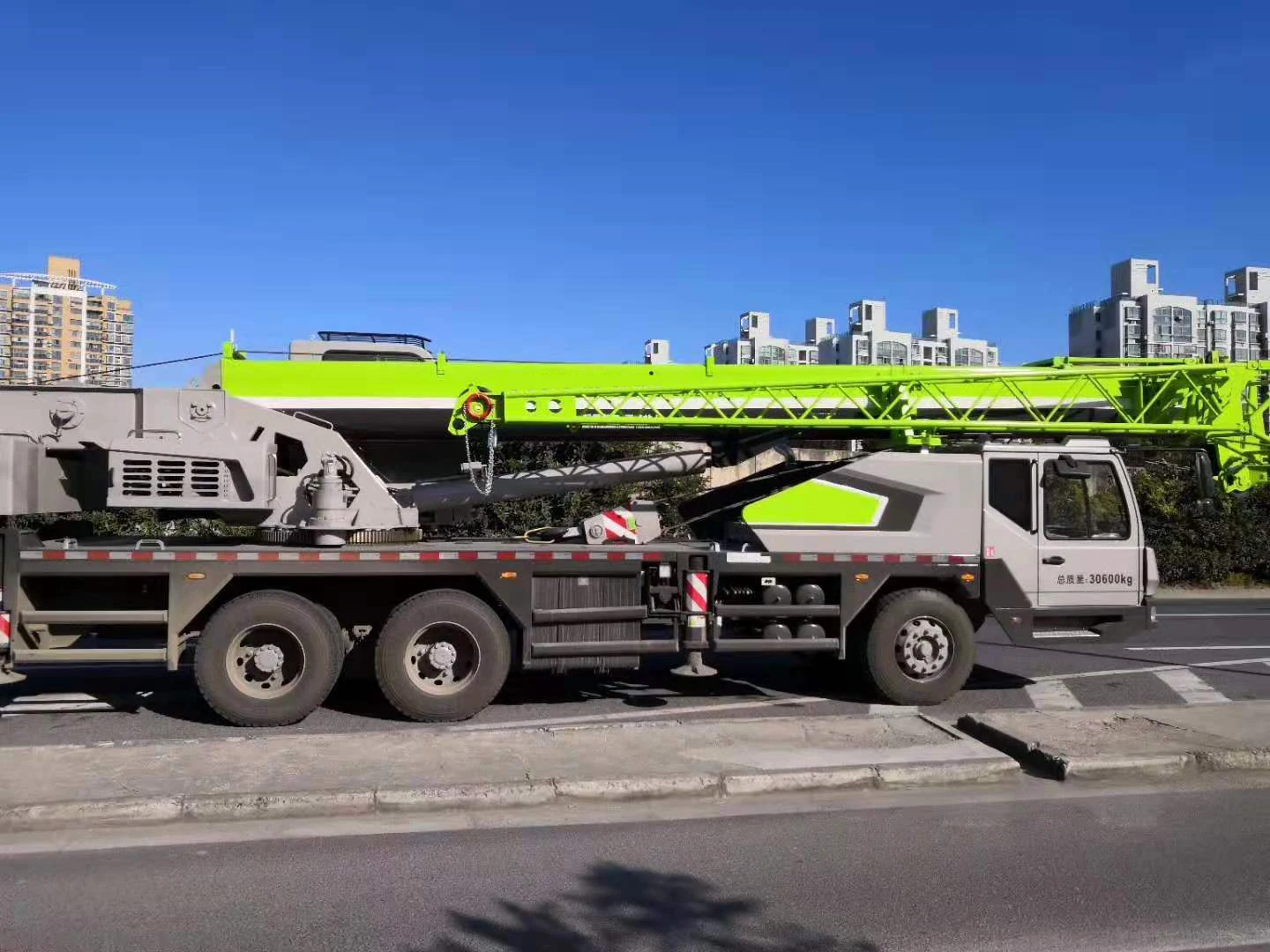

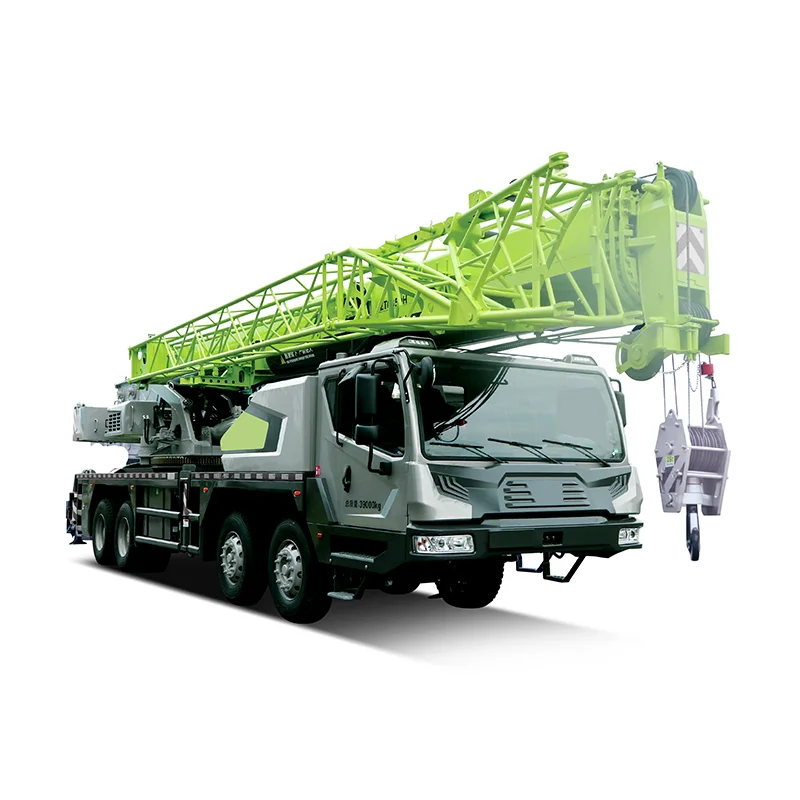

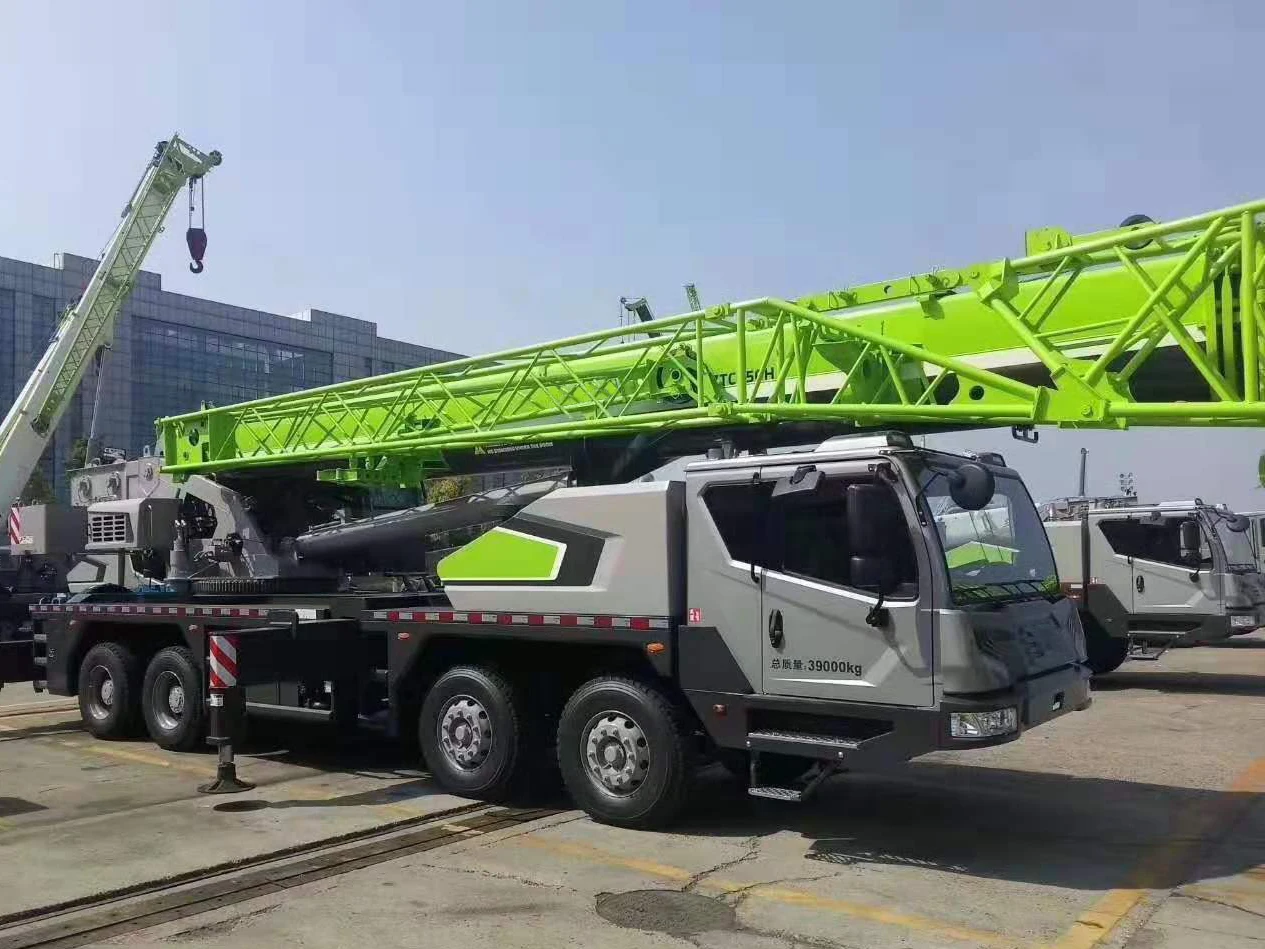

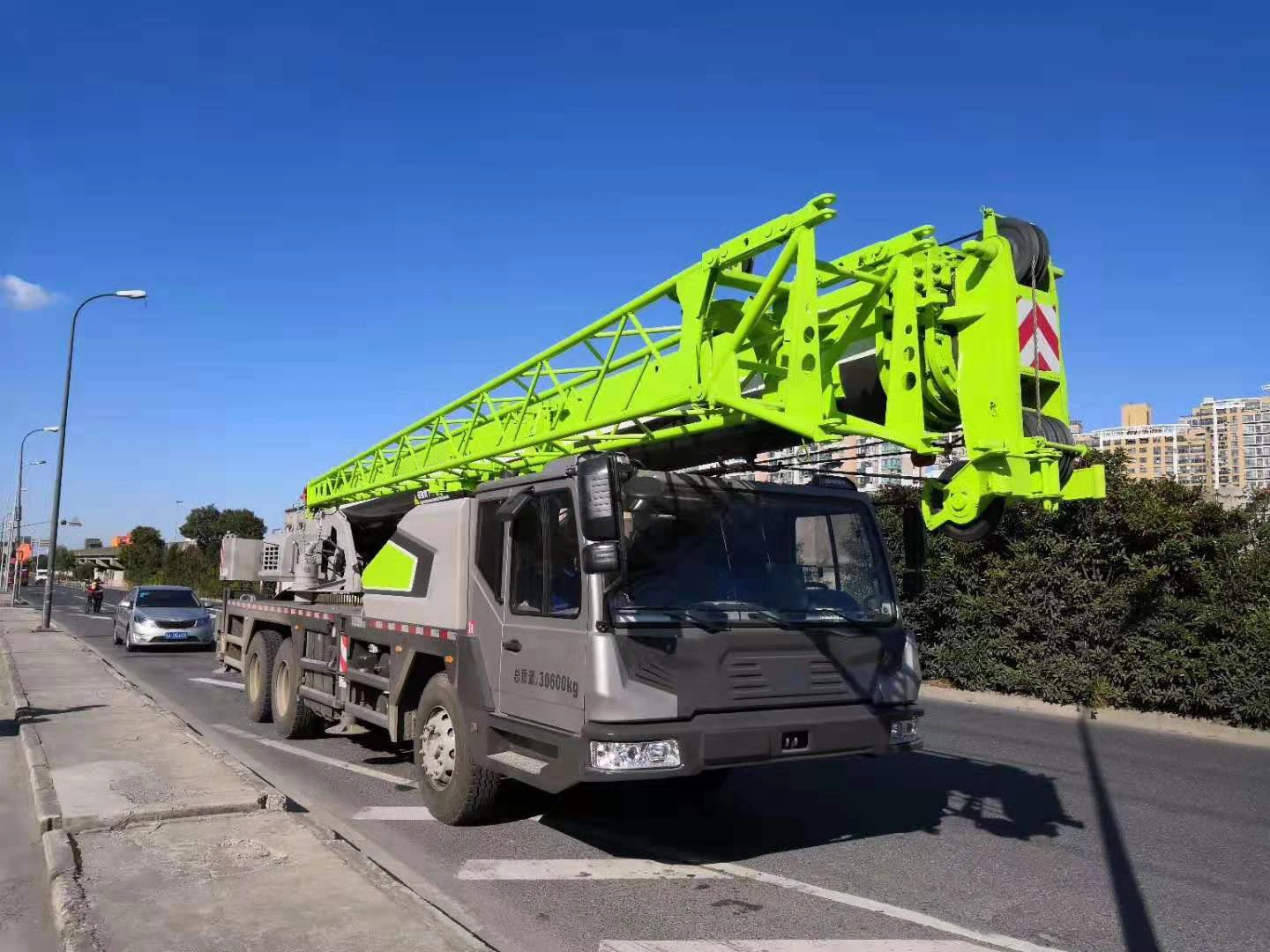

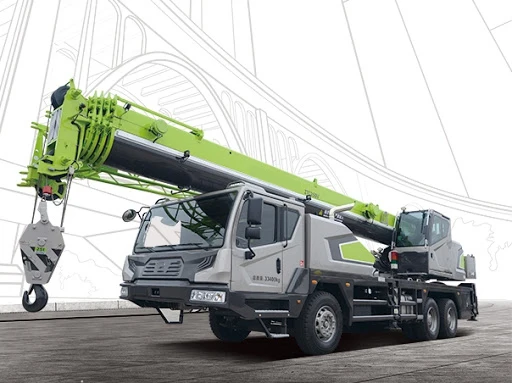

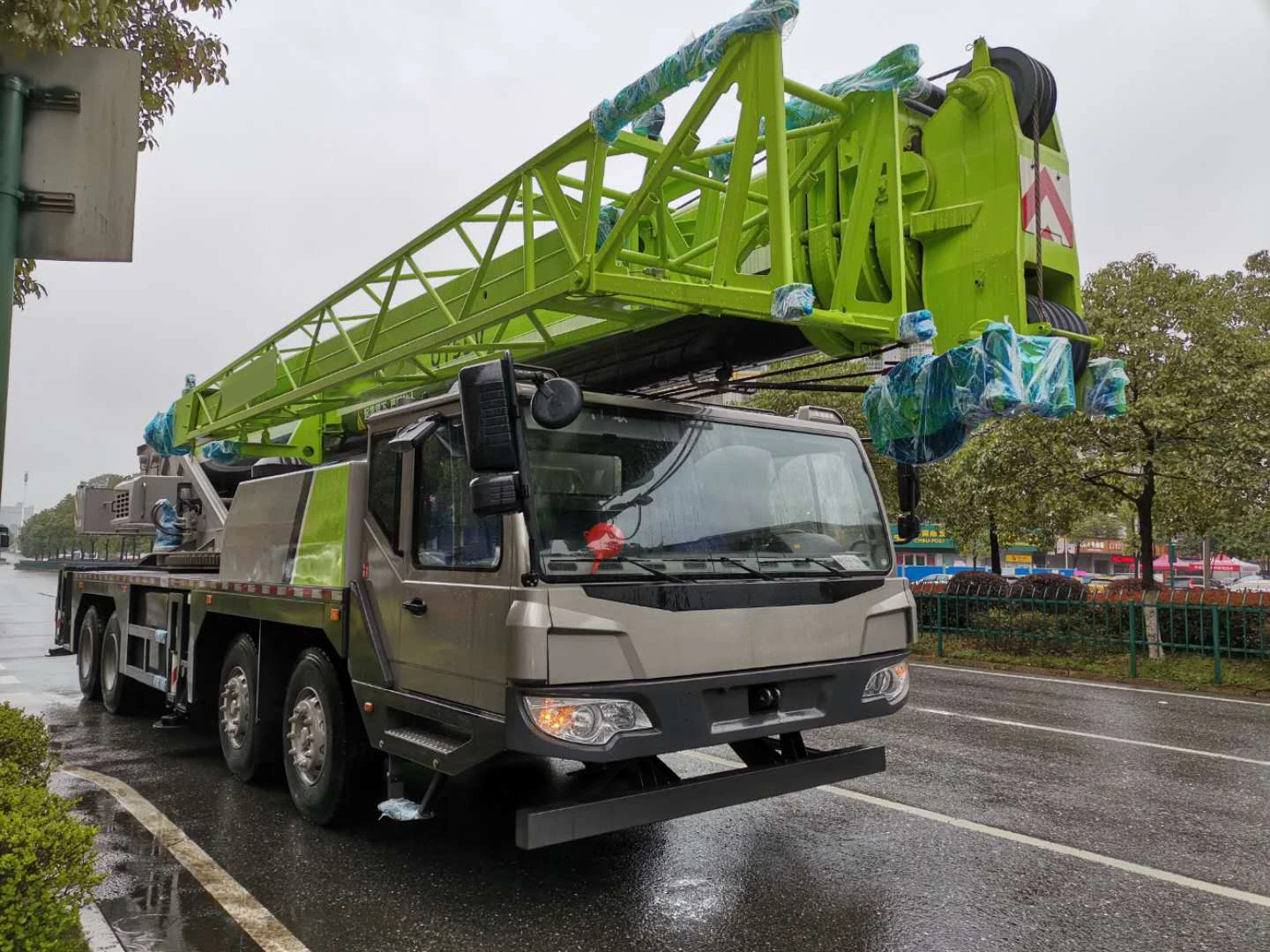

Product Picture
