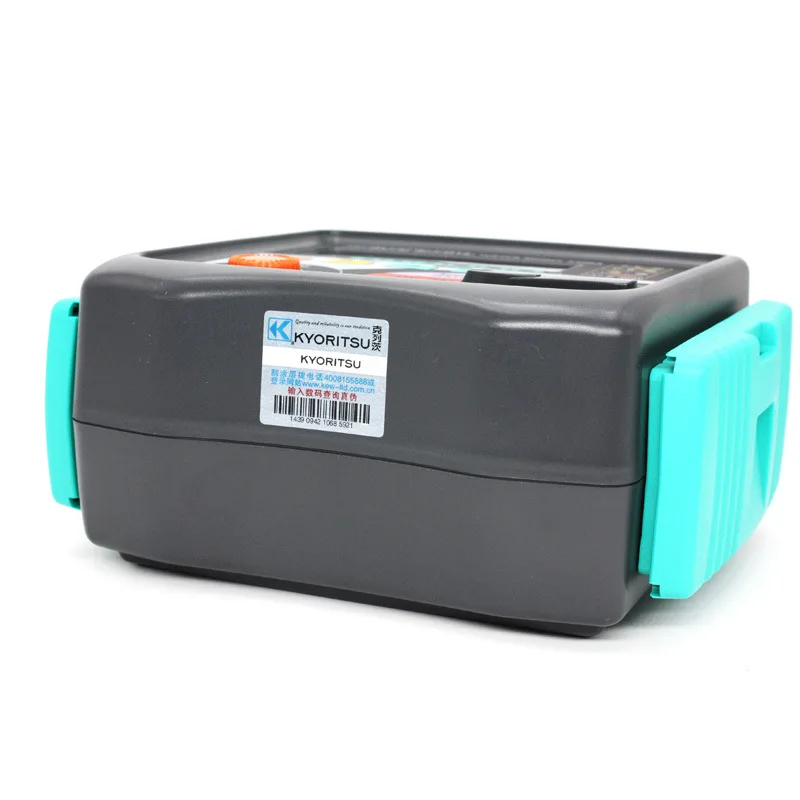

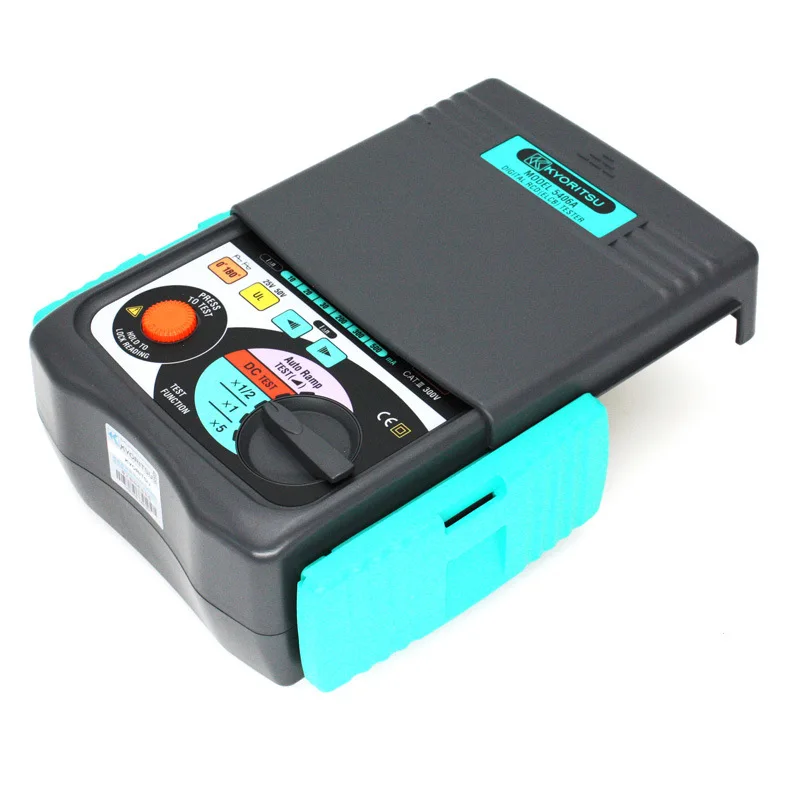

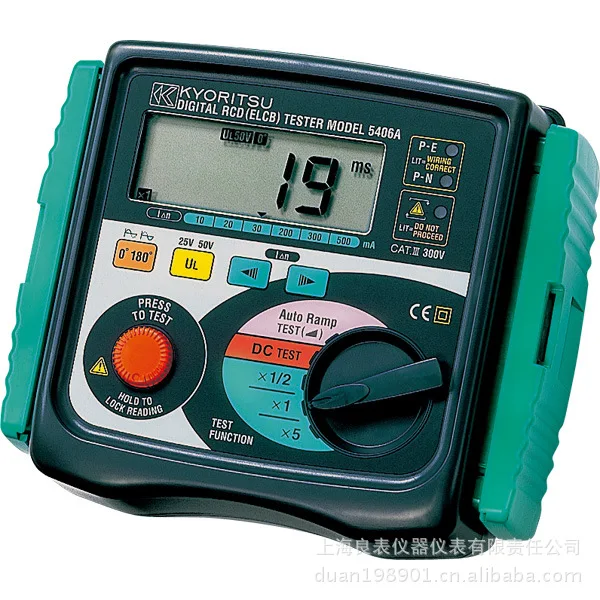

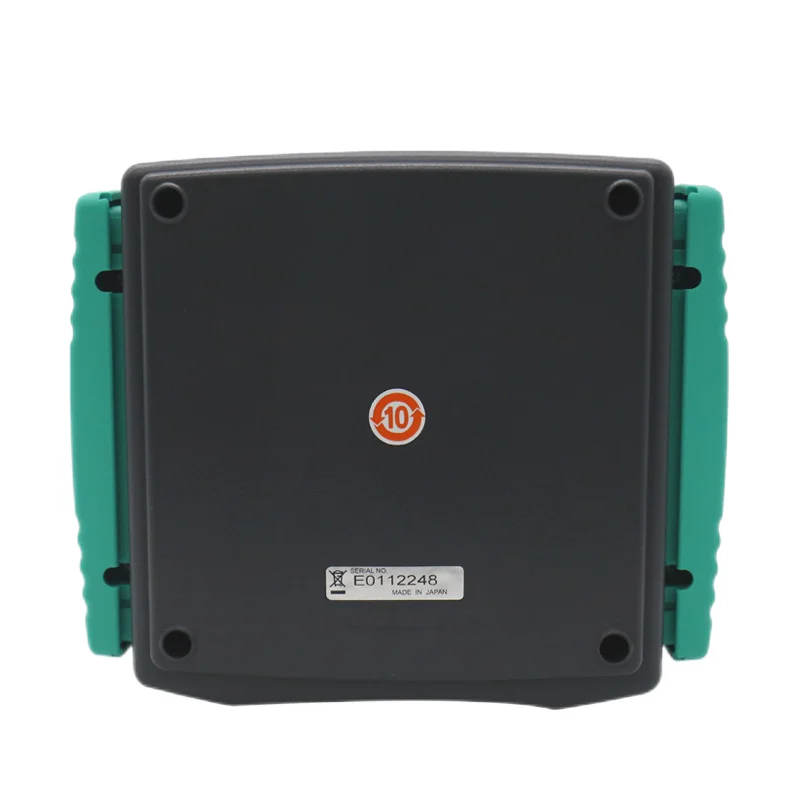

Kyoritsu 5406A RCD Tester, 10/20/30/200/300/500mA
Kyoritsu 5406A RCD Tester, 10/20/30/200/300/500mA
Kyoritsu 5406A RCD Tester, 10/20/30/200/300/500mA
Kyoritsu 5406A RCD Tester, 10/20/30/200/300/500mA
Kyoritsu 5406A RCD Tester, 10/20/30/200/300/500mA
Kyoritsu 5406A RCD Tester, 10/20/30/200/300/500mA
Kyoritsu 5406A RCD Tester, 10/20/30/200/300/500mA

Kyoritsu 5406A RCD Tester, 10/20/30/200/300/500mA

Share on (1600916919650):


Price:$350.00 - $365.00

Quantity:


Product Overview

Description



Product Description





Kyoritsu 5406A Offers


Features



  • Custom microprocessor controlled for highest accuracy and reliability

  • 3 LEDs for checking correct wiring status

  • 0 and 180 degree phase angle switch permits quick tests and consistent readings

  • Digital read-out of tripping time

  • Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings

  • Large custom digital display readout

  • Visual indication of reversed phase and neutral wiring at socket

  • Designed to IP54 Rating

  • Complies with IEC 61557

  • Test of a large kind of RCD's: standard, selective, AC and A (DC sensitive breakers)





Specifications




























































Measurement Specification



Rated operating current



10/20/30/200/300/500mA



Fault status setting



× 1/2, × 1, × 5, × DC,
autorange



Failure operation time



1000ms, 200ms (×5)



Minimum resolution



1ms



Action time accuracy



±0.6%rdg±4dgt



Operating voltage



230V+10%-15%
(195V - 253V) 50Hz



Security specifications



IEC 61557-1, -6 IEC 61010-1 CAT III 300V

IEC 61010-2-031 Pollution degree 2



Withstand voltage



3700V AC / 1 minute



IP rating



IEC 60529-IP54



Dimensions



167(L) × 186(W) × 89(D)mm



weight



Approx. 800g.



annex




Power cord box
9121 (shoulder strap)
instruction manual

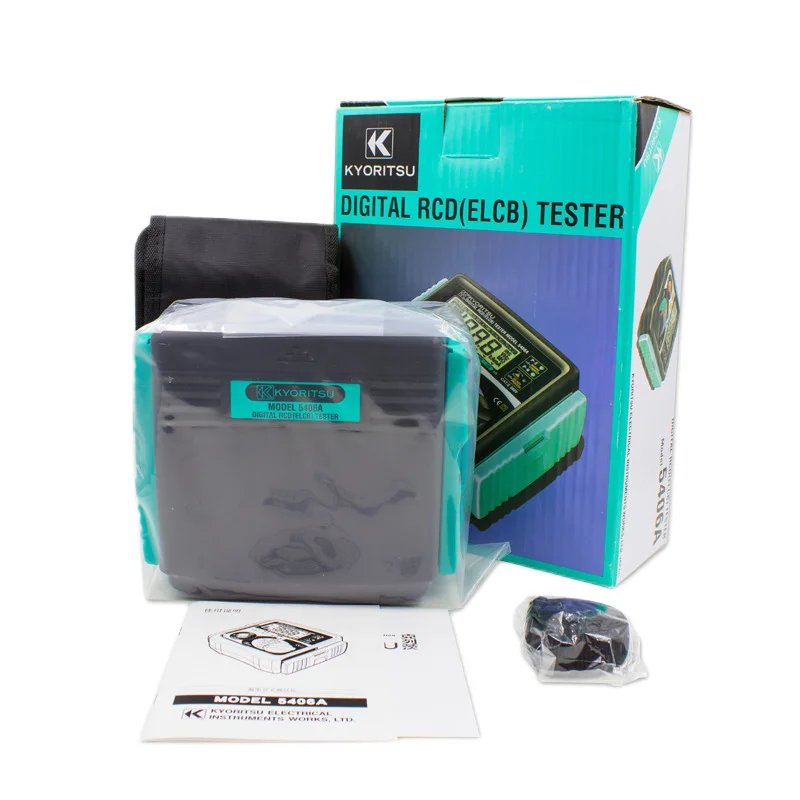

Packaging & Shipping






  • RCD Tester

  • Molded Plug Test Leads

  • Pouch for Test Leads

  • Shoulder Strap

  • Instruction Manual
