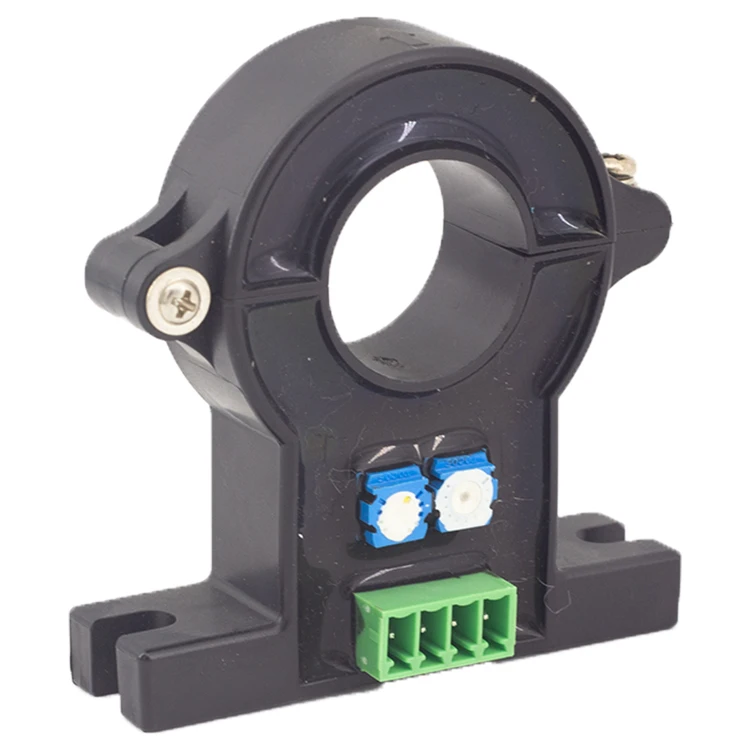

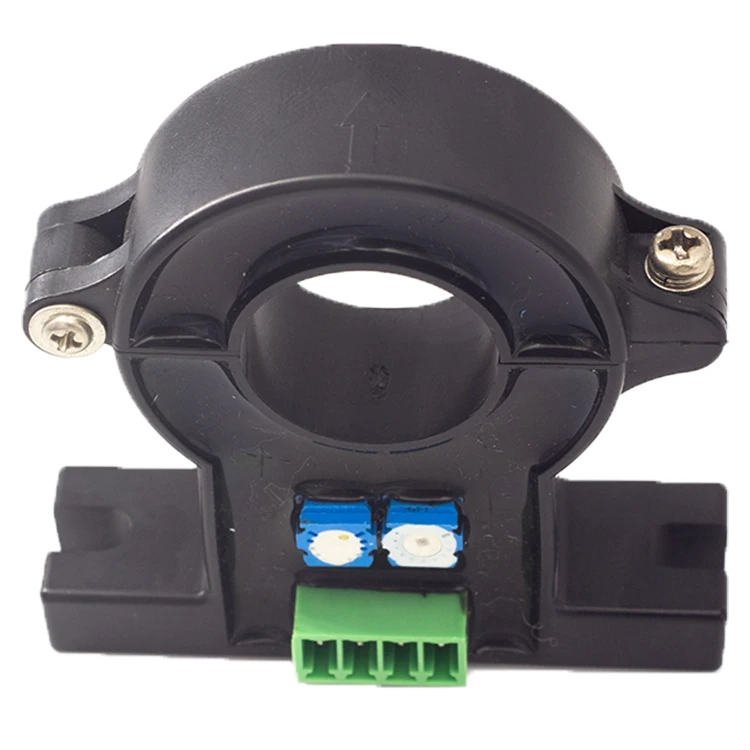

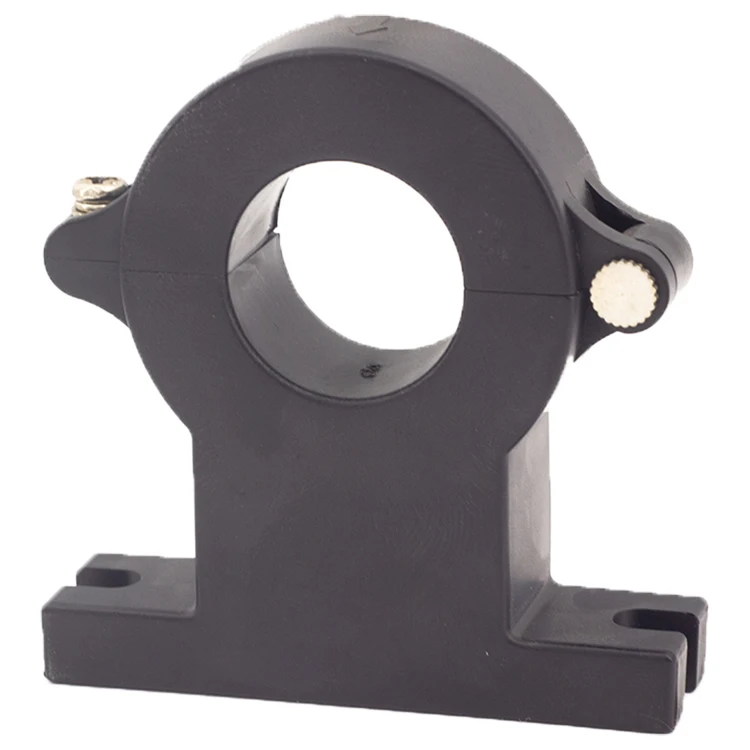

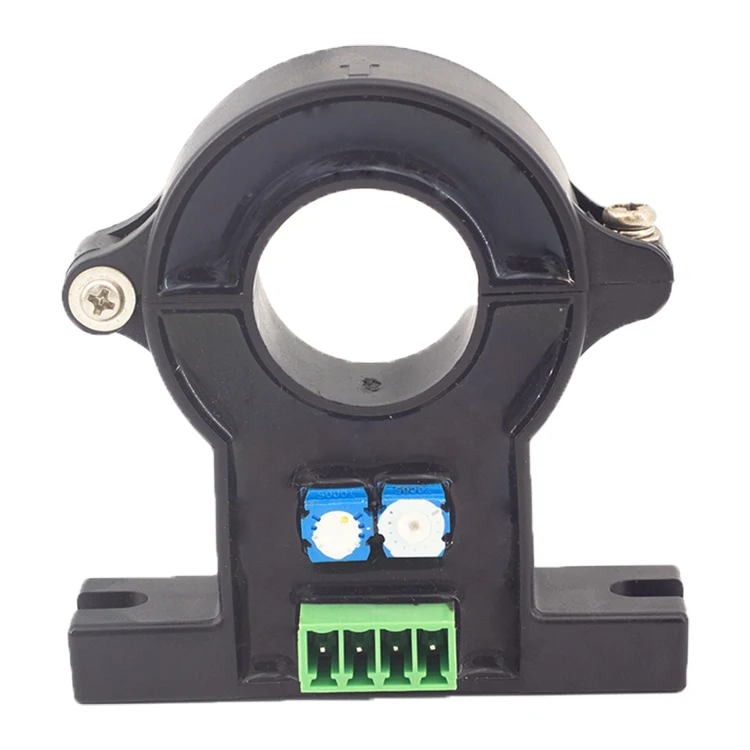

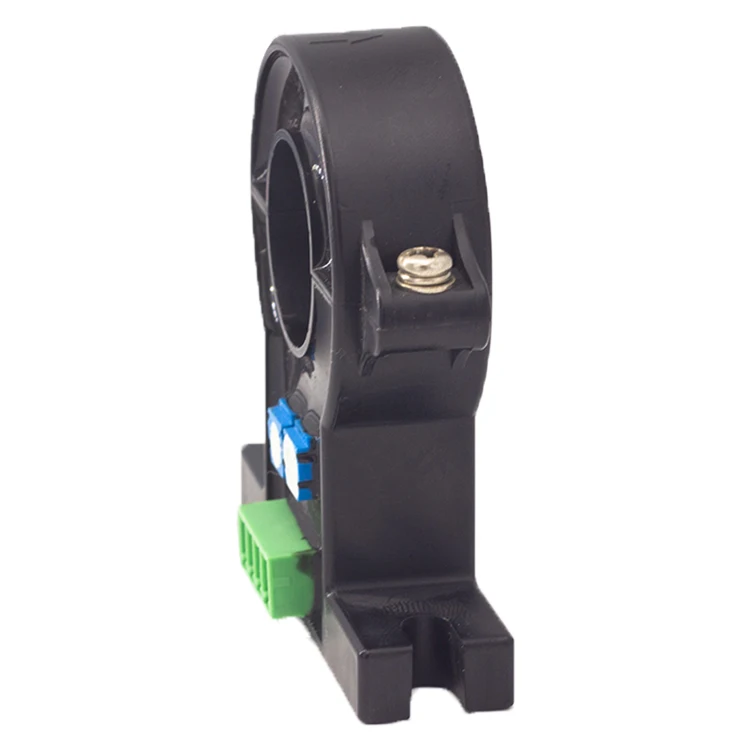

TR Uninterruptible Power Supply (UPS) Open Loop Direct Measurement Hall Current Sensor 500A/4V
TR Uninterruptible Power Supply (UPS) Open Loop Direct Measurement Hall Current Sensor 500A/4V
TR Uninterruptible Power Supply (UPS) Open Loop Direct Measurement Hall Current Sensor 500A/4V
TR Uninterruptible Power Supply (UPS) Open Loop Direct Measurement Hall Current Sensor 500A/4V
TR Uninterruptible Power Supply (UPS) Open Loop Direct Measurement Hall Current Sensor 500A/4V
TR Uninterruptible Power Supply (UPS) Open Loop Direct Measurement Hall Current Sensor 500A/4V
TR Uninterruptible Power Supply (UPS) Open Loop Direct Measurement Hall Current Sensor 500A/4V

TR Uninterruptible Power Supply (UPS) Open Loop Direct Measurement Hall Current Sensor 500A/4V

Share on (1600916948451):


Price:$23.55 - $36.55

Quantity:


Product Overview

Description



Products Description


Product Description
The sensor works on the principle of direct measurement Hall detection. The magnetic flux generated by the primary current is gathered in the magnetic circuit, and the Hall voltage signal is detected by the Hall device. After amplification by the amplifier, the voltage signal accurately reflects the primary current.


Technical Parameter
Specification
50A/4V
200A/4V
500A/4V
Unit
IPN
Primary Rated Input Current
50
200
500
A
IP
Primary Current Measurement Range
0～100
0～400
0～1000
A
VSN
Secondary rated output voltage
4
V
VC
The Power Supply Voltage
±12～15(±5%)
V
IC
Current Consumption
＜25
mA
Vd
Insulation Voltage
Between primary and secondary circuits:2.5kV/50Hz/1min

ε L
Linearity
＜1
%FS
X
Precision
TA =25℃:≤±1
%
V0
Offset Voltage
TA =25℃:≤±20
mV
VOM
Magnetic Offset Voltage
IP=0 after 3*ITPN:≤±20
mV
VOT
Offset Voltage Temperature Drift
IP =0 TA =-40～+80℃:≤±1
mV/℃
Tr
Response Time
≤5
μS
f
Bandwidth(-3dB )
DC～20
KHz
TA
Working Temperature
-40～+80
℃
TS
Storage Temperature
-45～+85
℃
RL
Load Resistance
TA =25℃:≥10
kΩ



Features

1: Can measure AC, DC and pulse signals

2：Strong resistance to external interference, high common mode rejection ratio

3: Low temperature drift, fast response time, wide frequency band

4: Perforated structure, no insertion loss

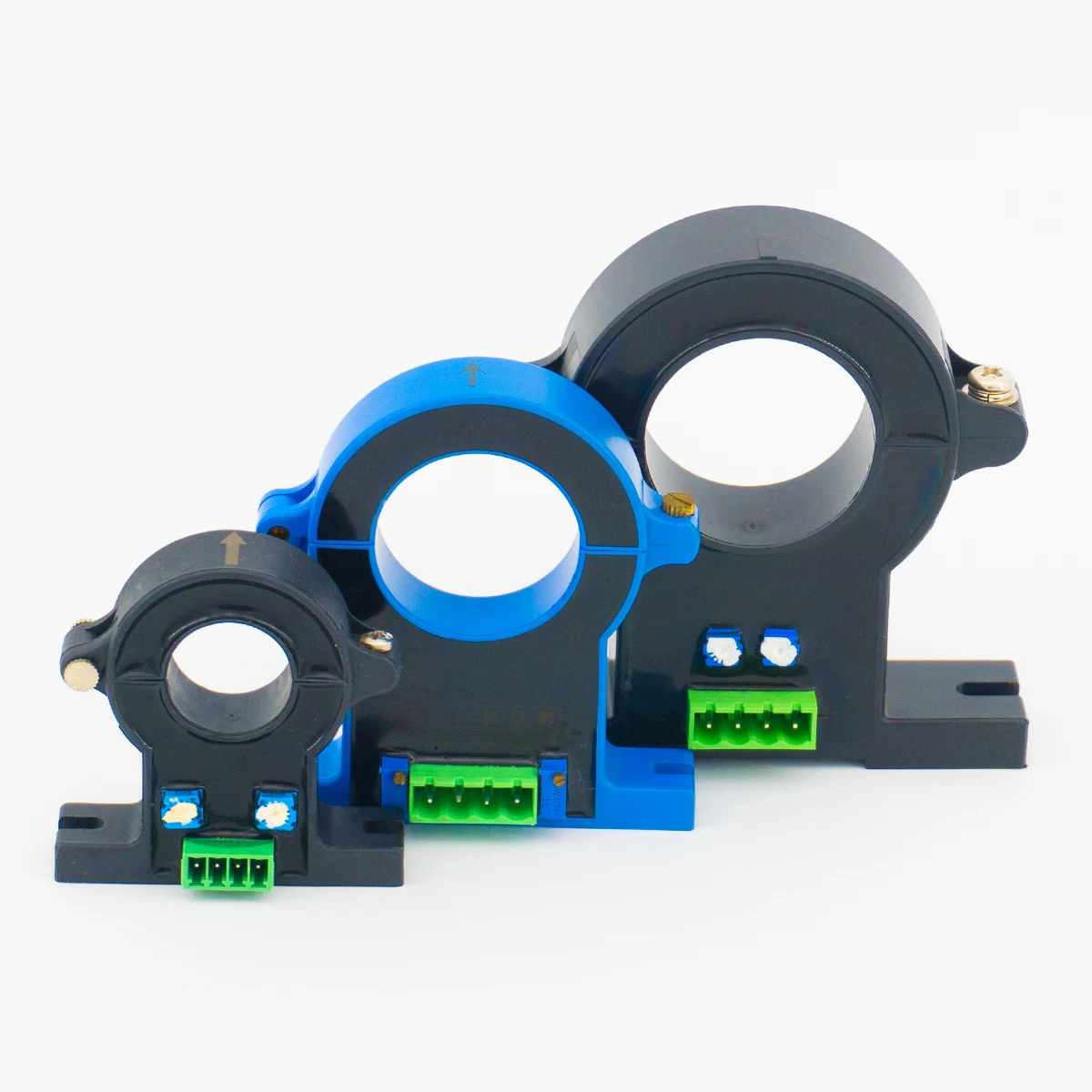

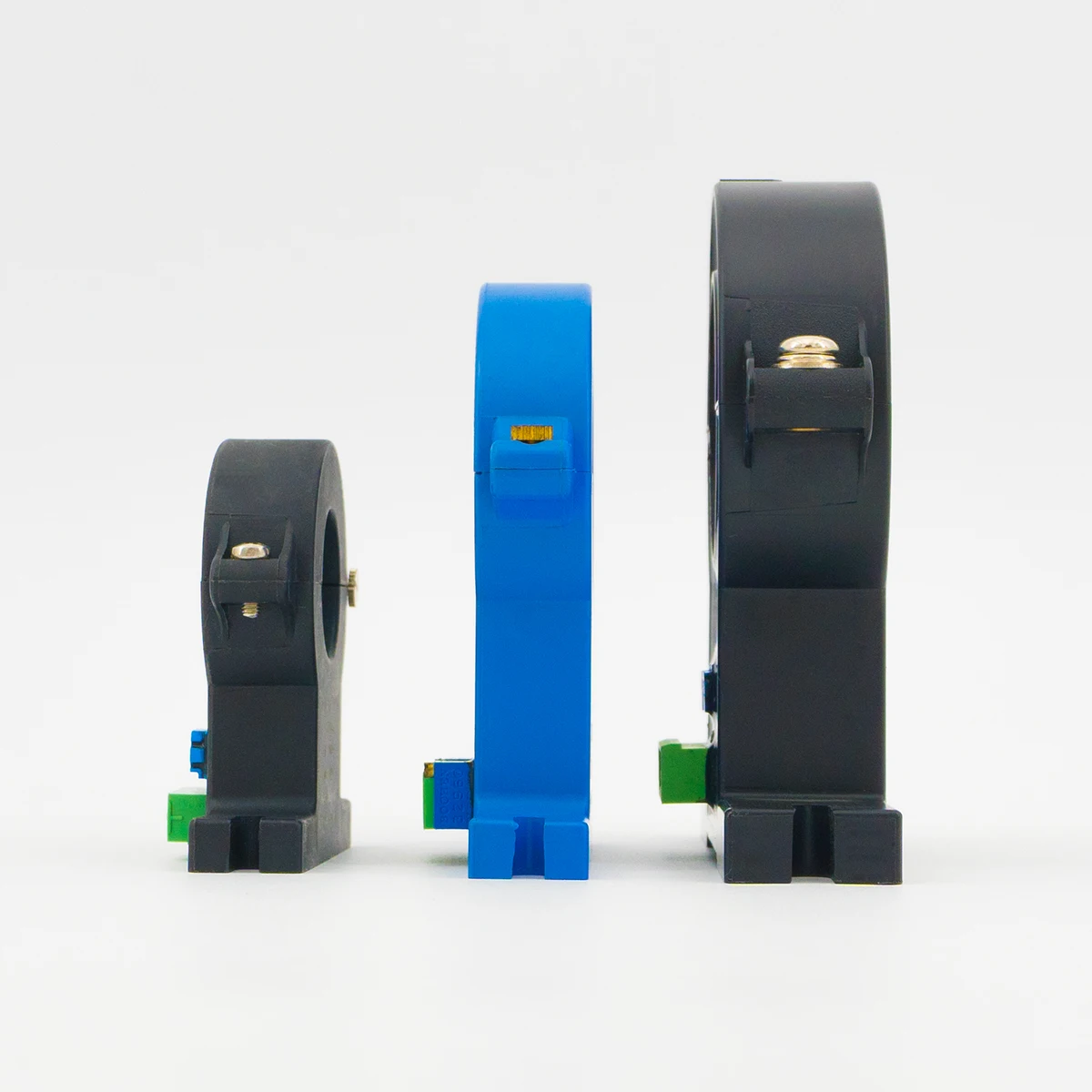

5: Split structure, easy to install




Scope of application


1: AC frequency conversion speed regulation

2：Servo motor traction

3: Uninterruptible Power Supply (UPS)

4: Welding machine, battery power supply
