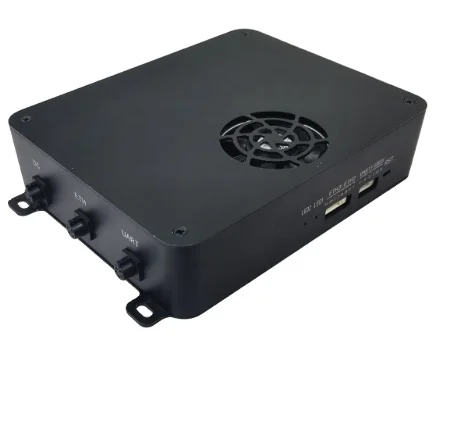

Customization 50km Long range UAV High definition Wireless Video and Data Transmission Equipment with Low Power Consumption
- Category: >>>
- Supplier: Shenzhen Xingkai Technology Co. Ltd.
Share on (1600917004335):
Product Overview
Description
Product Description
Product Name | XK-F303E-50 |
Function | HD wireless digital video and data transmission device |
Package | Packed in a professional shipping box |
1. Product performance description
* The working frequency band is 800MHz / 1.4GHz / the frequency bands can be customized
* The bandwidth is adjustable, including 3MHz, 5MHz, 10MHz, and 20MHz.
* The mapping mode is adjustable, including QPSK, 16QAM, and 64aqm.

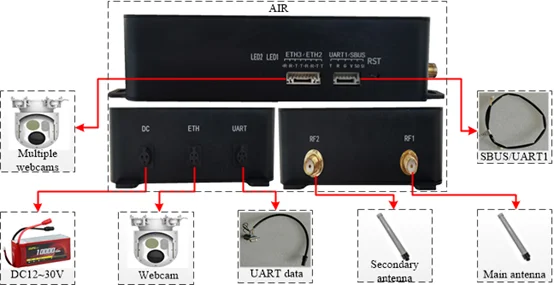

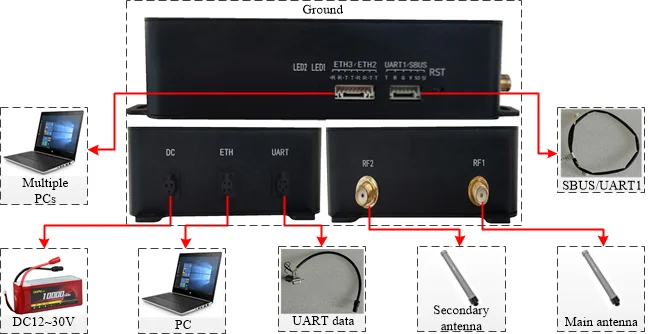

* Support Ethernet, serial port, and SBUs.
* Support AES128 and AES256 encryption.
* The bandwidth is adjustable, including 3MHz, 5MHz, 10MHz, and 20MHz.
* The mapping mode is adjustable, including QPSK, 16QAM, and 64aqm.
* Support Ethernet, serial port, and SBUs.
* Support AES128 and AES256 encryption.
2. Feature
* Wide frequency range and wide bandwidth are supported.
* Rich control interfaces, and a High carrier noise ratio.
* Wide input voltage range(DC12 ~ 25V).
* Low power consumption.
* Max downlink configuration rate: 30m, bandwidth: 20m
* Rich control interfaces, and a High carrier noise ratio.
* Wide input voltage range(DC12 ~ 25V).
* Low power consumption.
* Max downlink configuration rate: 30m, bandwidth: 20m
Max uplink configuration rate: 26m, bandwidth: 20m.
* Support OTA upgrade, local and remote upgrade.
* Adaptive frequency hopping, strong anti-interference ability.
* Support OTA upgrade, local and remote upgrade.
* Adaptive frequency hopping, strong anti-interference ability.
Item | Spec/Parameters | ||
Air Unit | Ground Unit | ||
Operation Voltage | DC12V~DC25V,Standard input DC22V | ||
Power Consumption | ≤11W @ 33dBm | ||
Modulation | OFDM | ||

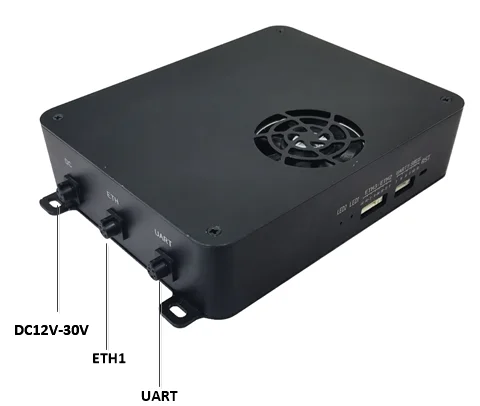

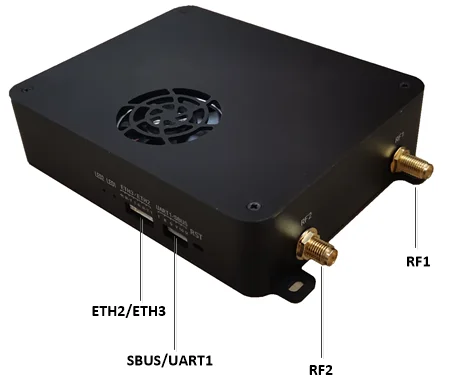

Data interface | UART(TTL/RS232)/SBUS | ||
Frequency | 800MHz/1.4GHz/the frequency bands can be customized | ||
Channel rate | Uplink(Max): 30Mbps,Downlink(Max):26Mbps | ||
Bandwidth | 3/5/10/20MHz | ||
Latency | ≤15ms | ||
Tx Power | ≤33dBm(Adjustable) | ||
Working temperature | -30℃~60℃ | ||
Storage temperature | -40℃~75℃ | ||
Antenna | 2.5dBi | 7-16dBi | |
Communication Protocol | IEEE802.3,Transparent serial data | ||
Communication | Point to Point, Point to Multi-Points relay mode | ||
Range | 50Km | ||

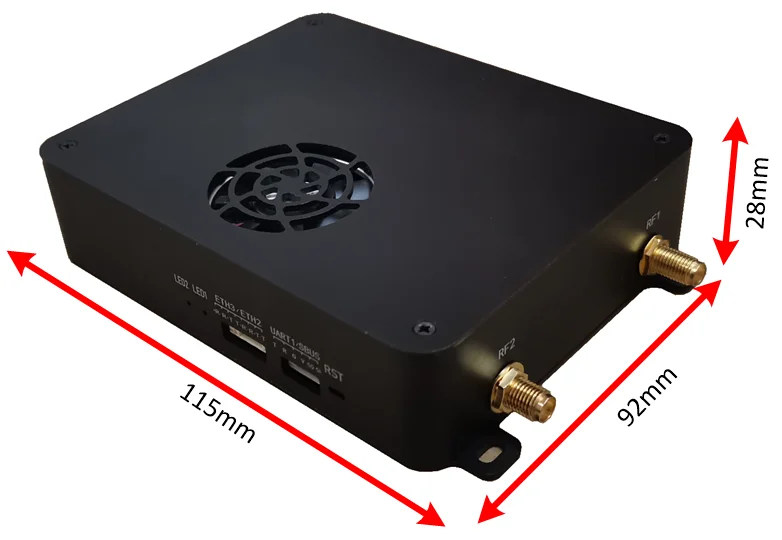

Dimensions | 115*92*28mm | ||
Weight | ≤300g | ||
Packing&Shipping:
Port: Yantian, Shekou or Hong Kong
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, military radio, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of military C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
