2023 Factory Custom Electrical Pure Copper Overhead Line Grounding Electrode Earth Rod
- Category: >>>
- Supplier: Shaoxing Bailijia Electric Co. Ltd.
Share on (1600917036844):
Product Overview
Description
Products Description
2023 Factory Custom Electrical Pure Copper Overhead Line Grounding Electrode Earth Rod
Material | Pure Copper or Brass | |
Tensile strength | ≥290N/mm² | |
Straightness error | ≤1mm/m | |
Service life | ≥30years | |
Diameter | according to customer's requirement | |
Function | used in grounding and lightning system | |
Available service mode | OEM,ODM | |
Certificate | ISO9001:2015,CE,SGS | |
Negotiable Price According to different material/size and and Purchase quantity | ||
The Solid Copper Ground Rod have characters of anti-corrosion and ductility ,which is superior than common copper clad steel rod and easy to install deeply.
It is widely used for earthing system of power plant, transformer station, tower, communication station, airport, railway, subway station ,high building, computer room, petro plant, oil reservoir in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.
Method of use
The installation of Ground Rod is very flexible ,both hammer and electric pick are ok .In the bad soil
condition ,please drill and then install .
1.When installing the rod deeply with hammer , please fit the drilling head to protect copper layer and connect multi grounding rod with coupler ;
2.When installing the rod deeply in rock or other hard soil area with drilling tool ,please refer to below two choice:
1).Before installing rod ,please drill hole and then fill bentonite and water full to reduce electric resistance;
2).Fill bentonite and water after installing the rods to reduce electric resistance.
condition ,please drill and then install .
1.When installing the rod deeply with hammer , please fit the drilling head to protect copper layer and connect multi grounding rod with coupler ;
2.When installing the rod deeply in rock or other hard soil area with drilling tool ,please refer to below two choice:
1).Before installing rod ,please drill hole and then fill bentonite and water full to reduce electric resistance;
2).Fill bentonite and water after installing the rods to reduce electric resistance.
Products Size
Copper Ground Rod:Common size(We Can Customize)
Product specifications | Diameter(mm) | Length(mm) | Weight(kg) |
TY-Φ16×1500 | 16 | 1500 | 2.67 |
TY-Φ16×2000 | 16 | 2000 | 3.56 |
TY-Φ16×3000 | 16 | 3000 | 5.34 |
TY-Φ18×1500 | 18 | 1500 | 3.39 |
TY-Φ18×2000 | 18 | 2000 | 4.52 |
TY-Φ18×3000 | 18 | 3000 | 6.78 |
TY-Φ20×1500 | 20 | 1500 | 4.18 |
TY-Φ20×2000 | 20 | 2000 | 5.58 |
TY-Φ20×3000 | 20 | 3000 | 8.37 |
TY-Φ25×1500 | 25 | 1500 | 6.54 |
TY-Φ25×2000 | 25 | 2000 | 8.72 |
TY-Φ25×3000 | 25 | 3000 | 13.08 |
Above is the common size, we also can do according to your requests. Please contact us to get to know more information about our products and service.
Customer Testimonials
Why Choose Us
Factory Profile
Shaoxing Bailijia Electric Co., Ltd. is located in the famous tourism city----Xinchang City of Zhejiang, China, with Ningbo in theeast and the international city----Shanghai in the north.
Bailijia always concentrates on electric ground product and electricanti-corrosion product studying, development, processing and marketing. We cooperate with Power Design and Research Institute,Petrification Design and Research Institute and related high colleges in technical area. They help us achieve the newest achievements in scientific research.Meanwhile, Bailijia always concentrates on basic management to improve enterprise grade. We have got the certification of ISO9001:2008, and study foreigners' advanced technology and management experience. We produce the goods according to American UL safety standard and European SGS Quality Test standard. Our goods are exported to more than 30 countries and regions, such as America, England, Vietnam, Egypt, Argentina and Australia. We get a very good reputation.
At present, Bailijia produces copper earth rods, exothermic welding fluxes, electrolytic ion earth rods, physical agents and copper clad steel strand wires. Our goods are used in petrification, electric, war industry, communication, railway and weather fields.we export more than 100 containers annually. We will enlarge our producing scale and wait for cooperating with you.

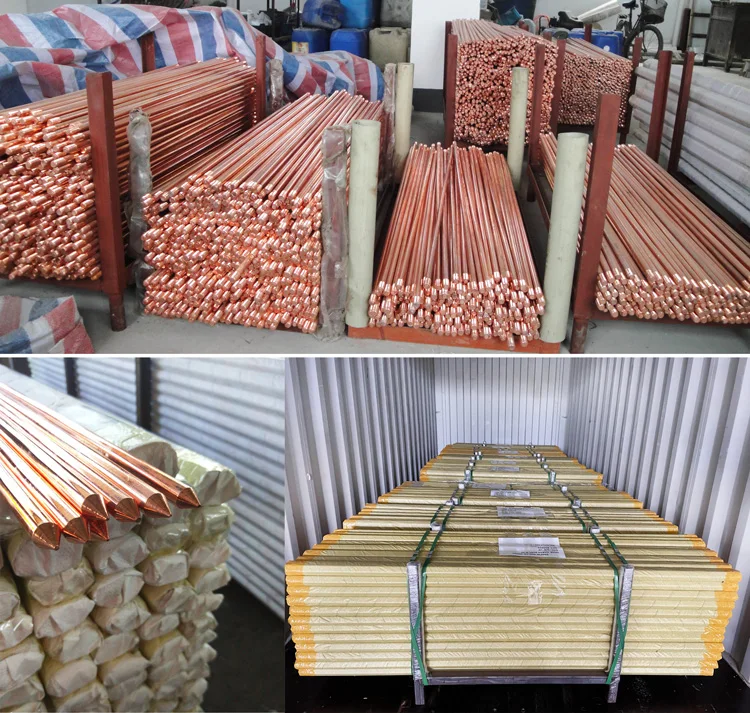

Packaging Shipping
Certifications
FAQ
1.Are you a trading company or manufacturer?
Manufacturer with factory!
2.What kinds of Grounding Material do you produce?
It covers grounding rod ,lightning rod ,connecting fixing ,conductor, exothermic welding kit, etc.
3.Is Customized Material available?
Yes, please offer your required specs.
4.Do you Accept OEM service?
YES!
5.What's your Delivery Time?
Normally 20-25days,please confirm with us before order!
6.What's the Payment Trems?
Usually,50% as deposit,50% before sending B/L by T/T.
7.How you pack products?
Normally, in steel pallet. We'll do according to customers' requirement.
8.What's your available port of Shipment?
Normally, Ningbo port or Shanghai Port.
Manufacturer with factory!
2.What kinds of Grounding Material do you produce?
It covers grounding rod ,lightning rod ,connecting fixing ,conductor, exothermic welding kit, etc.
3.Is Customized Material available?
Yes, please offer your required specs.
4.Do you Accept OEM service?
YES!
5.What's your Delivery Time?
Normally 20-25days,please confirm with us before order!
6.What's the Payment Trems?
Usually,50% as deposit,50% before sending B/L by T/T.
7.How you pack products?
Normally, in steel pallet. We'll do according to customers' requirement.
8.What's your available port of Shipment?
Normally, Ningbo port or Shanghai Port.
