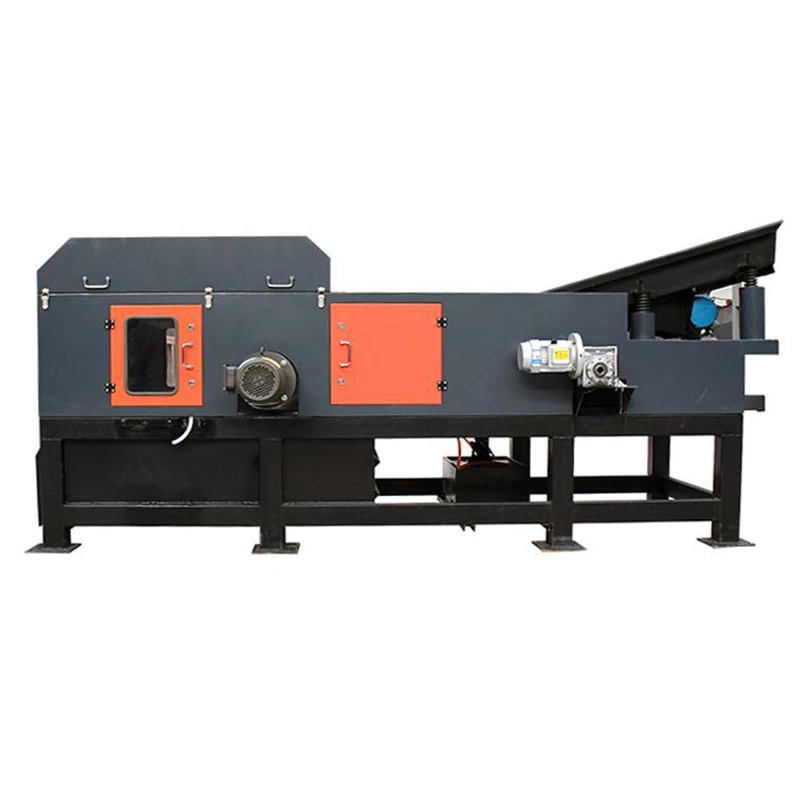

Magnetic Separator /Metal Sorting Machine/ Eddy Current Separator for Aluminum and Copper Non Ferrous Metal Separator
- Category: >>>
- Supplier: Jiangxi Mingxin Metallurgy Equipment Co. Ltd.
Share on (1600917067775):
Product Overview
Description
Products Description

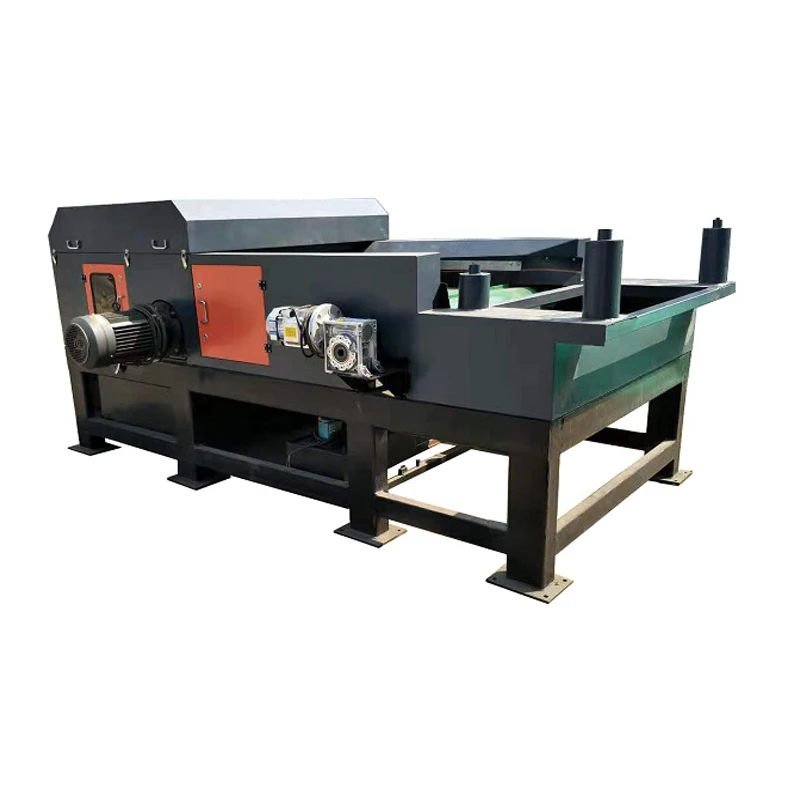

Eddy Current Separator.

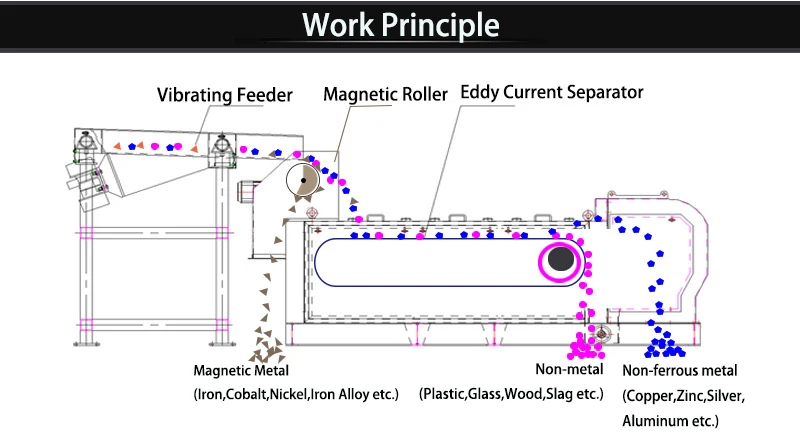

MX eddy current separator is mainly used in non-ferrous metal from industrial waste, living garbage waste recycling copper, aluminum and other non-ferrous metals, can be widely used and waste disposal, recycling of waste electrical appliance, and other areas of the environmental protection and processing industry of non-ferrous metal materials processing and other industries. For a variety of non-ferrous metal separation effect is good, strong adaptability, reliable mechanical structure; Have strong repulsive force (adjustable), high separation efficiency, etc
Features:
1. High separating efficiency and long service life
2. Easy installation and maintainence
2. High magnetic field strength, big action gradient and good separating effect.
3. The rotary speed of the magnetic drum is adjustable.
2. Easy installation and maintainence
2. High magnetic field strength, big action gradient and good separating effect.
3. The rotary speed of the magnetic drum is adjustable.
Product Parameters
Model | Main Roller Motor Power (KW) | Belt Motor Power (KW) | Vibrating Motor power (w) | Capacity (m³/h) | Dimensions (mm) | Weight (KG) |
MX450 | 3 | 0.75 | 100 | 1-3 | 3750*1260*1500 | 980 |
MX550 | 3 | 0.75 | 100 | 3-5 | 3750*1360*1500 | 1125 |
MX650 | 3 | 0.75 | 100 | 4-7 | 3750*1460*1500 | 1295 |
MX800 | 4 | 0.75 | 100 | 5-9 | 3750*1580*1500 | 1490 |
MX1000 | 5.5 | 0.75 | 200 | 6-11 | 3750*1785*1500 | 1735 |
MX1200 | 5.5 | 1.5 | 200 | 8-13 | 3750*1985*1500 | 1985 |
MX1500 | 7.5 | 1.5 | 370*2 | 10-15 | 4100*2245*1500 | 2245 |

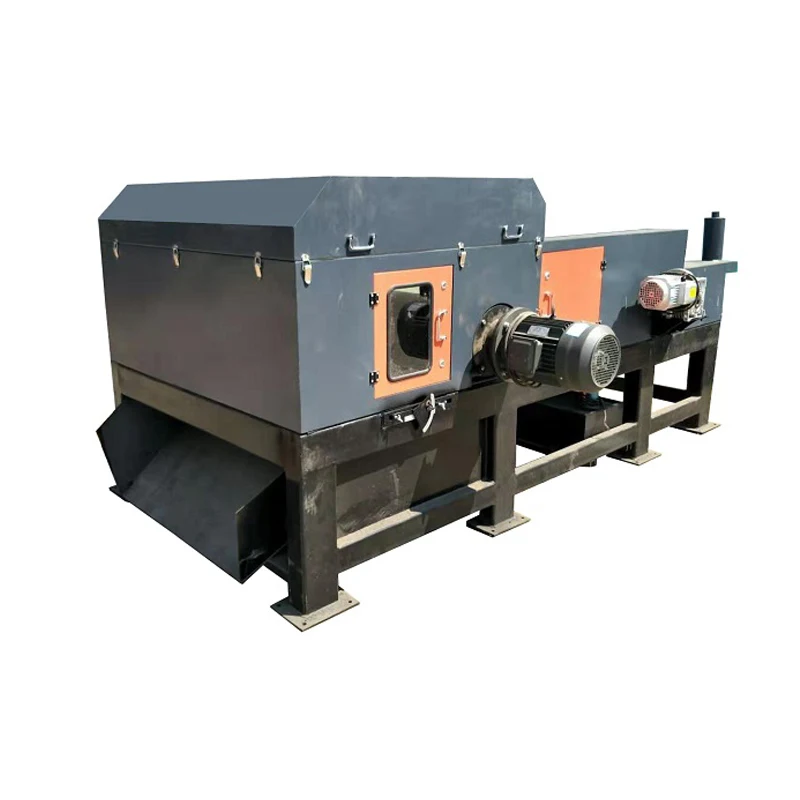

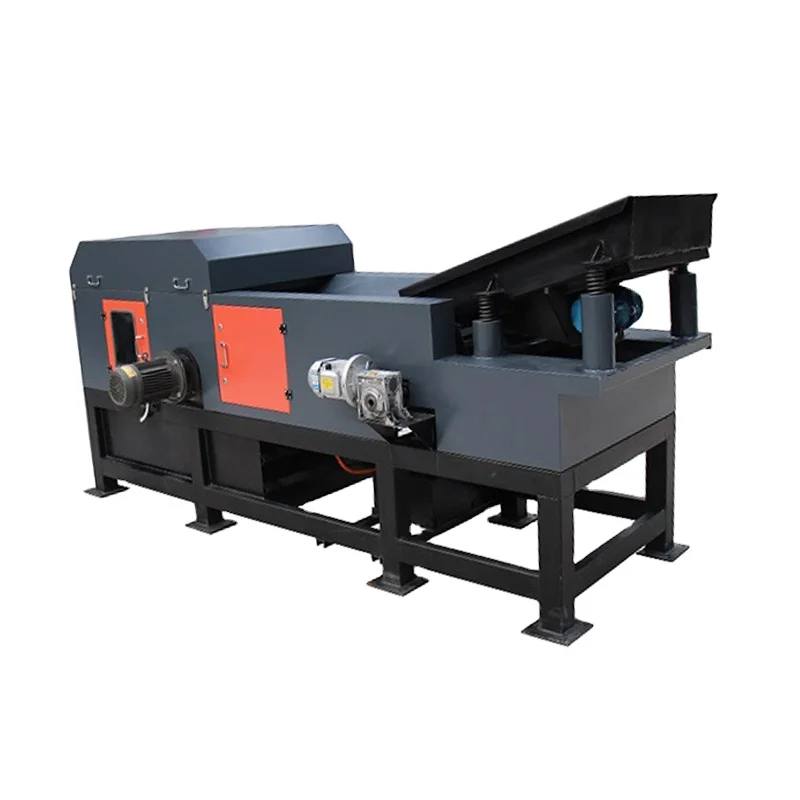

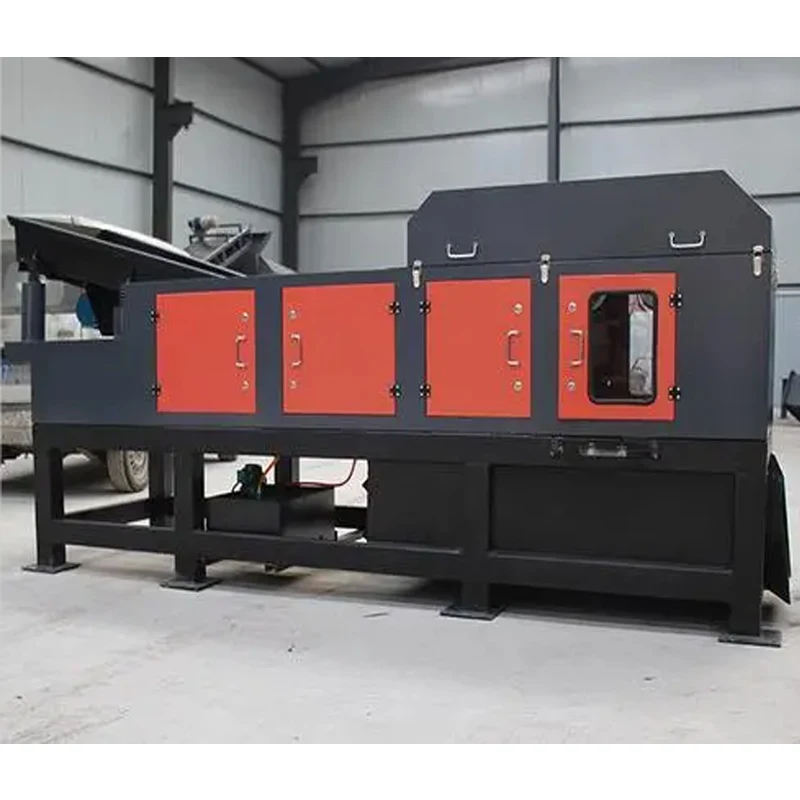

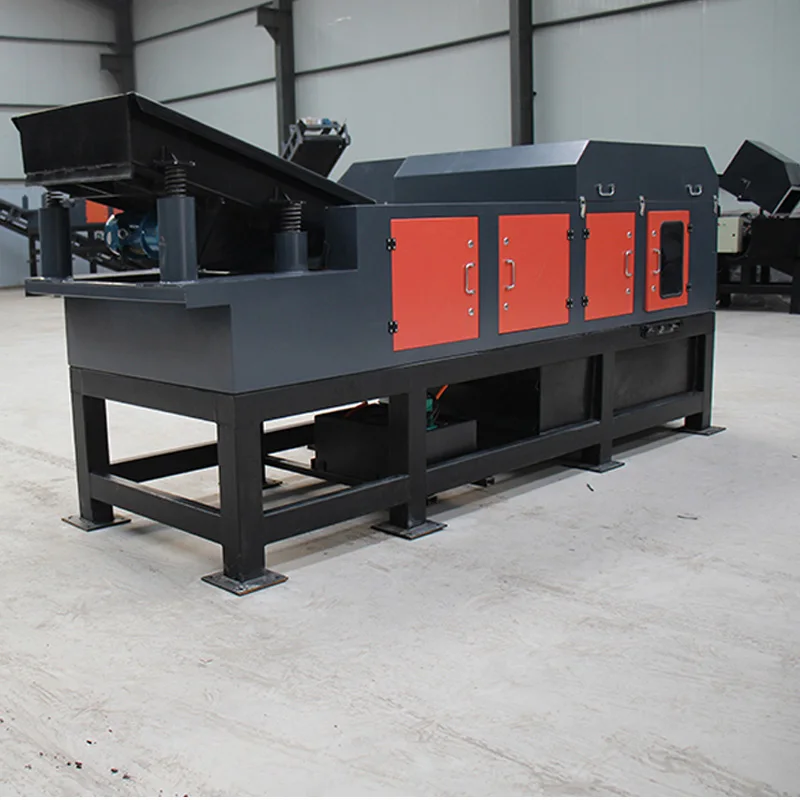

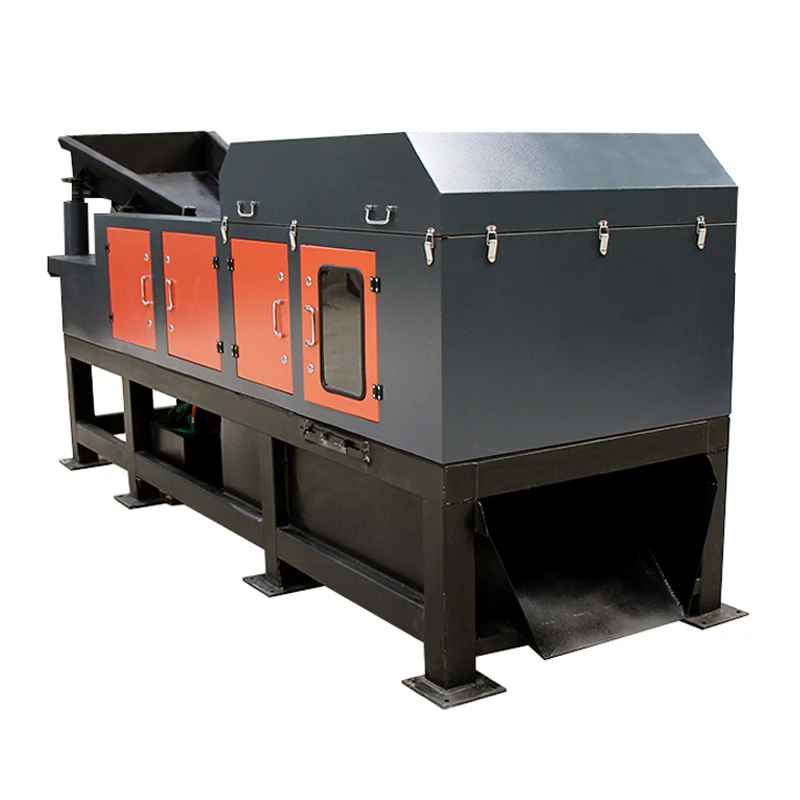

Product Photos

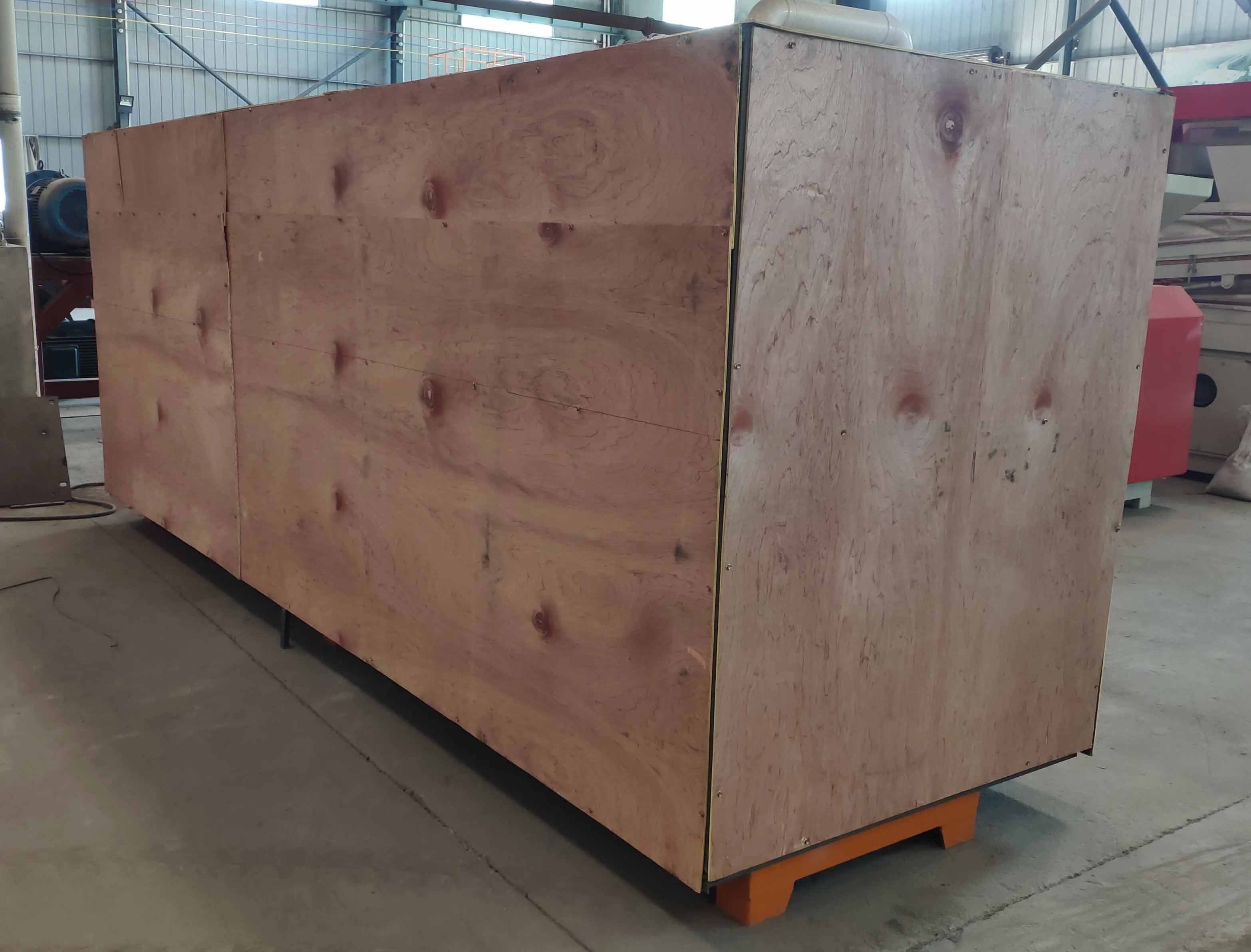

Product Packing
