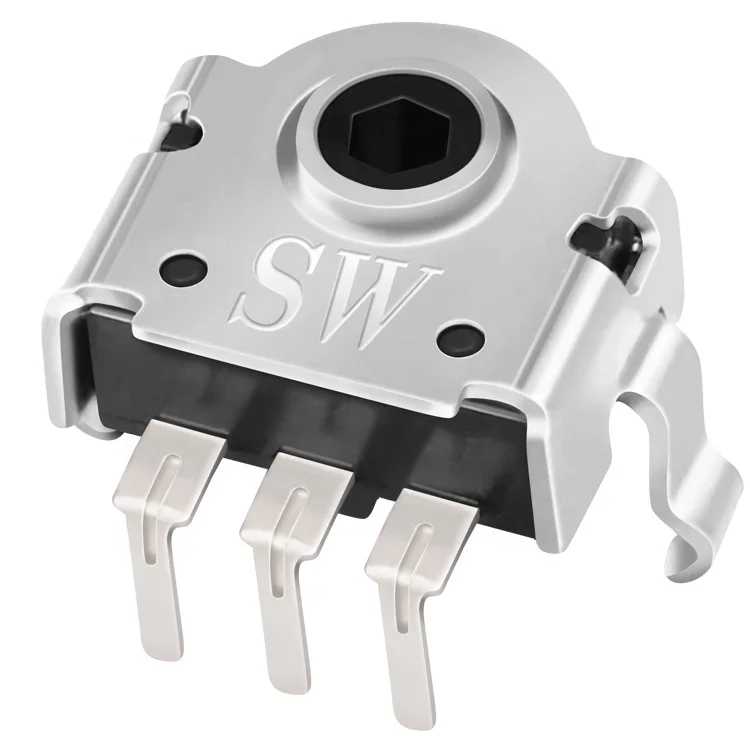

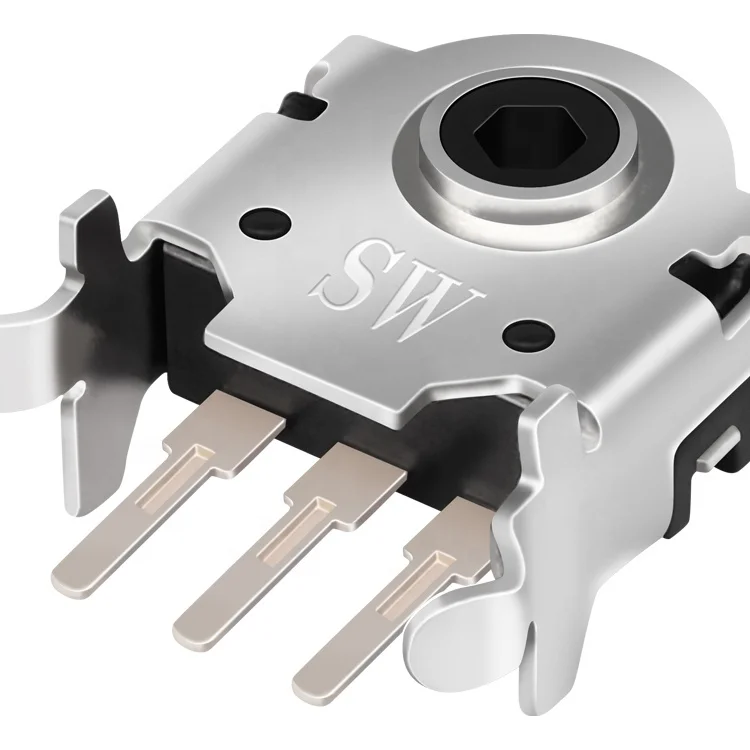

Soundwell Encoder EC10 Through Shaft Rotary Encoder
Soundwell Encoder EC10 Through Shaft Rotary Encoder
Soundwell Encoder EC10 Through Shaft Rotary Encoder
Soundwell Encoder EC10 Through Shaft Rotary Encoder

Soundwell Encoder EC10 Through Shaft Rotary Encoder

Share on (1600917071087):


Price:

Quantity:


Product Overview

Description



Encoder Model
EC10 series
Number of detent
12/24
Pulses
6/12
Rotational life
100,000 cycles Min
Working temperature
-20℃～80℃



EC10 Rotary Encoder Main Specifications



Dimensions
10mm
Rated power
DC5V 10mA
Number of detent
12/24
Pulses
6/12
Working temperature
-20℃～80℃
Rotational life
100,000 cycles Min
Applications
Mouses, earphones, radios, toys, e-cigarettes or other electronic products;
Product Features
Small size with long life;
Through shaft design.
Functions
The main functions are page turning, FM, dimming, volume adjustment, speed adjustment, temperature adjustment, menu selection, etc.



EC10 Rotary Encoder Specifications



One、MECHANICAL CHARACTERISTIC

1. Rotational torque: 5~100gf.cm
2. Total rotational angle: 360°
3. Number of detent: 12/24

Two、ELECTRICAL CHARACTERISTIC
1. Resolution: 6/12 pulses
2. Phase difference: T≥0.08T
3. Power rating: DC5V 10mA
4. Insulation resistance: 10MΩ 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V
6. Chattering: ≤3ms
7. Bounce: ≤2ms

Three、ENDURANCE CHARACTERISTIC

1. Rotational life :100,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
