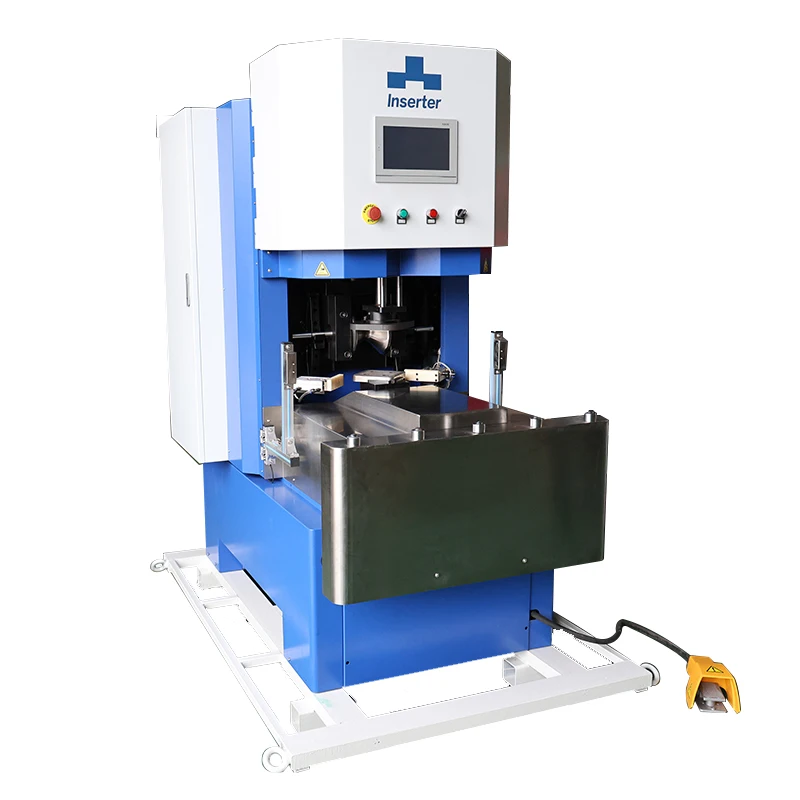

High Performance 380V/220V 3P CNC Metal Panel Corner Forming Machine
High Performance 380V/220V 3P CNC Metal Panel Corner Forming Machine
High Performance 380V/220V 3P CNC Metal Panel Corner Forming Machine
High Performance 380V/220V 3P CNC Metal Panel Corner Forming Machine
High Performance 380V/220V 3P CNC Metal Panel Corner Forming Machine
High Performance 380V/220V 3P CNC Metal Panel Corner Forming Machine
High Performance 380V/220V 3P CNC Metal Panel Corner Forming Machine

High Performance 380V/220V 3P CNC Metal Panel Corner Forming Machine

Share on (1600917071122):


Price:$29,000.00 - $31,200.00

Quantity:


Product Overview

Description



Product Features


• Touch screen + PLC to control tool gap and working process.
• Servo motor + ball screw control roller to square tool gap according to plate thickness
• Each corner can be identify different inner radius according to thickness

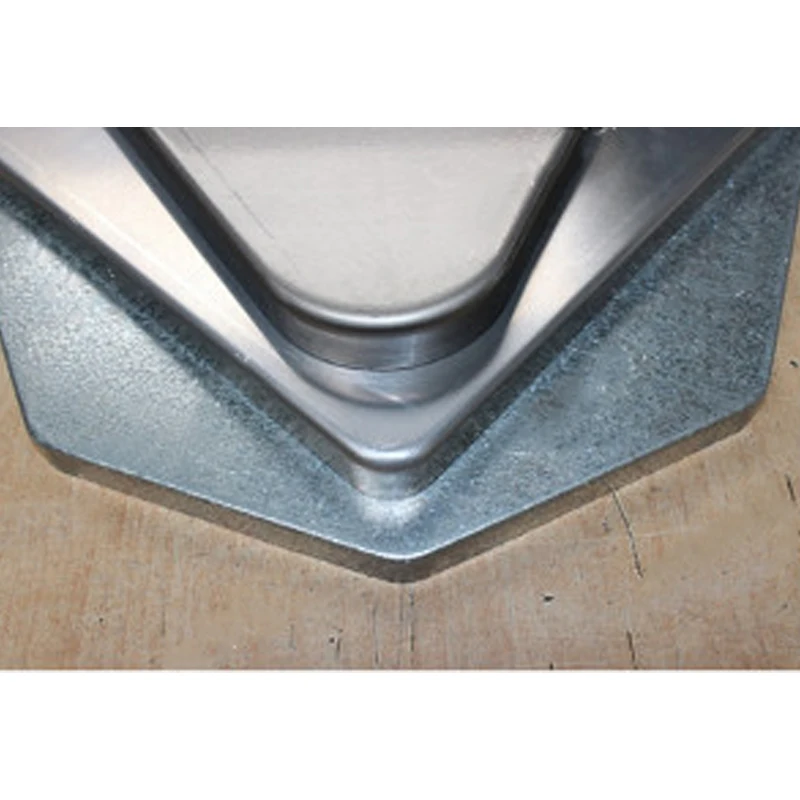

• Forming the R angle does not require open angle welding. It only needs to pre-bend the two sides of the R angle by 90 degrees on the bending machine, and then roll and form the whole machine on this machine to automatically cut the excess edge material

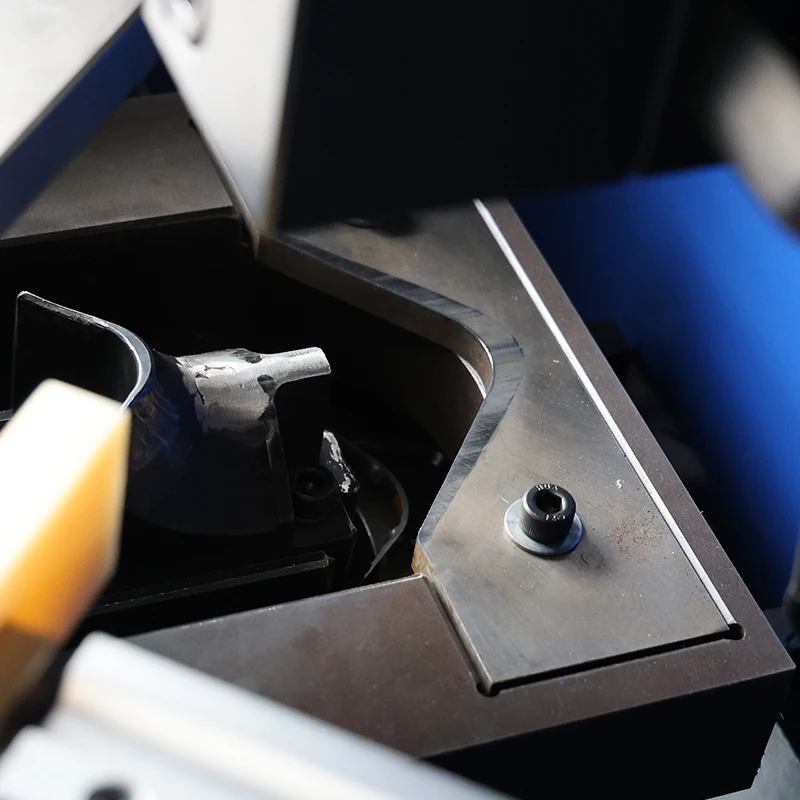

• The die types are divided into bending lower die, forming roller upper die and forming lower die. The bending die is the same as the ordinary bending die, depending on the thickness of the plate. The upper die of the forming roller depends on the R angle that needs to be formed. The forming lower die is determined by the R angle of the upper die of the roller minus the thickness of the plate. A lower die has four different R angles
• The forming R angle is the same but the plate thickness is different. It is not necessary to replace the forming roller upper die and forming lower die, only to adjust the gap between the forming roller upper die and the forming lower
die


Product Parameter


Model
CF-3050
Total Power
5.5KW
Voltage
3Phase 4Wire 220V/380V
Oil Pump Power
3.7KW 380V
Air Pressure
≥0.8Mpa

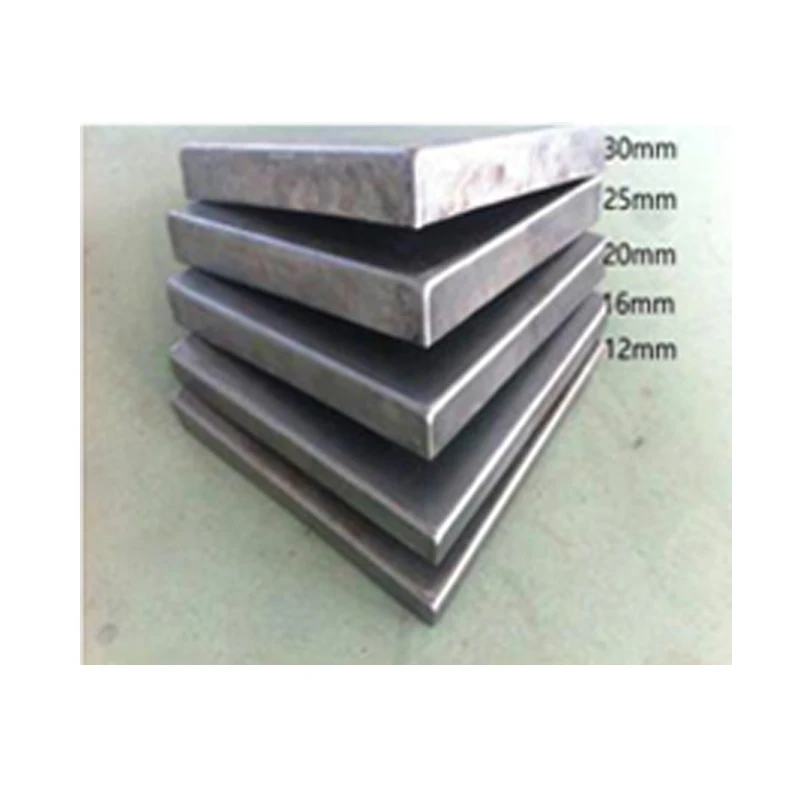

Processing Capacity
Material
Plate Thickness
Flange Height
Corner Radius
Cold Rolled Steel Plate
0.6mm
≤9mm













1.5-50
0.8mm
≤12mm
1.0mm
≤15mm
1.2mm
≤18mm
1.5mm
≤22mm
2.0mm
≤26mm
3.0mm
≤30mm
Stainless Steel
0.8mm
≤14mm
1.0mm
≤18mm
1.5mm
≤20mm
2.0mm
≤24mm
Aluminum Plate
0.8mm
≤12mm
1.0mm
≤15mm
1.5mm
≤20mm
2.0mm
≤24mm
2.5mm
≤28mm
3.0mm
≤30mm
Workpiece Size
Minimum 170*170mm Maximum 6000*6000mm
Weight
2300kg




FAQ


1. Who are we?
A:We are based in Guangdong, China, sell to Southeast Asia(20.00%),Eastern Europe(20.00%),
WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern
Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.

2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.

3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.

4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.

5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
