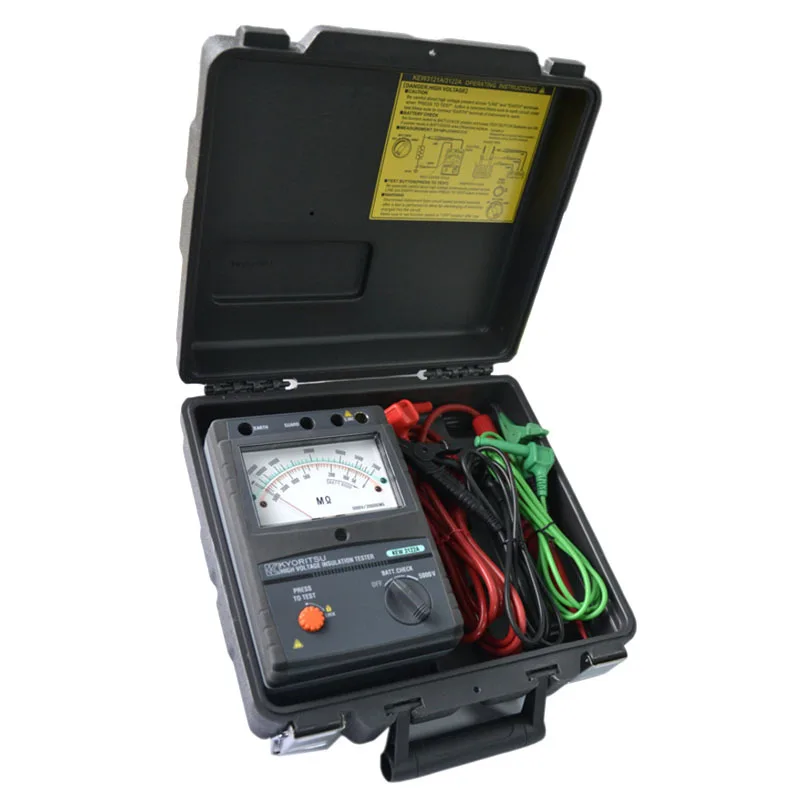

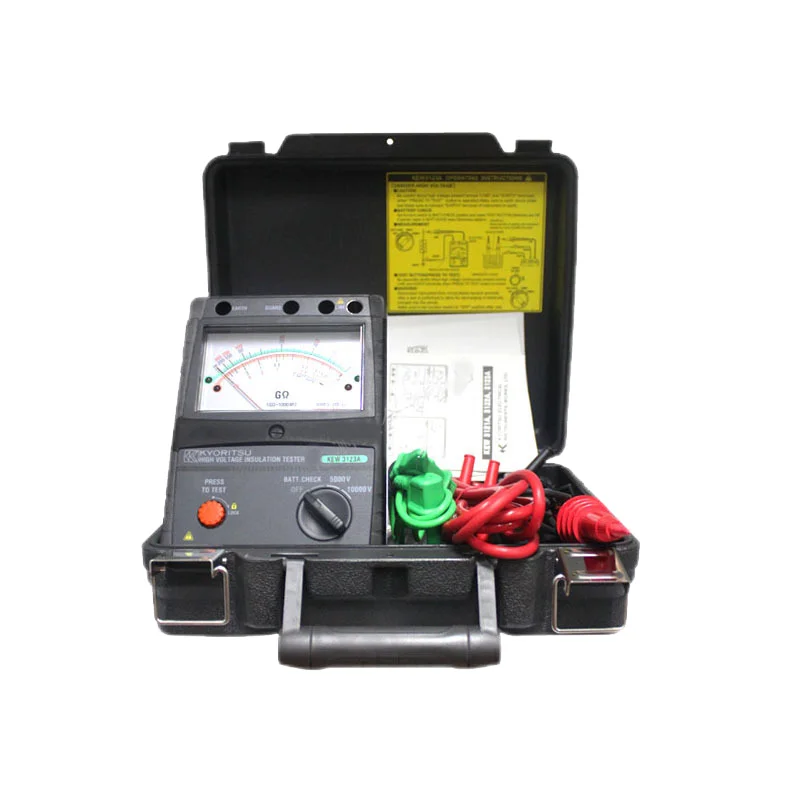

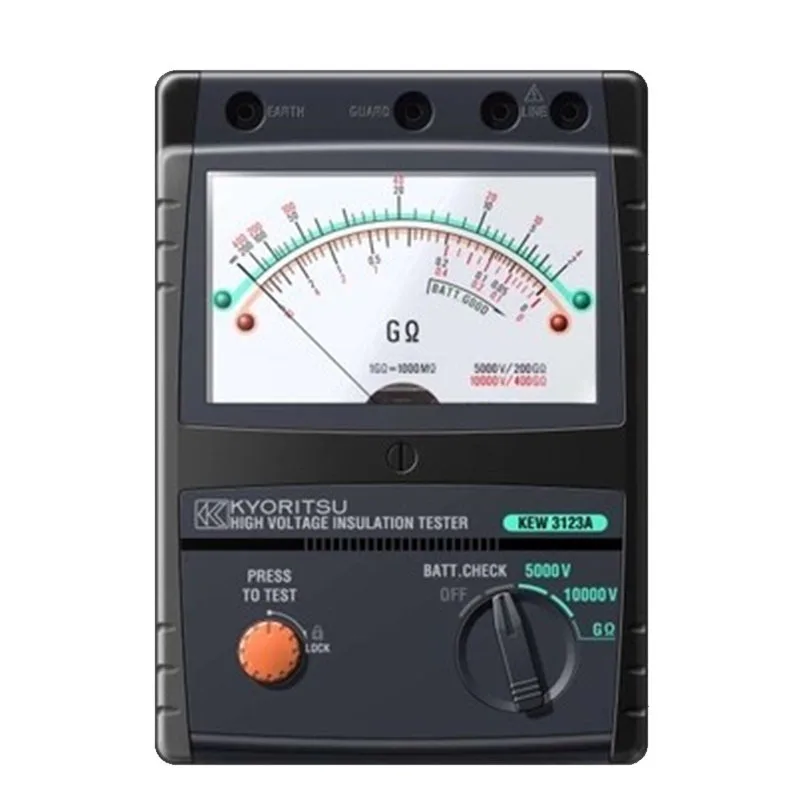

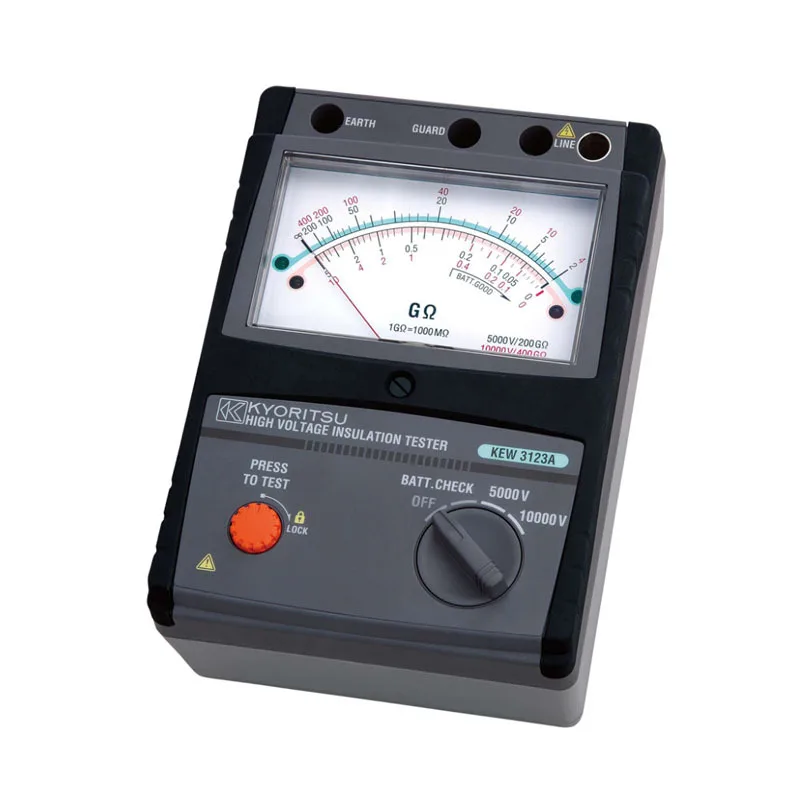

Kyoritsu 3123A High Voltage Insulation Tester 5000/10000V
- Category: >>>
- Supplier: Shenzhen Mepco Technology Co. Ltd.
Share on (1600917100217):
Product Overview
Description
Product Description
Kyoritsu 3123A Offers
Features
- Rugged design with a hard carrying case for field use
- Detachable High Voltage Line probe
- Automatic ranges, high and low scales, indicated by different LED's
- Drip proof
Specifications
DC Test Voltage | 5000V/10000V |
Measuring Ranges | 5 GΩ/200 GΩ (Auto-ranging) (5000 V) |
First Effective Measuring Ranges | 0.2 - 100 GΩ (5000 V) |
Accuracy | ± 5% rdg |
Other Ranges Accuracy | ±10% rdg or 0.5% of scale length |
Withstand Voltage | 5000 V AC for 1 minute |
Power Source | 8 x AA Batteries |
Dimensions | 7.87 x 5.51 x 3.15" (200 x 140 x 80 mm) |
Weight | Approx. 2.2 lb (1 kg) |
Packaging & Shipping
- High Voltage Insulation Tester
- Line Probe 9.84 ft (3 m)
- Earth Cord 4.92 ft (1. 5m)
- Guard Code 4.92 ft (1.5 m)
- Hook
- 8 x AA Batteries
- Instruction Manual
- Hard Carrying Case
