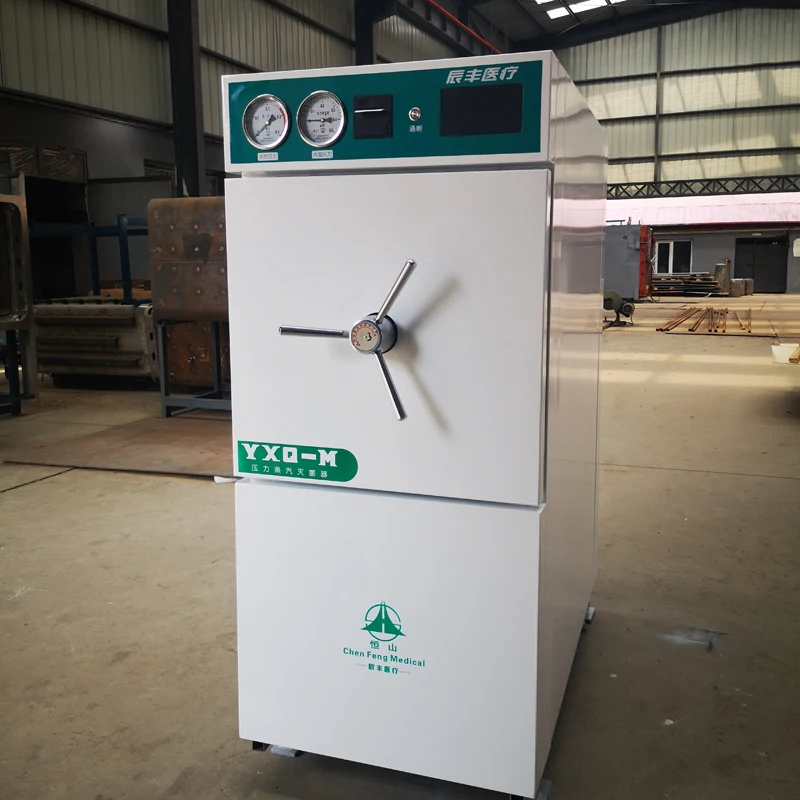

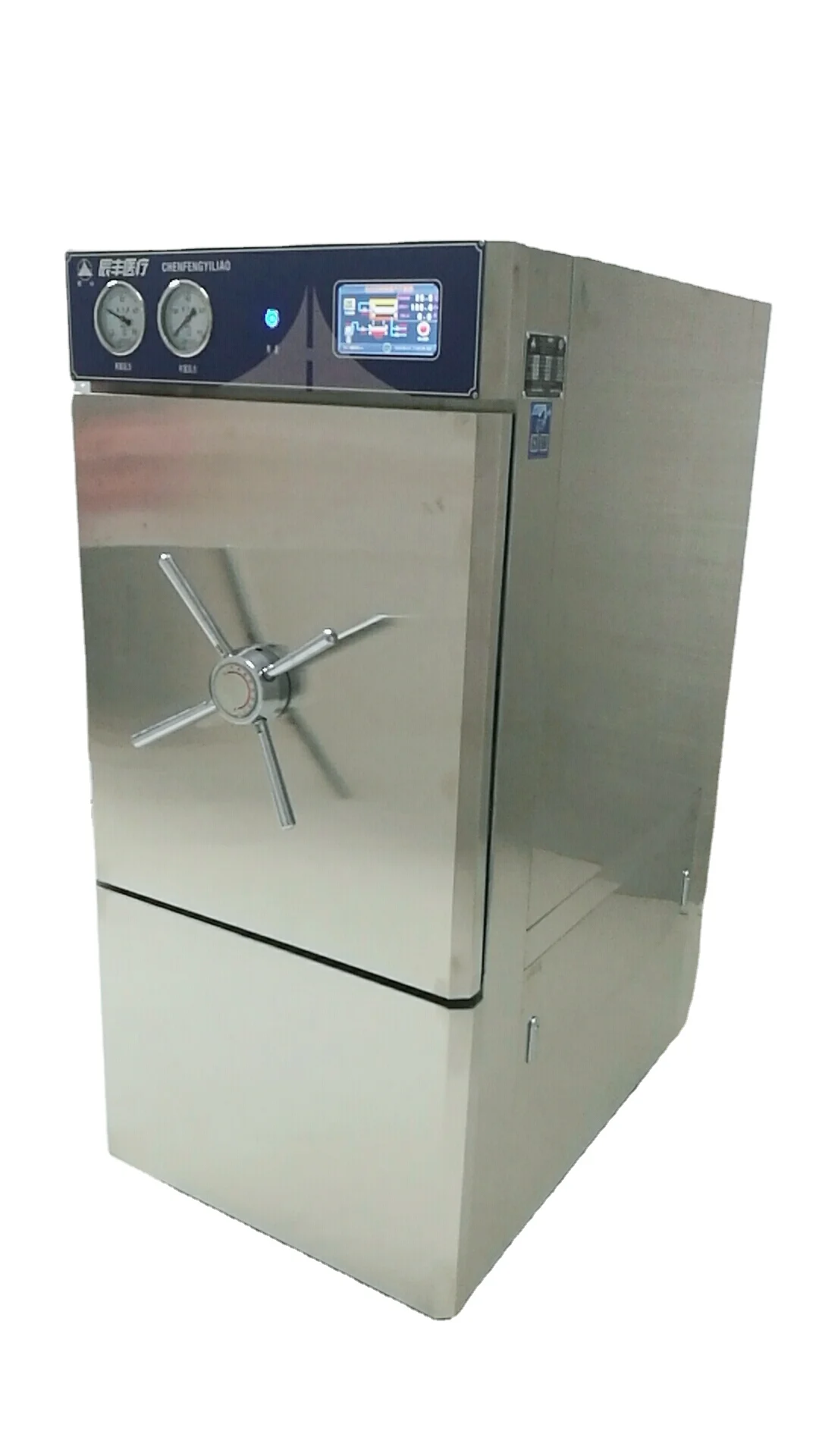

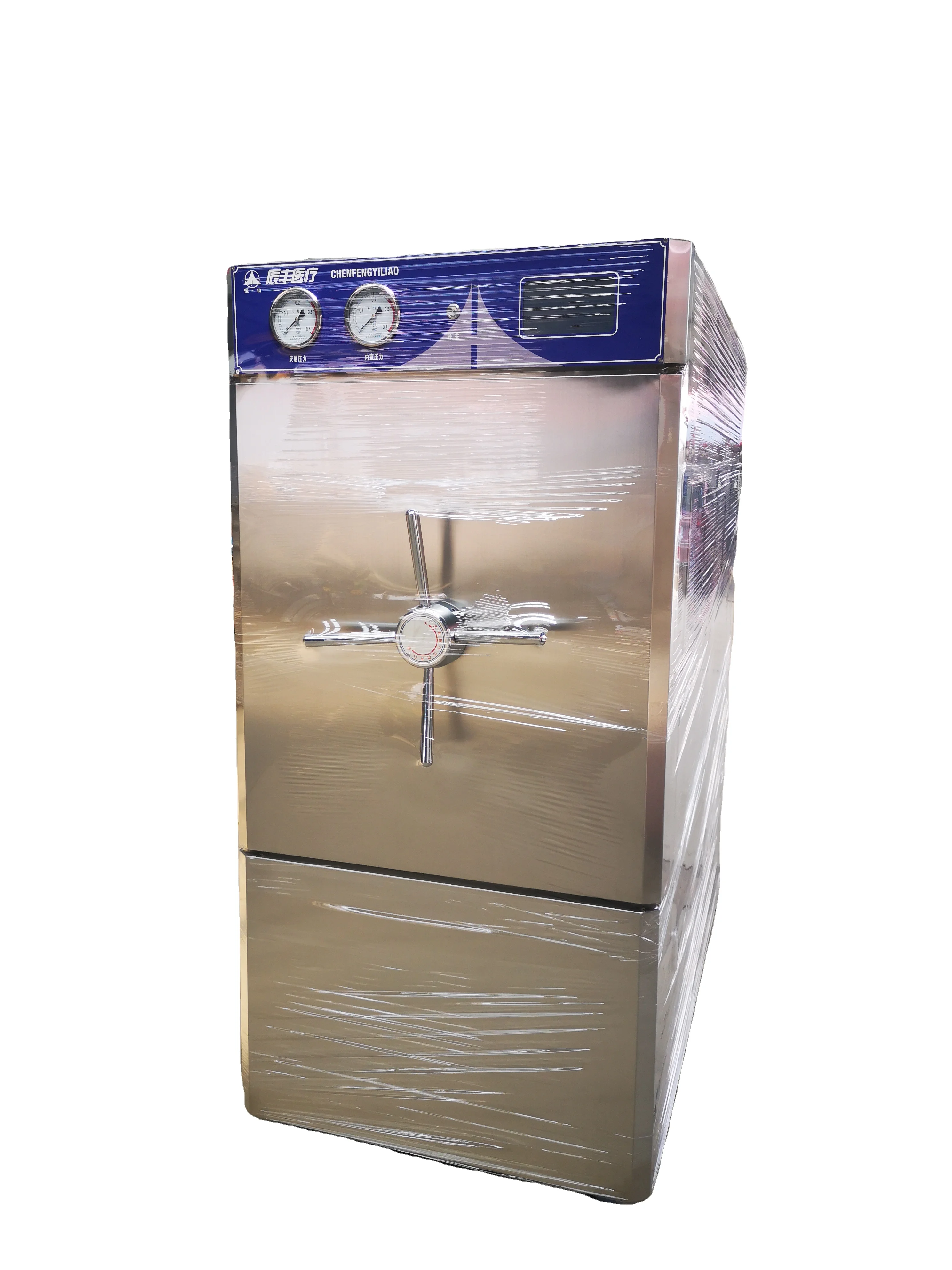

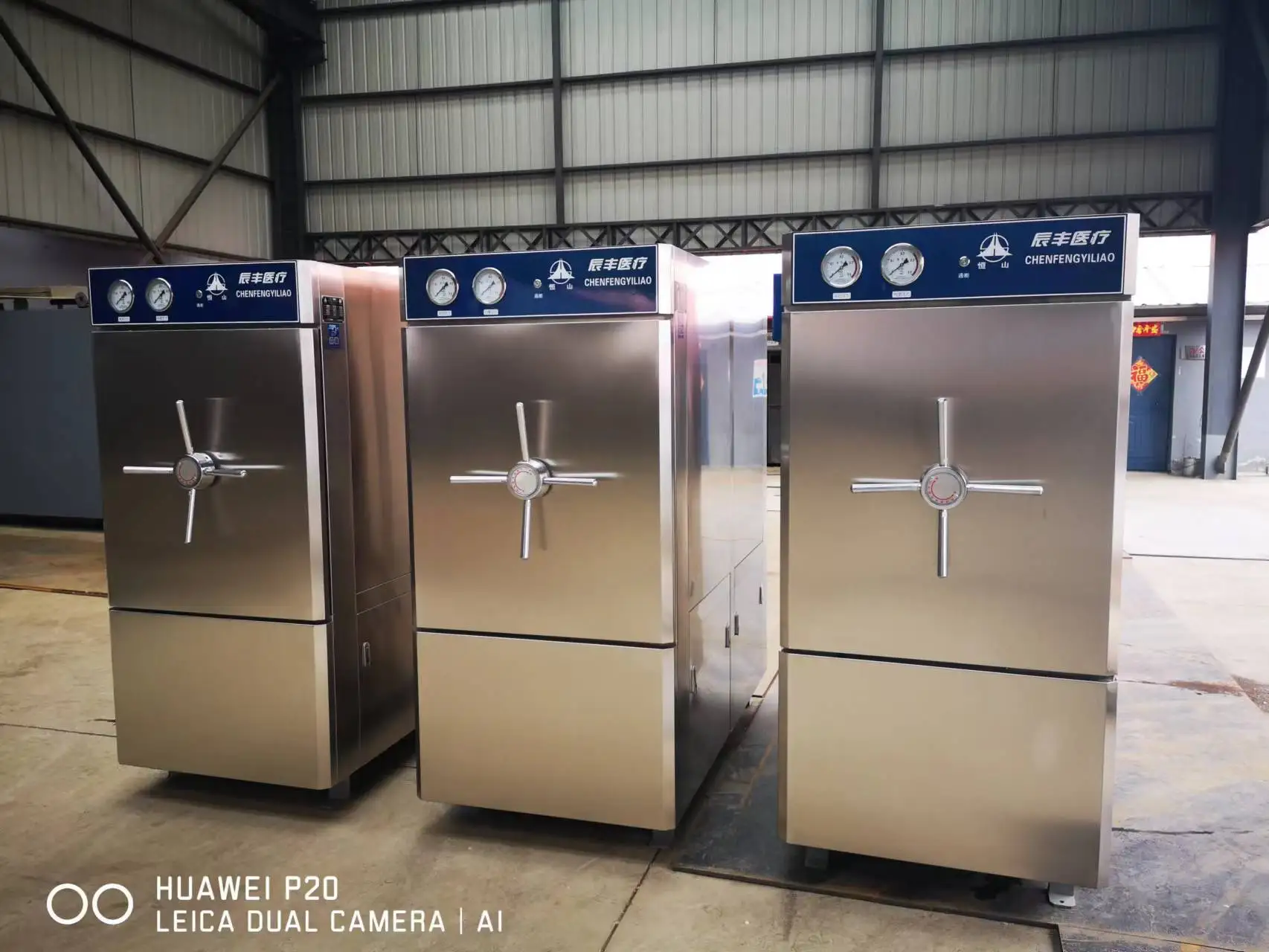

horizontal sterilizer sterilizer autoclave autoclave medical steam sterilizer
- Category: >>>
- Supplier: Harbin Ruxuan Trade And Economic Co. Ltd.
Share on (1600917132935):
Product Overview
Description
Model | Model YXQ.Y-80 | Model YXQ.Y-100 | Model YXQ.Y-150 | Model YXQ.Y-180 | Model YXQ.Y-280 |
Capacity of sterilization chamber (L) | 80 | 100 | 150 | 180 | 280 |
Dimension of sterilization chamber φ×L (mm) | 400×650 | 400×800 | 500×780 | 500×800 | 600×1000 |
Overall dimension L×W×H (mm) | 1300×670×1550 | 1300×670×1550 | 1450×770×1650 | 1450×770×1650 | 1560×880×1750 |
Net weight (kg) | 370 | 400 | 430 | 460 | 560 |
Design pressure (Mpa) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Design temperature （℃） | 138 | 138 | 138 | 138 | 138 |
Rated operating pressure（Mpa） | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 |
Working temperature（℃） | 135 | 135 | 135 | 135 | 135 |
Temperature adjustment range （℃） | 115-135 | 115-135 | 115-135 | 115-135 | 115-135 |
Temperature control fluctuation degree (℃) | ±1 | ±1 | ±1 | ±1 | ±1 |
Times of pulsating | 0-99 | 0-99 | 0-99 | 0-99 | 0-99 |
Sterilization time set range (s) | 0-9999 | 0-9999 | 0-9999 | 0-9999 | 0-9999 |
Drying time set range (s) | 0-9999 | 0-9999 | 0-9999 | 0-9999 | 0-9999 |
Control power supply input power（KW） | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Power supply input power （KW） | 9 | 9 | 12 | 12 | 12 |
Cabinet door | Single | Single | Single | Single | Single |
Evaporator | Self-equipped | Self-equipped | Self-equipped | Self-equipped | Self-equipped |
Main features： 1. Full automatic one-key operation. The operation modes can be selected by the user. With the new operation interface, the LCD screen can display the temperature, pressure, time, operation state and other information, making the sterilization information more intuitive and clear for the user to observe the operation state of the equipment, at the same time with the printing function, can record the whole process of sterilization.2. The inner chamber with double-layer structure is made of SUS304 material and is polished, thus it is smooth and flat, has no dead corner and can be easily cleaned. 3. There is safety interlocking device on door. When there is pressure in sterilization chamber, the door will be automatically locked and cannot be opened to ensure personnel safety. In addition, door control switch is installed. Only when the door is properly closed, the power supply can be connected. 4. High efficiency vacuum system, low working noise, ultimate vacuum up to -90kpa, fast sterilization vacuum, good drying, more thorough sterilization. 5. There are many types of fabric sterilization, instrument sterilization, liquid sterilization, BD&Helix, self-sterilization, manual procedures and other procedures. |
Specification
Main features:
1. Microcomputer intelligent automatic control, heating, sterilization, exhaust, drying process automatic control transformation, users can according to the needs of sterilization items can set sterilization temperature, sterilization time,
drying time and other procedures, without supervision.
2. Automatic water filling, automatic water filling function (manual water can also be added). Cut off the heating power supply for water shortage, and automatically resume work after water replenishment. It has the function of automatic protection against
dry burning and overtemperature. When the water level is lower than the low water level or exceeds the set temperature, the system will automatically cut off the power supply, and sound and light alarm.
3. Equipped with built-in miniature thermal printer to achieve data traceability and real-time printing of operating parameters.
4. Double structure inner room, door plate adopts SUS304 material, mechanical polishing treatment, smooth, no dead Angle, easy to clean.
5. The door is equipped with a safety interlock device. When the sterilization room is under pressure, the door automatically
locks and cannot be opened to ensure the safety of personnel.
6, equipped with overpressure protection device: when the pressure exceeds the working pressure, the safety valve will immediately
relieve pressure protection.
7, overcurrent protection device, when the current overload, the power breaker will immediately automatically cut off the power supply.
8. The sterilizer is designed with jacket, with drying function, to achieve the drying effect of sterilized articles.
9. There are three sterilization modes :
1. Microcomputer intelligent automatic control, heating, sterilization, exhaust, drying process automatic control transformation, users can according to the needs of sterilization items can set sterilization temperature, sterilization time,
drying time and other procedures, without supervision.
2. Automatic water filling, automatic water filling function (manual water can also be added). Cut off the heating power supply for water shortage, and automatically resume work after water replenishment. It has the function of automatic protection against
dry burning and overtemperature. When the water level is lower than the low water level or exceeds the set temperature, the system will automatically cut off the power supply, and sound and light alarm.
3. Equipped with built-in miniature thermal printer to achieve data traceability and real-time printing of operating parameters.
4. Double structure inner room, door plate adopts SUS304 material, mechanical polishing treatment, smooth, no dead Angle, easy to clean.
5. The door is equipped with a safety interlock device. When the sterilization room is under pressure, the door automatically
locks and cannot be opened to ensure the safety of personnel.
6, equipped with overpressure protection device: when the pressure exceeds the working pressure, the safety valve will immediately
relieve pressure protection.
7, overcurrent protection device, when the current overload, the power breaker will immediately automatically cut off the power supply.
8. The sterilizer is designed with jacket, with drying function, to achieve the drying effect of sterilized articles.
9. There are three sterilization modes :
(1) 121℃ sterilization
(2) 132℃ sterilization (132℃ according to requirements)
(3) self-set
(2) 132℃ sterilization (132℃ according to requirements)
(3) self-set
Company Profile
Harbin Ruxuan Trade And Economic Co., Ltd. was established in 2016, Our company in medical equipment technology is very strong, has a professional research and development team and after-sales service support team, to build Chinese manufacturing products and the world zero distance service. Company to "product quality and after-sales service" for the enterprise and partner.
Certifications
Exhibition
Product packaging
FAQ
1，What's the MOQ?
A: 1 set.
2， How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
3， Can you send samples?
A: Yes, samples can be sent for your evaluation.
4， What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Payment terms: Trade assurance, T/T, L/C, Western Union...
Trade terms: EXW, FOB, CIF, DDU...
5，Can you do OEM?
A: Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.
6， For tenders whether you can provide all necessary documents?
A. Yes. We win a lot of tenders by providing complete documents and helped our customers.
A: 1 set.
2， How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
3， Can you send samples?
A: Yes, samples can be sent for your evaluation.
4， What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Payment terms: Trade assurance, T/T, L/C, Western Union...
Trade terms: EXW, FOB, CIF, DDU...
5，Can you do OEM?
A: Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.
6， For tenders whether you can provide all necessary documents?
A. Yes. We win a lot of tenders by providing complete documents and helped our customers.
