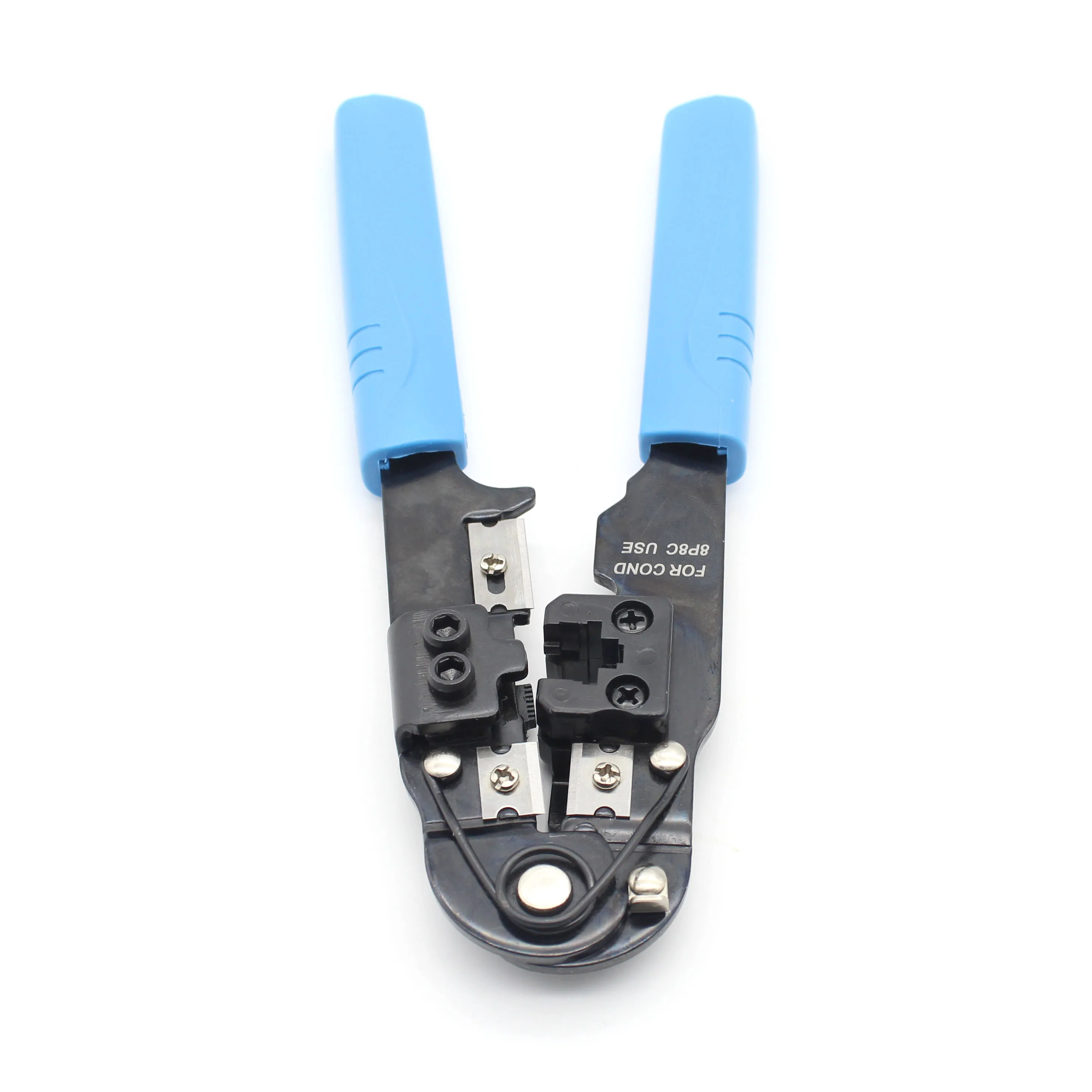

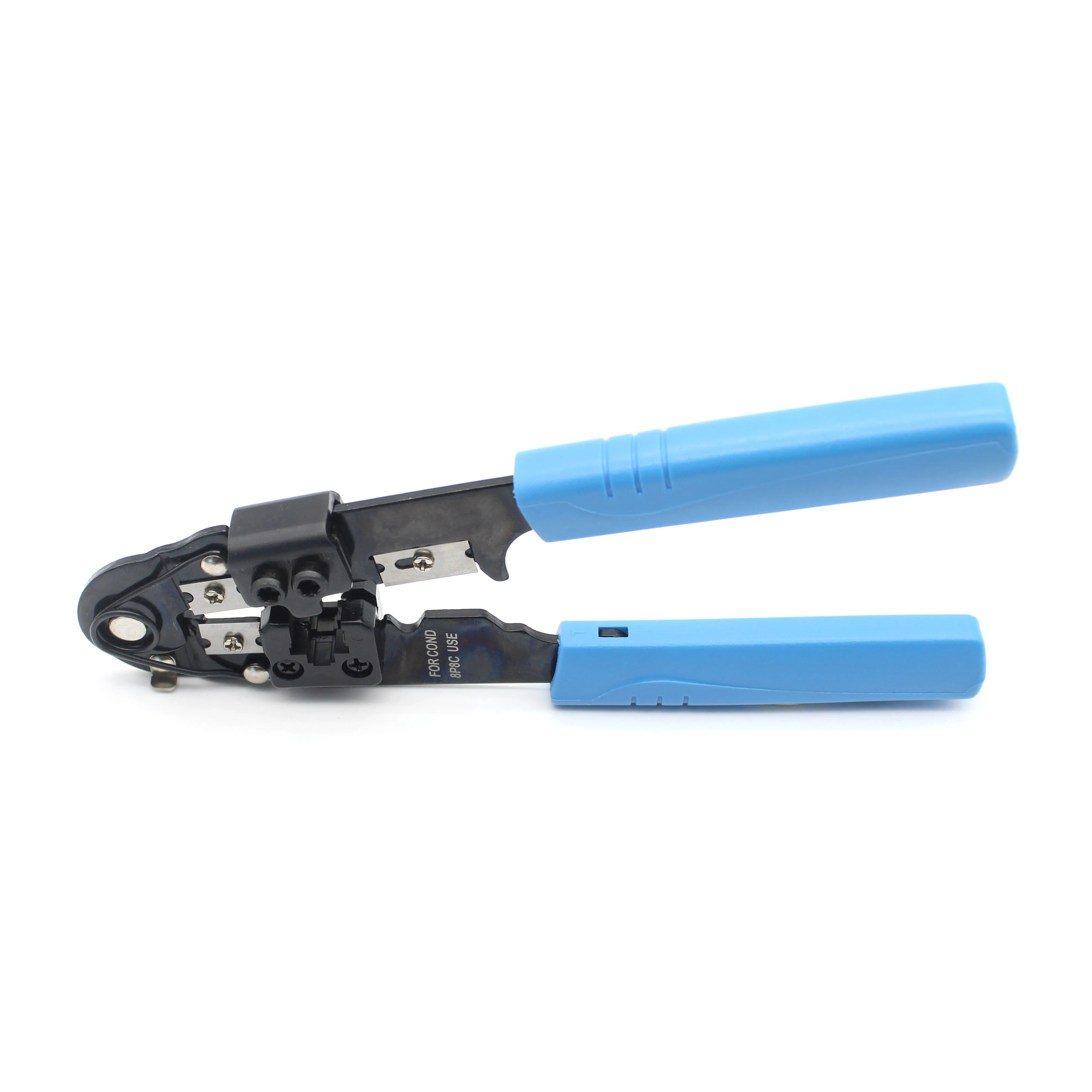

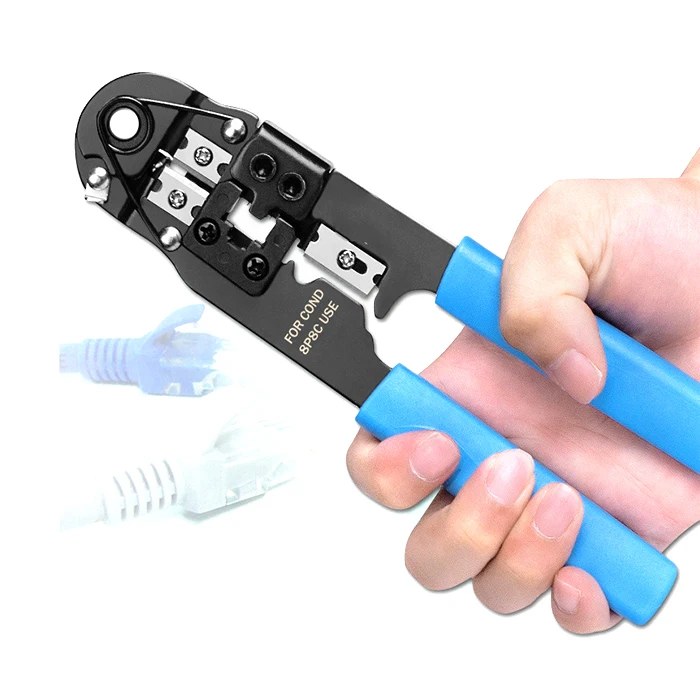

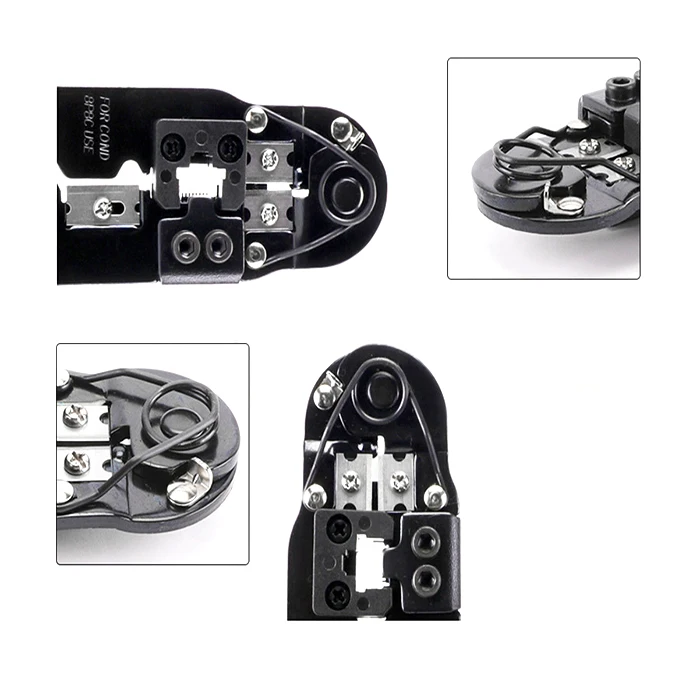

Modular Plug Crimper Network LAN Cable 8P8C Cat5/5e/6/6a (catx) Rj45 Rj11 Crimping Tool
- Category: >>>
- Supplier: Ningbo Dowell Tech Co. Ltd.
Share on (1600917138209):
Product Overview
Description
Technical Specifications | ||
Applicable Cable Types: | CAT5/5e/6/6a UTP and STP | |
Connector Types: | 6P2C (RJ11) 6P6C (RJ12) 8P8C (RJ45) | |
Dimensions W x D x H (in.) | 2.375x1.00x7.875 | |
Materials | All Steel Construction | |
1. Cut the CATx cable to the desired length.
2. Insert an end of the CATx cable through the cable stripper until it reaches the stop. As you squeeze the tool, rotate the tool approx. 90 degrees (1/4 rotation) around the cable to cut through the cable insulation.
3. Pull back on the tool (holding cable perpendicular to the tool) to remove the insulation and expose the 4 twisted pairs.
4. Untwist the wires and fan them out individually. Arrange the wires into the correct color scheme. Note that each of the wires is either a solid color, or a white wire with a colored stripe. (either 568A, or 568B).
5. Flatten the wires in their correct order, and use the built-in wire trimmer to trim them evenly across the top. It is best to trim the wires to about 1/2” in length.

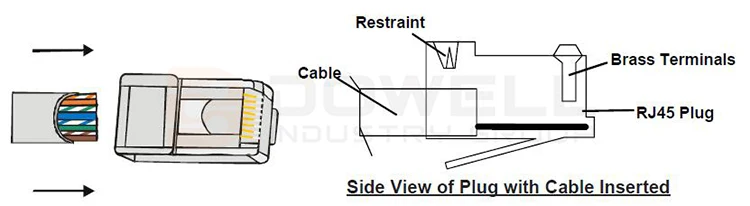

6. While holding the wires flat between your thumb and forefinger, insert the wires into the RJ45 connector, so each wire is in its own slot. Push the wire into the RJ45, so all 8 conductors touch the end of the connector. The insulation jacket should extend beyond the crimp point of the RJ45
2. Insert an end of the CATx cable through the cable stripper until it reaches the stop. As you squeeze the tool, rotate the tool approx. 90 degrees (1/4 rotation) around the cable to cut through the cable insulation.
3. Pull back on the tool (holding cable perpendicular to the tool) to remove the insulation and expose the 4 twisted pairs.
4. Untwist the wires and fan them out individually. Arrange the wires into the correct color scheme. Note that each of the wires is either a solid color, or a white wire with a colored stripe. (either 568A, or 568B).
5. Flatten the wires in their correct order, and use the built-in wire trimmer to trim them evenly across the top. It is best to trim the wires to about 1/2” in length.
6. While holding the wires flat between your thumb and forefinger, insert the wires into the RJ45 connector, so each wire is in its own slot. Push the wire into the RJ45, so all 8 conductors touch the end of the connector. The insulation jacket should extend beyond the crimp point of the RJ45

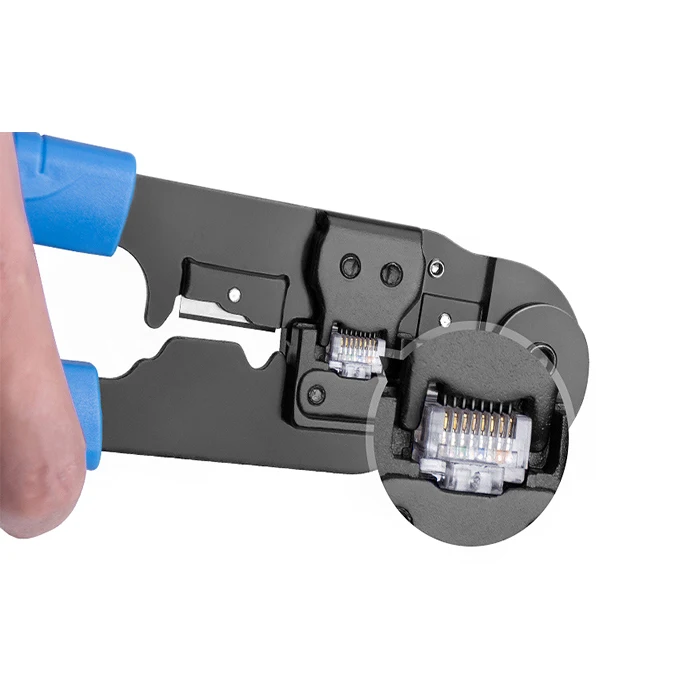

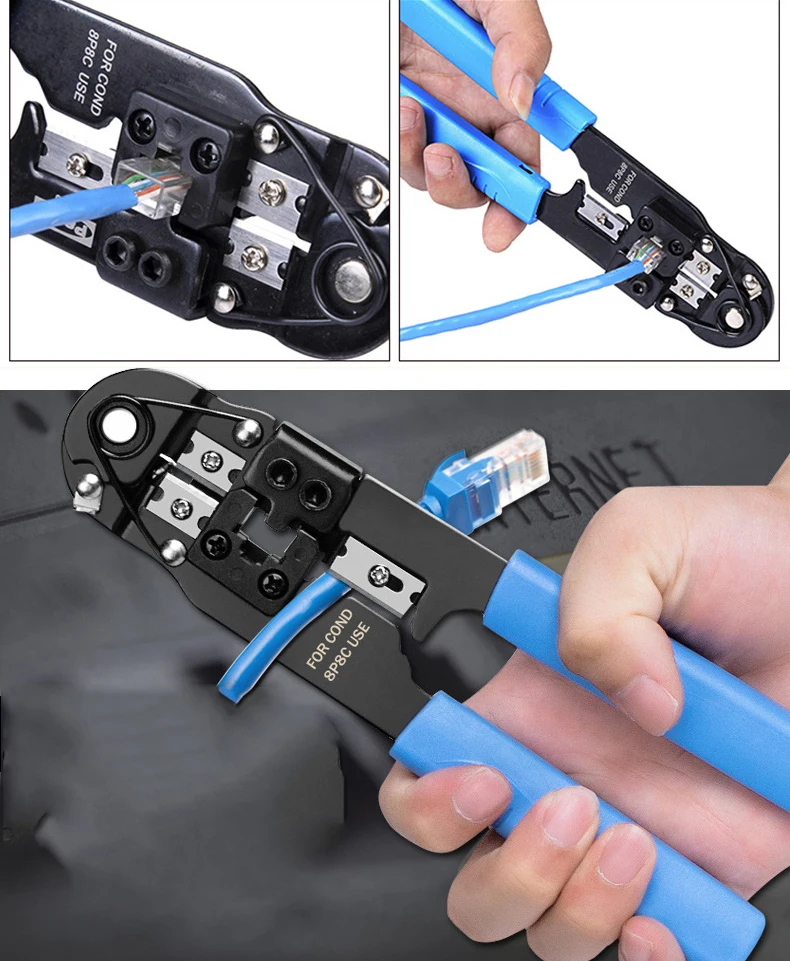

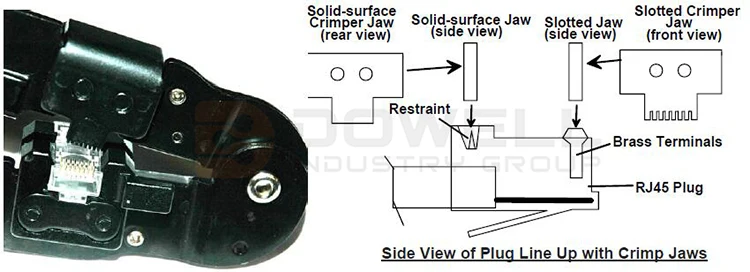

7. Insert the RJ45 into the crimp tool aligned to the slotted jaw and squeeze the tool firmly.
8. The RJ45 should be firmly crimped to the CATx insulation. It is necessary that the wiring scheme be repeated identically on each end of the wire.
9. Testing each termination with a CAT5 wire tester (NTI PN TESTER-CABLE-CAT5 for example-sold separately) will insure that your wire terminations were completed successfully for flawless use of the new cable.
9. Testing each termination with a CAT5 wire tester (NTI PN TESTER-CABLE-CAT5 for example-sold separately) will insure that your wire terminations were completed successfully for flawless use of the new cable.
1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD，100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD，100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
