Industry Face based Door Controller Access Control with Face Recognition Touch Screen SIP IP Outdoor intercom Station
- Category: >>>
- Supplier: Spon Communications Co. Ltd.
Share on (1600917215710):
Product Overview
Description
Products Description

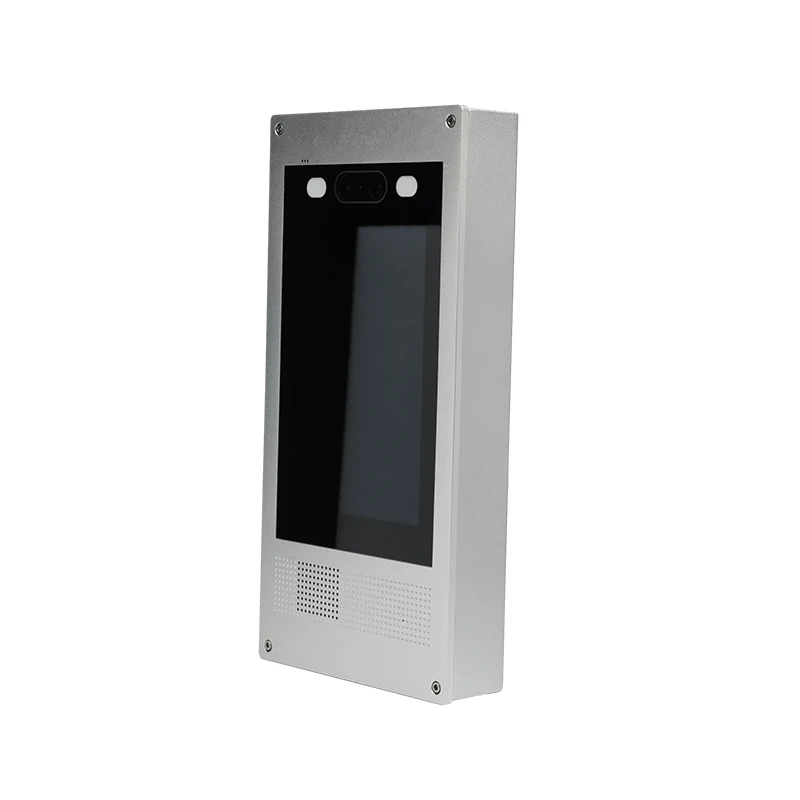

XC-9135AV Outdoor IP Video Intercom Station
IP PoE Outdoor Video Intercom Station features a 7" HD touch screen and 1080P camera, enabling high-quality outdoor video communication. Designed for IP65 outdoor environments such as building entry or access points. Offers full duplex video communication, SIP compatibility, VoIP integration, and XC-9000 audio software support. Multiple calling modes for user convenience.
Feaures:
● 7” digital HD touch screen with a resolution of 1280×800
● Outdoor weatherproof design with an IP65 rating.
● Two-way full duplex video communication with the IP video intercom master station in the master control room.
● Built-in 3W speaker and microphone capsule, hands-free communication, and radio broadcast reception.
● Enables two-way voice communication with VoIP telephone systems.
● Offers three calling modes:
a. One-touch Calling: Use the touch screen's calling buttons to initiate calls to preset targets.
b. Dial Calling: Enter the target’s ID on the numeric keypad to initiate calls.
c. Calling List: Quickly dial target terminals from a displayed call list.
● Flush mount and wall mount for optional
● Outdoor weatherproof design with an IP65 rating.
● Two-way full duplex video communication with the IP video intercom master station in the master control room.
● Built-in 3W speaker and microphone capsule, hands-free communication, and radio broadcast reception.
● Enables two-way voice communication with VoIP telephone systems.
● Offers three calling modes:
a. One-touch Calling: Use the touch screen's calling buttons to initiate calls to preset targets.
b. Dial Calling: Enter the target’s ID on the numeric keypad to initiate calls.
c. Calling List: Quickly dial target terminals from a displayed call list.
● Flush mount and wall mount for optional
Model No.: | XC-9135AVE | XC-9135AVS | |||||
Power Supply: | DC 12V/1.5A or PoE (IEEE802.3af) | ||||||
Power Consumption: | ≤6W | ||||||
Network Protocol: | SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP | ||||||
Audio Sampling Rate: | 8kHz-44.1kHz, 16bit | ||||||
Transmission Bit Rate: | 8kbps-320kbps | ||||||
Video transmission Bit Rate | 512Kbps-4Mbps | ||||||
Video Coding | GVA | ||||||
THD (Total Harmonic Distortion) | ＜1% | ||||||
S/N (Signal-to-Noise) Ratio: | ≥81dB | ||||||
Interface: | 1×RJ45 Ethernet Port, 2×Relay Input, 2×Relay Output, 1×Power Input | ||||||
IP Rating: | IP65 | ||||||
Dimensions: | 140×283×29mm | ||||||
Weight: | 1.3kg | ||||||
Standard Accessories: | 1×Waterproof Connector, 2×2-Pin Terminal Block Connector, 1×3-Pin Terminal Block Connector,, 1×Installation Manual | ||||||
Optional Accessories: | DC 12V/1.5A Power Adapter (US/EU/UK/AU) | ||||||

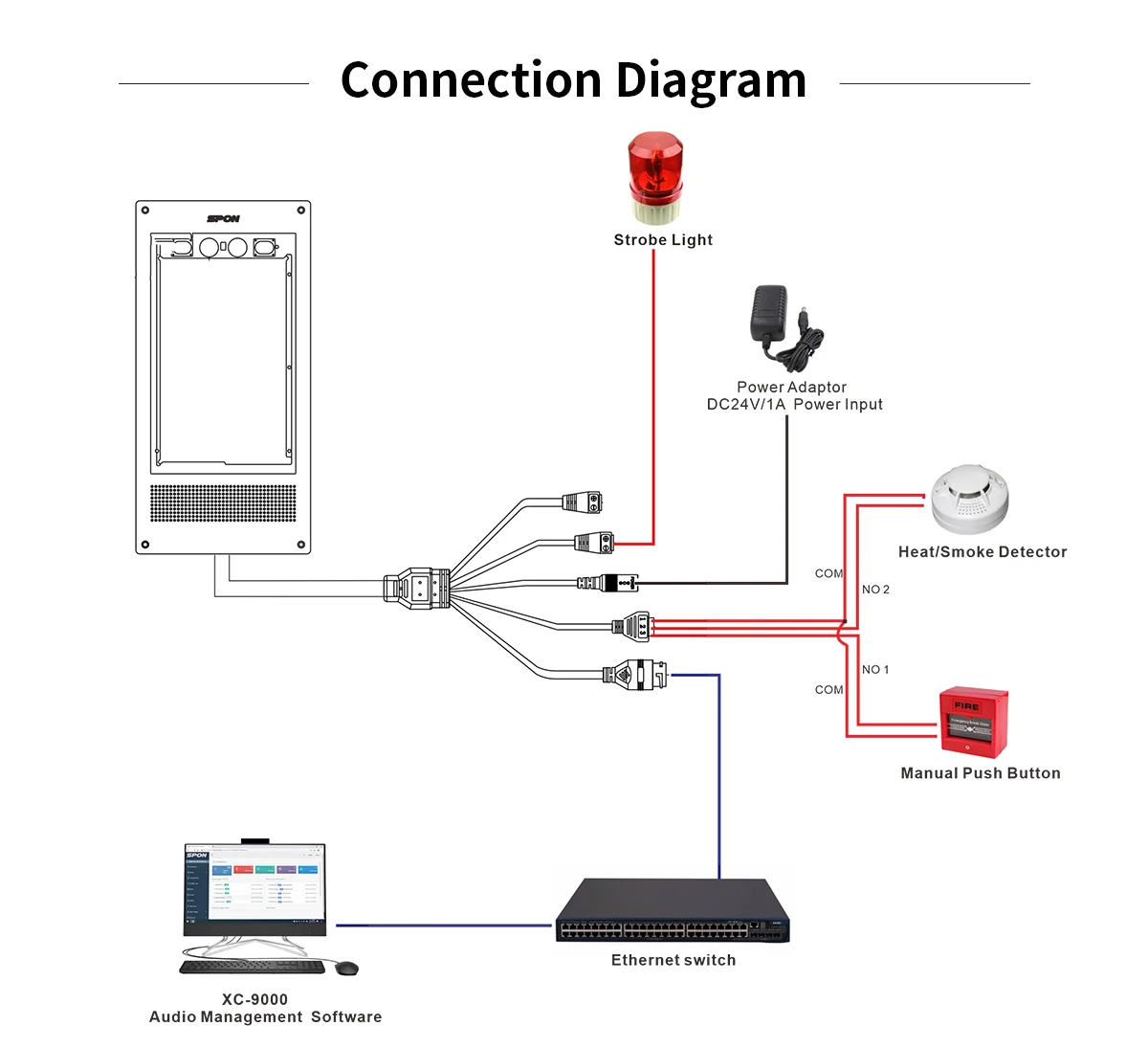

Connection Topology
Application
Company Profile
With over 20 years of experience in audio IoT research, development, and production, SPON stands at the forefront of the industry. Our state-of-the-art acoustic noise reduction laboratory, fully automated SMT factory, and spacious company premises spanning 57,000 square meters reflect our commitment to innovation and excellence.
Certifications
SPON's advantages lie in our technological expertise, customized approach, extensive experience, comprehensive support, state-of-the-art facilities, and unwavering commitment to quality. These factors set us apart and make us the preferred choice for audio technology solutions in the IoT industry.
FAQ
Q: How can I contact SPON's customer support team?
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team willpromptly respond to your inquiries and provide the necessary technical supportand solutions.
Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.
Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team willpromptly respond to your inquiries and provide the necessary technical supportand solutions.
Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.
Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
