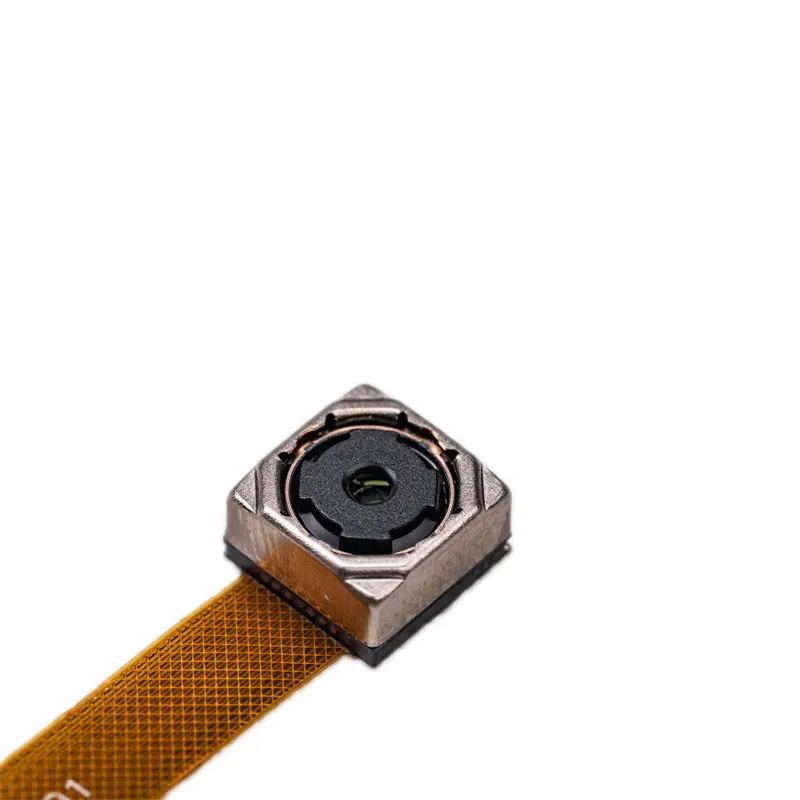

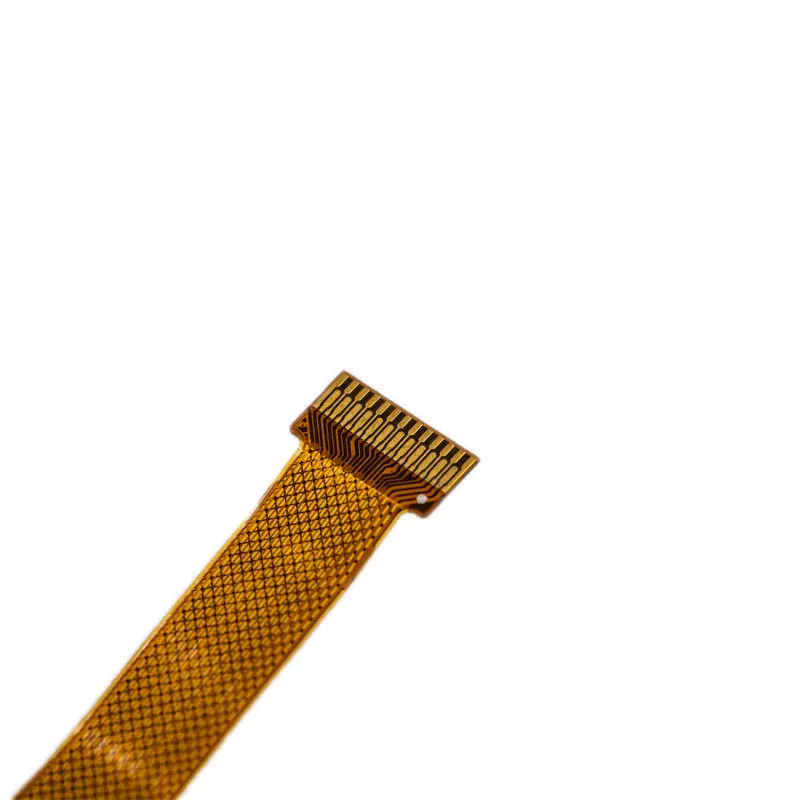

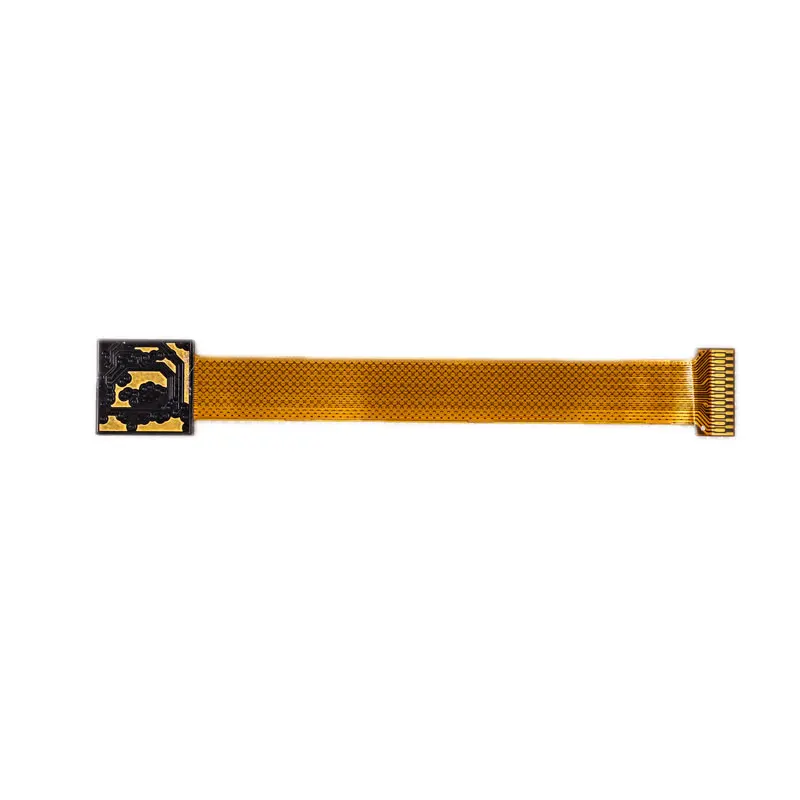

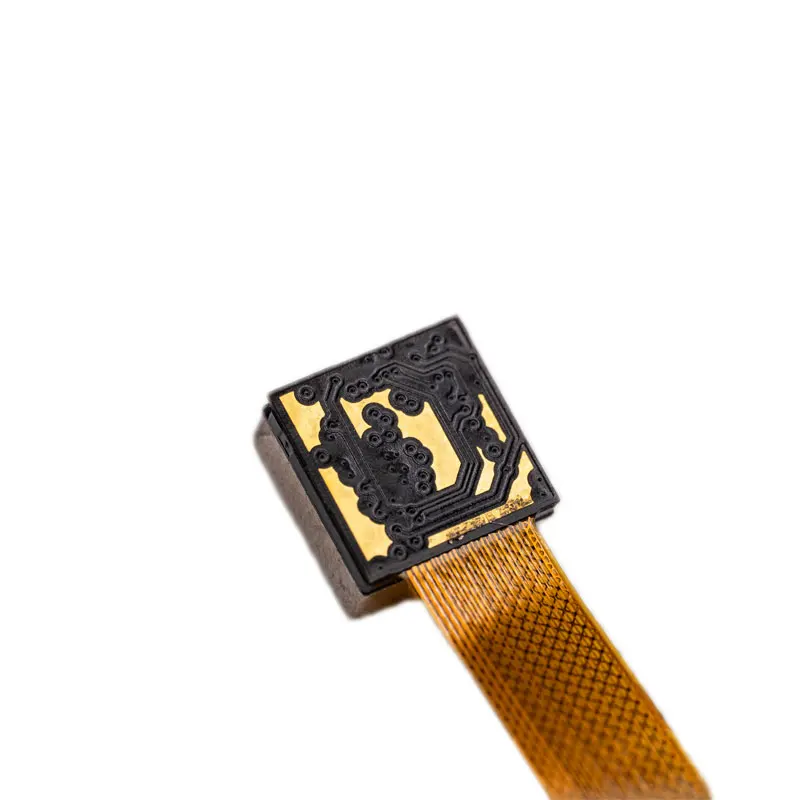

Guangdong factory wholesale 16MP S5K3P8 Sensor HD drone camera module
- Category: >>>
- Supplier: Shenzhen Wanling Electronics Co. Ltd.
Share on (1600917222525):
Product Overview
Description
pixel: | 16MP | EFL: | 3.57mm | |||
Chip Size: | 1/3.1 | F/NO: | 2.0 | |||
FOV(D): | 81.5° | TV-D: | ＜1.5% | |||
Lens slides: | 5P | |||||
Description: The S5K3P8SX is a highly integrated 16M pixel camera chip that includes a CMOS image sensor (ClIS), imagecorrection functionality and serial transmission using 4-lane MIPl. it is designed for fast yet low power operation,delivering full resolution capture at 30 frames per second (fps) and full field of view (16:9)FHD video at 60tps. lt is fabricated by the SAMSUNG 65nm back side illurmination (BSI) CMOS image sensor process developed forimaging applications to realize a high-efficiency and low-power photo sensor. The sensor consists of 4640× 3488effective pixels that meet with the 1/3.1-inch optical format. The CIS has on-chip 10-bit ADC arrays to digitize the pixel output and on-chip Correlated Double Sampling (CDs)to drastically reduce Fixed Pattern Noise (FPN). it incorporates on-chip camera functions such as defect. The S5K3P8SX is suitable for a low-power camera module with a 2.8V/1.0V power supply. ●16Mp sensor with 1/3"optics ●Unit Pixel size: 1.0μm ●Effective resolution: 4640 (H) x 3488 (M) ●Active resolution: 4656 (H) x 3504 (M) ●Color Filter: RGB Bayer Pattern ●Shutter Type: Electronic rlling shutter and global reset ●Max. Normal Frame Rate: 30fps @ Full ●Max. Video Frame Rate: 180fps @ VGA (crop) ●Data rate: 2,150Mbps/ane ●ADC Accuracy: 10bits ●Dual sensor synchronize ●Interfaces: ——Fine interface frequency control using additional dedicated PLL for EMI avoidance and integration flexibilit. —MIPI CSI2: four lanes (2.15Gbps per lane) —Output formats: RAW8 (using DPCMIPCM compression), RAW10 ●Control interface: —SPI interface: Three wire serial communication circuit up to 40MHz. —CCI (Camera Control Interface) High speed I2C-compatible - Two wire serial communication circuit up to 1MHz. ●64 Kbit on-chip OTP memory Mapped BPC and chip ID. ●Analog gain x16 ●Vertical and horizontal fip mode ●Continuous frame capture mode ●2/2 - average-sub-sampling readout ●Pixel skip readout function ●Mapped Bad pixel correction ●Built-in test patterm generation ●Supports EIS function ●Supply vltage: 2.8V for analog,1.8V or 2.8V for 1O, and 1.05V for digital core supply ●Operating temperature: -20°C to +70°C | ||||||
Q1:Do you camera module manufaurer?

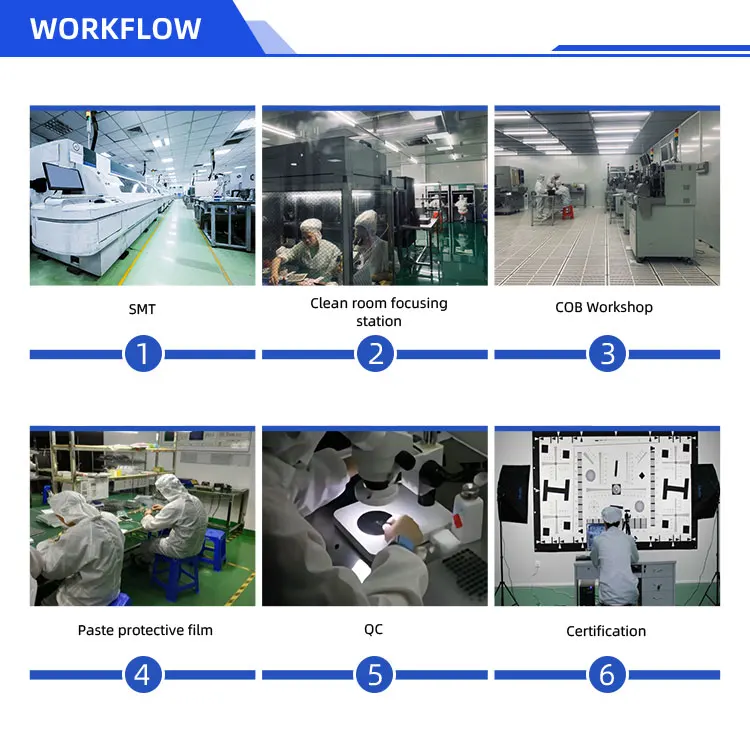

Yes, we are a professional camera module manufacturer.We have our own factory with our ownproduction line, and our production line is equipped with a 10-story dust-free workshop for large-scale production.
Q2:Do you supply OEM/ODM service?
Yes,we can supply OEM/ODM service,we also can customize the camera module according to your requirement.

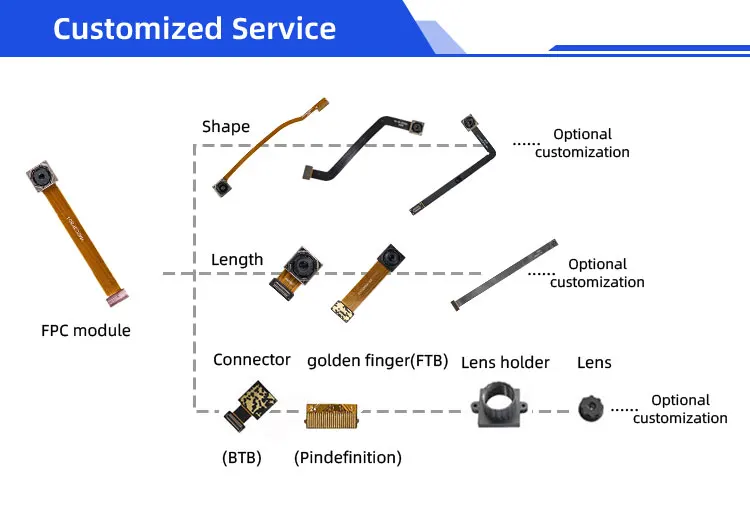

Q3:What is your camera module custom requirements flow?
The process of customized requirements is as follows:
Provide requirements: You can provide us with the relevant requirements of the camera module, including drawings, samples, technical requirements, etc.Our engineering staff will conduct a preliminary assessment and analysis based on the information youprovide.
Communication: We will discuss with you the technical details, design requirements, delivery time and other aspects, and ensure that we have a full understanding of your needs.
Program design: Based on your needs and our technical capabilities, our engineering team will develop a design program for the camera module. This includes determining the module's specifications, features, materials, processes,
etc. and ensuring its compatibility with your device integration.
etc. and ensuring its compatibility with your device integration.
Sample development: Once the design is finalized, our engineers will manufacture the samples according to the design, and test and adjust them to ensure they meet your requirements and expectations.
Sample testing: We will conduct rigorous testing and verification of the developed samples to ensure that their performance and quality meet the requirements.
Firm production: We will share the test results with you and make necessary modifications and improvements based on your feedback. If no modification is required, mass production will be carried out.
Q4:How long is the production cycle?
Field camera module: Sample order 4-5 days delivery, bulk order 9-10 days delivery.
Custom camera modules: Sample order 7-9 days delivery, bulk order 12-15 days delivery.
Q5:What's the duration of guarantee and warranty?
The guarantee period is one year after delivery of the goods. Improper or unprofessional deployment, wear and tear,improper storage, carelessness during use, or unauthorized alterations to the goods caused by the customer or third parties invalidate the warranty rights.
Q6:How about your delivery time?
Generally, our stock products would be shipped in 2-3days after payment received, finally depends on order quantities.
Q7:What's your products MOQ?
We provide you small MOQ for each item, it depends your specific order!
Q8:What's your shipment method?
Usually we use DHL, UPS, FedEx, Aramex,TNT,EMS,HK Post and EUB. If you have forwarder in China, we also can shipment by SF express to their address. As you want. Please contact us!
