High quality Road sweeper loading capacity 1050kg load skid steer loader TPW65 with CE and EPA certificate skid steer
- Category: >>>
- Supplier: TIDE POWER TECHNOLOGY CO. LIMITED
Share on (1600917238637):
Product Overview
Description

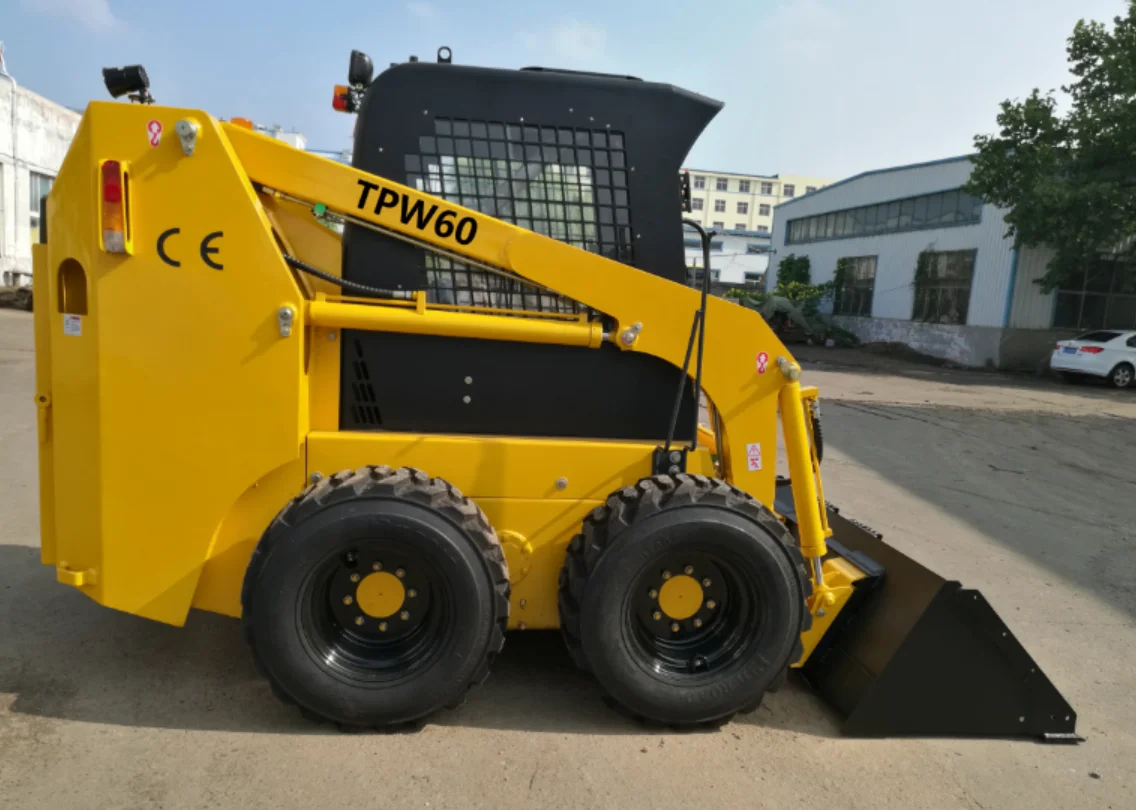

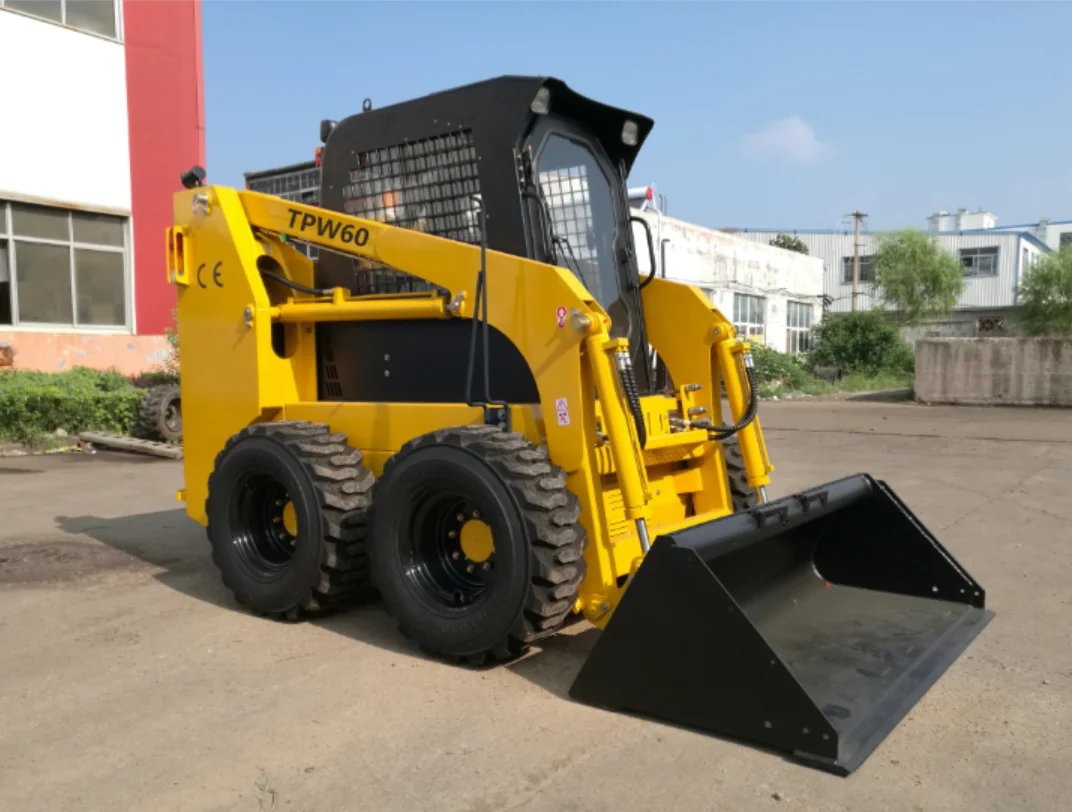

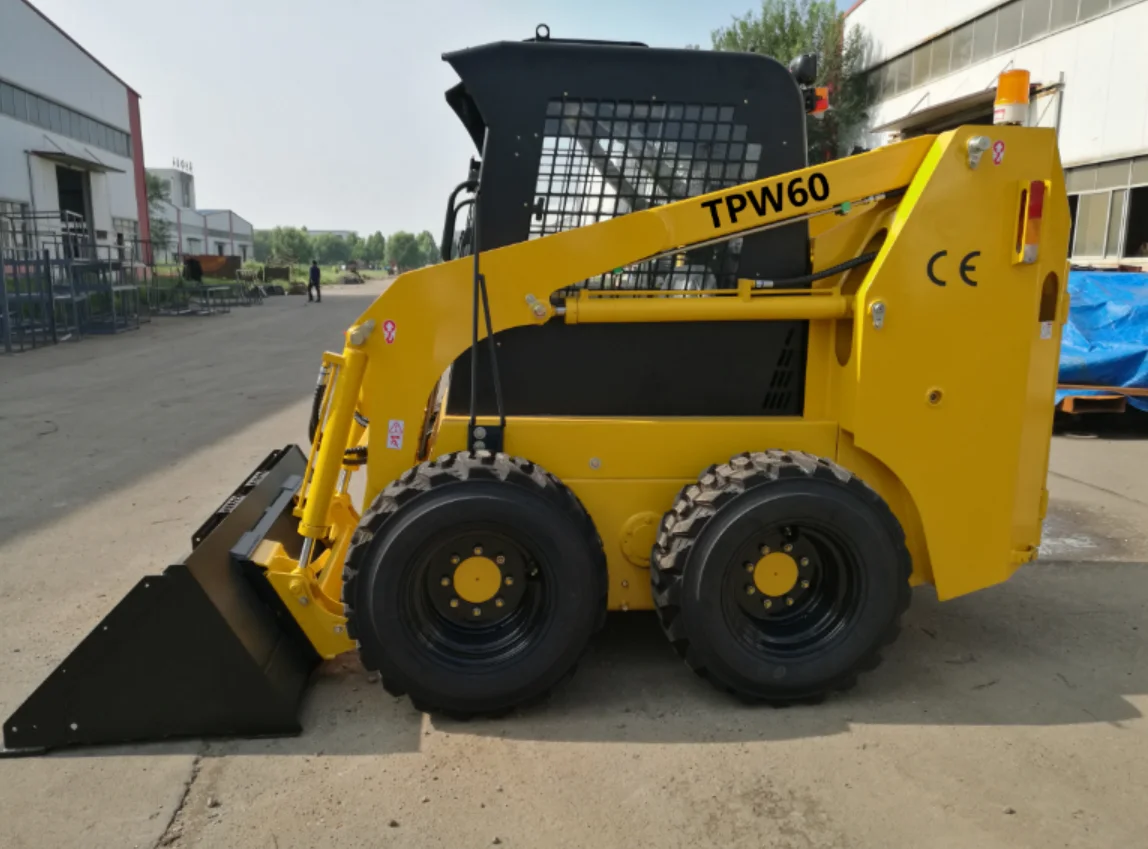

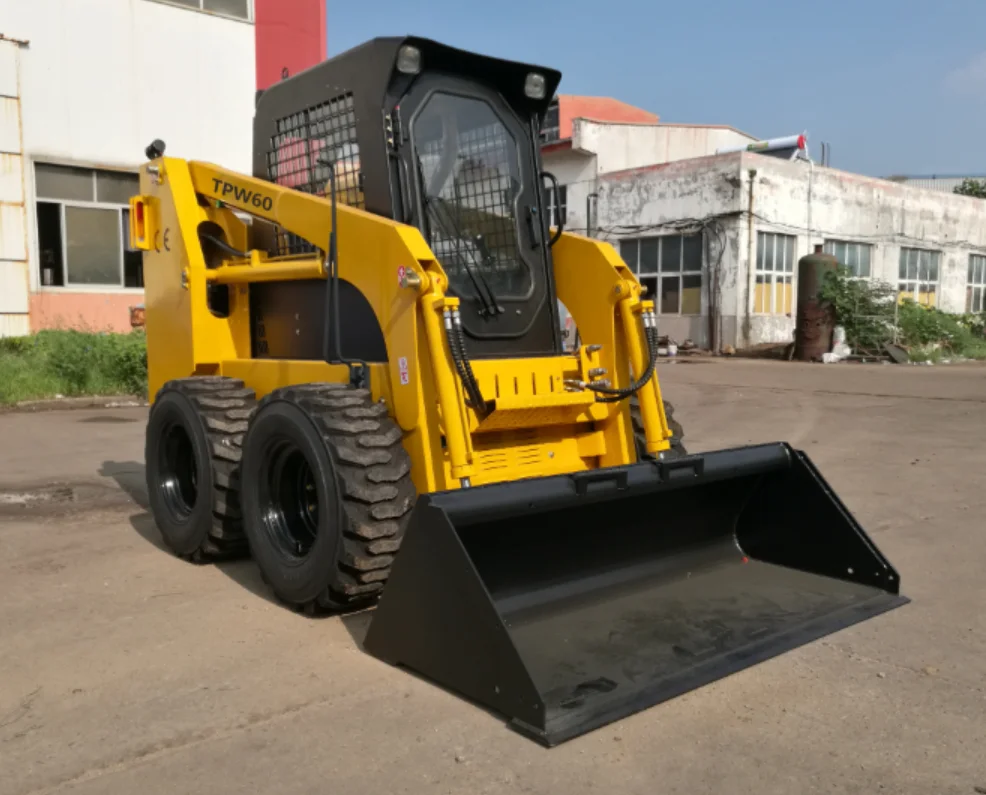

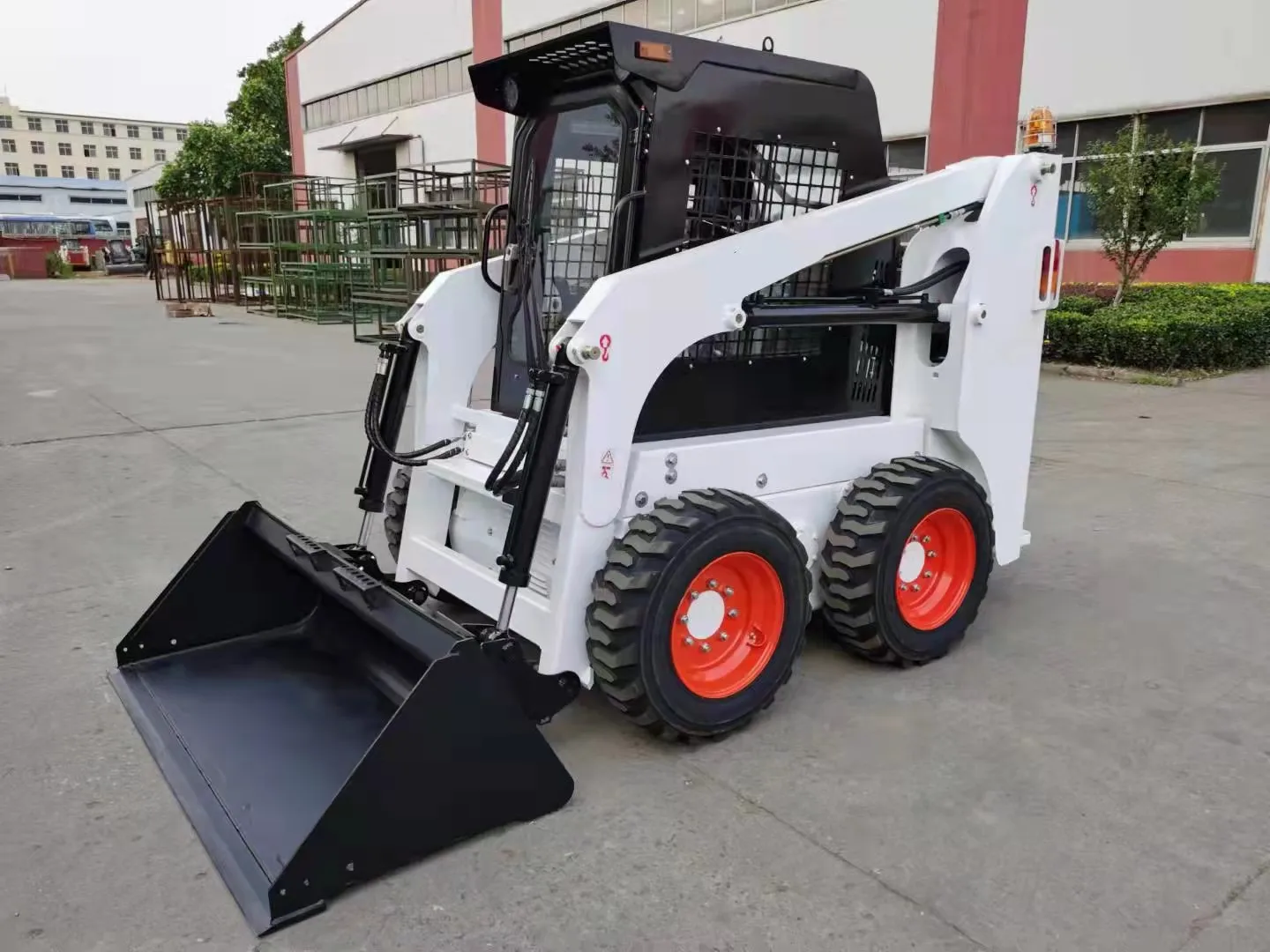

Skid steer loader TPW65 with CE and EPA
| Skid steer loader TPW60 | ||
| Rated load (kg ) | 850 | |
| Maximum travel speed (km/h ) | 12 | |
| Hydraulic flow (L/min ) | 75 | |
| Large flow system flow | ||
| Tire model (kW ) | 12-16.5 | |
| Rated power ( L ) | 45 | |
| Fuel tank capacity (kg ) | 80 | |
| Operating weight (kg ) | 2800 | |
| Bucket volume (m³ ) | 0.4 | |
| Emission stage 3 engine | Xinchai engine, Yanmar engine | |
| TPW60 parameter | ||
| A | Overall operating height (mm) | 4000 |
| B | Height to bucket hinge pin (mm) | 3100 |
| C | Height to top of cab (mm) | 2160 |
| D | Height to bottom of level bucket(mm) | 2933 |
| E | Without bucket length(mm) | 2750 |
| F | overall length with bucket(mm) | 3490 |
| G | Dumping angle at maximum height(°) | 40 |
| H | Dumping height(mm) | 2400 |
| I | Dumping reach(mm) | 750 |
| J | Rollback o bucket on ground(°) | 30 |
| K | Rollbck of bucket at full height(°) | 104 |
| L | Wheelbase(mm) | 1085 |
| M | Ground clearance(mm) | 205 |
| N | Angle of departure(°) | 20 |
| O | Front turning radius without bucket(mm) | 1204 |
| P | Front tuning radius(mm) | 2030 |
| Q | Rear tuning radius(mm) | 1706 |
| R | Rear axle to bumper (mm) | 1082 |
| S | Tread width (mm) | 1500 |
| T | Width (mm) | 1880 |
| U | Bucket width (mm) | 1880 |
