12V DC addressable sk6812 rgbw 8 feet 60led smd5050 rgbw 60 pixels individually flexible ktv nightclub led strip
- Category: >>>
- Supplier: Shenzhen Asda Photoelectric Lighting Co. Ltd.
Share on (1600917255371):
Product Overview
Description
12V DC addressable sk6812 rgbw 8 feet 60led smd5050 rgbw 60 pixels individually flexible ktv nightclub led strip
Product Description
Addressable 12V sk6812 60led rgbw led pixel flexible strip tape
Product details
| product name | 12V Addressable sk6812 60 rgbw led digital flexible strip tape |
| LED Quantity | 60 LEDs/m |
| PCB thickness | 12mm width, 3 ounce copper |
| PCB Color | White PCB ,Black PCB |
| IC type | sk6812 RGBW LED (IC Built into 5050) |
| IP rating | IP20 / IP65/IP67/IP68 |
| IP Rating | IP20/IP66 |
| Connector | 3PIN JST-SM female and male connector |
| Control Model | individually address to control |
| Controller | T1000s/K1000c/T-780K/Arduino/Glediator/DMX/Artnet/Raspberry |
| Product Keywords | 12V sk6812 rgbw led strip,12V SK6812 RGBW 60LED 60pixel strip |
More details for 12V sk6812 rgbw 60led pixel strip:
1.12V digital cut RGBW flexible led strips is to use SK6812 RGBW LED lamp have R,G,B,W in one SMD5050 LED lamp for excellent lighting effects. For White color you can choose 3000K,4500k,6000k,7000-8000k or other special white.
2. White PCB and black PCB optional.
3. This 12v sk6812 RGBW led strip we used is with 8 feet SK6812 RGBW led lamp that is different with 4 feet sk6812 rgbw,but it’s protocol is also compatible with 5v sk6812 rgbw led pixel strips.
4. Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 16.7mm.
5. 60LEDs/M,dc 12V low voltage inputted, don’t over 13V,otherwise you will destroy the entire strip.Considering on this 12v sk6812 rgbw led strip have bigger electric current,we DON’T recommend you to light 4 chips(R,G,B,W) together at the same time.
6. 12mm width PCB,0.25mm thickness with 3M tape back side for non-weatherproof version. 14mm width , 4mm thick with silicon tube for waterproof type.
7. It is only Date Pin for signal transfer , no Clock,that is,DC12V,DAT,GND .
8. SK6812 RGBW 8feet led lamp use 800kbps protocol,which ws2812bs is only 400Hz.

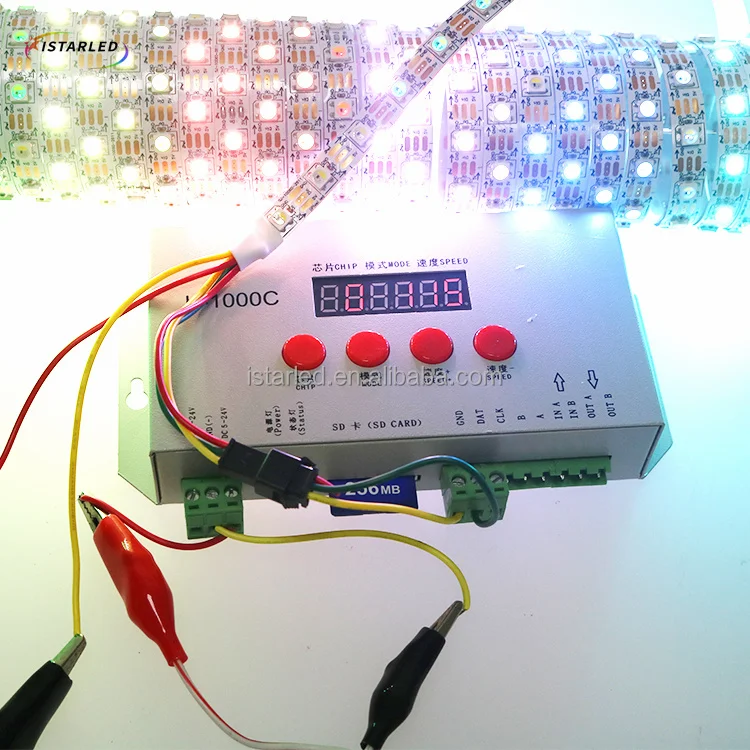

9. Controller System:SD controller , DMX controller , Art-net and so on .
Product images

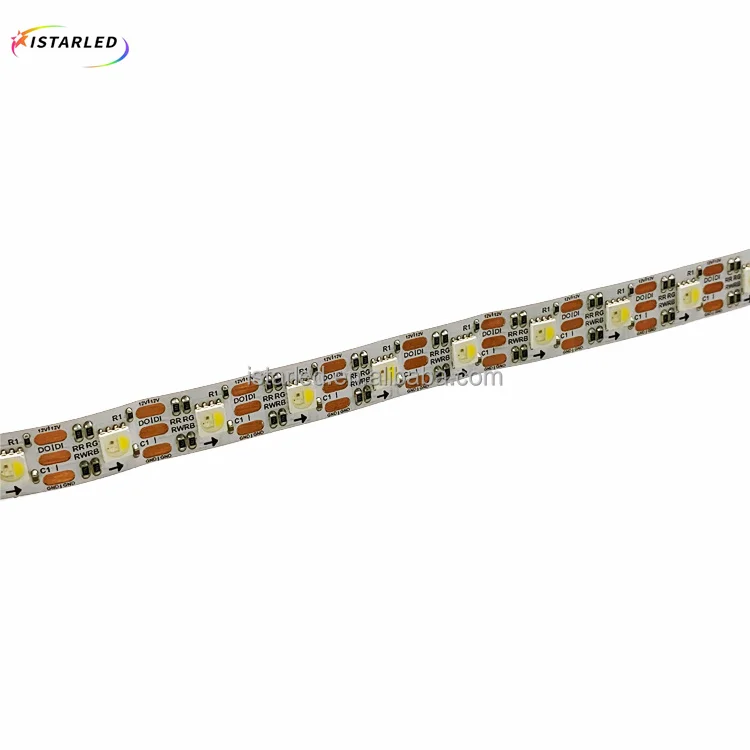

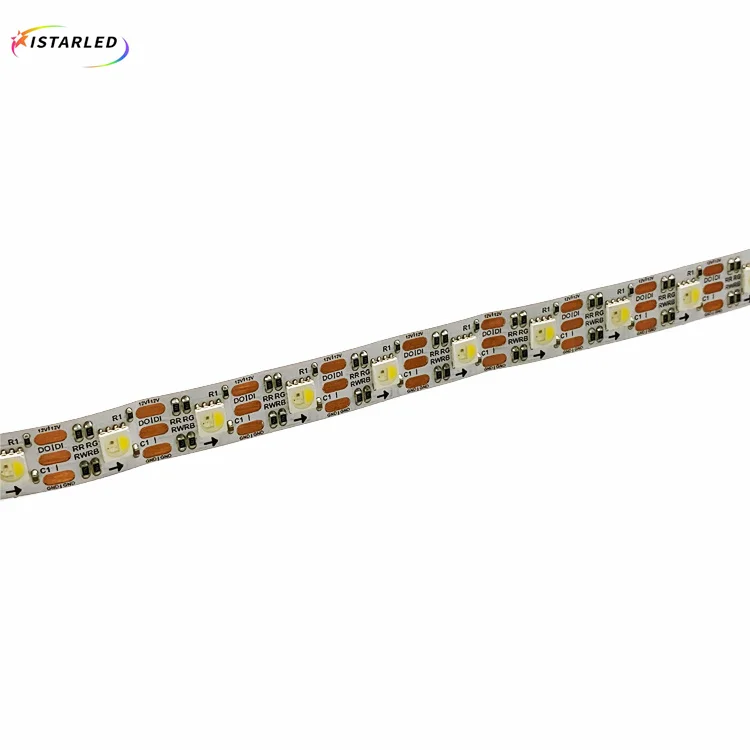

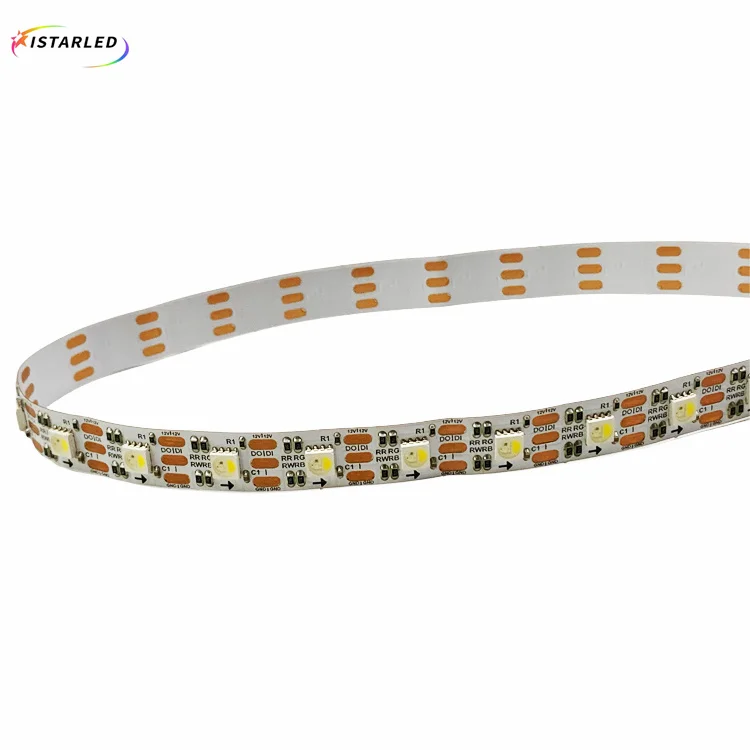

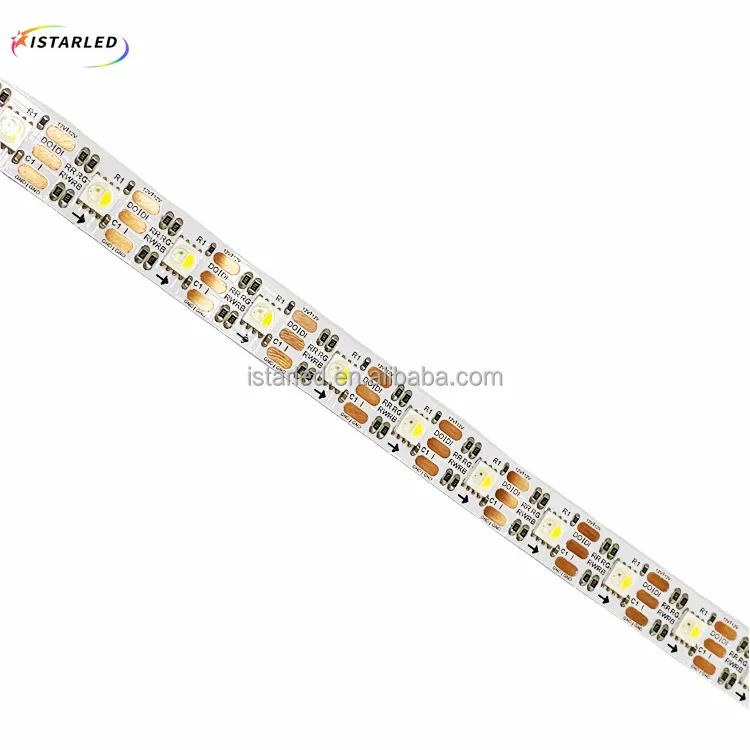

12V sk6812 RGBW 60leds 60 pixels addressable rgbw led strip

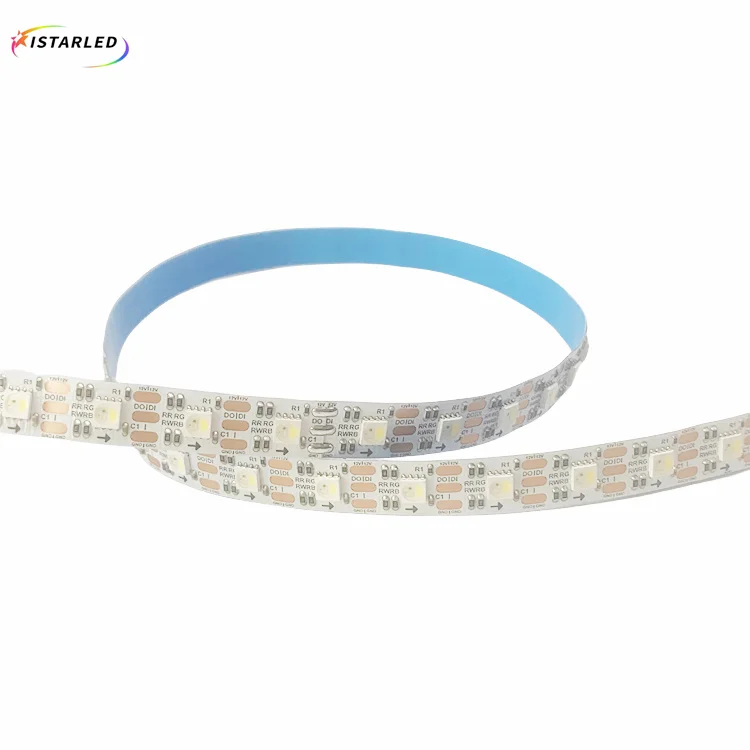

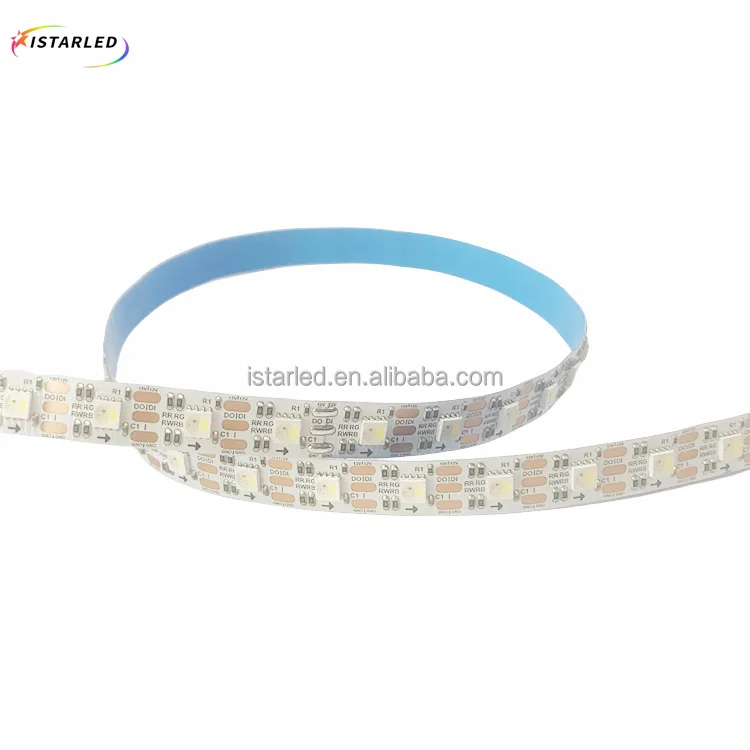

IP20 3M adhesive tape for 12v sk6812 rgbw 60led 60pixels pixel strip:

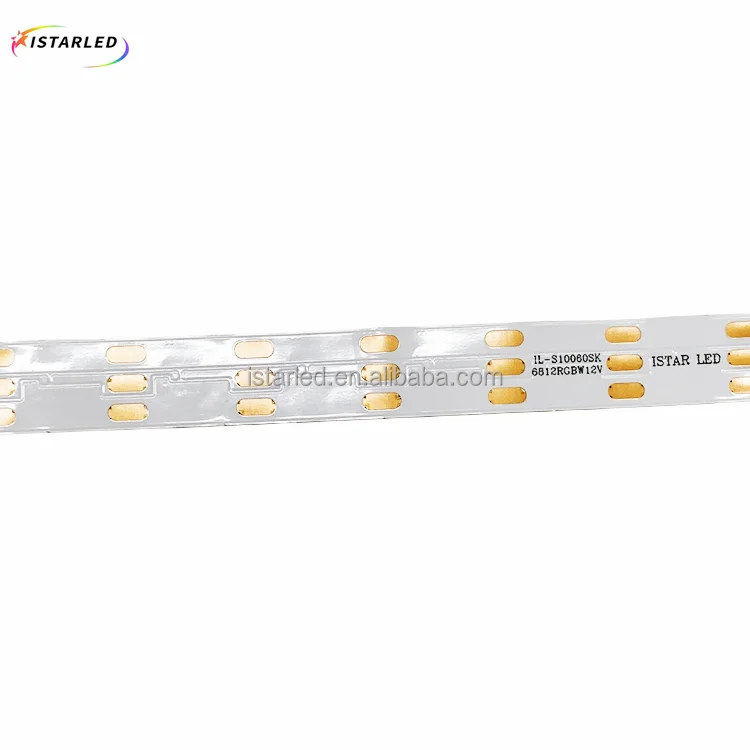

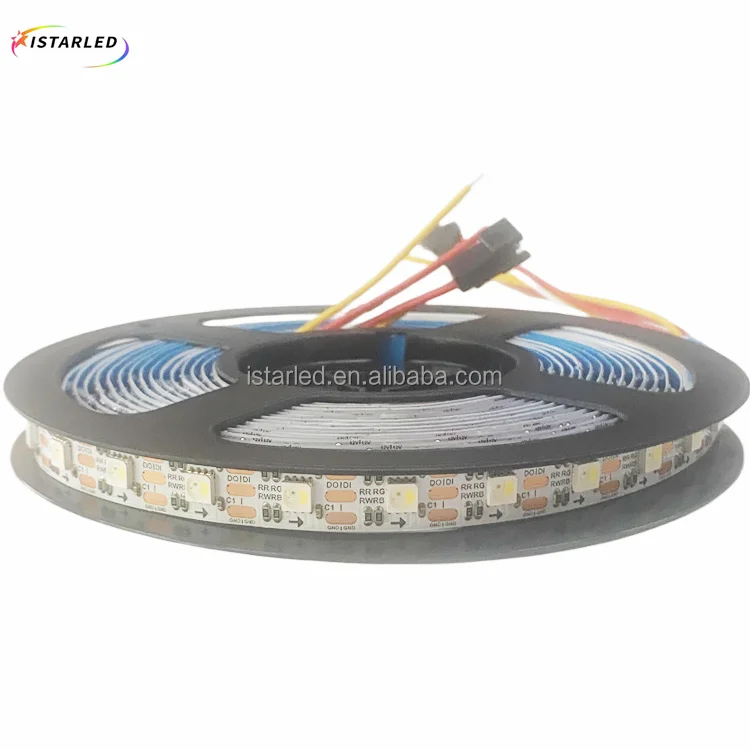

5M/roll with 3 ounce copper 12v 60led 60pixels sk6812 rgbw led tape:
Product images
Applications:
1.Architectural decorative lighting.
2.Archway, canopy and bridge edge lighting.
3.Amusement park, theater and aircraft cabin mood lighting.
4.Emergency hallway lighting.
5.Auditorium walkway lighting.
6.Stairway accent lighting.
7.Concealed lighting.
8.Backlighting for signage letters.
9.Channel letter lighting.
10.Emergency exit path lighting.
11.Edge-lit acrylic panel lighting.
Company Information
ISTAR LED specialized in rgb pixel led products, such as pixel addressable led strip, pixel led modules, pixel led string light,pixel led bar light and 3D dmx led products. All of ISTAR LED products are used for large business plazas, hotels,shopping malls, as well as buildings,KTV,concerts,amusement park rides decoration. As the year of the experience of pixel led lights,many clients create amazing projects which are beyond our imagination. If you have any idea for pixel led lights,please don't hesitate to contact us.Hope we can move forward the LED technology to a high level by using ISTAR LED products.
FAQ
Q: Are you manufacturer?
A: Yes, our factory has been set up for more than 6years. Also we have our own R&D center. Sincerely welcome you to visit us in ShenZhen China.
Q: Can you OEM or ODM?
A: Yes, we have adviced ability of R&D team. The products can be made according to clients' resquest.
Q: Can we print our logo on the LED lights?
A: Yes, we can print your logo on the pixel LED lights.
Q: Is the sample available?
A: Yes, we are very glad to make the samples for your test.
Q: What is the warranty for the LED lights?
A: The LED lights have two years warranty. If it is our quality problem, we will replace the new one for the broken.
Q: How long is the lifetime for the LED products?
A: The lifetime is about 50,000hours
Q: What is the MOQ?
A: For our first cooperation, your small order is acceptable.
Q: What kinds of certificate do you have?
A: The LED lights are of good quality approved by CE and RoHS.
Q: What kinds of LED chip do you use?
A: The LED chips we are using are Epistar/Cree/Edison. Also can use led chip as your request.
Q: How long is the production time?
A: For samples, the lead time is about 3-5days. For mass production, the lead time is 10-20days after receiving payment.
Q: How about shipment?
A: For small order, we can ship it by DHL, FedEx, UPS, TNT, etc. For big order, we can ship it by sea or by air.
Q: What kinds of payment methods do you accept?
A: You can make the payment to our bank account, Western Union,Alipay or PayPal
Our services
1.Your inquiry will be replied in 24 hrs;
2.Your special requirement about led light can be accepted;
3.Discount is available according to your order quantity;
4.Excellent after sale service;
5.Reliable warranty
