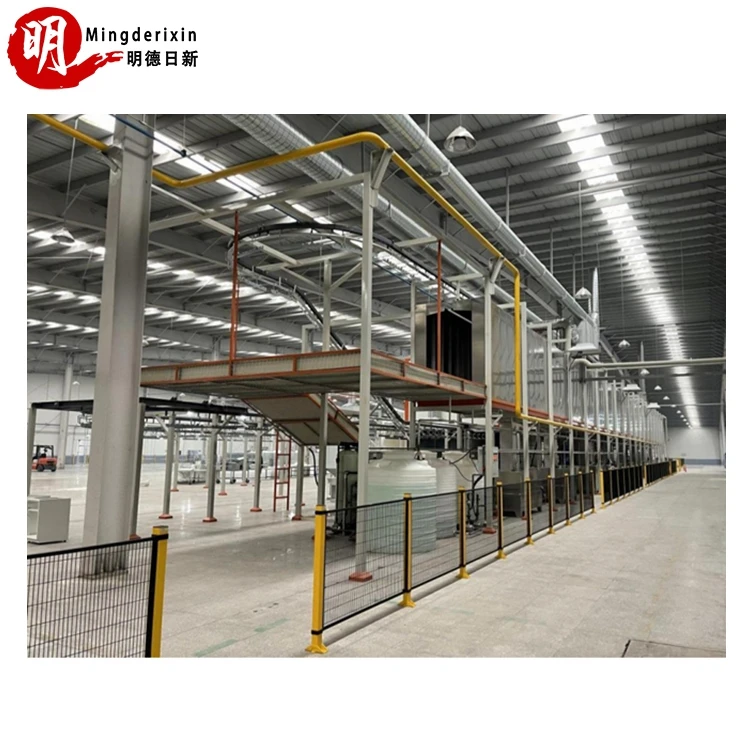

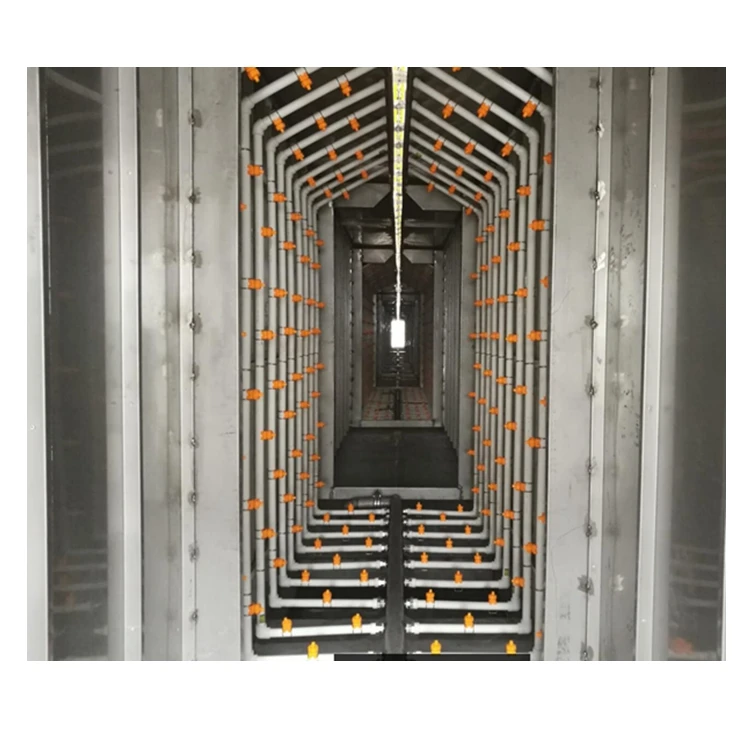

Full Automatic Spray Machines Powder Coating Line System with Grating System

Electric Parameters

1

Supply Voltage

220-240V,customized

2

Frequency

50-60hz

3

Power

50W

4

Security Grade

IP54

5

Working Temperature

0-40C

Air Supply Parameters

1

Compressed air of main interface diameters

8meters

2

Input air pressure

4-8Bar

3

Maximum Water Content

1.3g/m3

4

Maximum Oil Content

0.1mg/m3

Item

Specification

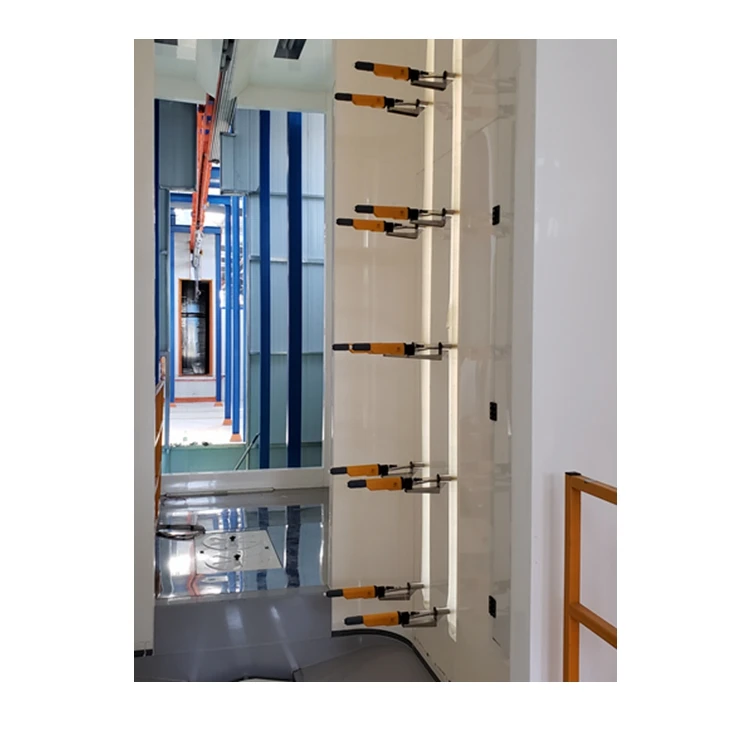

Automatic guns

Side Spray Machine  :12 pieces on both sides ,with powder tube and gun cable

Top Tracking Spray Machine :2 pieces

Bottom Tracking Spray Machine:2 Pieces

Automatic spray cabinet

Quantity:1 set

Including recovering powder and laking powder system

Reciprocating Machine

The distance could be adjusted according to the product width

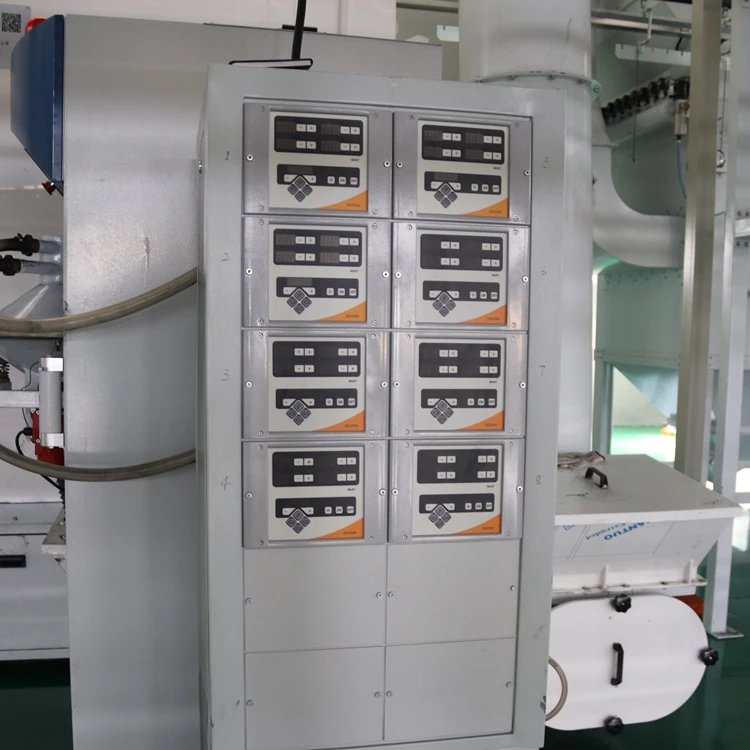

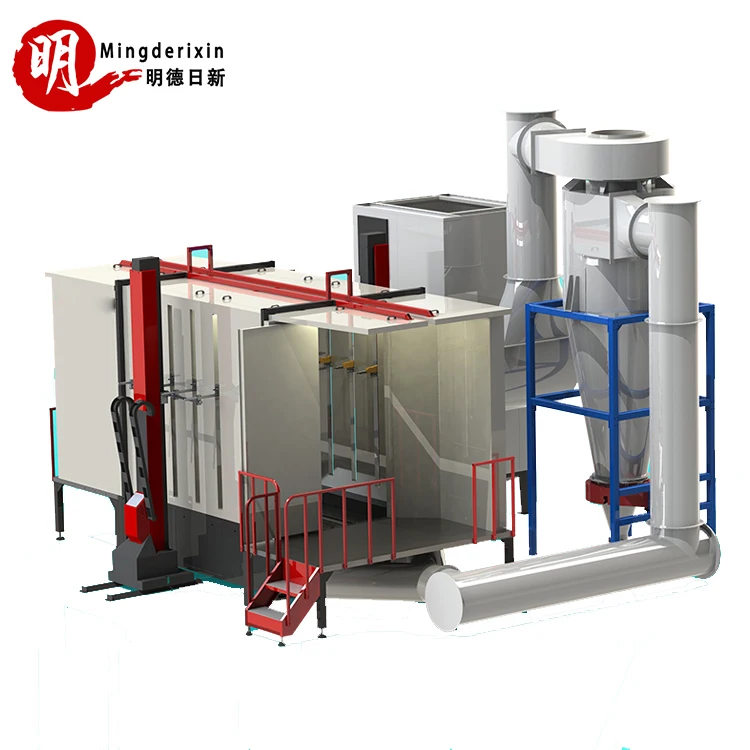

Feature of  spray cabinet

1.Automatic spray cabinet used to focus on the installation of automatic control of the host, easy centralized control.

2.Contains the lack of powder alarm, automatic powder back to the controller, to complete the lack of powder alarm, automatic powder control.

3. Each seat in the cabinet can be fitted with an automatic gun host or an automatic spray related function mainframe.

4.Cabinet pre-installed coarse oil-water separator.

5.Through the filter forced cooling function, to ensure the safety of the host work continuously.

6.Can automatically start the relevant equipment, can also be manually controlled.

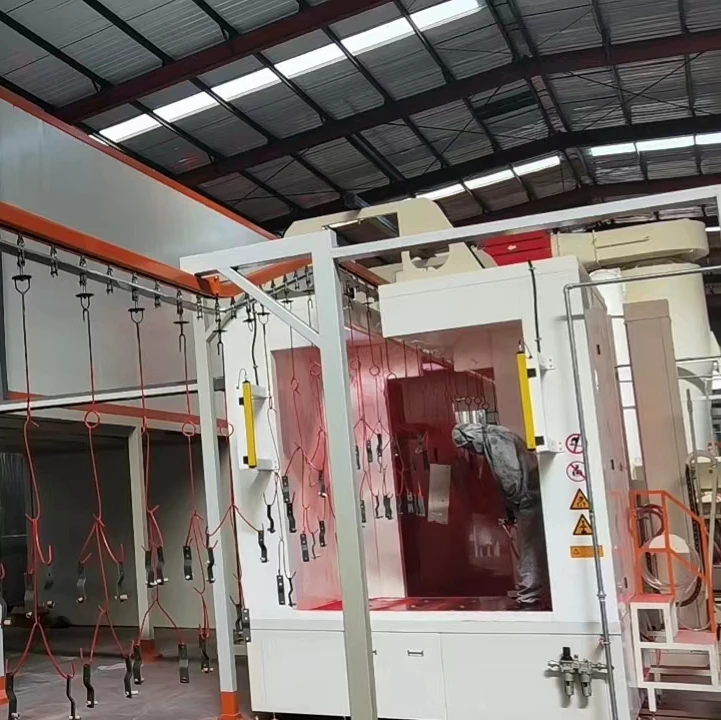

NO.

ITEM

DESCRIPTION

1

Main Body Material

Made by Single PVC Material, 10mm thickness. Good Insulation and Surface Harden and Smoothly, Not Easy to Get Powder Accretion, Easy Clean.

2

Working Door

On the Stand ,Which Can Save the Air Flow ,Reduce the Cost

3

Basement of Spray Booth

[1] Stainless steel horizontal bottom plate, the user can enter the spray booth to step on;

[2] U-shaped automatic flap air duct is set in the middle of the bottom plate, which can be opened during color change cleaning;

[3] Air knives are arranged on both sides of the spray booth base, and the floor powder is automatically blown toward the central air duct and taken away by the air flow;

4

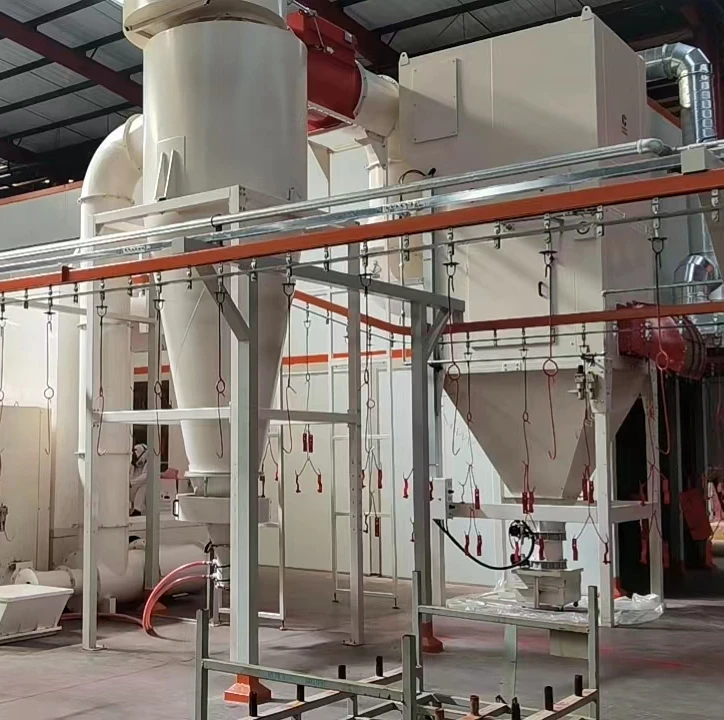

Stainless Material Big Cyclone

[1] Large cyclone powder gas separation system made of stainless steel;

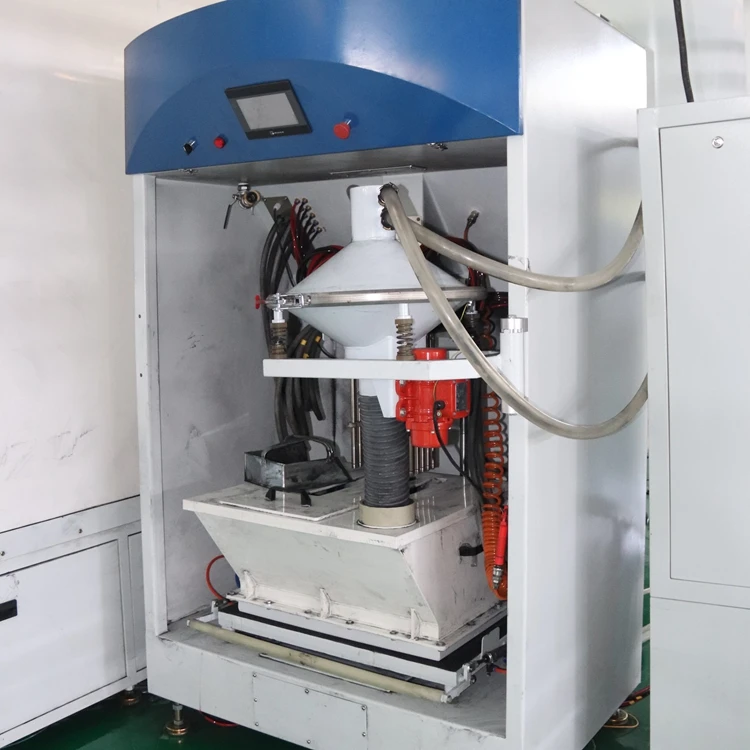

[2] The available recycled powder is automatically returned to the powder supply box, and the ultra-fine powder that cannot be used is automatically separated into the waste toner box;

[3] fan power 22kW;

[4] The muffler chamber is installed outside the fan to absorb the fan noise;

[6] The noise of the working area is lower than 85dB;

Item

Specification

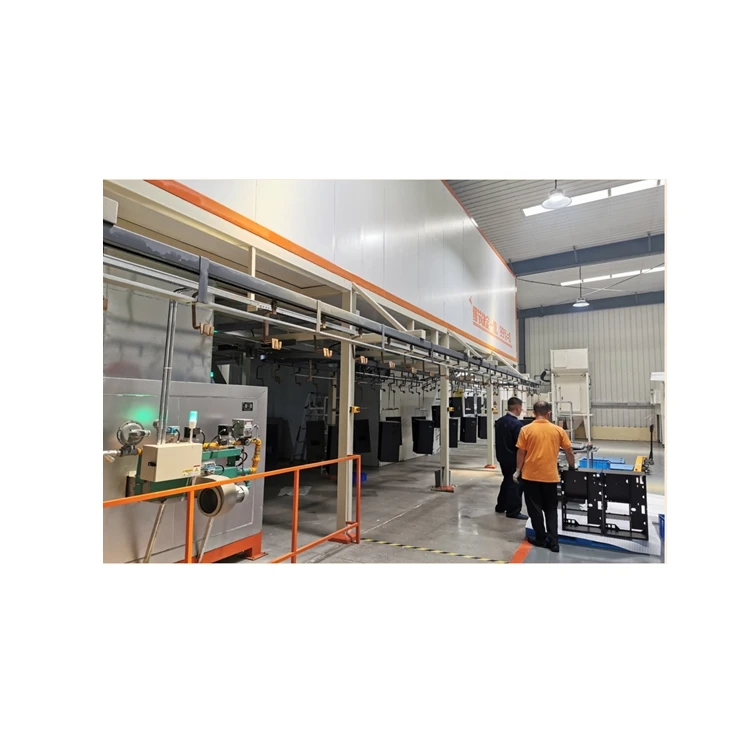

Size

External size :30000mm*1900mm*4500mm(L*W*H)

Internal size:  24870mm*1300mm*3600mm(L*W*H)

Heating type: Natural Gas

Max temperature: 200℃

Wall Board

Assembled insulation box, the inside wall is 0.426mm galvanized sheet, the outer wall of 0.426mm spray plate with Gray Color, the middle of 150mm thickness of high quality rock wool sandwich panels.

Easy to transport and Assemble

Air duct

There is circulated air duct inside the oven ,which can make the hot uniform

The holes can be adjusted

Max temperature

190 C, it will take 25mins to reach

Buner

Italy RIELLO RS50  GAS BURNER, Two Stage fire burner

Cabinet (100mm rock wool insulation) for the burner & heat chamber* 1unit

One set of 304 stainless steel heat exchanger.

The heat exchanger output: 500,000Kcal

Air curtain system

To prevent the inculcation of hot air at the entrance and exit of the curing tunnel, to ensure that the temperature inside the tunnel meet the requirements and reduce the heating energy consumption

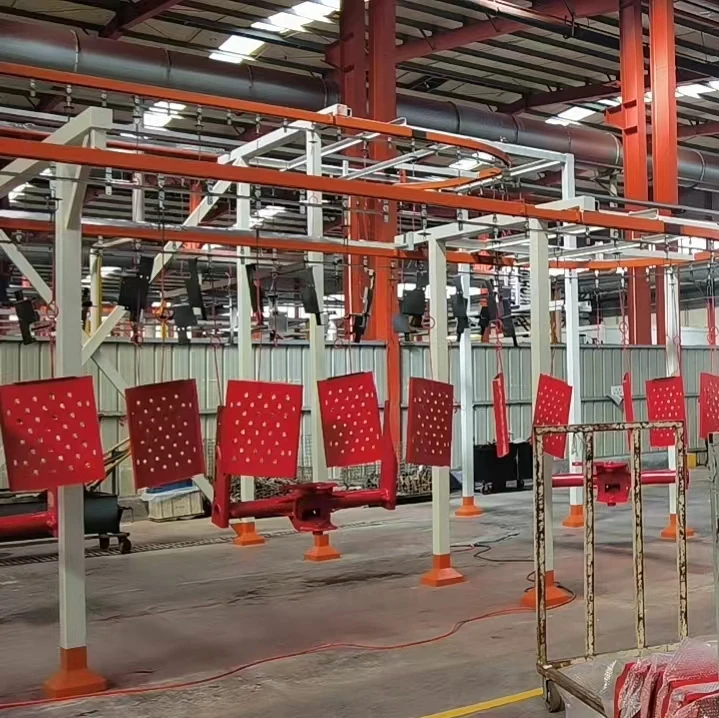

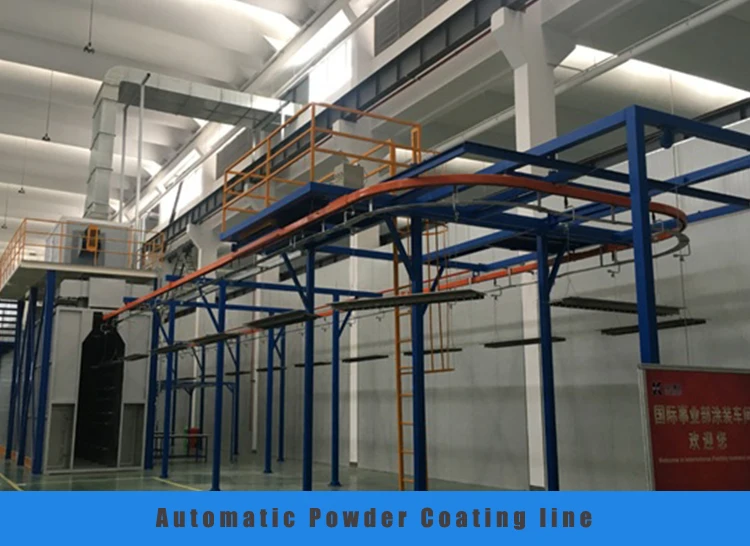

Item

specification

Loading weight

Single Point Loading Weight is 50kg,80*80“C”type rail

Length of chain

215meter

Line Speed

1.5-2M/min ( 0-3M/min adjustable)

Distance between Hangers

0.5M

Lubrication

Automatic spray lubrication;

Safety

The entire line in all manual operation and pre-treatment behind the fence are equipped with emergency stop, reset button.
