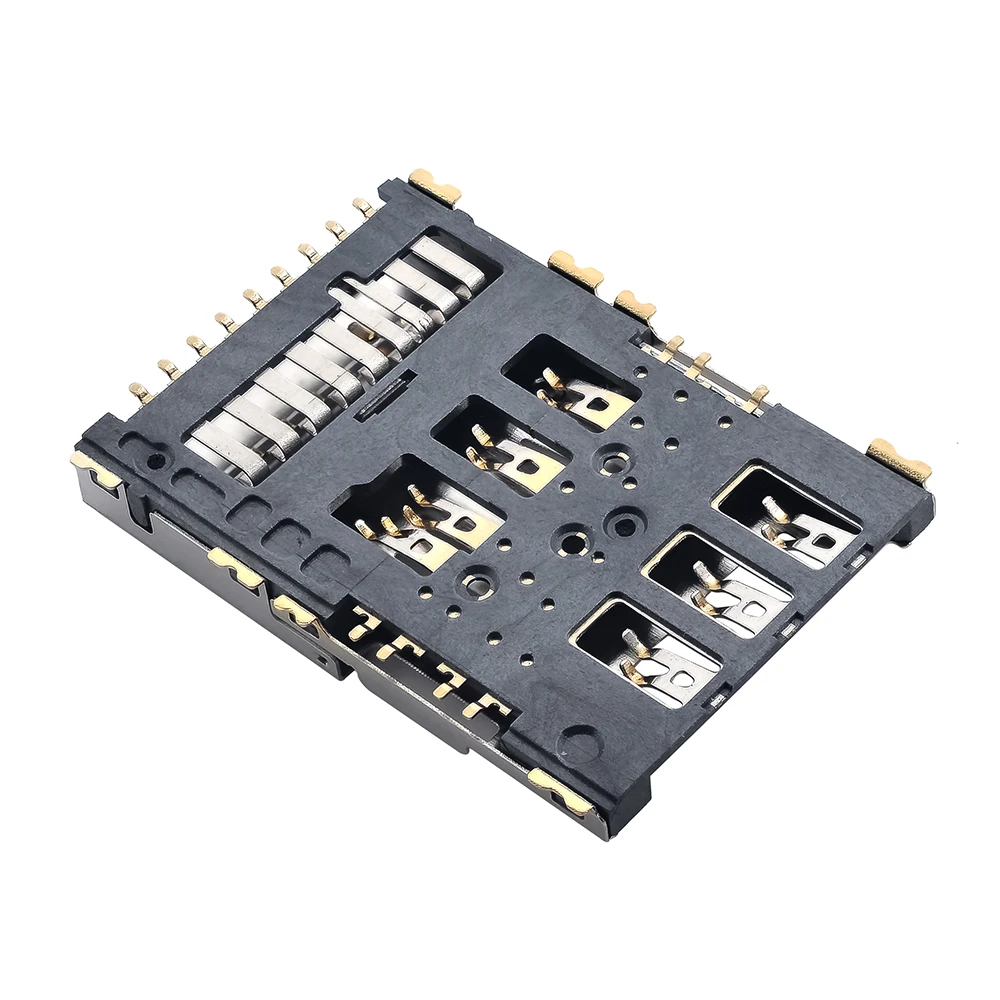

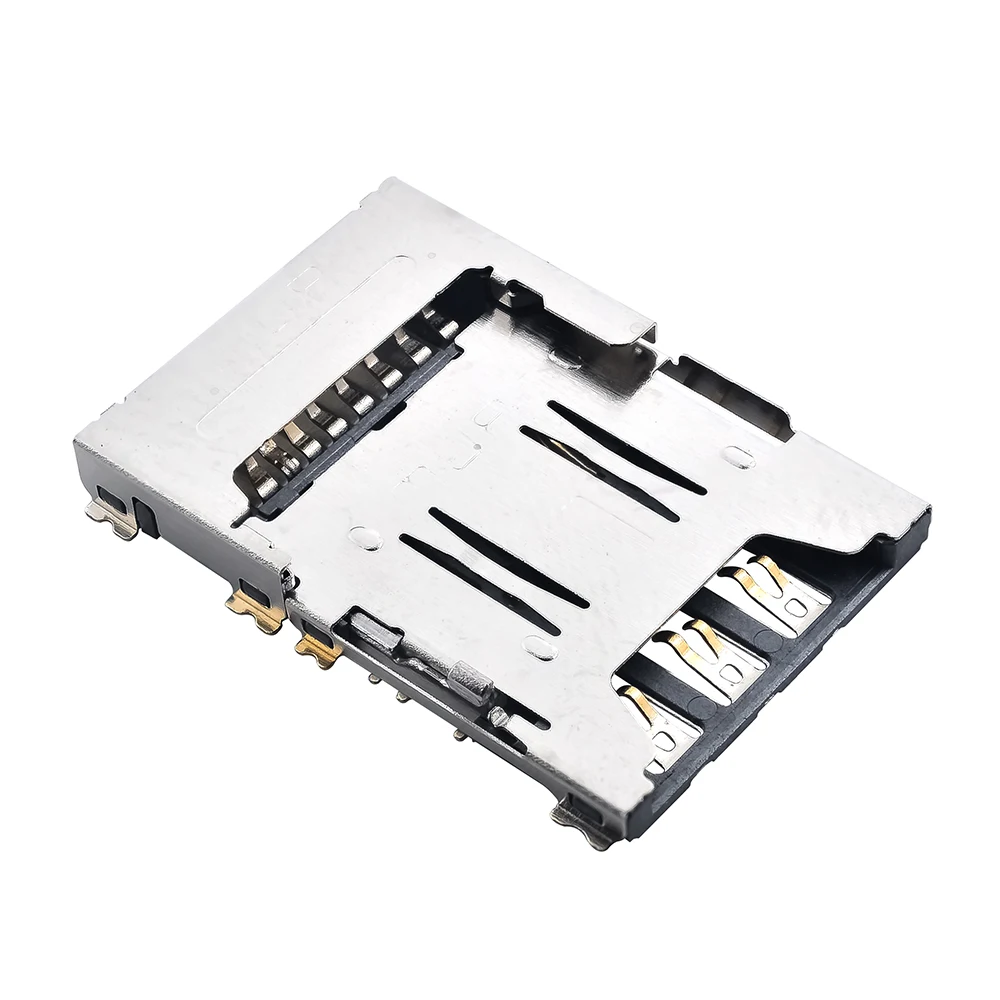

MUP Manufacturer 8Pin Micro SD NANO SIM Card Holder Puller Type for Body Scale Voice Recorder
- Category: >>>
- Supplier: Shenzhen Mup Industrial Co. Ltd.
Share on (1600917335271):
Product Overview
Description
● MUP Founded in 2003 ,many years of R&D and manufacturing experience in the connector industry

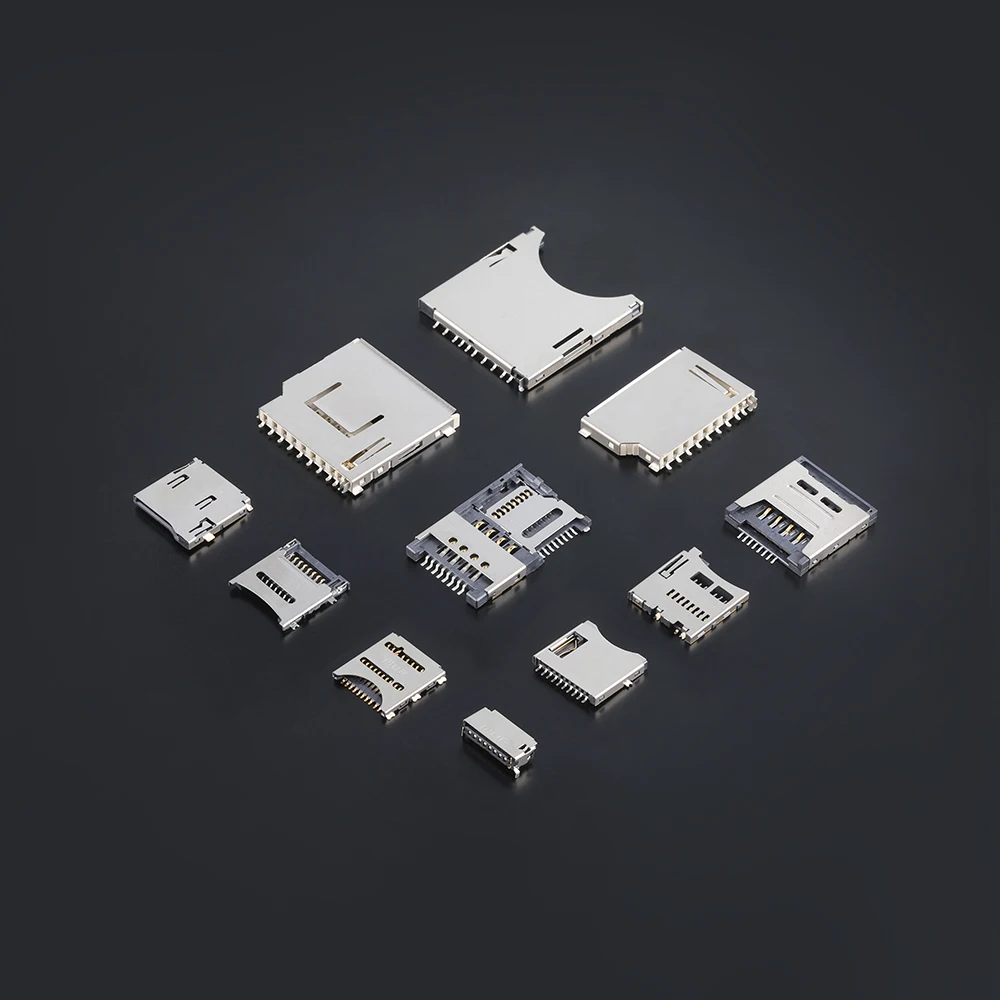

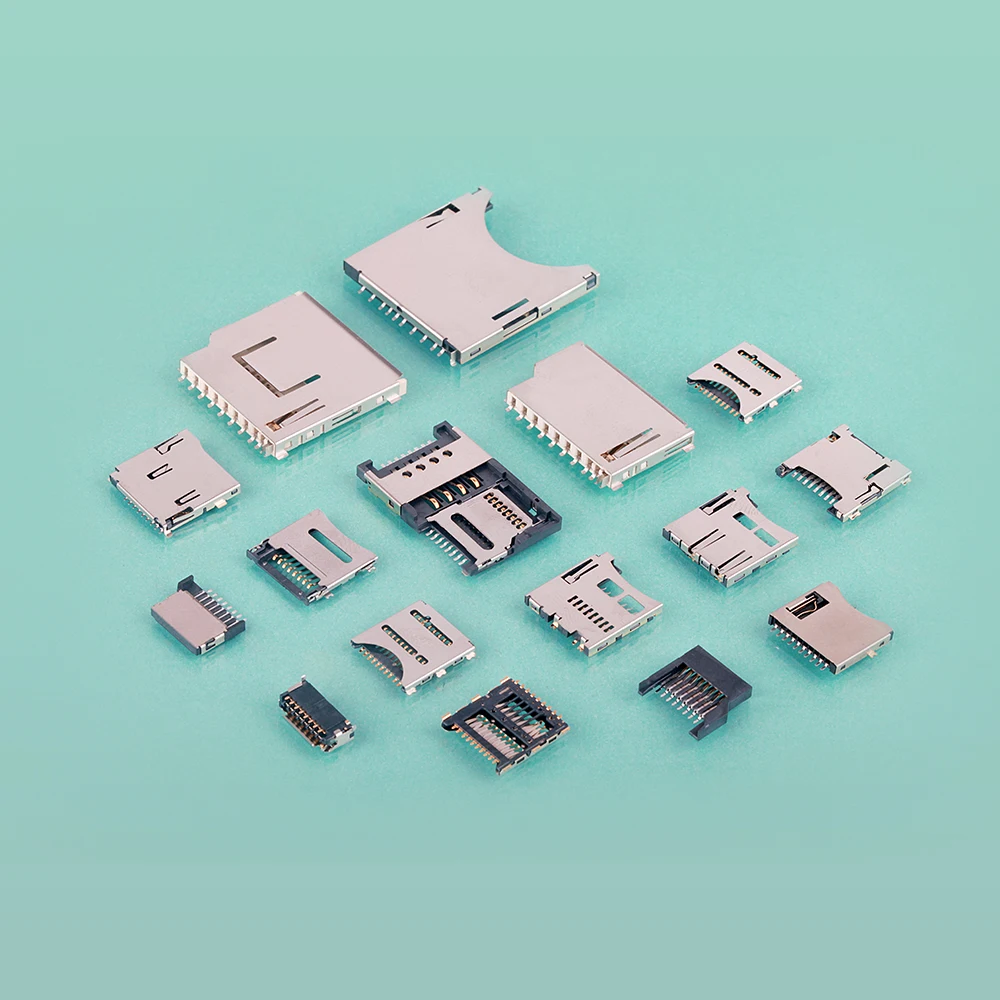

● Offering IC,SIM,memory card,HDMI,USB Type-C battery, RF ,FPC ,BTB and other kinds of precision connectors
● Products widely used in POS, STB,HDTV,automotive electronics, network communication,smart meters and other electronic products
● Exporting to 50+countries in Europe,North and South America,Asia and Africa
● Supplying Ingenico,Sagemcom,Tech-Front and Teltonika
● IS0 9001:2015- and 1S0 14001:2015-certifed
● Holding RoHS.EMV.NDS.PCL.HDMI and TID certifcations
● Offering IC,SIM,memory card,HDMI,USB Type-C battery, RF ,FPC ,BTB and other kinds of precision connectors
● Products widely used in POS, STB,HDTV,automotive electronics, network communication,smart meters and other electronic products
● Exporting to 50+countries in Europe,North and South America,Asia and Africa
● Supplying Ingenico,Sagemcom,Tech-Front and Teltonika
● IS0 9001:2015- and 1S0 14001:2015-certifed
● Holding RoHS.EMV.NDS.PCL.HDMI and TID certifcations

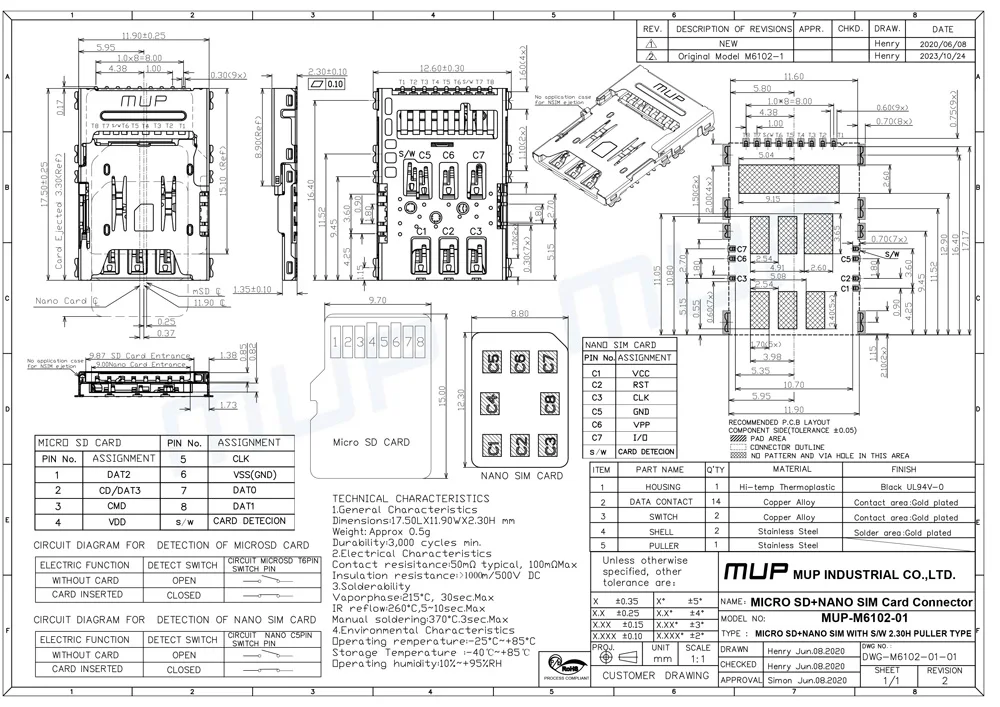

General Characteristics | ||||||
No. | Items | Standard | Descriptions | |||
1 | Dimensions | 17.50LX11.90WX2.30H mm | ||||
2 | Weight | Approx0.67±0.1g | ||||
5 | Mounting System | SMT(without post) | ||||
6 | Durability | 3 | 100,000 cycles Min | |||
Material | ||||||
1 | Insulator | Thermoplastic UL94V-0 | ||||
2 | Shell | SUS | ||||
3 | Contact | Phosphor bronze | ||||
4 | Plating | Gold over nickel | ||||
Data Contact | ||||||
1 | Number of Contacts | 8 Pins | ||||
2 | Contact highly | 0.70±0.20mm | ||||
3 | Insulation resistance pin to pin | IEC512-2-3a | >1000 MΩ/500 VDC | |||
4 | Rated voltage | 50V max | ||||
5 | Rated current | 1A max., 10μA min. | ||||
6 | Contact resistance | IEC512-2-2a | 50 mΩ typical, 100mΩ max | |||
7 | Dielectric withstanding voltage | IEC512-2-4a | 500V AC rms 1min. | |||
