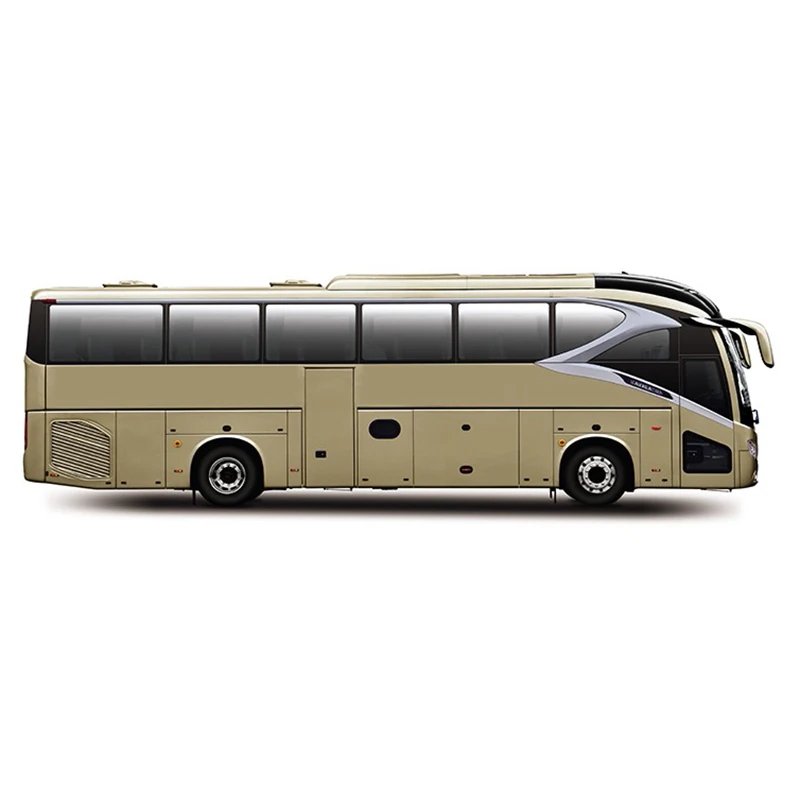

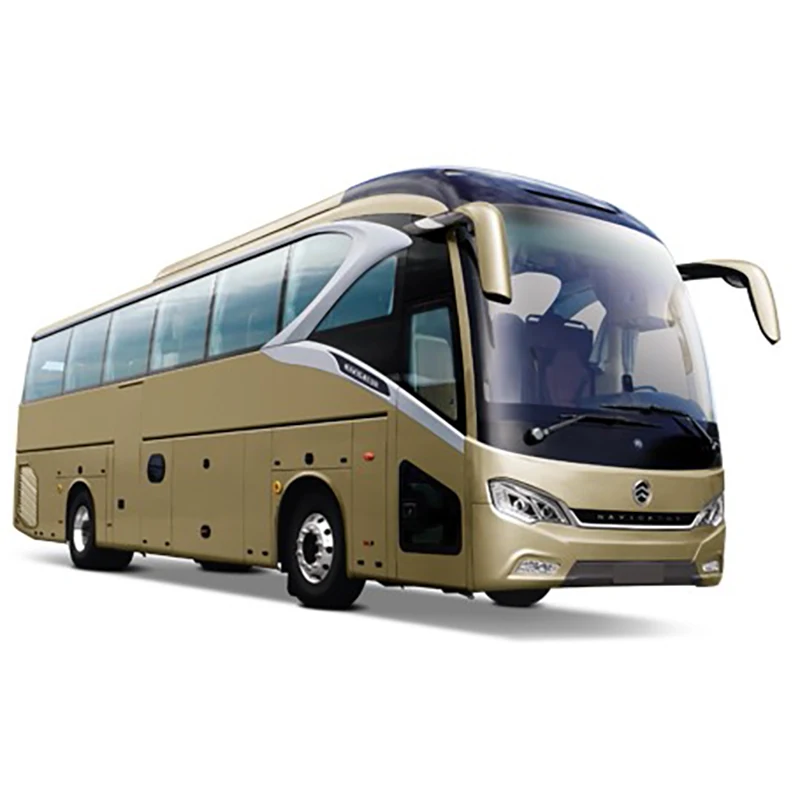

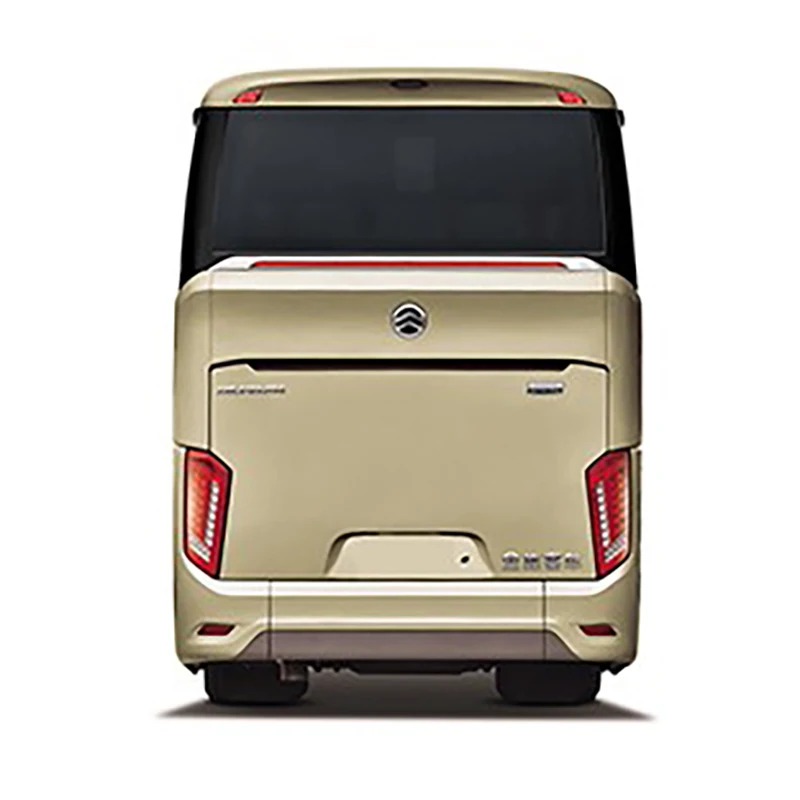

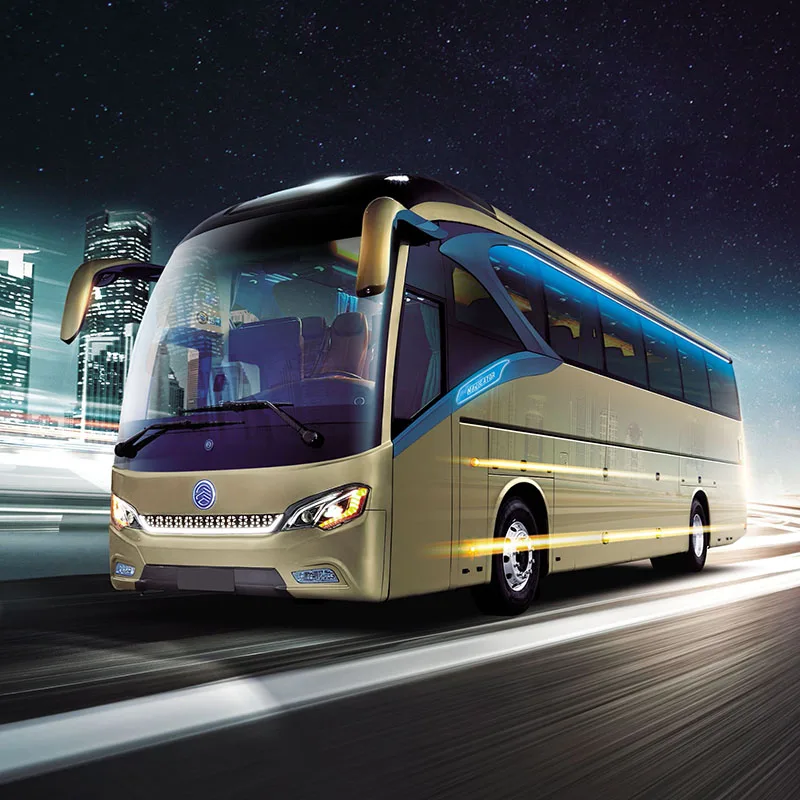

XML6129 Navigator 2023 new bus Diesel motor coach 12 Meters 49 1 Seats luxury Commuter bus Road City Bus Vehicle

XML6129 NAVIGATOR

Features

Navigator, which condenses the latest development concept of contemporary buses, is based on EU regulations . Every technology
shines with wisdom, and every design has been repeated. Verification, every detail has been meticulously polished.

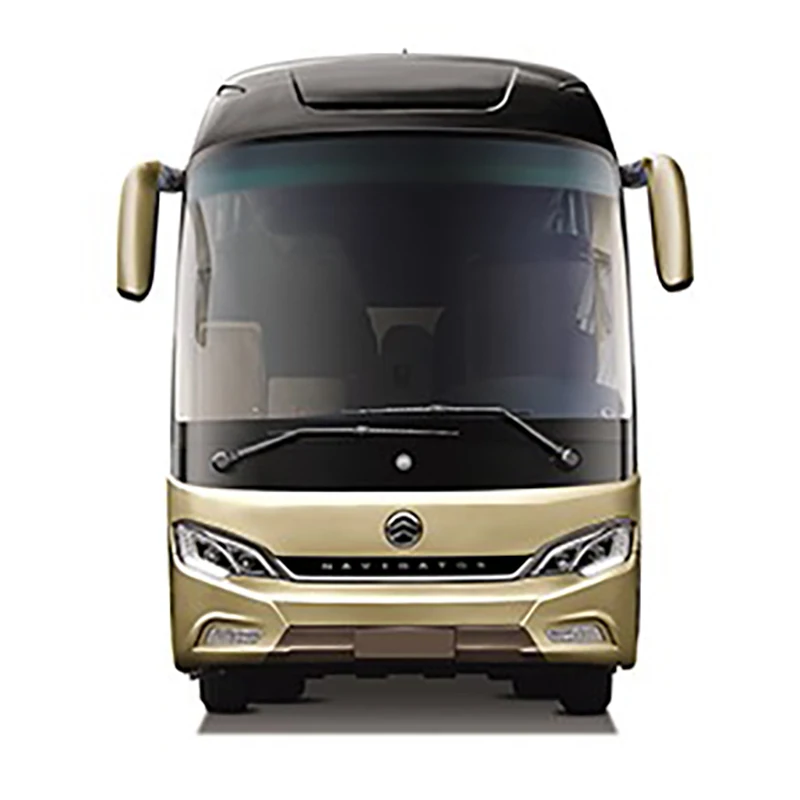

Appearance design makes art bloom for technology

With smooth and exquisite body lines, the drag coefficient of the whole vehicle is 0.548, reaching an excellent level. The lamps
and lanterns of the whole car adopt LED light source, which not only improves the warning speed of tail lights and turn signals,
but also has good illumination, low energy consumption, and the service life is 10 times that of ordinary plain lamps. The design
of the headlights is inspired by eagle eyes, sharp and agile. The headlights and taillights are designed with double light strips,
which complement each other with the side wall fiber optic light guide belts, making driving at night safer. Standard daytime
running lights and Navigator's exclusive logo effectively enhance vehicle recognition.

Understated luxury in the interior

Every detail of the radiant passenger compartment is exquisite, bringing a comfortable and comfortable ride atmosphere. The
exquisite ambient light design complements the suspended light ring of the reading light, with rich light and dark layers, soft
and warm. There are two options of warm and cold tones to meet more usage needs. The ergonomically designed zero-pressure seat is
used, and the headrest can be raised and lowered to fully fit the sitting posture of the human body to eliminate travel fatigue.
VOD entertainment system + full-vehicle WIFI , passengers can order on-board videos, music, pictures, etc. through mobile phones
or tablet computers, and can also connect to WIFI to surf the Internet. The whole car is equipped with automatic heating and
cooling air-conditioning, the temperature of the driving area and the passenger area can be controlled separately, and there are
purification devices such as anti-smog, formaldehyde removal, and fresh air to keep the air in the car fresh at all times. Floor
leather imported from France, non-nailed interior decoration, and soft cover stitching technology enhance the luxurious texture of
the vehicle; the vehicle uses NVH mute technology to create a quieter riding environment.

The driver's vision design adopts Israeli standards that are stricter than EU regulations, bringing a wider driving vision; the
rotatable driver's seat is convenient for the driver to enter and exit, and has functions such as ventilation and massage;
integral electric lift driver's window, leather Wrapped with a multi-functional steering wheel, the operation is more convenient;
the full LCD digital instrument is powerful and full of technology; the 15.6-inch super large central control screen integrates
multiple functions such as air conditioning, audio, navigation, Bluetooth, and Internet of Vehicles. Equipped with one-button
start, automatic transmission, electronic handbrake and independent audio in the driving area with Bluetooth function. A relaxed
driving environment makes the journey safer and more secure.

Chassis power comparable to world standards

The chassis system developed in strict accordance with Mercedes-Benz standards has reached the world's leading level in terms of
safety, reliability, economy, comfort and maintenance convenience.

The maximum power of the engine is 295kW/1900rpm , the maximum torque is 2000N.m , the maximum gradeability can reach 58% , the
service life is long, and the maintenance is convenient; it is matched with the Mercedes-Benz automatic transmission, which has
good ride comfort and high reliability, and there is no overhaul for one million kilometers; the choice of Mercedes-Benz The
maintenance-free rear axle is designed according to 1.2 million kilometers, and the failure rate during use is less than 0.1% .
Air suspension: ZF front independent suspension, matched with Mercedes-Benz original rear axle and six-airbag air suspension
imported from Germany, the vehicle runs more smoothly, with less vibration, lower noise and more comfortable ride. Retarder:
Mercedes-Benz original hydraulic retarder, with a torque of up to 3000N.m , which effectively reduces the braking distance and has
a longer service life of the brake shoes. Integrated side cooling water tank: AKG hydraulic cooling system dedicated to
Mercedes-Benz, light in weight, high in cooling efficiency, reducing engine power consumption and saving energy.

Vehicle parameters

XML6129 Navigator

Car length

12000

Vehicle width

2550

car height

3795/3830

wheelbase

6000

front wheel

2060, 2120

rear wheel

1860, 1900

front overhang

2650

rear suspension

3350

approach angle

8

departure angle

8

grade

Higher level 49+1

Rated occupants (including driver)

24-54

Vehicle Curb Quality

13700

Maximum total mass

18000

Minimum turning diameter

25

maximum speed

100

Maximum grade

≥18%

engine model

Weichai WP10H375E62

YCK09380-60

Yuchai YCK08330-60

Emission stage

National VI

form

Six-cylinder in-line supercharged intercooled diesel engine

rated power

276

280

243

Rated power speed

1900

1900

2200

Maximum torque

1800

1800

1350

Maximum torque speed

1000-1400

1100-1450

1200-1800

use fuel

diesel fuel
