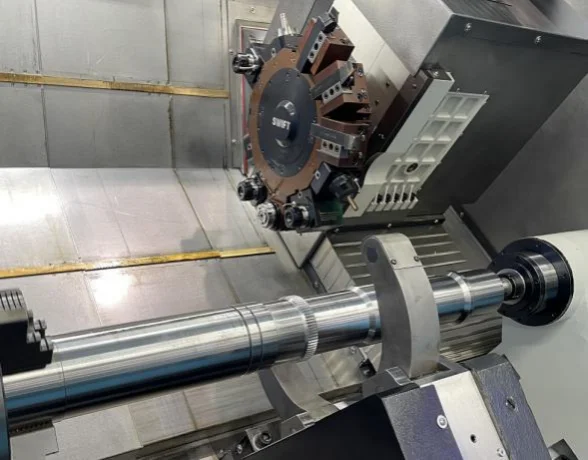

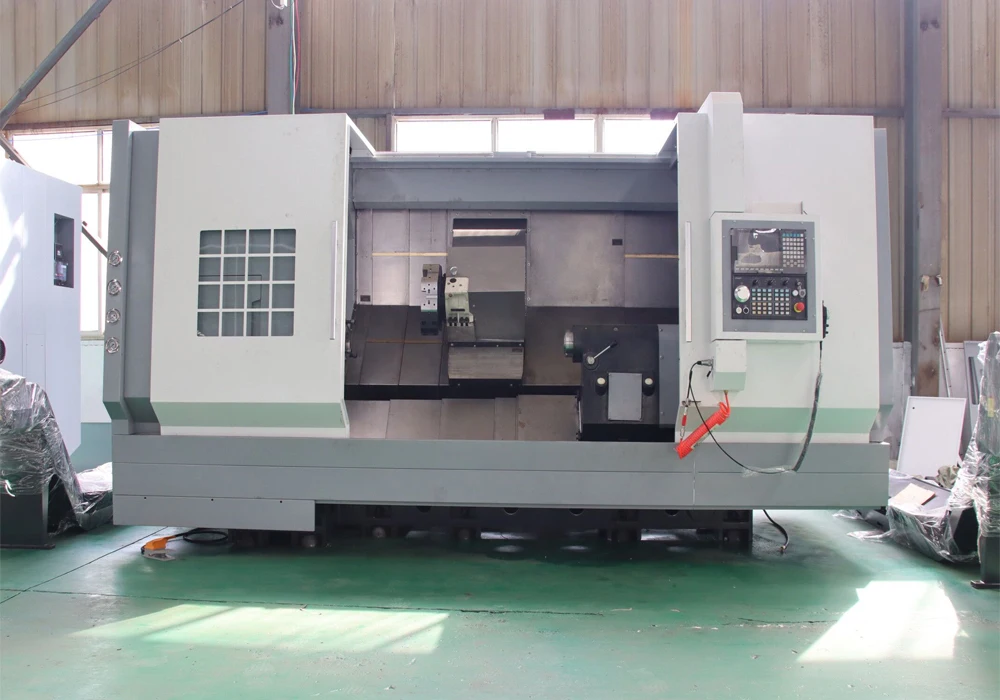

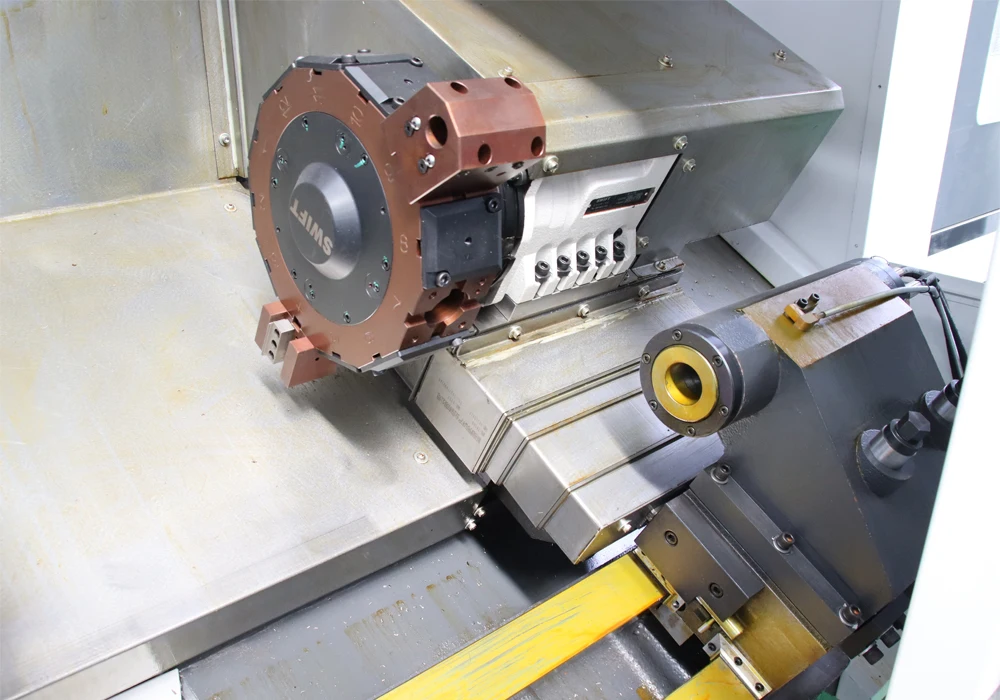

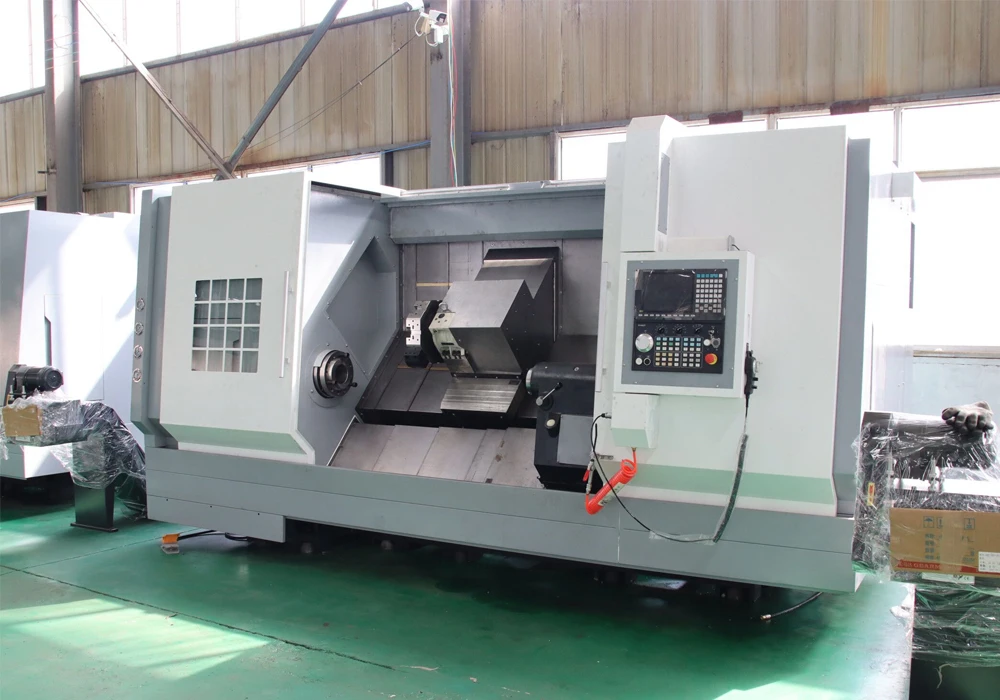

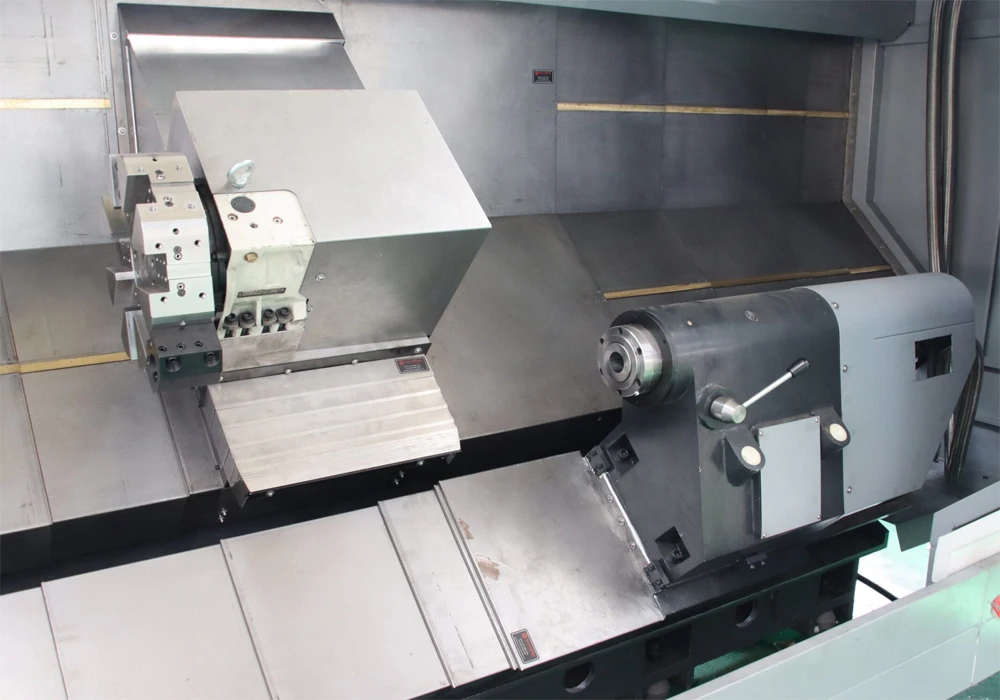

Multifunctional horizontal metal slant bed cnc lathe machine TCK800 slant bed cnc lathe for sale
- Category: >>>
- Supplier: Shandong ACR Machine Tool Co. Ltd.
Share on (1600917450153):
Product Overview
Description
Multifunctional horizontal metal slant bed cnc lathe machine TCK800 slant bed cnc lathe for sale
Specifications | Unit | TCK800 |
Max. swing dia. over bed | mm | 800 |
Max. swing dia. over slide | mm | 630 |
Center distance | mm | 1500/2000/3000 |
Spindle nose | A2-11 | |
Diameter of spindle through hole | mm | 104 |
Spindle speed range | r/min | 2000 |
Spindle shift mode | Stepless speed regulation | |
Motor power of spindle | kw | 18.5/22 |
Chuck type | Hydraulic chuck | |
Chuck size | lnch | 15 |
X axis rapid traverse | m/min | 12 |
Z axis rapid traverse | m/min | 15 |
X axis travel | mm | 410 |
Z axis travel | mm | 1650/2150/3150 |
Guide way type | linear guide rail | |
Tool post type | 8/12 Station | |
Tool shank size (square cutting tool/boring cutting tool) | mm | 32X32/Ø25/Ø32/Ø40/Ø50 |
Tail stock type | hydraulic | |
Tail stock quill dia | mm | 150 |
Tail stock quill trave | mm | 160 |
Tail stock quill taper | MT6# | |
Net weight | kg | 9500/10500/12500 |
Machine dimension(L×W×H) | mm | 3900/4400/5400x2760x2630 |
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7.If the above products do not meet your requirements, we can customize them according to customer requirements!
