TESmart 120m KVM Extender for servers in data centre monitor room via UTP/FTP cable with KVM Keyboard Mouse KVM IP Extender
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (1600917465361):
Product Overview
Description
Product Description

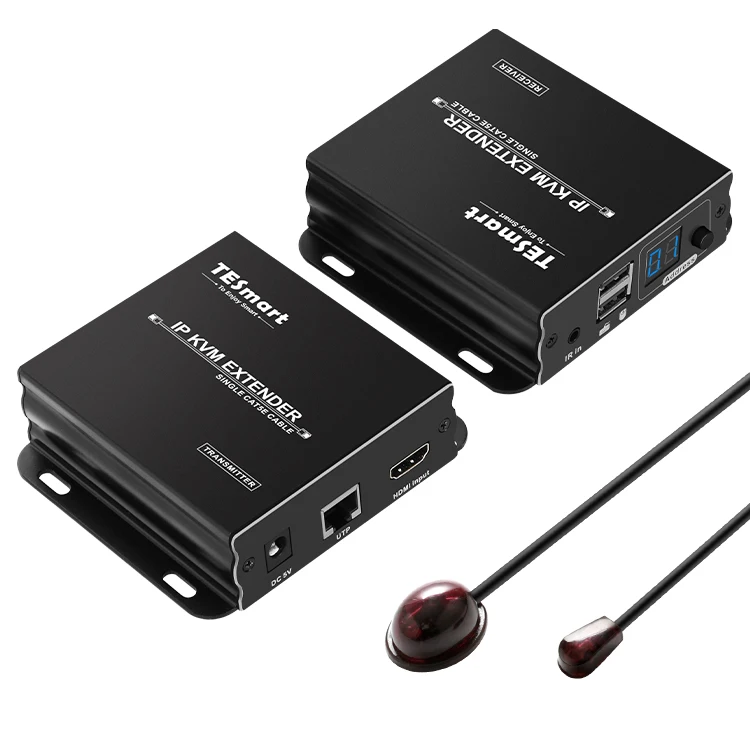

120M HDMI KVM Many to Many Over IP Extender w/ IR
HDMI KVM Extender can transmit HD video signal over long distance. With IR pass though, the playback device can be remotely controlled at the receiver end. Uses single UTP/FTP cable CAT5e/6 to substitute HDMI cable to achieve longer transmission distance. The transmission distance of our HDMI KVM Extender can extend up to 120 meters for 1080P60Hz.
Features:
⭐Use single UTP/FTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitute HDMI cable to extend longer transmission distance
⭐Support 1920x1080@60Hz resolution transmission via UTP/FTP cable up to 120 meters
⭐With IR pass though, the playback device can be remotely controlled at the receiving end via UTP/FTP cable
⭐By transmitting keyboard and mouse data via UTP/FTP cable, it is easy to control PC remotely

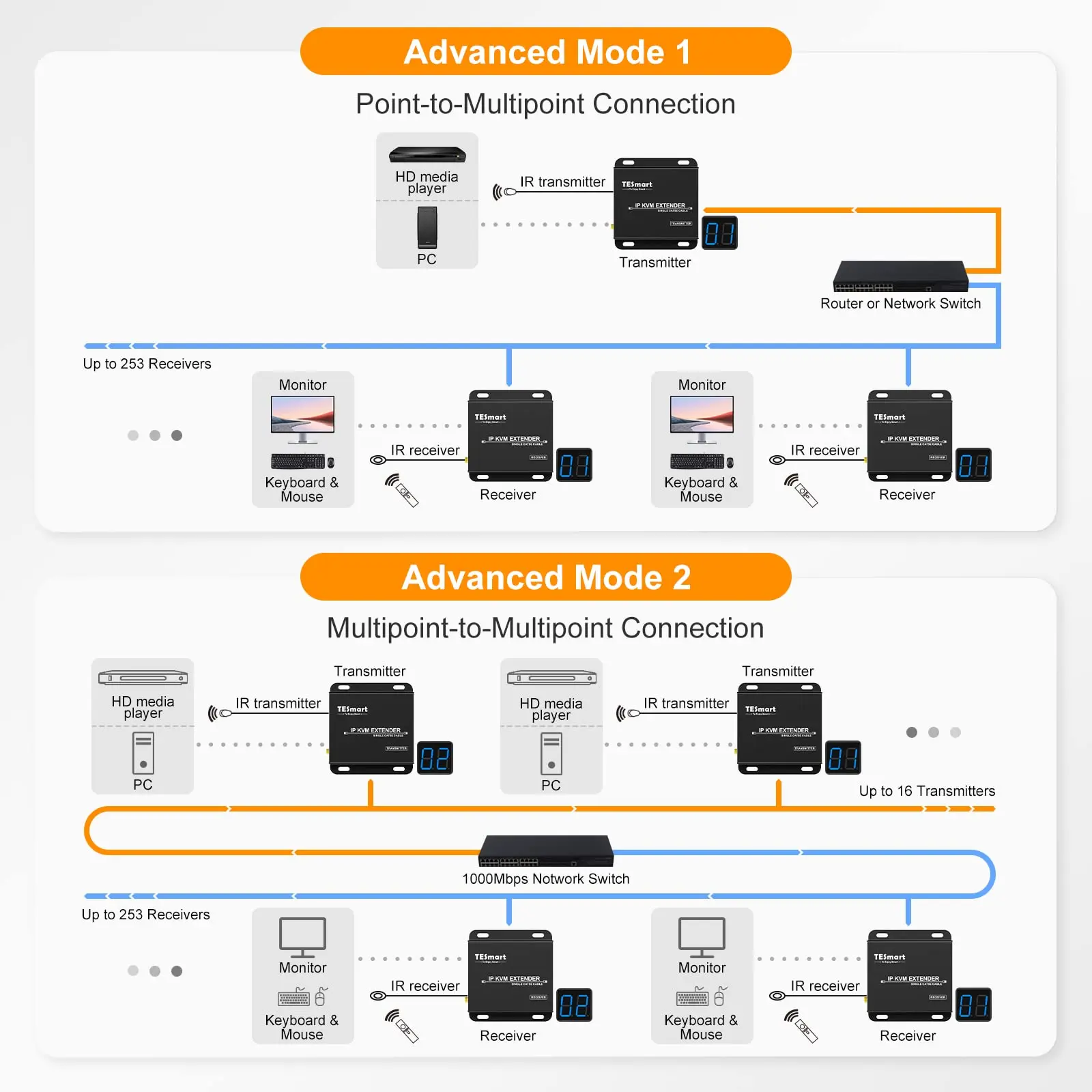

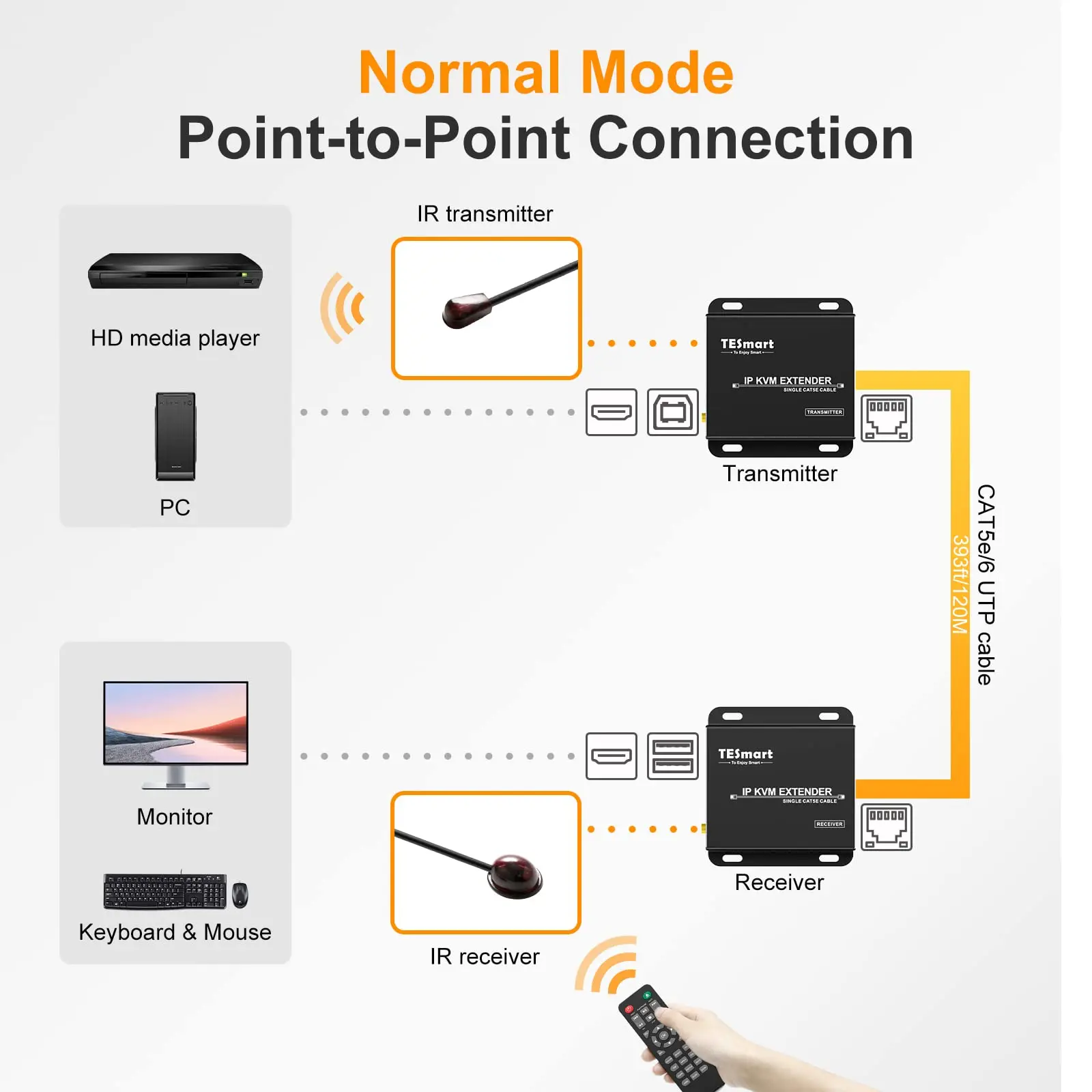

⭐Support point-to-point, point-to-multi point, multi-point-to-point, and multi-point-to multi-point administration
⭐Via router or network switch, it is available to send data from up to 16 transmitters to 253 receivers
⭐Use single UTP/FTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitute HDMI cable to extend longer transmission distance
⭐Support 1920x1080@60Hz resolution transmission via UTP/FTP cable up to 120 meters
⭐With IR pass though, the playback device can be remotely controlled at the receiving end via UTP/FTP cable
⭐By transmitting keyboard and mouse data via UTP/FTP cable, it is easy to control PC remotely
⭐Support point-to-point, point-to-multi point, multi-point-to-point, and multi-point-to multi-point administration
⭐Via router or network switch, it is available to send data from up to 16 transmitters to 253 receivers

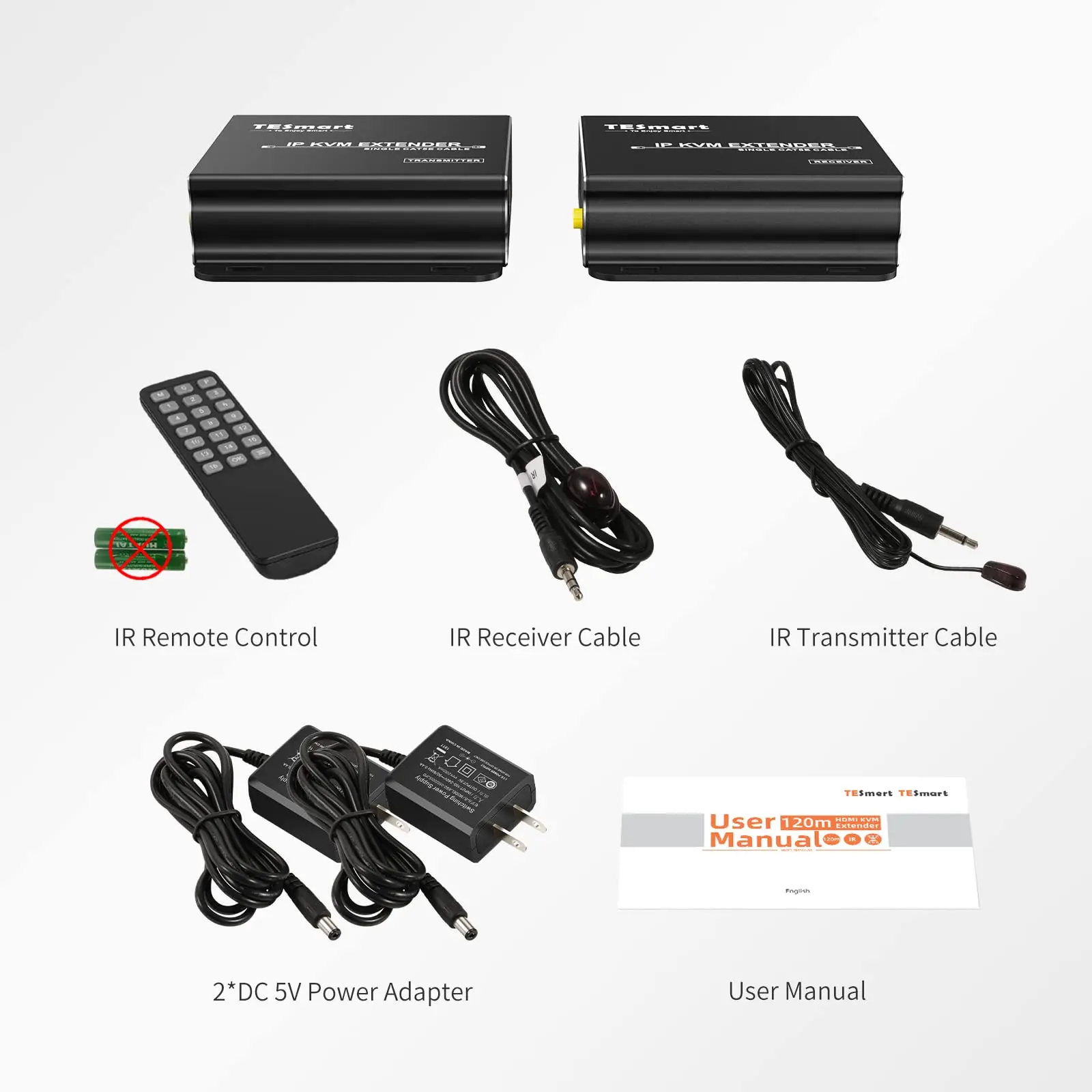

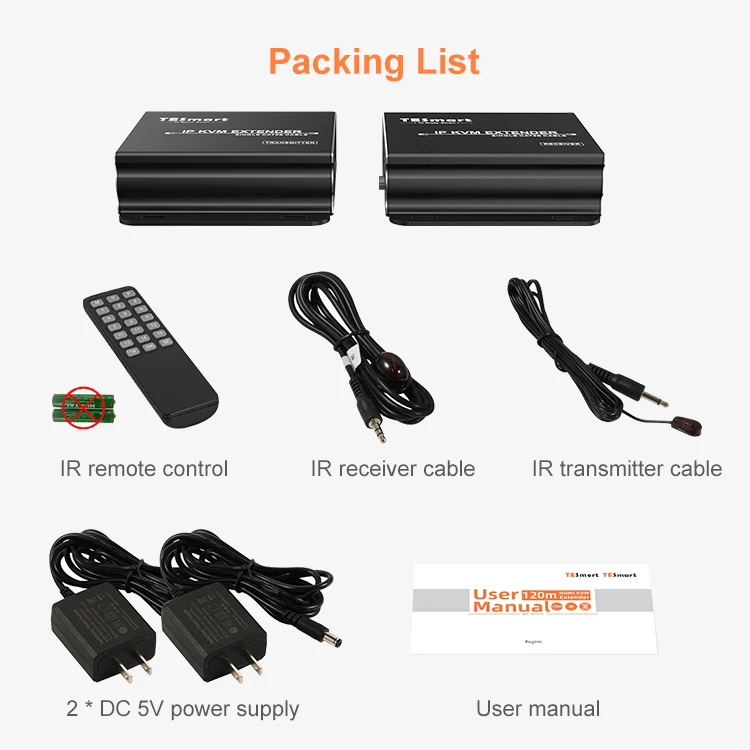

Packing list:
1 * HDMI KVM Extender Transmitter
1 * HDMI KVM Extender Receiver
1 * IR transmitter
1 * IR Receiver
2 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide

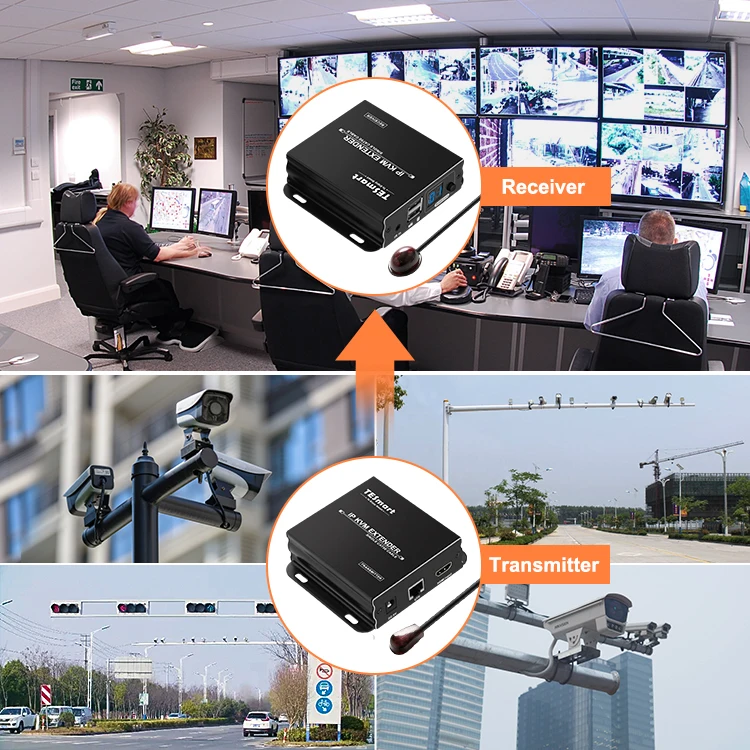

This product can be used on remote DVR for Security System, servers in data centre and monitor room.
Specification
HKE12MMA20 | 120M HDMI KVM Many to Many Over IP Extender w/ IR | |||
Functionality: | ||||
Over IP | Yes | |||
IR pass through | Yes | |||
Resolution | 1920x1080@60Hz | |||

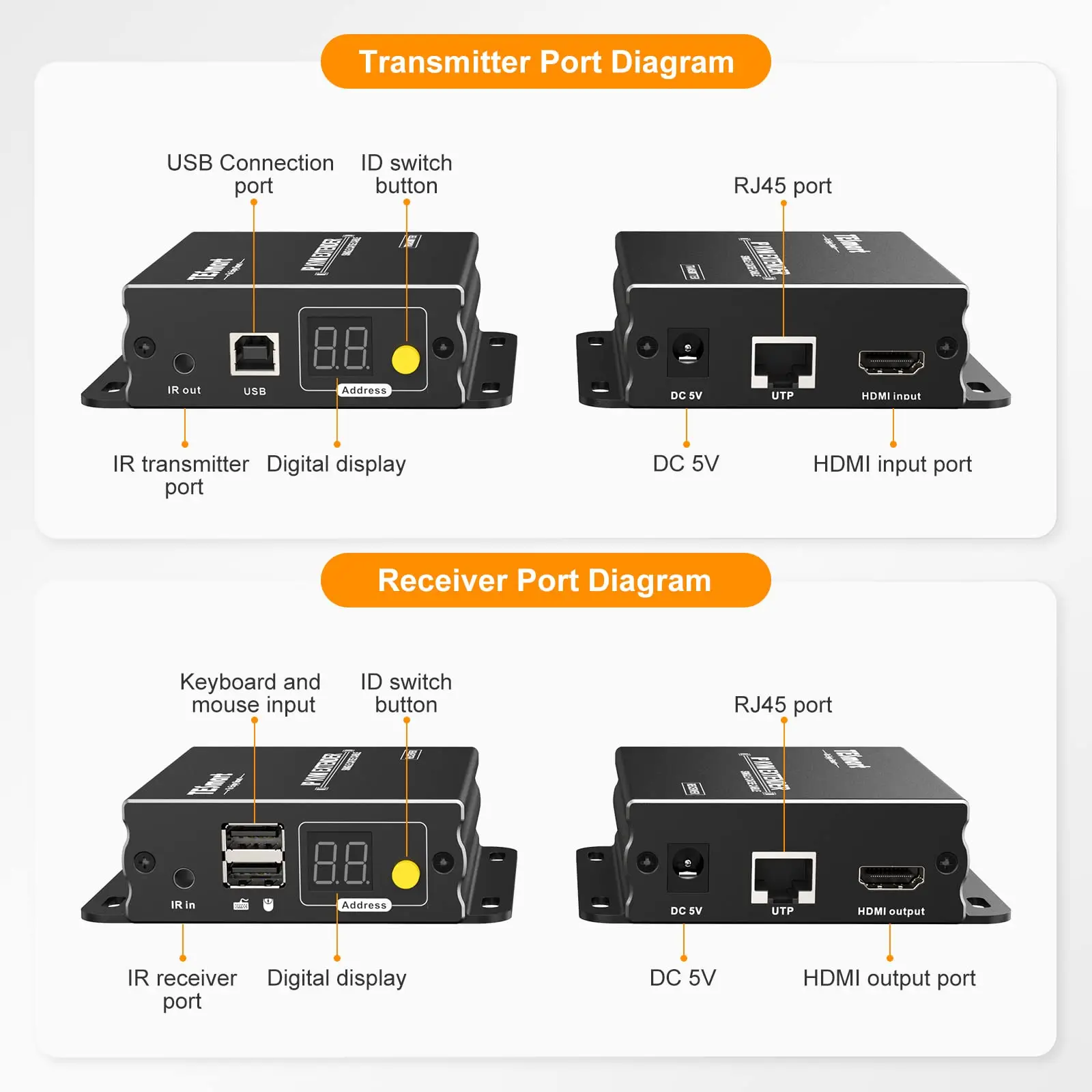

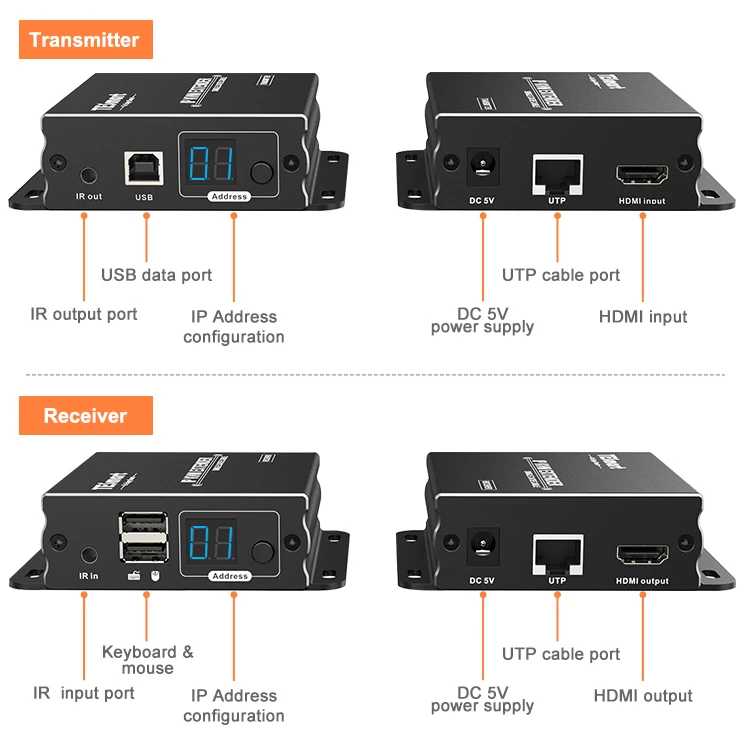

Input | TX*: 1*HDMI Type A | |||
RX*: 1* RJ45, 2* USB Type A, 1* 3.5mm AUX (For IR receiver) | ||||
Output | TX: 1* RJ45, 1* 3.5mm AUX (For IR transmitter) 1* USB Type B | |||
RX: 1* HDMI Type A | ||||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Power supply | DC 5V 1A | |||
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | |||
Operating Humidity | 10 to 90% RH | |||
Product | Dimension | 103(L) x 93(W) x 29(H) mm | ||
Weight | TX:159g RX:160g | |||
Item | Dimension | 245(L) x 135(W) x 90(H) mm | ||
Weight | 711g | |||
Carton | Dimension | 515(L) x 285(W) x 470(H) mm | ||
Quantity | 20PCS | |||
Total Weight | 15.07kg | |||
