7BBL Red Copper electric heated Combined 3 vessel Brewhouse system
- Category: >>>
- Supplier: Shandong Tiantai Beer Equipment Co. Ltd.
Share on (1600917488942):
Product Overview
Description

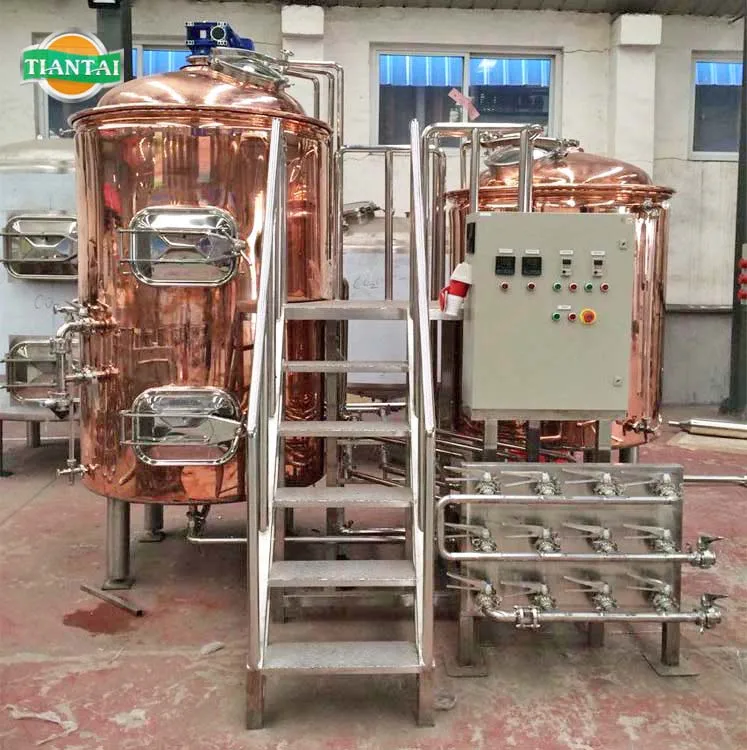

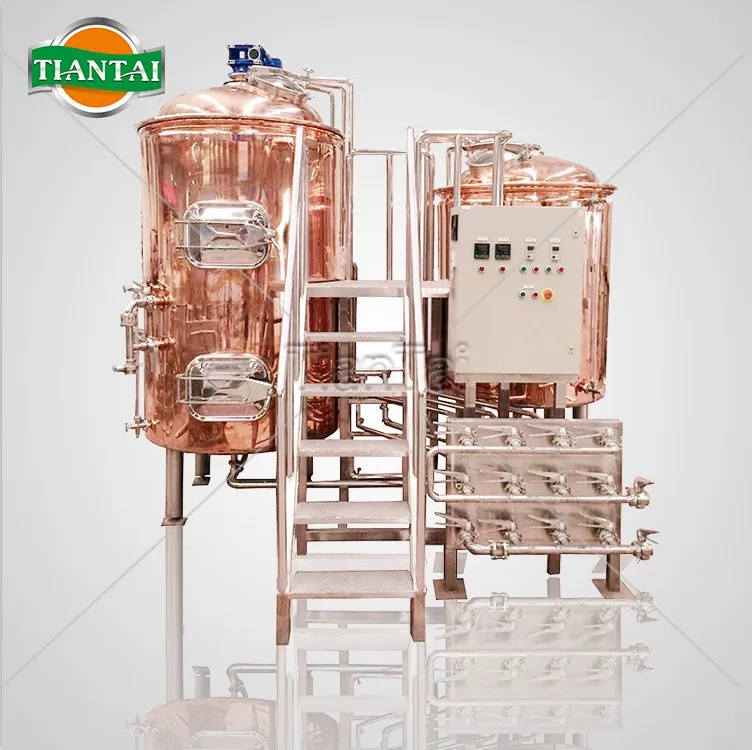

7BBL Red Copper electric heated Combined 3 vessel Brewhouse mash tun
Product Description
The 7BBL combined 3 vessel beer brewing system is often used in small craft breweries or craft brewing bars. Brewhouse system is part that need most operation in whole brewery system. Red copper brewing system is more and more polular among customers who will start a brewpub. Luxirious copper color can appeal customer well. Combined 3 vessel brewhouse system usually means a mash&lauter/hot liquor tank and a kettle/whirlpool tank. The mashing process and the wort filtration process are completed by one tank, and the boiling and whirlpool processes are completed by one tank, saving equipment costs and floor space. This system usually brews one batch a day. Brewing 2 batches will take at least 14 hours. If brewing 2-3 batches per day is expected, welcome to consider 3 batches brewhouse. For detailed information of 2 vessel brewhouse, please check below in detail.
micro brewery 500Lbeer brewing
Our Advantages
1. One Stop Service from malt to beer
2. Design Customization: Tanks structure, pipeline, installation
3. 5 Years Warranty for tanks, free delivery for broken accessory within warranty
4. With ISO TUV SGS certificate, the product meets the GB/CE/PED/ASME standard
5. Local service in EUROPE, AUSTRALIA ETC
6. More than 1100+ global users
Feature
***First batch takes about 8 hours, two batches of 14 hours is feasible;
***SUS304 stainless steel, easy to clean; Copper cladding for bars optional;
***Steam heated, high thermal efficiency, gentle for wort; Electric or direct fire heating optional;
***Wort will be cooled down by 2 stages heat exchanger via tap water and -5 ºC ice water together, Single stage heat exchanger optional;
***Mashing heating and fermentation cooling automatically controlled, and manual control switched at any time;
***Manual valve control, humanized operation, low equipment investment cost, high cost performance; PLC automatic control for upgrade;
Specification
Product Name | Red copper 7bbl combined 3 vessel brewing system for sale |
Output/Brew | 7BBL |
Brewhouse Structure | Mash&lauter/hot water tun+kettle&whirlpool tun |
Brew/day | 1 |
Installation Area | >20m2 |
Mashing method | Infusion, multi-step infusion |
Heating Method | Electrical heating |
Heating Source | Electrical heating tube (Inside KWT and HLT) |

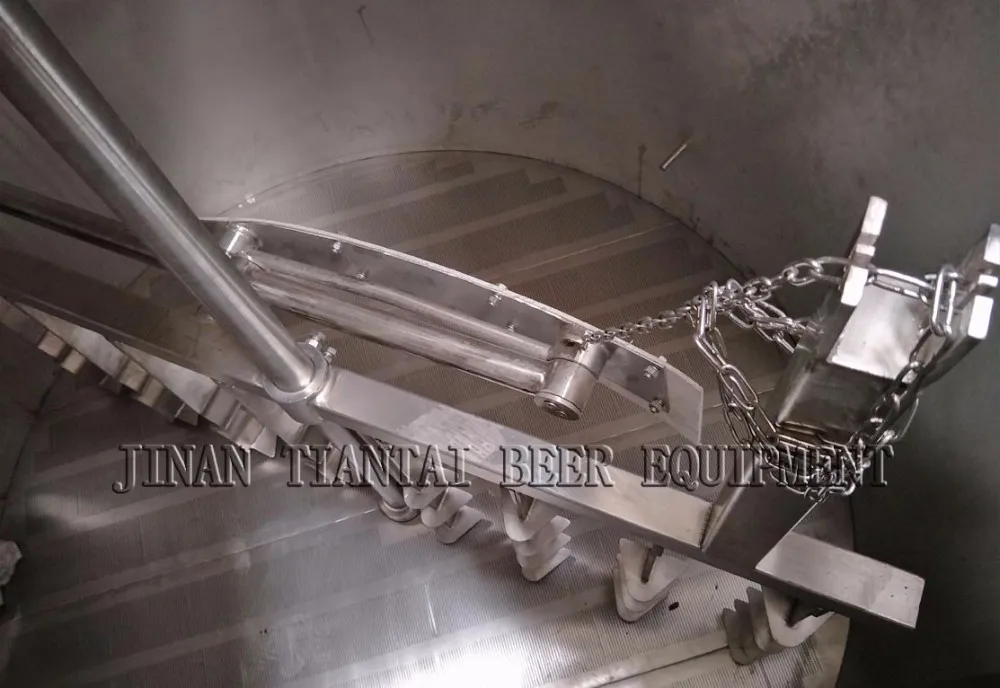

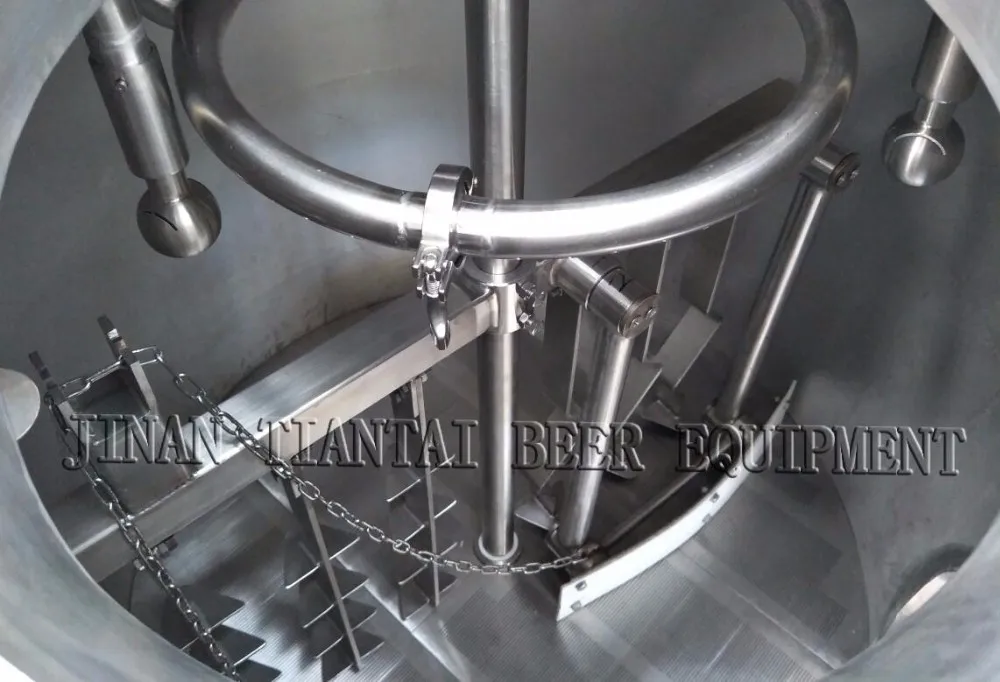

MLT | Grain rake with VFD controlled motor and gear reducer at top |
KWT | Heated tube inside |
Pump | 1x wort pump+1xhot liquor pump |

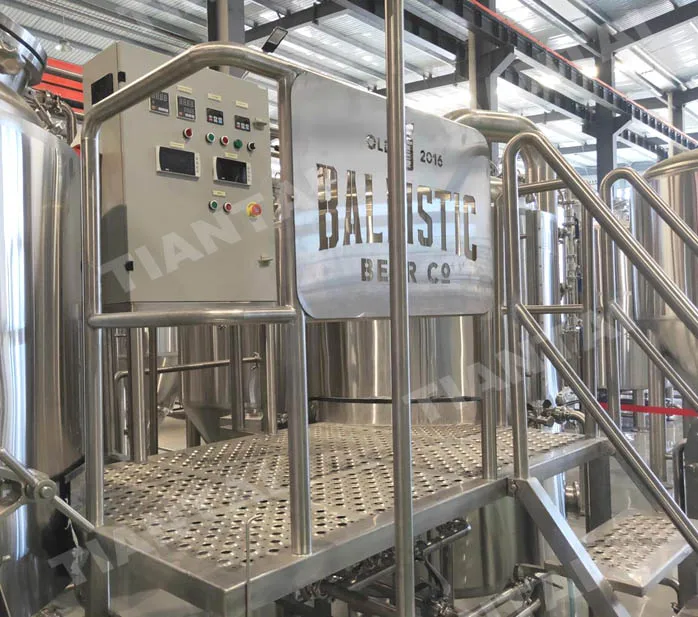

Platform | Non slip metal floor or Multi-holes platform |
Heat exchanger | Nanhua brand double stage |

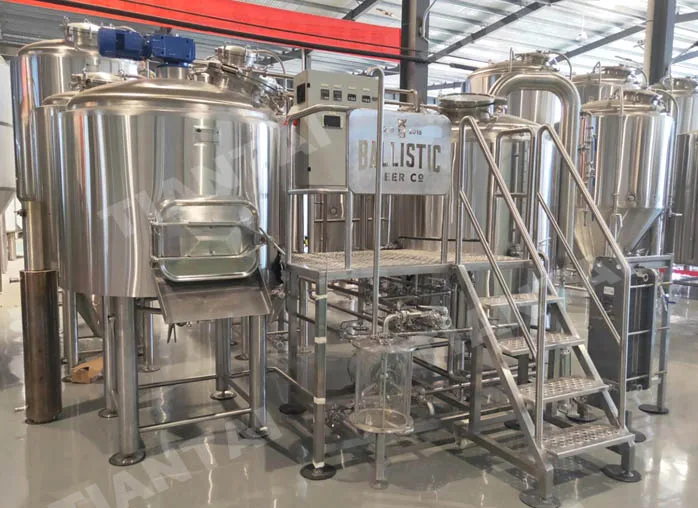

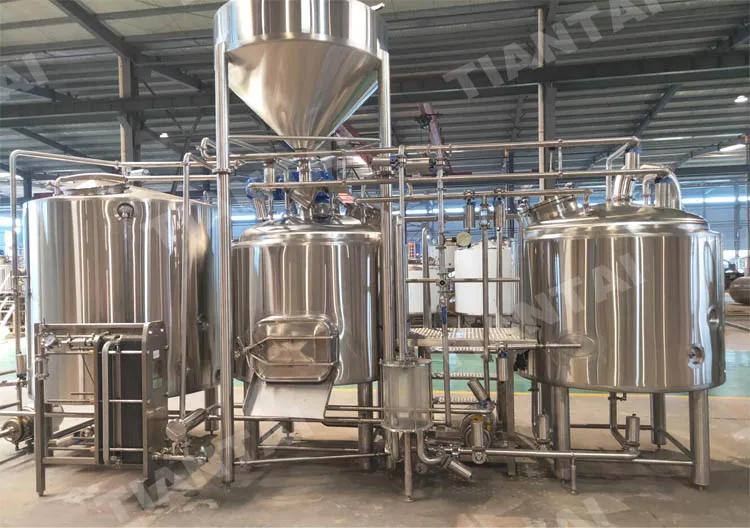

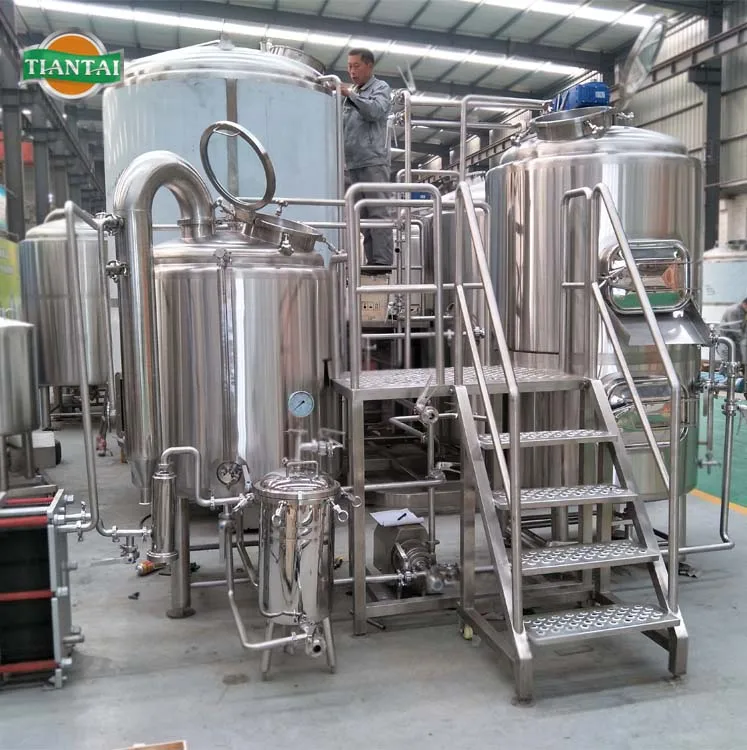

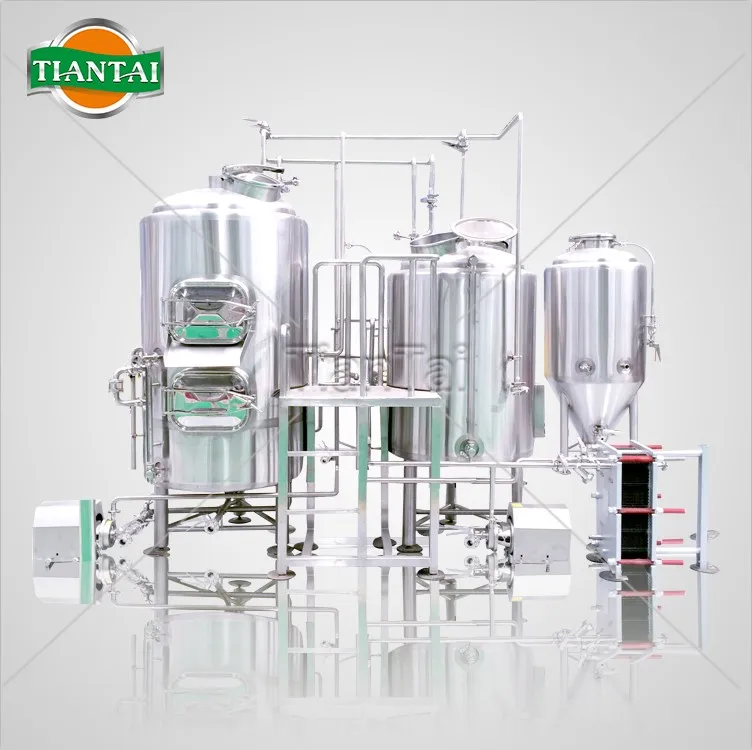

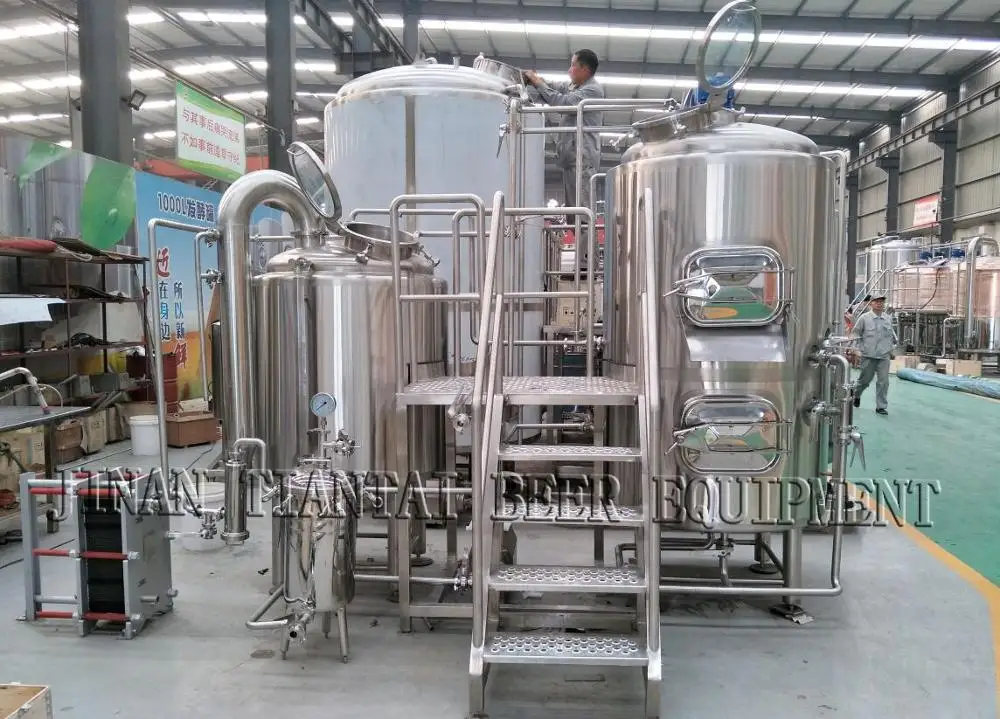

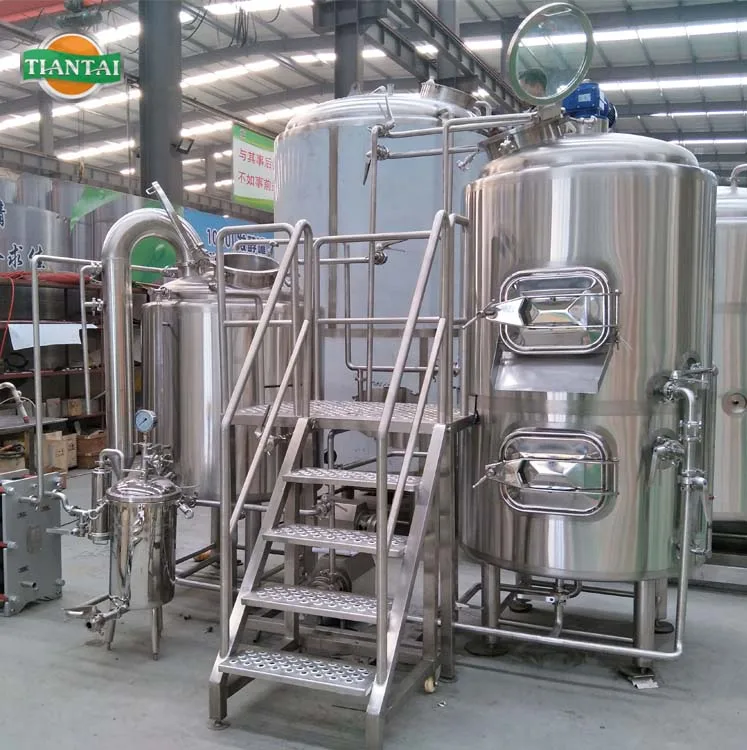

Another 2 vessel brewhouse pictures for your reference

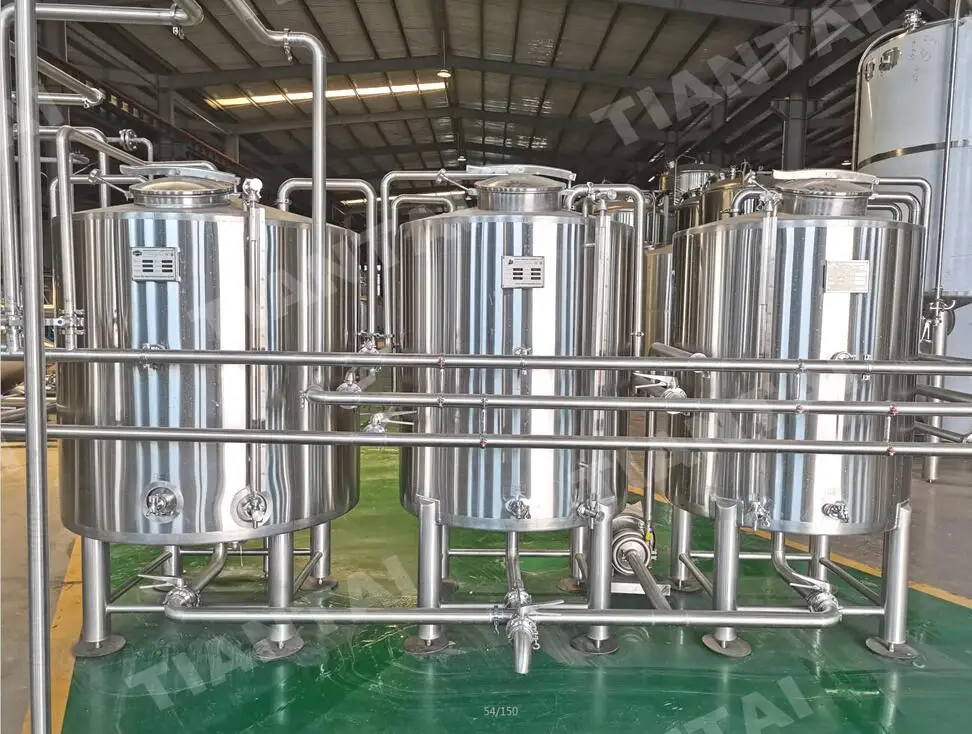

Other equipment included in whole brewing system
0 ir bre

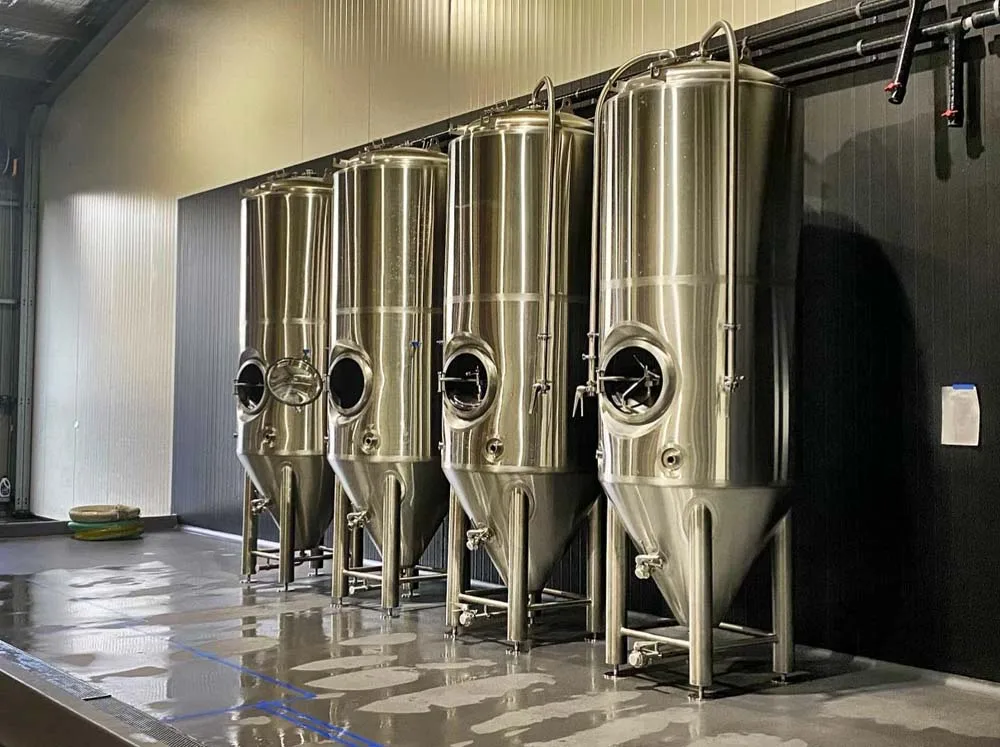

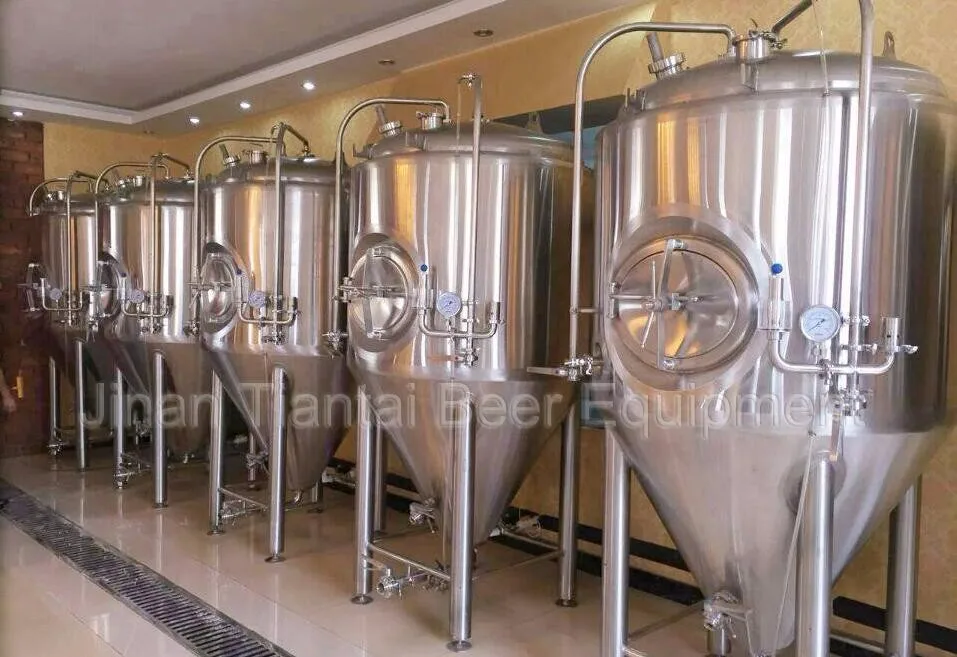

Fermentation tank micro 500L brewery equipment
| Tank structure | Double wall with jacket and insulation |
| Thickness | Internal shell=3mm; External shell=2mm |
| Cone angle | 60 degree/customize |
| Cabonation stone | Yes |
| Spunding valve | Yes |
Manufacture Details
1. Welding: We abandoned the argon gas cylinder but adopt The Central System of Argon to make sure the TIG welding with pure argon gas shield. We also increase the using amount of gas when welding, so the quality of the welding line is more higher. 500l 500 liter brewery
2.Polishing: We use large-scale polishing equipment to polish the inside of the tanks -- all over the wall to make sure there is no dead corner. You need not worry about there will be some bacterias remained after cleaning.Some other manufacturers may not pay enough attention to the polishing, even some have no polishing machine.
Micro 500L brewery equipment
Company Information
Established in 2012, we have been 6 years in this beer business. Based on honest business principle and reliable quality, we have been top 2 supplier in Jinan city. micro brewery 500L
And we also have We had build lot of breweries in US, Canada, European and Australia, New Zealand and south American countries... micro brewery 500L
We sincerely hope to discuss further with you and design a nice brewery together. b
micro 500L brewery equipment
Our Services
Service | Free |
Professional consultation service in any time | √ |
Project planning and layout design | √ |
3D drawing | √ |
Training to operate and debug | √ |
Ø 3 years warranty
Ø Aboard installation and training
Ø Design and maintenance for free stainless steel beer manufacturing equipment
Ø High quality and best price 500l 500 liter brewery
Ø inner and outer of the tanks have been mirror polish
Ø the material can be stainless steel with low price or red copper with nice-looking
Ø the capacity can be 50L~30,000L 500l 500 liter brewery
Ø Engineers available to service machinery overseas
Welcome to leave message or email me directly to gain updated quotation of micro brewery 500L. 500l 500 liter brewery
I will reply to your within 12 hours. 500l 500 liter brewery
