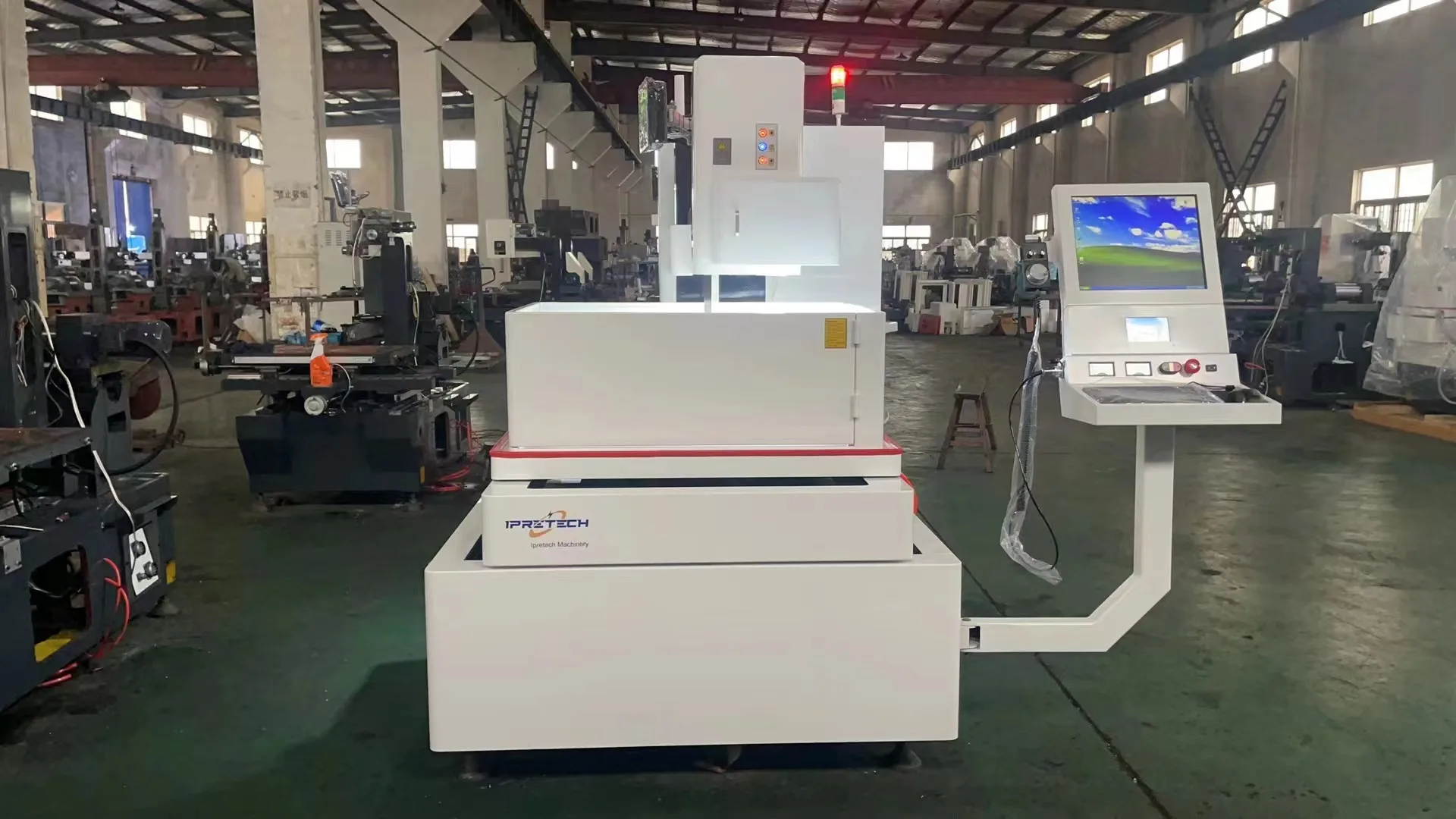

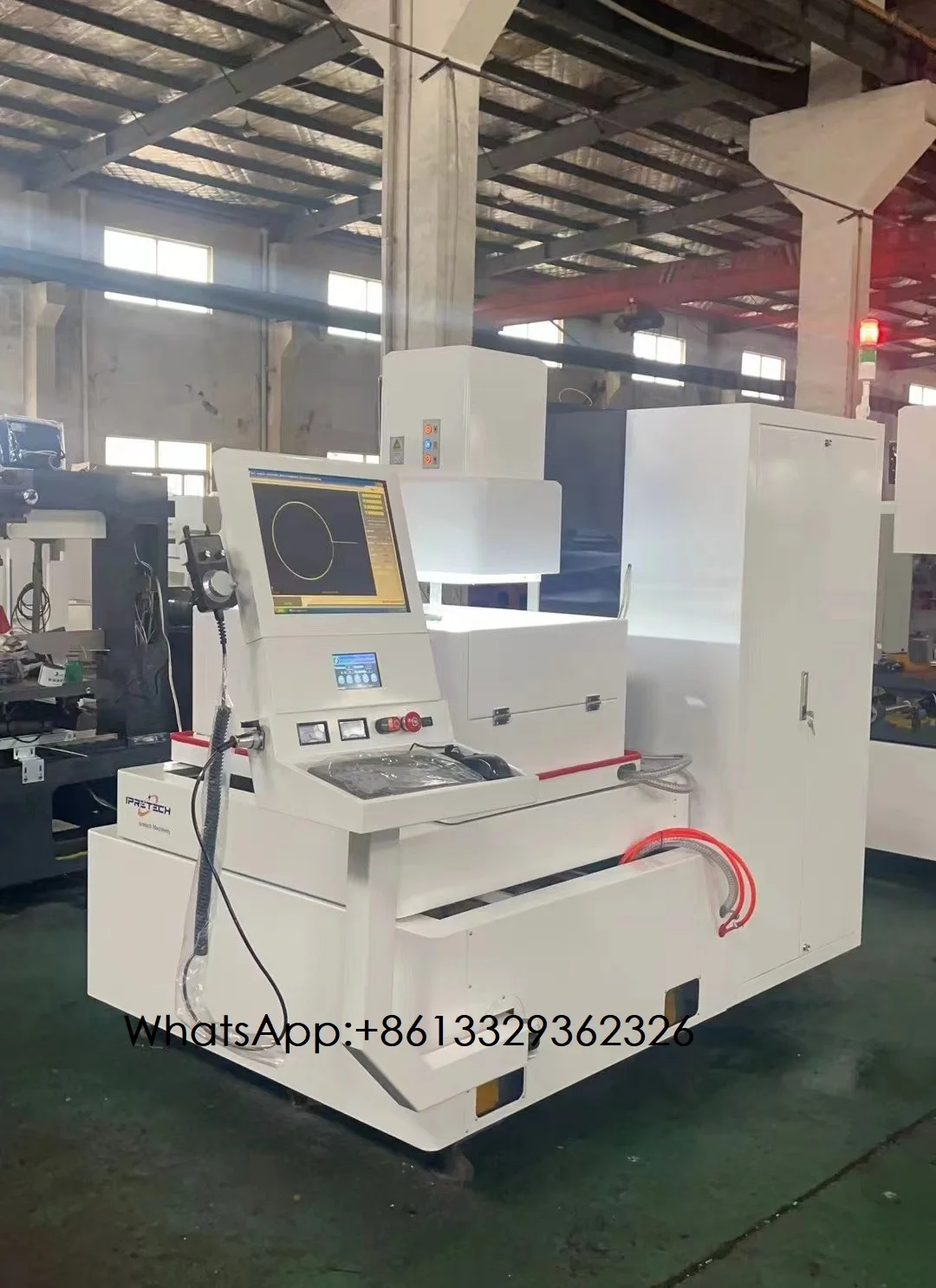

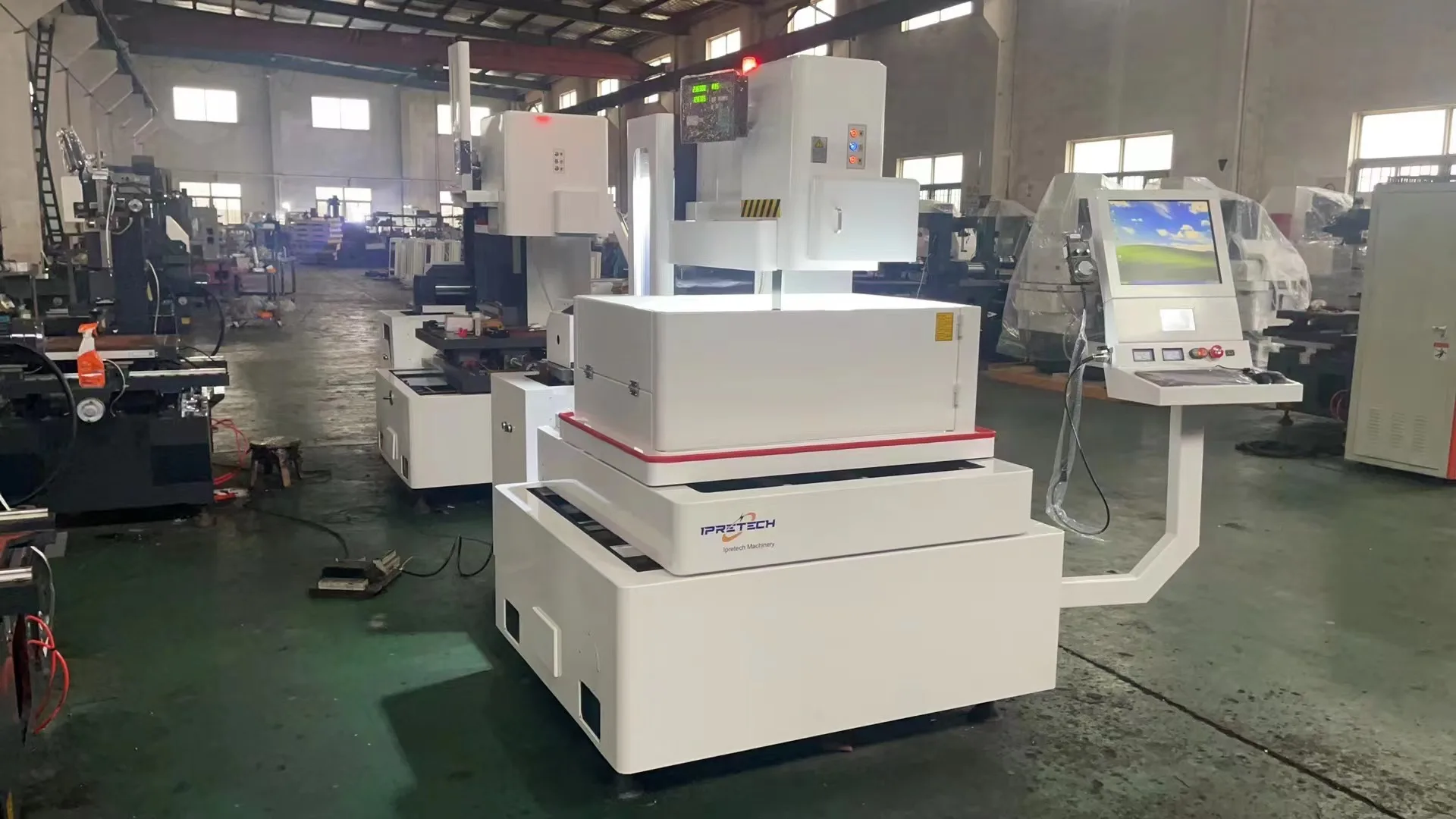

Japan Servo intelligent control multi cut cnc edm wire cut machine CE low price high precision IPM500S cnc edm machine
- Category: >>>
- Supplier: Ipretech Machinery Company Limited
Share on (1600917513857):
Product Overview
Description
Product Description
IPM-S series is the latest T sturcture EDM wire cut machine, it equips with new touching screen controller. This new controller is highly intelligent, can automatically generate processing parameters as the material and thickness is given. Full cover type, Japan Panasonic/Yaskawa servo motor or step motor optional, the max. Cutting accuracy is 0.005mm, best roughness is ra <0.8.
Machine Details

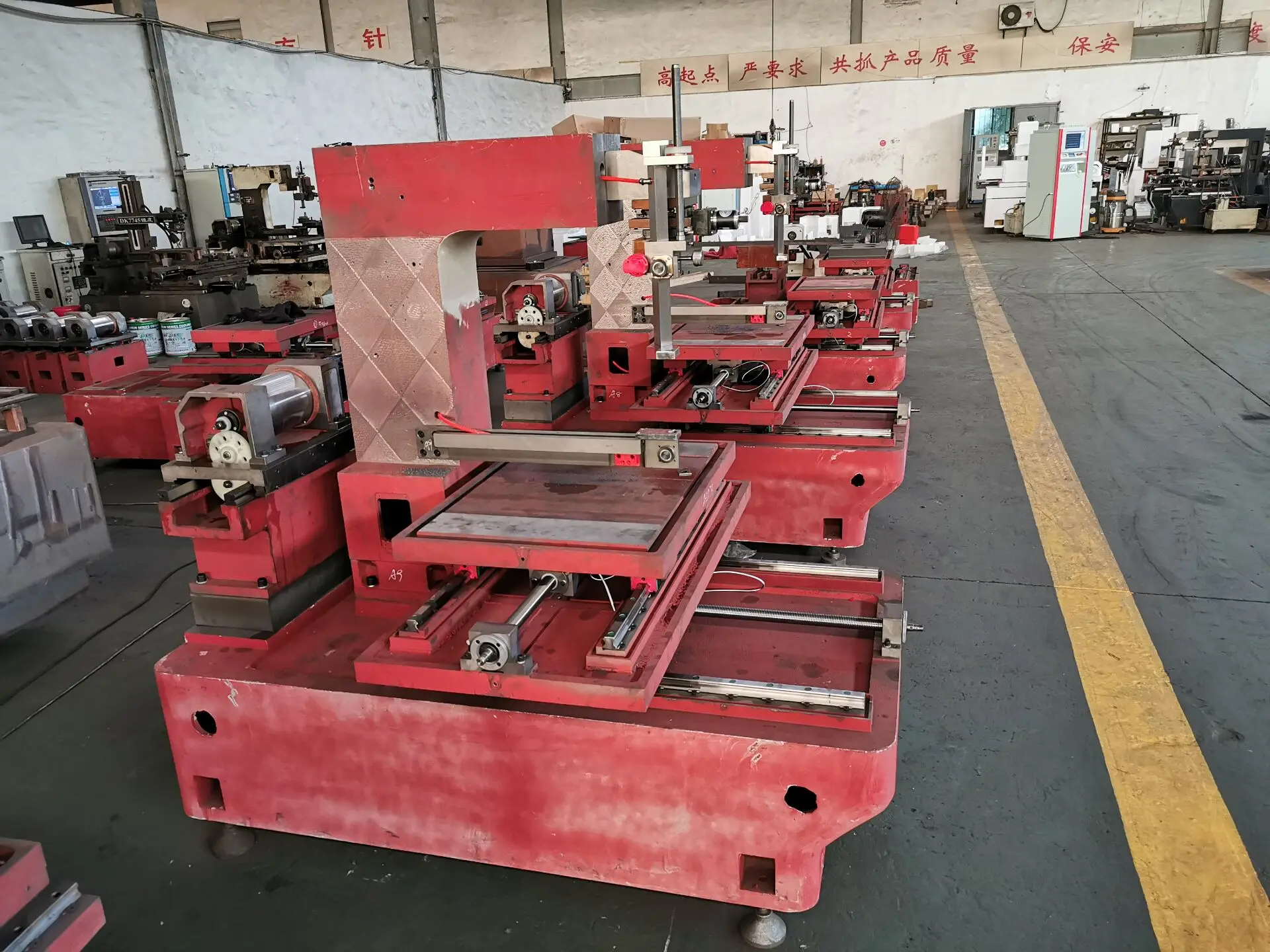

Integral casting HT250
Machine building is thicken HT250 with double heat treatment, latest T structure for a load bearing after long term use to resist
deformation, high rigidity of the machine is carried out after 15-20 years of operation.
deformation, high rigidity of the machine is carried out after 15-20 years of operation.

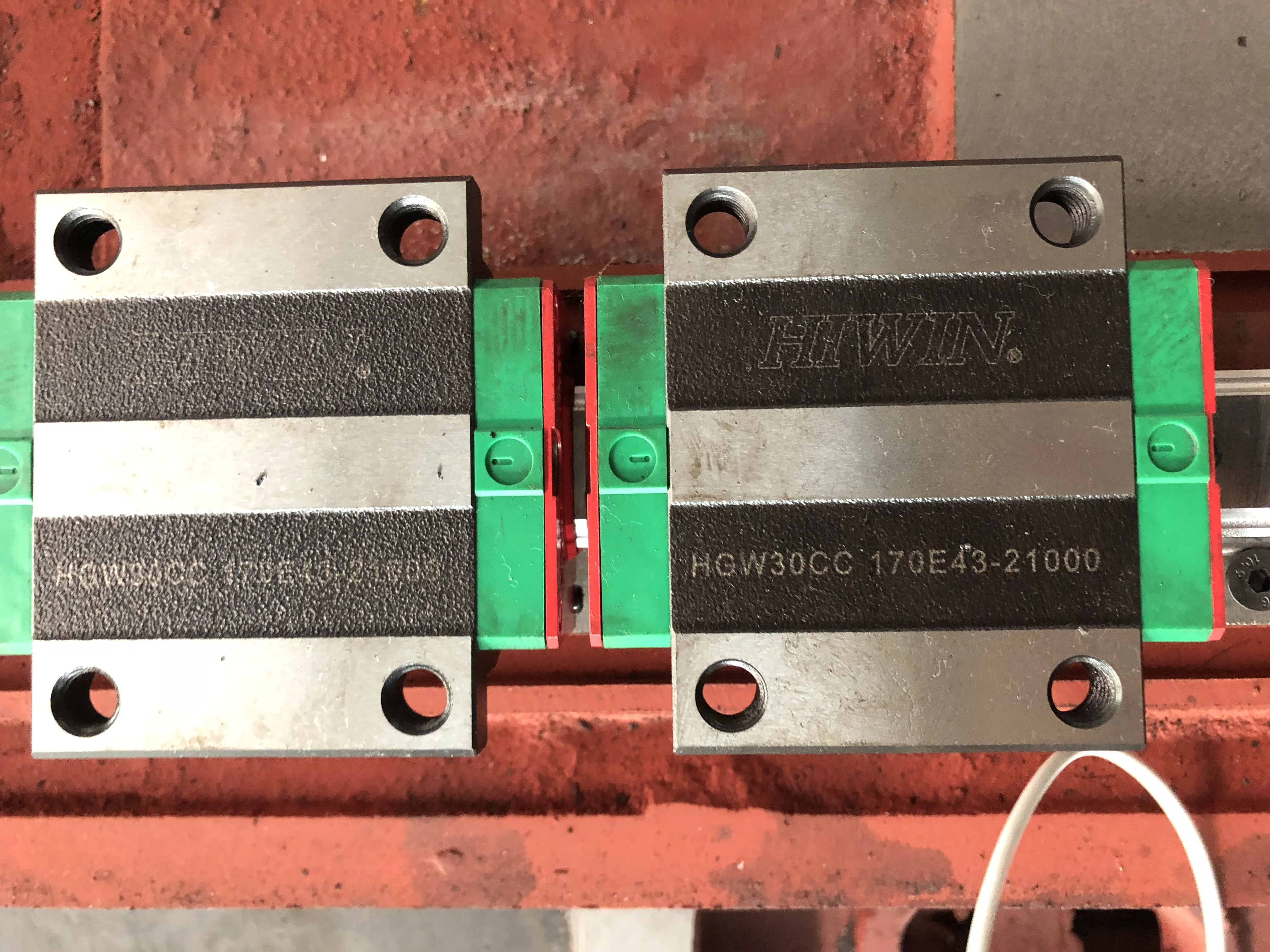

Taiwan Hiwin liner guide
High-precision rolling guides and ballscrews of the world-famous manufacturer Hiwin (Taiwan), which are also used on machine tools of European and Japanese manufacturers

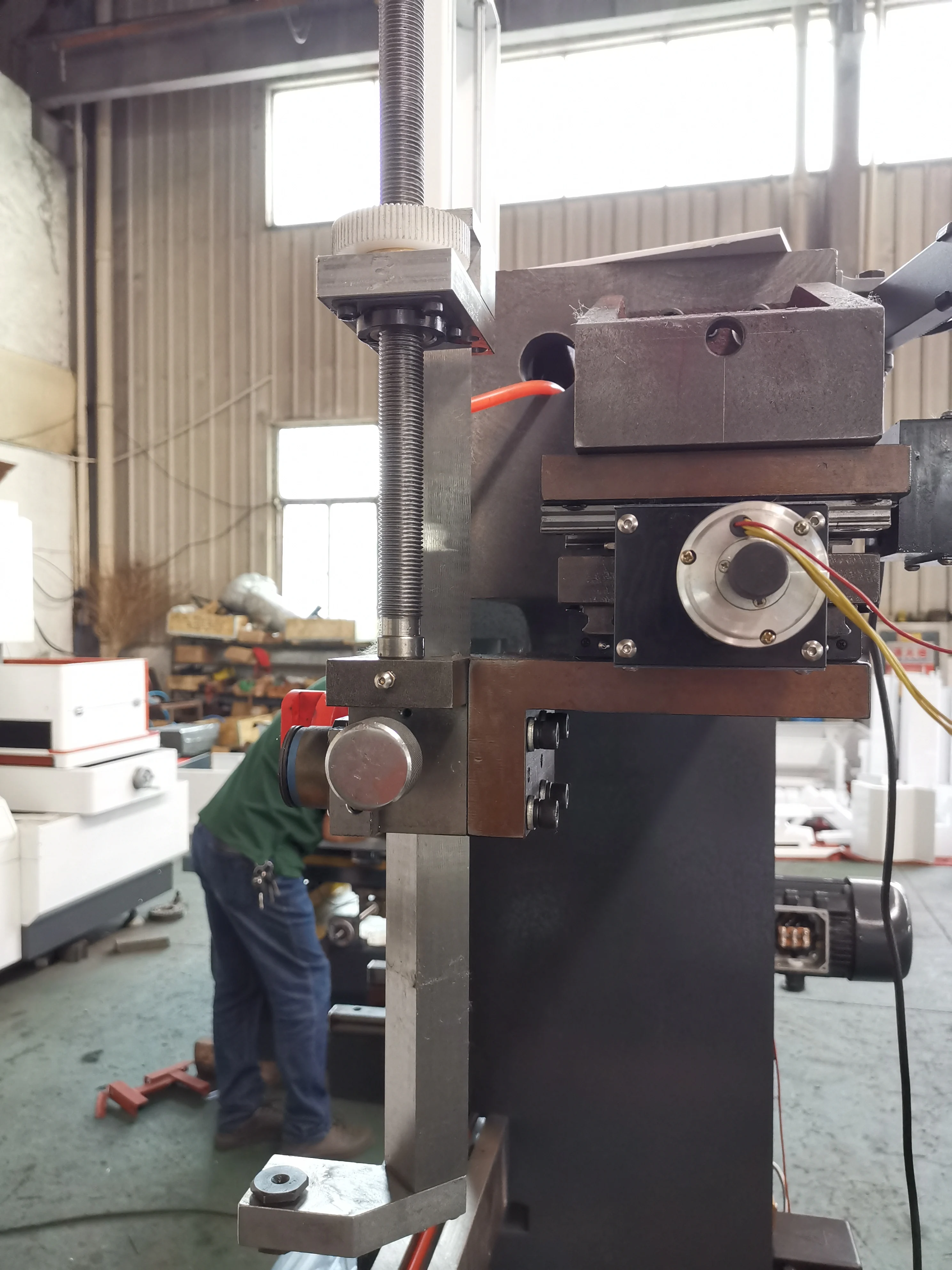

Liner guide UV
Wire guide spinnert with the brass wedm design structure, UV axis fixed, wire guide spinnert can be up&down automatically, make
sure the guide mostly close to the workpiece surface, avoid the joggle of the moly. Wire, highly improve the cutting accuracy and
roughness
sure the guide mostly close to the workpiece surface, avoid the joggle of the moly. Wire, highly improve the cutting accuracy and
roughness

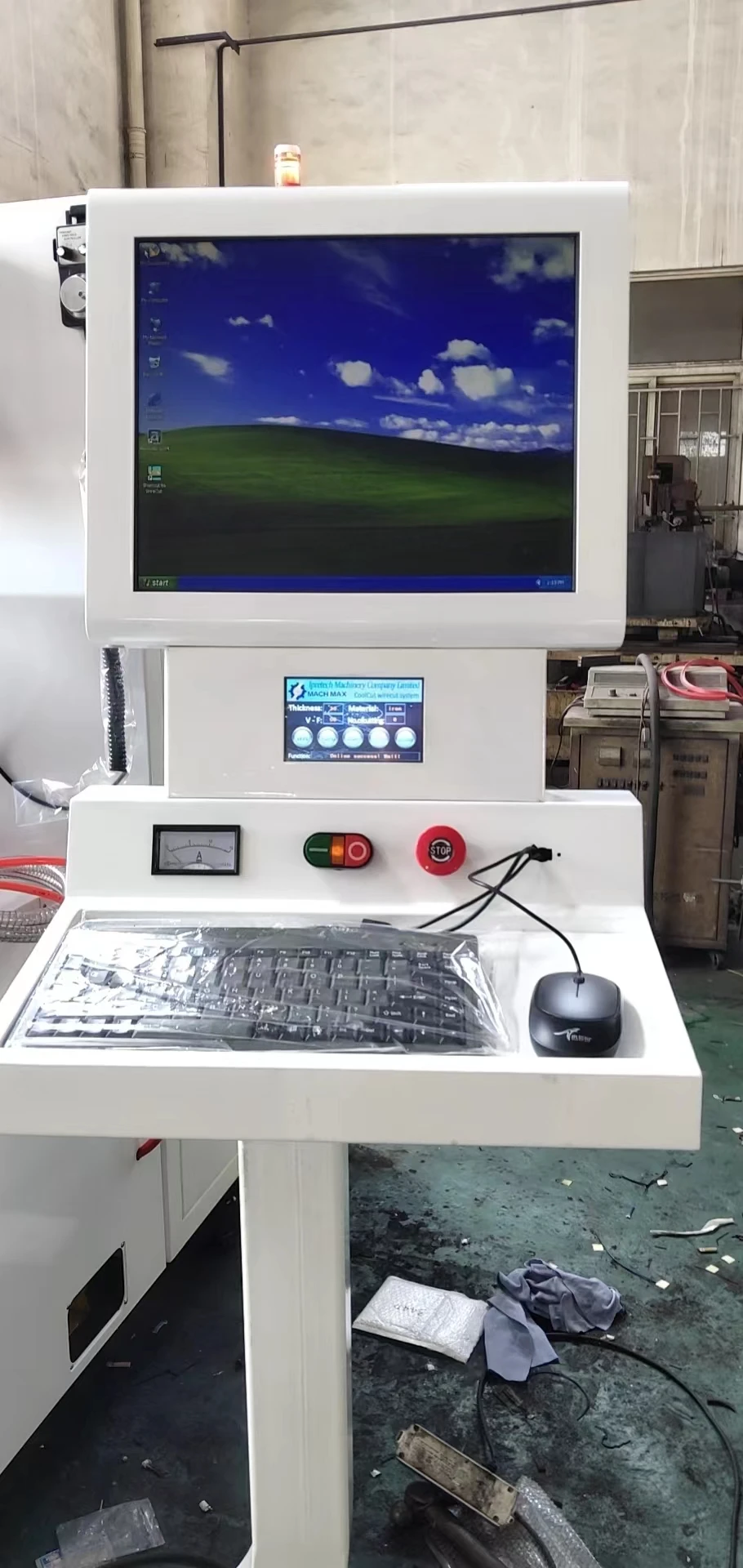

New Inteligent Controller
1.Design and built without fan, this avoid of inhalation of dust to damage electrical panel
2.High integrated and intelligent of elecltrical panel into only HF board and drivingboard, which is much easier of further
maitenance and service.
3.Use industrial computer mainboard, assure the computer is more durable and decreasePC failure rate.
4.Use three transformers not the single one, make sure a steady working performance and more durablity.
5.Equiped with transducer and handle controller, which is simple the operate and makecutting more stable.
2.High integrated and intelligent of elecltrical panel into only HF board and drivingboard, which is much easier of further
maitenance and service.
3.Use industrial computer mainboard, assure the computer is more durable and decreasePC failure rate.
4.Use three transformers not the single one, make sure a steady working performance and more durablity.
5.Equiped with transducer and handle controller, which is simple the operate and makecutting more stable.
Processing parameters can be genearted automatically as the materail and thickness index is input, no need operators to set up
Specification
CODE | WROK TRAVEL | |||||
1 | WORKTABLE（WIDTH×LENGTH） | mm | 640*1020 | |||
2 | CNC TYPE | |||||
3 | AUTOCUT CONTROL SYSTEM | |||||
4 | MAX.LOAD BEARING OF WORKTABLE | kg | 1200 | |||
5 | X AXIS | mm | 500 | |||
6 | Y AXIS | mm | 630 | |||
7 | Z AXIS | mm | 350 | |||
8 | TAPER ANGLE | ° | ±6 | |||
9 | MACHINE DIMENSION | mm | 2120*1760*2320 | |||
10 | MACHINE WEIGHT | kgs | 2500 | |||
STRUCTURE INDEX | ||||||
11 | DISPLAY METHOD | DRO(DIGITAL READ OUT) | ||||
12 | WIRE DIAMETER | mm | 0.18 | |||
13 | VERTICAL CONTROLLER WEIGHT | kgs | 200 | |||
14 | POWER CONSUMPTION | kw | 3.0 | |||
15 | MAX WORKING CURRENT | A | 12 | |||
16 | RESOLUTION OF EACH AXIS | mm | 0.001 | |||
17 | POWER REQUIREMENT | 380/415 V, 50/60 Hz for three-phase | ||||
18 | ENVIRONMENTAL TEMPERATURE REQUIREMENT | 0℃～40℃ | ||||
19 | RELATIVE HUMIDITY | 20%～80% | ||||
ACCURACY | ||||||
20 | CUTTING ACCURACY | mm | 0.005 | |||
21 | ROUGHNESS ACCURACY | um | 0.8 | |||
22 | CUTTING SPEED | Mm2/min | 250 | |||
Manufacturing Technique
CODE | PART NAME | NUMBER |
1 | CNC CONTROLLER WITH COLOR MONITOR | 1 |
2 | CD DRIVE | |
3 | PART PROGRAMMING APPLICATION SOFTWARE | |
4 | WORKING TANK UNIT | |
5 | LEVELING PADS WITH SCREW AND ADJUSTOR | 4 |
6 | JOB MOUNTING CLAMPS | 1 |
7 | WIRE TENSION ROLLER | 1 |
8 | WIRE FEED DRUM HANDLE | 1 |
9 | WIRE VERTICAL BLOCK | 1 |
10 | JOB MOUNTING STAND AND RAILS | 1 |
11 | STANDARD TOOL KIT | 1 |
12 | MOLY WIRE SPOOL | 1 |
SALES AND SERVICE NETWORK
Every year, we visit a large number of new and old products from Mexico, Russia,USA and other countries. High quality service,first-class technology to ensure that customers more trust, more efficient use of this product.

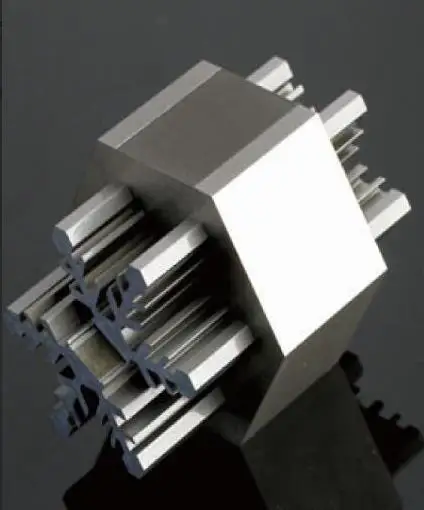

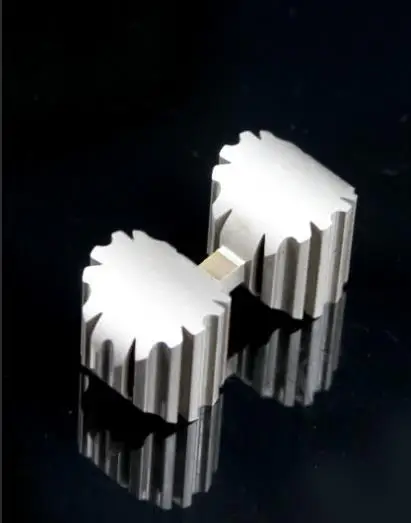

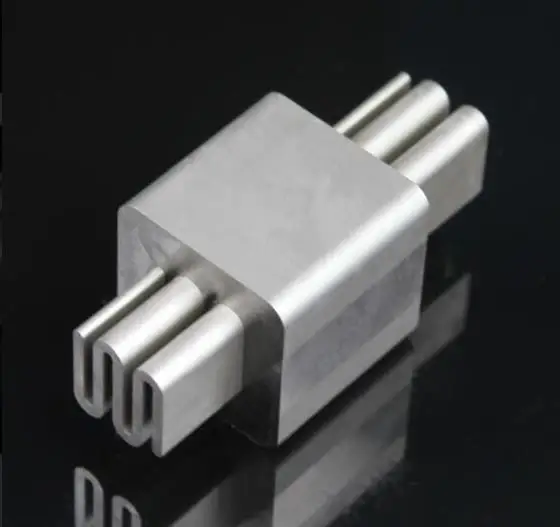

Sample Workpiece
FAQ
1. who are we?
We are based in Jiangsu, China, start from 1993,sell to Domestic Market(40.00%),North America(20.00%),Western
Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
EDM WIRE CUT,EDM Small hole dirll,EDM Erosion die sinking,CNC Milling Machine,Injection molding machine，cnc lathe
4. why should you buy from us not from other suppliers?
Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of all kinds of edm wirecut, drill, die sinking,injection molding machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union,Cash;
We are based in Jiangsu, China, start from 1993,sell to Domestic Market(40.00%),North America(20.00%),Western
Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
EDM WIRE CUT,EDM Small hole dirll,EDM Erosion die sinking,CNC Milling Machine,Injection molding machine，cnc lathe
4. why should you buy from us not from other suppliers?
Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of all kinds of edm wirecut, drill, die sinking,injection molding machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union,Cash;
