Mini ups 500va 1kva 12v ups price
- Category: >>>
- Supplier: Guangzhou Jalon Power Co. Ltd.
Share on (1600917562071):
Product Overview
Description
Mini ups 500va 1kva 12v ups price
Product Description
Features of Mini ups:
1. Wall-mounted
2. Low frequency
3. AVR function
4. UPS function
5. LCD display
6. Charging current 0A~30A self optional
7. Solar first/Mains first/Save mode self optional
8. Battery type self optional
9. R232 port optional
10. Generator compatible
Specification of Mini ups:
| Specification | |||||
| Model XD- | 35112 | 50112 | 10212 | 10224 | |
| Rated Capacity(W) | 350W | 500W | 1000W | ||
| DC voltage | 12V | 24V | |||
| Product Size(D×W×H) | 345×210×122 | 365×142×200 | |||
| Carton Size(D×W×H) | 600×300×730 | 396×190×240 | |||
| N.W.(kg) | 7 | 8 | 14 | 13 | |
| G.W.(kg) | 8 | 9 | 15 | 14 | |
| Parameter | |||||
| AC Input | Voltage | 73VAC~137VAC or 145VAC~275VAC | |||
| Frequency | 45HZ~65HZ | ||||
| AC Output | Voltage | 110VAC/ 120VAC/ 220VAC/ 230VAC/ 240VAC±2%(Battery mode) | |||
| Frequency | 50HZ/ 60HZ±0.5 | ||||
| Output Waveform | Pure sine wave | ||||
More parameter:
Total Harmonic Distortion(THD) | <=3% | |||||||||||
| AC charging Current | 5-15A (optional), Customized current as your request. | |||||||||||
| Display | Digital LCD | |||||||||||
| Transer Time | <=4ms | |||||||||||
| Enviorment | Noise | <=55dB | ||||||||||
| Humidity | 10%~90% (No condence) | |||||||||||
| Efficiency | >=85% | |||||||||||
High temperature protection | <=90℃ | |||||||||||
| More protection | Over-load, short-circuit, Over-voltage, Low-voltage, Reverse polarity (optional) | |||||||||||
| Alarm | A | Without alarm sound if work normally under mains supply mode, when mains supply cut off,turn into battery mode,keeping sound 4 times every 30 seconds. | ||||||||||
| B | Keeping sound every seconds for second time alarm of Battery low voltage; send out sharp sound under machine fault. | |||||||||||
| C | Keeping sound every seconds under Overload | |||||||||||

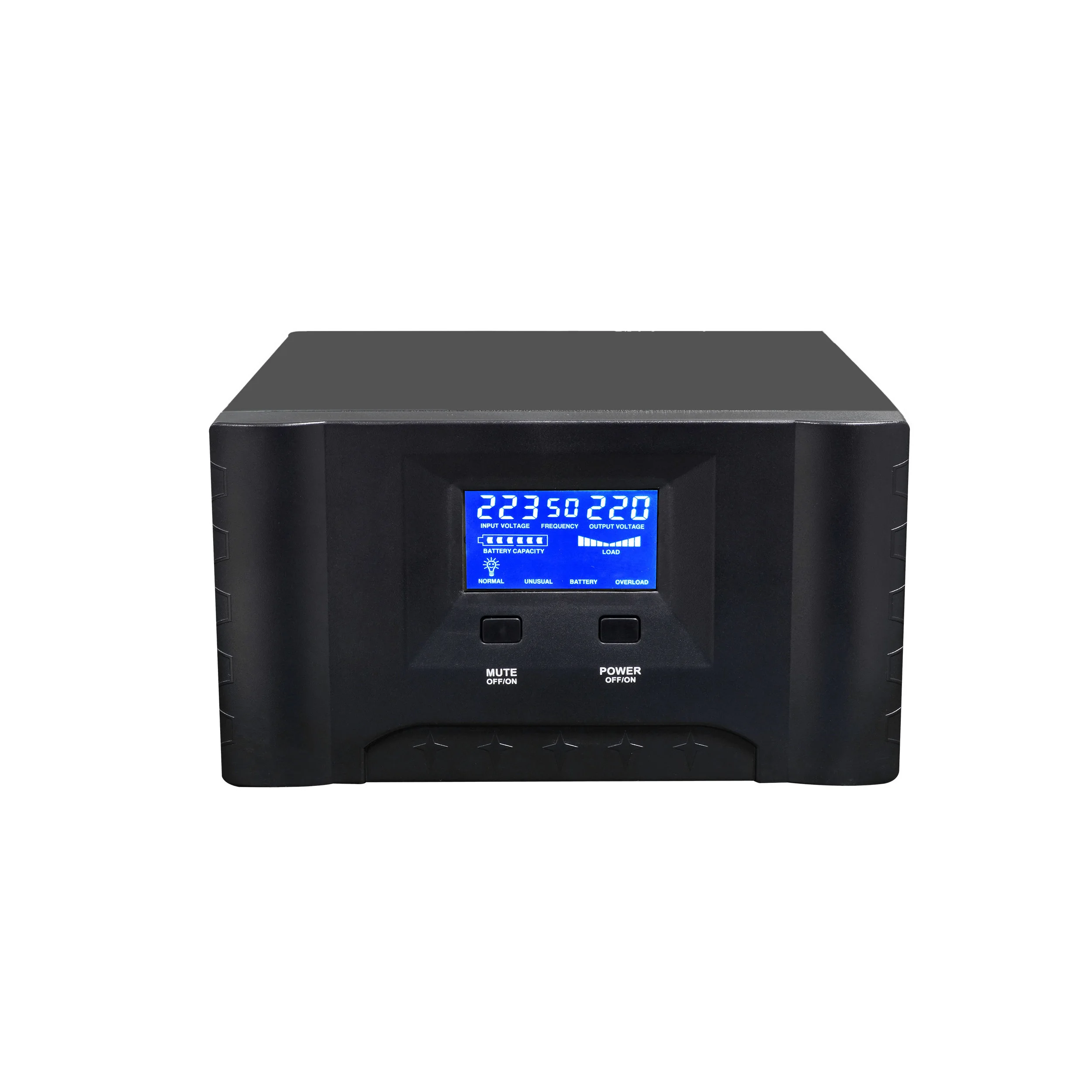

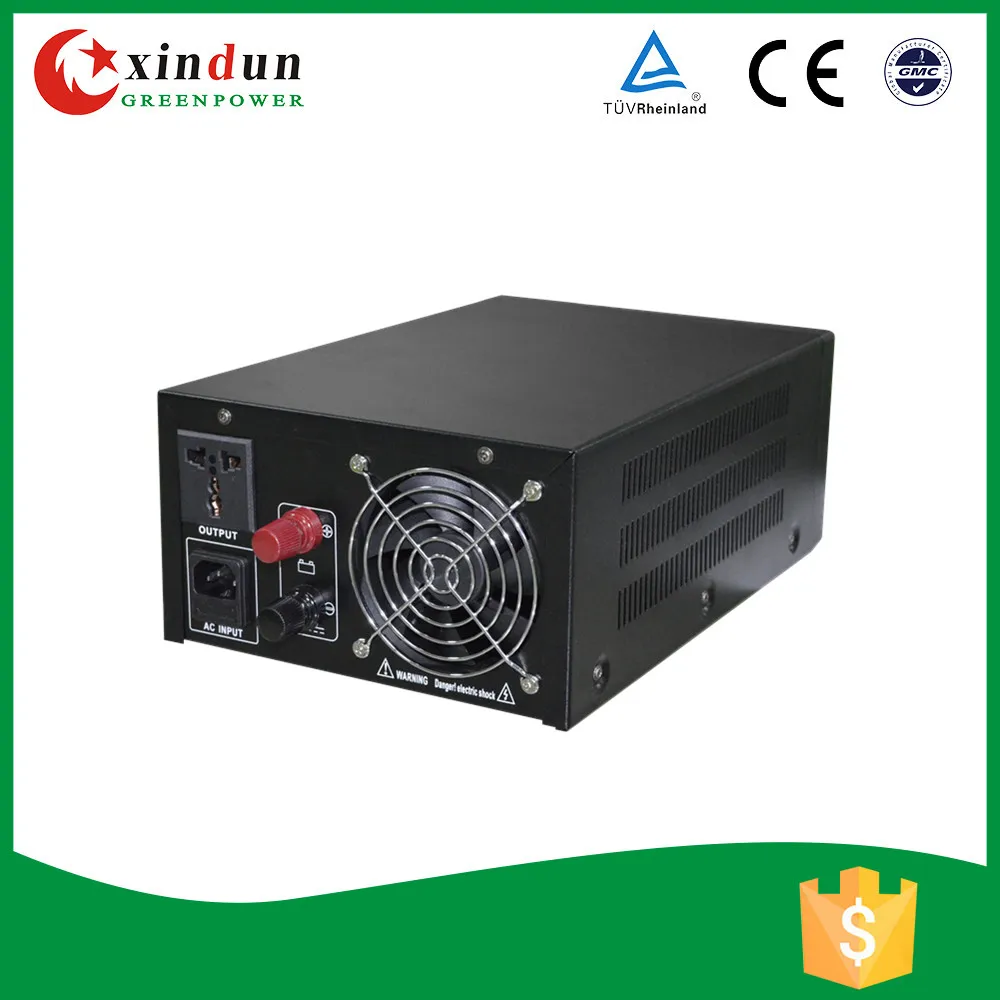

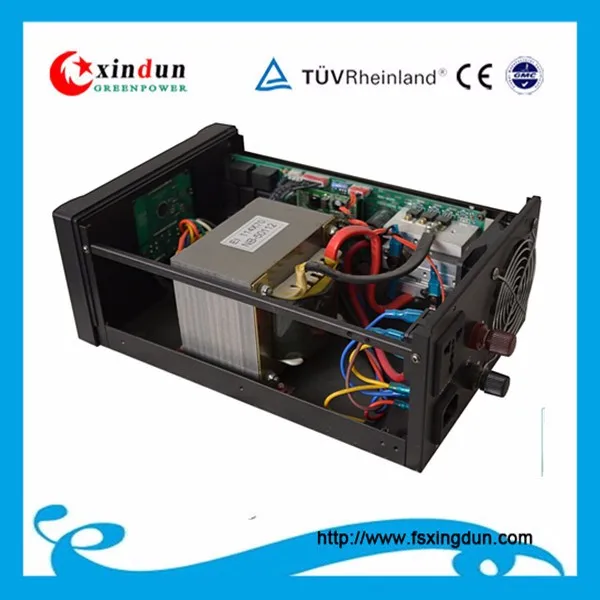

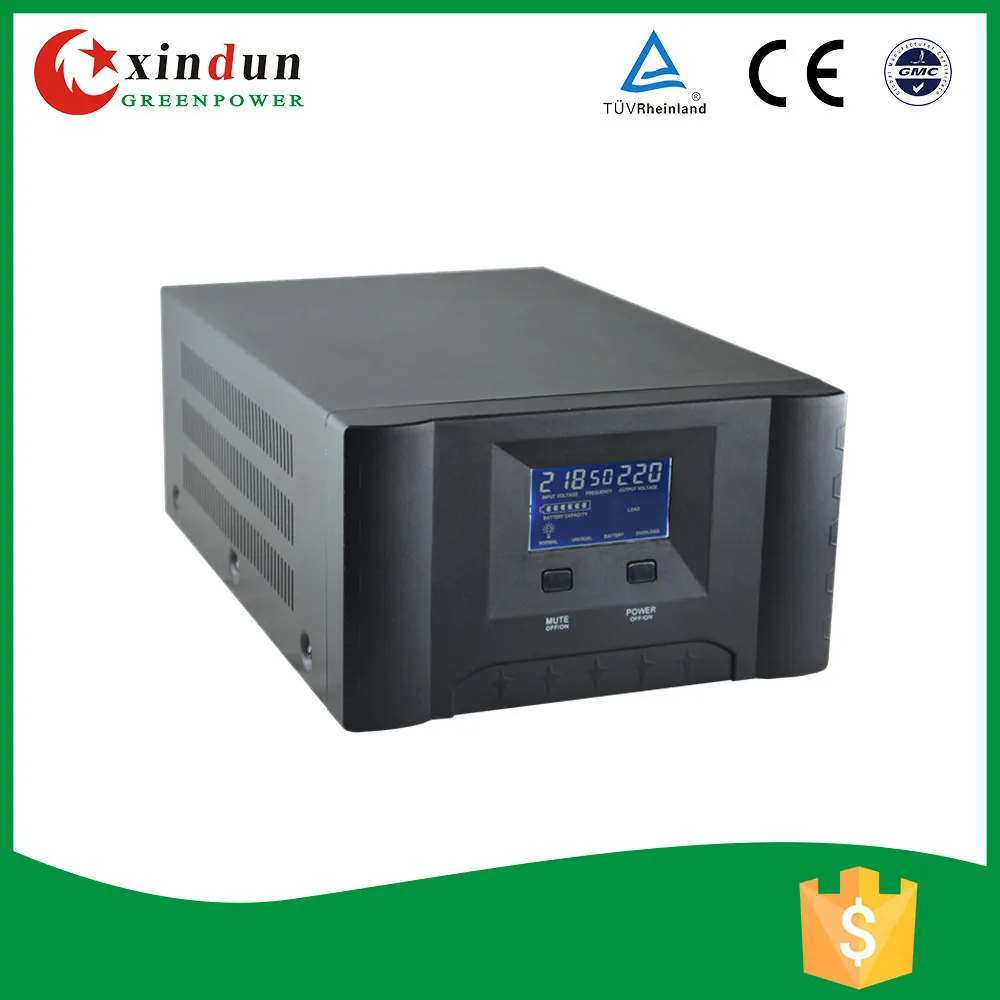

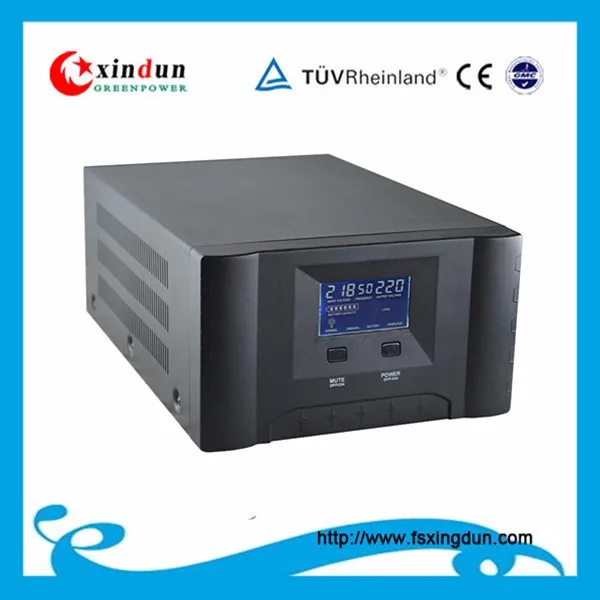

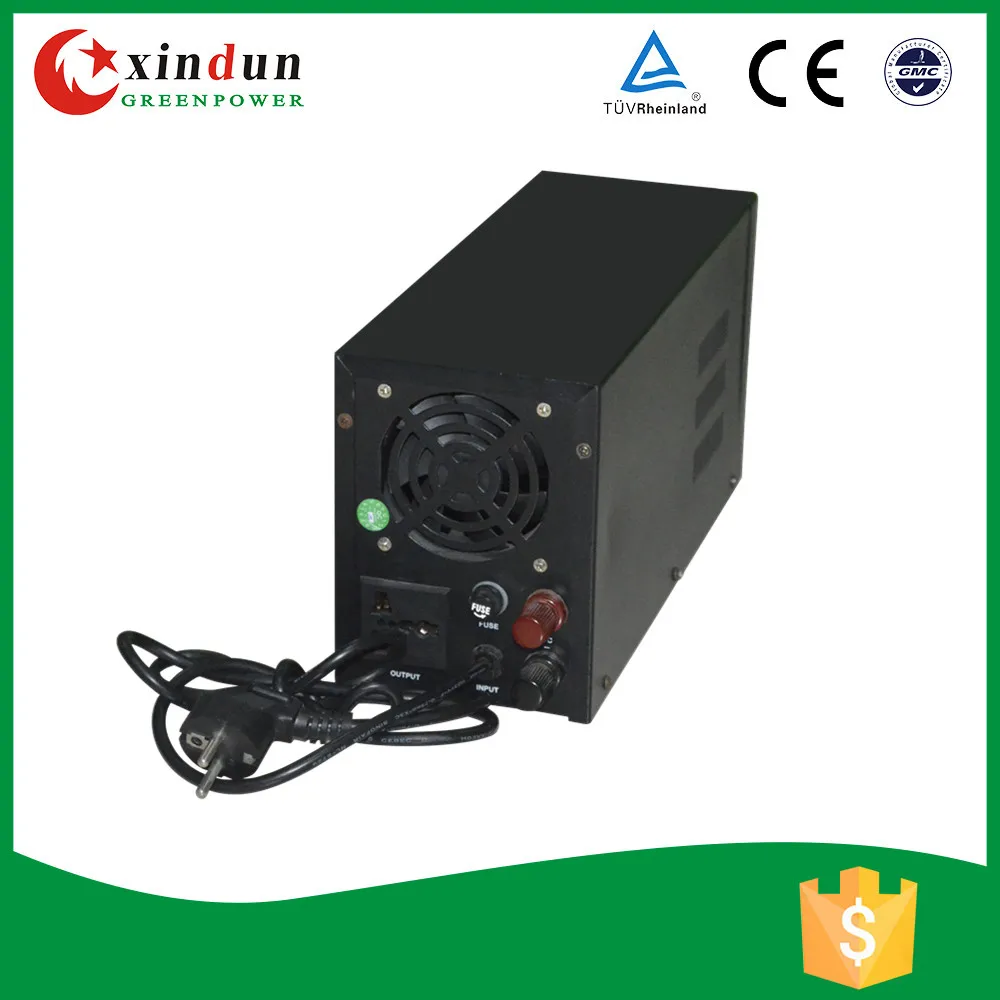

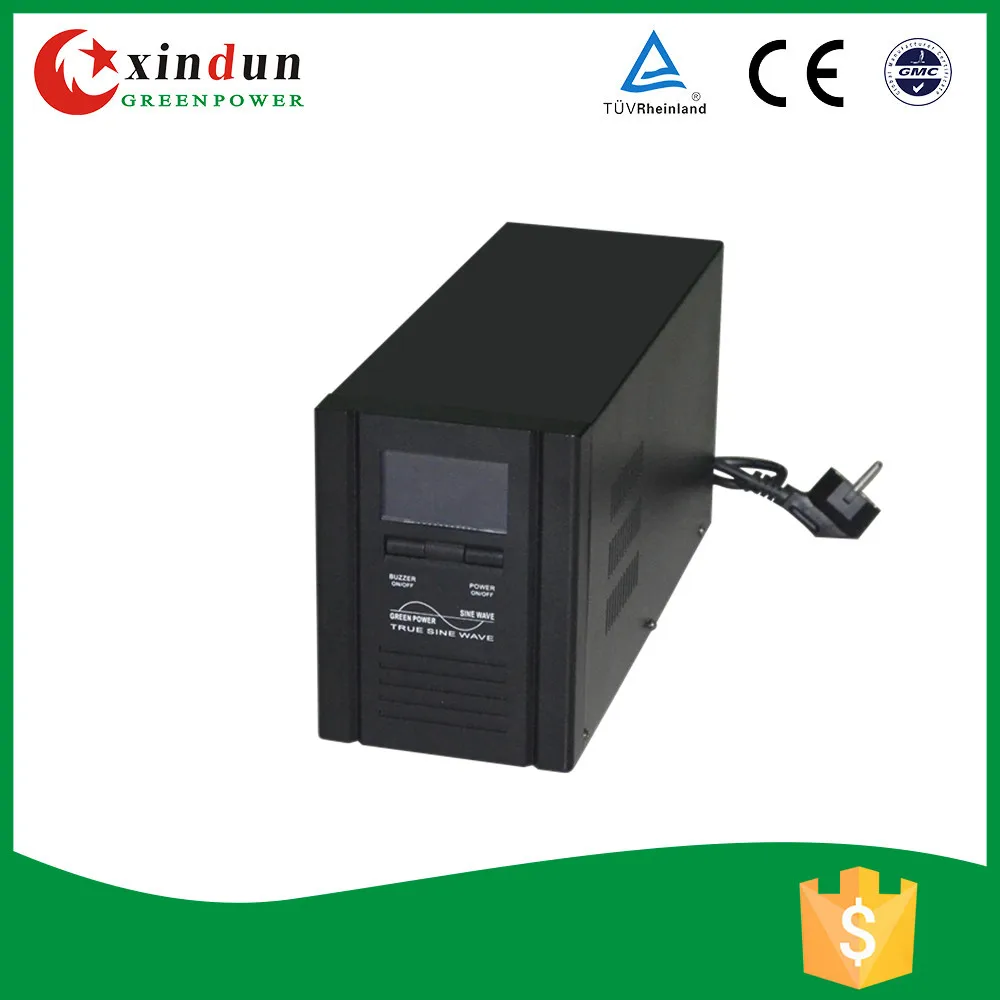

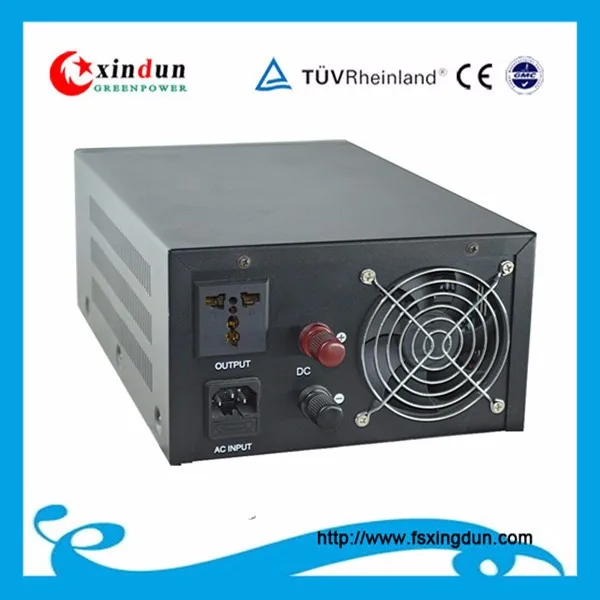

Product Picture
How does it work?
1. Home backup UPS system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV.
When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.
2. Wind or Solar system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously

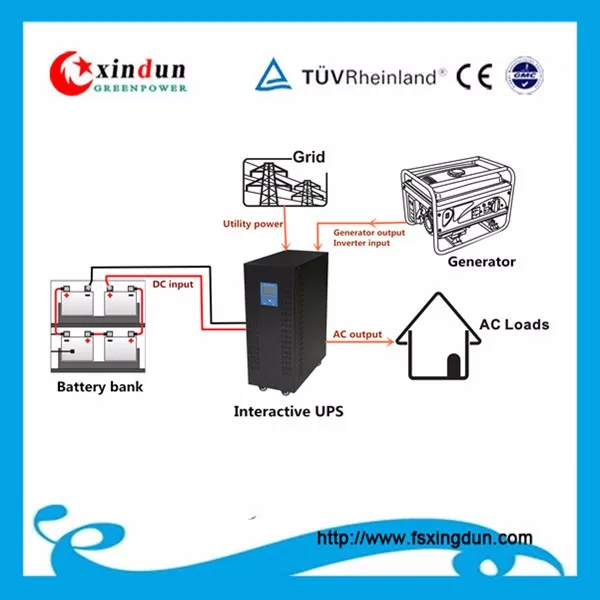

Connection diagram

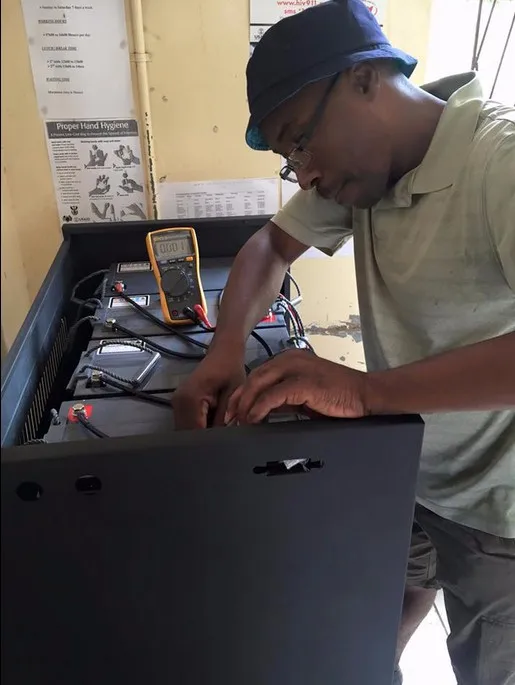

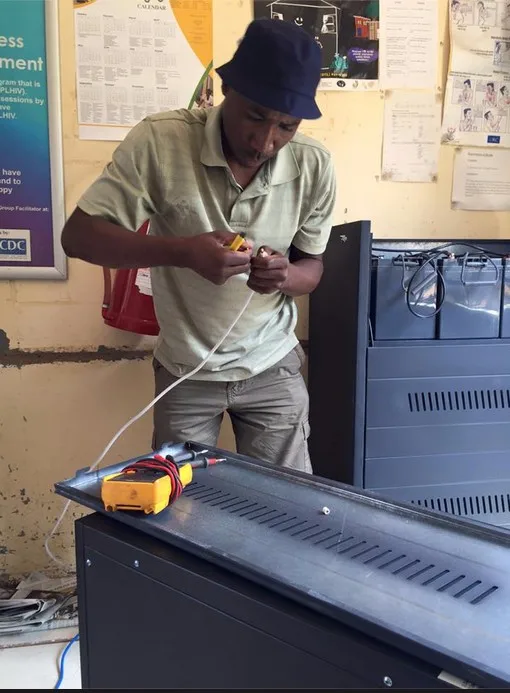

Actual installation

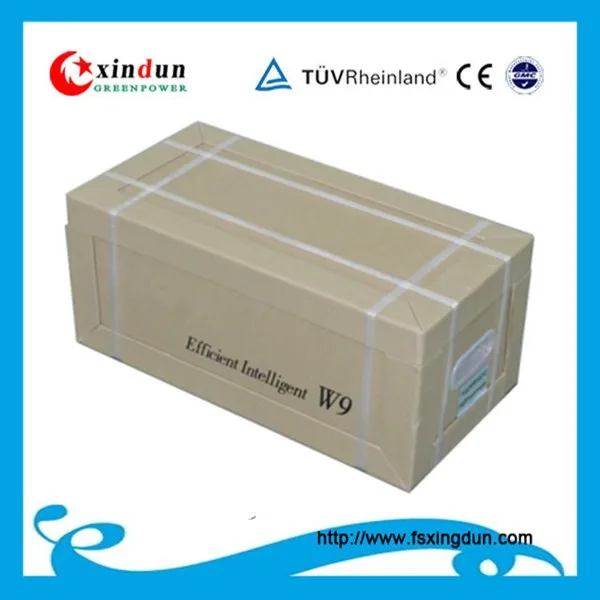

Packaging & Shipping
Shipping :
1. FedEx/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for FCL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
More informations :
| PRODUCT ADVANTAGE |

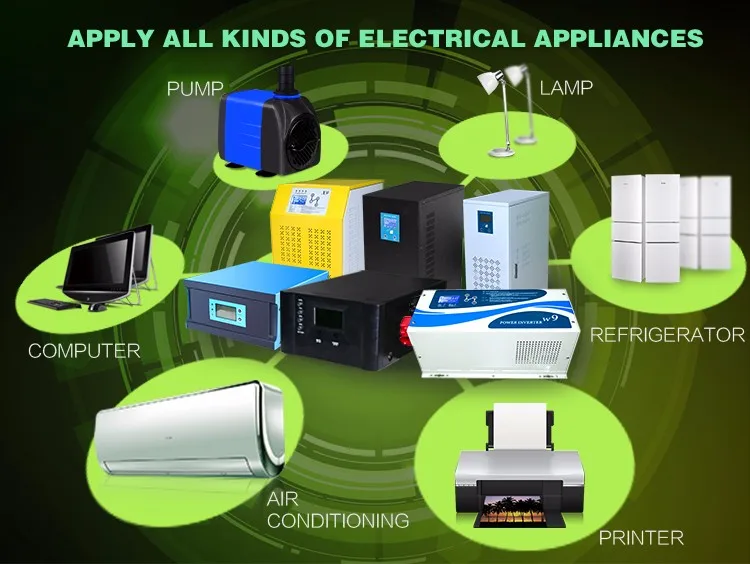

| APPLICATION |
| COMPANY OVERVIEW |

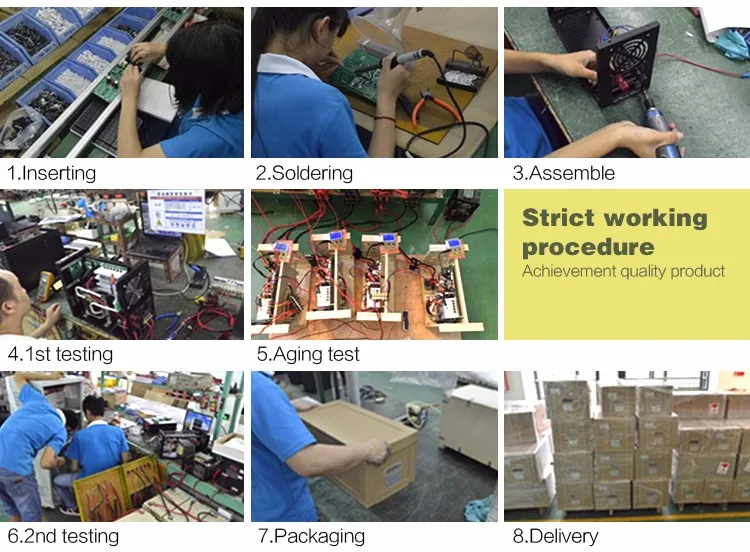

| WORKSHOP |
| APPLICATION |
| EXHIBITION & CUSTOMER |
| CREDIBILITY |
| CONTACT US |
| Contact | Missor Wu |
| Mob(Whatsapp) | +86 13192653641 |
| TELL | +86 0757-82219499, 82591273 |
| FAX | +86 (757) 82624982 |
| WEB1 | https://xindunups.en.alibaba.com/ |
| WEB2 | www.gdxindun.com |
| ADD | Unit 2, 3RD Floor, Bldg. 3,NO.60 Langbao West Road, Chancheng Dist., Foshan, Guangdong, China |
| FAQ |
1. Are you a factory? Yes, we are a manufacturer of pure sine wave inverter, solar controller and solar generator, UPS etc since 2006 year. |
2. Are you inverter pure sine wave output? Yes, All are true pure sine wave. |
3. What kind of output you can do? Normally single phase 110V 120V 220V 230V 240V 50/60Hz |
4. How long is your factory? It's over 10 years. Before we focused on domestic market. From 2012, we set up our oversea sales department. |
5. What’s the delivery time? 3 - 7 days for sample; 10 to 25 days for bulk order. |
6. What’s the payment term? T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C, D/P. |
