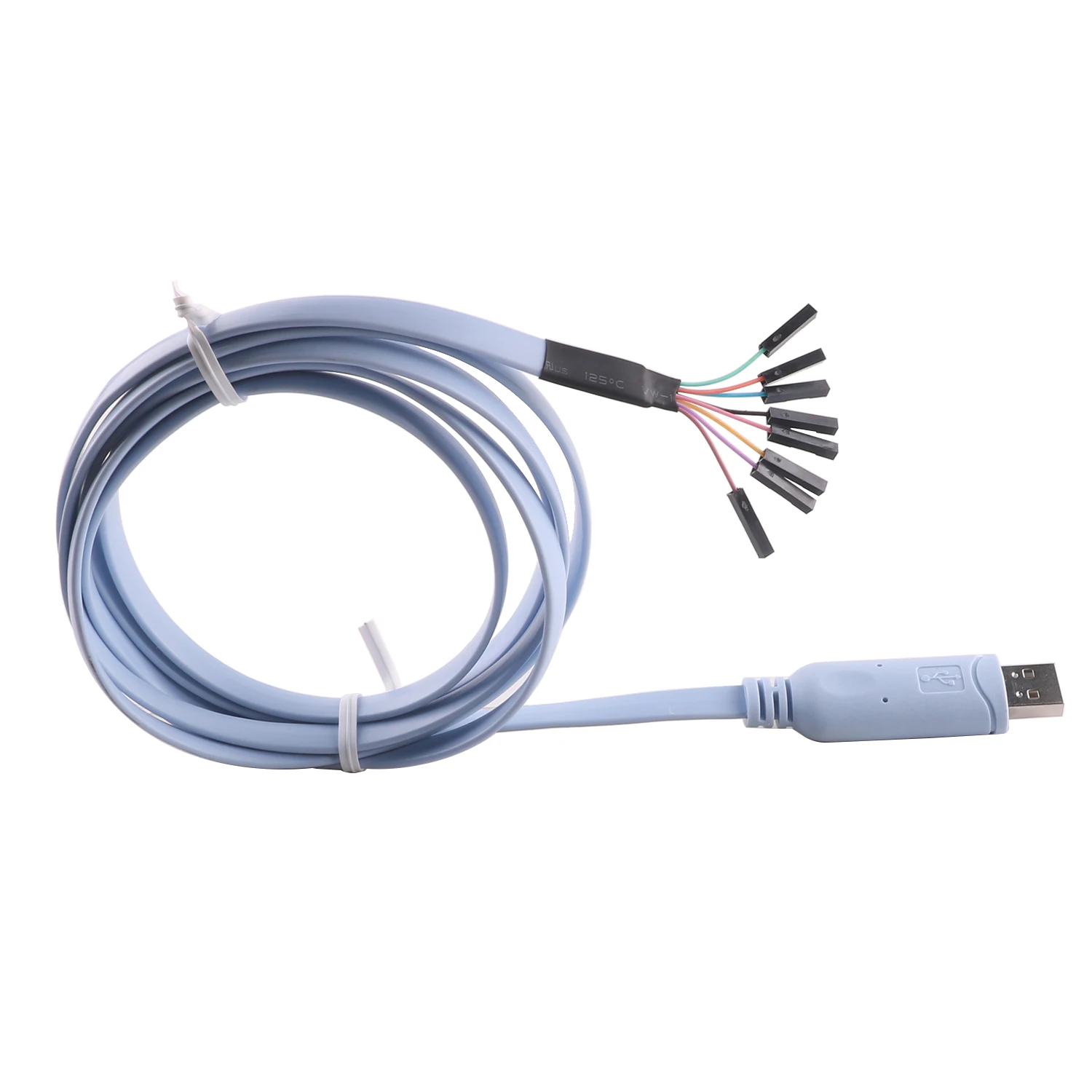

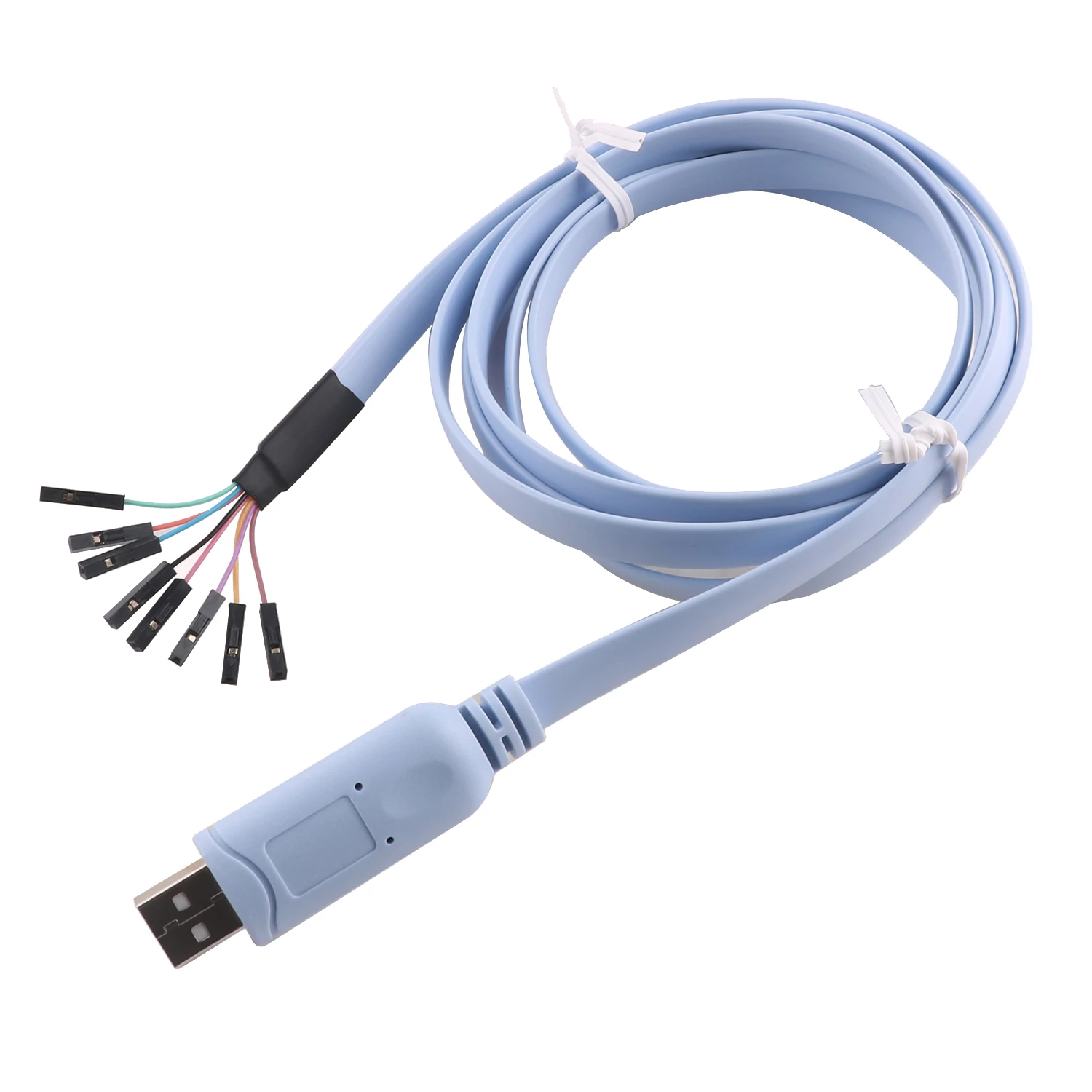

6ft/1.8m FTDI Chip USB to RS232 Dupont Header Connector 8 Pins Serial Cable
- Category: >>>
- Supplier: Shenzhen Ewormart Electronics Limited
Share on (1600917780127):
Product Overview
Description
Product Description
Features
• USB-RS232 converter cable provides a USB to RS232 serial interface with customised end connectors.
• Entire USB protocol handled by the electronics in the cable USB.
• EIA/TIA-232 and V.28/V.24 communication interface with low power requirements.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Internal EEPROM with user writeable area.
• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL
application programming interface.
• Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 1 Mbaud.
• Support for FT232RNL FTDIChip-ID™ feature for improved security.
• Low USB bandwidth consumption. • UHCI /OHCI / EHCI host controller compatible.
• USB 2.0 Full Speed compatible.
• -40°C to +85°C operating temperature range.
• Cable length is 1.80m or 5.0m.
• ESD Protection for RS-232’/O's
±15kV Human Body Model (HBM)
±15kV EN61000-4-2 Air Gap Discharge
±8kV EN61000-4-2 Contact Discharge
• FCC, UKCA and CE compliant.
• Custom versions available on request (subject to MOQ).
Typical Applications
• USB to serial RS232 level converter.
• Upgrading legacy peripherals to USB.
• Interface Microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB Instrumentation PC interface.
• USB industrial control.
• USB password protected file transfers.
Royalty free VIRTUAL COM PORT (VCP) and D2XX Direct Drivers are available for the following Operating Systems (OS):
* Windows
* Linux
* Mac
* Android (J2xx / D2xx only)
See the following website link for the full driver support list including OS versions and legacy OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
D2XX Direct Drivers allow direct access to the USB device through a DLL. Application software can access the USB device through a series of DLL function calls. The functions available are listed in the D2XX Programmer's Guide document which is available from the Documents section via the website.
https://ftdichip.com/document/programming-guides/
Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/
• Entire USB protocol handled by the electronics in the cable USB.
• EIA/TIA-232 and V.28/V.24 communication interface with low power requirements.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Internal EEPROM with user writeable area.
• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL
application programming interface.
• Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 1 Mbaud.
• Support for FT232RNL FTDIChip-ID™ feature for improved security.
• Low USB bandwidth consumption. • UHCI /OHCI / EHCI host controller compatible.
• USB 2.0 Full Speed compatible.
• -40°C to +85°C operating temperature range.
• Cable length is 1.80m or 5.0m.
• ESD Protection for RS-232’/O's
±15kV Human Body Model (HBM)
±15kV EN61000-4-2 Air Gap Discharge
±8kV EN61000-4-2 Contact Discharge
• FCC, UKCA and CE compliant.
• Custom versions available on request (subject to MOQ).
Typical Applications
• USB to serial RS232 level converter.
• Upgrading legacy peripherals to USB.
• Interface Microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB Instrumentation PC interface.
• USB industrial control.
• USB password protected file transfers.
Royalty free VIRTUAL COM PORT (VCP) and D2XX Direct Drivers are available for the following Operating Systems (OS):
* Windows
* Linux
* Mac
* Android (J2xx / D2xx only)
See the following website link for the full driver support list including OS versions and legacy OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
D2XX Direct Drivers allow direct access to the USB device through a DLL. Application software can access the USB device through a series of DLL function calls. The functions available are listed in the D2XX Programmer's Guide document which is available from the Documents section via the website.
https://ftdichip.com/document/programming-guides/
Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/
Specification
item | value |
Type | USB Cable |
Brand Name | usangreen |
Model Number | 000001 |
Place of Origin | China |
USB Type | Standard |
Jacket | PVC |
Shielding | Non-Shielded |
Conductor | Pure cupper |
