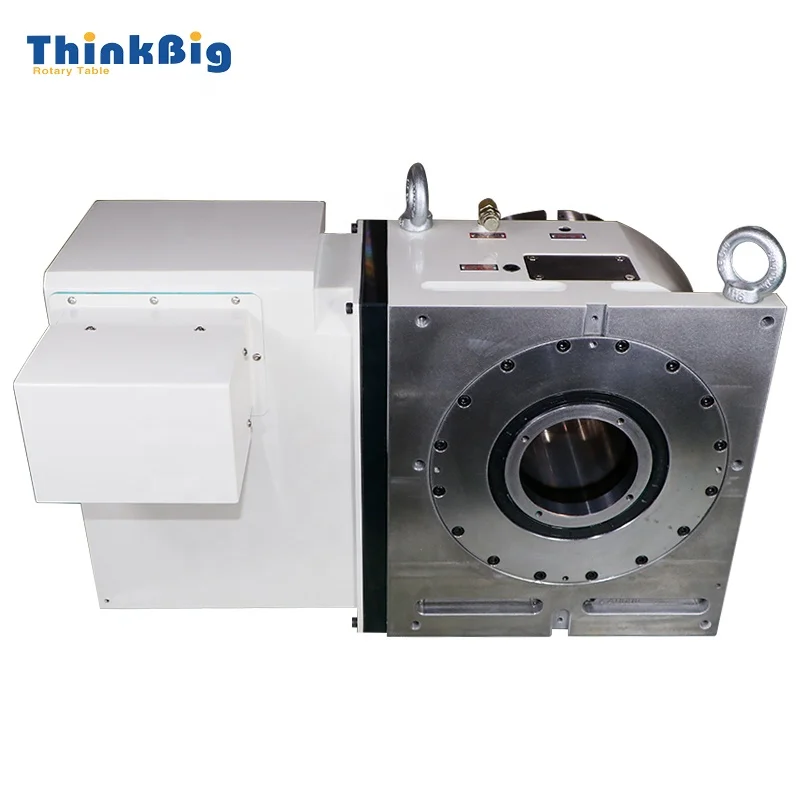

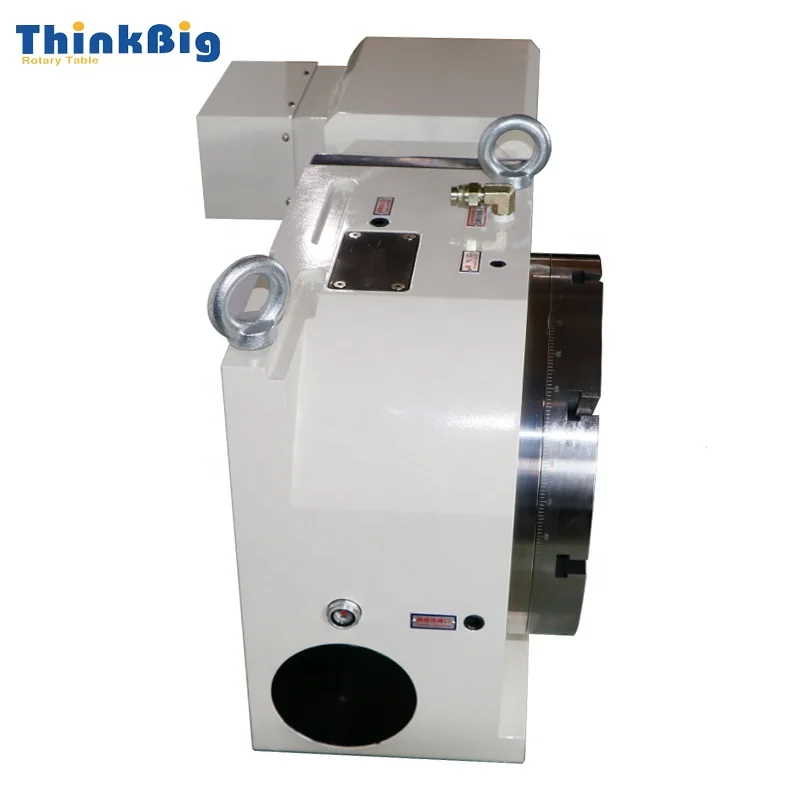

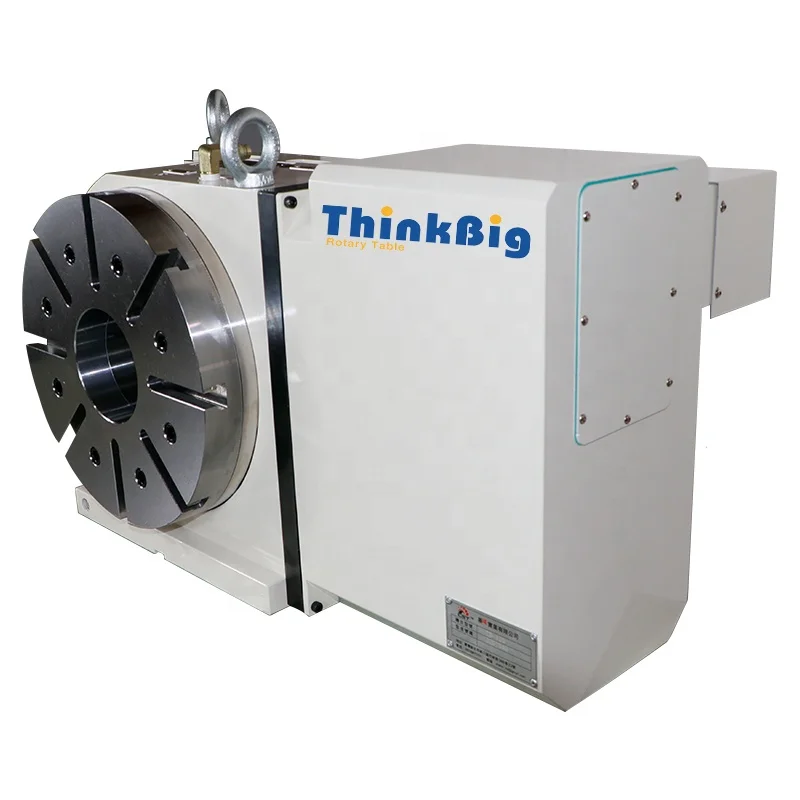

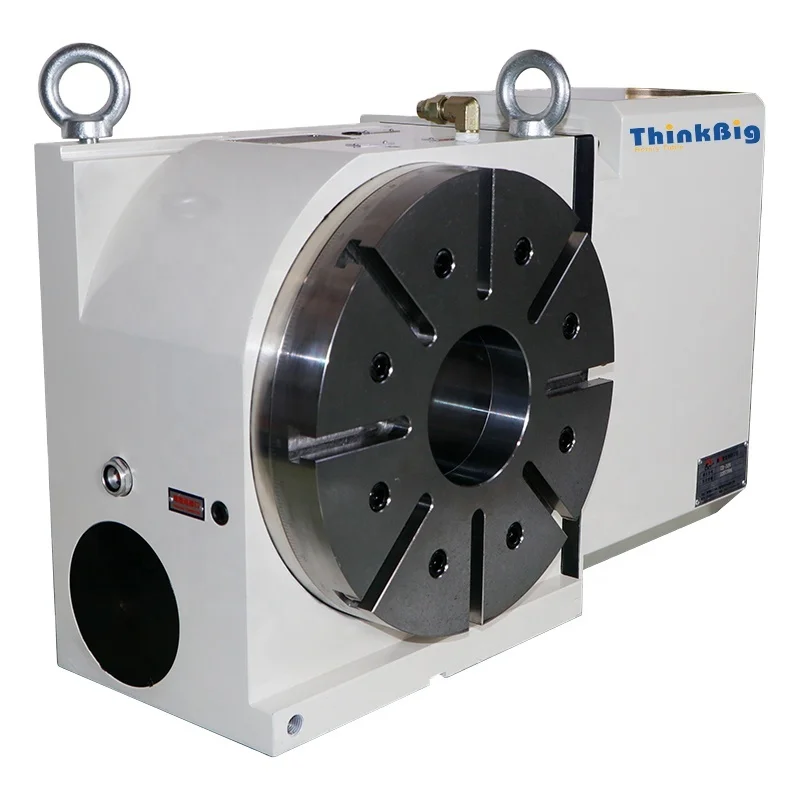

ThinkBig CNC Rotary Axis High precision Milling Machine 4th Axis Table TB 320
- Category: >>>
- Supplier: Shanghai Think Big Machine Tool Co. Ltd.
Share on (1600917861801):
Product Overview
Description
Products Description

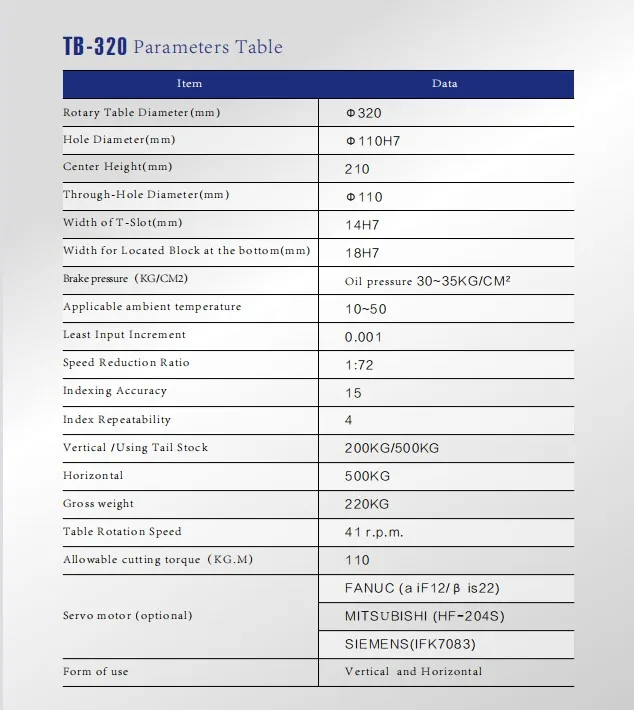

Product Name | ThinkBig Automatic Industrial 4th Axis High-precision CNC Rotary Table TB-320 | ||||||
Model number | TB-320 | ||||||
Use pattern | Vertical and Horizontal | ||||||
Center high | 210 | ||||||
Weight(Without Motor) | 220KG | ||||||
MOQ | 1 PC | ||||||
Products Description
Related Products
Products show
Our Company & Team
Quality Control
FAQ
How do you take care of my order ?
A:I ensure your order is taken care of by providing assistance on all aspects including
1.Optional configuration guidance
2.Installation manual
3.system integration
4.Maintenance service
Q: How to choose the rotary table ?
A:Choose rotary table based on:
1. Application: Determine specific purpose.
2. Load Capacity: Evaluate weight and size of workpieces.
3. Speed and Torque: Consider required rotational speed and torque.
4. Stroke: Assess required linear movement.
1. Application: Determine specific purpose.
2. Load Capacity: Evaluate weight and size of workpieces.
3. Speed and Torque: Consider required rotational speed and torque.
4. Stroke: Assess required linear movement.
Consult us for more details
