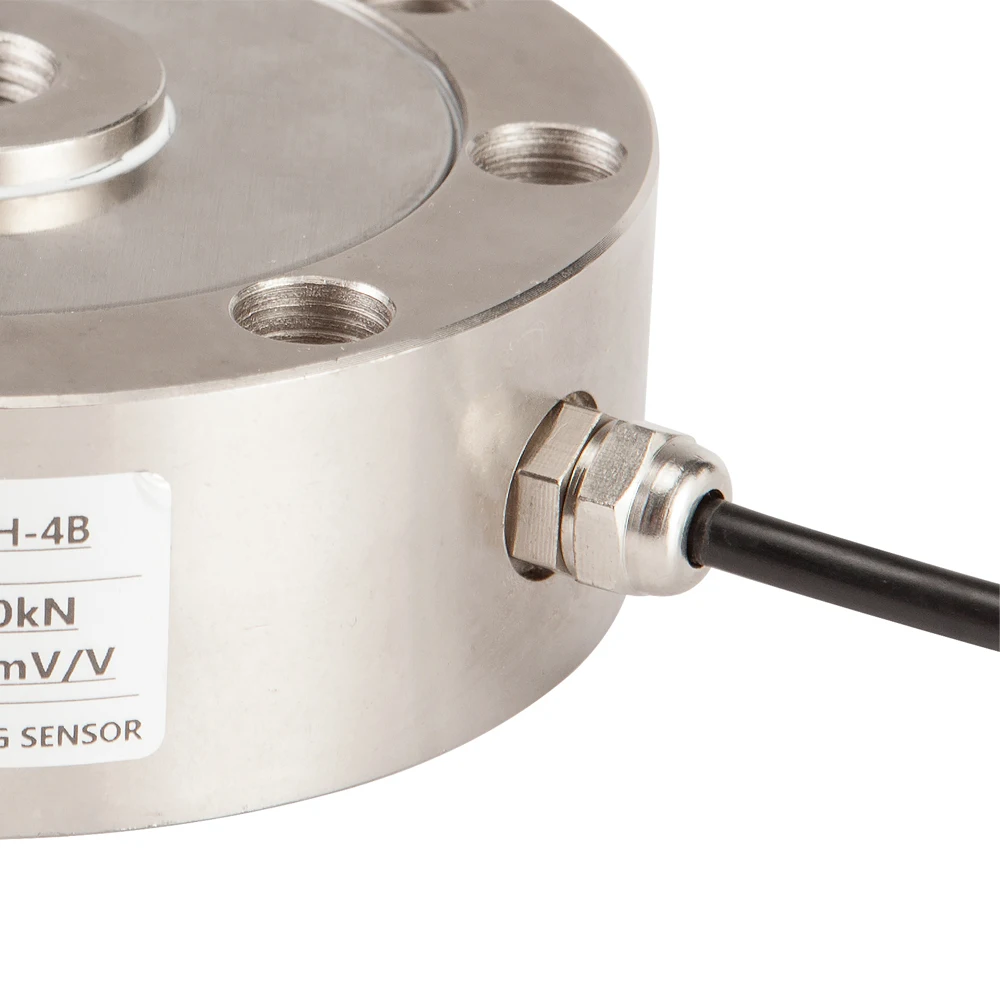

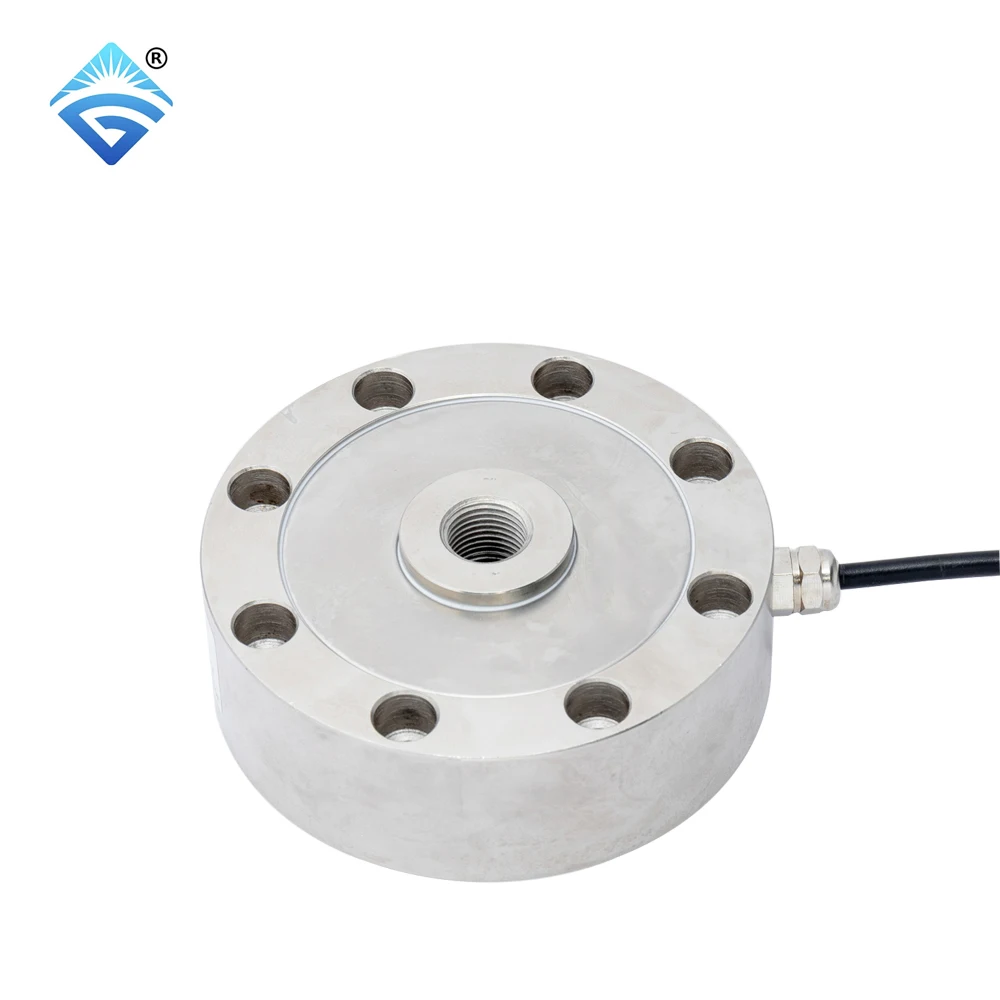

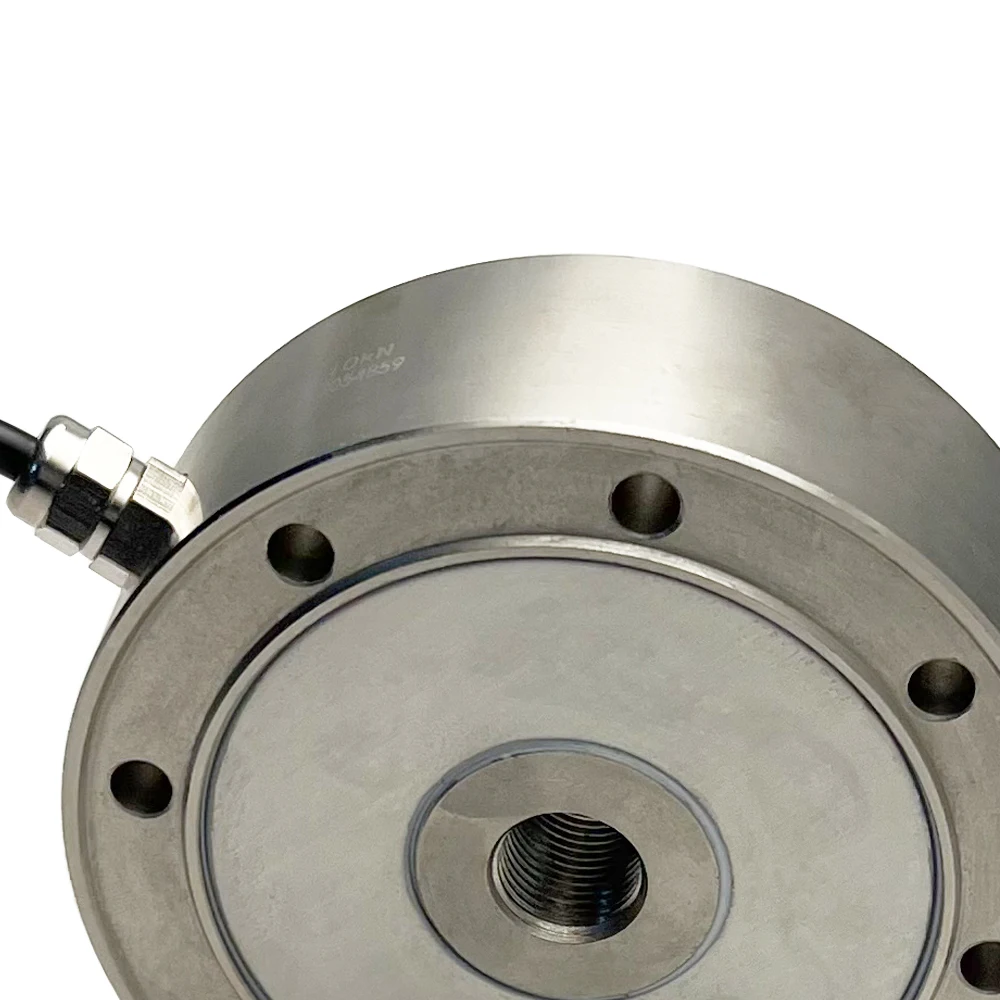

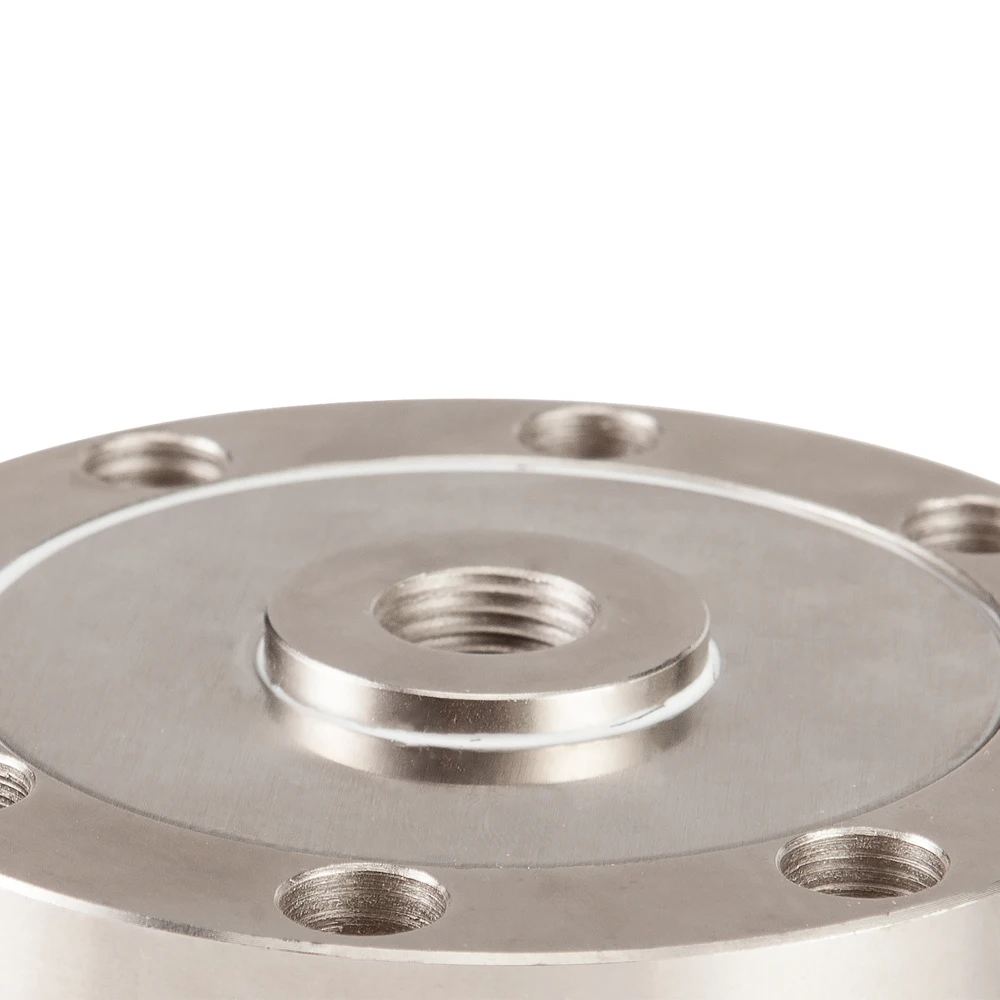

TJH 4B High Quality Low Price of Automatic Compression Controller Load Cell
- Category: >>>
- Supplier: Anhui Tianguang Sensor Co. Ltd.
Share on (1600917864682):
Product Overview
Description
Product Description
Product Name | TJH-4B |
Accuracy | 0.05~0.1%FS |
Sensitivity | 2.0mV/V |
Relative creep over 30 min | ±0.05% |
Temp. influence on sensitivity | ±0.05%FS/10℃ |
Temp. influence on the zero signal | ±0.05%FS/10℃ |
Zero output | ±1.0%FS |
Input resistance | 380±10Ω or 750±15Ω |
Output resistance | 350± 3Ω or 700±5Ω |
Insulation resistance | >5000 MΩ |
Operating temperature range | -20~+65℃ |
Reference temperature | 23℃ |
Reference excitation voltage | 10V DC |
Limit force | 150% |
Breaking force | >300% |
Material | Alloy Steel |
Mode of connection | Input+ : Red, Input- : Black, Output+ : Green, Output- : White |

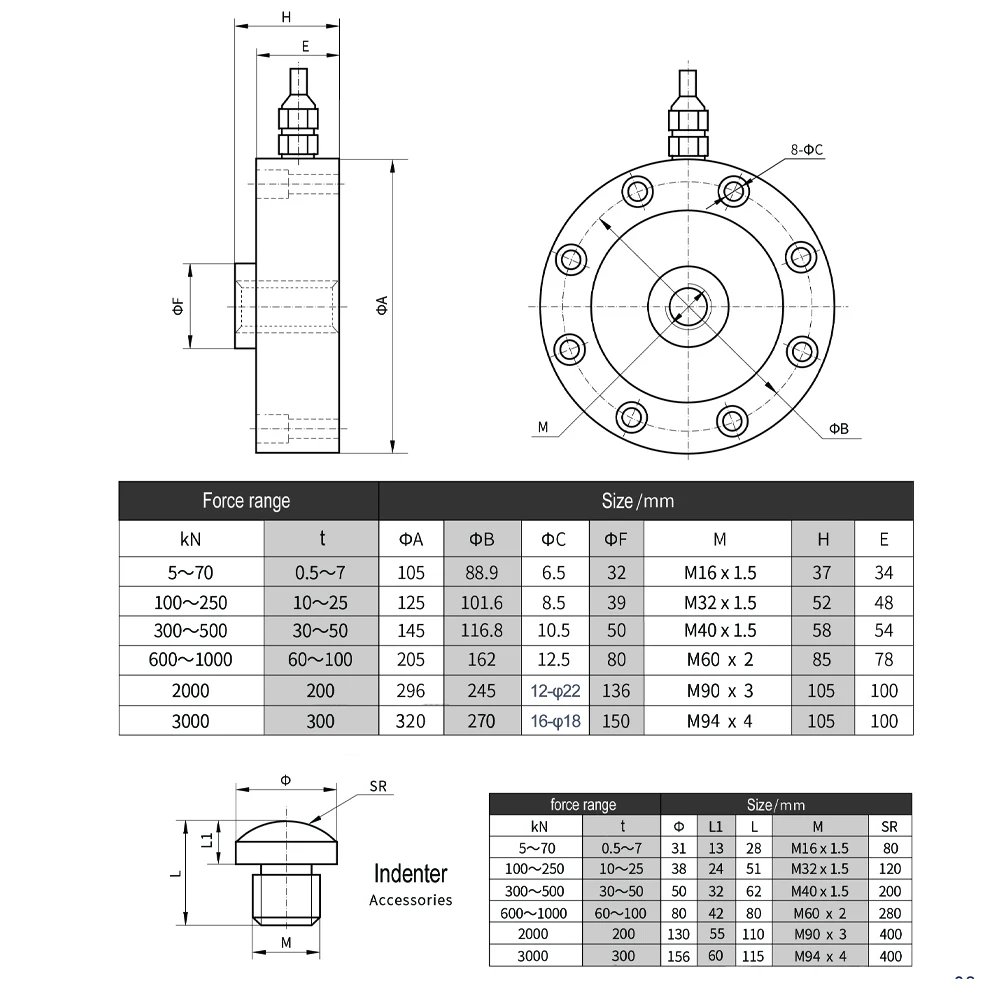

1. Rated Force Range: 5kN 10kN 20kN 30kN 50kN 70kN 100kN 200kN 300kN 500kN 1000kN 2000kN 3000kN
2. Cable length: 3~6m
3. OEM: Acceptable
4. Certification: ISO9001 / CE
5.Packing: See the details
2. Cable length: 3~6m
3. OEM: Acceptable
4. Certification: ISO9001 / CE
5.Packing: See the details
Process Flowchart
Recommend Products
Our Company
Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million.Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors, shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control indicators and other products. Over the past 32 years Tianguang constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary indicators, the products are widely used in military.
3D show room
VR
Factory
Meeting room
Office

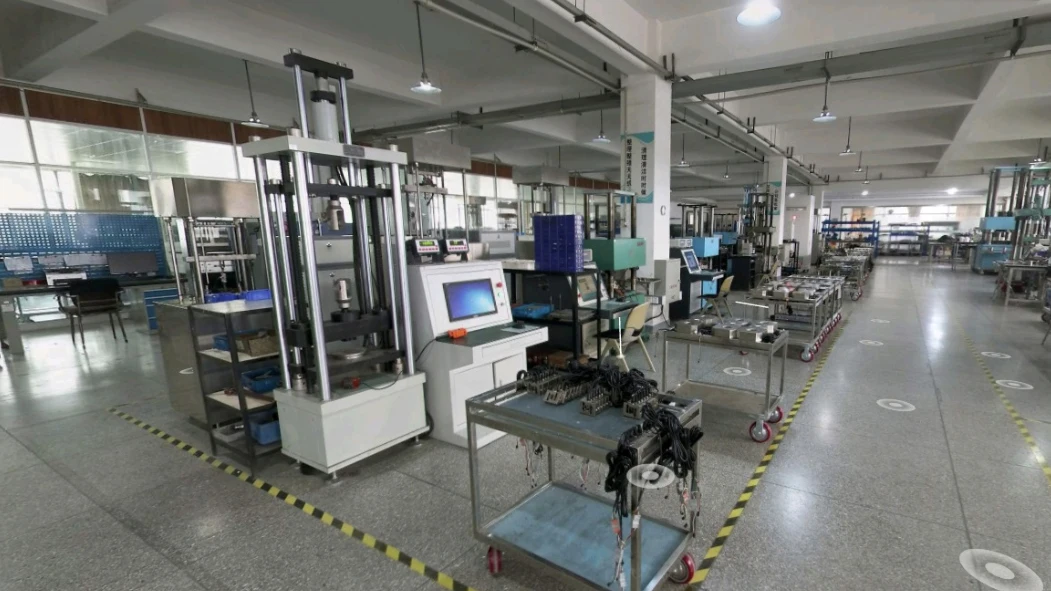

Workshop
Equipment
Equipment
Team
Exhibition
Certifications and enterprise honor
Buyers Feedback

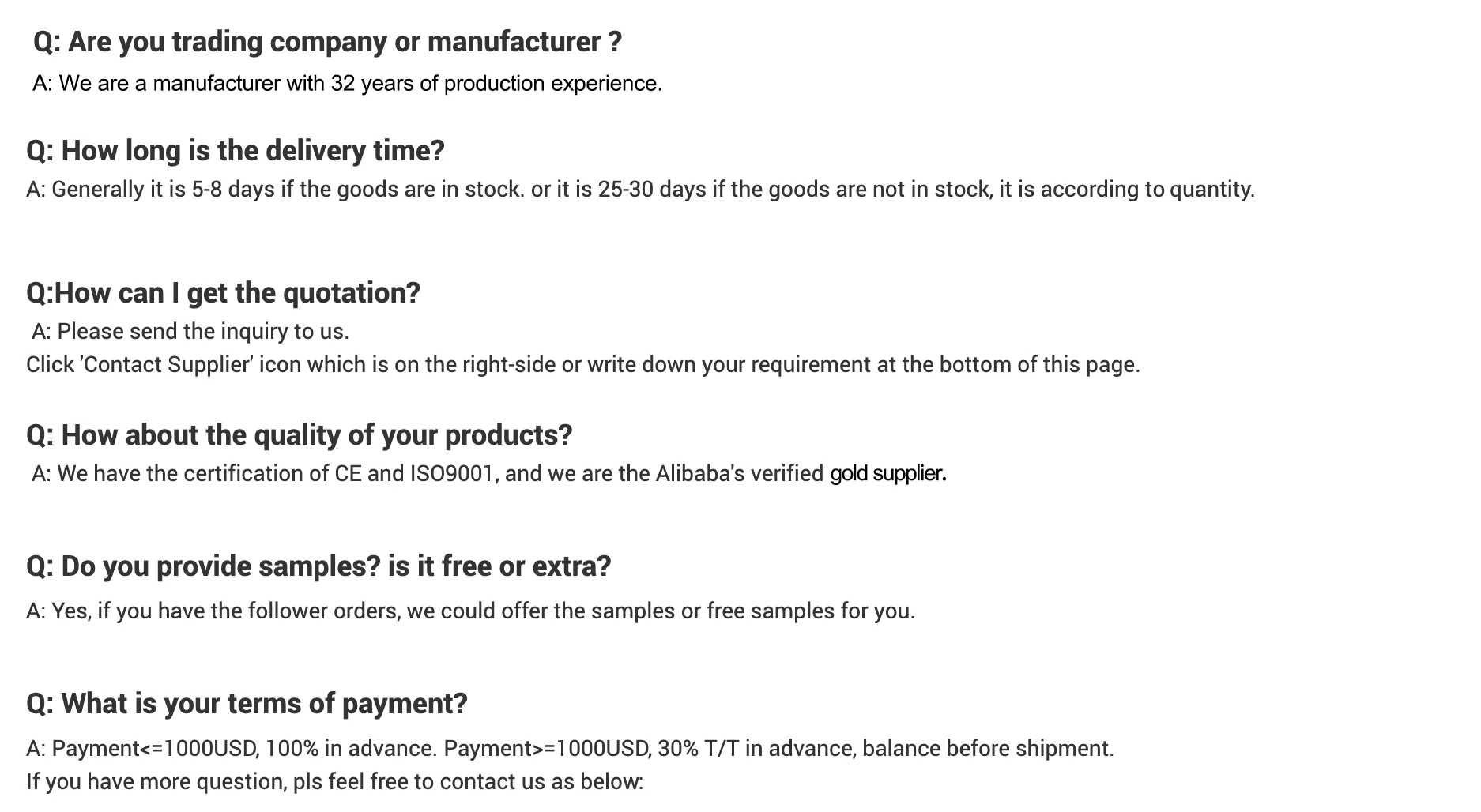

FAQ
Our Service
Free consult support
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, WhatsApp, WeChat and other measures.
Customization
Provide OEM service, most products are customizable (please consult with us for details).
After sale service
One year warranty since product shipped out. Fully technical support for application.
