Product Overview
Description
Product Overview

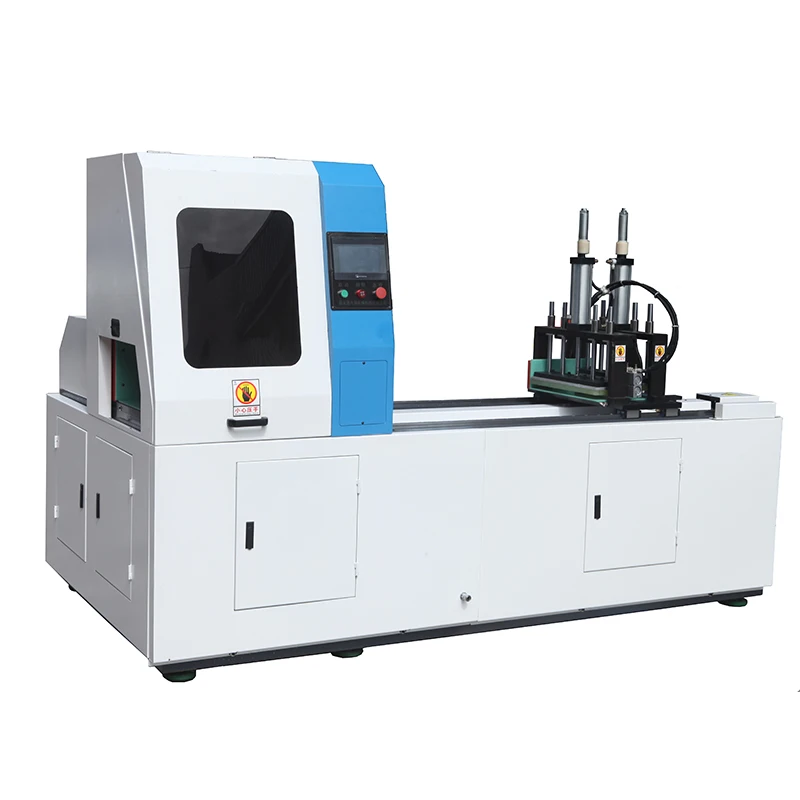

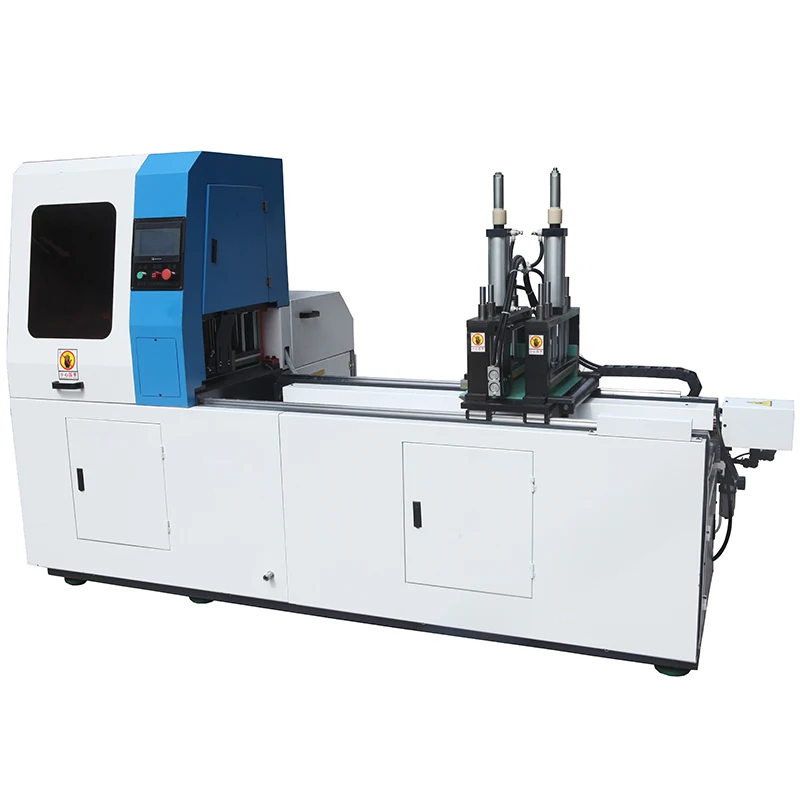

455CNC double servo automatic aluminum cutting machine
▲ JR stands for Jiurun Machinery Technology Co., LTD. Automatic aluminum profile sawing model number.
▲ 455 represents the size ofthe saw blade used for cutting aluminum profiles: outer diameter 355-455mm, inner hole 25.4mm
FEATURES AT A GLANCE

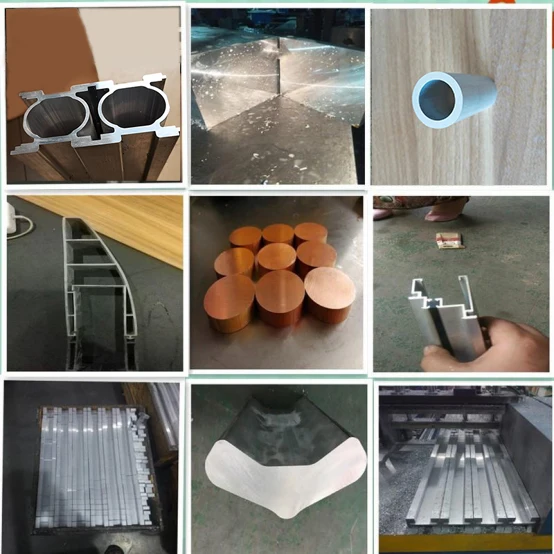

This machine is a automatic aluminum cutting machine, this equipment can be applied to aluminum plate, copper plate, composite plate, plastic plate and other profiles sawing. The machine adopts Taiwan's most advanced sawing and feeding structure design,automatic feeding, unmanned operation, can effectively reduce feeding time, save labor, improve efficiency. Lead screw, guide rail, servo motor and other key components are imported brands, so as to ensure higher transmission accuracy and sawing accuracy.
360° one-stop sawing solutions and perfect after-sales service to solve your worries.
360° one-stop sawing solutions and perfect after-sales service to solve your worries.
Installation site foundation requirements The foundation of the installation site must be on concrete and cement ground. Place the machine on the ground according to local building code requirements, but should not be placed above the floor. Install in a place that will not be affected by vibration. Do not use in potential explosive environment) After the machine is in position, use the table surface of the front horizontal chuck and the workpiece moving platform to make level correction. Adjust the screws under the base to make the machine horizontal :0.04mm, front and rear :0.04mm. Power supply Voltage: three-phase AC380V± 5%18KW, power frequency: 50Hz/ 60Hz Please use it independently from the general power supply. Avoid excessive voltage drops due to insufficient plant power capacity.
No | Main motor power | Data | |
1 | Spindle speed | 5.5KW | |
2 | Bucket capacity | 2900 RPM | |
3 | Applicable saw blade | outer diameter 305-455mm | |
4 | Maximum cutting height | 125mm | |
5 | Maximum cutting width | 360mm | |
6 | Single feeding maximum stroke | 1200mm | |
7 | Cutting Angle | 90° | |
8 | Feed mode | servo feed | |
9 | Feeding mode | servo feeding | |
10 | Feed servo motor power | 0.75KW |
PRODUCT SPECIFICATIONS
