Popular 1598 Channels Imu Galaxy G3 Internal UHF Radio Rtk Gnss Surveying Equipment
- Category: >>>
- Supplier: Shanghai Apekstool Optoelectronic Technology Co. Ltd.
Share on (1600917904479):
Product Overview
Description
Product Description

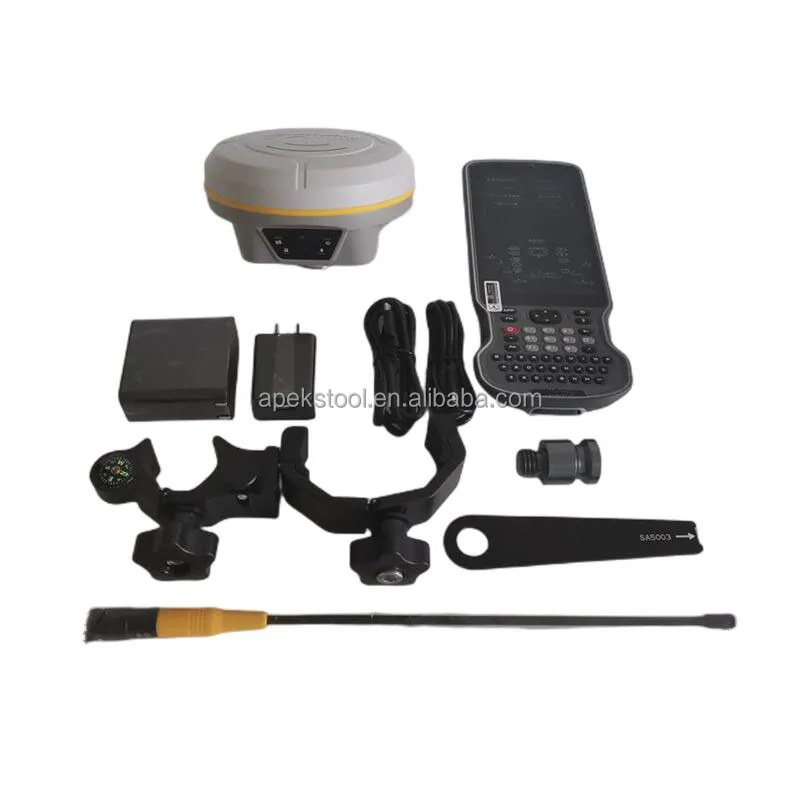

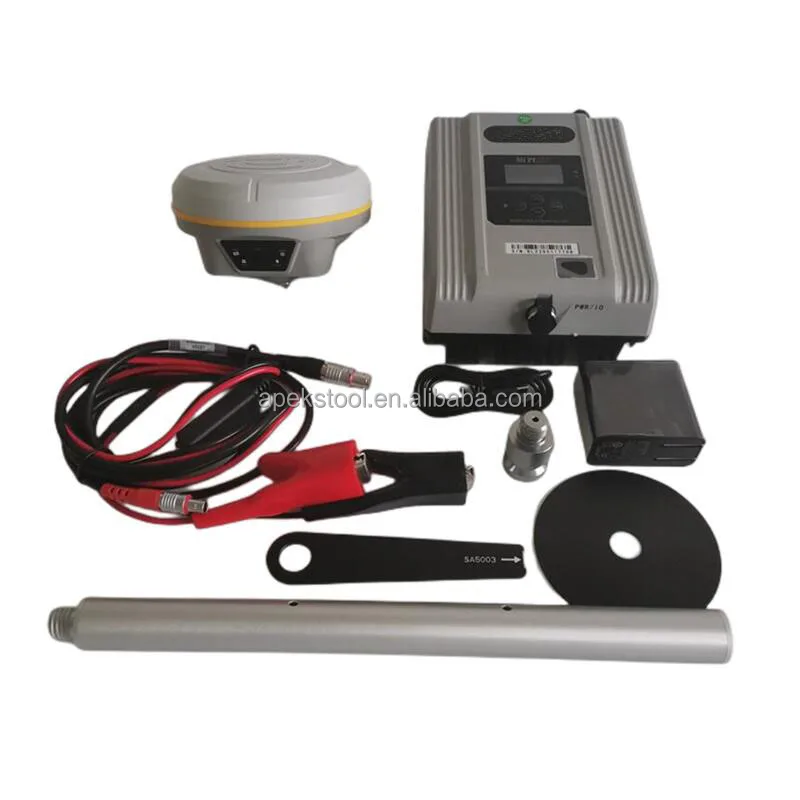

Popular 1598 Channels Imu Galaxy G3 Internal UHF Radio Rtk Gnss Surveying Equipment

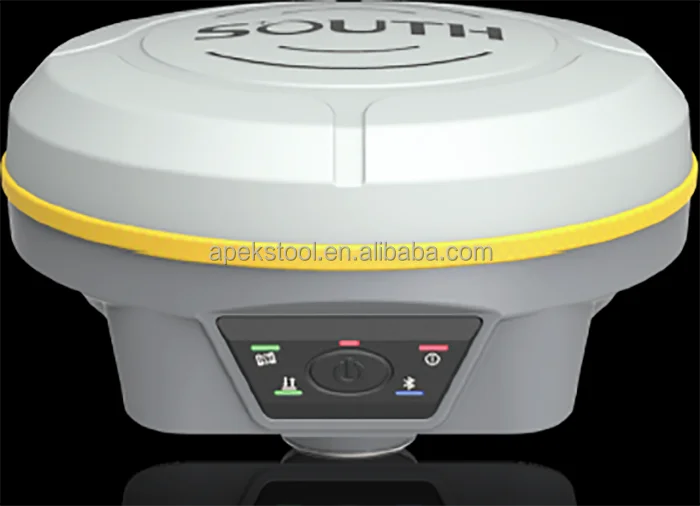

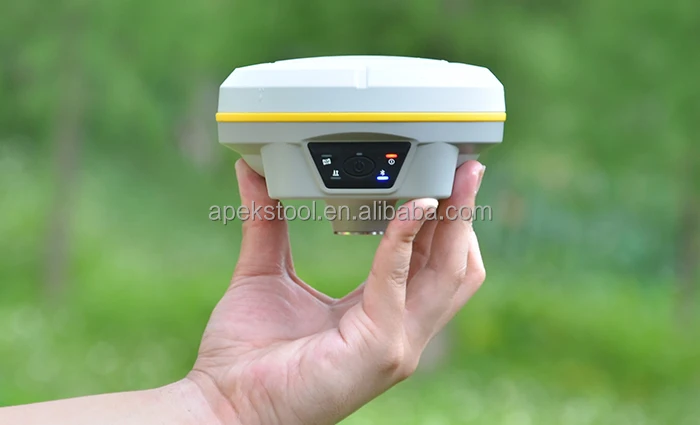

Smaller, lighter and smarter
The Galaxy G3 is a brand new inclusion, the RTK dial is made of material, and it is made of magnesium alloy rare 780g, which is portable and easy to carry.

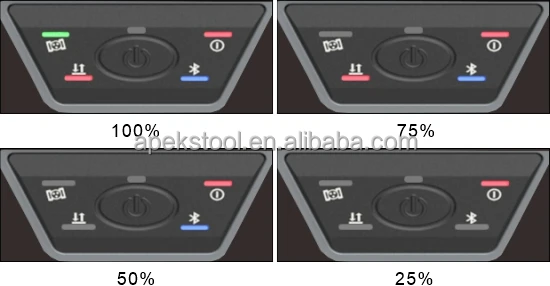

Indicator independence
The remaining independent inspection information shows that the module is clearly visible even in strong light under the display with different display functions.

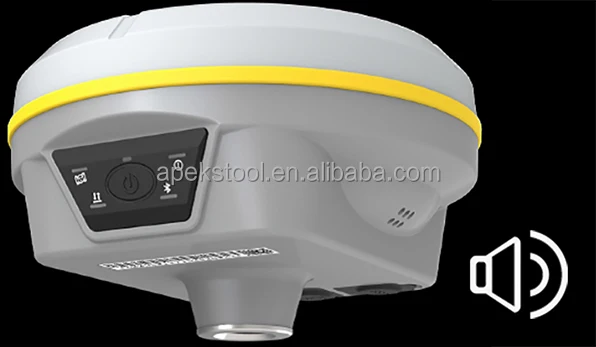

Voice experiment
Working mode, data connection status, channel number, learn how it works individually.
FARLINK protocol

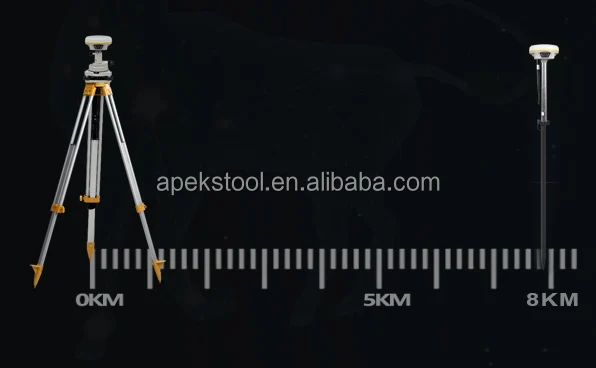

Equipped with the UHF independently developed by the South, and adopts a new radio communication protocol - the remote signal and transmission target truly realize the ultra-long-distance working range
Beidou PPP
The L-B tracking capability, G3b and satellite positioning signals can provide the satellite precise orbit and precise clock error information carried by the Beidou-3 B2 satellite, providing real-time single-point positioning services for users. The positioning algorithm is no longer limited by terrain conditions such as mountains, deserts, and deserted islands. As long as there are GNSS constellations, fixed solutions can generally be used.
L-Band testing and data analysis

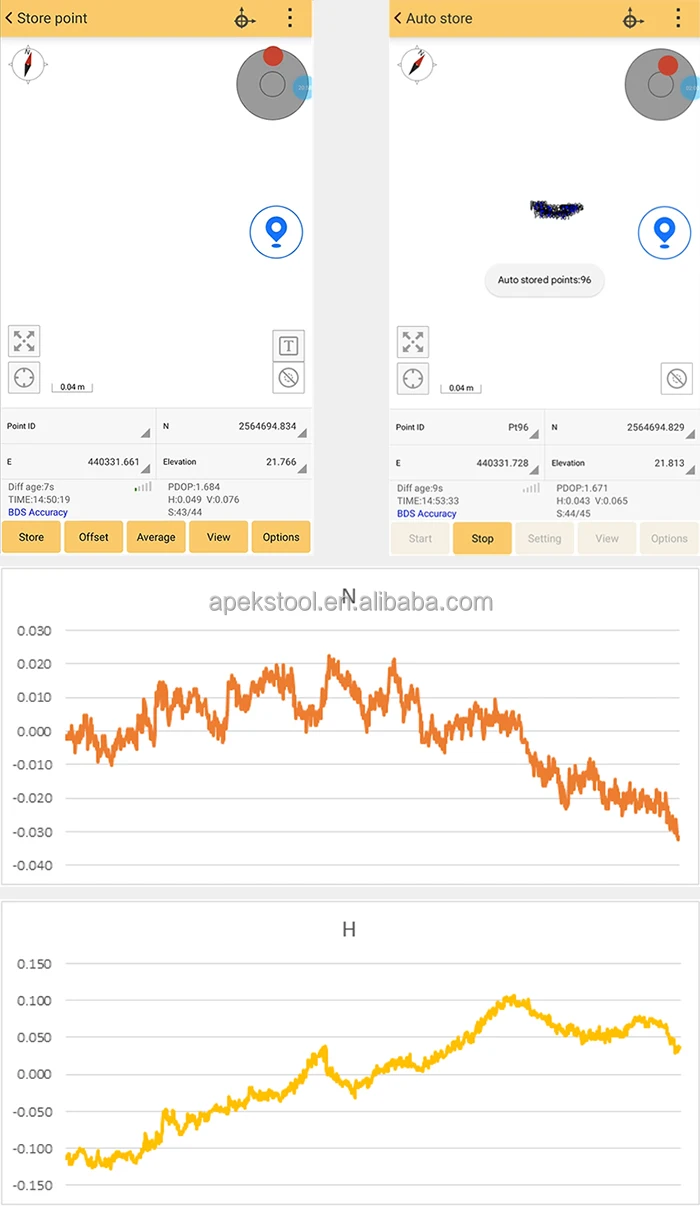

During the point acquisition process, we fixed G3 in a fixed position for continuous acquisition. Enter the survey - automatic survey, set the automatic collection method, our time interval is 1 second, and start the collection. Finally got 1000 points. After calculation, you can see the puppet shown in the figure below. The collection point is basically in the range of 4cm, the plane is about 2-4cm, and the elevation is about 5-10cm.
Smart data transfer

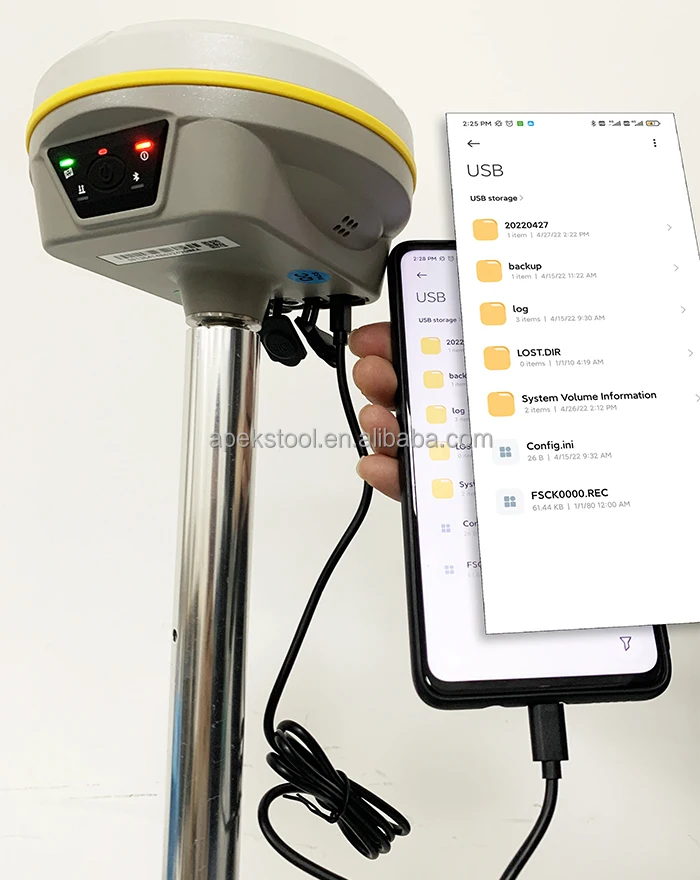

The latest port measurements of the Type-C design ensure that any raw data is transmitted, employees can easily get the data from the receiver and transfer it to the PC via social apps, effectively performing the entire job.
Specification
Colorful Led Indicators 1598 Channels Imu Galaxy G3 Gnss Rtk Base And Rover | ||||
GNSS configuration | Number of channels | 1598 | ||
BDS | B1、B2、B3 | |||
GPS | L1 C/A, L2E, L2C, L5 | |||
GLONASS | L1 C/A, L2 C/A, L3 | |||
GALILEO | E1, E5A, E5B, E5AltBOC, E6 | |||
SBAS | L1 C/A, L5 QZSS, WAAS, MSAS, EGNOS, GAGAN | |||
Positioning output frequency | 1Hz~50Hz | |||
Differential support | CMR、RTCM2.X、RTCM3.0、RTCM3.2 | |||
Static format support | GNS, Rinex dual format static data | |||
RTK positioning accuracy | Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points) | |||
Static positioning accuracy | Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points) | |||
DGPS positioning accuracy | Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm | |||
Initialization time | <10 seconds | |||
Initialization reliability | ＞99.99% | |||
Built-in communication | network | Built-in 4G full Netcom network communication | ||
WiFi | 802.11b/g access point and client mode, can provide WiFi hotspot service | |||
Bluetooth | Built-in Bluetooth | |||
Built-in transceiver | ||||
Radio | Built-in integrated receiving radio | |||
frequency band: | 410MHz-470MHz | |||
Protocol | TrimTalk、south、Farlink、ZHD、huace | |||
User Interface | panel | Single button | ||
Indicator light | 5 indicate lights | |||
Electrical physical properties | battery | Built-in battery, 7.4V 6800mAh/per | ||
Power Supply | 9-25V DC, overvoltage protection | |||
Size | 130*80mm | |||
weight | 780g | |||
material | Shell is made of magnesium alloy material | |||
Environmental characteristics | Dust and water release | P68, can resist temporary immersion under 2 meters water, completely prevent dust from entering | ||
Anti-fall | Resistance to natural drop of 3 meters | |||
Operating temperature | -45℃~75℃ | |||

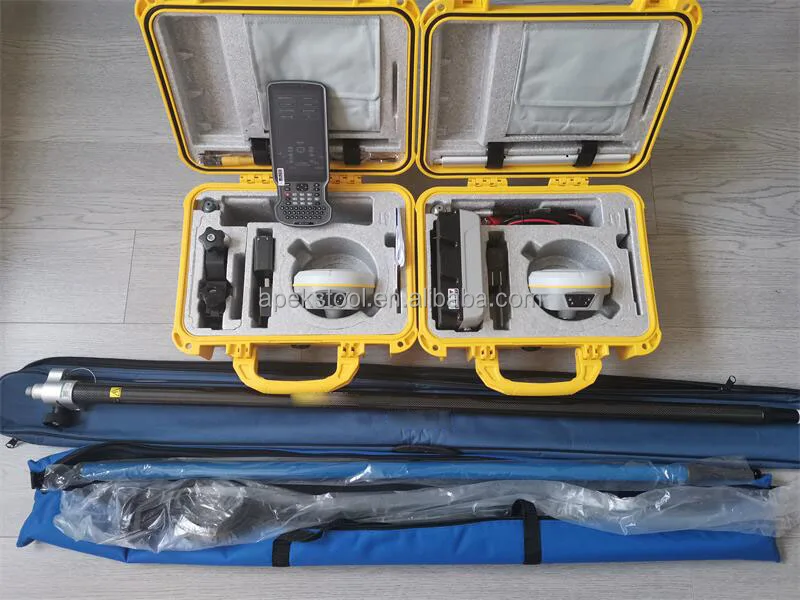

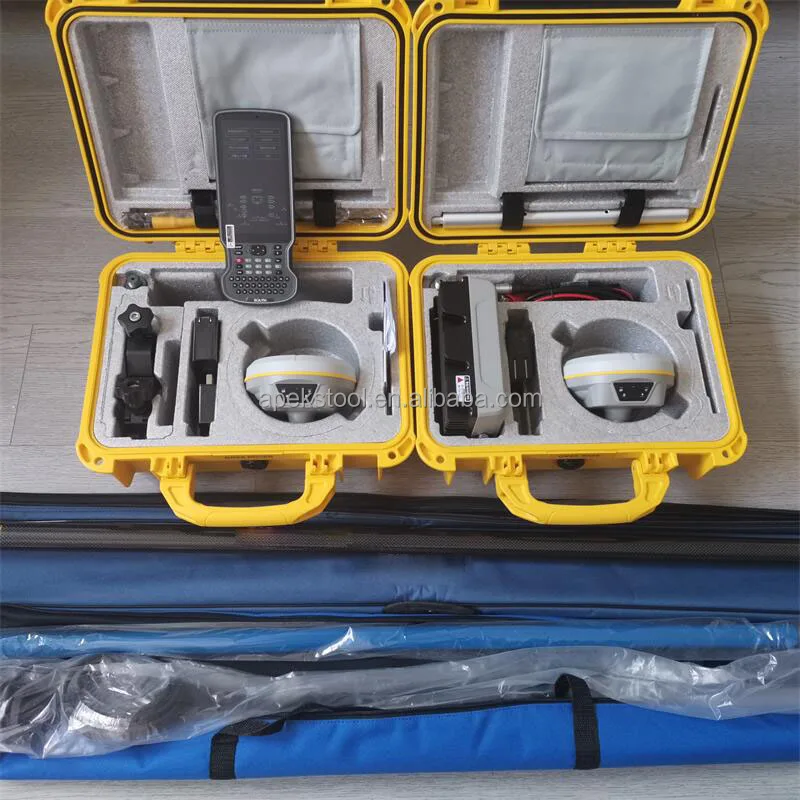

Packages
