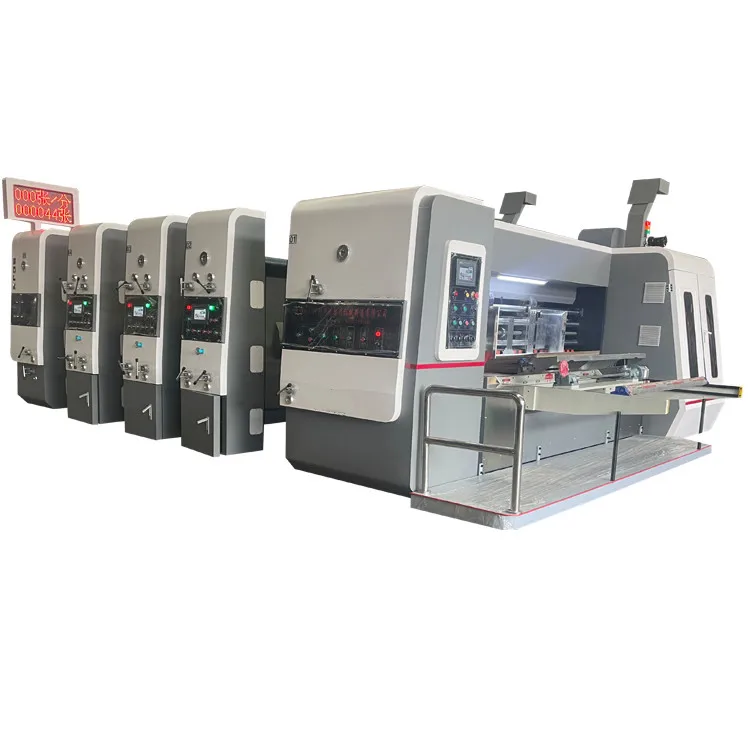

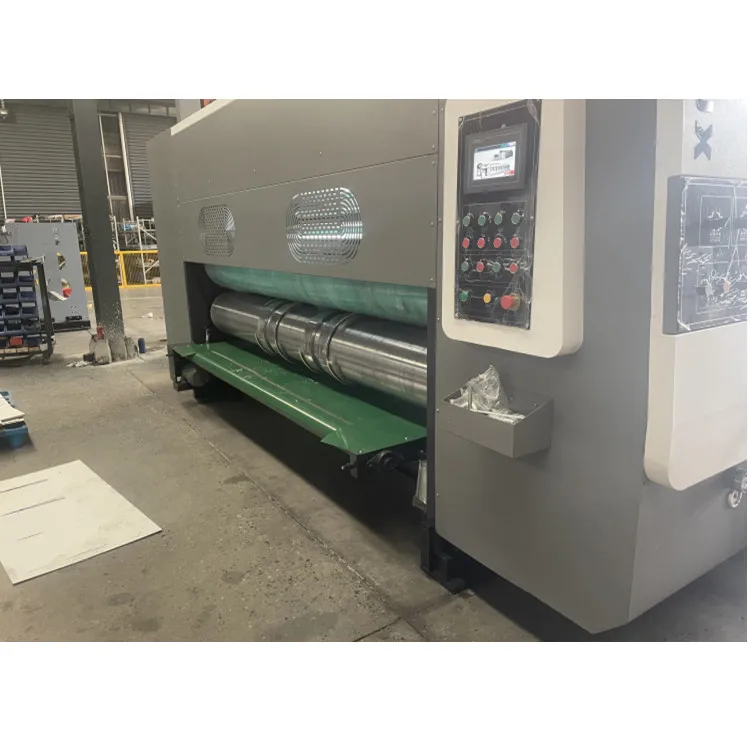

High speed corrugated cardboard box printing slotting and die cutting machine
Whole machine performance
This type of equipment can complete multi-color printing, line pressing, slotting,

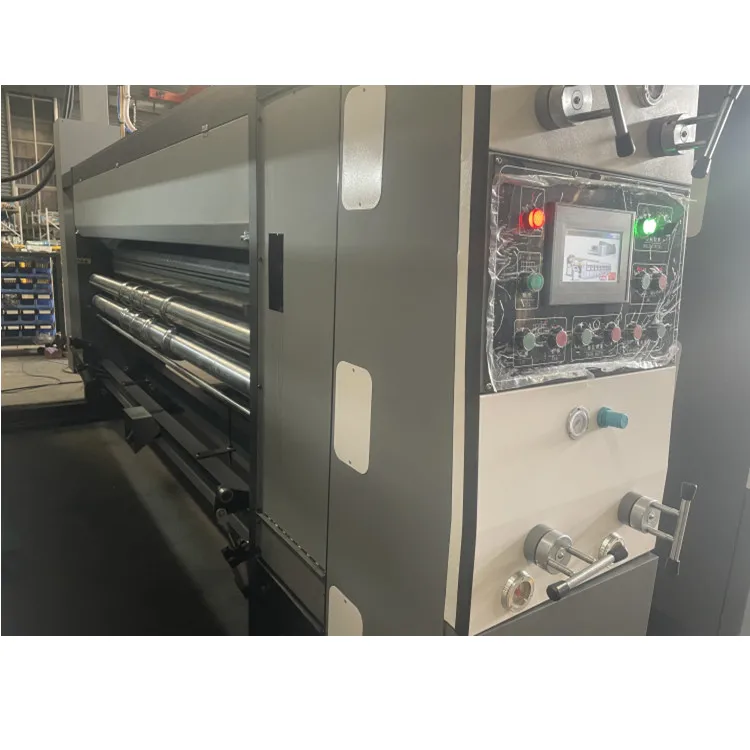

trimming, corner cutting, die cutting, punching and other processes of paperboard at one time. The leading edge of the equipment is used to feed paper by adsorption, the frequency converter of the main machine and fan controls the start and stop, the high-power dust removal fan cleans the cardboard surface, and the main touch screen and the side touch screen are controlled by PLC programming system, so that the human-machine interface can control the operation of each part humanly, and the printing accuracy of the machine can be operated no matter in the paper feeding, operation and paper discharging. The front of the main machine is equipped with paper output monitoring equipment, which can observe the situation of the paper output department at any time when starting and stopping, so as to ensure the safety of people who start and adjust the machine. Each part is equipped with an electric opening and closing system, pneumatic locking system, pneumatic plate lifting system, automatic ink mixing system and ink shortage alarm system to ensure the normal operation of the whole machine, exquisite printing patterns and accurate color registration. All transmission shafts of the whole machine are treated with dynamic and static balance, and the gears are processed by special technology. All gears are carburized and ground, the overall hardness is HRC52-58, and the accuracy is grade 6. All gears are lubricated by spray circulating lubrication, equipped with circulating oil display window, and the oiling situation can be observed at any time. And that connection between the gear and the transmission shaft is fix by the keyless connection ring, which is firm and reliable. This machine has the characteristics of high degree of automation, convenient use and maintenance, accurate color registration, exquisite printing patterns and high production efficiency.
trimming, corner cutting, die cutting, punching and other processes of paperboard at one time. The leading edge of the equipment is used to feed paper by adsorption, the frequency converter of the main machine and fan controls the start and stop, the high-power dust removal fan cleans the cardboard surface, and the main touch screen and the side touch screen are controlled by PLC programming system, so that the human-machine interface can control the operation of each part humanly, and the printing accuracy of the machine can be operated no matter in the paper feeding, operation and paper discharging. The front of the main machine is equipped with paper output monitoring equipment, which can observe the situation of the paper output department at any time when starting and stopping, so as to ensure the safety of people who start and adjust the machine. Each part is equipped with an electric opening and closing system, pneumatic locking system, pneumatic plate lifting system, automatic ink mixing system and ink shortage alarm system to ensure the normal operation of the whole machine, exquisite printing patterns and accurate color registration. All transmission shafts of the whole machine are treated with dynamic and static balance, and the gears are processed by special technology. All gears are carburized and ground, the overall hardness is HRC52-58, and the accuracy is grade 6. All gears are lubricated by spray circulating lubrication, equipped with circulating oil display window, and the oiling situation can be observed at any time. And that connection between the gear and the transmission shaft is fix by the keyless connection ring, which is firm and reliable. This machine has the characteristics of high degree of automation, convenient use and maintenance, accurate color registration, exquisite printing patterns and high production efficiency.
Manufacturing Technique

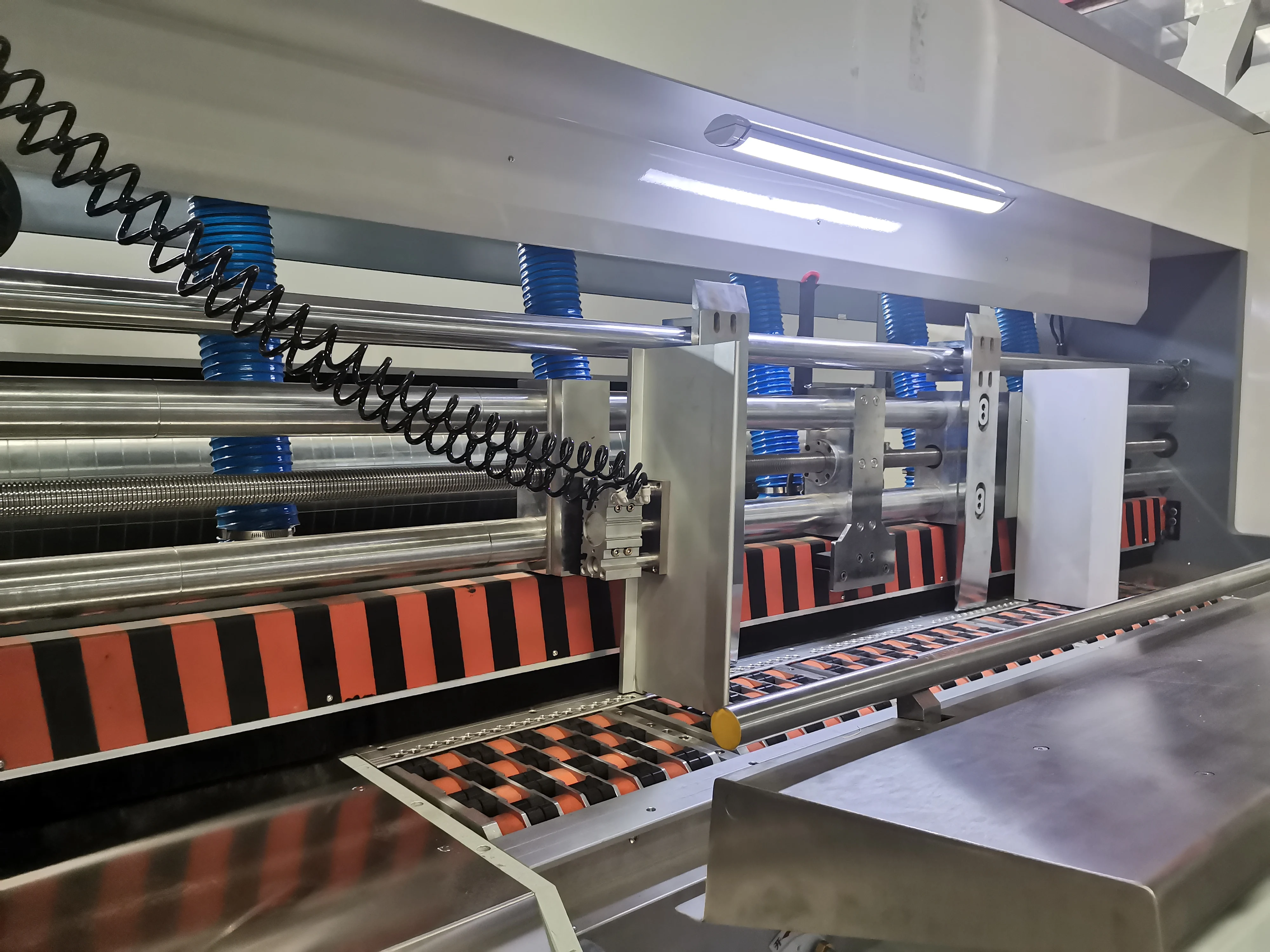

Feeding unit
1.leading edge adsorption automatic paper feeding.
2.Double cots feed paper, main engine fan frequency control.3.Clean the cardboard surface of the fan, assisted by multiple rows of brushes.
4.Keywords electric side baffle, pneumatic alignment, electric bracket,
Manual synchronous lifting of the paper feed baffle.
Printing unit
2. Pneumatic inking, automatic inking and plate roller zeroing.
3. Erasing memory, ink shortage alarm and walking alarm.
4.Each unit is separated and positioned by one key.

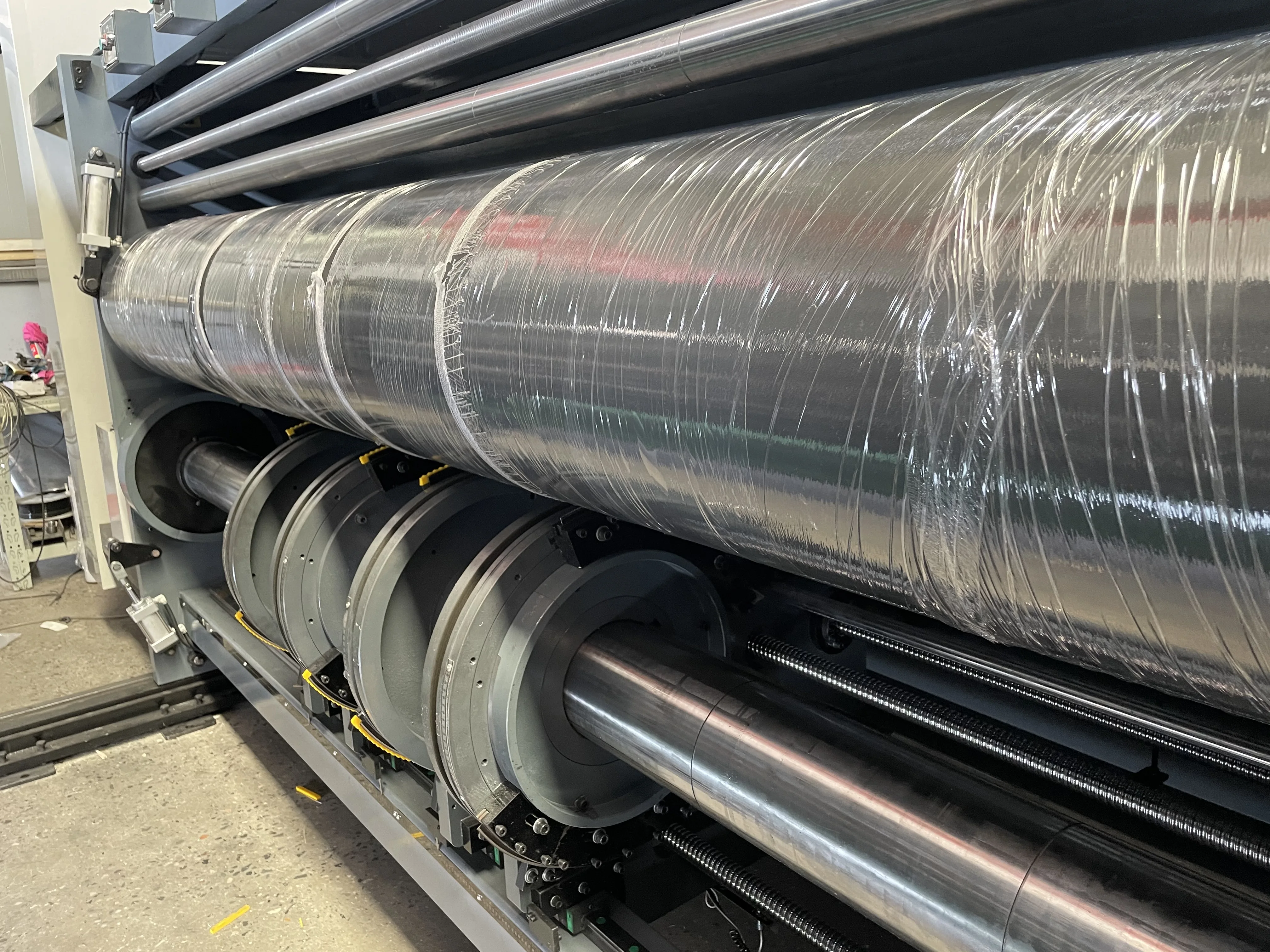

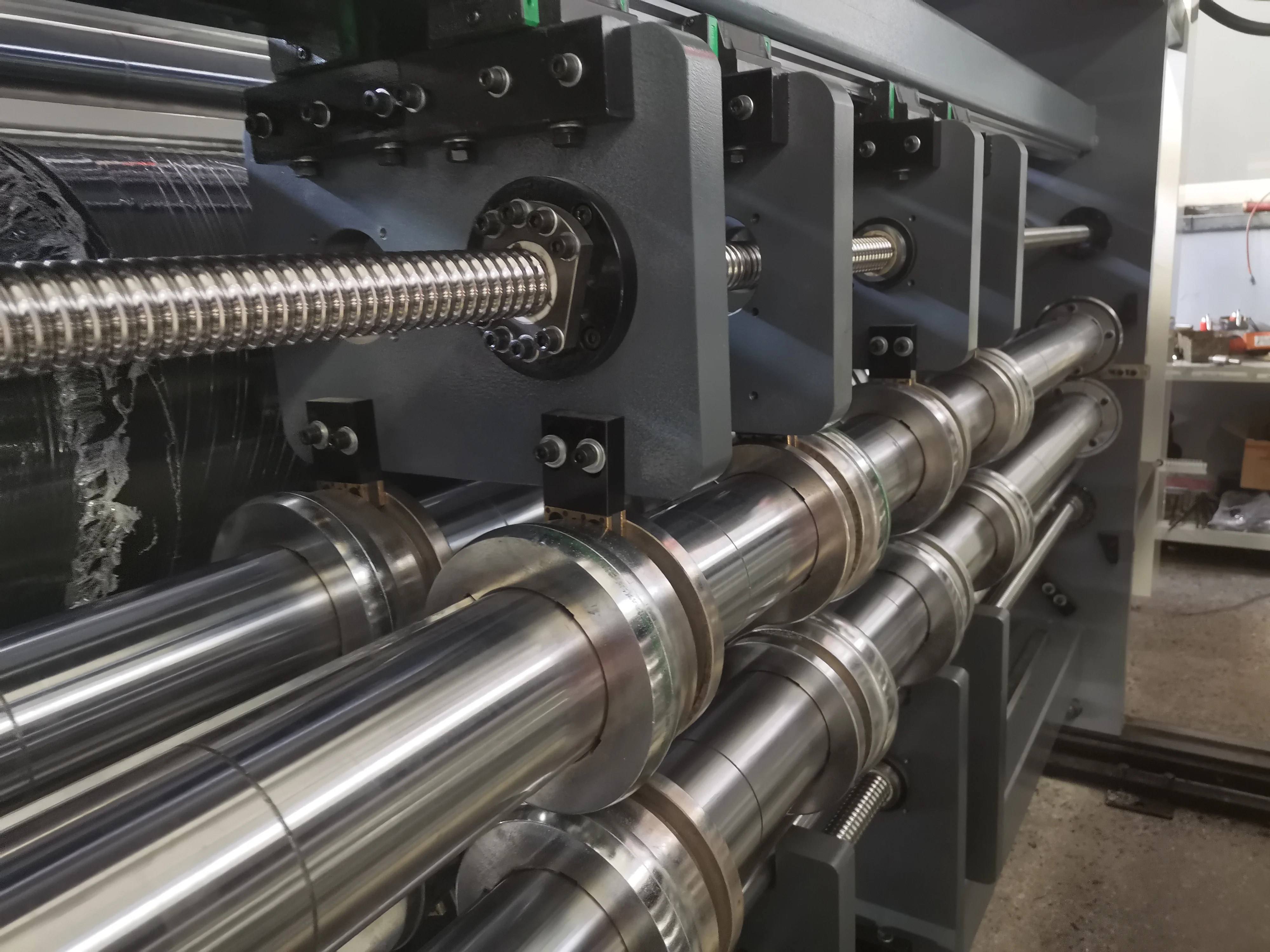

Slotting unit and Die cutting unit
1.Electric synchronous horizontal shift and box height system.
2.Length * width * height input, one-button mobile positioning.
3.Store orders and location memory.

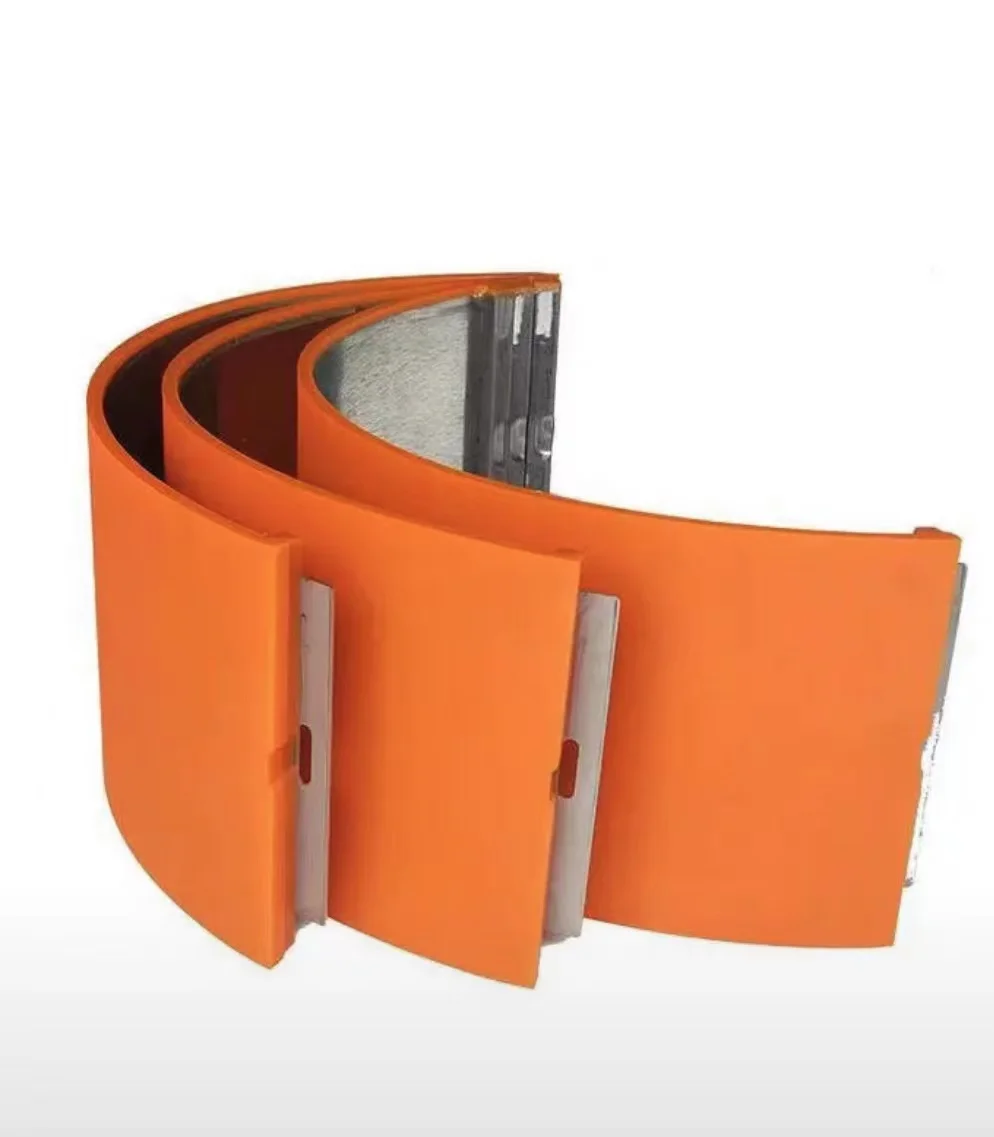

4.Pneumatic knife plate separation and electric roller trimming system.

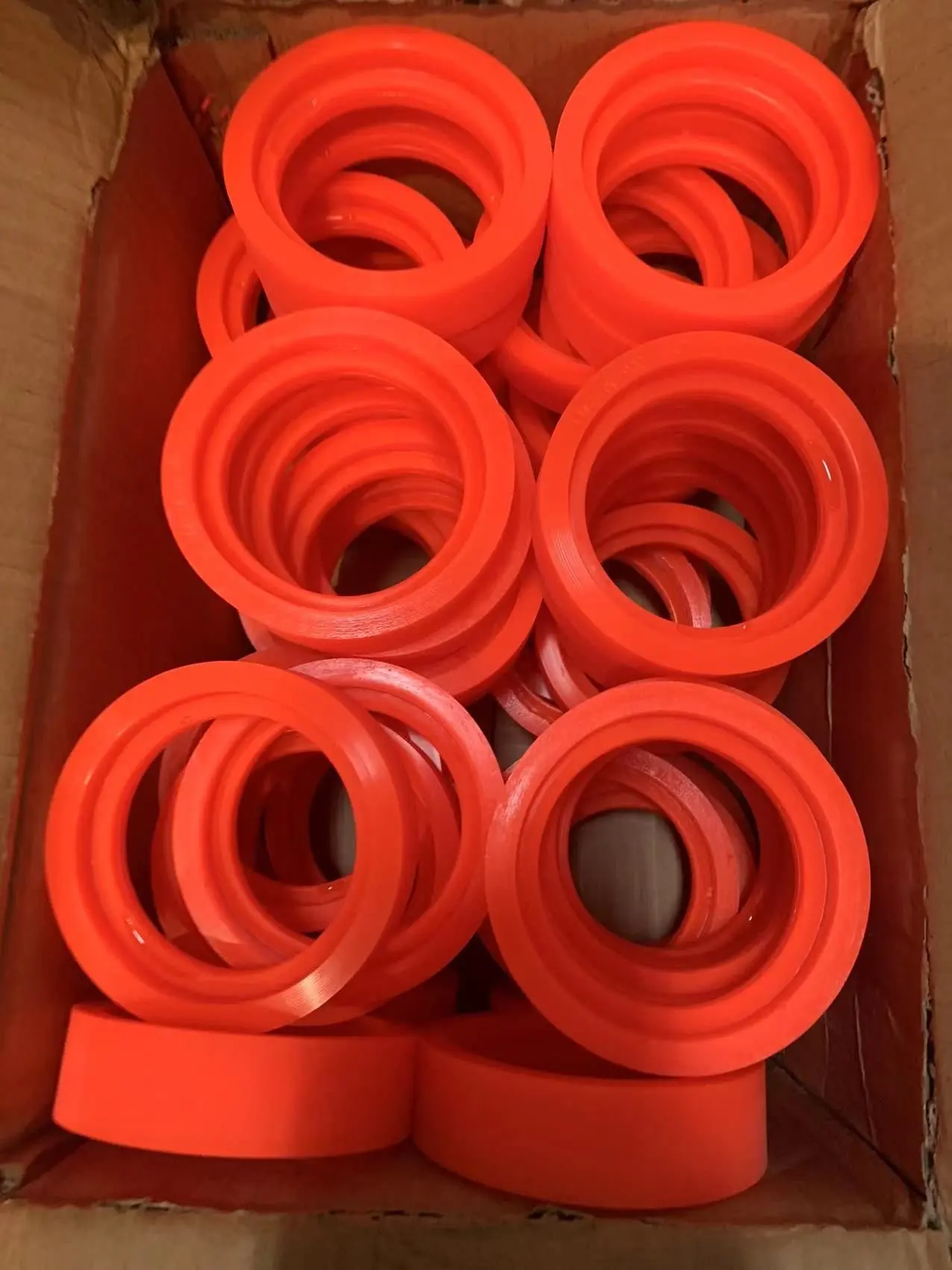

5.Mechanical rubber pad roller traveling system.
5.Mechanical rubber pad roller traveling system.
Product Paramenters
Main technical parameters | ||
Working speed | 150-180 pic/min | |
Thickness of wallboard(mm) | 50 | |
Standard plate thickness (mm) | 3.2---7.2 | |
Adapted paperboard thickness (mm) | 3---12 | |
Printing precision | ±0.5mm | |
Slotting precision | ±1.5mm | |
Die cutting precision | ±1.5mm | |
