High Precision Mini Weather station Wireless Indoor Outdoor Meteorological Station Weather For Environmental
- Category: >>>
- Supplier: BGT Technology (Beijing) Co. Ltd.
Share on (1600918037653):
Product Overview
Description
**One-stop Emergency Solution Supplier**
1. Factory direct price.2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
Product Information

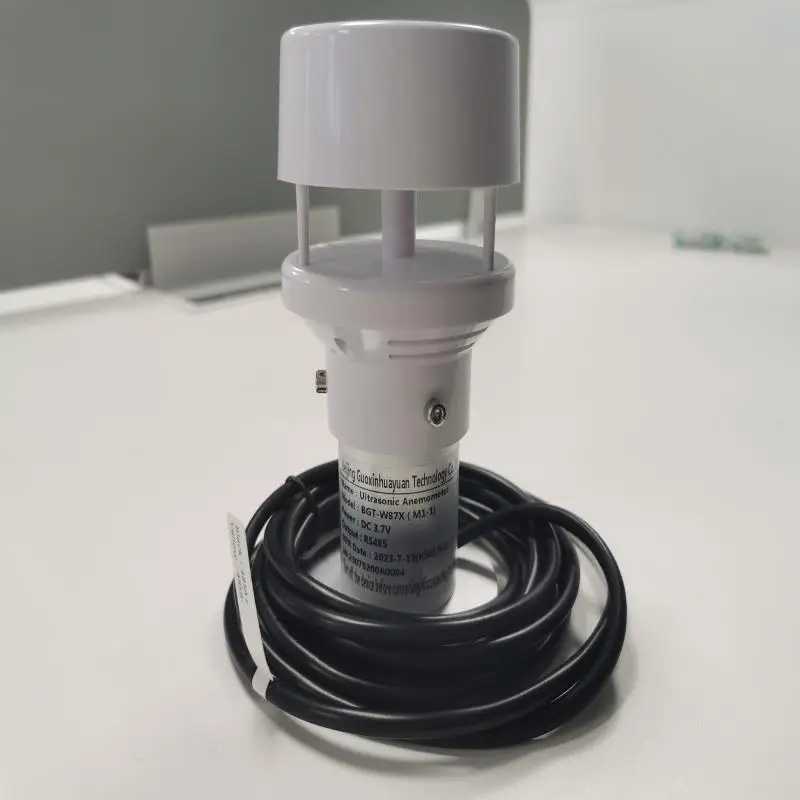

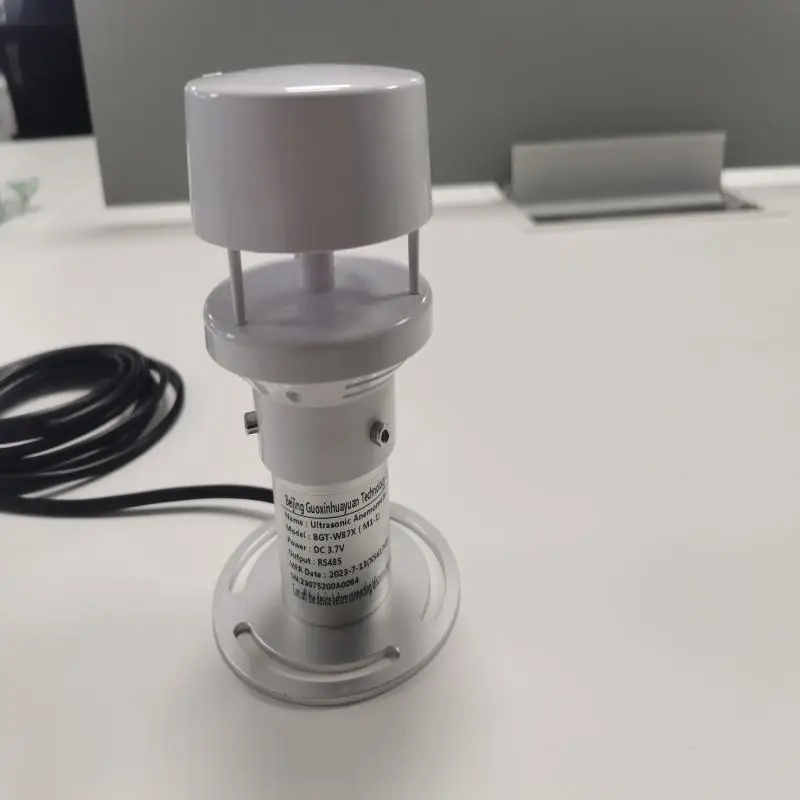

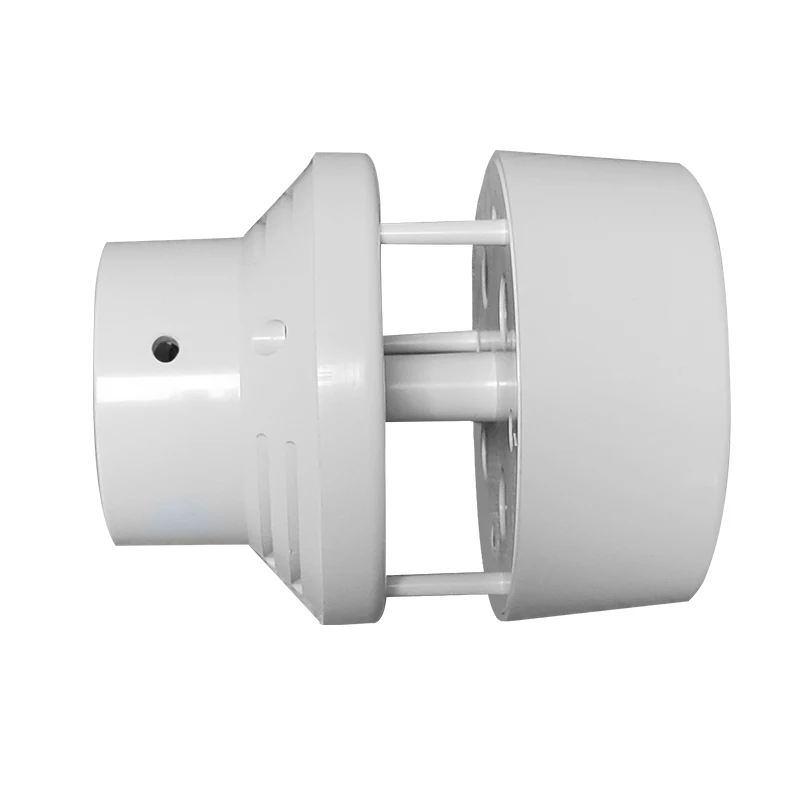

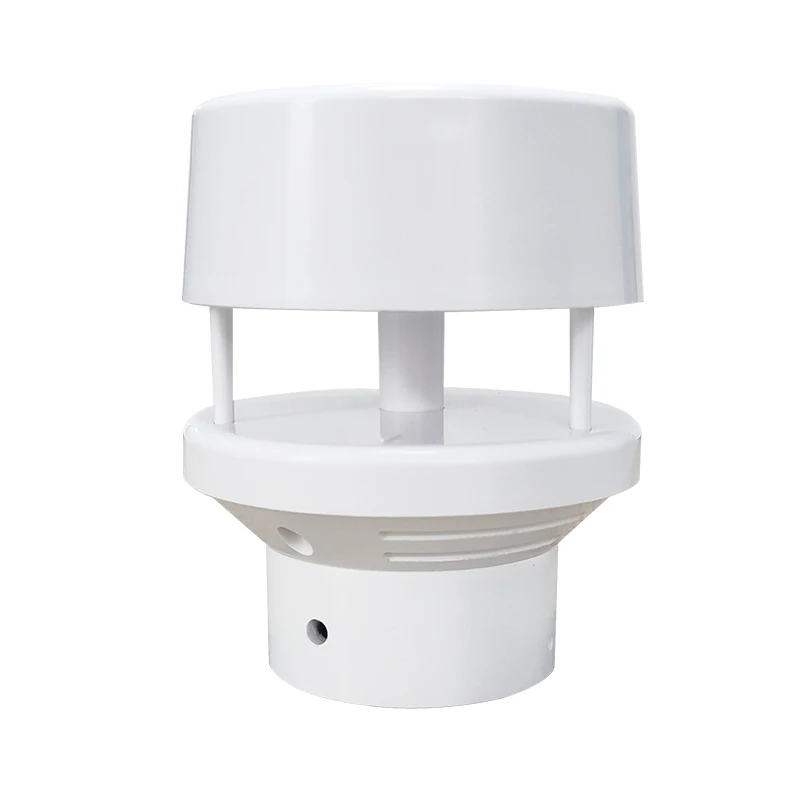

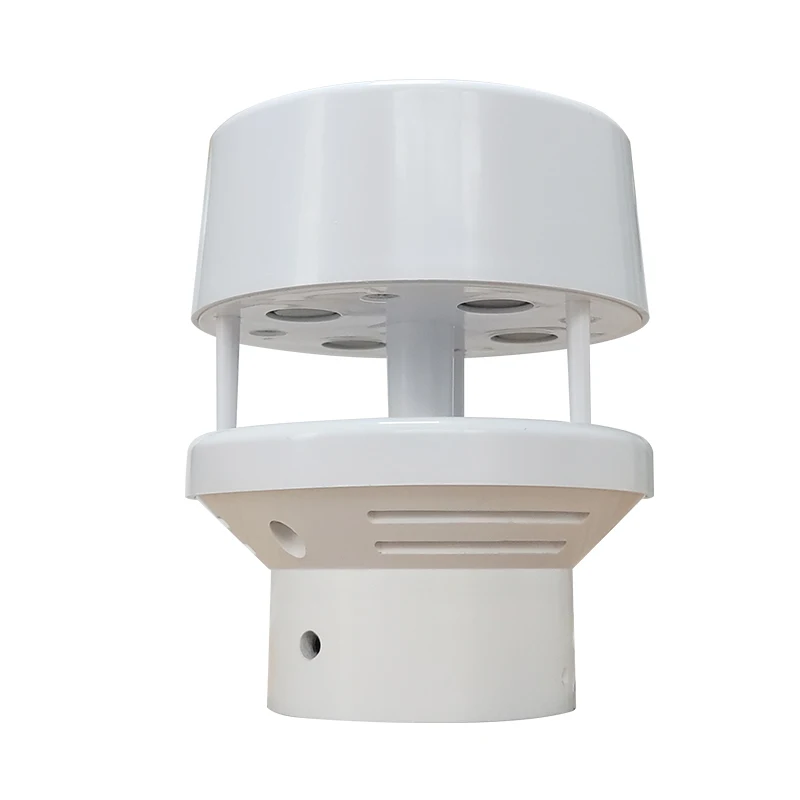

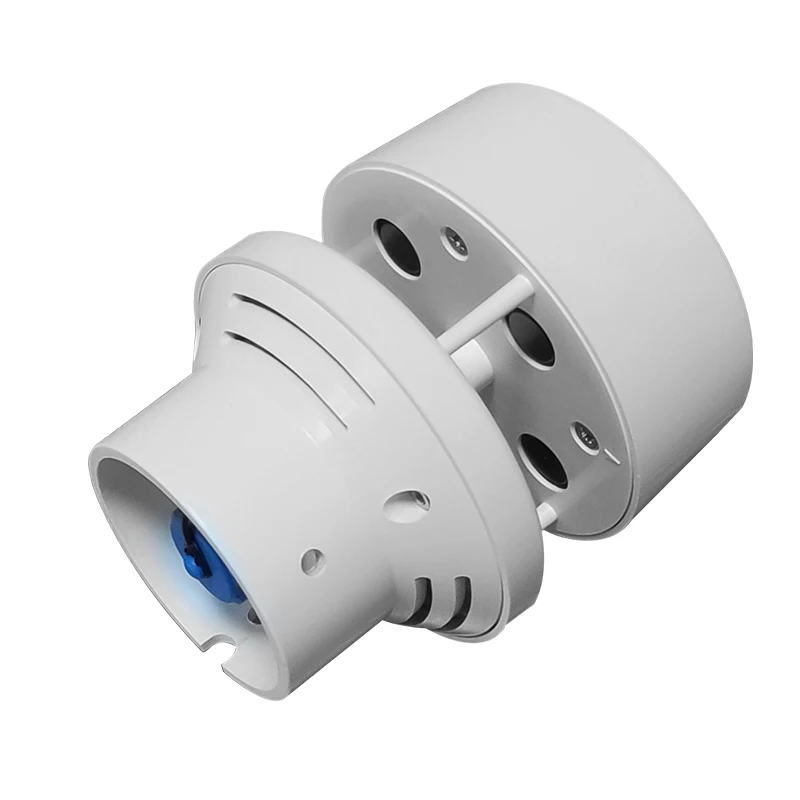

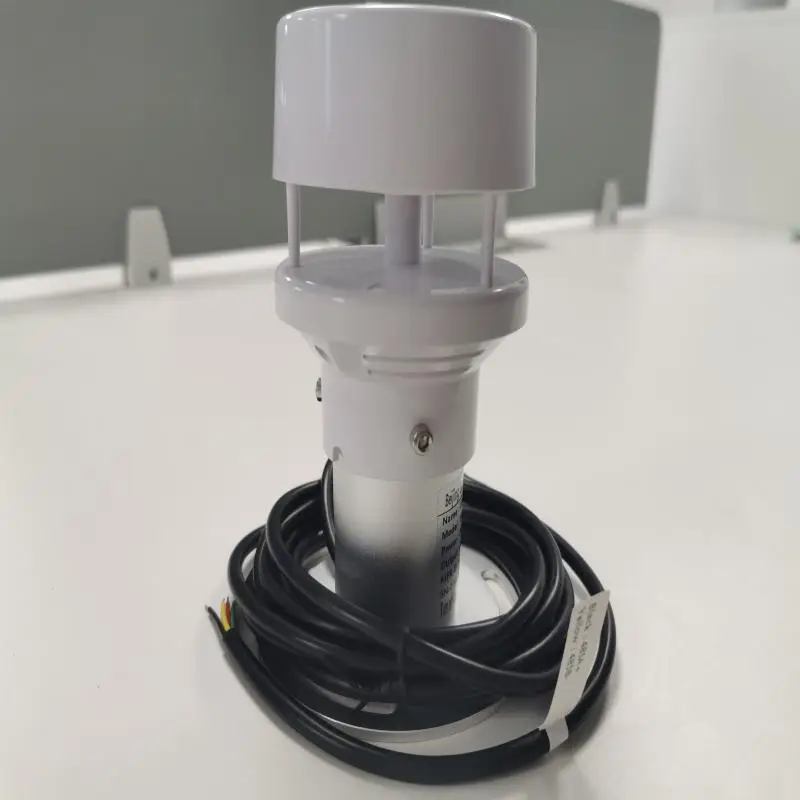

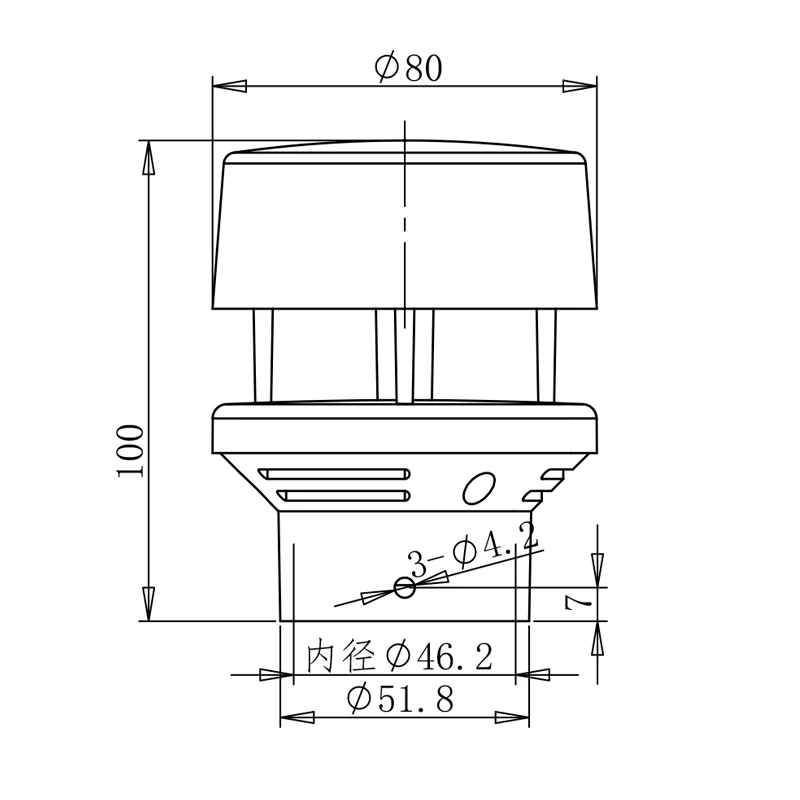

BGT-W87X Compact Weather Station is a very cost-effective miniature meteorological environment monitoring instrument developed by our company. It uses low-power chip and low-power circuit design inside. The conventional 5-element power consumption is only 0.2W, and the 6-element ( Rain content) is only 0.45W, especially suitable for use in solar or battery-powered environments that require relatively high power consumption. Due to the new design, the structure is more compact and small, with a diameter of about 8CM and a height of about 10CM (conventional 5 elements).
BGT-W87X Compact Weather Station innovatively integrates 6 environmental monitoring elements such as wind speed, wind direction, temperature, humidity, air pressure, rainfall/illuminance/solar radiation (choose one of three) into a compact structure, and through The 485 digital communication interface outputs 6 parameters to the user at one time, so as to realize continuous online monitoring outdoors for 24 hours.
It is suitable for many fields such as agricultural meteorology, smart street lights, environmental monitoring of scenic spots, and meteorological monitoring of highways.
Application
Feature
* According to actual need to choose any monitoring elements: wind speed and direction, temperature, humidity, air pressure, rainfall/light/solar radiation;
* The cost is low, suitable for grid points;
* The machine power consumption is low, only 0.2 W, especially suitable for occasions of high power consumption requirements;
* Small size, modular design to facilitate integration and flexible layout;
* High-efficiency filter algorithm, in view of the rain and fog weather special compensation technology, to ensure the stability and consistency of the data;
* Each weather instrument before delivery,have been test, to ensure that the environmental data meet the national standards;
* Wide environmental adaptability, Product development after strict high and low temperature, waterproof, salt spray and other environmental tests.Ultrasonic probe in the case of no heating, at -40°C low temperature environment, the equipment can still work normally.
Product Parameters
Measuring parameters | ||||||
Measuring range | Accuracy | Resolution | ||||
Ultrasonic wind speed | 0~45m/s | Start wind ≤0.8m/s; ±(0.5+0.02V)m/s； | 0.01m/s | |||
Ultrasonic wind direction | 0~360° | ±3° | 1° | |||
Air temperature | -40～80°C | ±0.3°C | 0.1°C | |||
Air humidity | 0～100%RH | ±5%RH | 0.1%RH | |||
Air pressure | 300~1100hPa | ±0.5 hPa（25℃） | 0.1 hPa | |||
Compass | 0～360 | ±5° | 1° | |||
Drop sensing rainfall | 0~4.00mm/min | ±4%(Indoor static test, rain intensity is 2mm/min) | 0.03mm | |||
Illuminance | 0~200000Lux | ±4% | 1 Lux | |||
Radiation | 0-1500 W/m2 | ±3% | 1W/m2 | |||
Electrical parameter | ||||||
Power supply | DC9 ~30V or DC5V | |||||
Power consumption | 200mW(Standard 5 elements with compass) | |||||
Output | RS485 Modbus | |||||
Working temperature | -40°C~+80°C | |||||
Working humidity | 0~100%RH | |||||
Mechanical structure parameter | ||||||
Material | ABS engineering plastic | |||||
Entry cable | Aviation socket, sensor cable 3 meters | |||||
Color | White | |||||
Ingress Protection | IP65 | |||||
Customer Photos
Customer Testimonials
Company Profile
Our Factory
Production Process
Certificates
Payment Methods
Transportation
FAQ
