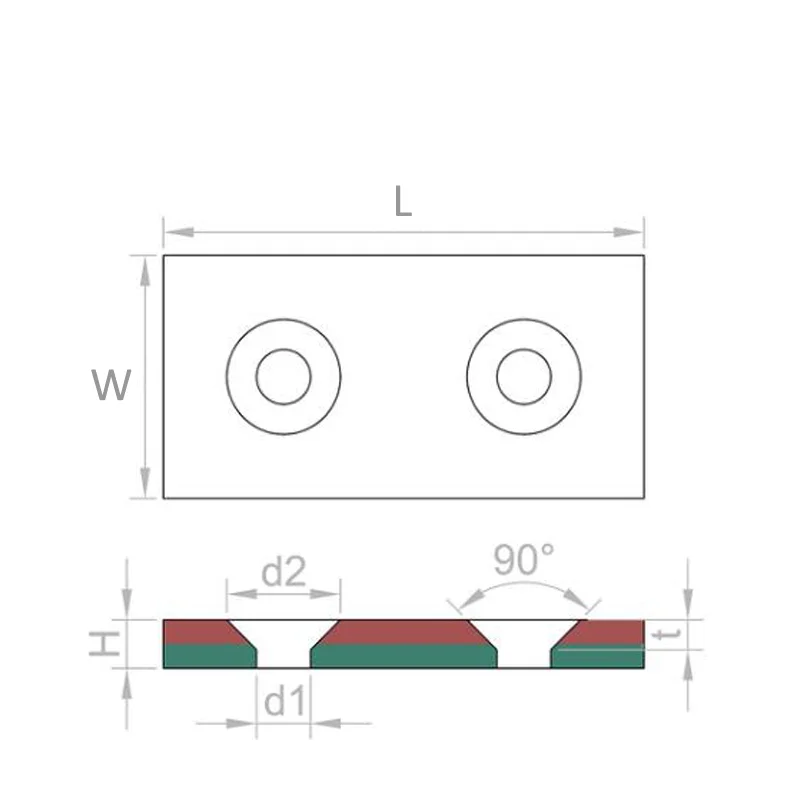

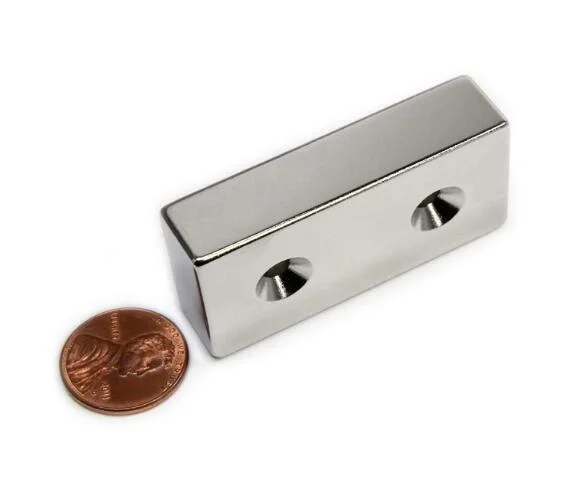

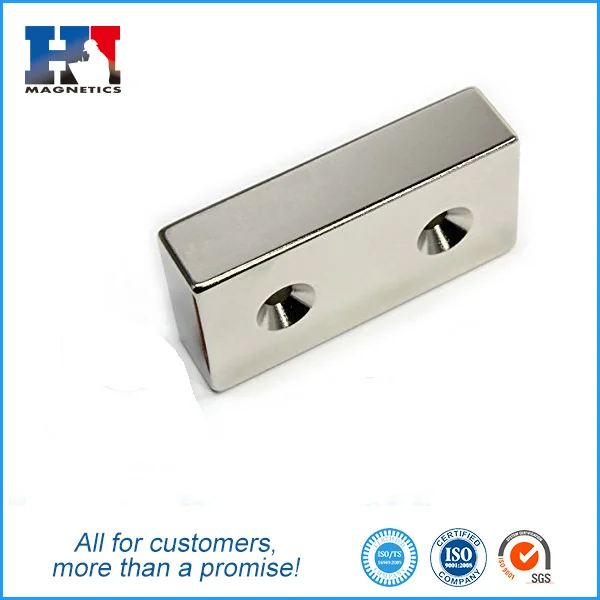

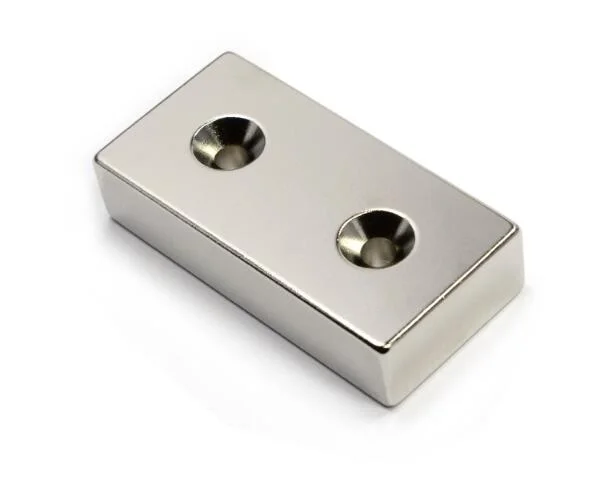

N52 super permanent strong magnet ndfeb sheet magnet rare earth rectangular countersunk hole neodymium magnet block
- Category: >>>
- Supplier: Xiamen Hitech Magnetics Co. Ltd.
Share on (1600918045951):
Product Overview
Description

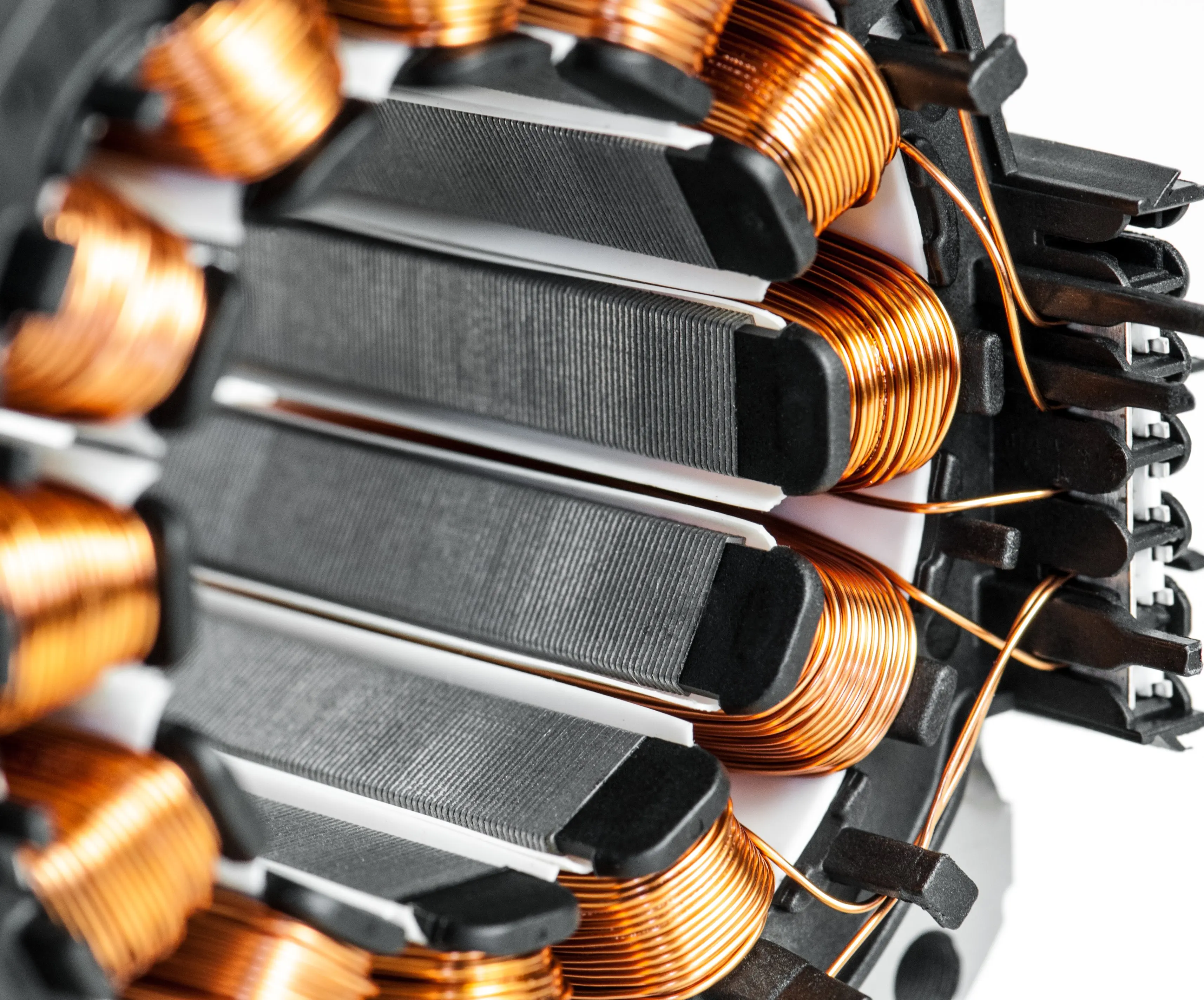

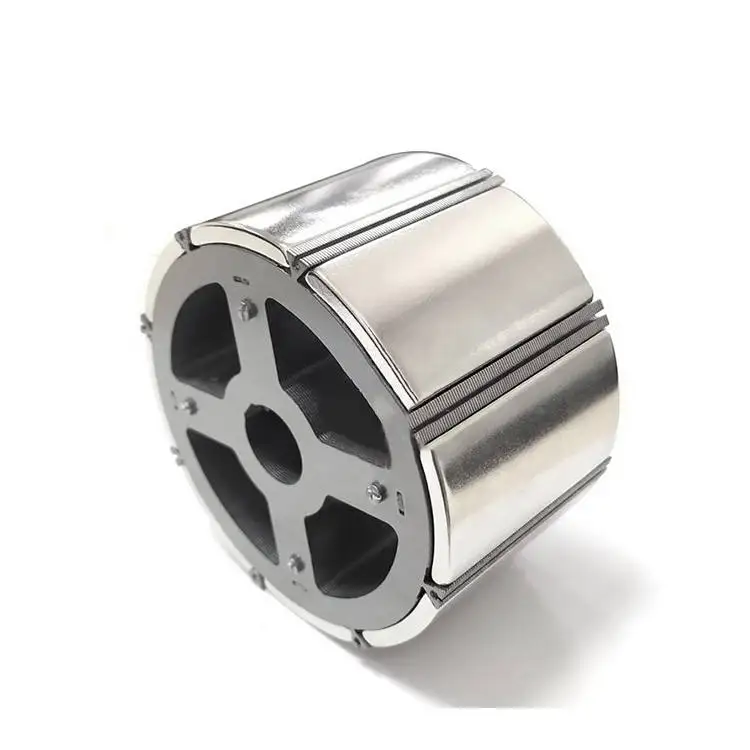

An electric motor magnet is a magnetic element used to generate a magnetic field, typically made of magnetic materials such as steel, iron, chromium, nickel, cobalt, and so on. In an electric motor, magnets are usually used to generate a rotating magnetic field to drive the motor rotation. Electric motor magnets can be divided into direct current (DC) motor and alternating current (AC) motor magnets according to their working principles.
In DC motors, the magnets are usually stationary, and the rotating magnetic field is produced by a rotating coil. In AC motors,
both the magnets and the coil rotate, and the rotating force is produced by cutting the magnetic field. Electric motor magnets are
an important component of electric motors, and their quality and performance directly affect the motor's performance and lifespan.
both the magnets and the coil rotate, and the rotating force is produced by cutting the magnetic field. Electric motor magnets are
an important component of electric motors, and their quality and performance directly affect the motor's performance and lifespan.

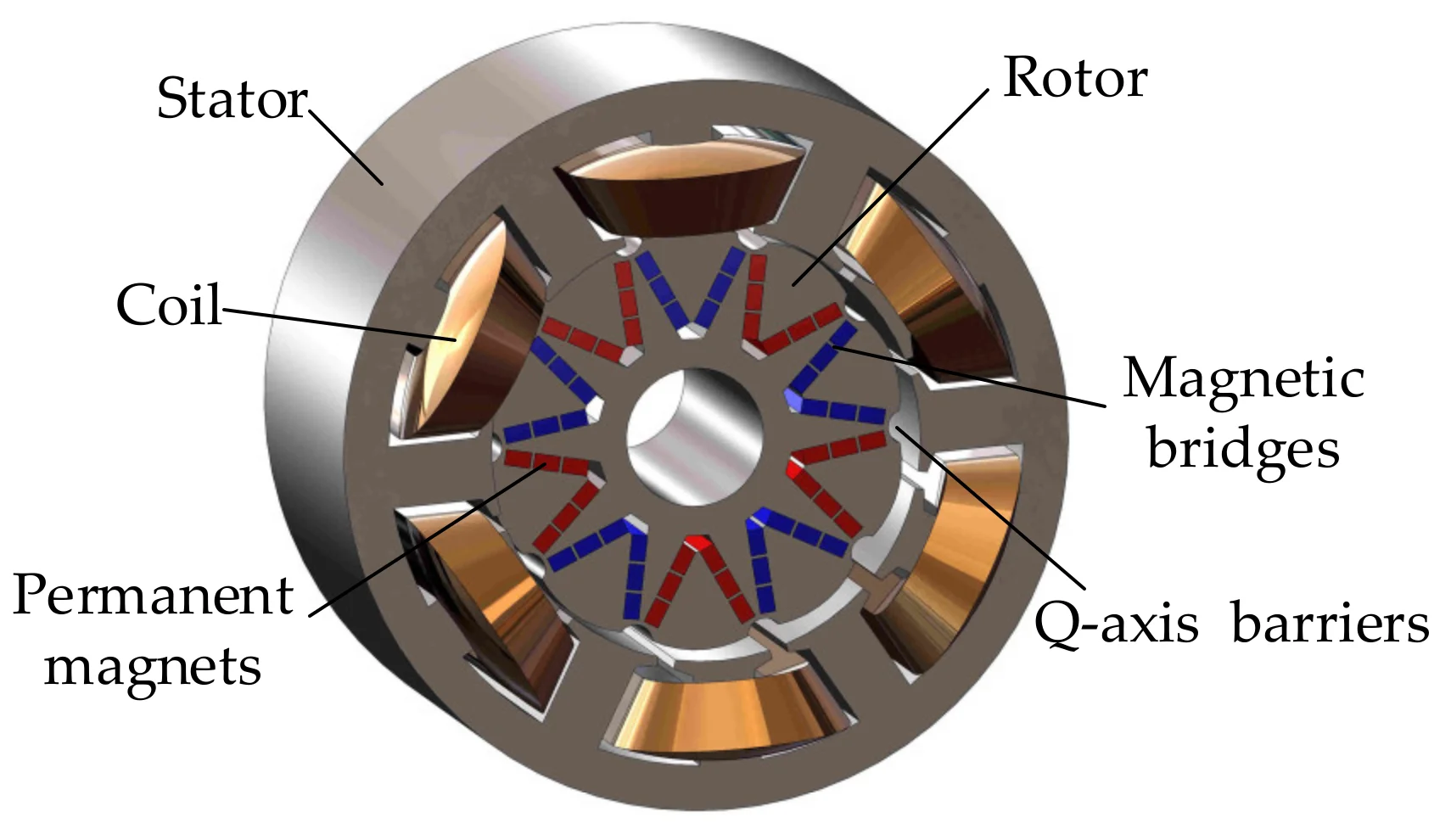

Magnets are a critical component of electric motors, and their performance directly affects the efficiency and performance of the
motor. To improve the efficiency and performance of electric motors, high-performance materials such as magnetic gases, rare-earth permanent magnets, and aluminum-nickel-cobalt magnets are used, and advanced processing techniques are employed to process and treat the magnets.
motor. To improve the efficiency and performance of electric motors, high-performance materials such as magnetic gases, rare-earth permanent magnets, and aluminum-nickel-cobalt magnets are used, and advanced processing techniques are employed to process and treat the magnets.
Products Description
Product Name | Customized Super Strong Sintered Neodymium Magnet |
Material | Neodymium-Iron-Boron |
Grade | N52 or as per client's request |
Size of magnet | Custom |
Magnetization direction | According to client's request |
Coating | Custom |
Certifications | ISO9001, CE, TS16949, ROHS, SGS, etc |
MOQ | 100 pcs |
Table of Magnet Properties
Grade | Residual magnetism | Coercive field strength | Energy product | Max. operational temp. | ||||||||||
Br | bHc | iHc | (BxH)max | |||||||||||
Gauss (G) | Tesla (T) | kOe | kA/m | kOe | kA/m | MGOe | kJ/m³ | °C | ||||||
N30 | 10800-11200 | 1.08-1.12 | 9.8-10.5 | 780-836 | ≥12 | ≥955 | 28-30 | 223-239 | ≤80 | |||||
N33 | 11400-11700 | 1.14-1.17 | 10.3-11 | 820-876 | ≥12 | ≥955 | 31-33 | 247-263 | ≤80 | |||||
N35 | 11700-12100 | 1.17-1.21 | 10.8-11.5 | 860-915 | ≥12 | ≥955 | 33-35 | 263-279 | ≤80 | |||||
N38 | 12200-12600 | 1.22-1.26 | 10.8-11.5 | 860-915 | ≥12 | ≥955 | 36-38 | 287-303 | ≤80 | |||||
N40 | 12600-12900 | 1.26-1.29 | 10.5-12.0 | 860-955 | ≥12 | ≥955 | 38-40 | 303-318 | ≤80 | |||||
N42 | 12900-13200 | 1.29-1.32 | 10.8-12.0 | 860-955 | ≥12 | ≥955 | 40-42 | 318-334 | ≤80 | |||||
N45 | 13200-13700 | 1.32-1.37 | 10.8-12.5 | 860-995 | ≥12 | ≥955 | 43-45 | 342-358 | ≤80 | |||||
N48 | 13700-14200 | 1.37-1.42 | 10.8-12.5 | 860-995 | ≥12 | ≥955 | 45-48 | 358-382 | ≤80 | |||||
N50 | 14000-14600 | 1.40-1.46 | 10.8-12.5 | 860-995 | ≥12 | ≥955 | 47-51 | 374-406 | ≤80 | |||||
N52 | 14200-14700 | 1.42-1.47 | 10.8-12.5 | 860-995 | ≥12 | ≥955 | 48-53 | 380-422 | ≤65 | |||||
Magnet Plating and Coating Options

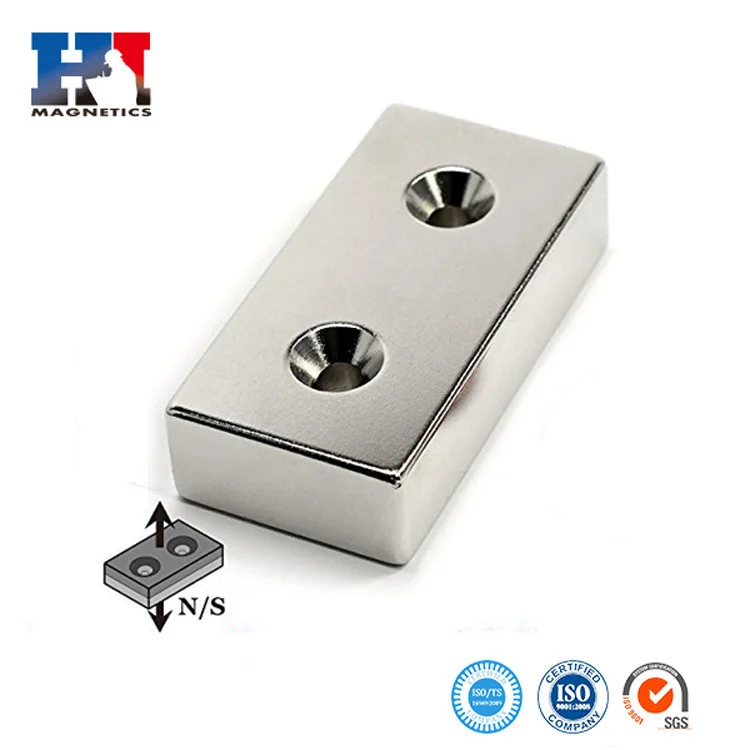

Magnetization Direction
Application
Why Choose Us
FAQ
Q: May we get a sample of the product? How to ship and how to pay ?
A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.
Q: What magnet materials are available?
A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.
Q:Can you supply custom magnets?
A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .
Q:Do you have a minimum purchase order?

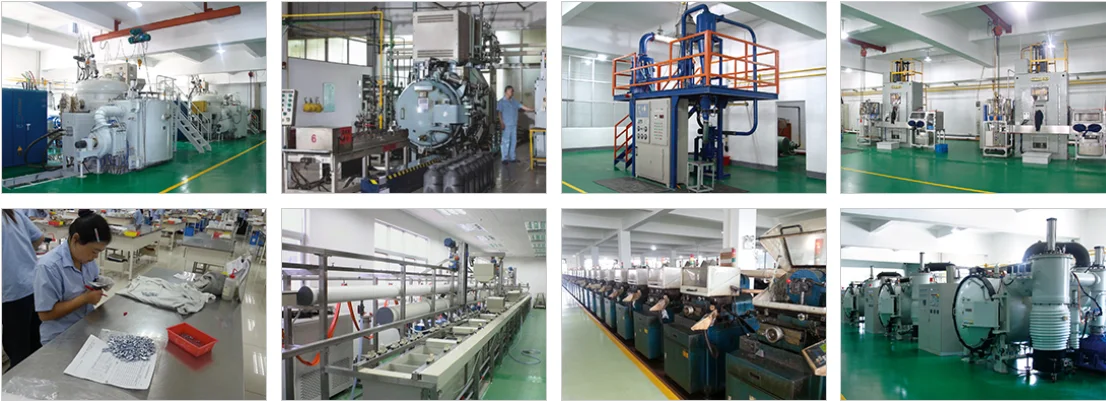

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .
Q: How many days does it take to ship my order?
A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .
Q:What elements affect the magnet price ?
A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.
Q: What magnet materials are available?
A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.
Q:Can you supply custom magnets?
A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .
Q:Do you have a minimum purchase order?
A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .
Q: How many days does it take to ship my order?
A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .
Q:What elements affect the magnet price ?
A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
