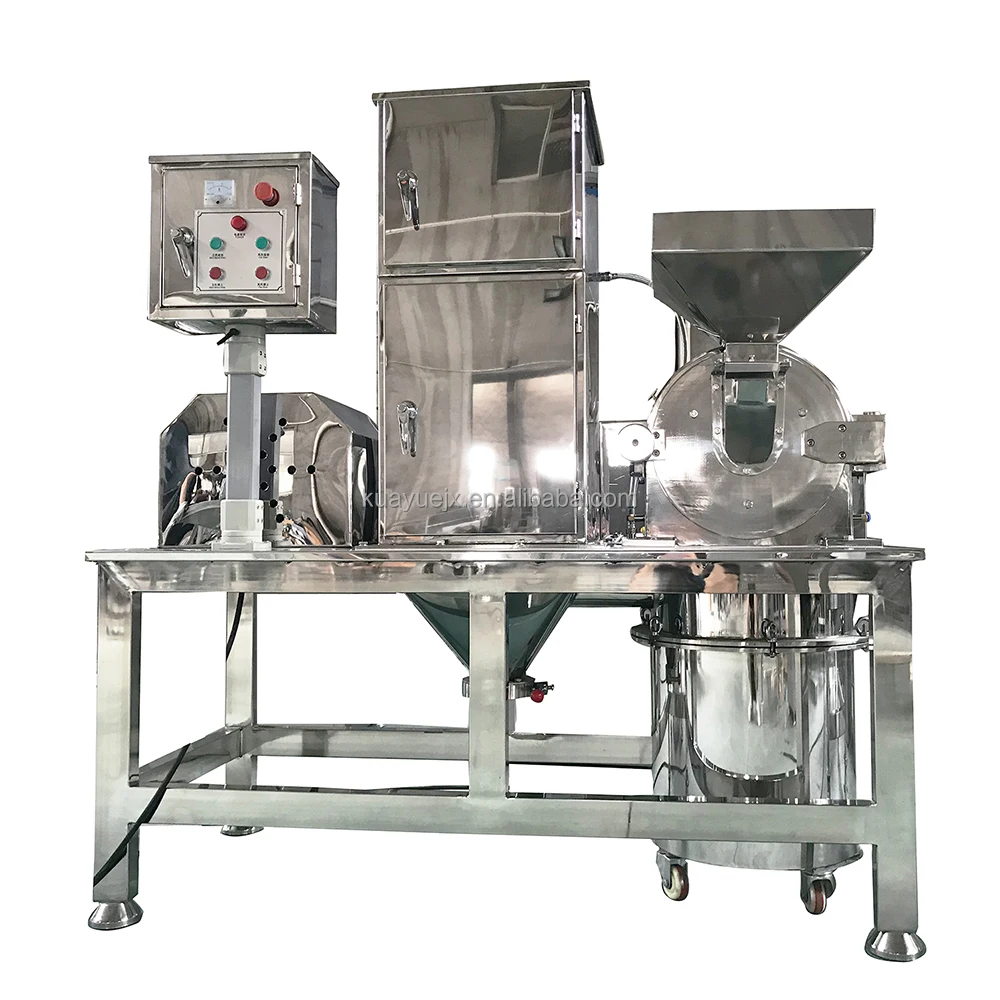

Black pure cocoa powder grinding cacao bean processing making machine
- Category: >>>
- Supplier: Jiangyin Kuayue Machinery Co. Ltd.
Share on (1600918074496):
Product Overview
Description
Product Description
Introduction

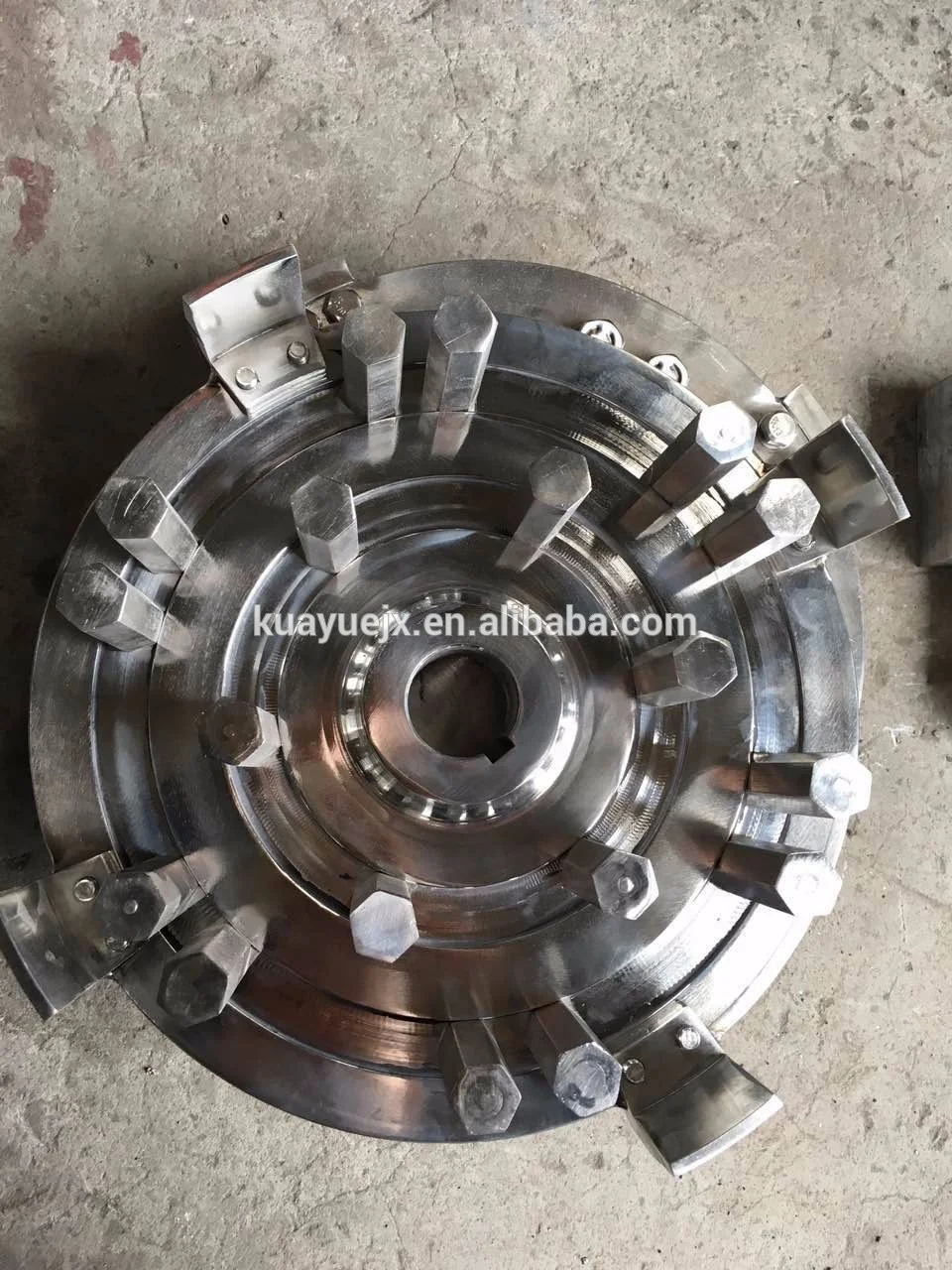

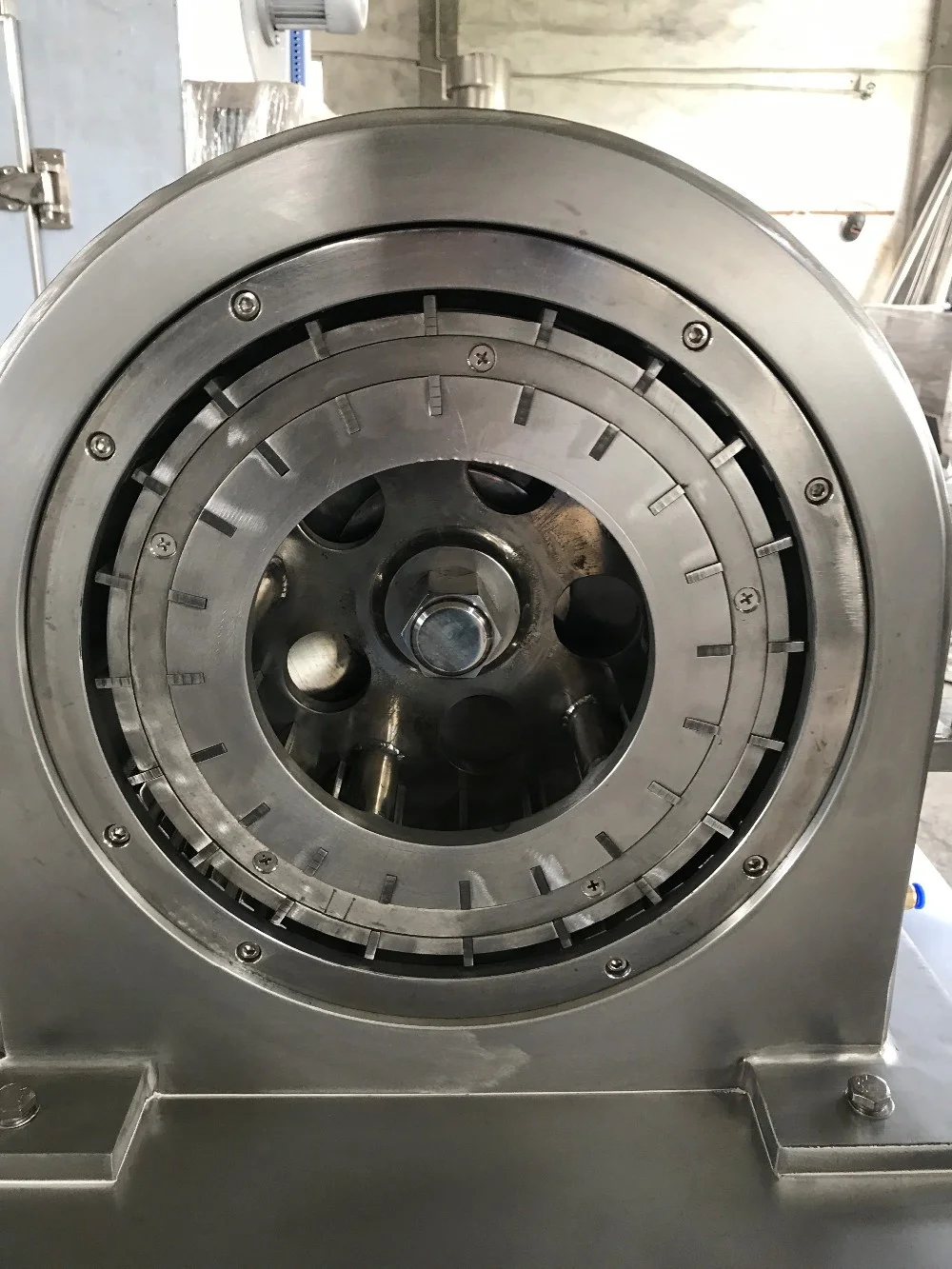

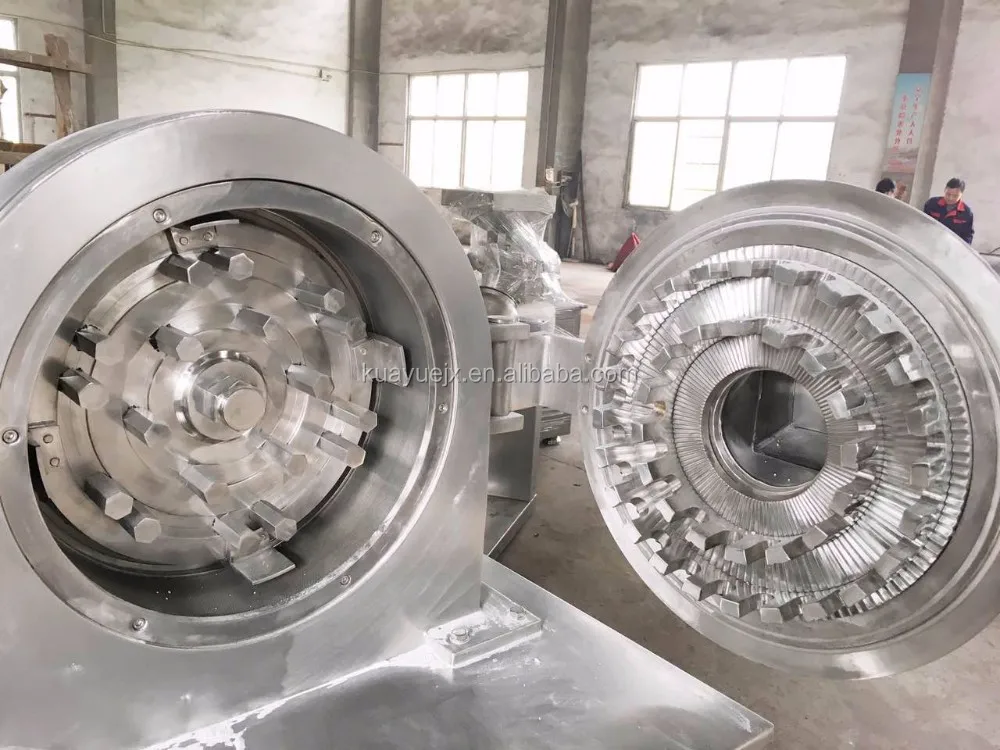

Universal pulverizer is a kind of grinding processing machinery, the working principle is to use the movable tooth disc and fixed tooth disc of high-speed relative movement, so that the crushed objects by the impact of teeth, the composite action of friction and material impacting each other is pulverized. The universal grinder has simple structure, strong, stable operation and good crushing effect. The crushed material can be discharged directly from the main mill cavity. Universal grinder is applicable to agriculture, food,chemical,alloy,metallurgy and other industries, is the supporting equipment of micro-grinding process, it is notsubject to material viscosity, hardness, softness andfiber, etc. , it can play a good role in crushing any material.
Features
1. Uniform Fineness: (finished product pass rate ≥98%) , can smooth screening
2. High Output: the series can produce 2000Kg/h, and according to customer needs can be tailored to produce larger non-standard
equipment to meet the use of high-output customer requirements
3. Application: suitable for crushing all kinds of grains, sugar, plastic and so on

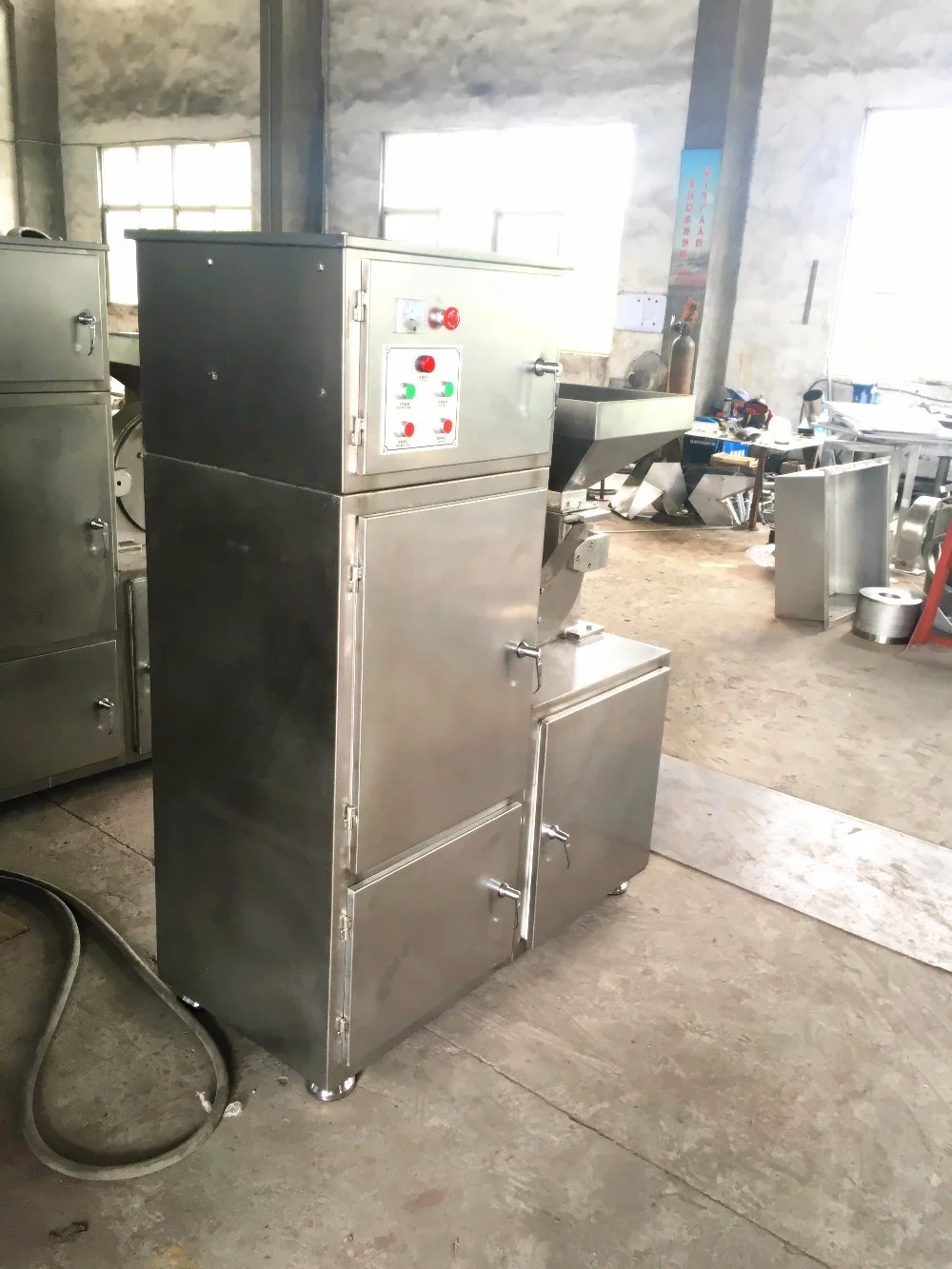

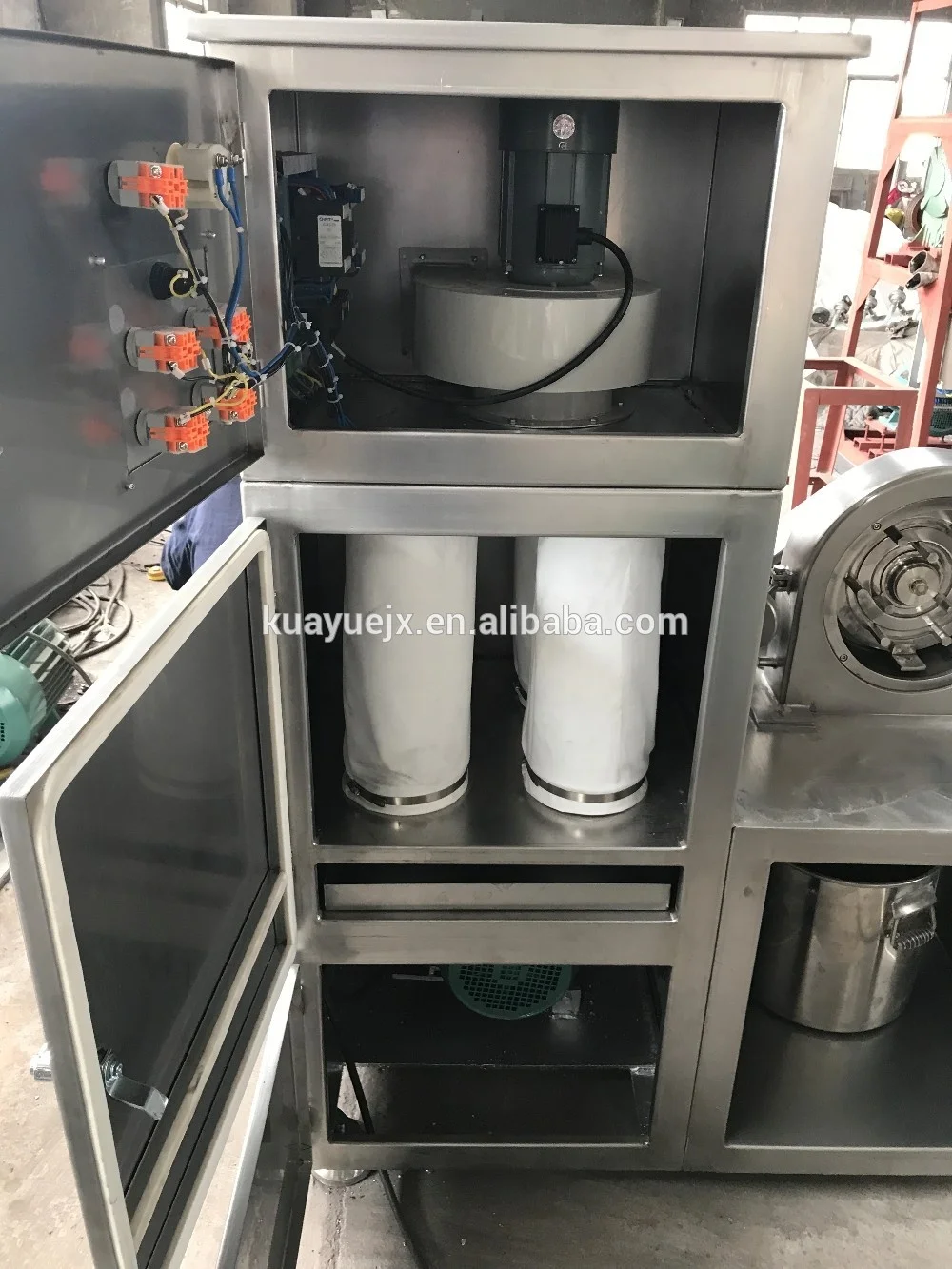

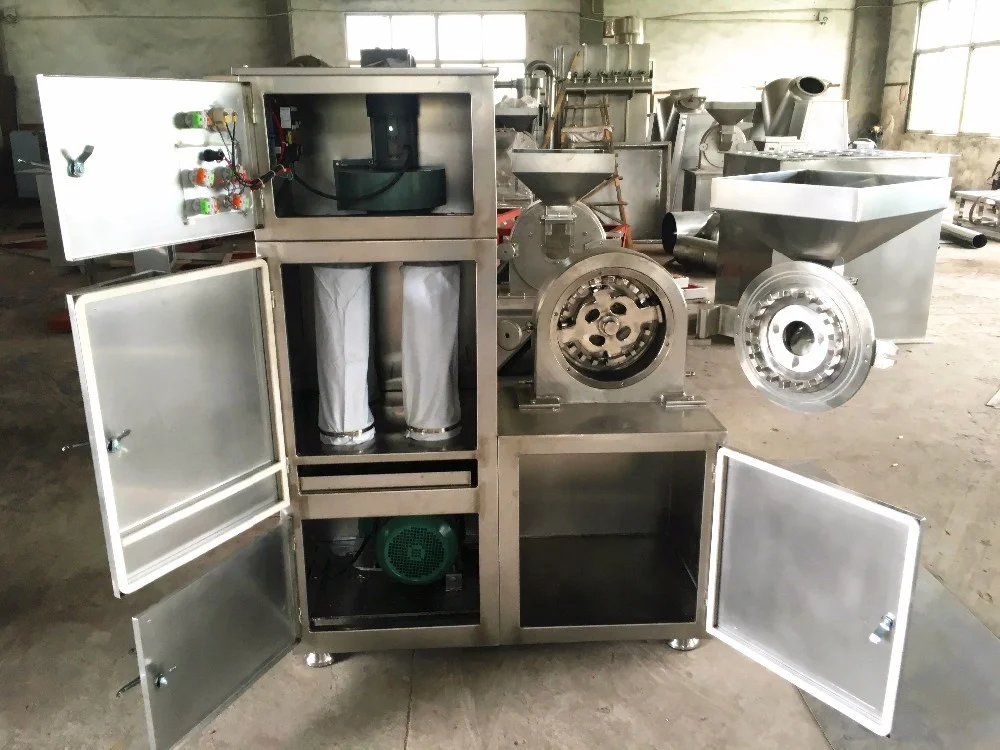

4. Dedusting method: simple dedusting and Pulse dedusting
5.Material: All Stainless Steel
6.Operating system: normal buttons
7. Crushing methods: gear plate, air-cooled, hammer, turbine.
Universal pulverizer is a kind of grinding processing machinery, the working principle is to use the movable tooth disc and fixed tooth disc of high-speed relative movement, so that the crushed objects by the impact of teeth, the composite action of friction and material impacting each other is pulverized. The universal grinder has simple structure, strong, stable operation and good crushing effect. The crushed material can be discharged directly from the main mill cavity. Universal grinder is applicable to agriculture, food,chemical,alloy,metallurgy and other industries, is the supporting equipment of micro-grinding process, it is notsubject to material viscosity, hardness, softness andfiber, etc. , it can play a good role in crushing any material.
Features
1. Uniform Fineness: (finished product pass rate ≥98%) , can smooth screening
2. High Output: the series can produce 2000Kg/h, and according to customer needs can be tailored to produce larger non-standard
equipment to meet the use of high-output customer requirements
3. Application: suitable for crushing all kinds of grains, sugar, plastic and so on
4. Dedusting method: simple dedusting and Pulse dedusting
5.Material: All Stainless Steel
6.Operating system: normal buttons
7. Crushing methods: gear plate, air-cooled, hammer, turbine.
Specification
Model | WF-20B | WF-30B | WF-40B | WF-60B | WF-80B | ||||
Production Capacity (kg) | 30~80 | 80~200 | 200~400 | 400~800 | 500~1000 | ||||
Feeding size(mm) | <6 | <10 | <10 | <10 | <10 | ||||
Crushing fiteness (mesh) | 10-120 | ||||||||
Motor power(kw) | 4 | 5.5 | 7.5 | 18.5 | 22 | ||||
Spindle speed(rpm) | 3800 | 3400 | 2800 | 2800 | 2400 | ||||
Weight(kg) | 300 | 400 | 500 | 800 | 1100 | ||||
Overall dimension (L*W*H)(mm) | 550*550*1300 | 650*650*1400 | 750*750*1650 | 900*900*1800 | 1100*1100*2100 | ||||

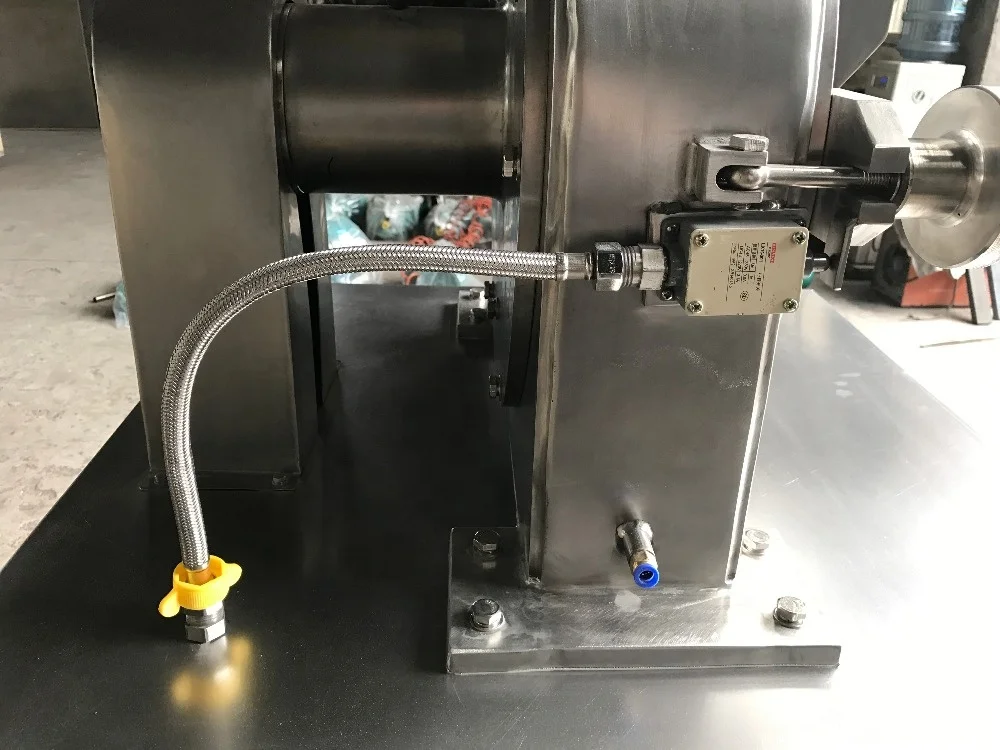

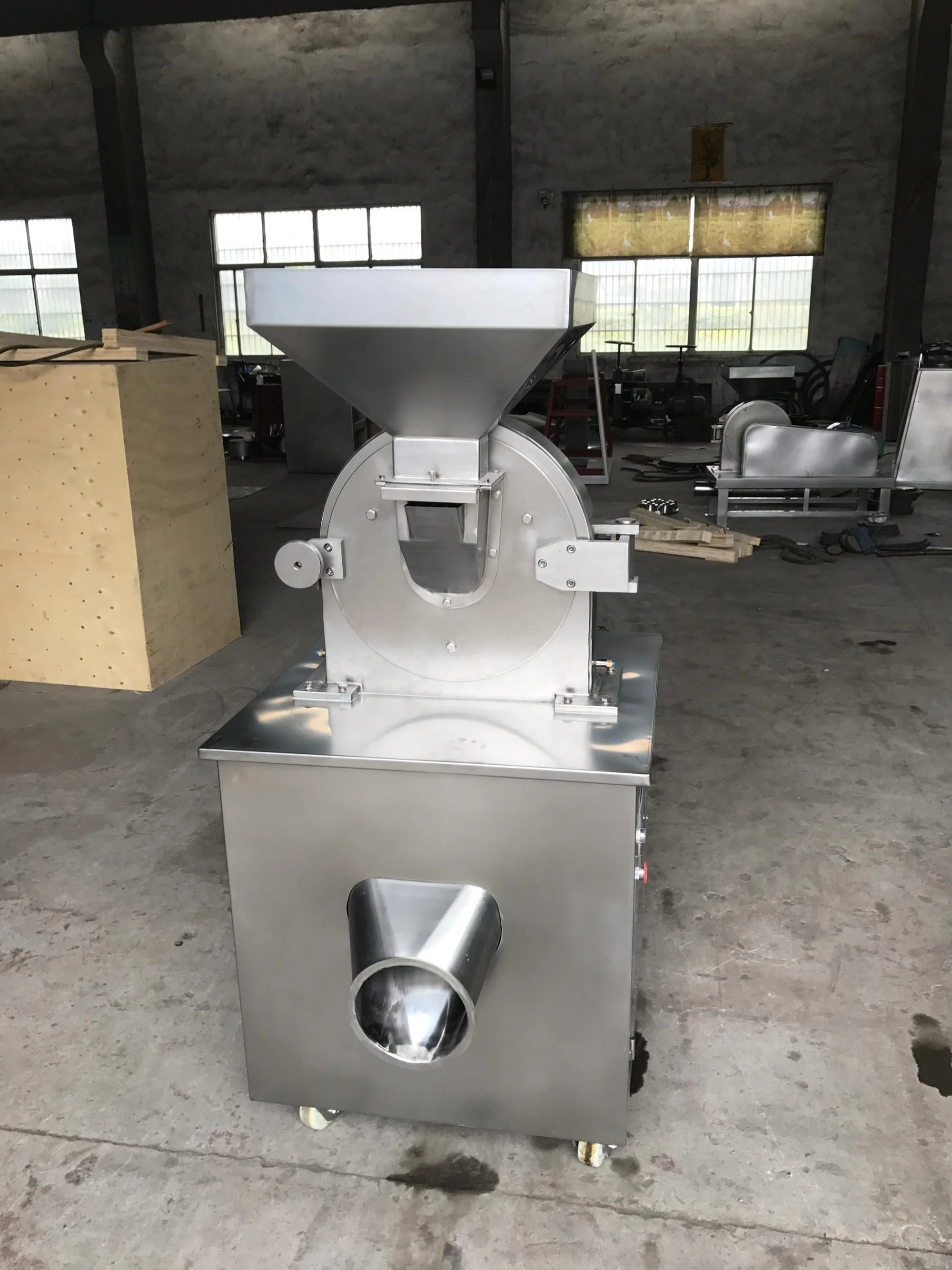

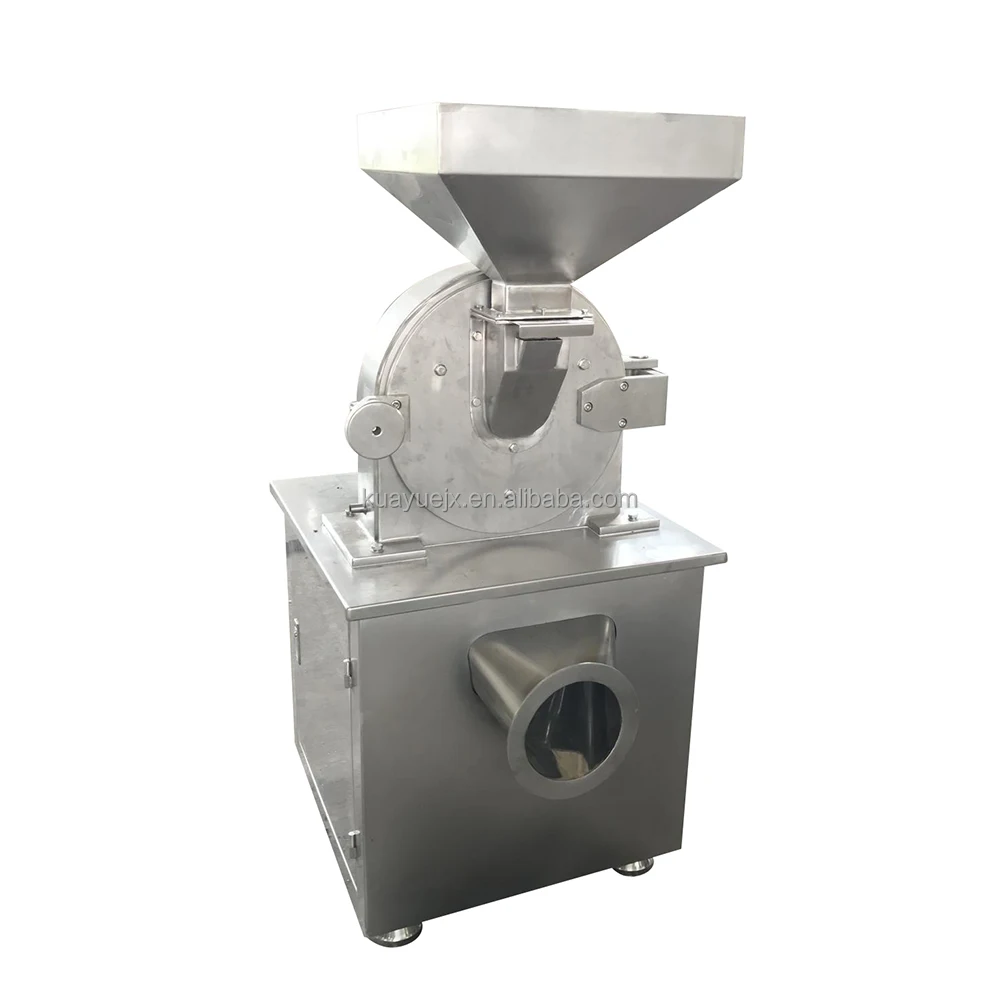

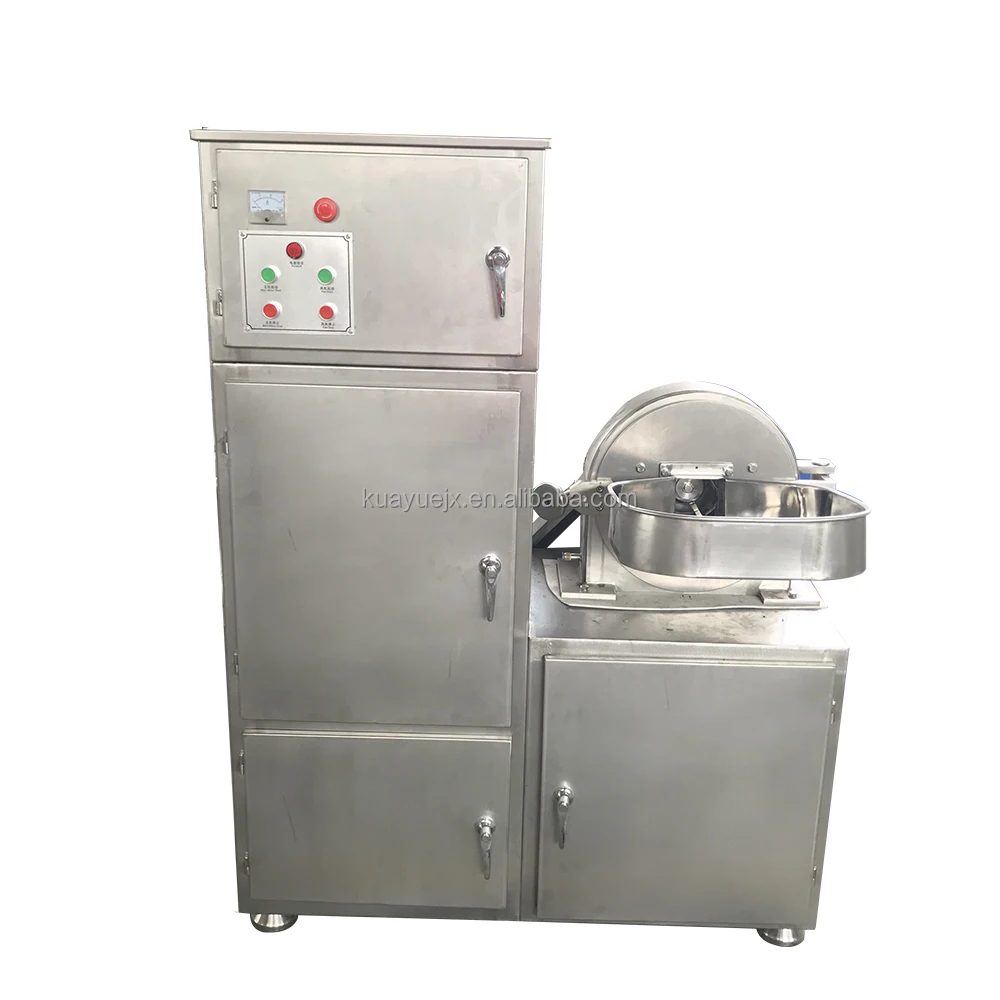

Details Images
Packing & Delivery
wooden case or container for Powder Pulverizer.
