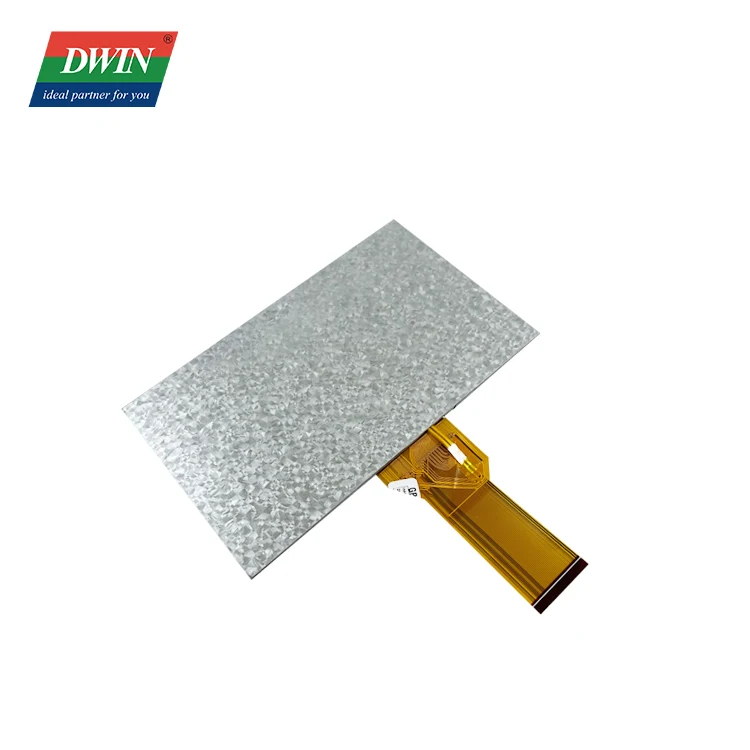

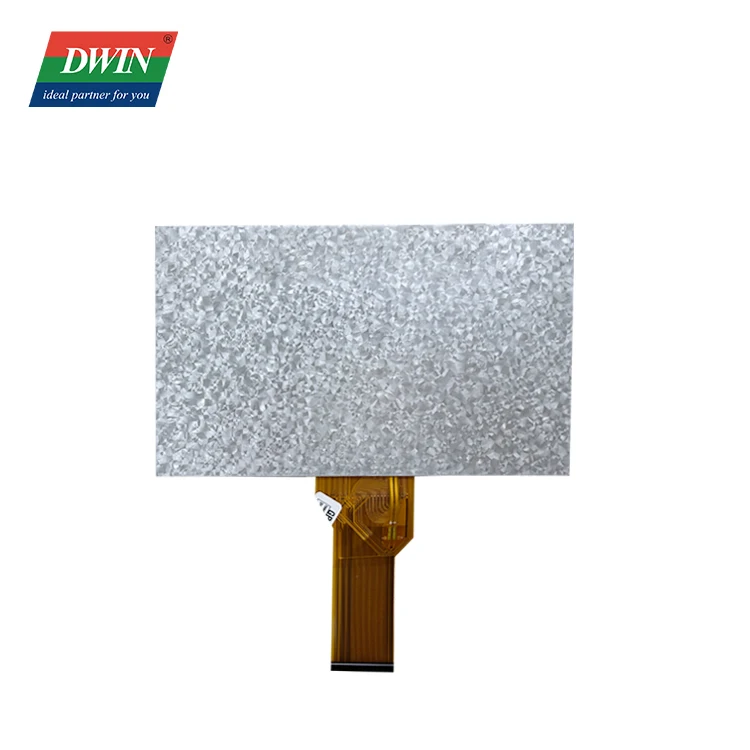

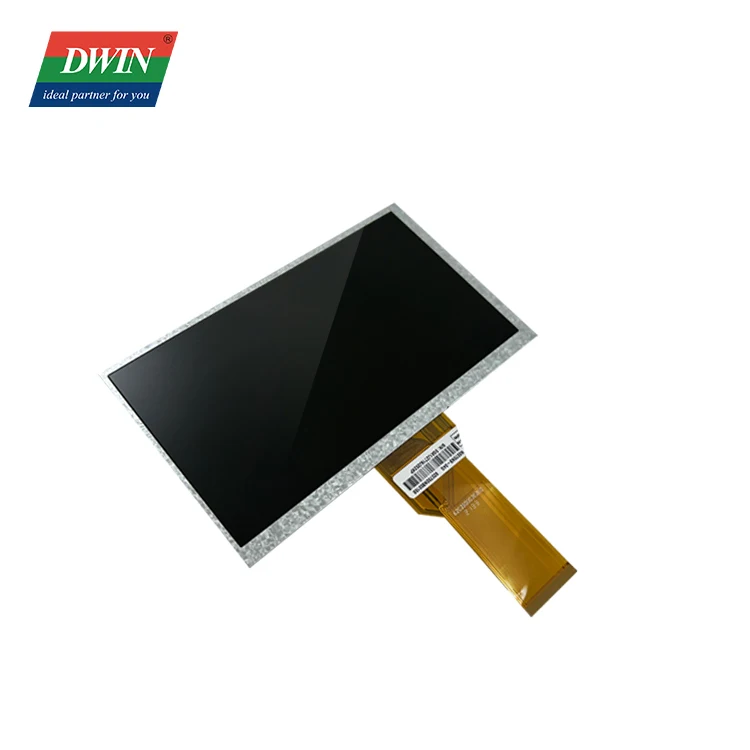

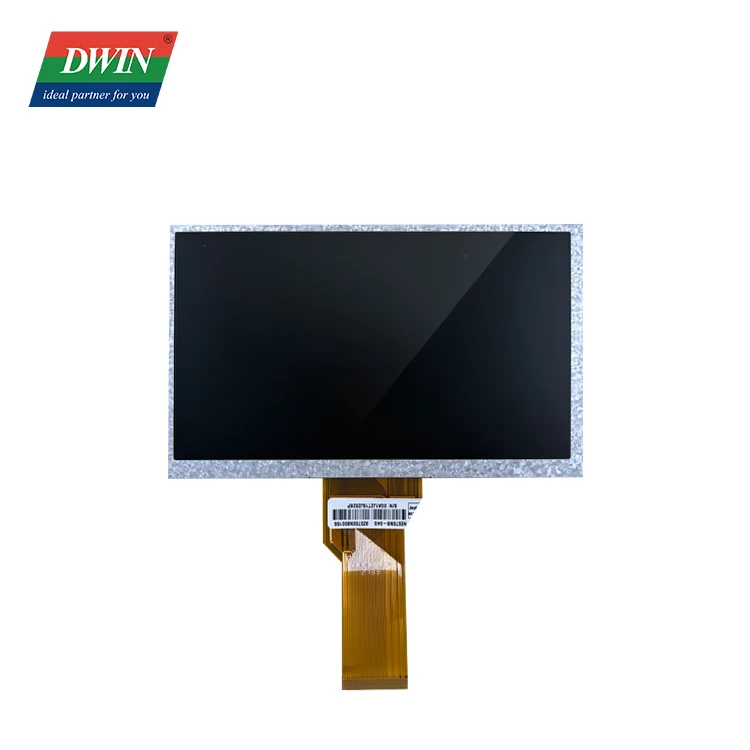

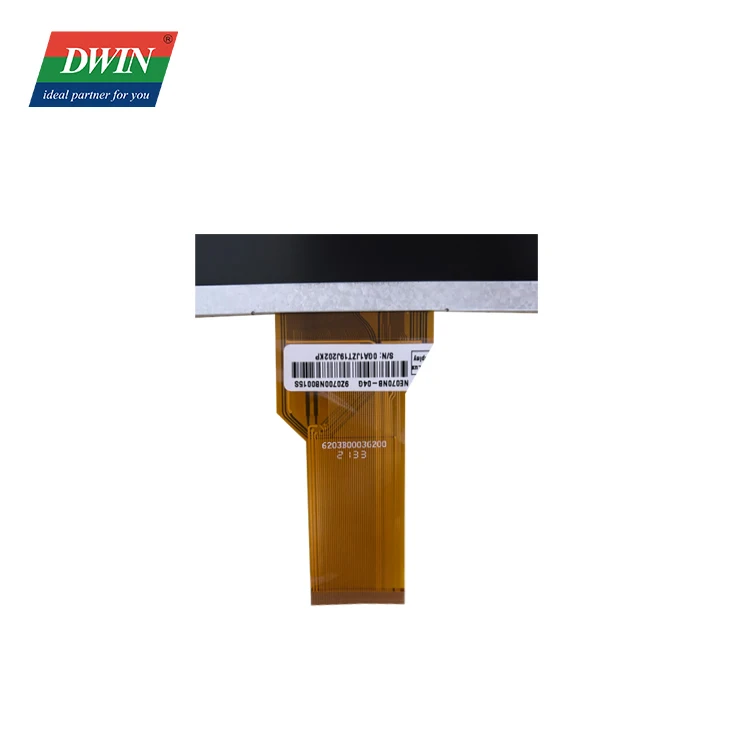

DWIN 7 Inch 800x480 24bit RGB 50PIN TN TFT LCD Monitor Capacitive Resistive Touch GT911 I2C Interface LN80480T070IB3098
- Category: >>>
- Supplier: Beijing DWIN Technology Co. Ltd.
Share on (1600918084375):
Product Overview
Description
Product Details

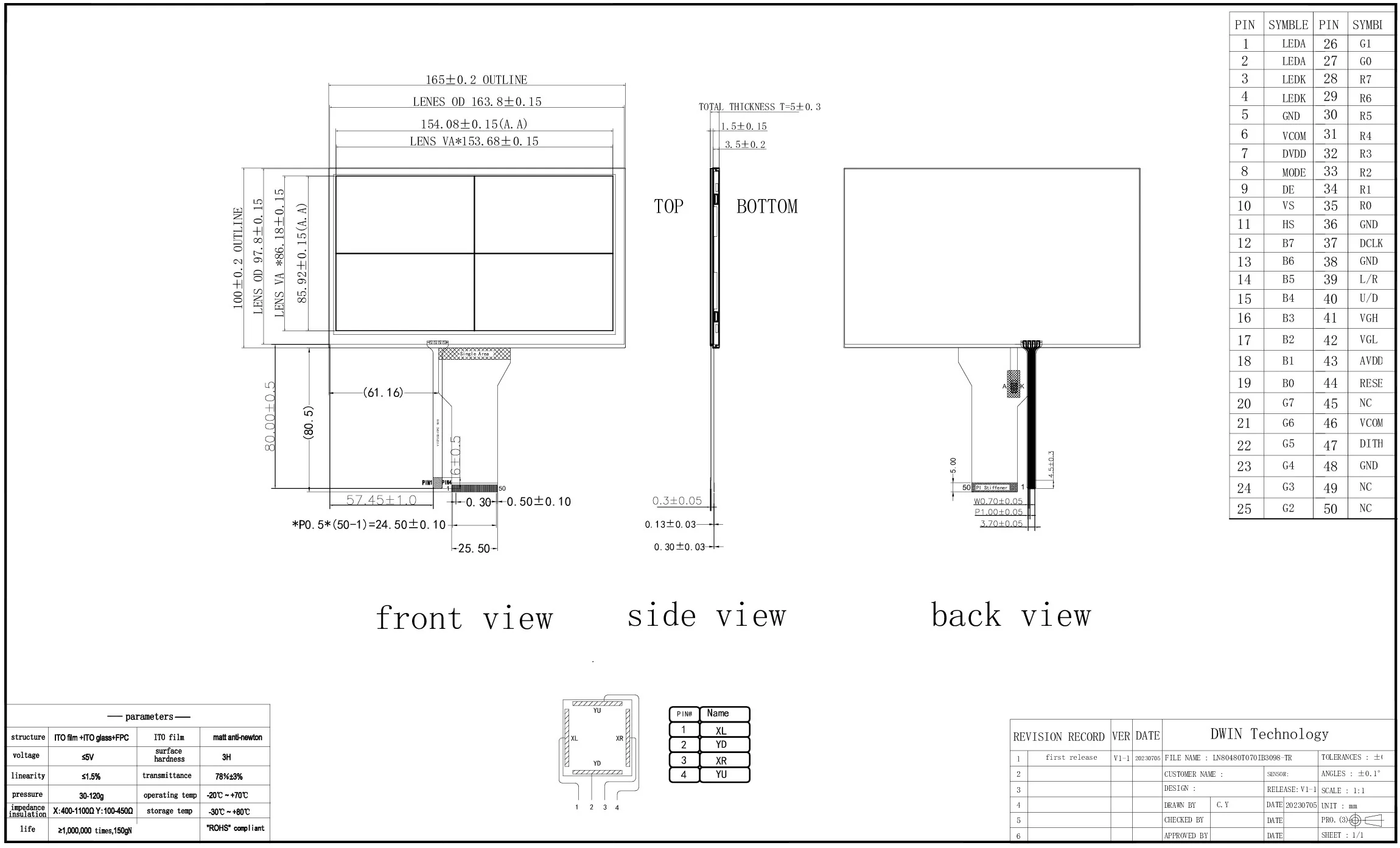

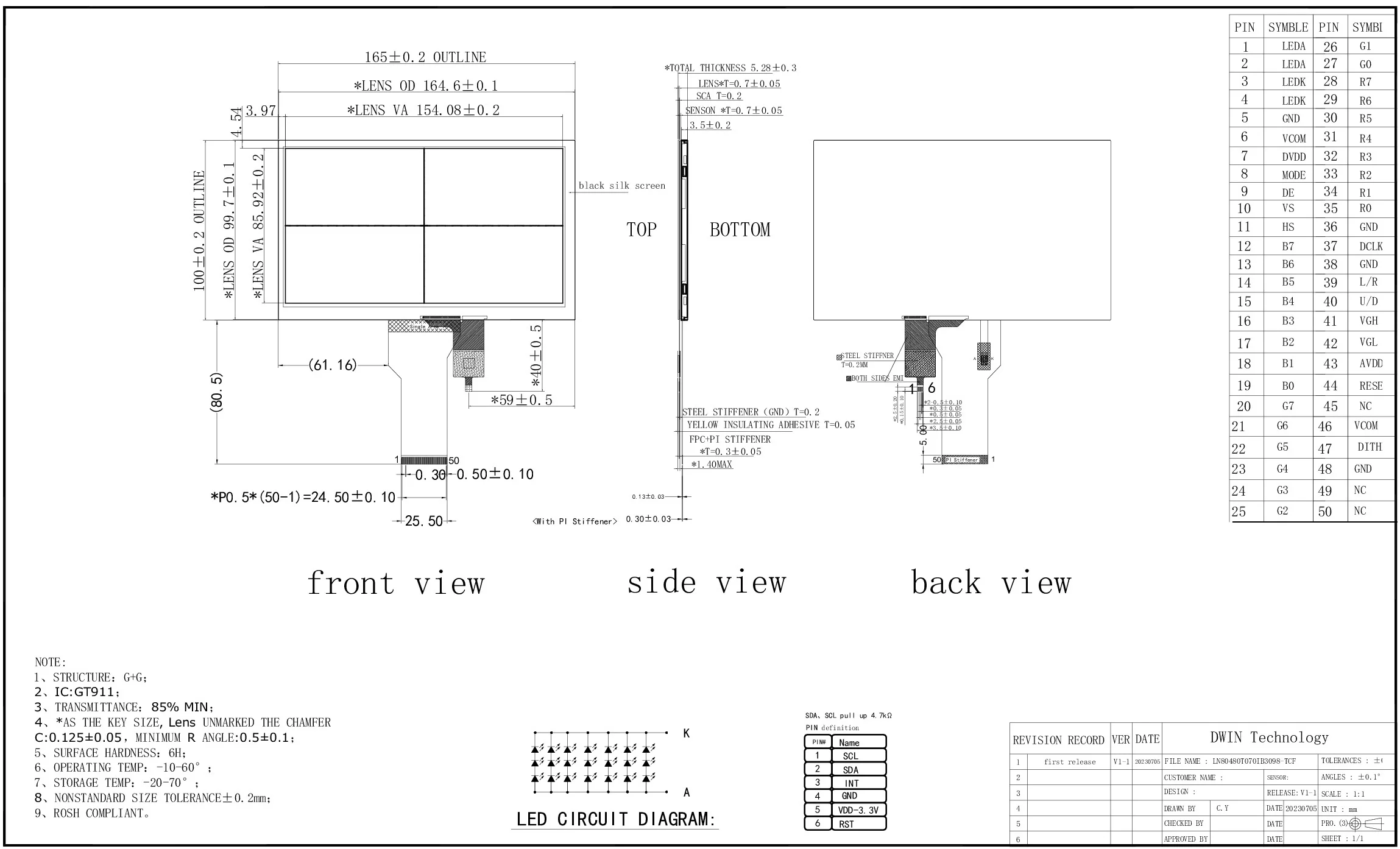

LN80480T070IB3098 is LCD without touch, LN80480T070IB3098-TR is LCD with resistive touch, LN80480T070IB3098-TCF is LCD with capacitive(Touch IC: GT911)
Specification
—7 inch 800x480 TN TFT LCD
—RGB_24bit 50PIN_0.5mm
—300 cd/m² 21LEDs
—Support customized service: luminance, high temperature, interface, cable length&shape, anti-glare etc
Main Parameters
Item | Description | Unit |
Size | 7.0 | inch |
Resolution | 800(H)*480(V) | pixels |
Pixel Configuration | RGB island | - |
Pixel Pitch | 0.0642(H)*0.1790(V) | mm |
Viewing Direction | 6 o’clock | - |

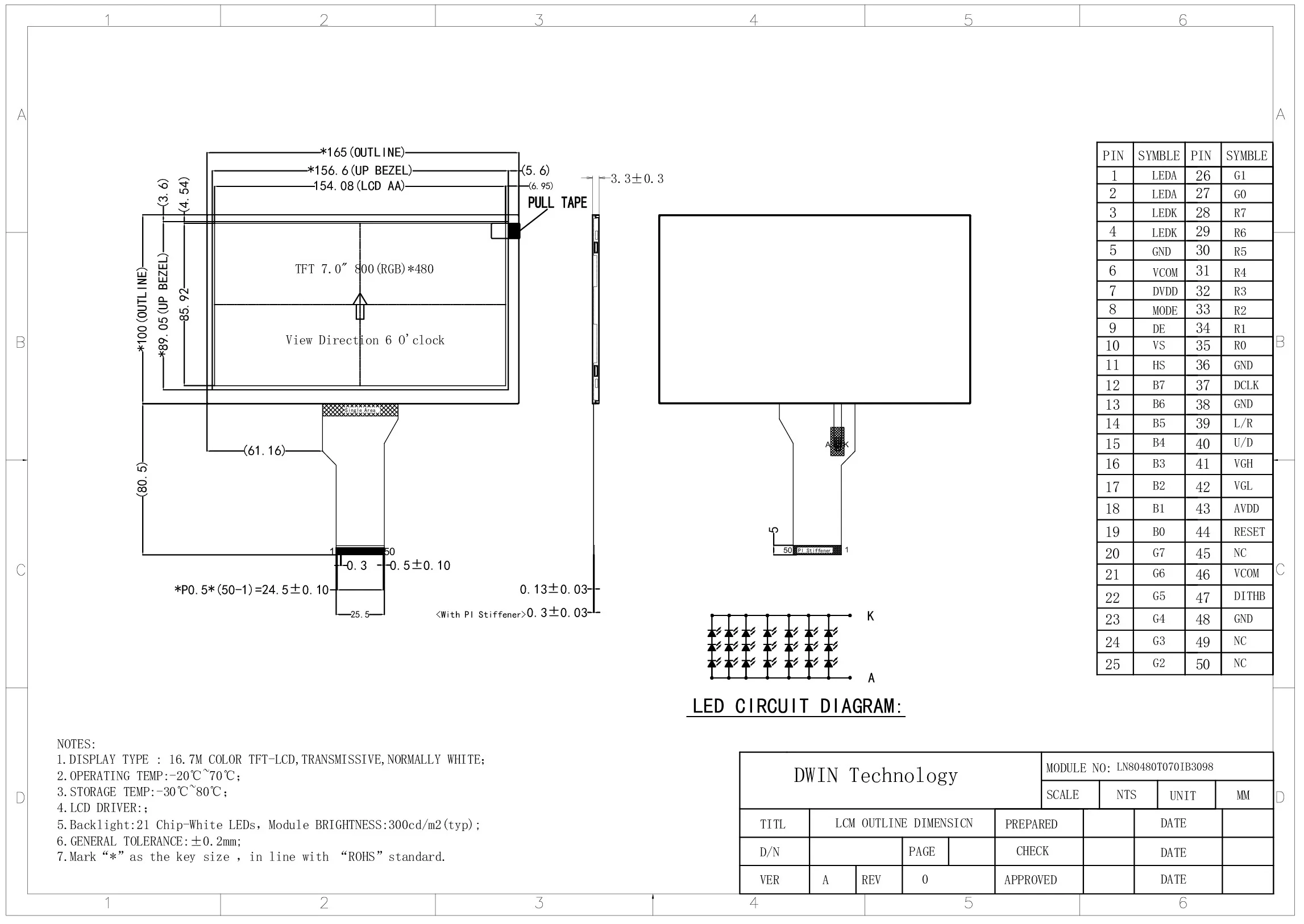

Outside Dimension | 165.0(W)*100.0(H)*3.3(D) | mm |
Active Area | 154.08(W)*85.92(H) | mm |
Luminance | 300 | cd/m² |
Luminance(with resistive) | 200 | cd/m² |
Luminance(with capacitive) | 250 | cd/m² |
LED Numbers | 21 LEDS | - |
Interface | RGB_24bit 50PIN _0.5mm | - |
Color Depth | 16.7M | colors |
Driver IC | EK79713BCGB/EK73202ACGB | - |
Operating Temp. | -20~70 | ℃ |
Storage Temp. | -30~80 | ℃ |
Digital Voltage | 3.3 | V |
Forward Voltage | 9 | V |
Forward Current | 140 | mA |
Uniformity(with L/G) | 80 | % |
LED Life-Time | 30000 | Hour |
Contrast Ratio | 500:1 | - |
Response Time | 25 | ms |
Transmittance(w/o DBEF) | 4.61 | % |
Company Profile
DWIN was founded at Zhongguancun in Beijing, the "China's Silicon Valley" in 2003. DWIN has grown at an average annual rate of 65%. The company has also set up regional marketing and application support centers at Beijing, Suzhou, Hangzhou, Changsha, Guangzhou and Shenzhen in China as well as overseas countries such as India, Poland, Brazil and the United States, providing services for customers all over the world.

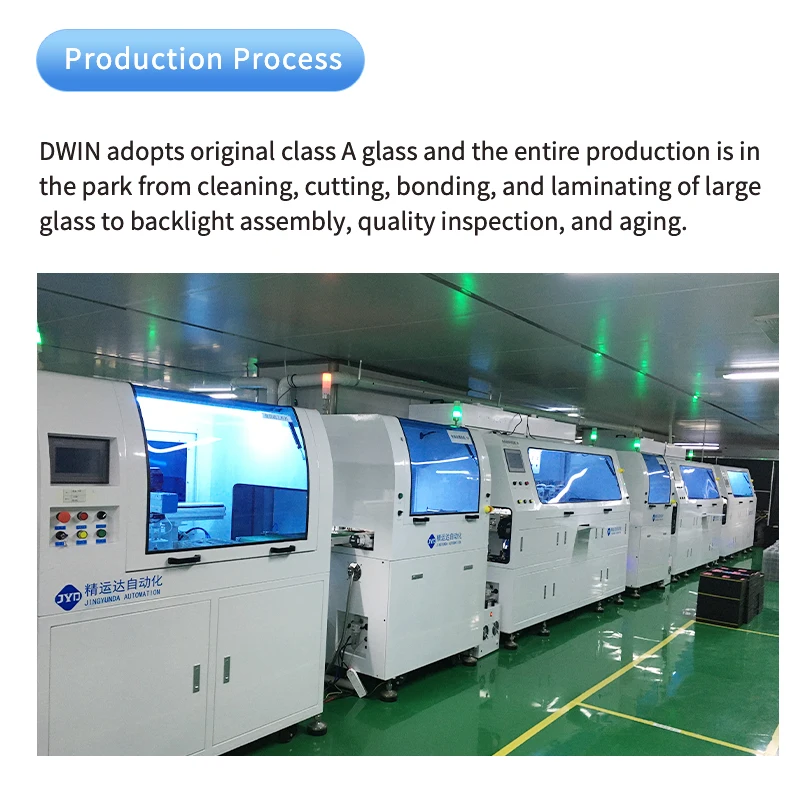

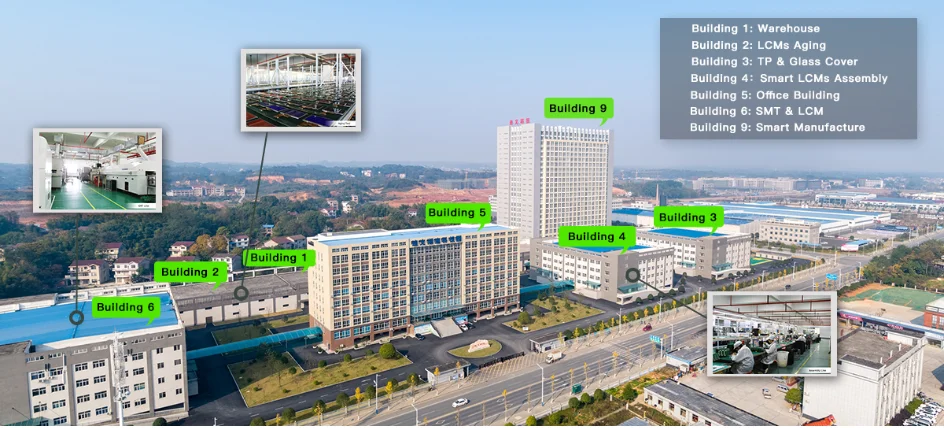

We are a 20 years manufacturer of TFT-LCD, touch panel and smart display, We have an industrial park of 400,000 square meters, which can produce 2.5 million LCD displays every month and each LCD undergoes 30 days of charged aging. DWIN is committed to providing customers with high-quality products.
Why Choose Us
High productivity: 2.5 million pcs monthly
High standard: OEM A-grade glass, 30 days charged aging, no bad pixels and full inspection

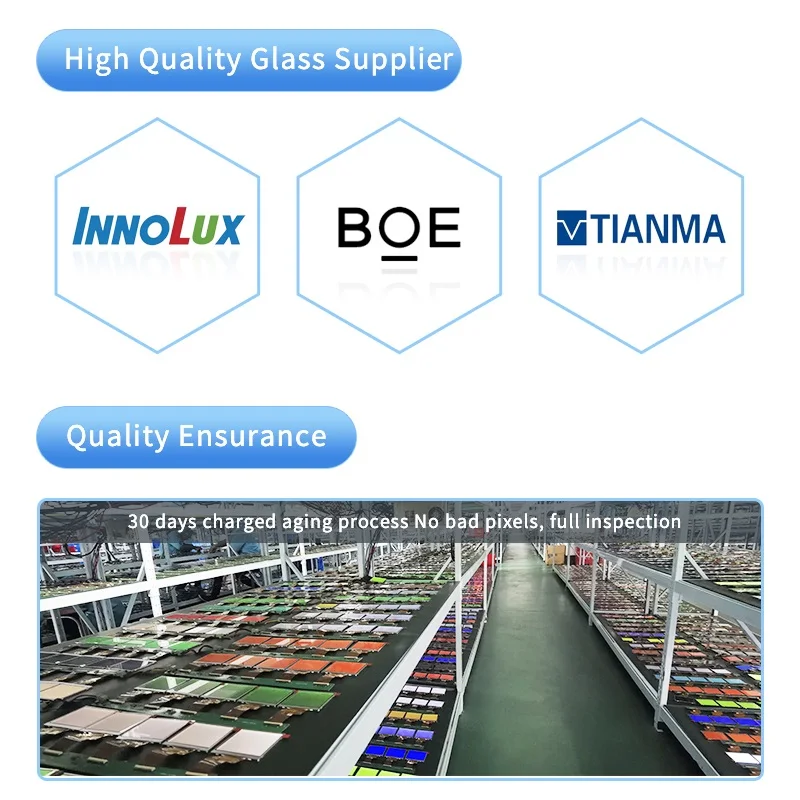

Quality Assurance

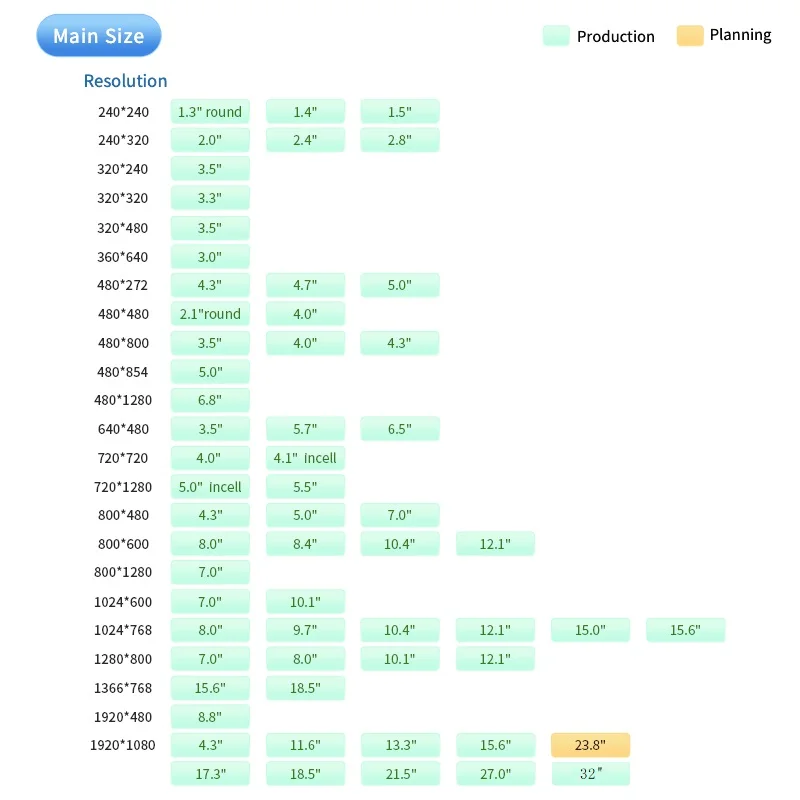

Main Size for TFT LCD
Customized Service
FAQ
1. How can you guarantee quality for TFT LCD?
A: We have high quality glass suppliers. Such as, Tianma, Innolux, Hannstar and BOE. Our products must be 100% tested and 30 days charged aging.
2. What interfaces do you have for TFT LCD?
A: We have RGB, LVDS, MIPI and HDMI interfaces.
3. What size TFT LCD can you provide?
A: We can provide 1.3 inch to 32 inch TFT LCD.
4. Do you provide technical support?
A: Yes, we can provide free technical support. We have professional technical and R&D team.
5. What shipping ways do you support?
A: We support Fedex, DHL and UPS etc.
A: We have high quality glass suppliers. Such as, Tianma, Innolux, Hannstar and BOE. Our products must be 100% tested and 30 days charged aging.
2. What interfaces do you have for TFT LCD?
A: We have RGB, LVDS, MIPI and HDMI interfaces.
3. What size TFT LCD can you provide?
A: We can provide 1.3 inch to 32 inch TFT LCD.
4. Do you provide technical support?
A: Yes, we can provide free technical support. We have professional technical and R&D team.
5. What shipping ways do you support?
A: We support Fedex, DHL and UPS etc.
If you want more information, please contact us for free!
