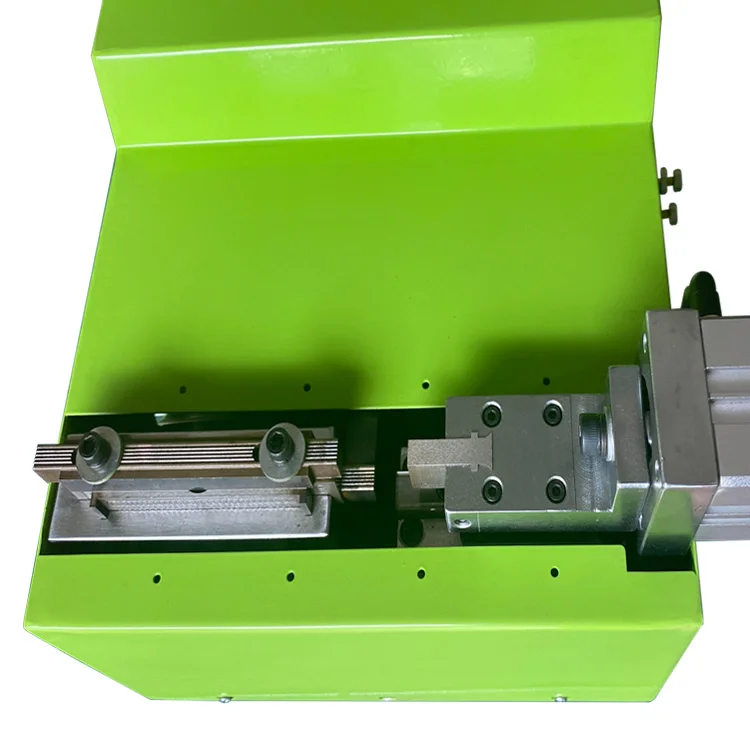

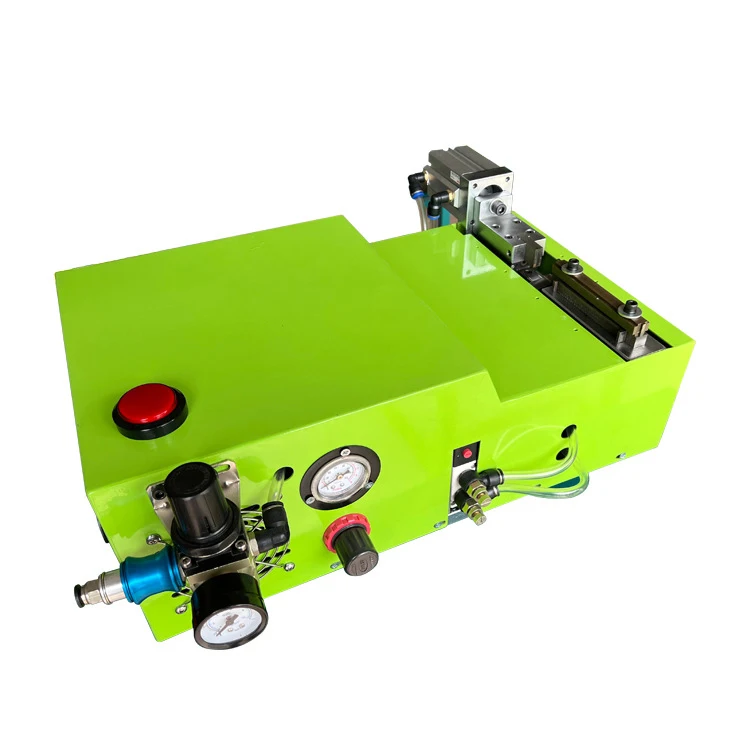

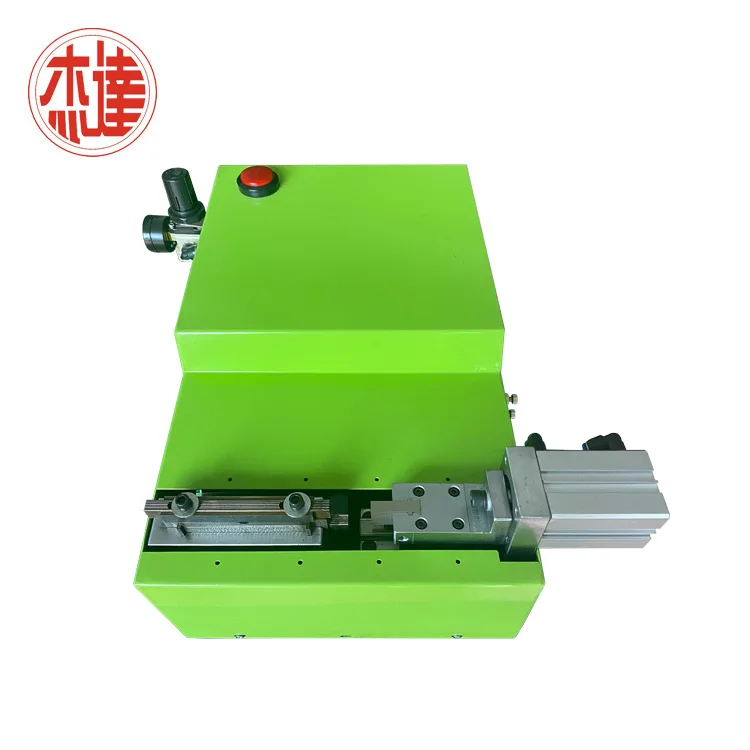

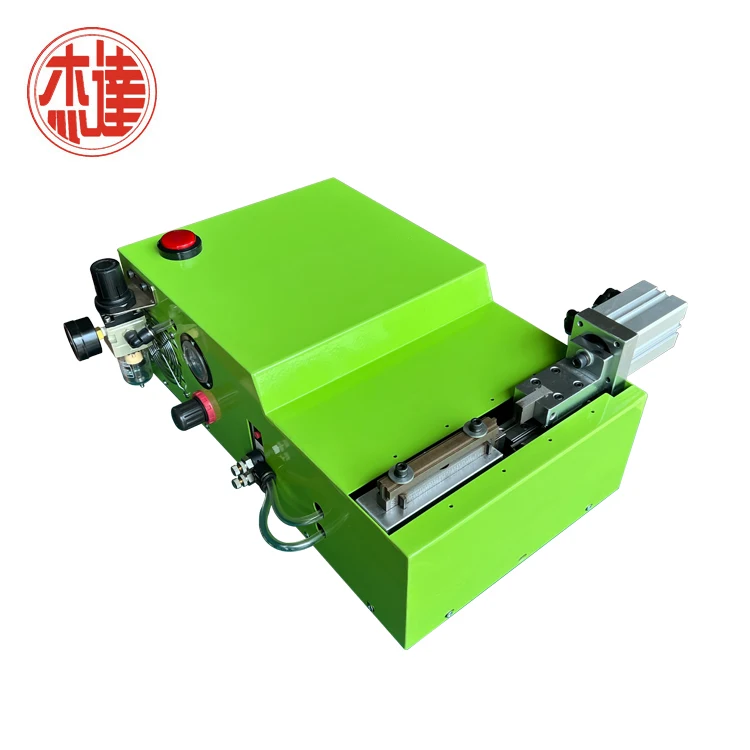

Compact 20K 3200W Ultrasonic Wire Harness Welding Machine
- Category: >>>
- Supplier: Dongguan Jieda Ultrasonic Equipment Technology Co. Ltd.
Share on (1600918110357):
Product Overview
Description
Product Description
Ultrasonic wire harness welding principle:
Ultrasonic transducer will be converted into high-frequency vibration of electrical energy, the resulting vibration through the welding head into the workpiece, ultrasonic vibration in the welding part of the high-frequency mechanical vibration, at the same time produce local plastic deformation, because the welding part of the state of high temperature, high pressure and plastic deformation, so that the molecules of the material interpenetrate each other, the formation of a permanent bond, so as to realize the welding.
Specification
Ultrasonic power: | 3200W |
Ultrasonic frequency: | 20KHz |
Welding area: | 1-30MM |
Welding time: | 0.01~9.99S |
Rated voltage: | 220V , 50/60Hz |
Equipment features:
1. precise welding, high efficiency, to avoid false welding, not solid;
2. dissimilar materials can also be welded, without adding flux;
3. good electrical conductivity after welding, resistance coefficient is very low or nearly zero.
4. low requirements on the surface of the welded metal, oxidized or electroplated can be welded;
5. welding without open flame, environmental protection and safety.

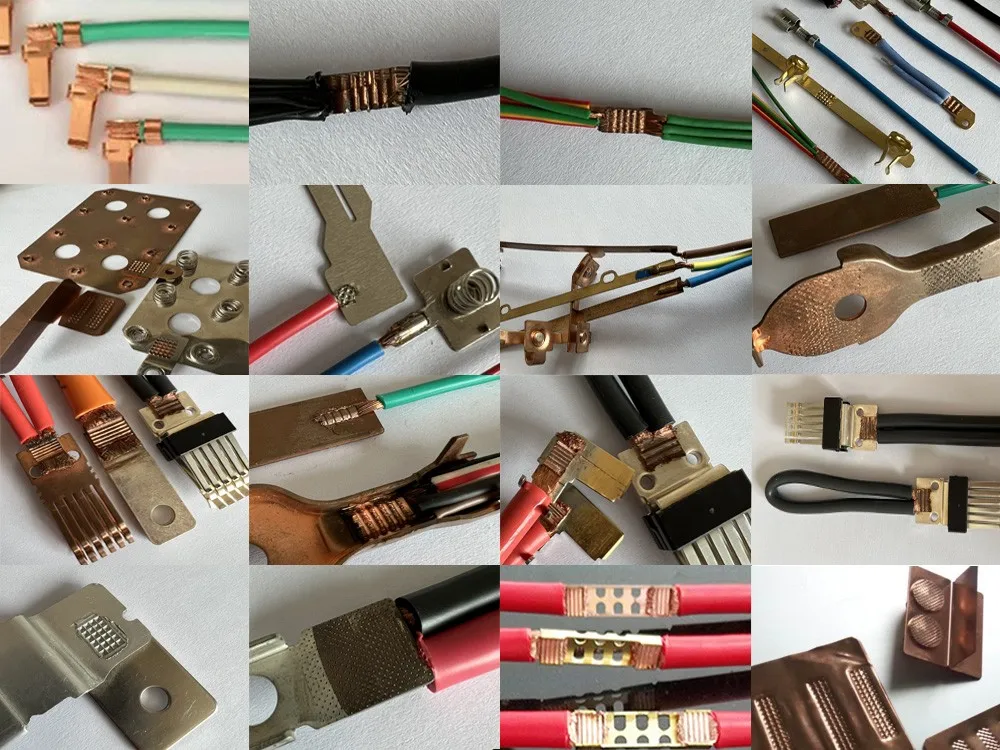

Practical applications of metal welding
Metal welding effectively overcomes the phenomena of spattering and oxidation produced during resistance welding. Ultrasonic metal welding machine can copper, aluminum, nickel, molybdenum stainless steel and other non-ferrous metal materials such as thin plate, fine rod, wire, sheet, strip and other materials to implement single-point, multi-point, and short conditions instantaneous welding. Can be widely used in silicon control lead, fuse piece, electrical lead, lithium battery pole piece, pole ear welding, aluminum sheet mutual solubility, braided into one or more mutual fusion, wire and all kinds of electronic components, contacts, connectors mutual solubility, all kinds of home appliances, automotive supplies,
large heat sink seat, heat exchange fins, honeycomb heart of the mutual solubility, electromagnetic switches, non-fuse switch, such as high-current contacts, the mutual solubility of the heterogeneous metal sheet, metal pipe Sealing, cutting off water and airtight.
large heat sink seat, heat exchange fins, honeycomb heart of the mutual solubility, electromagnetic switches, non-fuse switch, such as high-current contacts, the mutual solubility of the heterogeneous metal sheet, metal pipe Sealing, cutting off water and airtight.

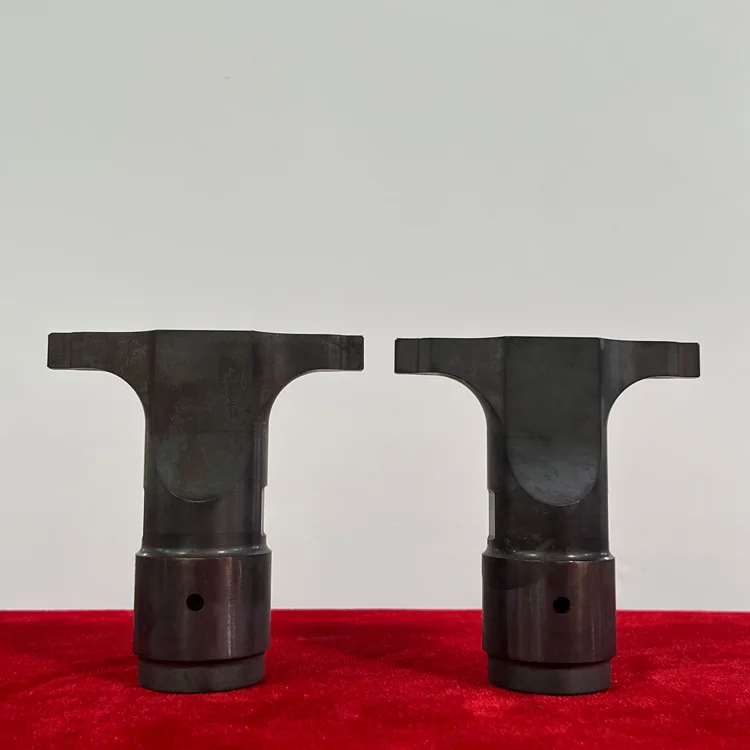

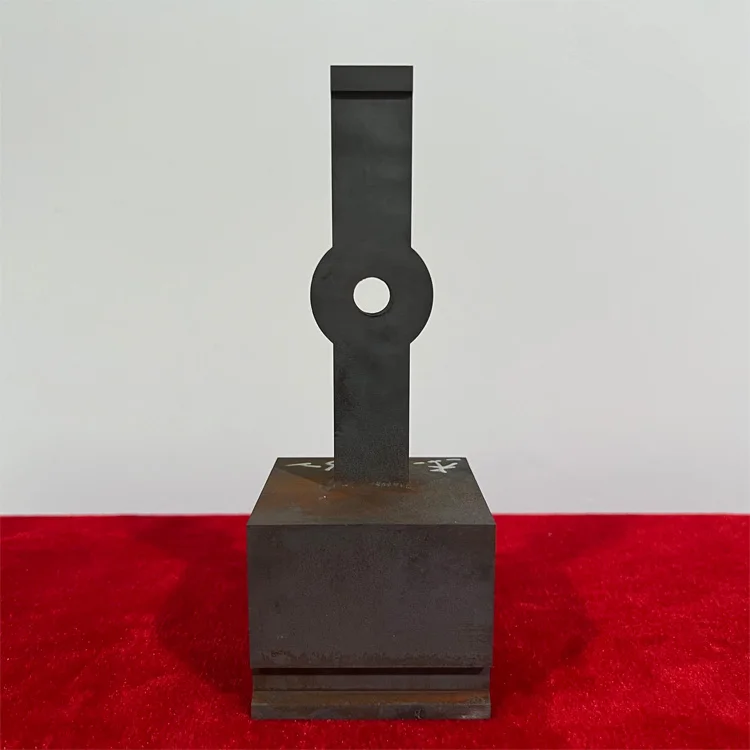

All kinds of ultrasonic metal welding upper and lower molds, frequency 15-40KHz.

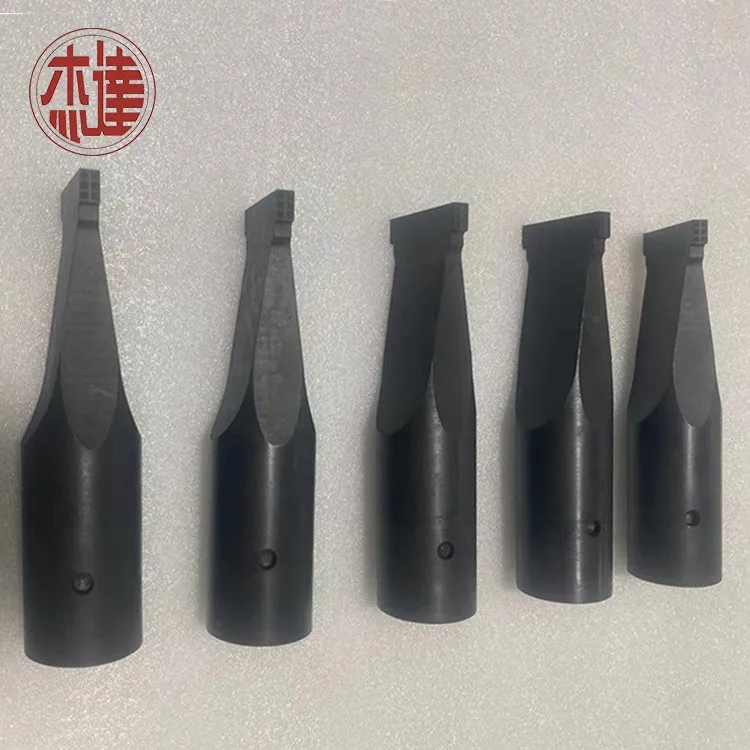

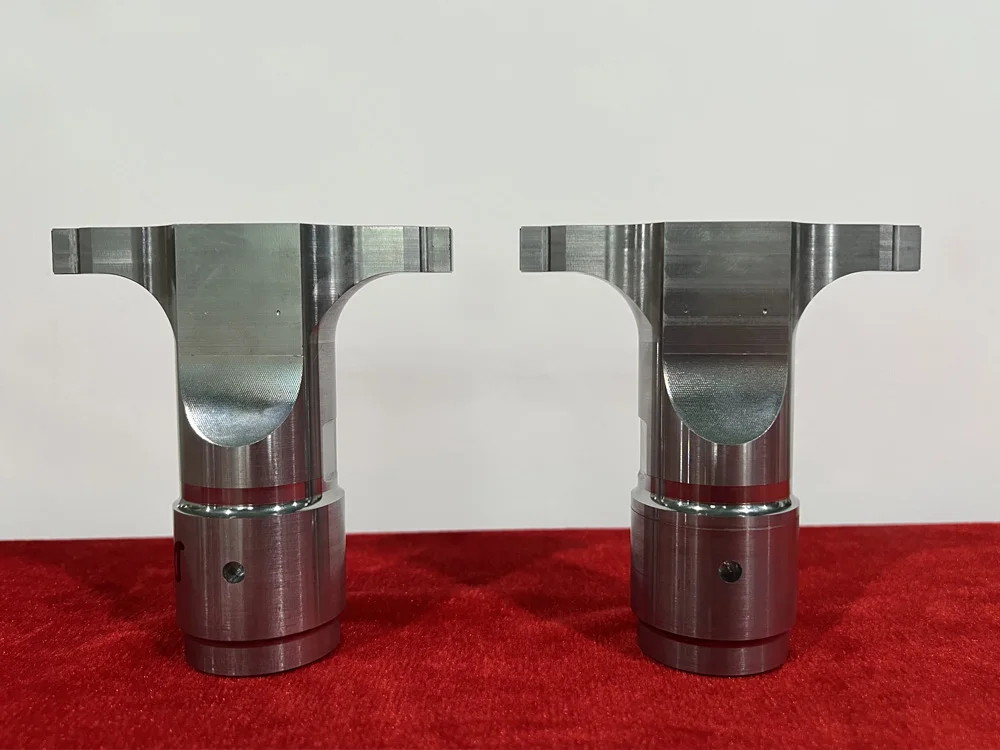

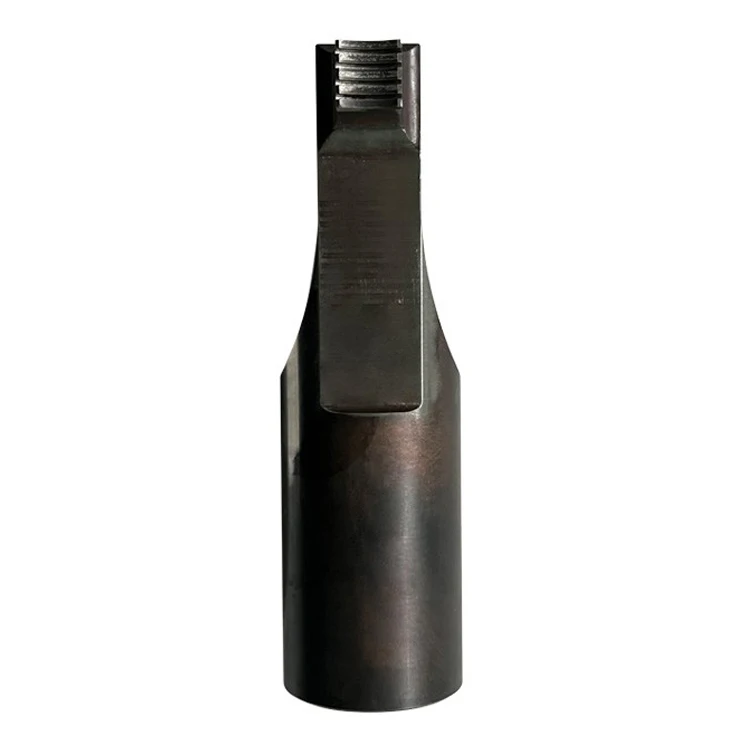

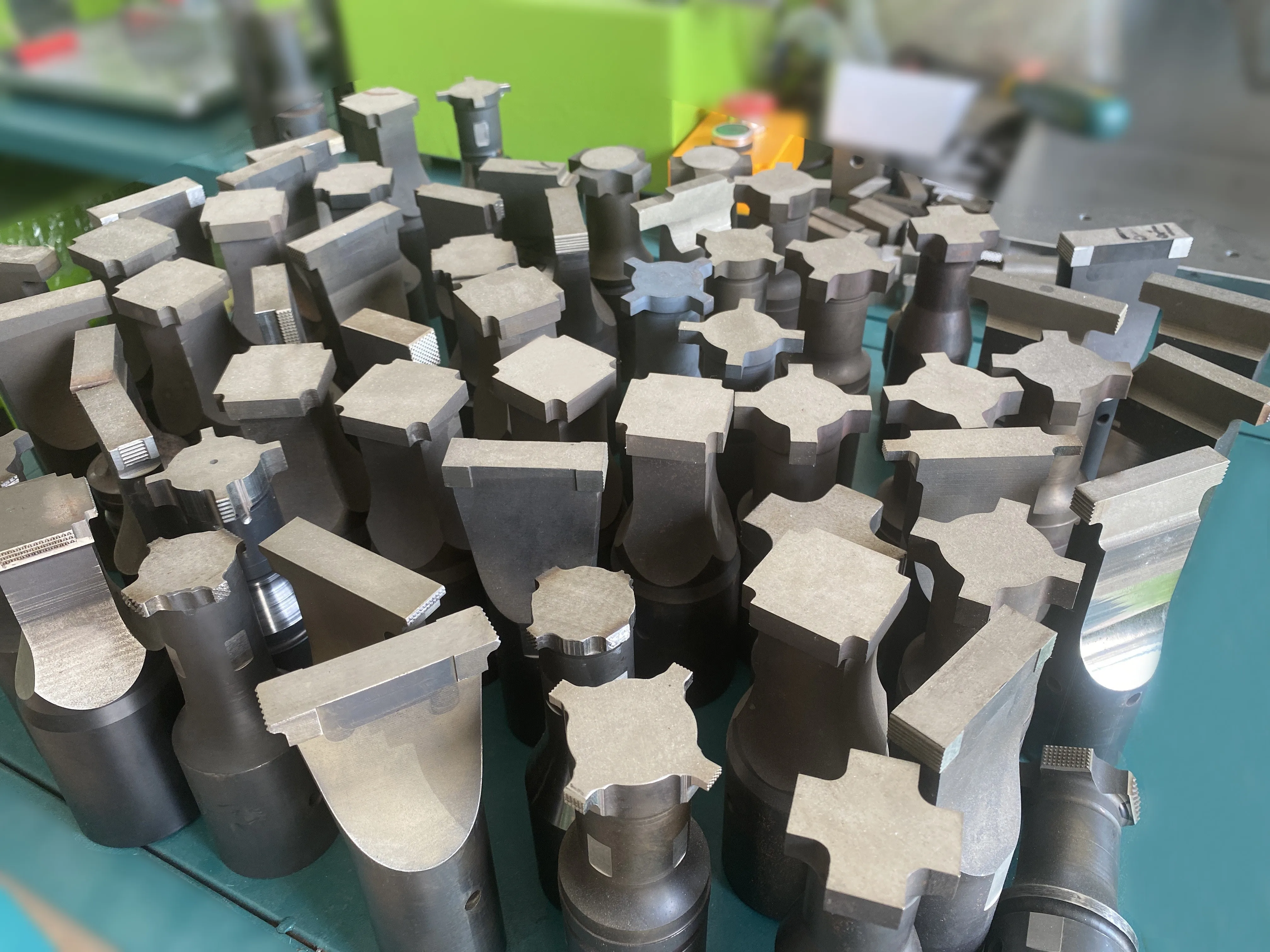

Support weld head customization: rivet point, mesh point, cross weld head can be customized according to the size of welded products and welding requirements.
Support weld head customization: rivet point, mesh point, cross weld head can be customized according to the size of welded products and welding requirements.

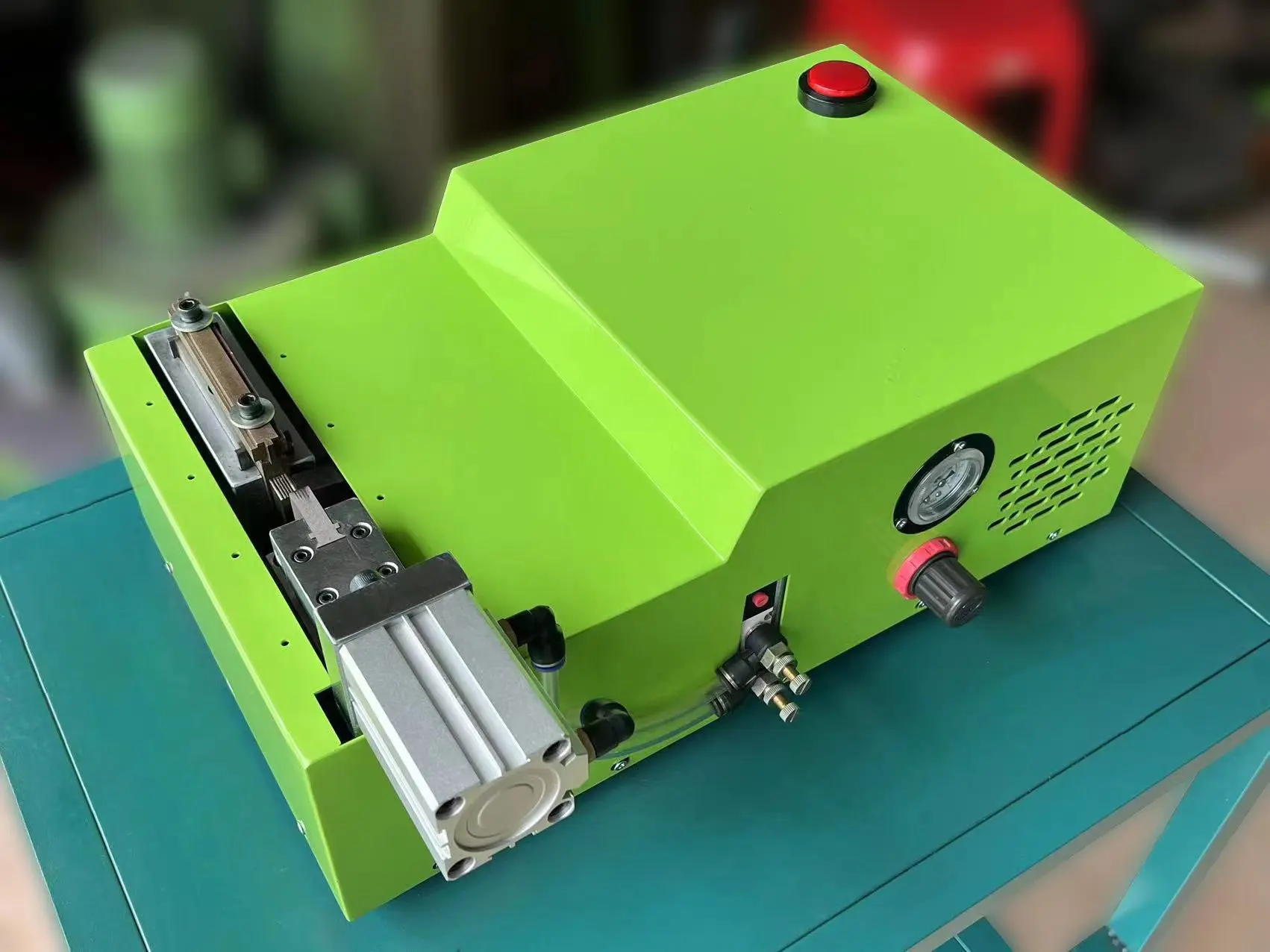

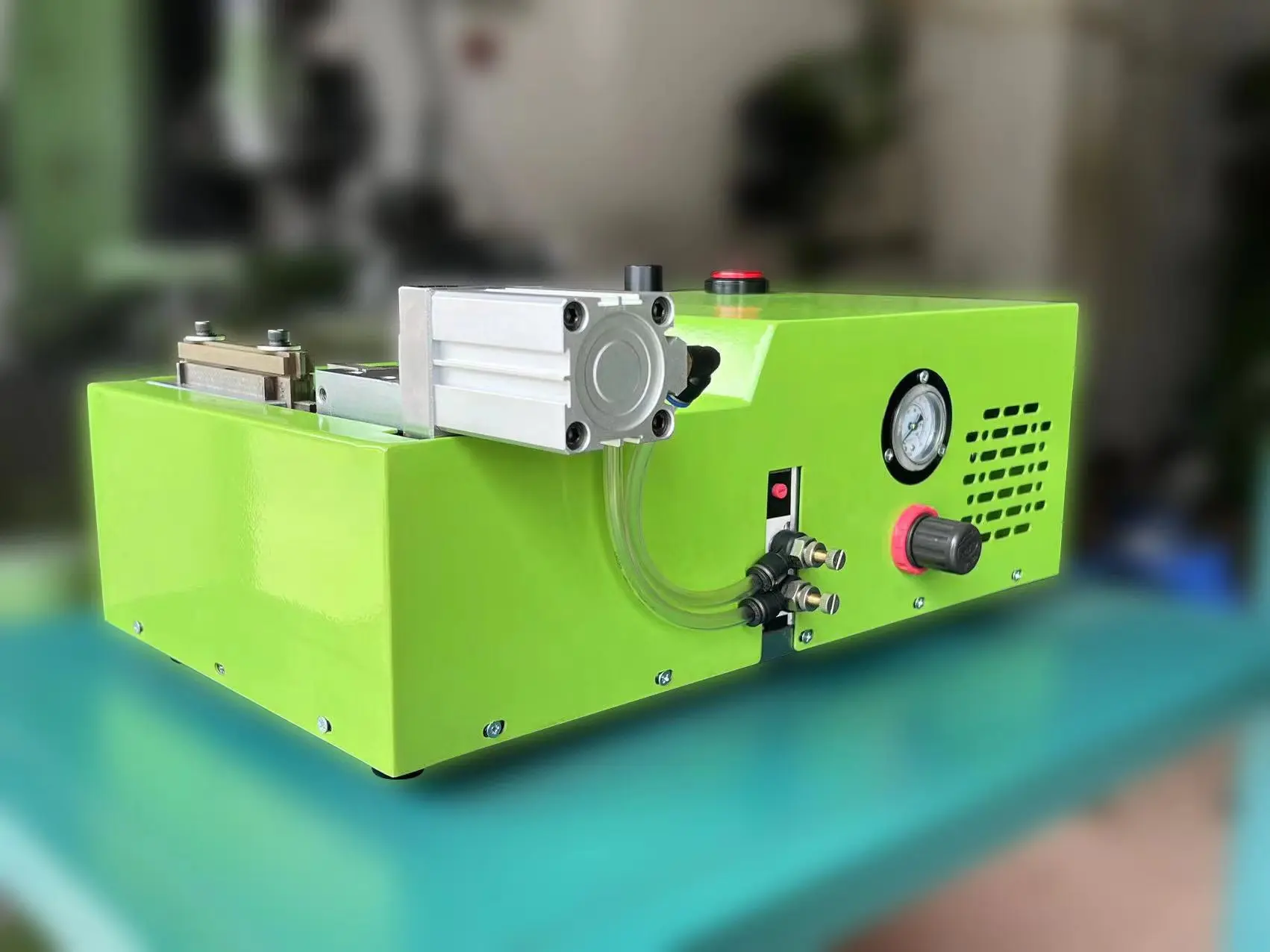

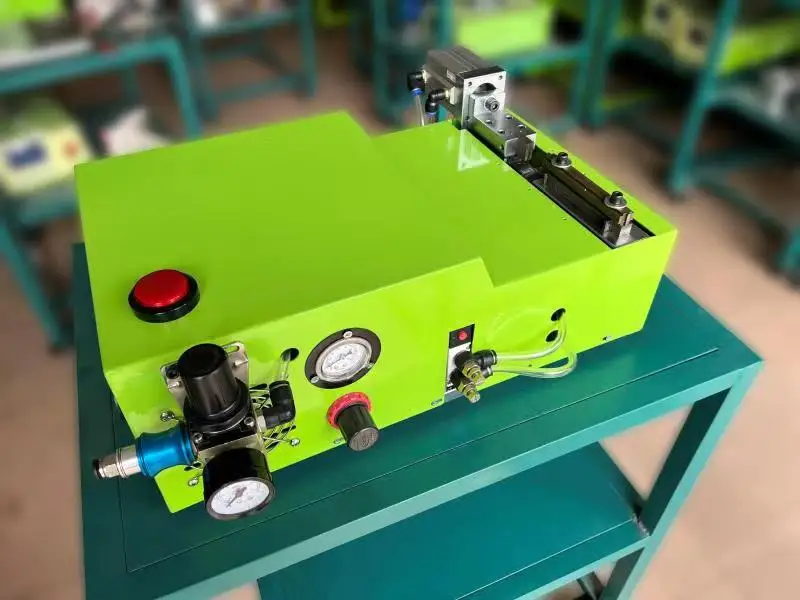

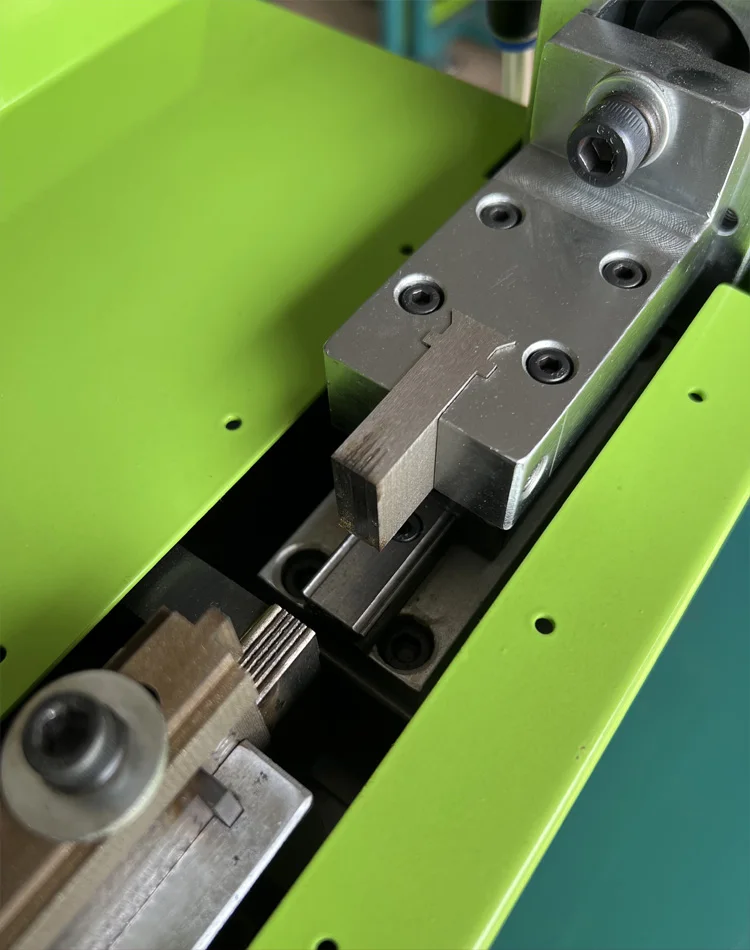

Product real shot
Company Profile
Started a business in 2006, the predecessor of Jieda was a self-employed division for manufacturing and repairing ultrasonic generators, ultrasonic converters and ultrasonic sonotrodes. In 2010,Dongguan Jieda Ultrasonic Equipment Co., Ltd. was formally established. It has successfully grown into an expert company specializing of ultrasonic technology with R & D, production, sales and service.
We mainly produce ultrasonic cutting system, ultrasonic metal welding machine, ultrasonic rubber/silicone cutting equipment, ultrasonic plastic welding machine, ultrasonic generators , transducers. Also we service our customers by designing and manufacturing various types of ultrasonic titanium cutter blades , sonotrode /horns and other related machine etc. As well as providing ultrasonic system spare parts supplying services. Our team of well-trained and seasoned professionals is committed to deliver excellent customer service.
Due to the advantages of ultrasonic technology, ultrasonic cutting and welding processes are widely used in a variety of industries. We at Jieda pride ourselves in our knowledge and expertise in ultrasonic technology, and our high quality products and excellent service are particularly appreciated by our customers from various industries, including medical & hygiene industry, automotive industry, food industry, electronic industry, textile industry, etc.
We mainly produce ultrasonic cutting system, ultrasonic metal welding machine, ultrasonic rubber/silicone cutting equipment, ultrasonic plastic welding machine, ultrasonic generators , transducers. Also we service our customers by designing and manufacturing various types of ultrasonic titanium cutter blades , sonotrode /horns and other related machine etc. As well as providing ultrasonic system spare parts supplying services. Our team of well-trained and seasoned professionals is committed to deliver excellent customer service.
Due to the advantages of ultrasonic technology, ultrasonic cutting and welding processes are widely used in a variety of industries. We at Jieda pride ourselves in our knowledge and expertise in ultrasonic technology, and our high quality products and excellent service are particularly appreciated by our customers from various industries, including medical & hygiene industry, automotive industry, food industry, electronic industry, textile industry, etc.
