5mp 8ch dual light source POE KITS IP cctv camera system POE Nvr Audio Record Kits
- Category: >>>
- Supplier: Hangzhou Topsvision Technology Co. Ltd.
Share on (1600918129503):
Product Overview
Description
We have our own factory and professional R&D team, worry-free after-sales.
Welcome to visit the factory! Looking forward to working with you！
There are 4 PCS in one box.
PRODUCT DESCRIPTION
Product Paramenters
Composition

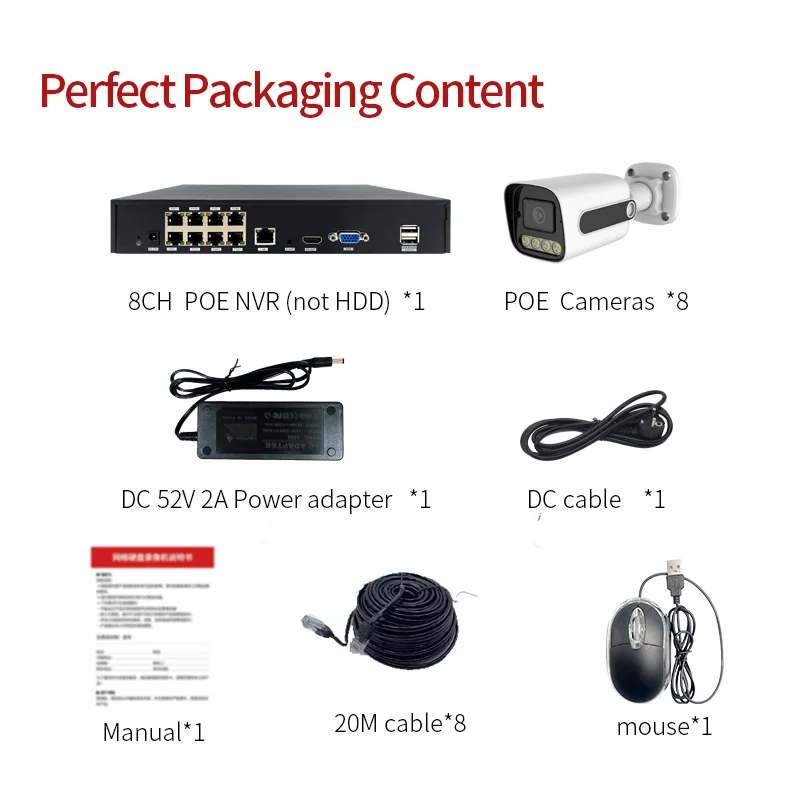

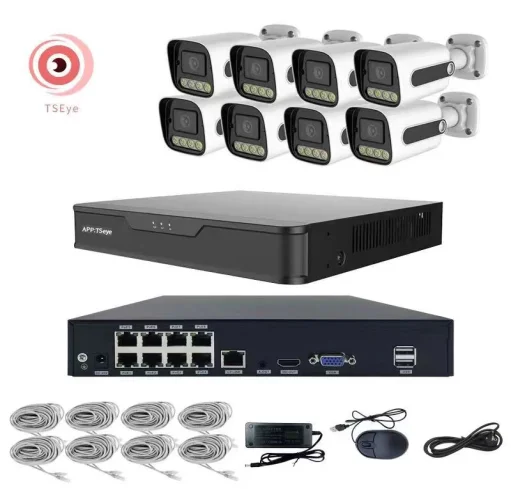

1 * POE NVR + 8 * POE IPC（5MP）
* Through cloud services, network penetration can be easily achieved, and remote monitoring can be achieved in one step;
* Support VGA, HDMI output at the same time;
* Supports IE browser access；
* Support Android, IOS smart phone remote monitoring and Control anytime, anywhere;
* Support more than 12languages, breaking the restrictions of national boundaries；

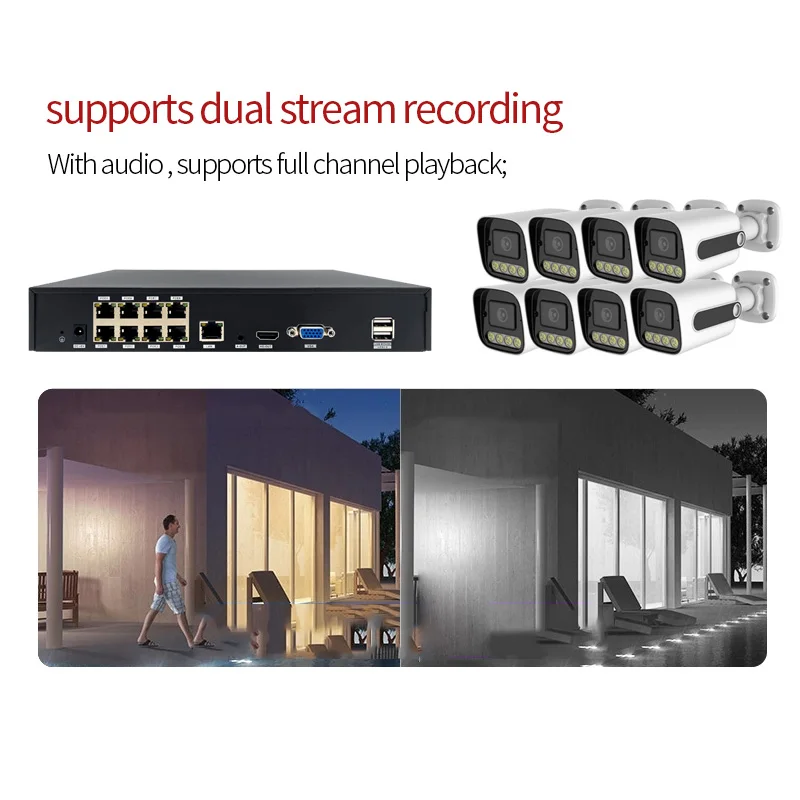

* supports dual streamrecording
* supports full channel playback;
* Support TS Cloud platform customization;
* Freely change the boot interface and choose the interface style;
* The POE IPC can be powered by connecting to the POE NVR.
* Support VGA, HDMI output at the same time;
* Supports IE browser access；
* Support Android, IOS smart phone remote monitoring and Control anytime, anywhere;
* Support more than 12languages, breaking the restrictions of national boundaries；
* supports dual streamrecording
* supports full channel playback;
* Support TS Cloud platform customization;
* Freely change the boot interface and choose the interface style;
* The POE IPC can be powered by connecting to the POE NVR.
Applicable scene
The POE camera can be up to 100 meters away to meet the long-distance installation requirements.And only one network cable can complete the two tasks of supplying power to monitoring equipment and transmitting video signals at the same time.No switch, no power cord, simple and convenient.This product can be widely used in most monitoring environments such as homes, villas, supermarkets, high-end offices and small factories.
Product Specification | ||||
KITS | IPC Input | 8 * 5M @20fps；8*4M@20fps；8*2M@25fps；8*1M@25fps | ||
Video Compression | H.264、H.265 | |||
Audio Compression | G.711A | |||
Packing Dimension | 410mm（Length）* 185mm（Width）* 280mm（Height） | |||
Working Temperature | -10℃－＋55℃ | |||
Working Humidity | 10%－90% | |||
NVR | Output Resolution | 2880*1620 | ||
Audio | 1 * 3.5mm earphone interface（optional），Support HDMI audio output | |||
Recording Mode | Manual Recording,Motion Detection Recording, Timing Recording | |||
Playback | 1CH 5MP or 4CH 720P | |||
Network Service | DHCP、PPPOE、FTP、DNS、DDNS、NTP、UPNP、Email etc. | |||
App | Support iPhone、Android mobile phone monitoring | |||
Browser | Support IE | |||
Network Interface | RJ45 10M/100Mbps | |||
USB | 2 * USB 2.0 | |||
SATA | 1*SATA （up to 8T） | |||
Power Supply | 1 * DC 48V /2A | |||
IPC | Day/Night Mode | Auto、Color、Black/White | ||
Audio | Support Audio 1ch input and 1ch output | |||
Video | Dual Stream：2880*1620、704*576 | |||
Power Supply | 4 * DC 12V /1A or POE network cable supply power | |||
HangZhou TaoShi Technology Co., Ltd. was established in November 2012. It is an excellent enterprise focusing on the design of video surveillance products. The company's main products include XVR five-in-one series, AHD five-in-one series, and H.265 NVR and IPC. The company has a strong R&D team, the team members are vigorous, active, united, harmonious, and endowed with innovative spirit, and constantly expand new knowledge fields, gaining knowledge and accumulating, accumulate and develop！As a young company, TaoShi Technology adheres to the corporate spirit of "Integrity, Responsibility, Efficiency, and Pursue Excellence". It is customer-centric, provides the most comprehensive technical support, assists customers in expanding the market, and strives to create a win-win cooperation.
333
Q1: Are you a factory?
A: Yes, we have our own factory in Shenzhen. Welcom to visit our company if you have free time.
Q2: Do you provide free sample?
A: Yes, we could offer free sample for some items, but do not pay the cost of freight.
Q3: Can I make my own logo on it?
A: Of course. We suppot OEM and ODM service, including color, logo, package, size etc.
Q4: What's your MOQ?
A: For orders supply from stock, the MOQ is 1 pcs. For OEM or ODM orders, the MOQ is 500 pcs.
Q5: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
