Product Overview
Description
Networking devices MOKO OEM IOT hardware slave module nrf52805 bluetooth beacon module for iot device
MK14 series is a powerful, highly flexible, ultra low power Bluetooth® 5 module based on Nordic® Semiconductor nRF52805 SoC solution, which has a 32bit Arm® Cortex™-M4 CPU with floating point unit running at 64MHz
Product Description
MK14 module is multiprotocol capable with full protocol concurrency. It supports BLE® (Bluetooth Low Energy) and 2 Mbps of Bluetooth 5 giving increased application throughput and up to 50 % savings in energy usage. It supports channel selection algorithm #2 (CSA#2), improving the ability to coexist with other Bluetooth LE devices. ANT and 2.4GHz proprietary protocols are also supported.

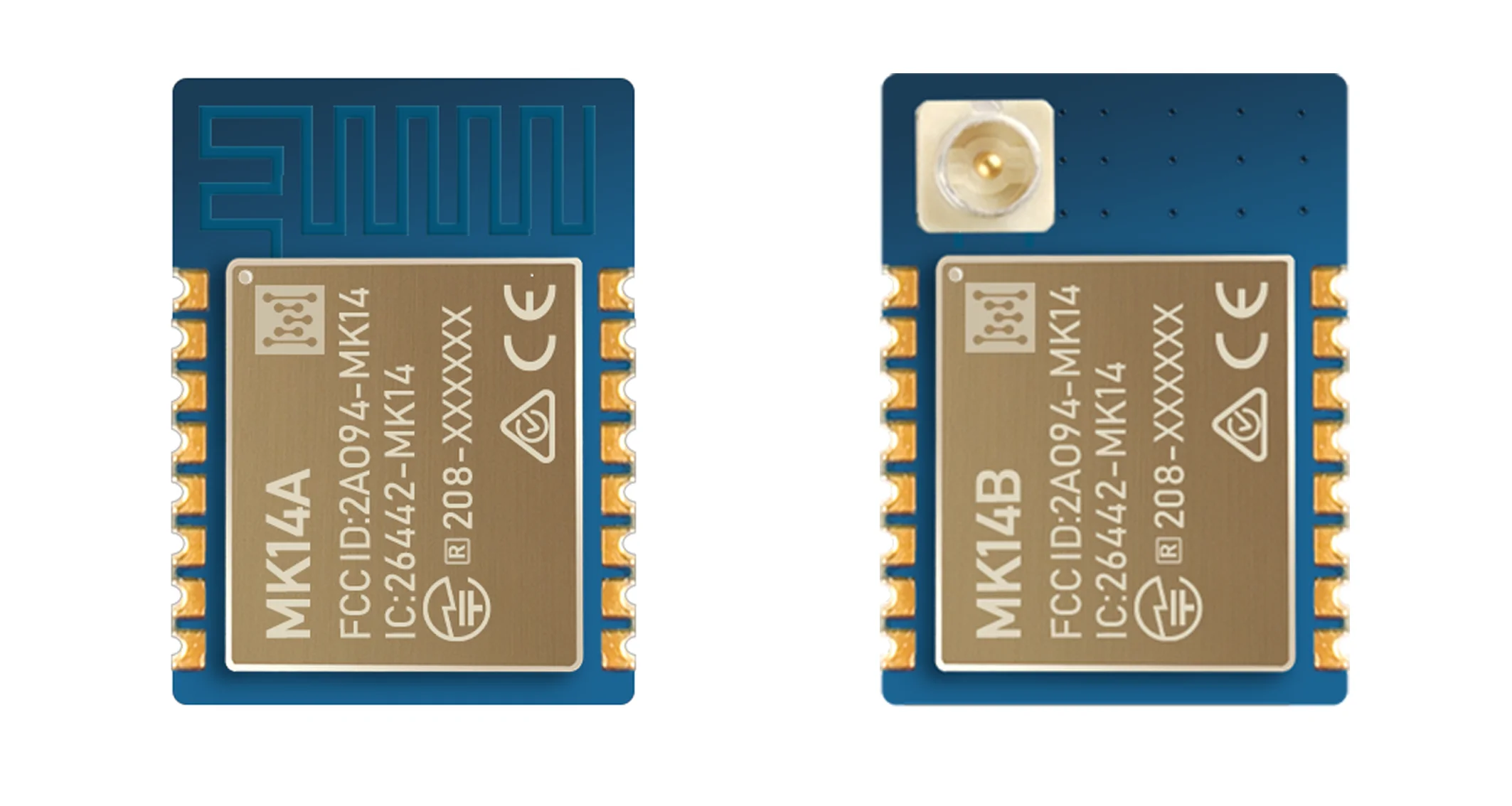

There are two models of MK14 series Bluetooth module — MK14A and MK14B. The two models both have a small size of 12.1 x 8.9 x 2.0mm with 8 GPIOs of nRF52805 (WLCSP package).
The difference between MK14A and MK14B is the antenna design.

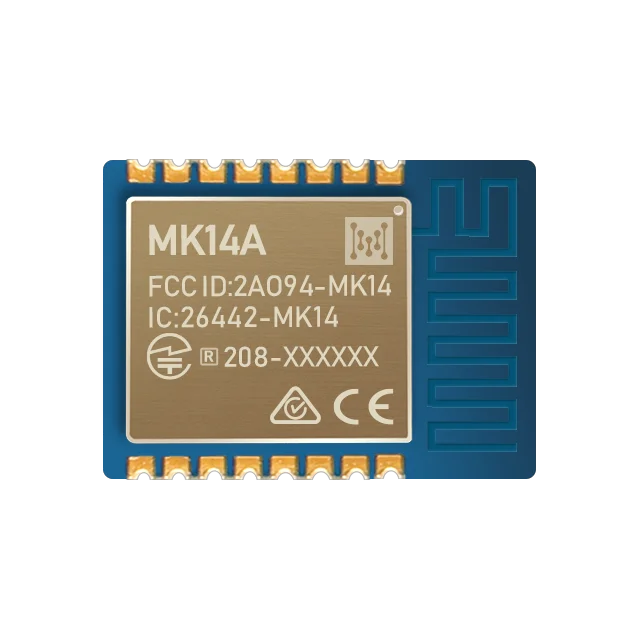

MK14A integrates a high-performance PCB antenna.

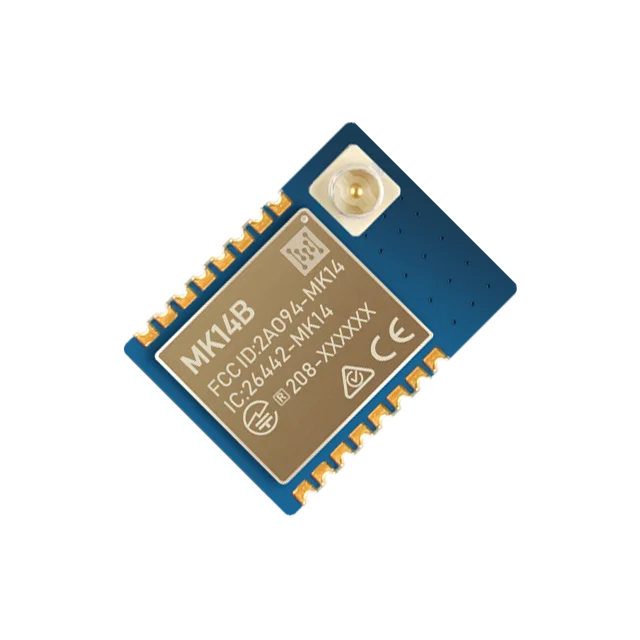

MK14B uses a u.FL connector and requires an external 2.4Ghz antenna.
The difference between MK14A and MK14B is the antenna design.
MK14A integrates a high-performance PCB antenna.
MK14B uses a u.FL connector and requires an external 2.4Ghz antenna.
MK14 Series BLE module features | ||
Dimension | 12.1x8.9x2.0mm（with shield） | |
Flash/RAM | 192KB/24KB | |
Interface | UART/SPI/TWI/ADC | |
Power Supply | 1.7-3.6 V | |
Operating temp | -40 to +85°C | |
BLE5.0/5.1 Specification | 2 Mbps/CSA #2 | |
Cover | Metal shielding with marking | |
BLE Standard | BLE 4.2 | |
GPIOs | 8 | |
Antenna Type | PCB antenna/u.FL Connector | |
32.768K Crystal Oscillator | Built inside | |
Pad package | Plated Half-hole | |
Other Feature | 2.4GHz | |

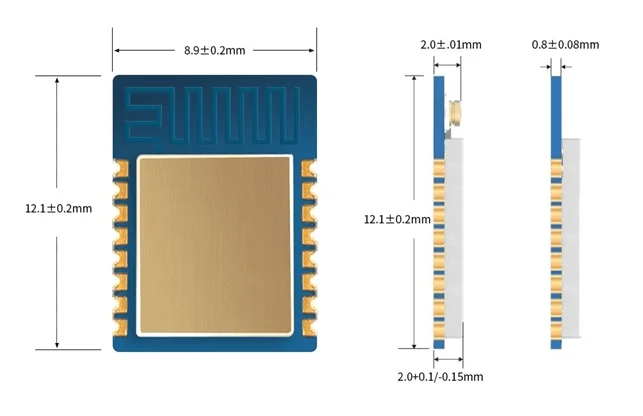

Module Size

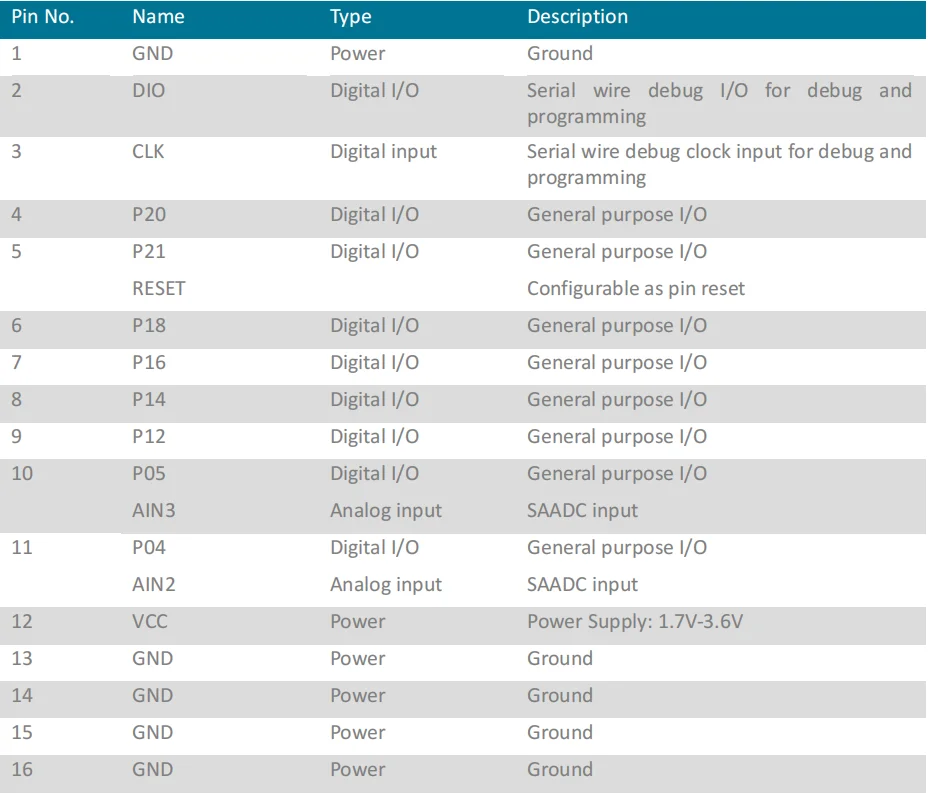

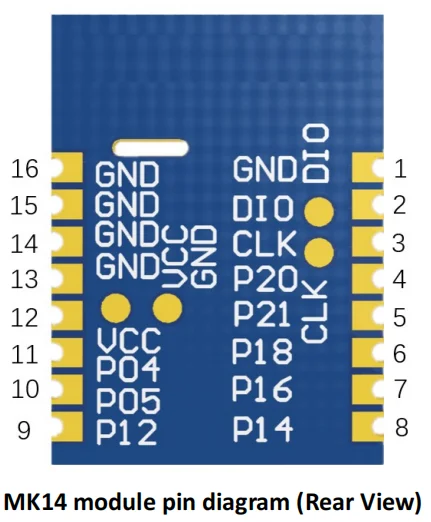

Pin Description

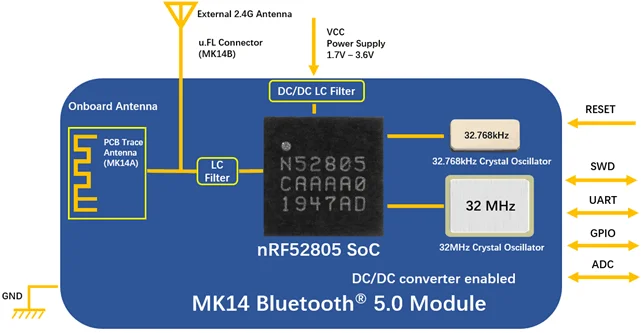

Block Diagram
Application and Solution
Packing & Delivery
Samples:
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
Orders:
bulk orders usually take about 2 to 3 weeks after payment received
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
Orders:
bulk orders usually take about 2 to 3 weeks after payment received

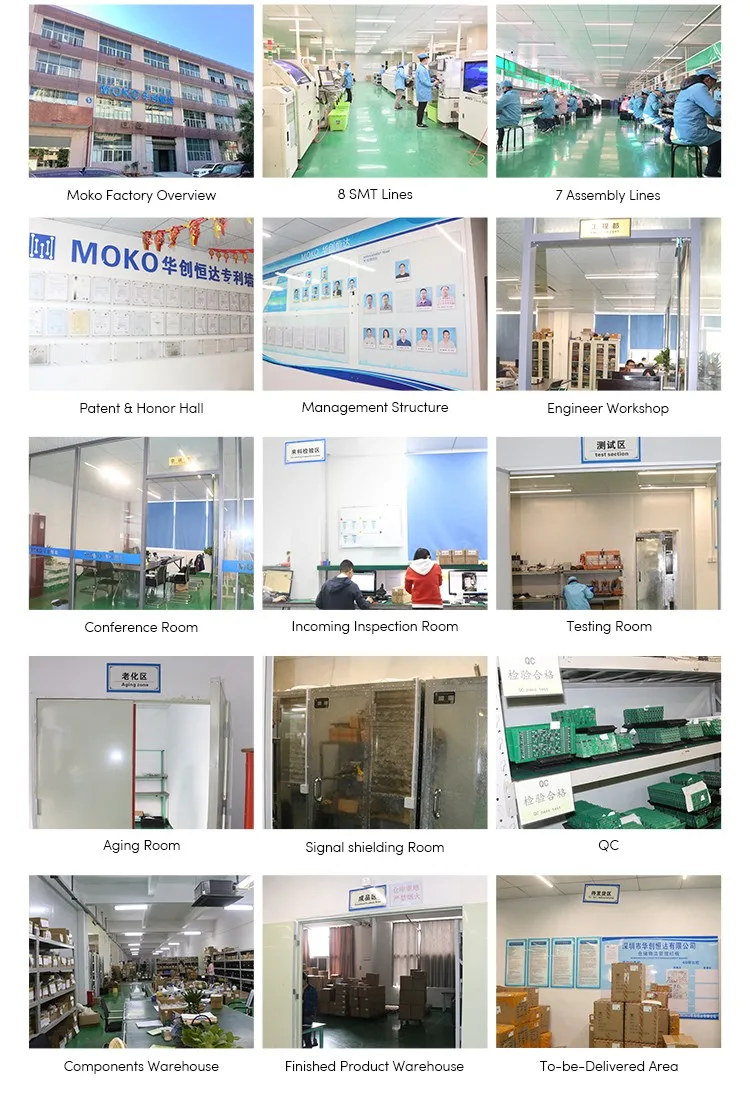

Company Profile
