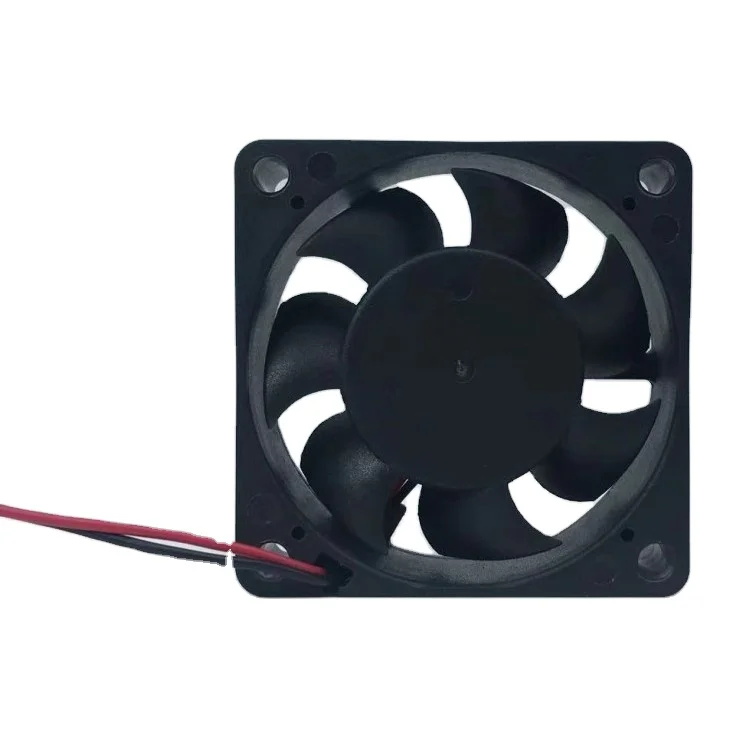

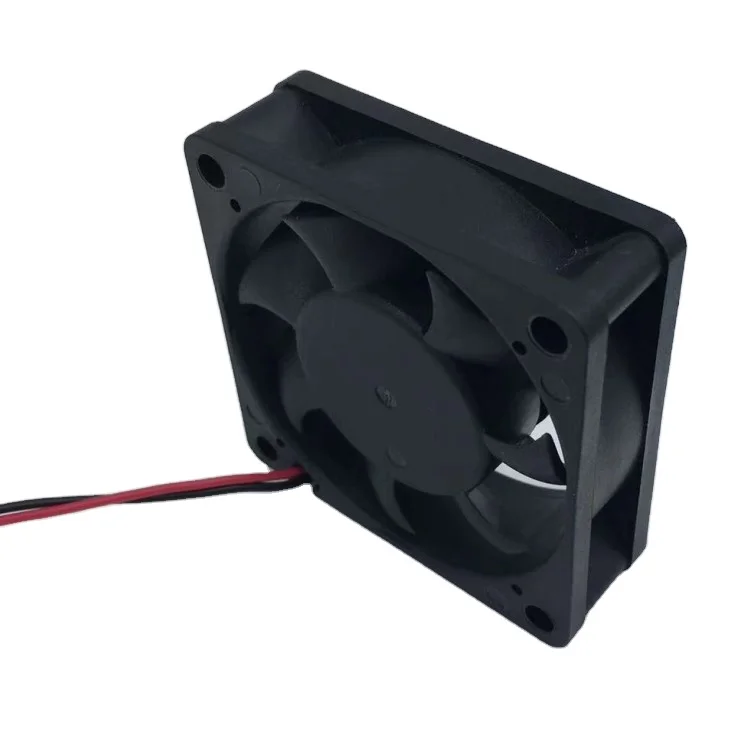

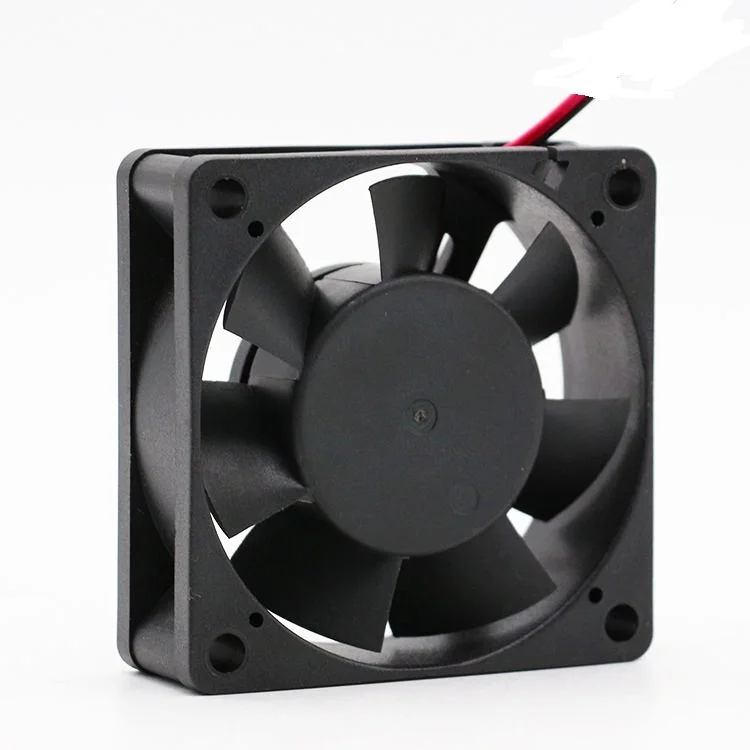

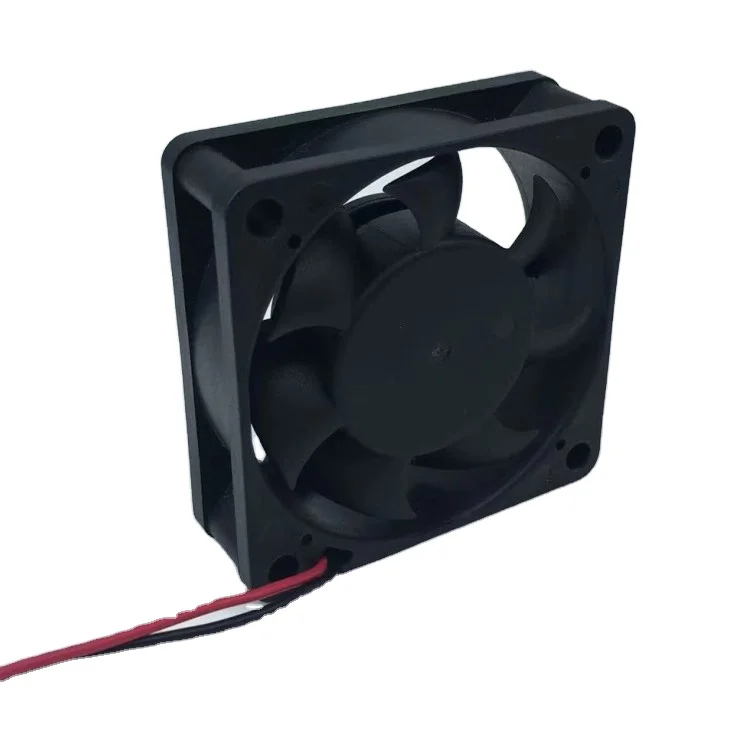

60x60x20mm DC Brushless Cooling Fan 6CM 12V High Speed Dc Axial Fan
- Category: >>>
- Supplier: Shenzhen Feng Huishun Technology Development Co. Ltd.
Share on (1600918182409):
Product Overview
Description
Product Description
Product Name | DC Axial Fan |
Size | 60x60x20mm(Length* Width *Thickness) |
Material | Plastic & PBT |
Rated Voltage | 5V DC FAN (12V 24V 48V Optional) |
Bearing Type | Ball Bearing (Sleeve Bearing Optional) |
Rated Speed: 4000RPM(At rated Voltage,Measured after 3Mins.) Air Flow: 18.74CFM (Maximum In Free Air) Air Pressure: 0.15Inch-H2O(Maximum When Air Flow = 0) Noise Level: 28dBA (At Rated Speed) | |
Operating Temperature & Life expectancy | Ball bearing: -30°C to +75°C @ 50000hours at 40°C Sleeve bearing: -10°C to +70°C @ 30000hours at 25°C |
Optional Function | PWM Control / FG Tacho / RD Alarm / Auto-restart / Polarity Protection |
Wire & Connector & Tube | Wire length & Connector model ( as required ) |
Package | Carton box,we can also according to the requirements of customers. |

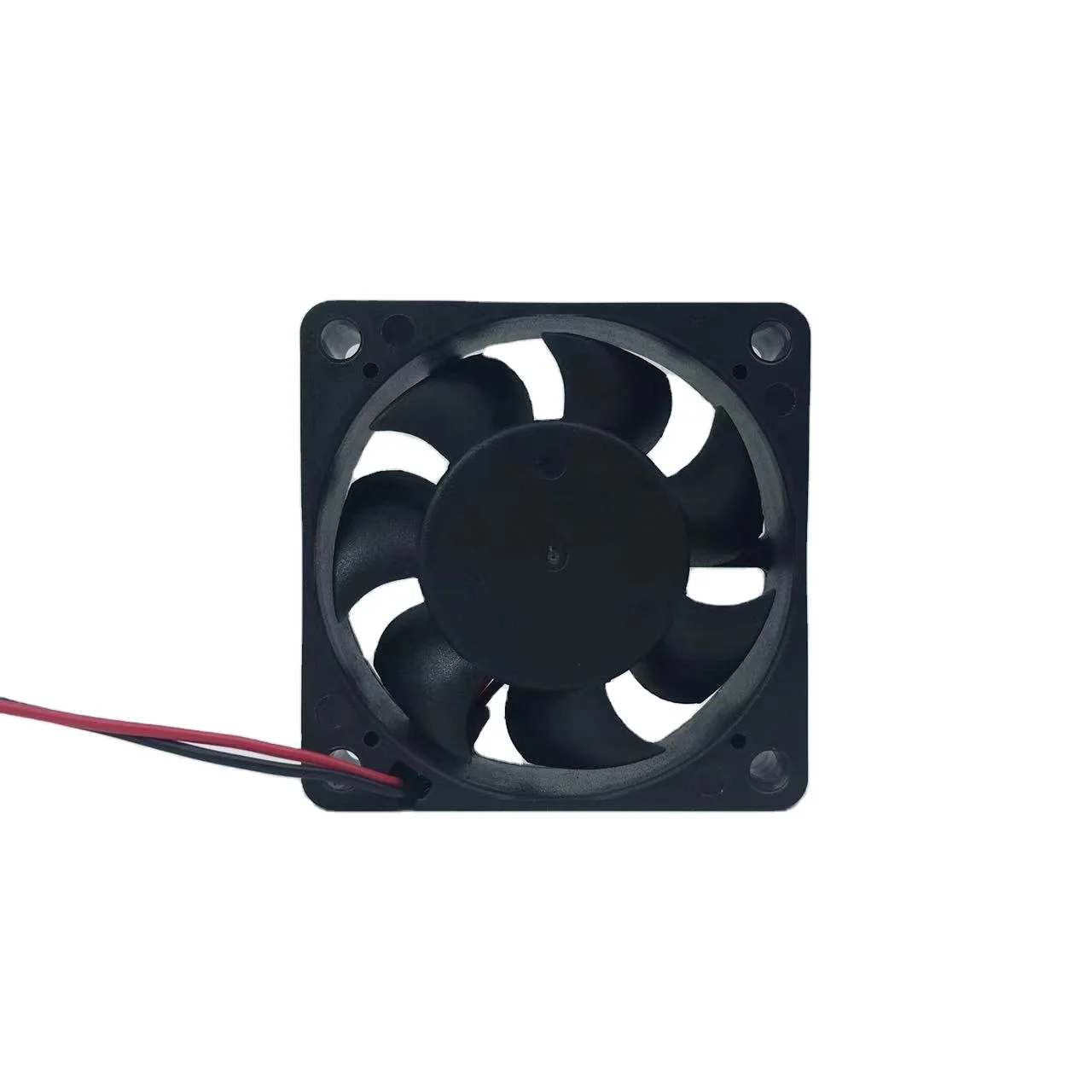

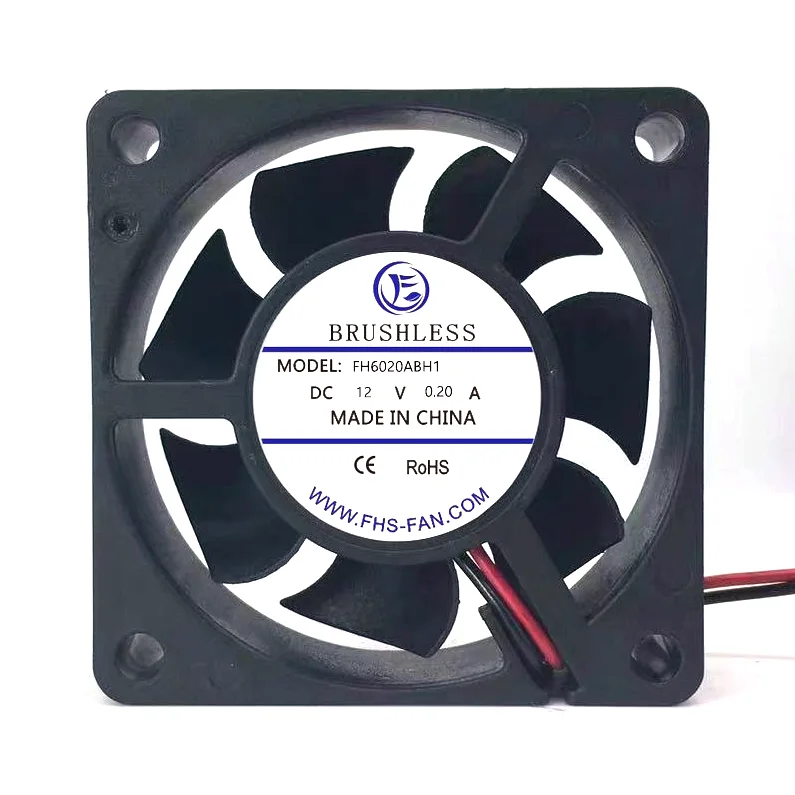

Details Images

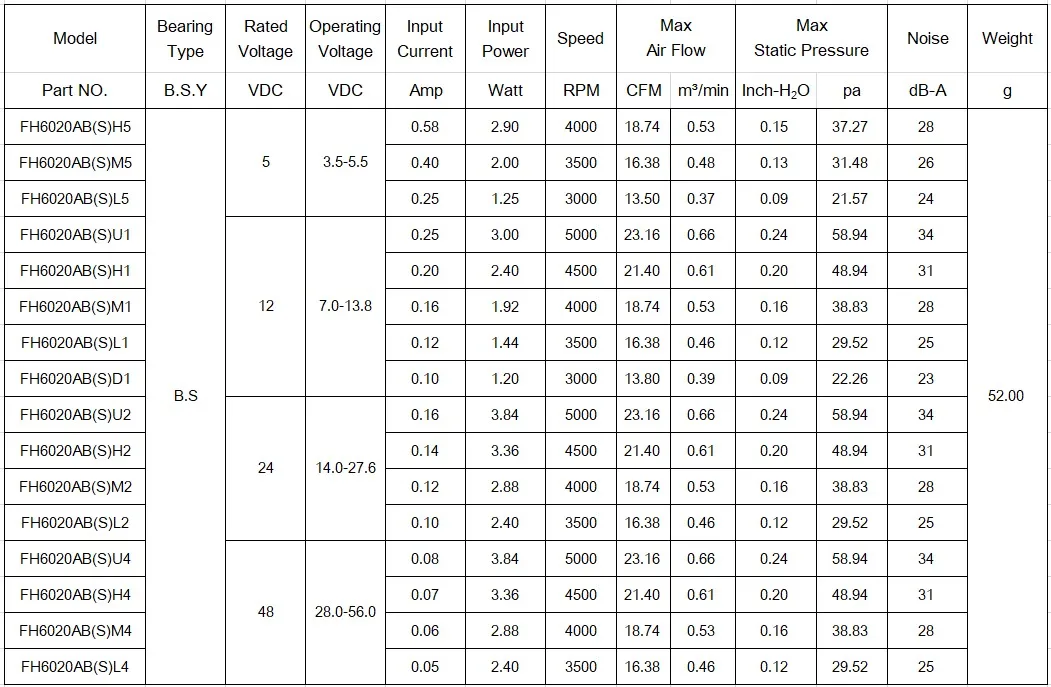

Product Specification
The specifications of some models are as follows:
Remarks
Other RPM/CFM/Voltage/Current...please contact us see the specification for more details. All models could be customized on voltage or any other requirements to fit your needs.

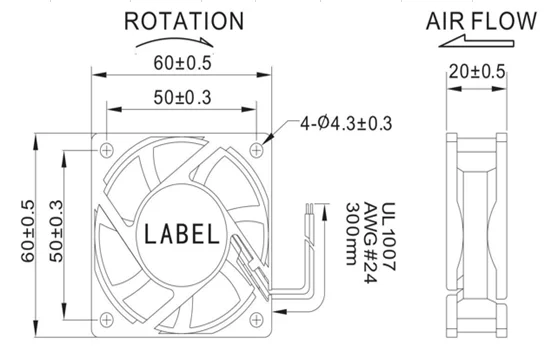

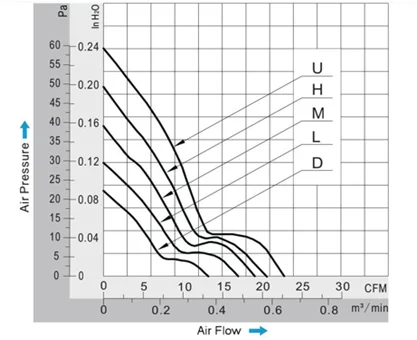

Dimensions(Unit：mm) Fan Performance Curve

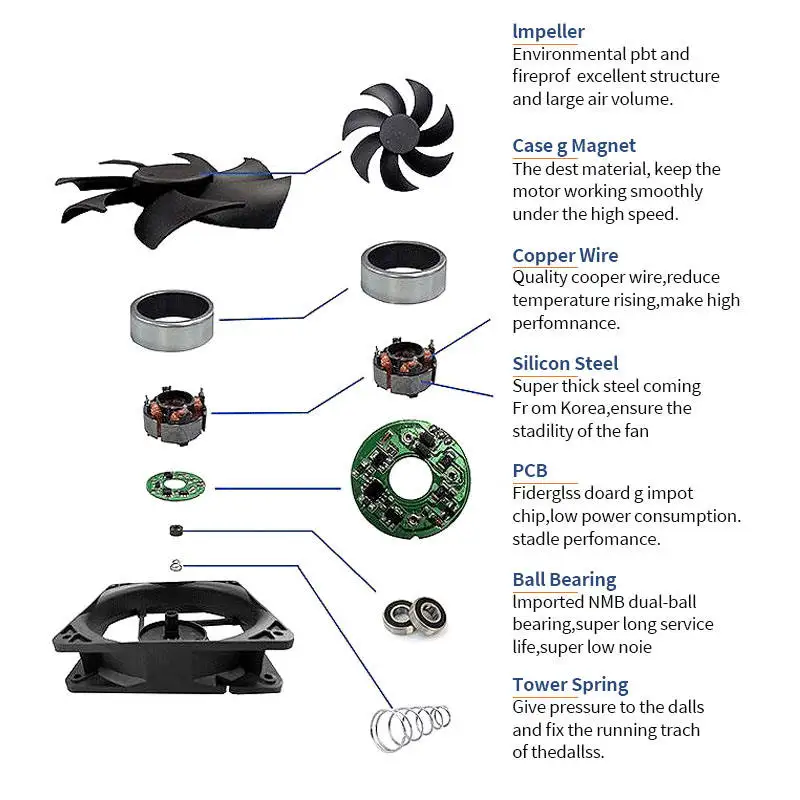

Fan parts:
The main components of a fan are as follows
The main components of a fan are as follows
Others products
The DC fan sizes from 15mm to 254mm are available for your choice. We can also design and develop custom products.
Recommend Products
Packing&Shipping

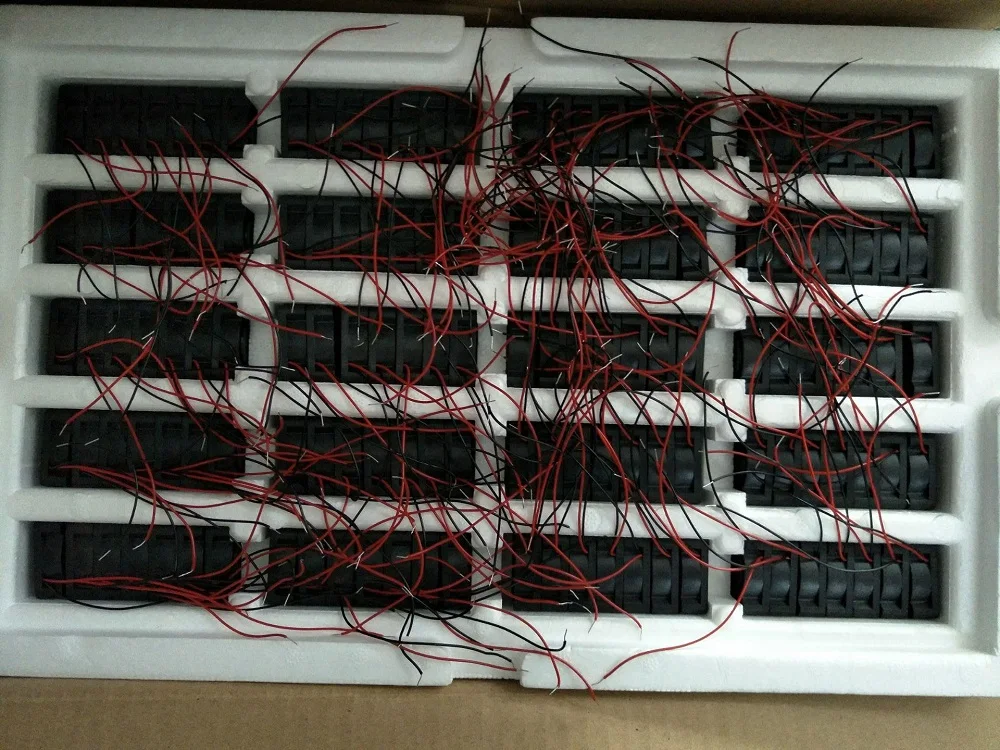

1. Standard Packaging, inside single package, out carton package.
2. Upon customers' request, but the price is different with neutral packing.
Usually we deliver the goods to express by DHL/UPS/FEDEX,ect. If you have any questions, you can also consult The Customer Service Center or our sales for details,thanks for your cooperation.
FAQ
1. What are kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
6. What is your warranty ?
Answer: we offer an 12 months warranty and on line engineer support.
Answer: we offer an 12 months warranty and on line engineer support.
7. Can you produce according to the samples?
Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
8.Can you provide OEM/ODM services?
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
