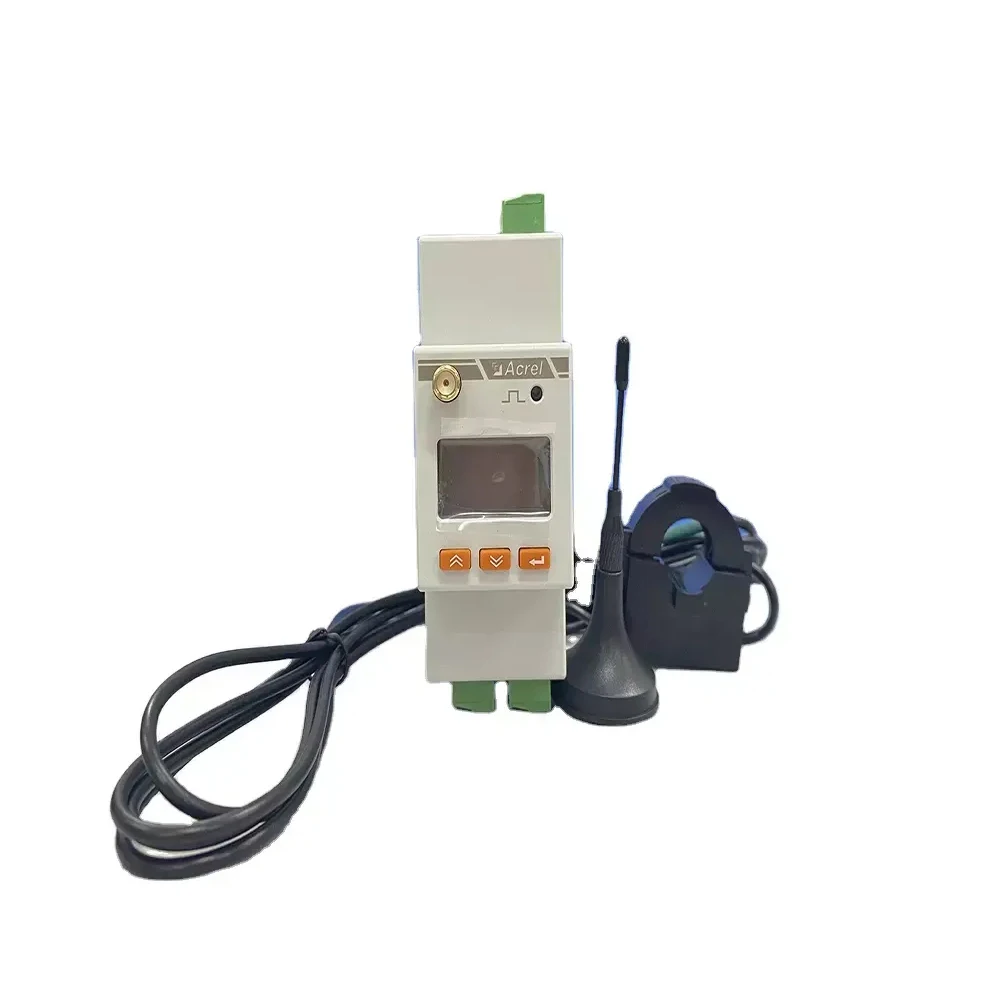

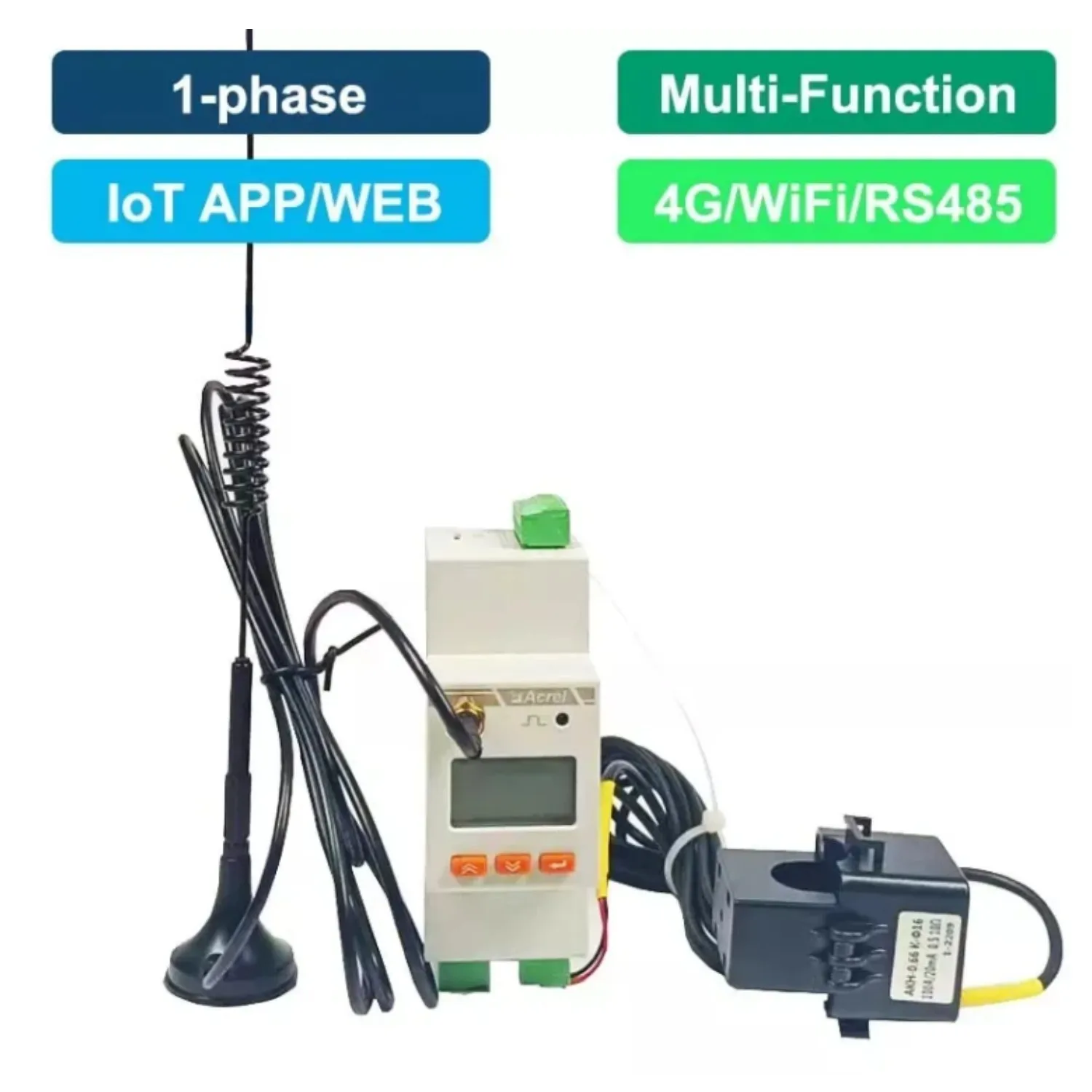

Acrel ADW310 SIngle Wireless Phase Smart IoT Energy Power Meter RS485 WiFi 4G Optional MQTT Protocol to IoT System
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600918205565):
Product Overview
Description
Related Products
Product Description
Specification
Voltage Input | Rated Voltage | 220V |
Reference Frequency | 50Hz | |
Power Consumption | Each phase<0.5VA | |
Current Input | Input Current | AC 20(100)A |
Starting Current | 1‰Ib(0.5S class)，4‰Ib(1 class) | |
Power Consumption | Each phase<1VA | |
Auxiliary Power | Voltage Supply | AC 85~265V |
Power Consumption | <2W | |
Measuring Performance | Standards | GB/T17215.322-2008，GB/T17215.321-2008 |
Compliant Active Energy Accuracy | Class 1 | |
Temperature Accuracy | ±2℃ | |
Pulse | Pulse Width | 80±20ms |
Pulse Constant | 1600imp/kWh |

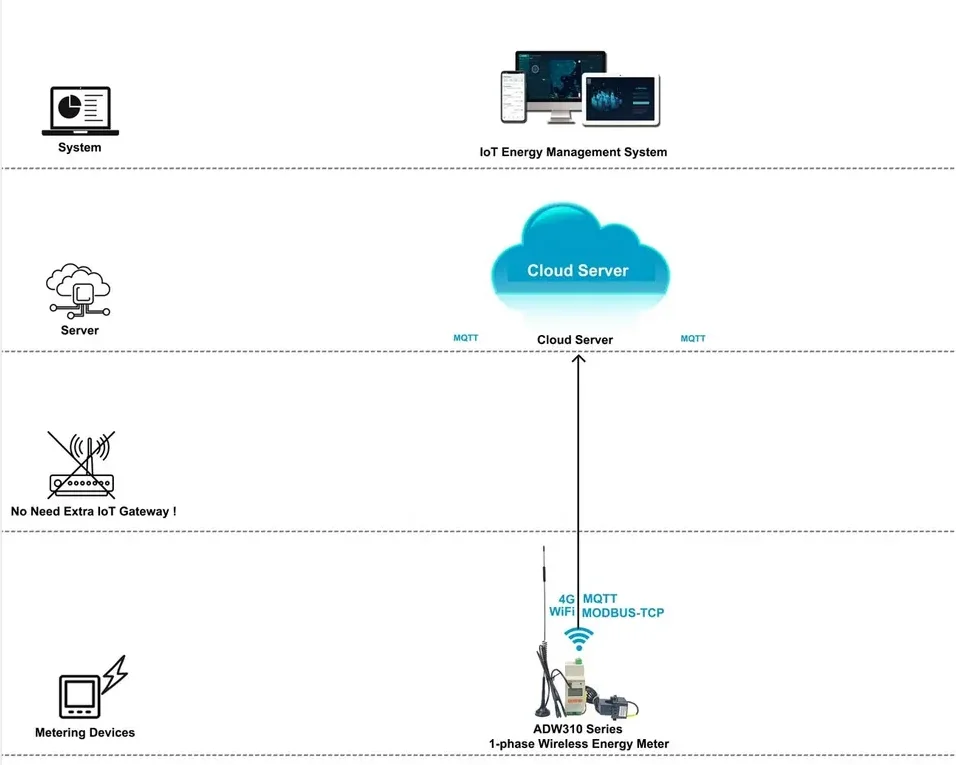

Solution Structure

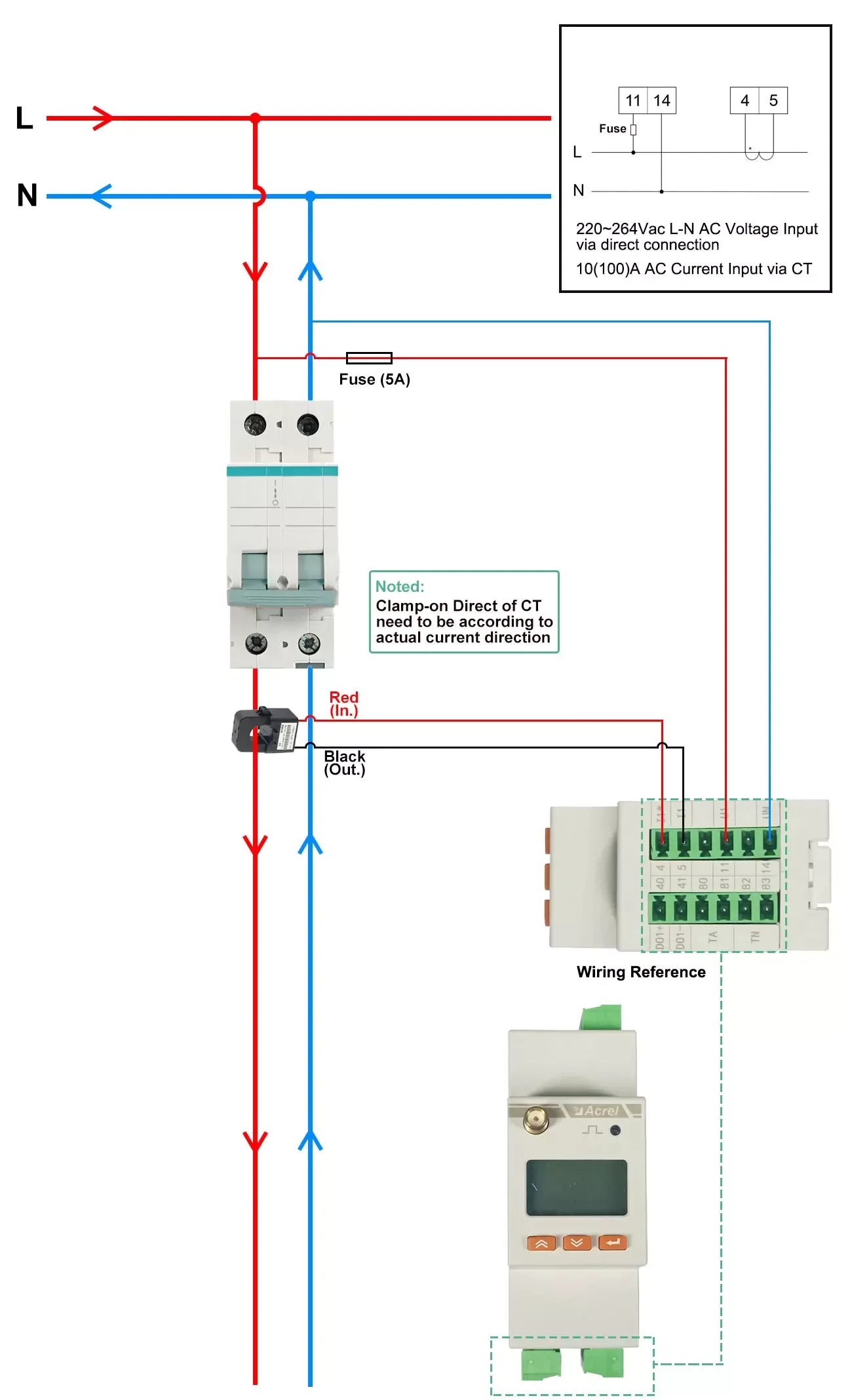

Wiring
—— About Package ——
Total N.W. (48 pcs) 10 KGPacking Dimension and Weight(Minimum) | Minimum Package Contain 1 pcs Products Dimension: 255mm*160mm*160mm | Total N.W. (1 pcs) 0.5 KG | |
Large Package Contain 36 pcs Products Dimension: 540mm*530mm*490mmPacking Dimension and Weight(Large) | Large Package Contain 36 pcs Products Dimension: 540mm*530mm*490mm | Total N.W. (48 pcs) 10 KG | |
Average Lead Time | Manufacturing: 3~4 days (If paired with system need extra 1~2 days for adjustment) | Shippment: 8~9 days (World Wide Shipment) | |
Product HS Code | 9028301400 | ||
CO Country of Origin | China | ||
Company Profile
Jiangsu Acrel Electrical manufacturing co., LTD., the manufacturer base located in Jiangyin,Wuxi City, is a pioneer enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.
