48V 100ah 200ah 5kwh 10kwh sodium ion sodium ion lithium battery sodium ion battery batterie de power wall for ESS
- Category: >>>
- Supplier: Shenzhen Lead New Energy Co. Ltd.
Share on (1600918260327):
Product Overview
Description
Odipie manufactures safe , grade A brand new & high performance LFP energy storage battery including UPS lifepo4 rack lithium ion battery ; wall mounted lithium battery; High volt/amp Lithium Battery Cabinet etc; Every cell could be tracked by QR codes and strickly tested before shipping.
Why choose Odipie as your supplier and partner?
* Competitive factory direct price
* Small MOQ
* Spot Supply for samples and dropshipping, bulk leadtime is 15-20 working days
Why choose Odipie as your supplier and partner?
* Competitive factory direct price
* Small MOQ
* Spot Supply for samples and dropshipping, bulk leadtime is 15-20 working days
* EU Warehouse
* DDP DDU delivery with FREE tax and customs
* Excellent 18 hours online support from inquiry,installation,technical guide to aftersales
* UN38.3, MSDS, ROHS, IEC, UL, CE, ISO9001 are certified
* Regional Customer Leads for wholesalers/distributors
* Professional team for OEM ODM custom service from inside to outside:
private logo, customized packaging, WIFI, Bluetooth, Communication Protocol, BMS function, high voltage or high current battery cabinet, free one stop solar energy system solution such as project design and engineer, MPPT charger, Inverter, battery racks etc.
From Technology
LFP battery technology without cobalt
Battery equalizers to balance voltage gaps among batteries
Compatible with more than 20 brands inverters
* DDP DDU delivery with FREE tax and customs
* Excellent 18 hours online support from inquiry,installation,technical guide to aftersales
* UN38.3, MSDS, ROHS, IEC, UL, CE, ISO9001 are certified
* Regional Customer Leads for wholesalers/distributors
* Professional team for OEM ODM custom service from inside to outside:
private logo, customized packaging, WIFI, Bluetooth, Communication Protocol, BMS function, high voltage or high current battery cabinet, free one stop solar energy system solution such as project design and engineer, MPPT charger, Inverter, battery racks etc.
From Technology
LFP battery technology without cobalt
Battery equalizers to balance voltage gaps among batteries
Compatible with more than 20 brands inverters

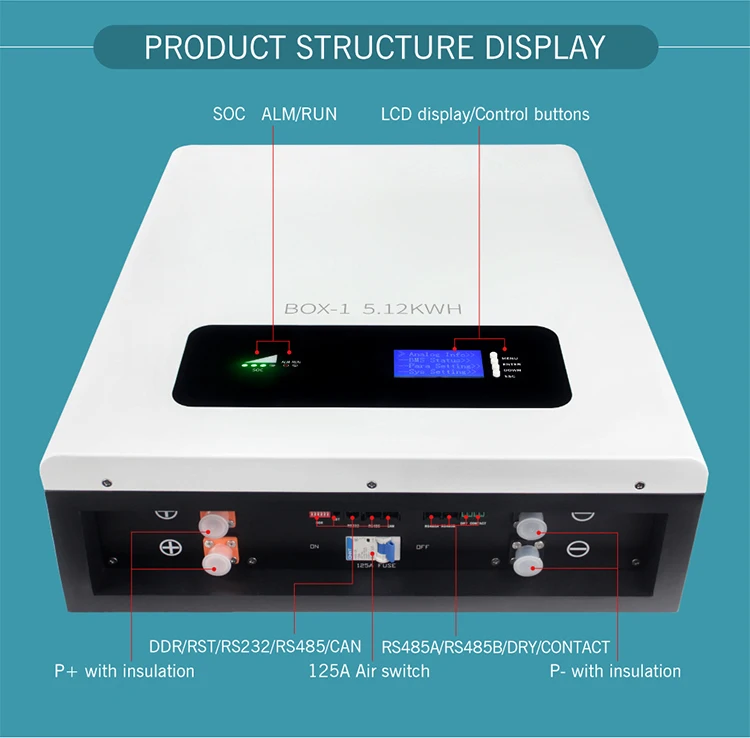

Products Details
-Parameters Table-
Model | BOX-1 | BOX-2 | BOX-3 | ||
Battery Type | LiFePO4(LFP) | ||||
Nominal Voltage(v) | 51.2V | 51.2V | 25.6V | ||
Nominal Energy(kWh) | 5.12kWh | 10.24kWh | 5.12kWh | ||
Nominal Capacity(Ah) | 100Ah | 200Ah | 200Ah | ||
Design Years | 15 Years | ||||
Size | 520×600×165mm | 570×730×165mm | 505×450×185mm | ||
Weight | ≤55kg | ≤95kg | ≤55kg | ||
Cycle Life | ≥6000 cycles | ||||
Operating Voltage Range | 40V～58.4V | 20V～29.2V | |||
Charging Voltage | DC 58.4V | DC 29.2V | |||
Operating Temperature | -10～55℃ | ||||
Warranty | 10 Years (2 Years free warranty, rest 8 years pay actual repair costs) | ||||
Charge/Discharge Current(A) | Same Port Max. 100A | ||||
Internal Resistance | ≤40mΩ | ||||
Self-Consumption | ≤2.5W | ||||
Rated Voltage | 51.2V | 25.6V | |||
Balance current | 30～65(MA) | ||||
Communication Method | CAN/RS485/RS232(Optional) | ||||
Information Storage | 500 Strip | ||||
Limiting | 10/20A(Optional) | ||||

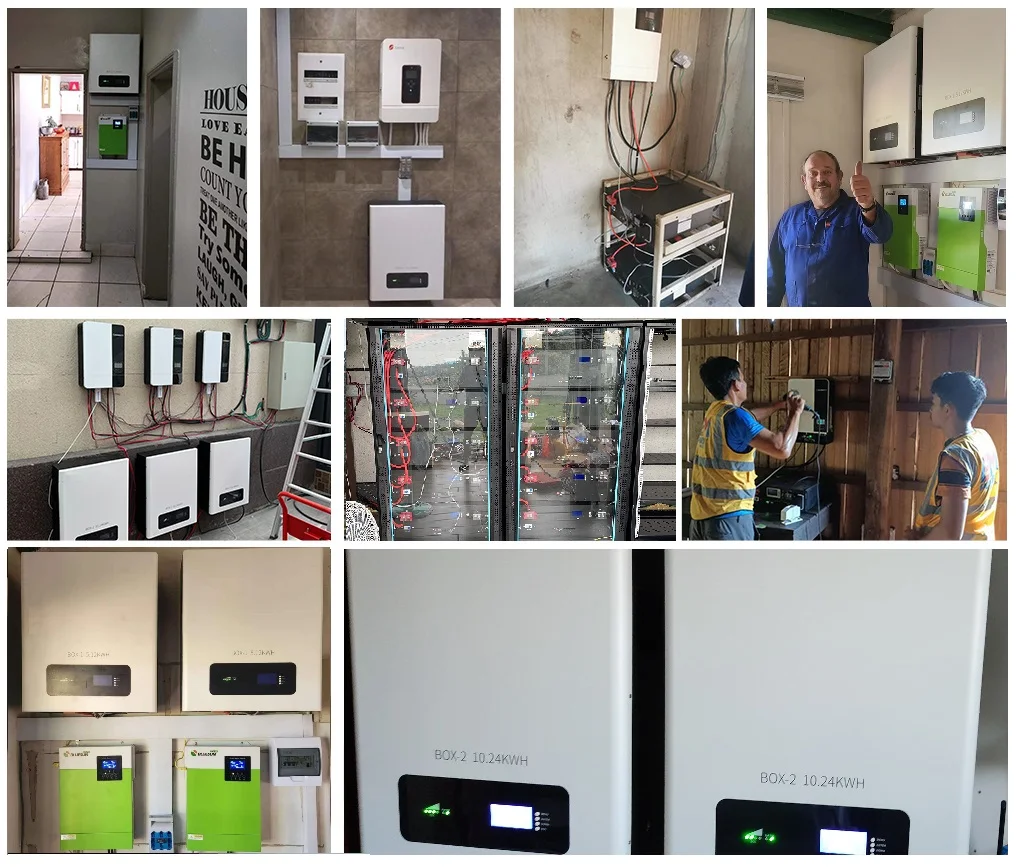

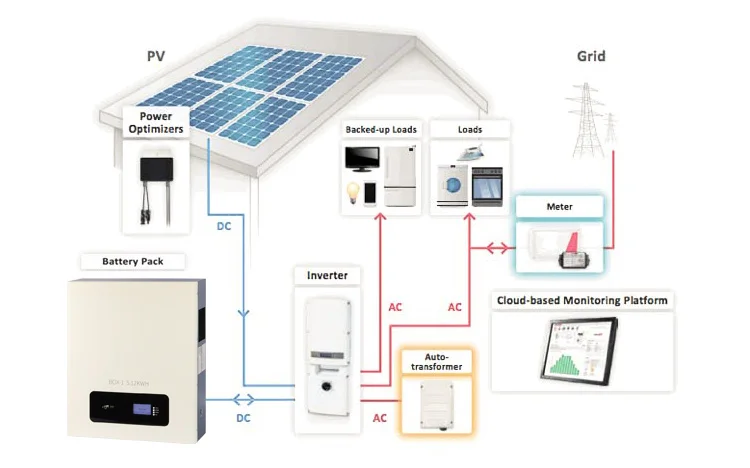

Solar Energy Storage System(Off Grid Solar System&Hybrid Solar System)
Lithium LiFePO4 Battery 51.2V 5.12kWh/10kWh/15kWh wall battery are most popular and widely used in solar storage system(Off Grid Solar System&Hybrid Solar System ). Wall battery can be connected in Parallel to store more energy.
Package and Delivery

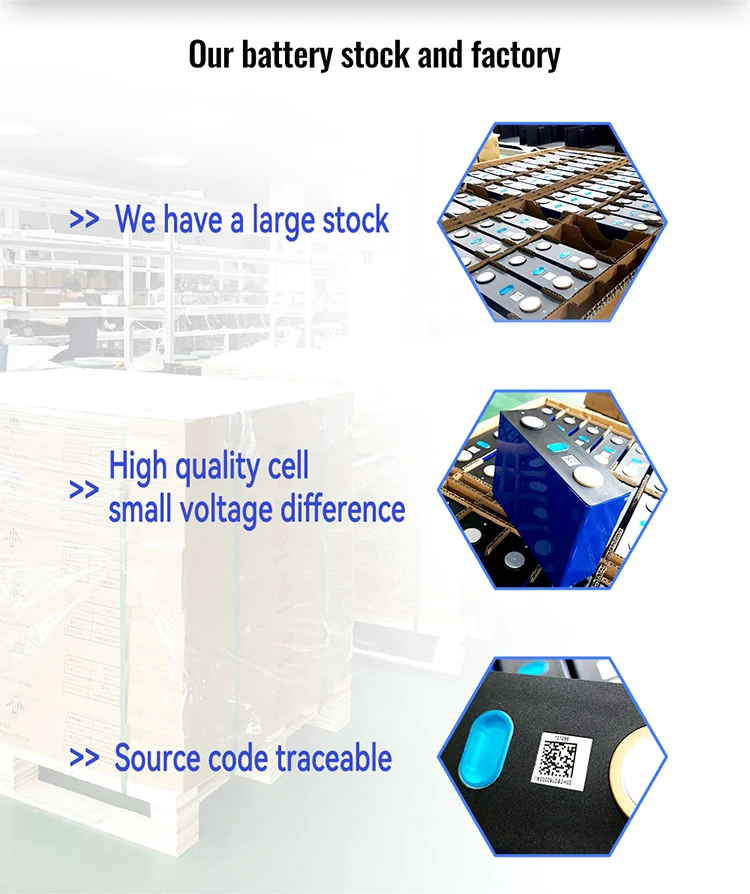

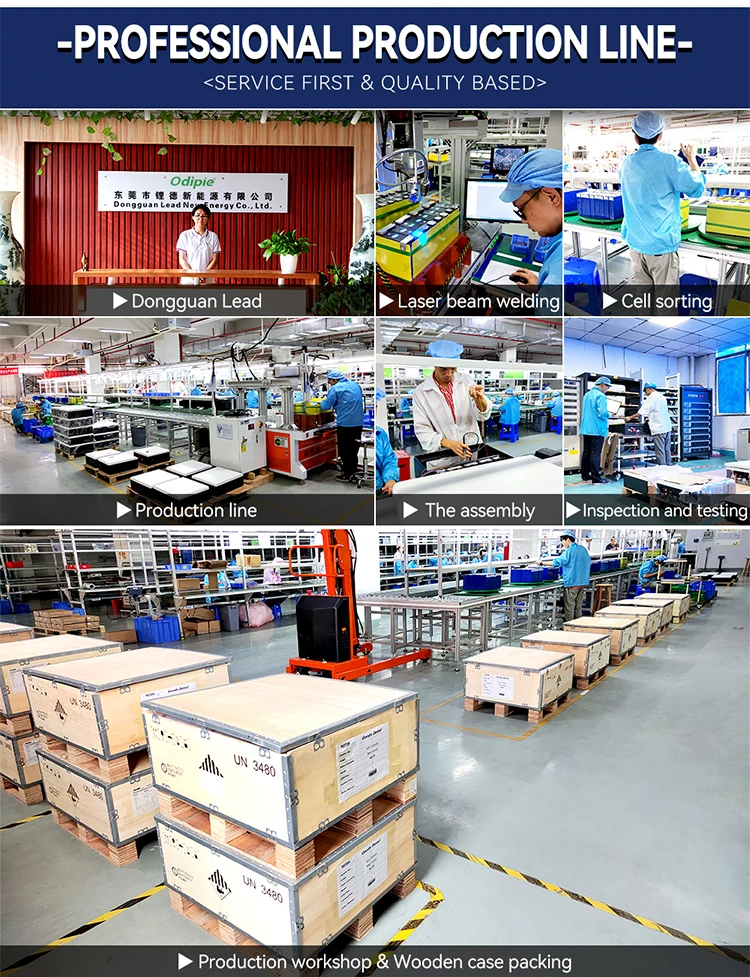

Our Factory
Certifications
Warning
To ensure proper use of the battery please read the manual carefully before using it.
Handling
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals connected.
Avoid shorting the battery.
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or model batteries.
Keep out of the reach of children.
Do not put the battery in a charger or equipment with wrong terminals connected.
Avoid shorting the battery.
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or model batteries.
Keep out of the reach of children.
Charge and discharge
Battery must be charged in appropriate charger only.
Never use a modified or damaged charger.
Donot leave battery in charger over 24 hours.
Never use a modified or damaged charger.
Donot leave battery in charger over 24 hours.
Storage
Store the battery in a cool, dry and well-ventilated area.
Disposal
Regulations vary for different countries. Dispose of in accordance with local regulations.
