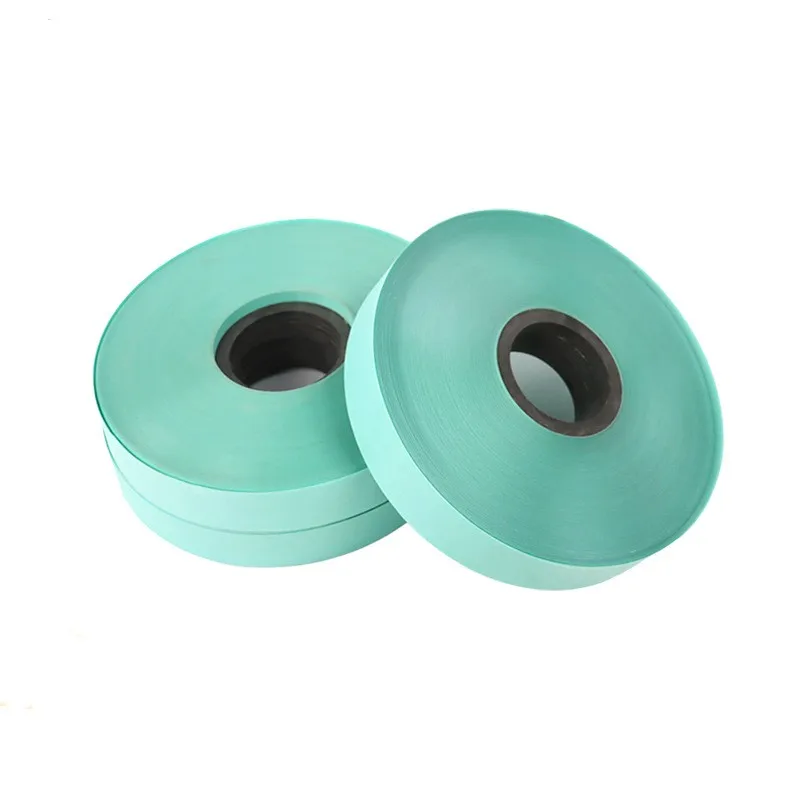

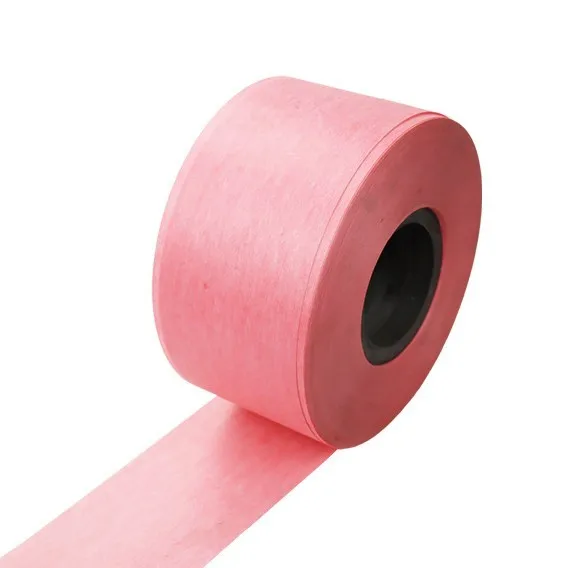

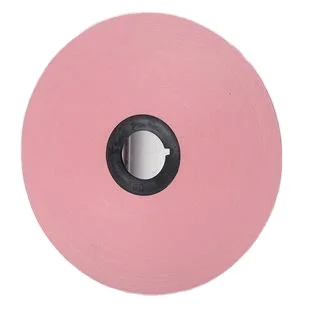

Insulation Paper Dmd Material 6641 Flexible Electrical Insulating Dmd Paper For Slot Motor Transformer
- Category: >>>
- Supplier: Anshan Anza Electronic Power Co. Ltd.
Share on (1600918277097):
Product Overview
Description
Product Description
--6641 Polyester film/Polyester fiber non-woven fabric flexible Laminate is a three-layer flexible composite material.
--Insulation class: F class (155 °C)
--Polyester film/Polyester fiber non-woven
fabric flexible Laminate has high dielectric properties, tear strength and tensile strength, good impregnation performance
--As slot, interturn and liner insulation for E-grade motors, generators and electric appliances. The polyester film for
electrical industry has high dielectric properties, tear strength and tensile strength, good impregnation performance
--6641 / F grade DMD polyester film polyester fiber composite foil for motor, electrical stator winding in the slot insulation,
liner insulation and turn to turn insulation.
--F-class DMD insulation paper is also used in dry-type transformer coil insulation layer, the end of insulation, liner
insulation.
electrical industry has high dielectric properties, tear strength and tensile strength, good impregnation performance
--6641 / F grade DMD polyester film polyester fiber composite foil for motor, electrical stator winding in the slot insulation,
liner insulation and turn to turn insulation.
--F-class DMD insulation paper is also used in dry-type transformer coil insulation layer, the end of insulation, liner
insulation.

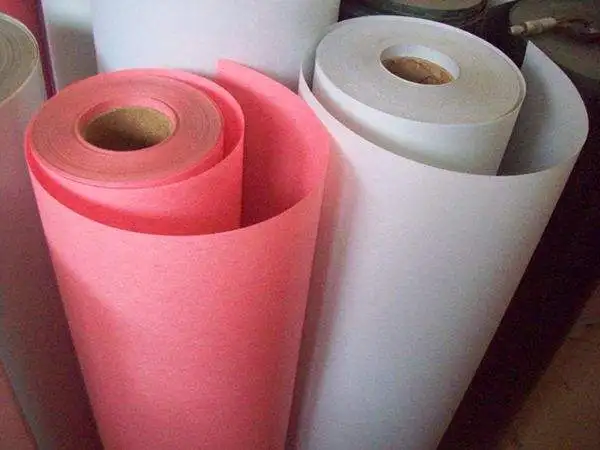

--Form: roll, sheet, strip

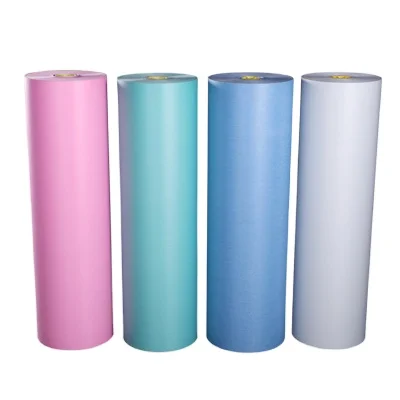

--Colur: Blue, green, white and pink. Special colours can be provided on request. --Four layers can be produced on request.

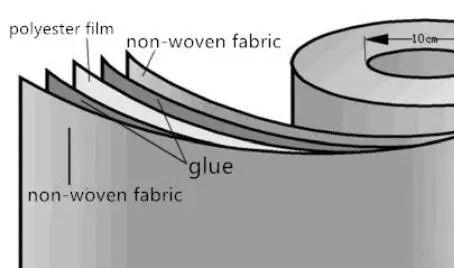

--Three layers: polyester film is bonded with non-woven fabric cloth.
-Middle Layer: Polyester film(PET) for Electrical Purposes.
--Outer Layer: Non-woven fabric cloth.
The insulation system has been approved by UL (NO.: E310670) and the products have passed ROHS and RECH test.
--Colur: Blue, green, white and pink. Special colours can be provided on request. --Four layers can be produced on request.
--Three layers: polyester film is bonded with non-woven fabric cloth.
-Middle Layer: Polyester film(PET) for Electrical Purposes.
--Outer Layer: Non-woven fabric cloth.
The insulation system has been approved by UL (NO.: E310670) and the products have passed ROHS and RECH test.
Specifications:
Properties | Units | Values | ||||||||||||
Nominal thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.30 | 0.35 | ||||||
Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.04 | ||||||
Grammage and tolerance | g/m2 | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 | ||||||
Film Nominal Thickness | mm | 0.050 | 0.075 | 0.10 | 0.125 | 0.15 | 0.19 | 0.25 | ||||||

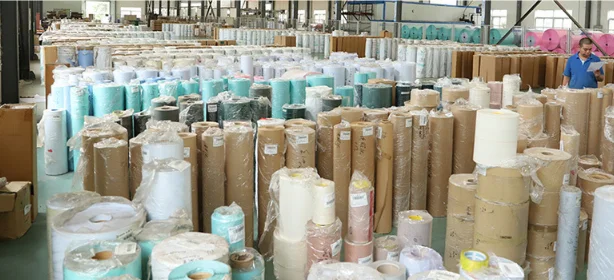

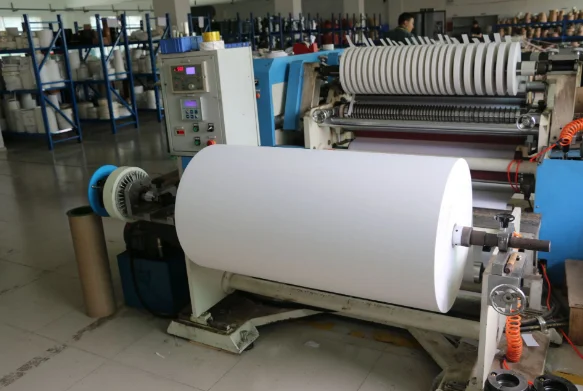

Warehouse
