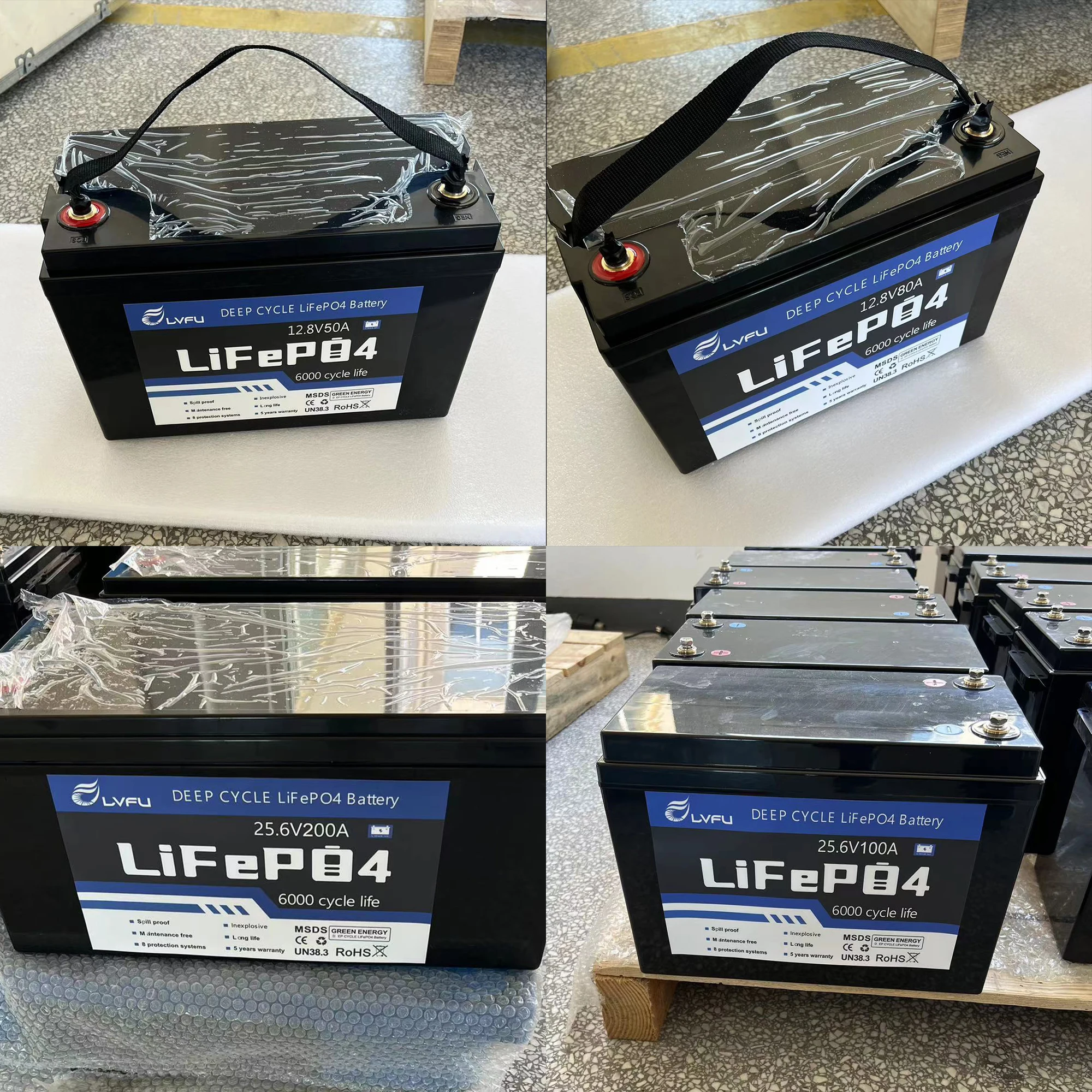

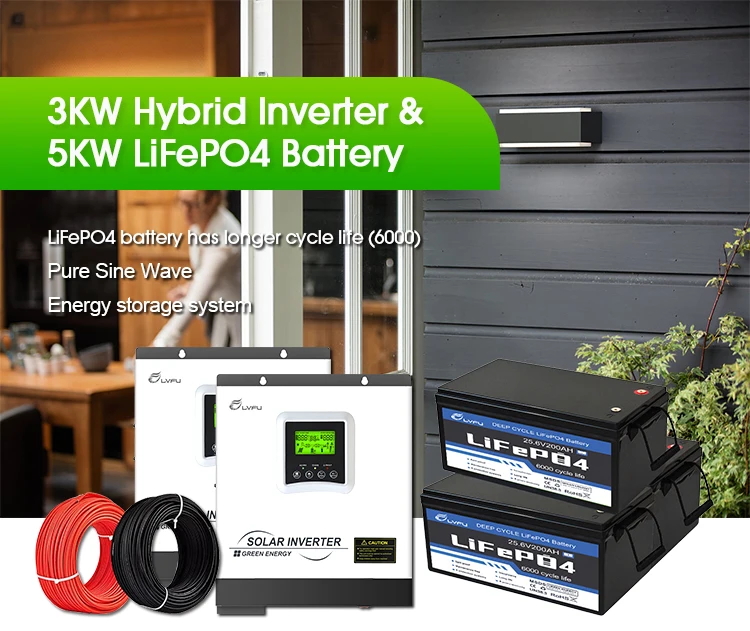

Lifepo4 battery 24v 100ah Lithium Iron Battery Pack 25.6V 100 Ah 200ah Lifepo4 Battery Long Cycle Life For boat
- Category: >>>
- Supplier: Air Bath International Trade (Chengdu) Co. Ltd.
Share on (1600918298055):
Product Overview
Description
Products Description

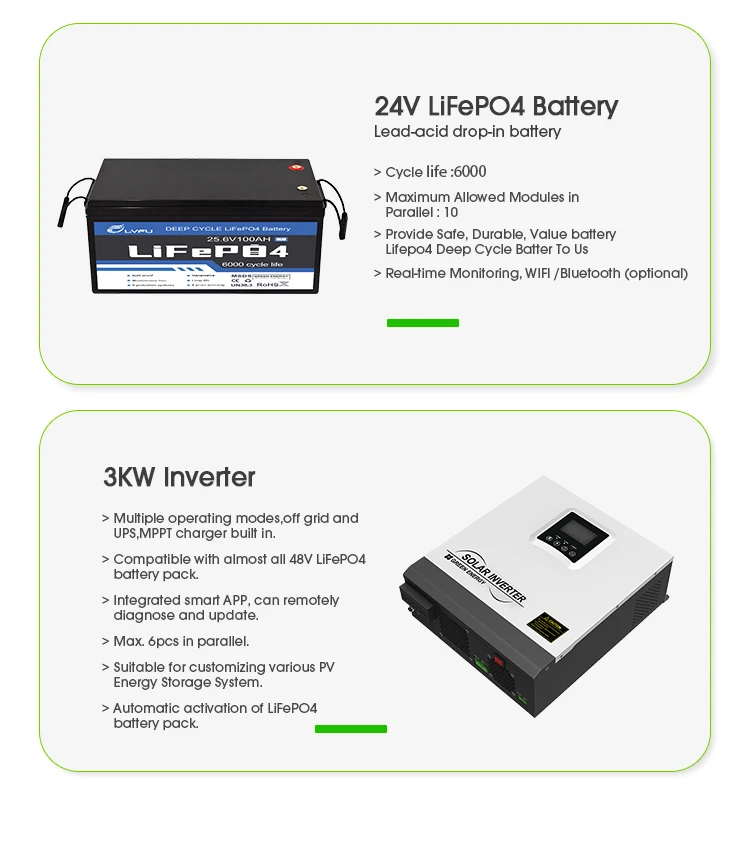

Lead-acid Drop-in Battery Parameter
Model | LVFU-24100 | LVFU-24200 | |
Product Tpye | LiFePO4 Battery | ||
Norminal Voltage | 24V | ||
Rated Capacity | 100ah | 200ah | |
Charge Current | 50A 0.5C | 100A 0.5C | |
Discharge Current | 100A 1C | 200A 1C | |
Charge Voltage | 29.2V | 29.2V | |
Discharge Voltage | 20V | 20V | |
Case Material | ABS | ||
Dimension | 345*190*245mm | 520*267*220mm | |
Weight | 26KG | 36KG | |
Application | Golf Cart,Electric Quadricycle | ||

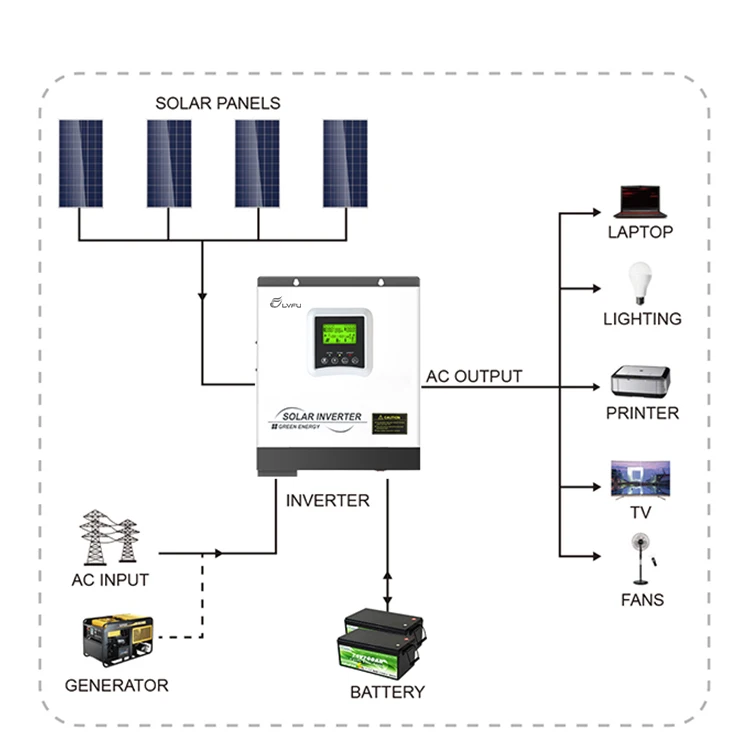

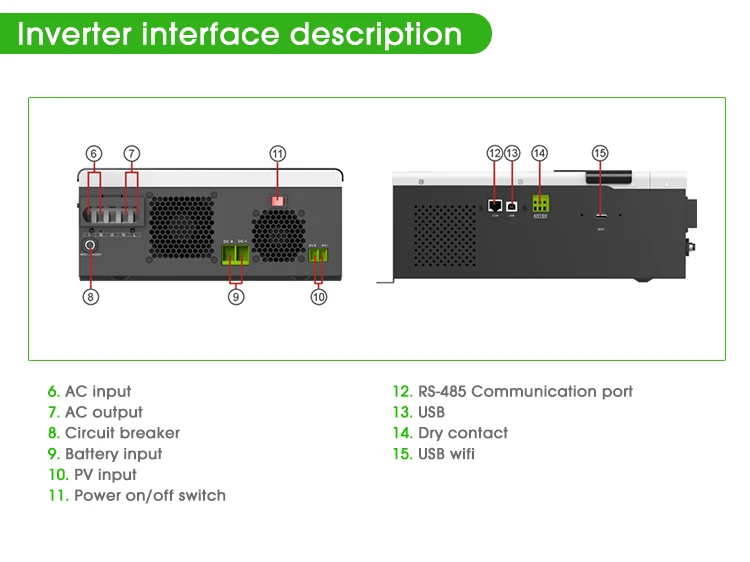

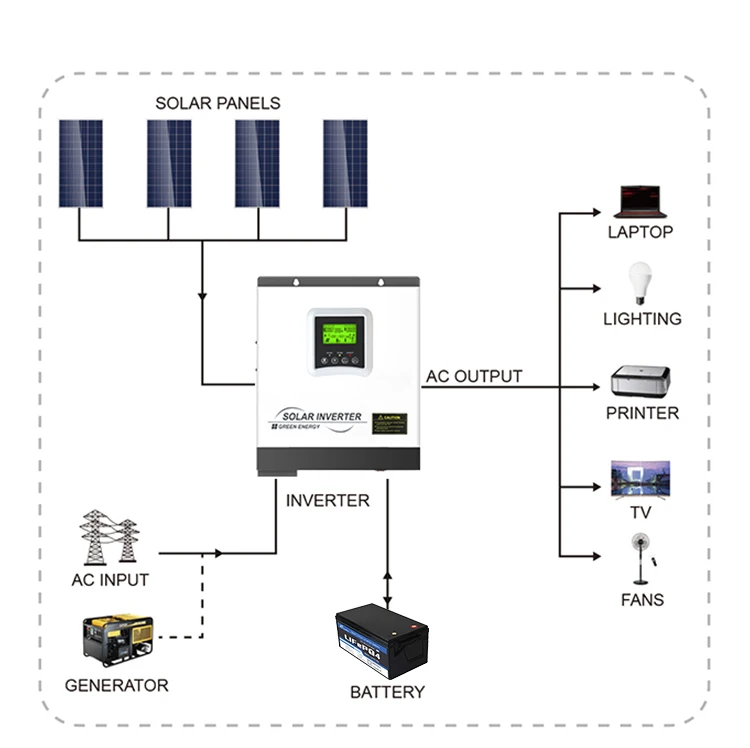

Inverter Parameter
Default Battery System Voltage | 24VDC | ||
Inverter Output | Rated Power | 3000VA/3000W | |
Surge Power | 6000VA | ||
Waveform | Pure sine wave | ||
AC Voltage Regulation (Batt.Mode) | 220VAC-240VAC(Setting) | ||
Inverter Efficiency(Peak) | 90%~93% | ||
Transfer Time | 10ms(UPS/VDE4105)/20ms(APL) | ||
AC Input | Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(UPS) /90-280VAC(APL) / 184-253VAC(VDE) | ||
Frequency Range | 50Hz /60Hz (Auto sensing) | ||
Battery | Normal voltage | 24VDC | |
Floating Charge Voltage | 27.4VDC | ||
Overcharge Protection | 30VDC | ||
Solar Charge&AC Charge | Maximum PV Array Open Circuit Voltage | 145VDC | |
PV Array MPPT Voltage Range | 30~120VDC | ||
Standby Power Consumption | 2W | ||
Maximum PV Array Power | 1500W | ||
Maximum Solar Charge Current | 60A | ||
Maximum Efficiency | 98% | ||
Maximum AC Charge Current | 20A or 30A | ||
Maximum Charge Current | 80A | ||
Mechanical Specifications | Machine Dimensions (W*H*D)(mm) | 290*342*125 | |
Package Dimensions (W*H*D)(mm) | 408*412*240 | ||
Net Weight(kg) | 7.4 | ||
Gross Weight(kg) | 9.5 | ||
