Product Overview

Description



Products Description

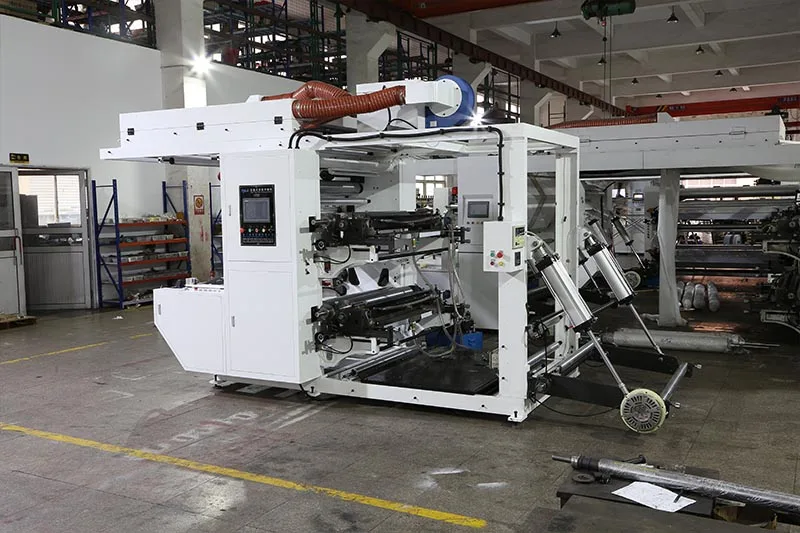

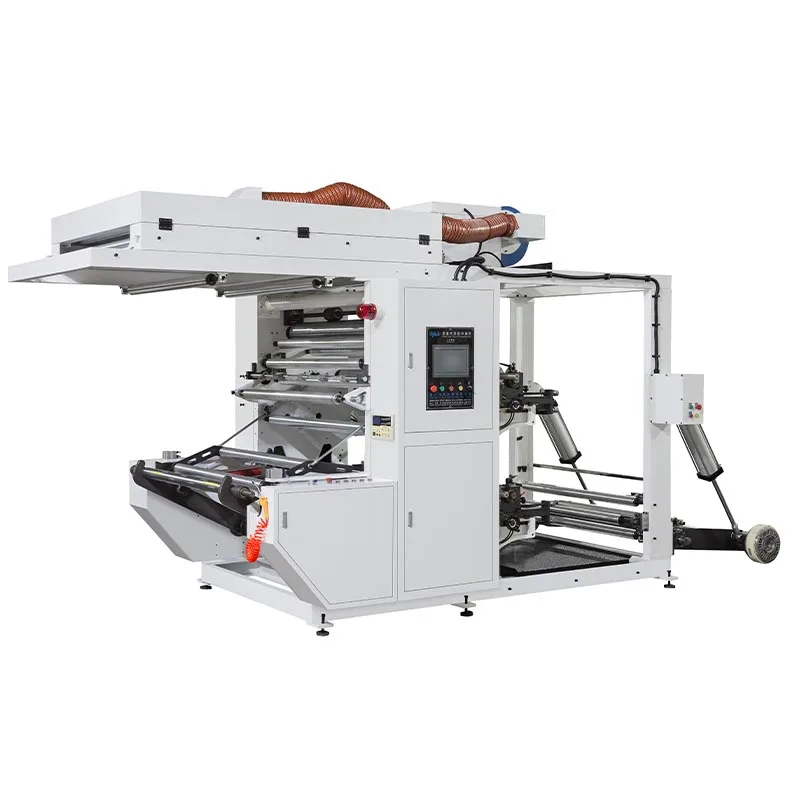

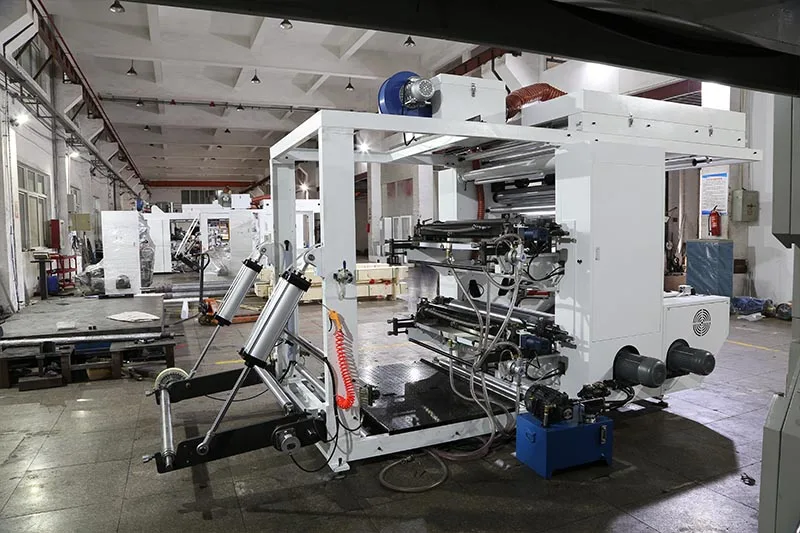

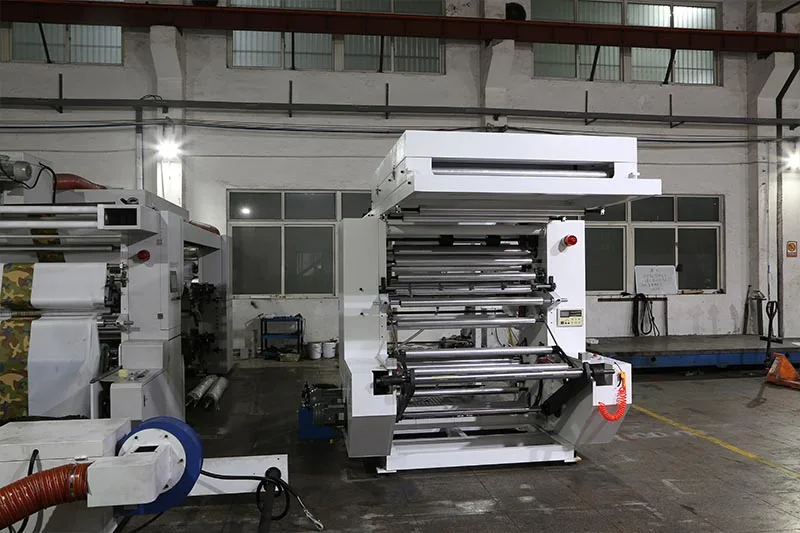

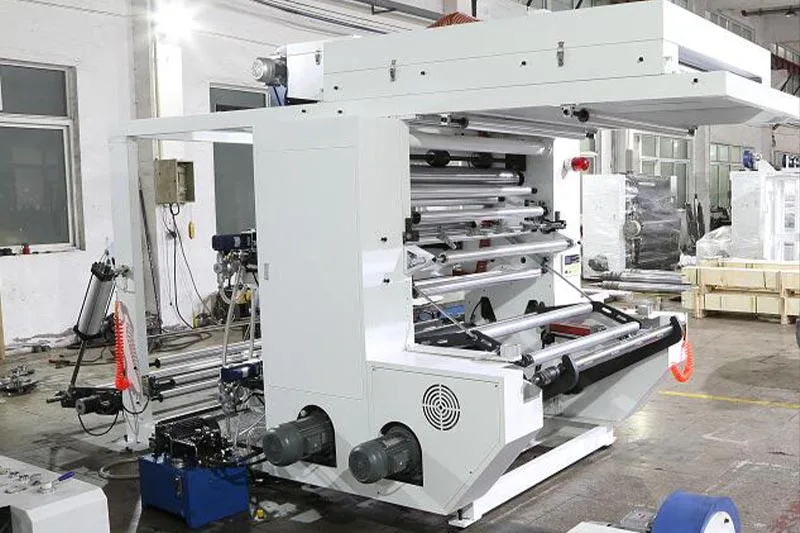

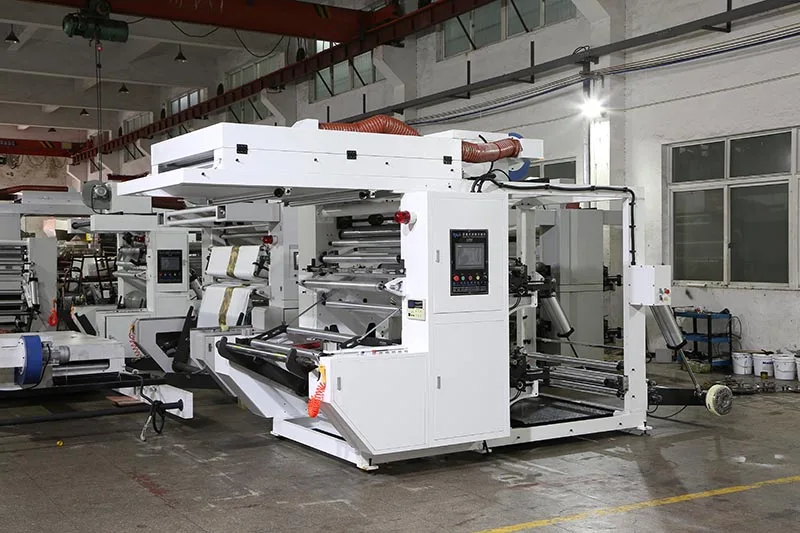

BFYTB-2 Color Stack Flexo-graphic Printing Machine
Detailed description
The main printing plate is flexible photosensitive resin plate or rubber, printed by anilox roller with ink. General process,
unwinding unit, tension controller unit, traction feeding unit, printing unit, dryer unit, traction rewind unit and rewinding
unit, all unit is controlled by PLC system. This machine has the advantages of reasonable structure, fast operation, simple
operation, and it is the ideal flexible packaging equipment in China.
Specification
1）Single station or double station unwinding unit with 3” air shaft, edge position controller and tension controller, and warn for exchanging the unwinding, automatic stop the machine when the material is broken.
2） The main motor is controlled by frequency converter, the transmission adopt high precision synchronous belt or servo motor.
3）Unwinding style: Feeding paper by double rollers pressed, the pressure of unwinding is controller by pneumatic device. To ensure accuracy of register, the tension size is controlled by taper control technology.
4）Printing unit: Ceramic anilox roller with single doctor blade or enclosed doctor blade, automatic ink; anilox roller and plate roller is separated by hydraulic pressure when the machine was stopped. The anilox roller is driving by independent motor, to ensure the ink don’t freeze on the surface of anilox.
5）The pressure of rewinding is controller by pneumatic device: can add the static image detection system (Optional)
6）Single station rewinding unit with 3” air shaft, rewinding by motor, and the machine will be stopped when the material is broken.
7）Independent dry system: IR heating (The temperature can be adjusted)
8）All system is controlled by PLC system, you can change by touch screen. It equip with automatic counting meter and changing speed.
Suitable printing material:
Roll paper, Plastic film, Non woven, Non woven, PP non woven bag. (Roll style of packaging material)


Company Profile










Sample




PRODUCT SPECIFICATIONS


Model
BFYTB-600mm
BFYTB-1000mm
BFYTB-1200mm
BFYTB-1600mm
Width of material
600mm
1000mm
1200mm
1600mm
Printing width
570mm
970mm
1170mm
1570mm
Printing length
280-1000mm
Printing color
2colors(2+0、1+1）
Diameter of roll material
Ф600 or Ф1000mm
Printing speed
50-130m/min
Register precision
+-0.15mm
Power
3phase 380V 50HZ
Weight
2000kg
2200kg
2500kg
2800kg
Dimension（L*W*H）
2800*1700*2550
2800*1700*2550
2800*1700*2550
2800*1700*2550


Optional unit:
 1、UV dryer unit
2、Slitting device: Straight knife or circular knife
3、Corona treater unit
3. Electrostatic elimination or dust removal unit
4. Attachment device unit
5. Static image detection system unit


PRODUCT CONFIGURATION






FAQ


1.You Are The Trading Company Or Manufacturer?
We Are The Manufacturer . Our Customer Is All Of The World .
2.How Can We Install The Machine ?
We Send The Manual And Operation Video
We Can Send Out The Engineer To Install The Machine And Traning Your Workers If Necessary
3.What Is The Machine Guaranteen?
The Machine Guaranteen Is One Year,
The Machine After Sale Service Is Forever.
4.What Is Material Your Machine Can Print?
Plastic Film Roll : Pp Pe Pet Etc
Paper Roll
Non Woven Roll
Woven Roll
Aluminum Roll
5.How About The Payment Term?
Tt
Lc
6.Could You Help Us To Buy Other Goods?
Of Course, It Is Our Pleasure To Work For You
7.What Is The Delivery Time?
Normal Flexo Printing Machine Machine Are 30-45days
Central Drum Machine Are 70-90days
