4G WiFi Router Pcb 4G Wireless Modem with WAN/LAN Port LTE SIM Module with Modem for CCTV NVR IOT
- Category: >>>
- Supplier: Habolink Technology Co. Ltd
Share on (1600918435407):
Product Overview
Description
Products Description
Industrial 4G/3G LTE Modem Plug and Play SIM WIFI Router Board Small 4G Wireless Module LAN for Asia/Europe/America
4G Communication Module of AF207(Industrial Grade)AF207 of 4G wireless communication module converts telecommunication wireless network into standard wired port signal connection. The module provides WiFi signal hotspot.
Hardware Information | Descriptions |
Model | AF207 |
Condition | Brand New |
Type | Plug and Play |
4G Modem | Built-in, LTE CAT4 |
4G Chip | ASR1803 |
Power Supply Voltage | Wide voltage input，DC[4.7V---18V] |
Power Waste | Normal Operation Power <2W; Peak Value: 400mA@12V |
Power Interface Form | 1.25mm spacing socket horizontal 2Pin |
Frequency band (Asian Version) | LTE FDD: B1/B3/B5/B8 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B5/B8 |
Frequency band (European Version) | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B5/B8 |
Rate | LTE-FDD: Max 150Mbps(DL) Max 50Mbps(UL) |
LTE-TDD: Max 130Mbps(DL) Max 35Mbps(UL) | |
WCDMA: Max 4.2Mbps(DL) Max 2.2Mbps(UL) | |
WIFI Standard | 2.4G, 802.11b/g/n, 300Mbps |
Network Interface | 1-way WAN/LAN, 10/100M adaptive, auto MDI/MDIX |
Network Interface Form | 1.25mm wafer socket horizontal 4P |
USB Interface Form | 1.25mm wafer socket horizontal 4P Support USB to Ethernet function |
Wireless Network Antenna | DL MIMO supports Rx-diversity |
Antenna | 4g antenna interface x2 wifi antenna interface x1 |
Antenna Interface Form | IPEX Generation 1 |
USIM/SIM | NANO card |
Indicator lights | Power LEDx1 LTE Link LEDx1 |
Expansion socket | Support expansion led board, power/4g/wifi/lan/signal strength |
Key1 | Press and hold 10S to restore the factory default settings (Support 2 reset button position) |

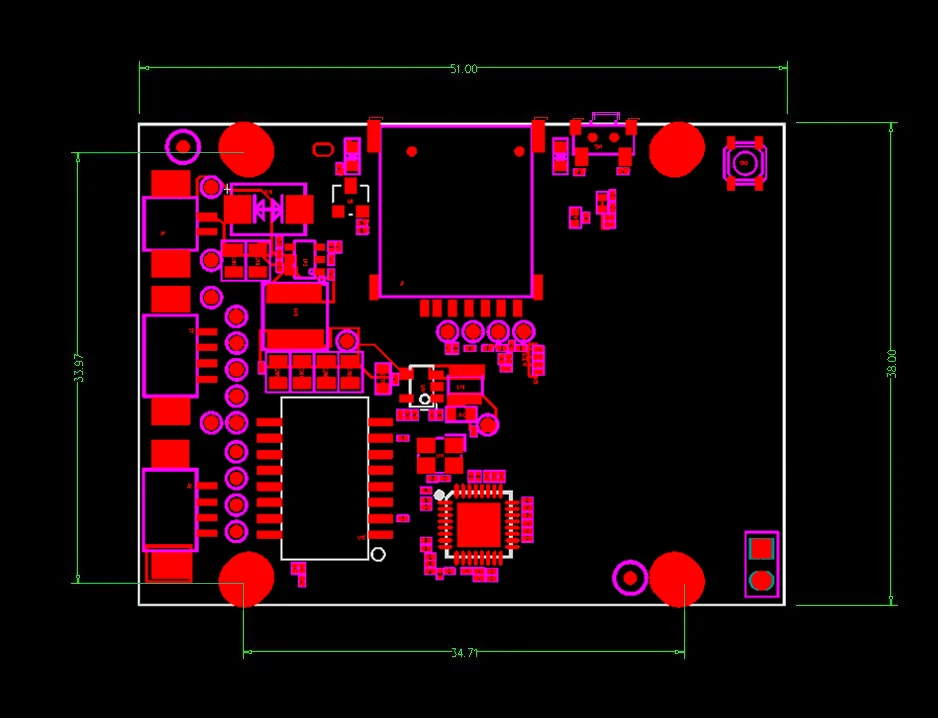

Dimensions | 7.8mm (H) x 51mm (W) x38mm (D) |
Positioning hole | 34*34mm |
Weight | 16g |
Working Temperature | -25°C－+70°C |
Working Humidity | 10%－95%RH |
Storage Temperature | -40°C－+85°C |
Software Information | Descriptions |
Gataway IP | 192.168.100.1 |
User/Password | admin |
WiFi Name | 4G-MIFI_XXXX |
WiFi Password | 12345678 |
Language | Chinese/English |

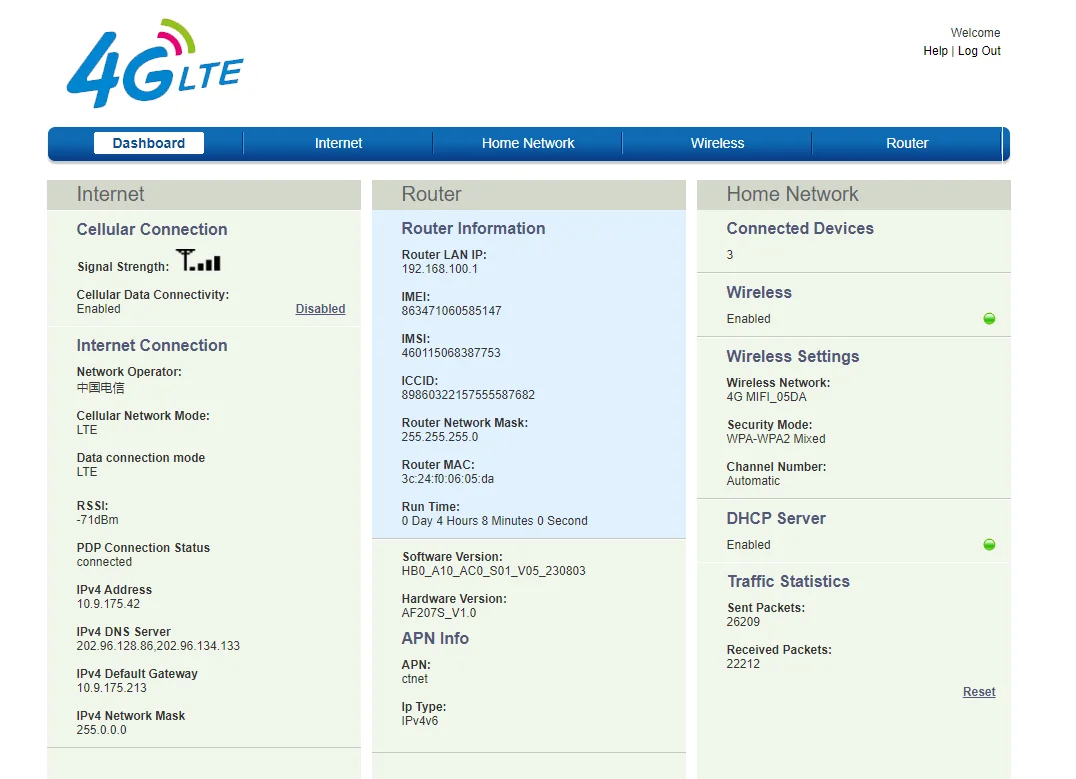

Routing Configuration | WEB interface management |
Network protocel | TCP/UDP/FTP/HTTP/HTTPS... |
Network Mode | 4G/3G, 4G priority, 3G priority |
DHCP Server | Modifying the LAN DHCP address pool |
Static IP | Support |
Device Management | Support |
Traffic Management | Support |
APN setting | Auto or Manual |
IP Type | IPV4V6, IPV4, IPV6 |
Channel | Auto, or CH1~CH13 |
Channel Bandwidth | HT20, HT40 |
Authentication Type | WPA3-SAE, WPA2-WPA3 Mixed, WPA2-PSK, WPA-WPA2 Mixed, WPA-PSK, WEP, WAPI-PSK, None |
Encryption Algorithm | AES-CCMP, TKIP/ AES-CCMP |
Wireless MAC Filter | Support |
IP Address Filter | Support |
Port Forwarding | Support |
Port Trigger | Support |
DMZ Settings | Support |
DN Filter | Support |
Time Zone | Select your local time zone and sync internet time |
Auto Reboot | Support set the auto reboot time |
Software Upgrade | WEB or USB Upgrade |
Max WIFI users | 10 |
More Information | Descriptions |
SDK | Available |

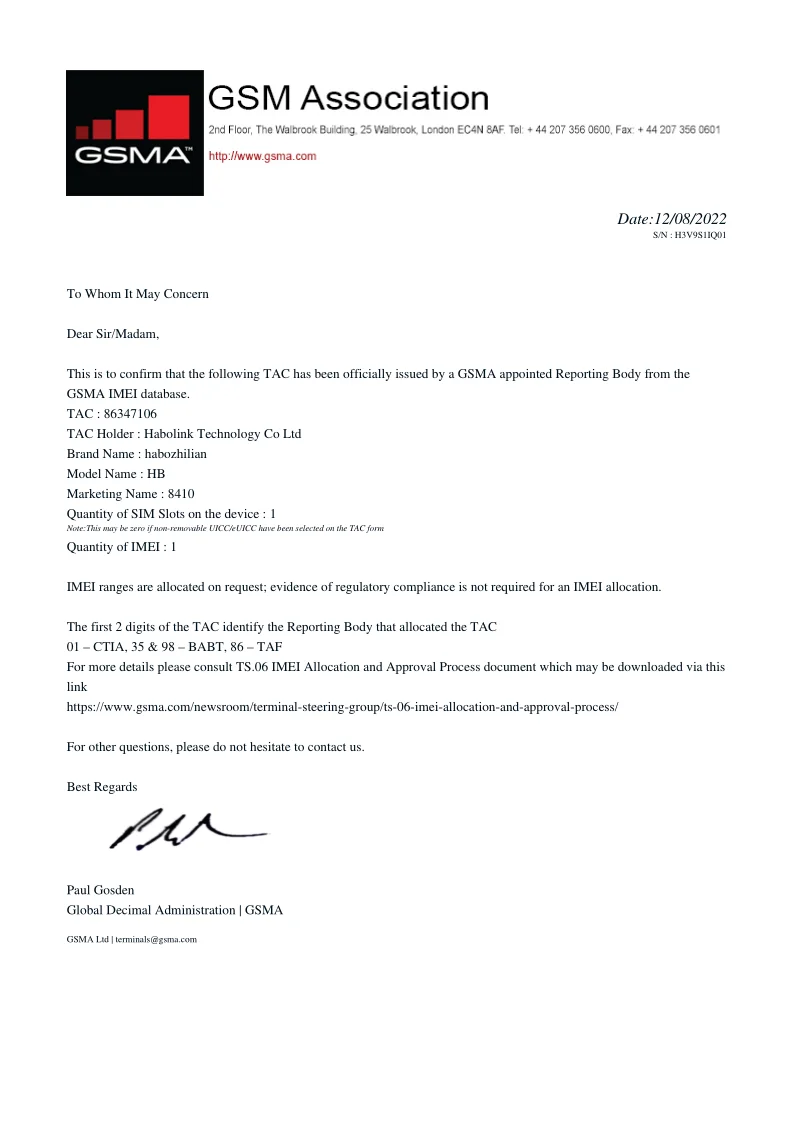

IMEI | Can provide tool to modify |
OEM/ODM | Support (MOQ: 3K)(10-45days) |

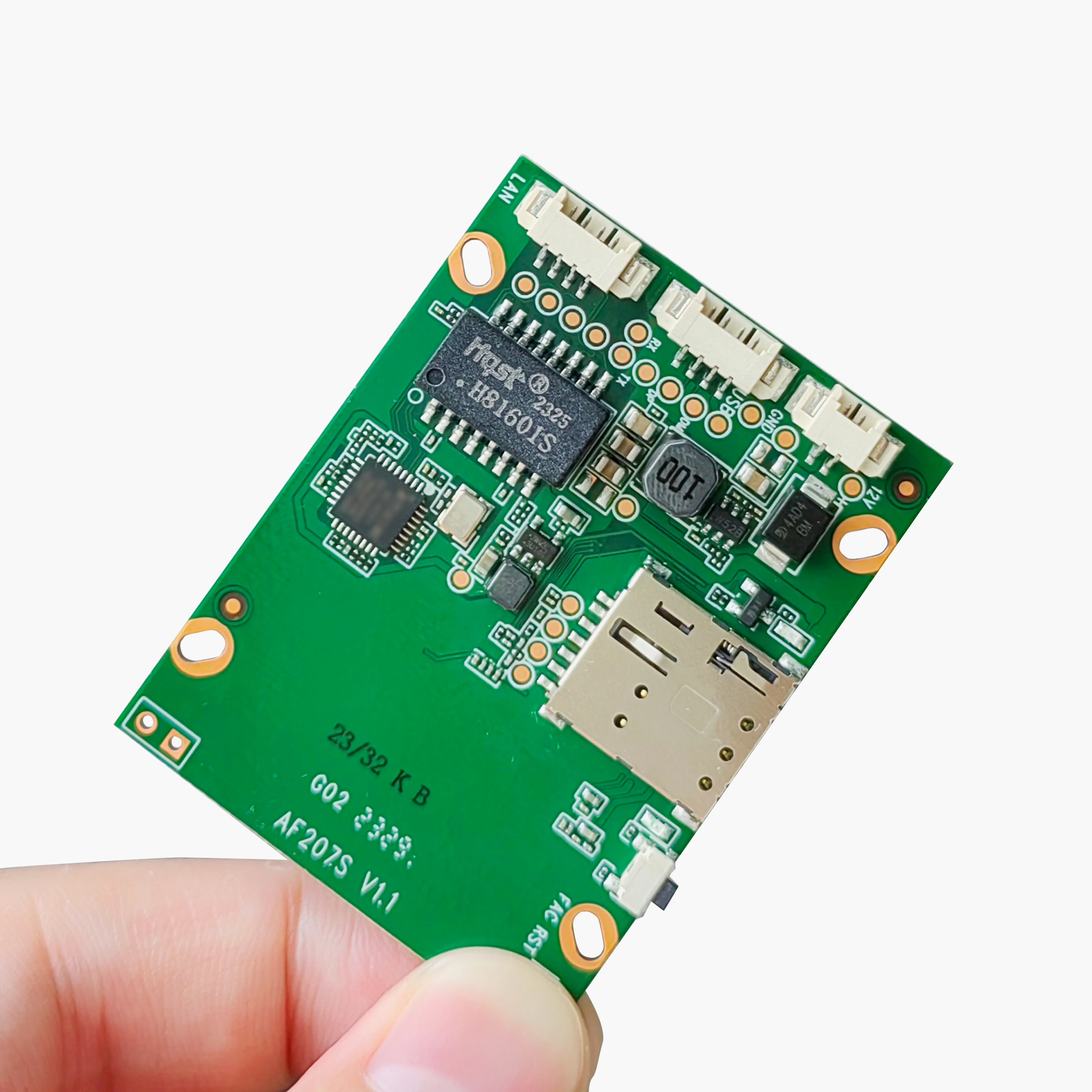

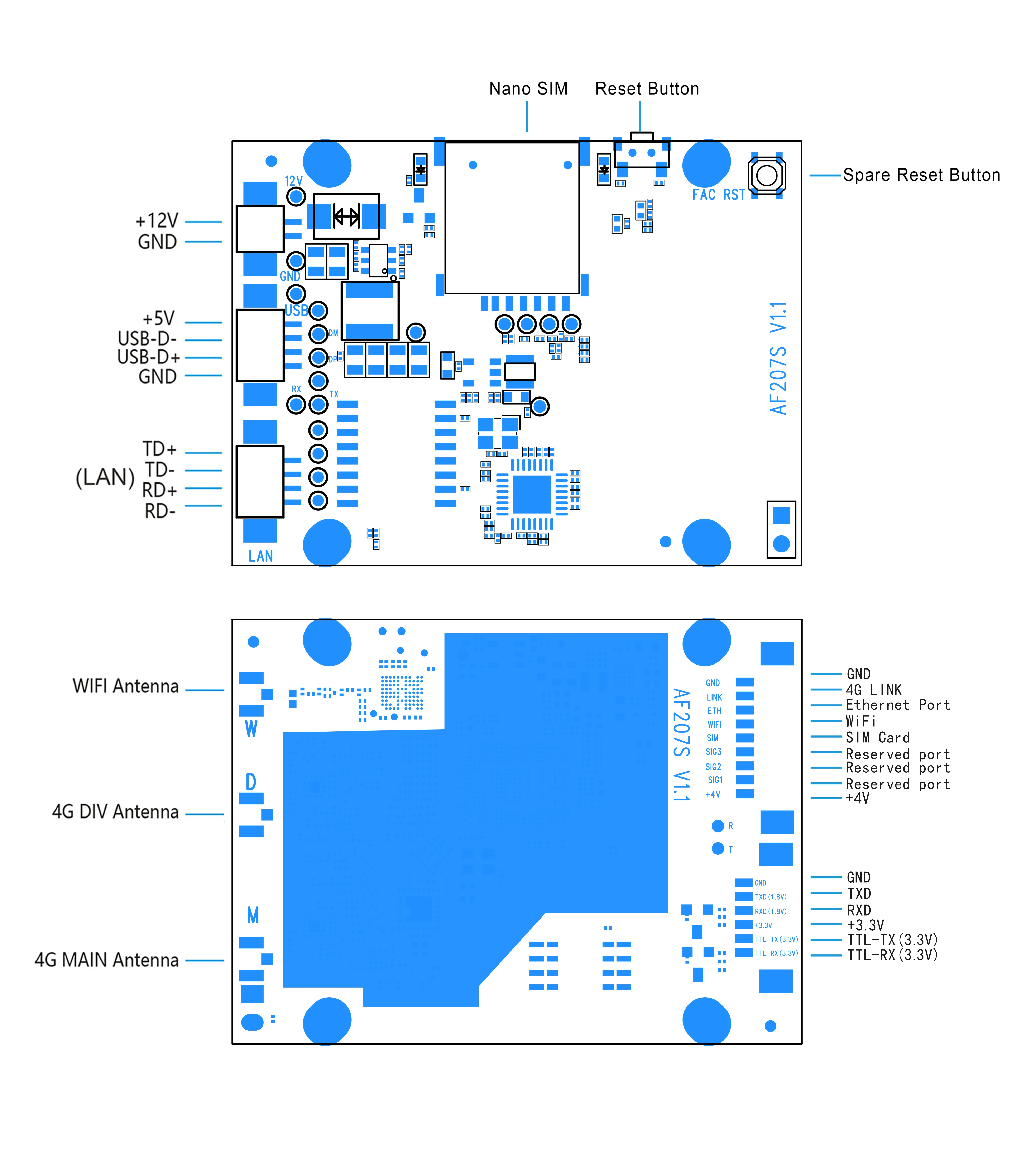

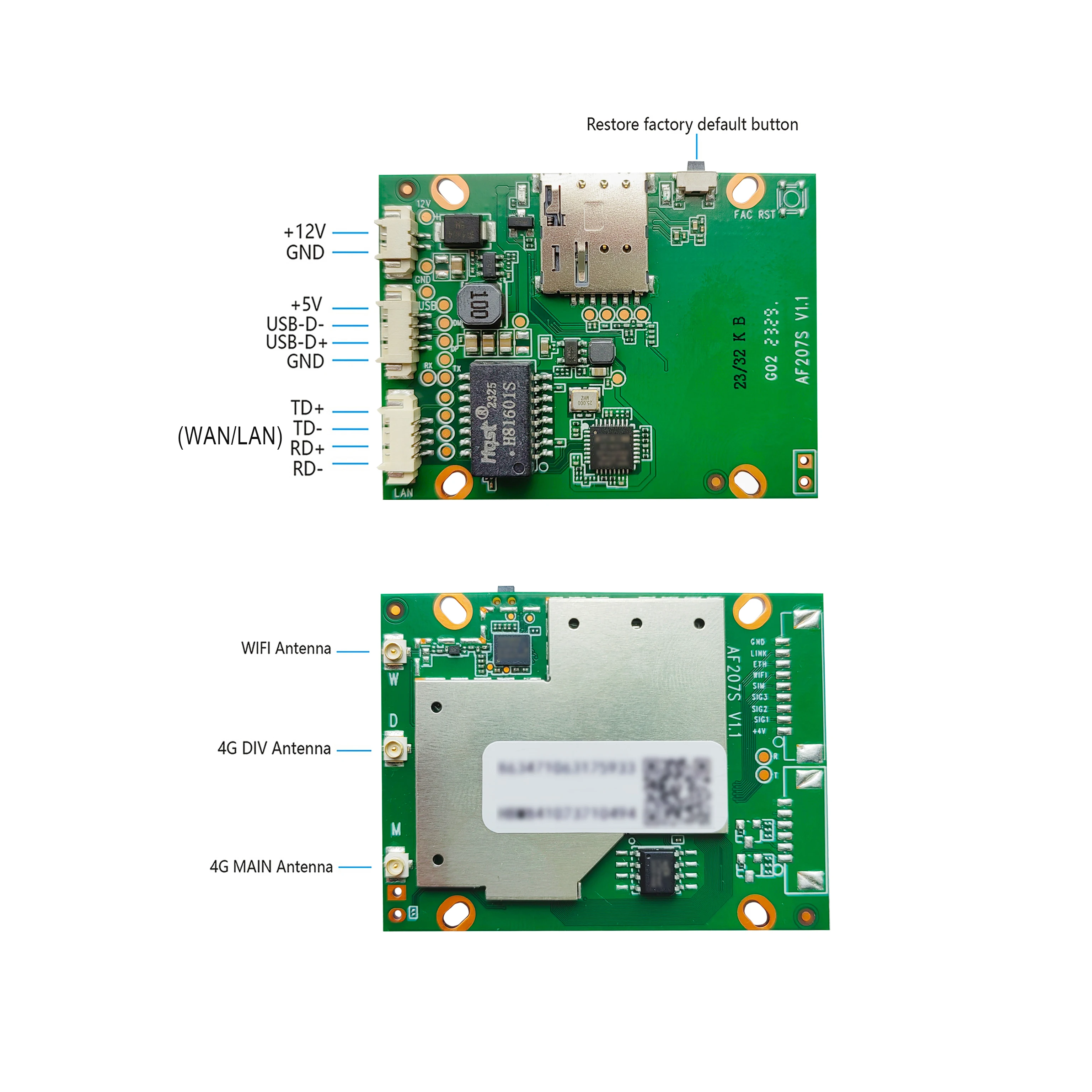

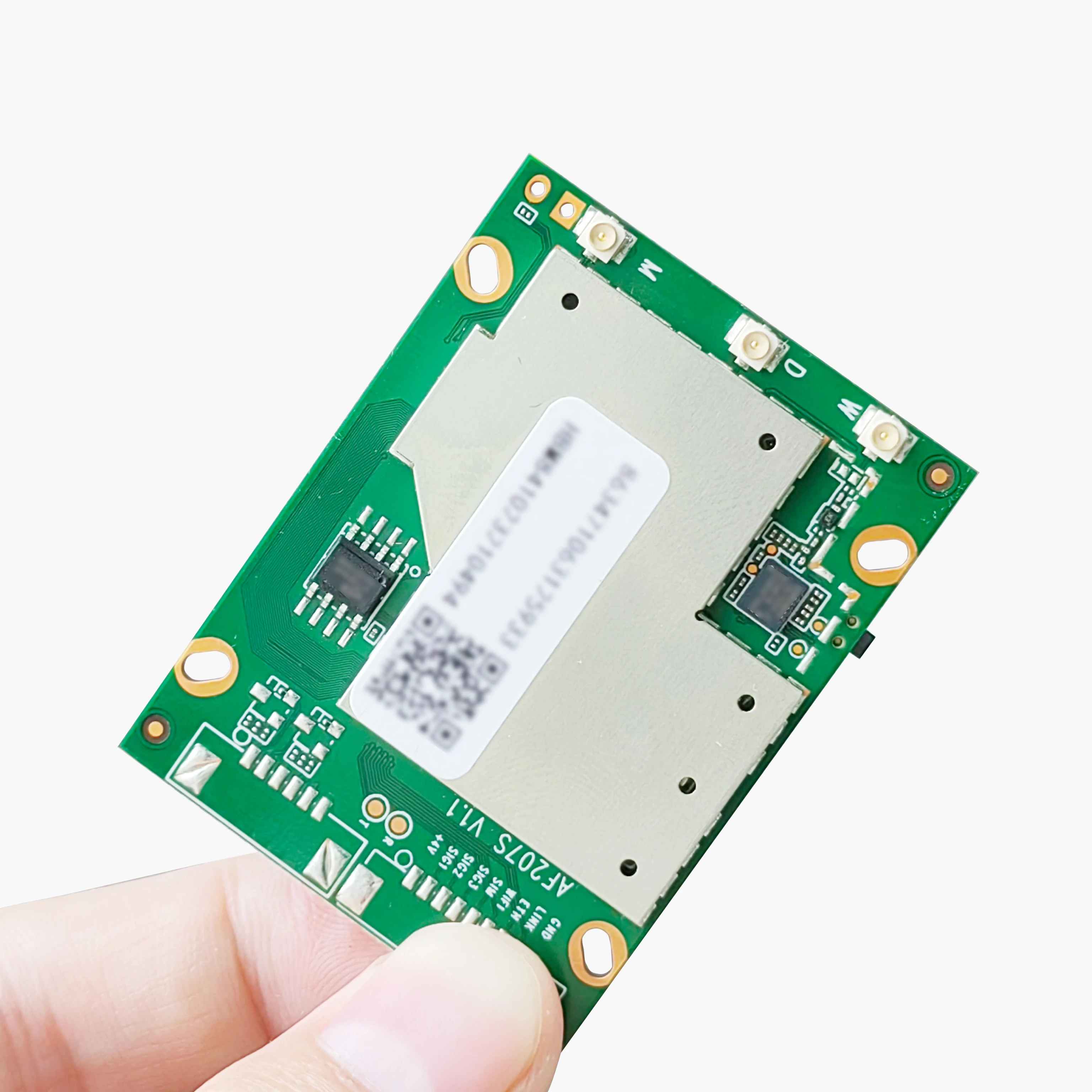

Details Images

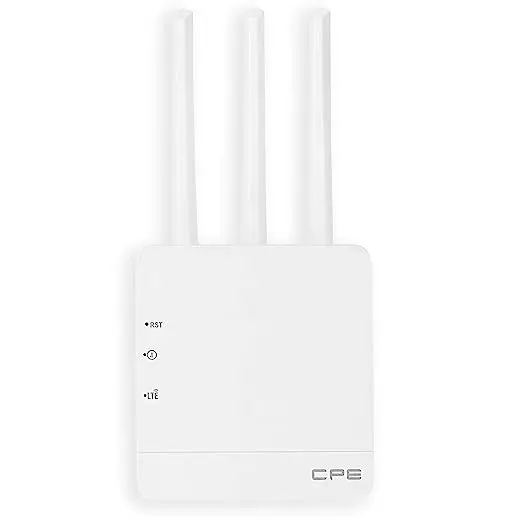

Product application
Production Process & Warehouse
Product packaging
1pcs PCBA size | 51*38*9（mm）/ 16g |
1 foam tray | 100pcs PCBA |
1 carton | 1000pcs PCBA |
Carton size | 41cm*38cm*55cm |
Gross weight | 21.2kg |
Packaging | foam tray with carton, waterproof green bag |
Shipping & Loading
Shipping we are so professional
Ocean Sea Shipment: Loading Container for Bulk Cargo.
Air Shipment: Try Order/ Small Order.
Lead Time:
Sample : 5 working days
Standard Bulk： 10-15 working days.
OEM/ODM order 25-30 working days.
Sample : 5 working days
Standard Bulk： 10-15 working days.
OEM/ODM order 25-30 working days.
Trade Term:
EXW/FOB SHENZHEN /GUANGZHOU
Payment Terms:
30% T/T as deposit should be paid before production ,70% T/T should be paid before delivery after inspection.
Company Profile
Habolink Technology Co.,Ltd. is a wireless communication solution provider, boasting rich experiences in functional wireless IoT modules & solutions, and providing all-around quality assurance in each and every step. Our products have been widely used in IoT/M2M fields including wireless gateways & routers, video surveilance, smart energy, agriculture and environment monitoring etc.
