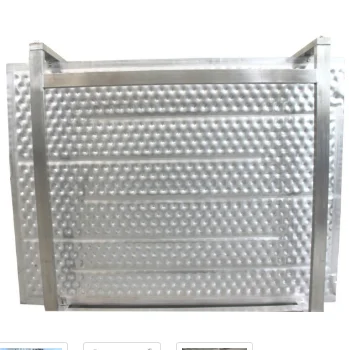

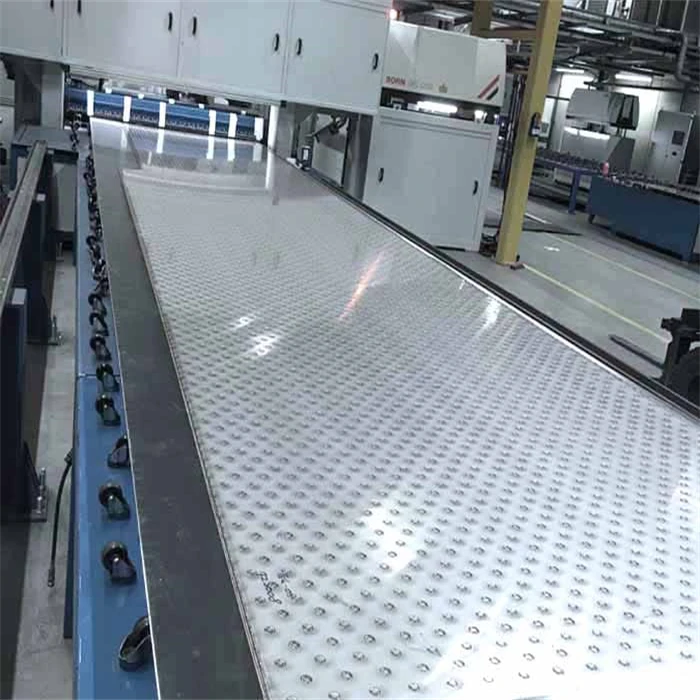

stainless steel 304 aluminum efficient heat preservation pillow plate
- Category: >>>
- Supplier: Jiangsu Hanpu Mechanical Technology Co. Ltd
Share on (1600918453471):
Product Overview
Description
Product Description

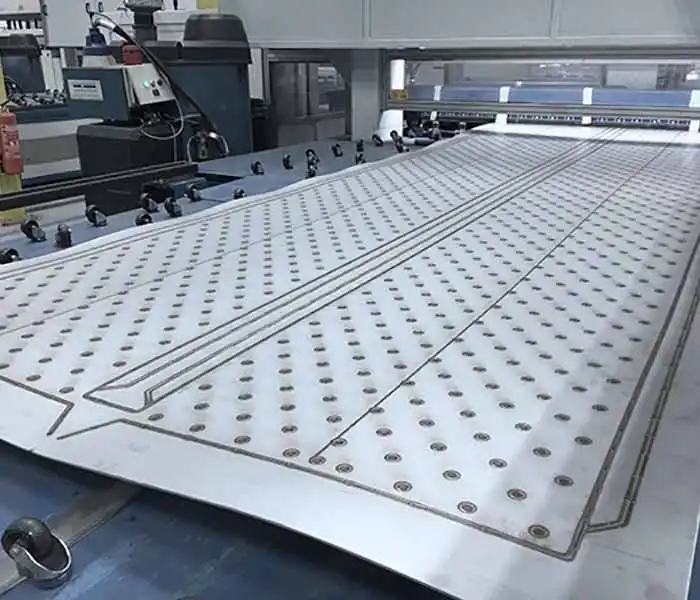

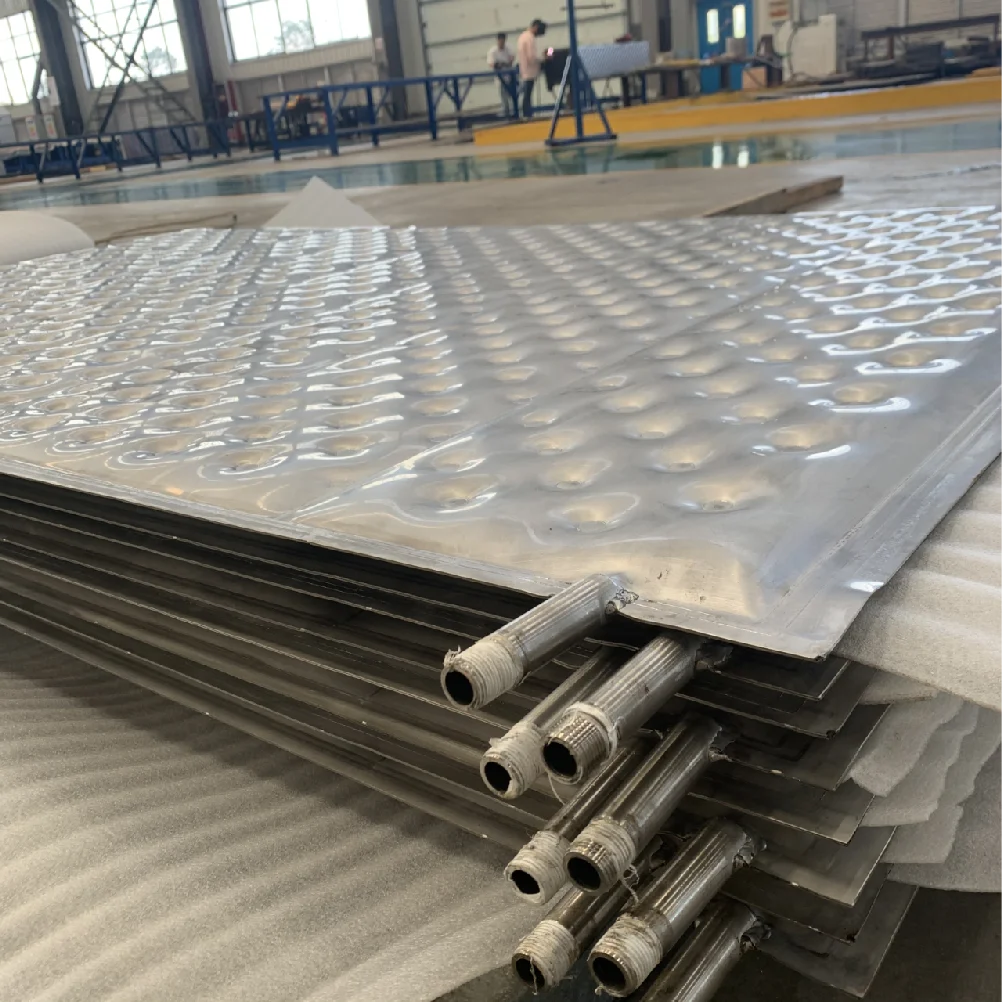

Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.
Drum at one side

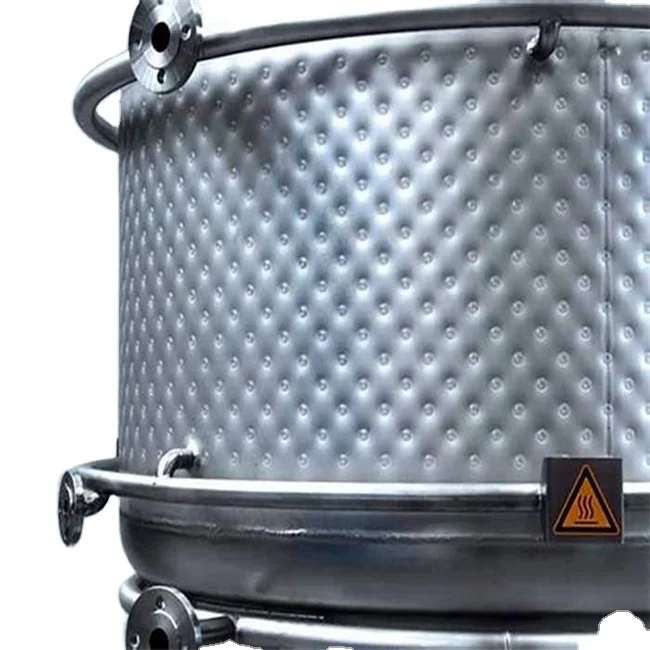

Single-sided drum pressure, generally as a flat sleeve or clamped heat exchanger.

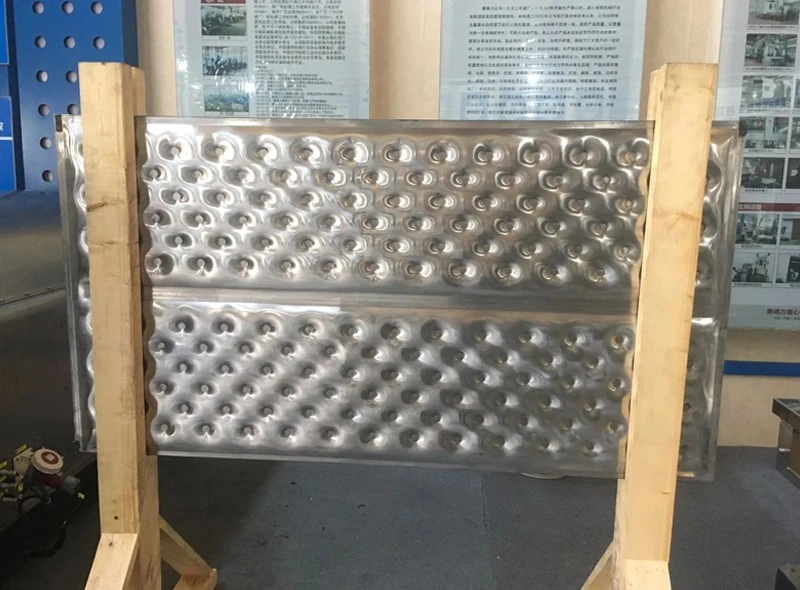

Drum at both sides

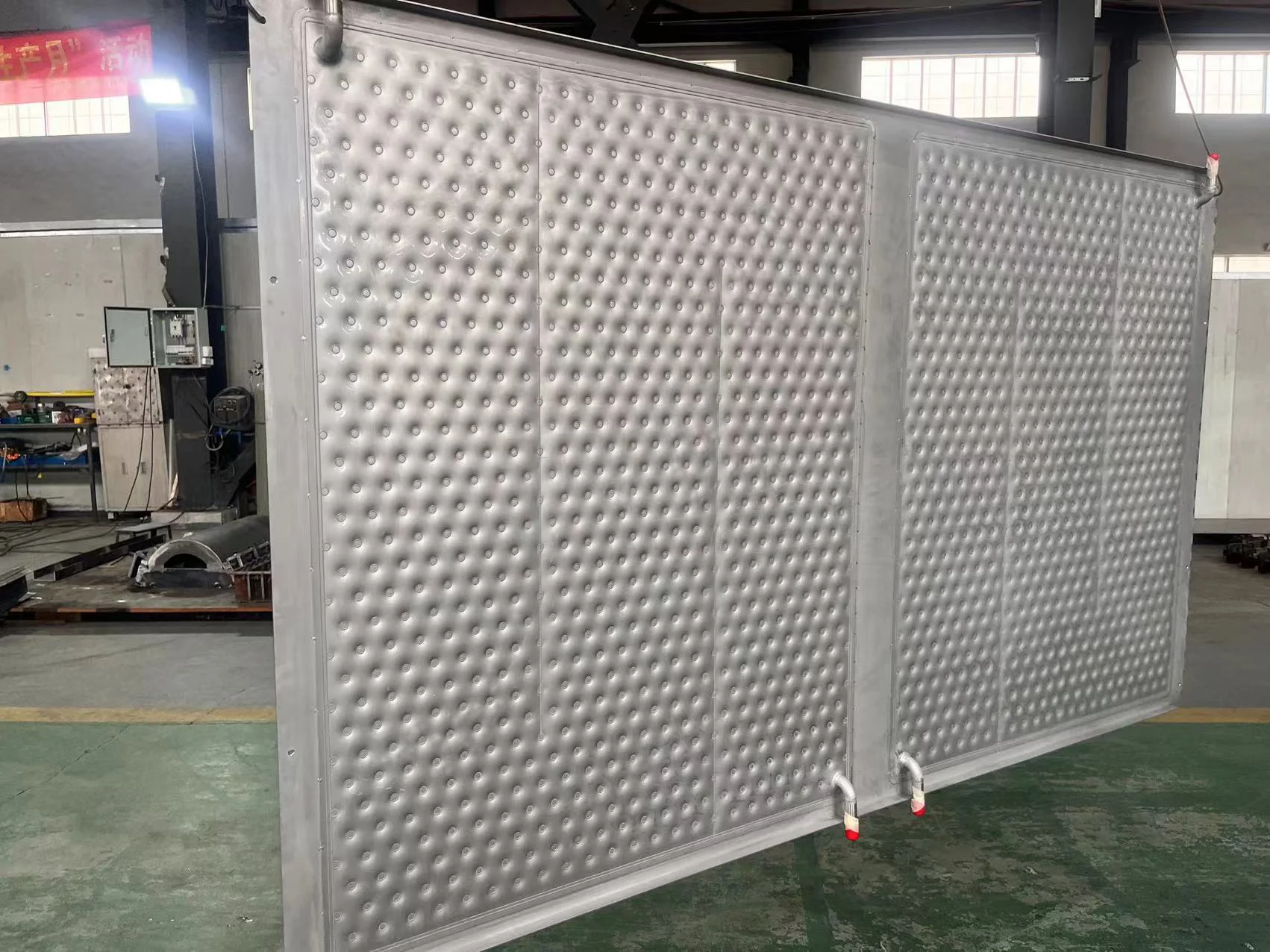

Double-sided drum pressure, generally used as immersion heat exchange element.
Specification
High pressure capacity (≥40MPa) | Cost-effective due to low welding costs |
Thinner materials can be used, saving you on material costs | Can be designed into any shape |
Pillow Plates' welding pattern guarantees high turbulence and therefore creates high overall heat transfer coefficients | Due to the low volume in the plate, little cooling / heating fluid needs to be circulated. As a result, less pump capacity is required |
Maximum size of single piece: 2000*12000mm | Easy to clean |
Accept any other special shape and size design and customization！
Product Advantage:

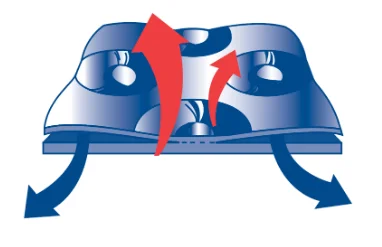

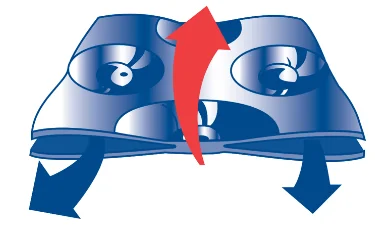

(1) The inflated channels create the higher turbulence flow to achieve the higher heat transfer efficiency
(2) Available in most materials, like stainless steel SS304, 316L, 2205 Hastelloy titanium and others
(3) Custom-made size and shape are available
(4) Under the maximum internal pressure is 60 Bar
(5) Low pressure drops
(6) Easy for cleaning and replacing
(1) The inflated channels create the higher turbulence flow to achieve the higher heat transfer efficiency
(2) Available in most materials, like stainless steel SS304, 316L, 2205 Hastelloy titanium and others
(3) Custom-made size and shape are available
(4) Under the maximum internal pressure is 60 Bar
(5) Low pressure drops
(6) Easy for cleaning and replacing
Product Details
Application

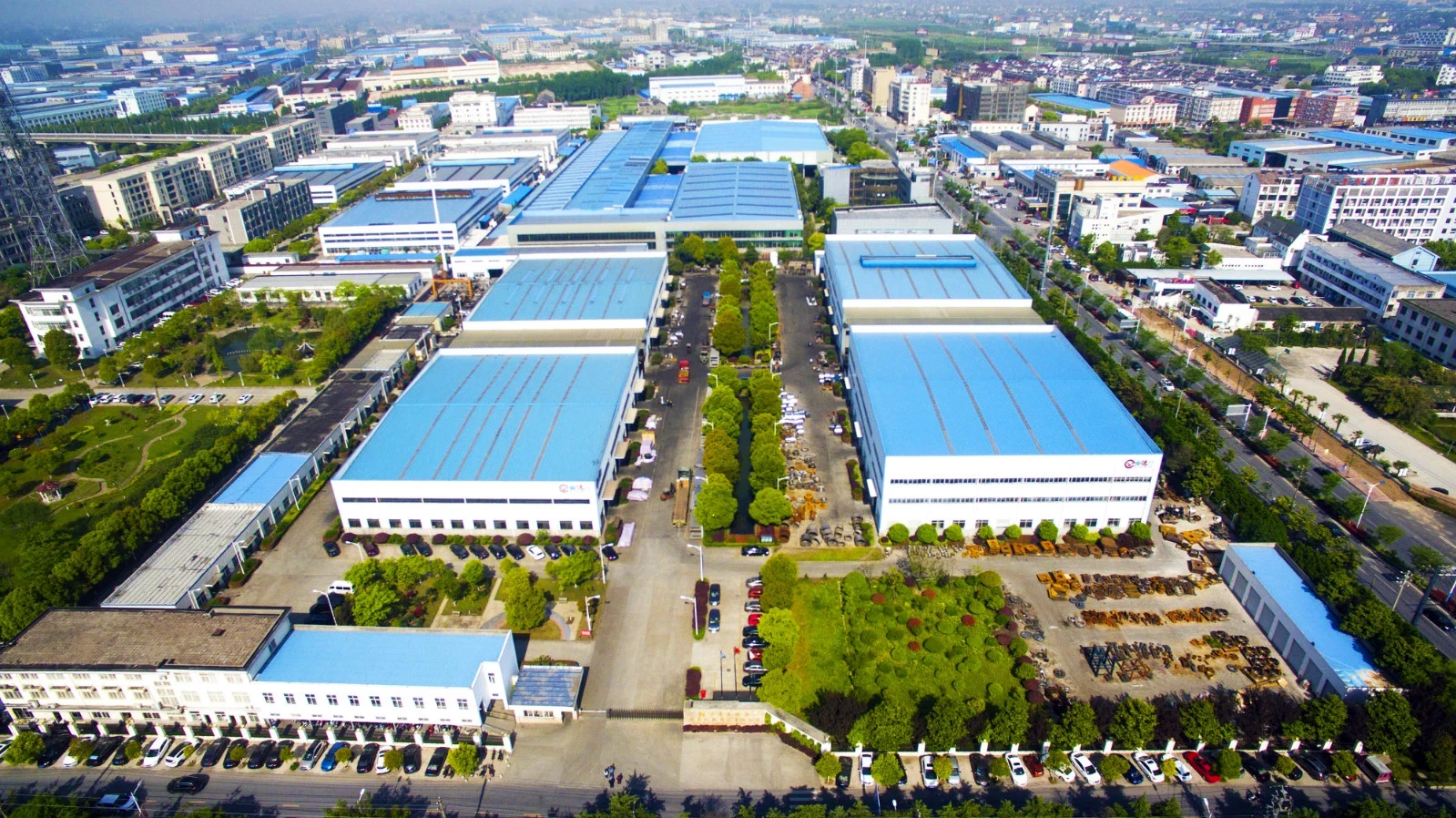

Company Profile
The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.
