carrier condenser fan motor spal fan 12V/24V Italy 12 inch 16 inch Dc air conditioner bus fan and blower from China manufacture

Product Overview

Description

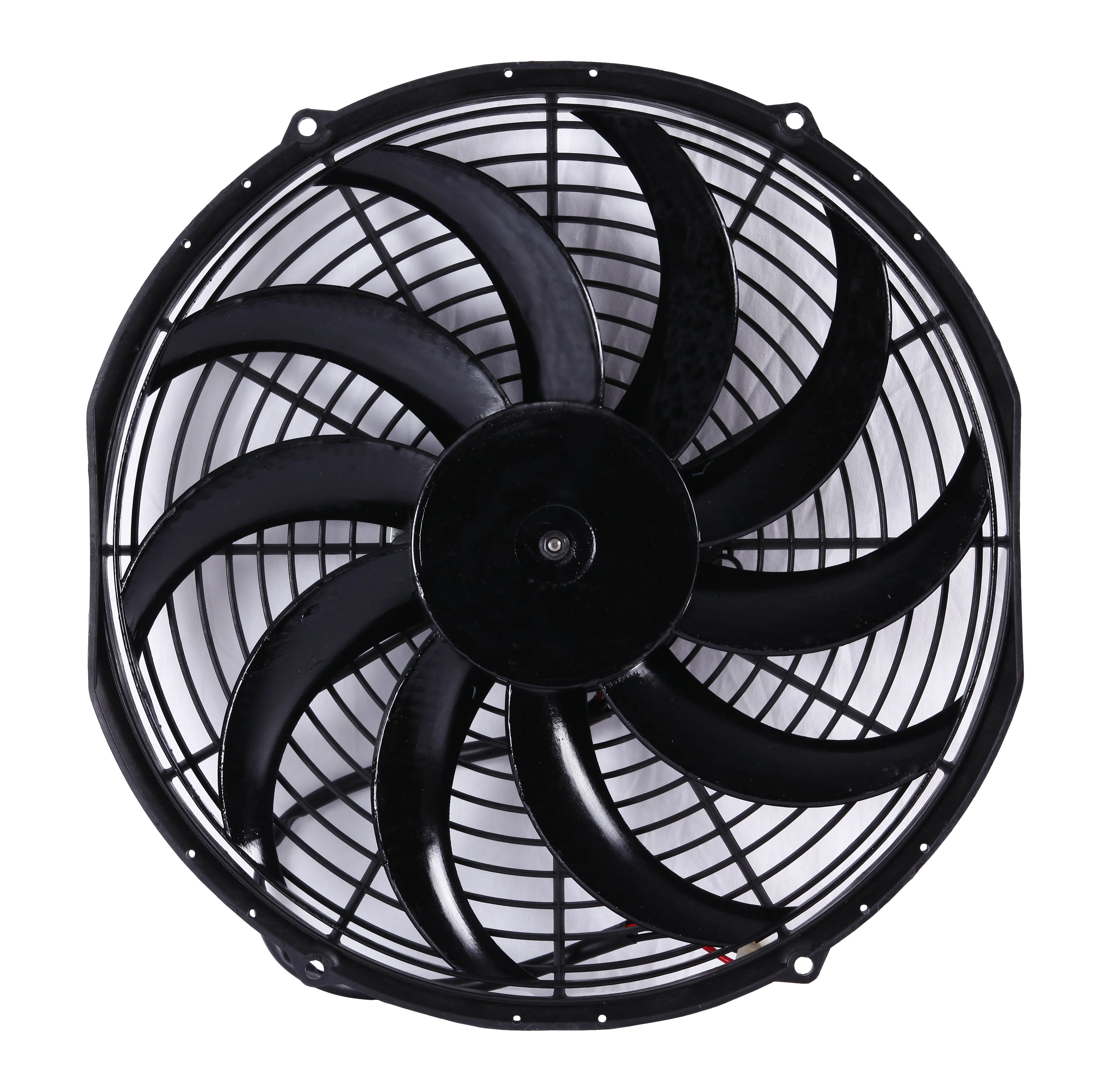

Radiator bus air conditioning FAN KLNF277BF  are the most popular item in the air condition system market. It is widely used for European countries, South Africa, Asian bus air conditioner system.

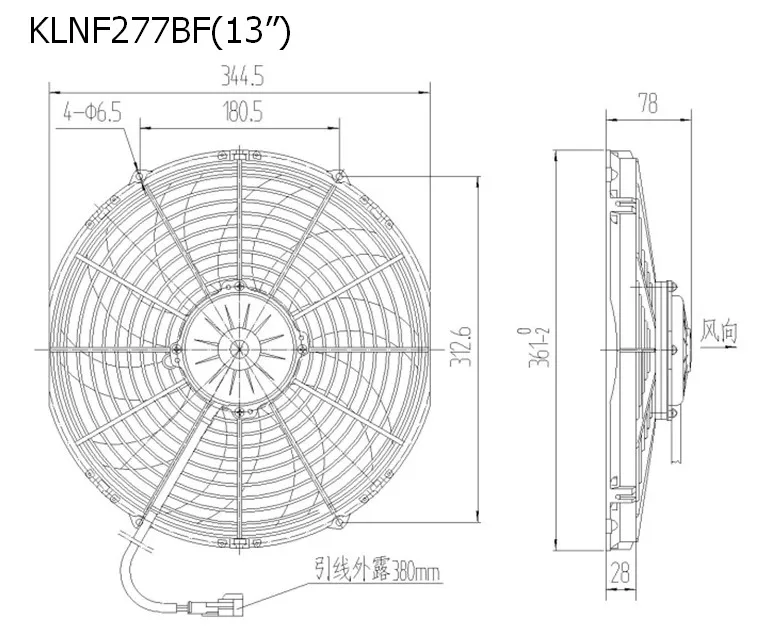

Specification of KEAO DC motor fan  KLNF277BF





PART NO/ ITEM NO	AIR FLOW      (m3/h)	VOTAGE        (v)	CURRENT        (A)	STATIC PRESSURE              (Pa)	SPEED     (rpm)
KLNF277BF	1200	24/12	8	100	2700





   a)Operation temperature:-25C~85C



   b)Lifespan: 6000hours.



  c)Insulation class: B





Axial fan and refrigerator car fan for bus air conditioner



Part NO.	KLNF277BF
Name	Condenser fan
Place of Origin	Guangdong, China
Voltage	24V
Current	≤8A
Speed	≥2700±150 rpm
Static pressure	100pa
Air Flow	1200m3/h
Warranty	13 months
Life Time	≥6000 hrs
Packing	6 pcs/carton





We are available for brushless type and brush type.  The working life for bursh fan: 6000 hours, Brushless type motor fans: 20,000h.





For over 20 years manufacturing and exporting experiences. We well understand your requirments. We cooperate customers with top quality and a very competitive price. For more info, please feel free contact us. thank you !
